ETC ColorSource Spot Pearl v1.7 User manual

ETC Installation Guide
ColorSource Spot Pearl v1.7
Corpora te He adqua rte rs Middleton, WI, USA [phone]
London, UK [phone] Holzkirc he n, DE [phone]
Rome , IT [phone] Hong Kong [phone] Paris, FR [phone]
Web etcconnect.com Support support.etcconnect.com
Conta ct etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document
to be provided in its entirety. Trademark and patent info:etcconnect.com/ip
7413M2120-1.7 Rev C Released 2020-03

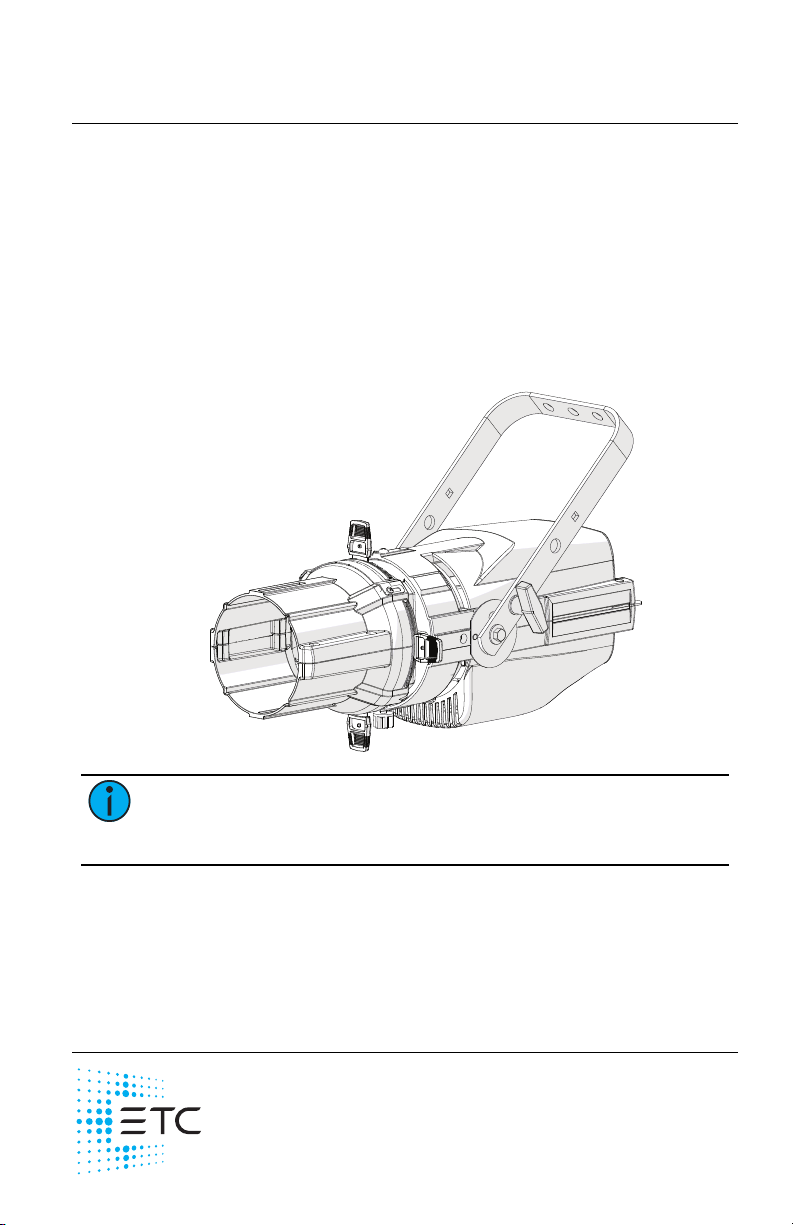

Overview
The ColorSource Spot Pearl is an affordable LED fixture that provides a bright,
variable white light.
The ColorSource Spot Pearl is UL924 listed as a Directly Controlled Luminaire
for use in emergency lighting systems when used with the ETC DMX
Emergency Bypass Controller (DEBC).
This light engine can be used with standard ETC shutter barrels, lens tubes,
fresnel adapters, CYC adapters, and accessories.
Note: Features described in this document require the latest version
of software. For information on updating fixture software, see Update
the Fixture Software on page12.

ETC Installation Guide
ColorSource Spot Pearl v1.7
Safety
For professional use only. Read the entire manual before using this
equipment.
CAUTION:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not operate in proximity to flammable materials.
WARNING: Disconnect the fixture from power and DMX and
allow it to cool before performing any cleaning and maintenance.
WARNING: The ColorSource Spot Pearl is a Directly Controlled
Luminaire suitable for use in emergency lighting applications in
accordance with 2017 National Electrical Code section 700.24
when used with an ETC DMX Emergency Bypass Controller.
Equipment intended for this purpose must be properly selected,
installed, and maintained so that facility conformance can be
obtained. Installation and servicing shall be performed by
qualified service personnel.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
•
Do not use outdoors.
•
Do not let power supply cords touch hot surfaces.
•
Do not mount near gas or electric heaters.
•
Equipment should be mounted in locations and at heights where it
will not readily be subjected to tampering by unauthorized
personnel.
•
The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
•
Do not use this equipment for other than intended use.
SAVE THESE INSTRUCTIONS
ColorSource Spot Pearl Page 2 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Note: The light source in this luminaire is not user-replaceable, and
must be replaced only by a qualified technician. Contact ETC
Customer Support for assistance.
Environment
The ColorSource Spot Pearl operates in ambient temperatures of 0°C–40°C
and comes with a variable-speed fan. The ColorSourceSpot Pearl is for indoor
use only.
•
Maximum recommended ambient operating temperature: Ta=40°C
(104°F)
•
Maximum anticipated external surface temperature at 40°C ambient:
Tmax = 80°C (176°F)
•
External temperatures after 5 minutes of full-brightness operation at
25°C (77°F) ambient: 32°C (90°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 50°C
(122°F)
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz.
•
Maximum power consumption is 230 W.
•
Up to 6 luminaires(15 A max) may be linked via power thru connector
(7 luminaires total per circuit) when used with an R20Relay Module or
Unison Echo Relay Panel. Consult breaker trip curves when used with
other equipment. Requires power from a non-dimmable source.
•
Inrush:
-
120 V: 28 A (first half-cycle)
-
240 V: 46 A (first half-cycle)
Typical Power Consumption
100 V 120 V 230 V
Power Current Power Current Power Current
Idle 1.93 W 0.05 A 1.87 W 0.05 A 1.6 W 0.06 A
Direct at Full 203 W 2.04 A 199.2 W 1.67 A 194.2 W 0.87 A
ColorSource Spot Pearl Page 3 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Installation
Emergency Lighting Considerations
Luminaires that are used in emergency lighting applications must provide a
minimum illumination level over the identified means of egress path in
accordance with the Life Safety Code®, NFPA 101. A luminaire that is intended
to serve this purpose must be mounted at a height where it will not readily be
subjected to tampering by unauthorized personnel and where the minimum
required illumination level over the egress path can be achieved. The ETC
DMX Emergency Bypass Controller that is driving the luminaire upon loss of
utility power must be programmed to drive the ColorSource Spot Pearl to full
illumination.

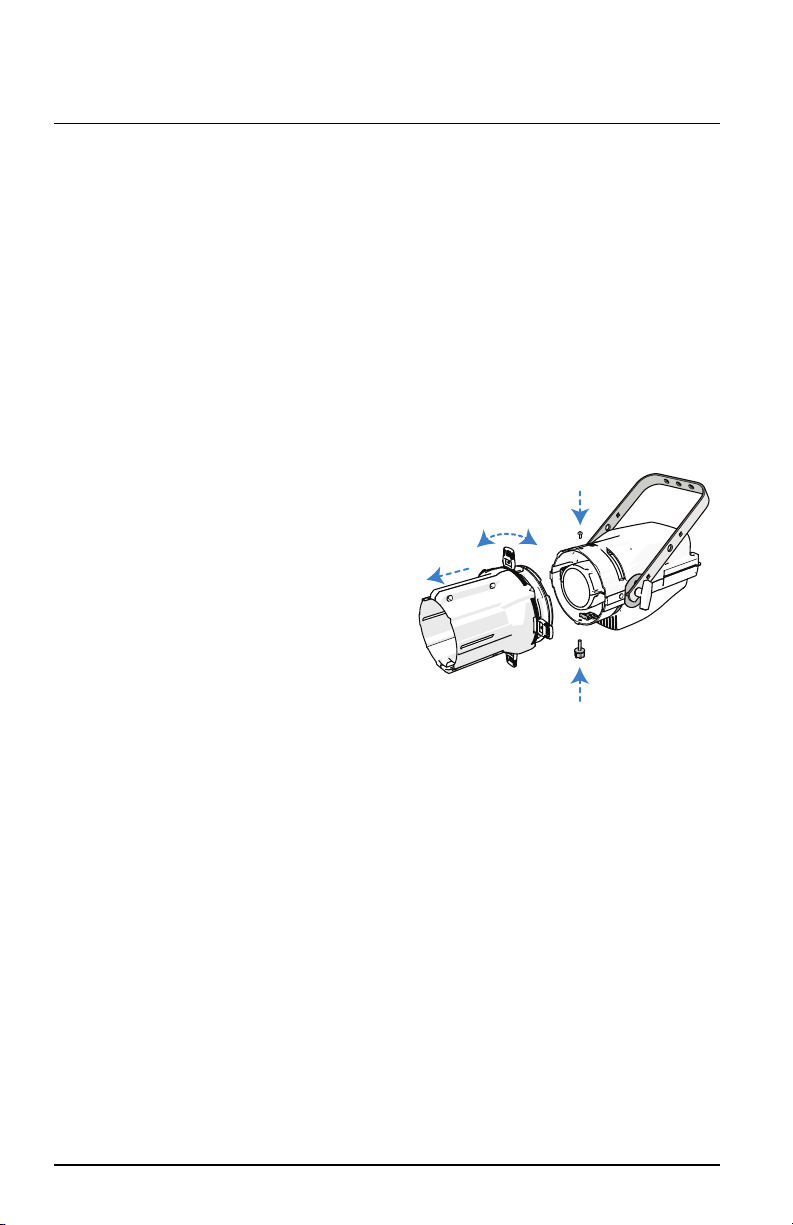

Install a Shutter Barrel
Small screw (included
with shutter barrel)
Light
engine
The ColorSource Spot Pearl can be
purchased with or without a shutter
barrel. To install a shutter barrel you
will need a #2 Phillips screwdriver
(not provided).
The ColorSource light engine
includes a barrel screw. The small
screw used to secure the top of the
shutter barrel is included with the
shutter barrel.
1. Align the barrel to the front of the ColorSource Spot Pearl and rotate it
one quarter turn counter-clockwise.
2. Insert the shutter barrel into the front of the light engine and rotate
clockwise until it is fully threaded onto the light engine.
3. Insert the barrel screw at the bottom of the light engine and tighten.
4. Insert the small screw into the top of the light engine and tighten
using the Phillips screwdriver.
ColorSource Spot Pearl Page 4 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Mounting
The ColorSource Spot Pearl ships with a standard yoke for mounting with a
clamp. You can adjust the position of the yoke when necessary for low-
clearance mounting.

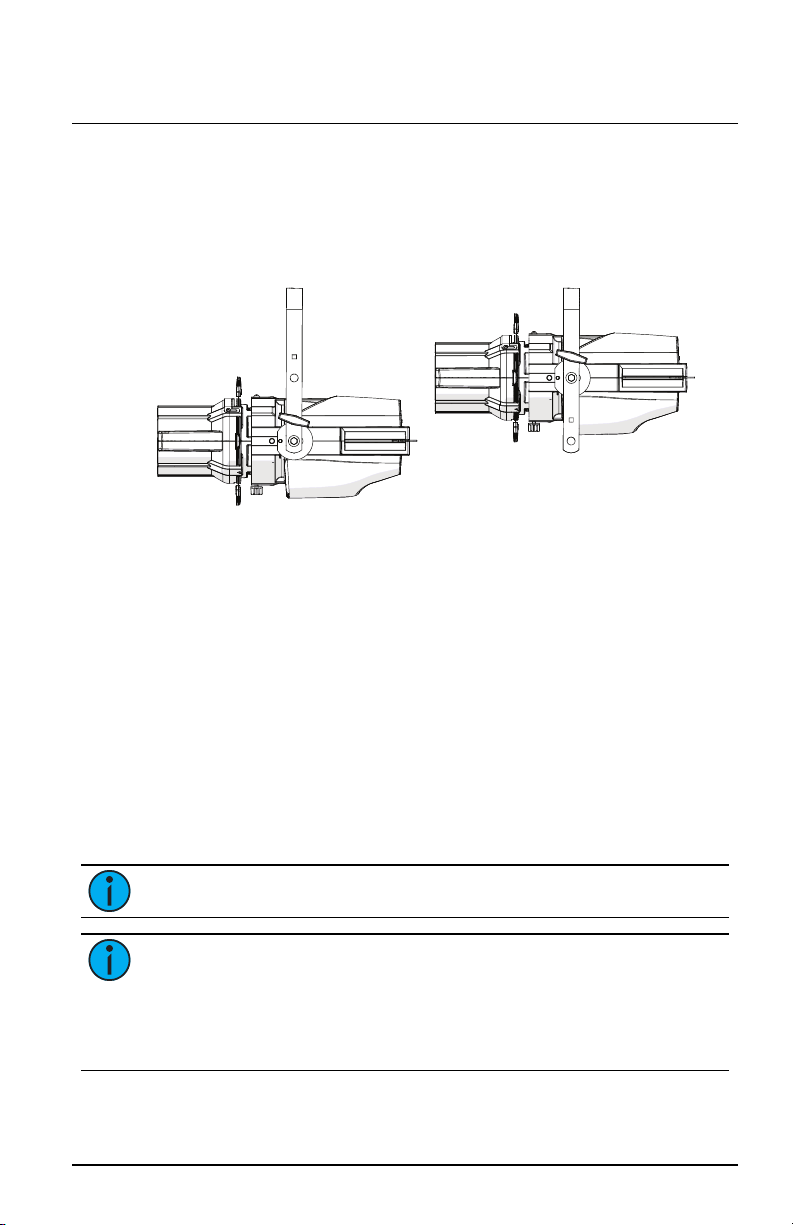

Standard yoke position Low-clearance yoke position
Safety Cable
A safety cable (or other approved safety device) must be attached to the
fixture. Attachment loops are on the rear of the fixture. Take care to leave as
little slack as possible in the safety cable to avoid catching the yoke of the
fixture.
Connectors
•
Power: Two powerCON®connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin XLR connectors OR two
RJ45connectors for data in and thru
Conversion cables are available from ETC. Please contact your ETC customer
service representative and request part number W6538 for RJ45 to female
XLR or part number W6539 for RJ45 to male XLR.
Note: This fixture is not Ethernet/data network compatible.
Note: The ColorSource Spot Pearl is not self terminating. You must
terminate the last fixture in line with a 120 Ohm resistor.
XLRterminators are not available from ETC.
To purchase an RJ45 terminator, please contact ETC customer service
and request part number N4086.
ColorSource Spot Pearl Page 5 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Set Up the Fixture
1. Plug the power cord into the powerCON In connector on the rear of
the fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX line,
terminate the fixture. See Connectors on the previous page .
4. Plug the power cord into the power source.
Data in Data thru
Mode Up and Down
User interface
Power
in
Power
thru
Safety cable
attachment
loops
Power Up
Press any button to wake the display. The display shows the DMX address.
See Set the DMXAddress below .
You can press the Mode button to access the Presets menu. See Play Presets
on page10 .
Adjust the Tilt
The fixture can be tilted up and down and rotated (panned) as needed.
1. Loosen, but do not remove the yoke locking knobs.
2. Tilt the fixture to the desired angle.
3. Tighten the yoke locking knobs.
Set the DMXAddress
1. Press any button to wake the display. The display shows the DMX
address.
2. Use the Up and Down buttons to select the DMX address for the
fixture.
You can also use RDM for DMX addressing. See RDM Values on page13 .
ColorSource Spot Pearl Page 6 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of three available
mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows the
current DMX control mode.
3. Press the Up button or Down button to change the DMX control
mode:
•
ct: Variable color temperature (intensity or color temperature).
This is the default mode.
•
dir: Direct emitter control (intensity, warm white, cool white,
strobe).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults
to 3000K White).
4. Press the Mode button to confirm your selection.
The display will automatically return to the DMX address after 10 seconds of
inactivity, and edits to the DMX control mode will not be saved. This cancels
unsaved changes.
DMXControl Channels
DMX
Channel
ct
(Variable Color Temperature)
dir
(Direct)
1ch
(1 Channel)
1 Intensity Intensity Intensity
2 Color temperature Warm white
3 Cool white
4 Strobe*
*Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate
from 1 per second up to 33 per second.
ColorSource Spot Pearl Page 7 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Color Temperature DMX Values
The table below shows the color temperature value for each DMX value when
using the ct DMX control mode. Note that although DMX address 0 = 3200
and DMX address 255 = 5600, the fixture supports a range of color
temperatures from 2725 to 6450.
Color Temp DMXValue
3200 0–1
2725 2–3
2750 4–5
2775 6
2800 7–8
2825 9–10
2850 11
2875 12–13
2900 14–15
2925 16
2950 17–18
2975 19–20
3000 21
3025 22–23
3050 24–25
3075 26
3100 27–28
3125 29–30
3150 31
3175 32–33
3200 34–35
3225 36–37
3250 38
3275 39–40
3300 41–42
Color Temp DMXValue
3325 43
3350 44–45
3375 46–47
3400 48
3425 49–50
3450 51–52
3475 53
3500 54–55
3525 56–57
3550 58
3575 59–60
3600 61–62
3625 63
3650 64–65
3675 66–67
3700 68–69
3725 70
3750 71–72
3775 73–74
3800 75
3825 76–77
3850 78–79
3875 80
3900 81–82
3925 83–84
Color Temp DMXValue
3950 85
3975 86–87
4000 88–89
4025 90
4050 91–92
4075 93–94
4100 95
4125 96–97
4150 98–99
4175 100–101
4200 102
4225 103–104
4250 105–106
4275 107
4300 108–109
4325 110–111
4350 112
4375 113–114
4400 115–116
4425 117
4450 118–119
4475 120–121
4500 122
4525 123–124
4550 125–126
ColorSource Spot Pearl Page 8 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Color Temp DMXValue
4575 127
4600 128–129
4625 130–131
4650 132–133
4675 134
4700 135–136
4725 137–138
4750 139
4775 140–141
4800 142–143
4825 144
4850 145–146
4875 147–148
4900 149
4925 150–151
4950 152–153
4975 154
5000 155–156
5025 157–158
5050 159
5075 160–161
5100 162–163
5125 164–165
5150 166
5175 167–168
5200 169–170
Color Temp DMXValue
5225 171
5250 172–173
5275 174–175
5300 176
5325 177–178
5350 179–180
5375 181
5400 182–183
5425 184–185
5450 186
5475 187–188
5500 189–190
5525 191
5550 192–193
5575 194–195
5600 196–197
5625 198
5650 199–200
5675 201–202
5700 203
5725 204–205
5750 206–207
5775 208
5800 209–210
5825 211–212
5850 213
Color Temp DMXValue
5875 214–215
5900 216–217
5925 218
5950 219–220
5975 221–222
6000 223
6025 224–225
6050 226–227
6075 228–229
6100 230
6125 231–232
6150 233–234
6175 235
6200 236–237
6225 238–239
6250 240
6275 241–242
6300 243–244
6325 245
6350 246–247
6375 248–249
6400 250
6425 251–252
6450 253
5600 254–255
ColorSource Spot Pearl Page 9 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Play Presets
The fixture has twelve factory-configured presets. When you play a preset on a
fixture, the same preset number plays on any connected fixtures that are not
receiving DMX. You can re-record presets through an RDM device or manually
on the fixture. See Re-record Presets on the facing page .
1. Press the Mode button to activate the Presets menu. The last active
preset plays automatically.(If DMX data is present, the current preset
plays in the background and DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets.
3. To stop the selected preset, press the Mode button a second time. The
display will revert to show the DMX start address.
Pre-configuredPresets
Preset Name
1 3000 K White
2 3200 K White
3 3500 K White
4 4000 K White
5 4200 K White
6 4500 K White
Preset Name
7 4700 K White
8 5000 K White
9 5200 K White
10 5600 K White
11 6000 K White
12 6450 K White
ColorSource Spot Pearl Page 10 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel mode
(1ch), you cannot re-record presets.
See Change the DMXControl Mode on page7.
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access the Presets menu, and then press the
Up button or Down button to select the preset that you want to edit.
3. Press and hold the Mode button for 3 seconds. The display shows L:
followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of
the preset in real time.
5. Press the Mode button to confirm your selection and return to the
Presets menu.
The display will automatically return to the Presets menu after 10 seconds of
inactivity, and edits to the preset intensity will not be saved.
ColorSource Spot Pearl Page 11 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Lock the User Interface
After you have set up the fixture, you can lock the user interface to prevent
additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user interface
is locked.
2. To unlock the user interface, press and hold the Up button and Down
button simultaneously for 3 seconds.
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software updates.
For more information on UpdaterAtor, see the UpdaterAtor Software Quick
Guide , which you can download for free from etcconnect.com.
When you add a ColorSource fixture running a newer software version or
update a ColorSource fixture to a newer software version using UpdaterAtor,
you can use that fixture to push the newer software version to all connected
ColorSource fixtures, except for ColorSource Spotjr fixtures. ColorSource
Spotjr fixtures can only update (and be updated by)other ColorSource Spotjr
fixtures.
1. Remove power and DMX In from the master fixture that is running the
software version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously while
restoring power.
3. The display will show Udt rdy to indicate the update mode is
selected.
4. Press the Mode button to start the update process.
•
The display will alternate between Udt and the percentage
complete while updating.
•
The master fixture will reboot once the update is complete.
5. Reconnect DMX In on the master fixture.
ColorSource Spot Pearl Page 12 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5 seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and ERR to indicate a problem with
the color calibration. The fixture will need to be returned to the ETC
factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and ERR to indicate that the fixture
has gone into over-temperature protection mode to avoid damaging
the fixture. Once the fixture has self-cooled, the error will automatically
clear.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear the
error. If the error persists, contact ETC.
RDM Values
Parameter Value Description
Manufacturer ID 0x6574 Electronic Theatre Controls
Model ID 0x0207 ColorSource Spot Pearl
DMXStart Address 0x00F0 Range = 1–512
DMX Personality 0x00E0
1 = Variable Color Temp
2 = Direct
3 = 1 Channel
Output Frequency 0x8123 0 = Standard (1.2 kHz)
1 = High (25 kHz)
ColorSource Spot Pearl Page 13 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
ColorSource Spot Pearl Page 14 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
ColorSource Spot Pearl Page 15 of 16 ETC

ETC Installation Guide
ColorSource Spot Pearl v1.7
Quick Reference
DMXControl Channels
DMX
Channel
ct
(Variable Color Temperature)
dir
(Direct)
1ch
(1 Channel)
1 Intensity Intensity Intensity
2 Color temperature Warm white
3 Cool white
4 Strobe*
*Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate
from 1 per second up to 33 per second.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and ERR to indicate a problem with
the color calibration. The fixture will need to be returned to the ETC
factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and ERR to indicate that the fixture
has gone into over-temperature protection mode to avoid damaging
the fixture. Once the fixture has self-cooled, the error will automatically
clear.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear the
error. If the error persists, contact ETC.
ColorSource Spot Pearl Page 16 of 16 ETC
