1.1. About the Manual
1. Introduction
CoolShaping system is designed to meet international safety and performance standards.
Personnel operating the system must have a thorough understanding of the proper operation of the
CoolShaping.
This manual has been prepared to aid staff and technical personnel to understand and operate the
system. Do not operate the system before reading this manual and gaining a clear understanding
of system operation. If any part of this manual is not clear, please contact your local Eunsung
representative for clarification.
The information provided in this manual is not intended to replace the professional training on the
clinical use of the system. Please contact your local Eunsung representative for current information
on available training.
This manual should always accompany the system and all operating personnel must know its
location.
Use of controls or adjustments, or performance of procedures other than those specified herein may put the
operator and/or the patient at risk. Therefore, before attempting to use or operate the system, personnel operating
CoolShaping should read this manual and become thoroughly familiar with all its safety requirements and operating
procedures.
1.2. About the Device
CoolShaping is a cryogenic technology based fat-cell reduction device.
As triglyceride in fats will be converted into solid under the circumstances of low temperatures,
CoolShaping uses advanced cryogenic technology to selectively target fat bulges and eliminate fat
cells through a gradual process that does not harm the surrounding tissues, reducing unwanted fat.
When fat cells are exposed to cold temperature, they go through a process of natural removal that
gradually reduces the thickness of the fat layer by the mode of action which is called fat-cell
apoptosis.
Fat cells in the treated area are gently eliminated through the body’s normal metabolism resulting in
maximum efficacy after 90 days from the day of practice.
6 CoolShaping

This chapter describes general safety issues regarding the use of CoolShaping with special
emphasis on cryogenic and electrical safety. With proper operation and maintenance, trained and
qualified practitioners can use the system safely. The supervising physician and all other personnel
operating or maintaining CoolShaping must be familiar with the safety information provided in this
chapter.
The primary consideration should be for the safety of the patient, the physician and other personnel.
Patient safety is mainly assured with a well trained staff and a well laid out treatment room. Patient
education is also important, including information about the nature of the treatment.
2.1. About Equipment Safety
2. Equipment Safety
Physicians and clinicians should read this manual thoroughly before attempting to operate the
system.
Make sure that all treatment personnel are familiar with the system’s controls and know how to shut
down the system instantly in case of an emergency.
Do not use the system if it has been dropped or if any other type of excessive force has been applied.
Always try to minimize shock and vibration.
Keep the in & out side of applicator clean; pay particular attention to peltier electrodes & vacuum hole.
Check the integrity of all components.
Do not allow the applicator to come in contact with hard materials that could damage the applicators.
Always check the condition before starting treatment for any defects.
Strictly limit the use of the device only to personnel who are physician or qualified trainee.
Never leave the system turned on, open or unattended during system maintenance.
When treating with CoolShaping always use a sheet of CoolPad at every treating area not only to
improve the efficacy but also in order to effectively protect the given area.
In the course of treatment, do not change the temperature.
2.2. General Precaution & Caution
7
2.3. Burn Hazard
CoolShaping is a state-of-the-art cryogenic fat reduction device for medical aesthetic applications. The
system emits high powered cooling energy that may damage the skin in case of using excessive power.
CoolShaping
Do not operate CoolShaping before reading this manual thoroughly. Failure to observe these precautions &
cautions may void the warranty.
Do not disconnect, repair the device. Merchandise-defect due to this act may void the warranty.

CoolShaping produces high voltages. Some components may retain a charge after the power supply
has been turned off, so no part of the exterior housing should be removed. Removing the console
covers may create a safety hazard.
Always make sure the system is turned off before connecting/disconnecting the applicator to/from
the system.
Never use the system in the presence of explosive of flammable materials.
Water and electricity are a dangerous combination. Do not place CoolShaping in wet surroundings.
Do not immerse any part of the system into liquids directly.
The use of accessories and cables other than those specified may result in increased emissions or
decreased immunity of the device. It is forbidden to connect any third-party equipment to the system.
Do not use a damaged cable that has been damaged.
2.4. Electrical Hazard
2. Equipment Safety
Any cryogenic based device can cause skin injury if used improperly.
Always be aware of the possible dangers and take proper safeguards as described in this manual.
To avoid the risk of electrical shock, this equipment must be connected only to an electrical supply outlet with
protective earth.
Do not touch the applicator connector while the system is turned on; this may cause electrical shocks.
8
Neither main device nor the applicator should be submerged in liquid. Please turn off the AC power
switch before cleaning the device.
Use a soft cloth for both cleaning and disinfecting. Keep the device and applicator clean at all times
to get the best possible performance.
If 70% isopropyl alcohol is used to clean and disinfect any part of the CoolShaping system, allow it
to dry thoroughly before operating the system.
2.5. Cleaning Induced Hazard
2.6. Operational Safety
Never use a damaged applicator. Always check the condition of applicator before starting treatment
for any defects.
Always clean and disinfect the applicator properly before treatment.
Allow access to the treatment room only to personnel who are well trained in the required safety
procedures.
CoolPad is indispensable and compatible item which should always go along with CoolShaping
treatment.
During system operation, the generated electromagnetic field may interfere with other devices and
computers. Always place the system at least two meters away from computers and other electrical
devices.
CoolShaping

2. Equipment Safety
9
2.7. Installation hazards
Do not place this device in direct sunlight. Install the device in aired indoors(10~24℃).
Do not place this device in an aslope area.
Do not give an impact to this device. The slightest external stimulation can be caused serious
problem.
Pregnancy
Diseases(Cardiovascular disease, Liver disease, Kidney disease, Cancer, Diabetes;
diabetics are predisposed to nerve issues, so it is highly likely that they tend to feel severe
numbness during the treatment)
Infection in the region
Patient with keloid
Use a pacemaker
Regularly taking anti-inflammatory medication
Sensitive problem skin
Hypertrophic scar marks
Red spot
2.8. Contraindications
CoolShaping is a safe device yet treatment operated by CoolShaping is contraindicated for those
patients who have following symptoms and/or diseases.
Please have your patients consult to doctor prior to the treatment.
The operator has the ability to adjust the treatment environment & energy setting as per respective patients’ fat
& skin condition. CoolShaping Auto Mode is pre-programmed with proven treatment guidelines. However the
user has the ability to adjust there energy setting as per their decision based on the patients’ condition.
Treatment results may vary.
CoolShaping

3.1. Structure
3. Component

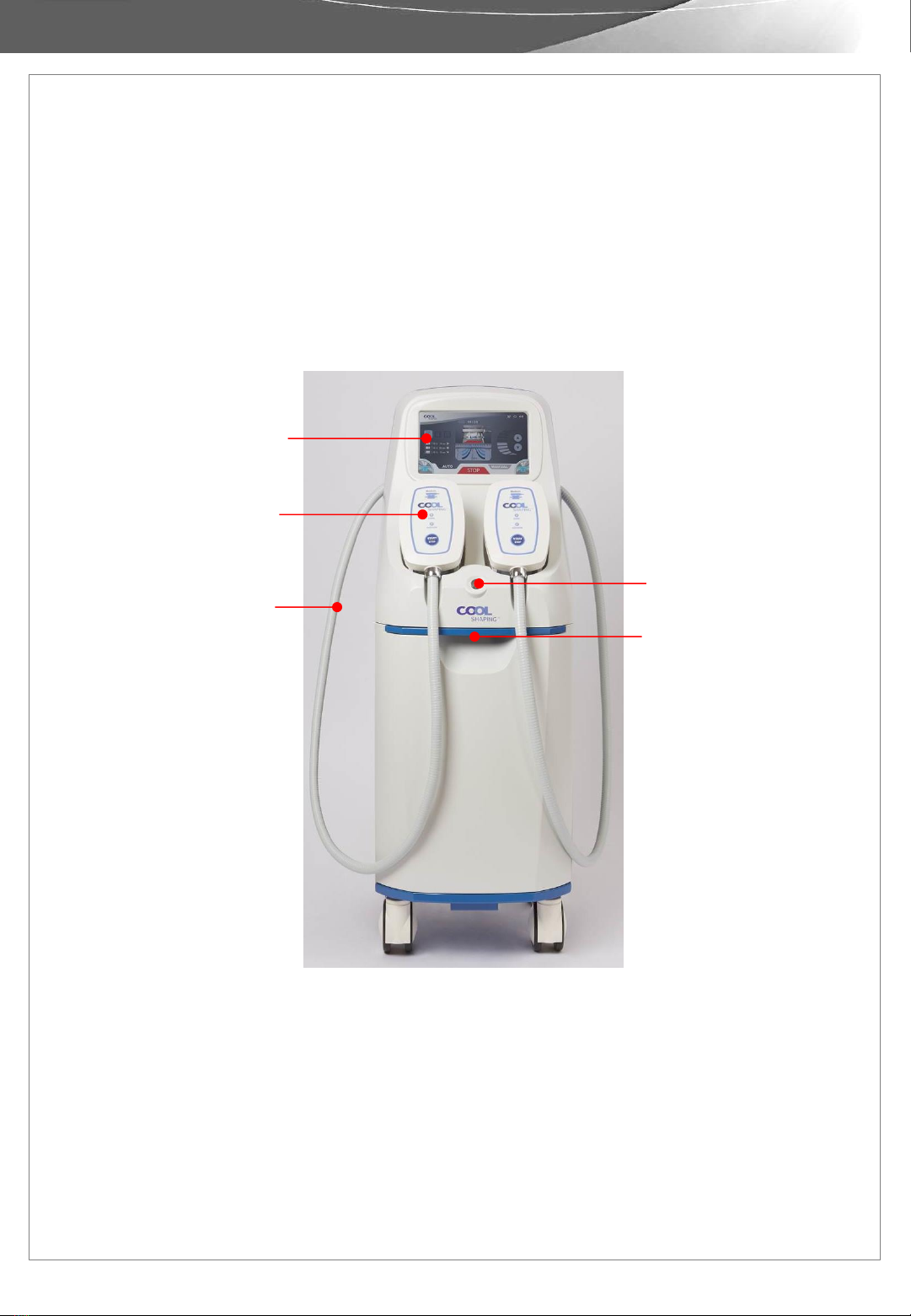

- CoolShaping System -
10 CoolShaping
LCD Monitor
Handpiece cable
Handpiece
Key switch
Handle

CoolShaping
11

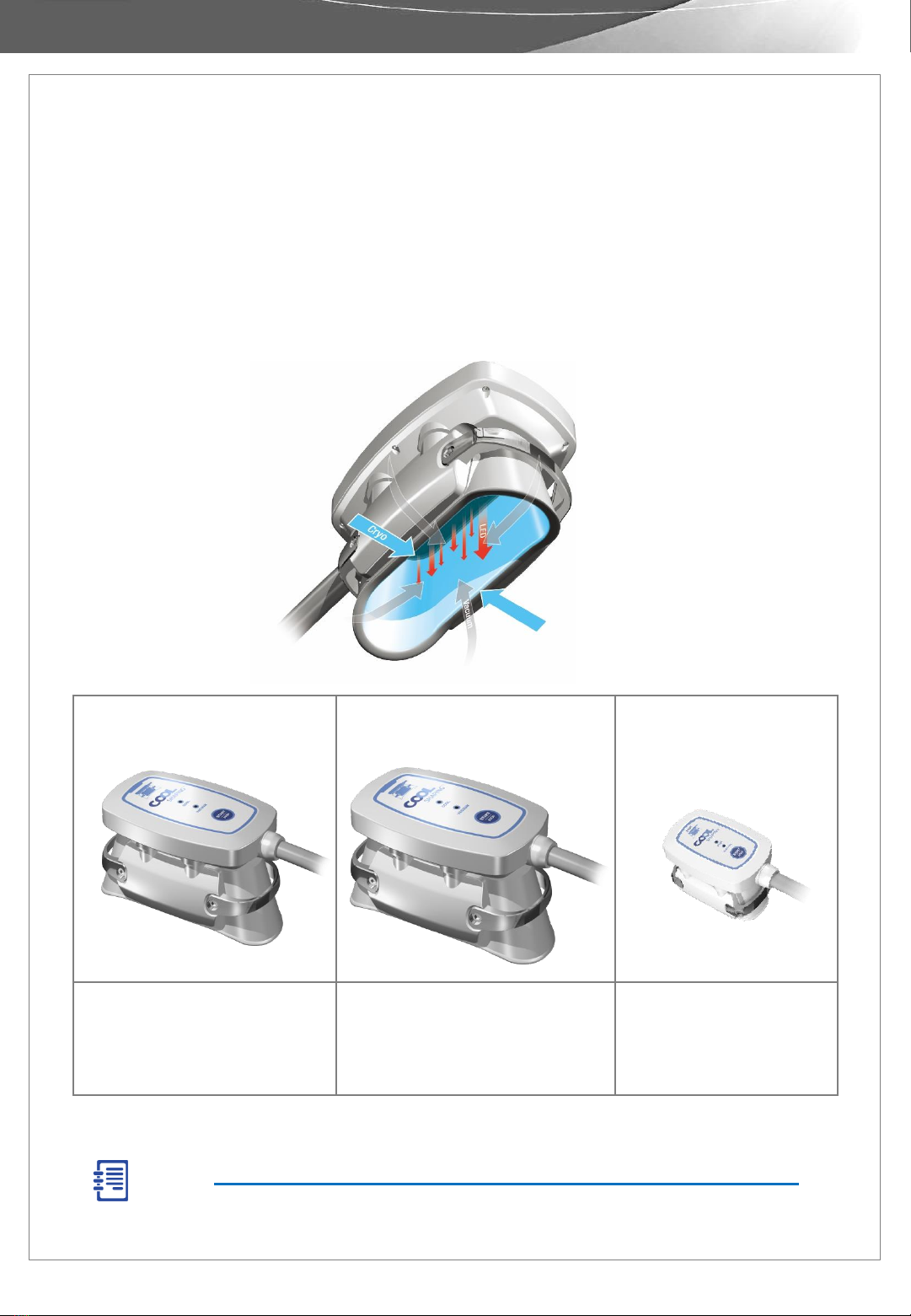

3.2. Applicators
3. Component
NOTE
Call your local dealer if you want to purchase additional components of CoolShaping.
Dimension
108mm(W) x 188mm(D) x
138mm(H)
Dimension
118mm(W) x 220mm(D) x 142mm(H)
Dimension
108mm(W) x 172mm(D) x
120mm(H)
[ Large size ]
Engineered with Integrated Technology (Cryogenic Fat Reduction + Vacuum + LED)
Operators are able to use two applicators simultaneously.
Available in 2 Medium sized applicator. [Large & Small sizes are optional.]
[ Medium size ] [ Small size ]

4. Site Preparation
4.1. About Site Preparation
When preparing the site, operators should consider the spatial, electrical, environmental,
transportation and storage requirements of the system. Before unpacking, ensure that the site meets
the requirements described in the following sections.
Space should be allocated with adequate ventilation and free airflow. The working area for the system
should be prepared according to the system dimensions presented in Specification chapter. In order
to guarantee proper ventilation, always keep the sides of the system at least 0.5 meters from the wall
or from other obstructions to air flow.
The system can interfere with computers and other electrical and medical devices. It should be placed
at least two meters away from any such devices.
CoolShaping incorporates a universal power supply module that allows it to be connected to standard
electrical outlets anywhere. Please consider the following electrical requirements before installing the
system:
The AC line power requirements for the system are:
100 V / 220~240 V
50 Hz / 60 Hz
The power receptacle must be grounded.
CoolShaping should not share a power line with other heavy power-load equipment such as air
conditioners. Ideally, this should be on a separate power line with a separate circuit breaker.
4.3. Electrical Requirements
Verify that the CoolShaping is wired for the appropriate line voltage of your country.
Proper grounding is essential for safe operation.
4.4. Environmental Requirements
Air Quality:
The system should operate in a non-corrosive atmosphere. Corrosive materials such as
acids can damage electrical wiring, electronic components and the surfaces of treatment
components.
Keep dust and hair particles to a minimum.
Temperature:
To ensure that the system performs optimally, maintain room temperature between 50°to
68°F [10°to 24°C] and relative humidity at 30% to 75%, non-condensing.
Do not place the device near heating vents or other sources of temperature variation.
4.2. Spatial Requirements
12 CoolShaping

To maintain the system properly during storage and transport, follow these requirements.
Keep the storage room temperature between 40°and 105°F [5°to 40°C].
Keep the system in a location where the humidity is between 10% and 90%, noncondensing.
Store the system where the air is free of corrosive substances, such as salts or acids.
Store the system where there is a minimum of dust particles.
Minimize shock and vibration.
Do not drop.
Lift only with suitable and appropriate equipment.
4. Site Preparation
4.5. Storage & Transportations Requirements
13 CoolShaping

CoolShaping
14
CoolShaping is designed for installation in an office or a clinic and requires minimal site preparation.
System installation is carried out by clinic personnel, who will do the following:
Unpack the system and position it in its pre-selected location.
Verify the integrity of the system and its components.
Connect the connecting cable & applicator.
Plug the system into a designated electrical outlet.
Test the system for functional operation of all components and software.
5.1. About the Installation
5. Installation
Turn the system off and disconnect the power cable before connecting or disconnecting the applicators.
5.2. Connect the applicator

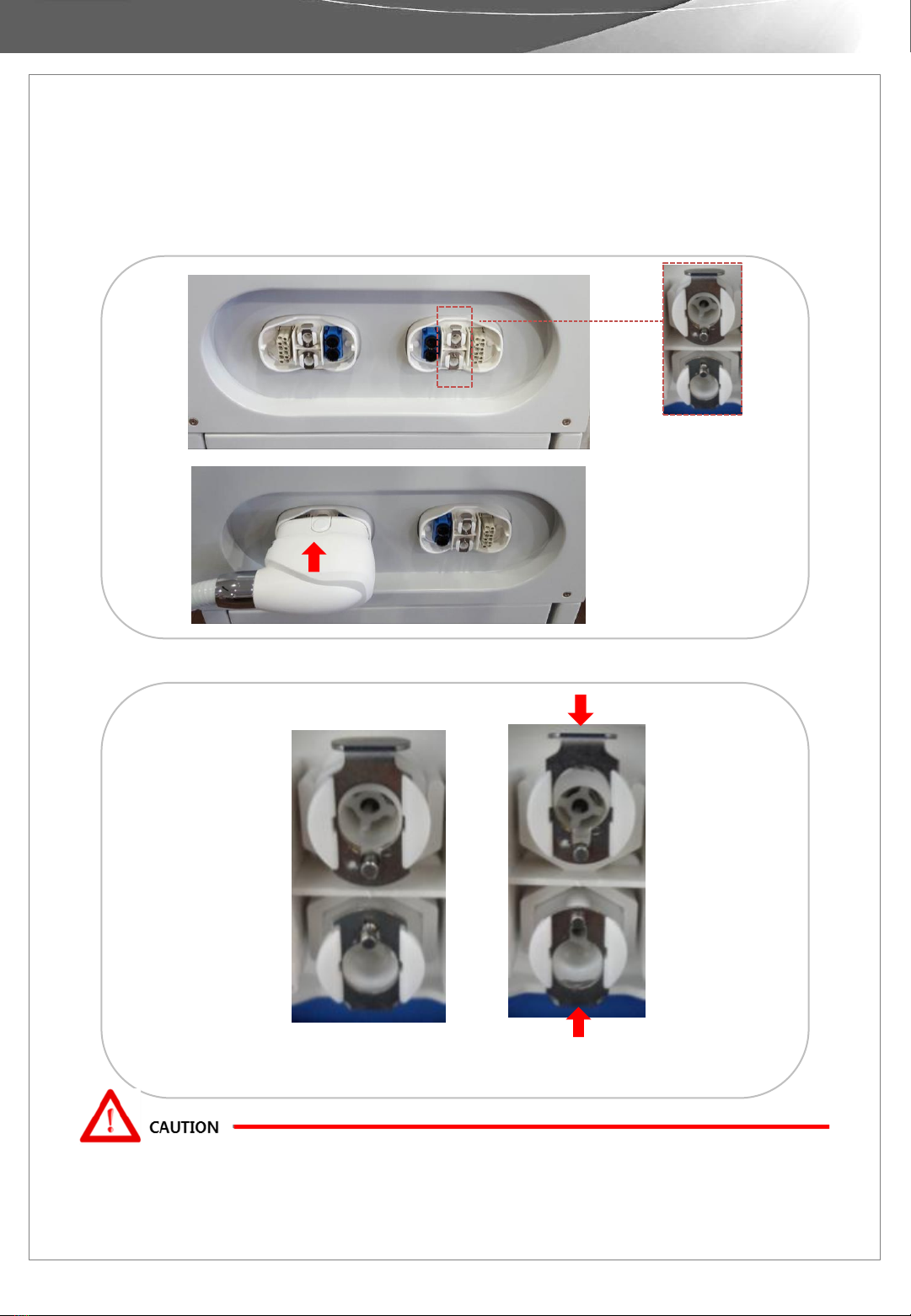

1) Locate the applicators at the their cradles.
2) Match the applicator connector to the socket on the rear side of the device to the exact then press
until you hear twice of clicking sound.; Respective applicator can be mounted on either at left or
right site without pre-determined location.
3) You can disconnect the applicator by pressing buttons at both sides.
[Applicator holding at front.]

[Socket connecting on the rear of device.]
[Water connector holder on the device]
You can hear twice clicking sounds when the applicator connector attached completely with the water connector
holder. Otherwise an accident caused by leakage may occur.
Before connecting, do make sure that the condition of water connector holder is ‘Normal’. If it is ‘Not-Normal’
condition, press top and bottom of the water connector holder simultaneously as shown above.
[ Normal ] [Not-Normal ]
5. Installation
5.2. Connect the applicator
CoolShaping
15
Water Connector Holder

5. Installation
5.3. Fill up the water
CoolShaping
16

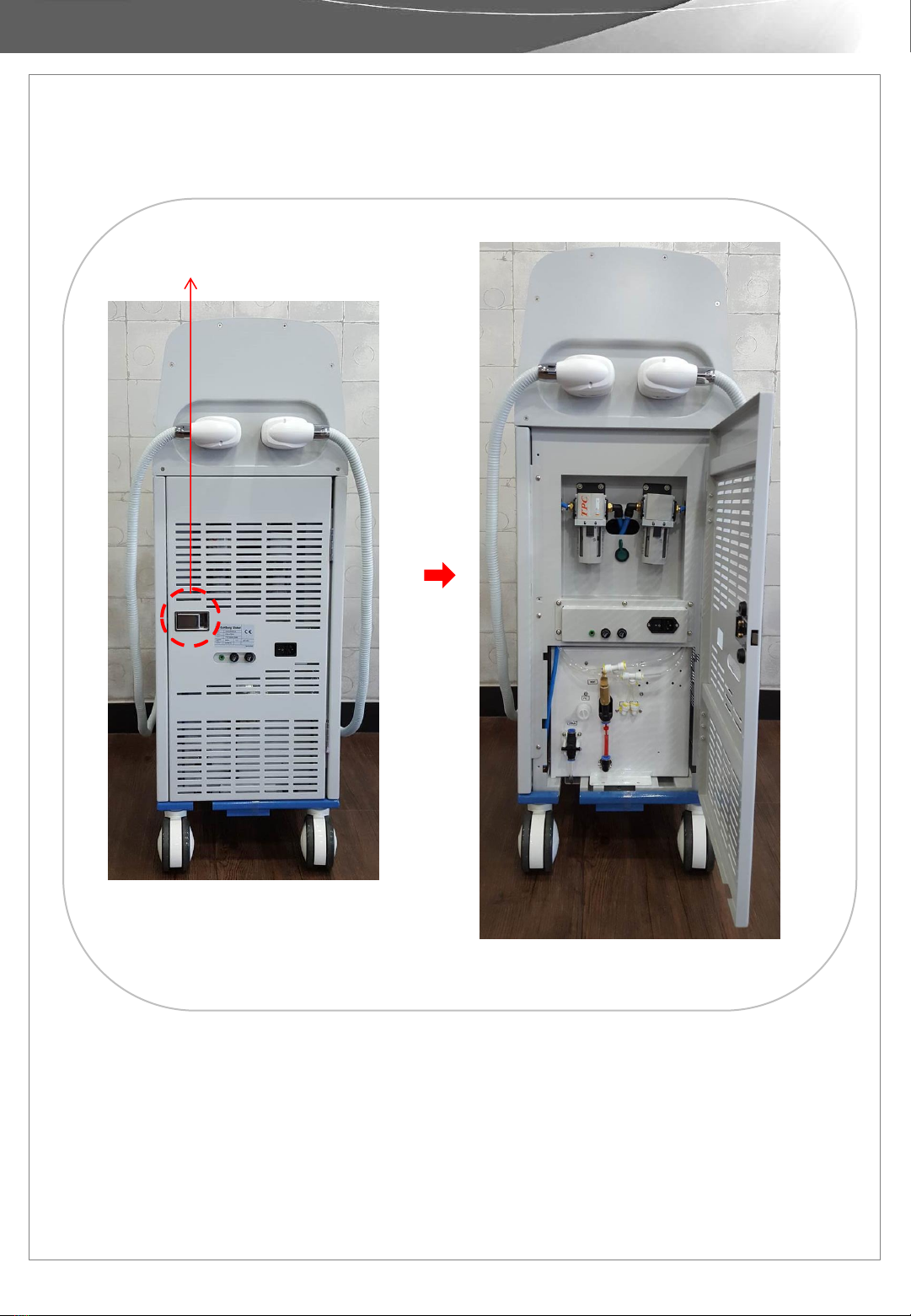

[ Open backside cover ]
Pulling the latch to open the back plate

5. Installation
5.3. Fill up the water
Never fill the water reservoir with regular tap water. Use only either distilled or deionized water.
CoolShaping
17

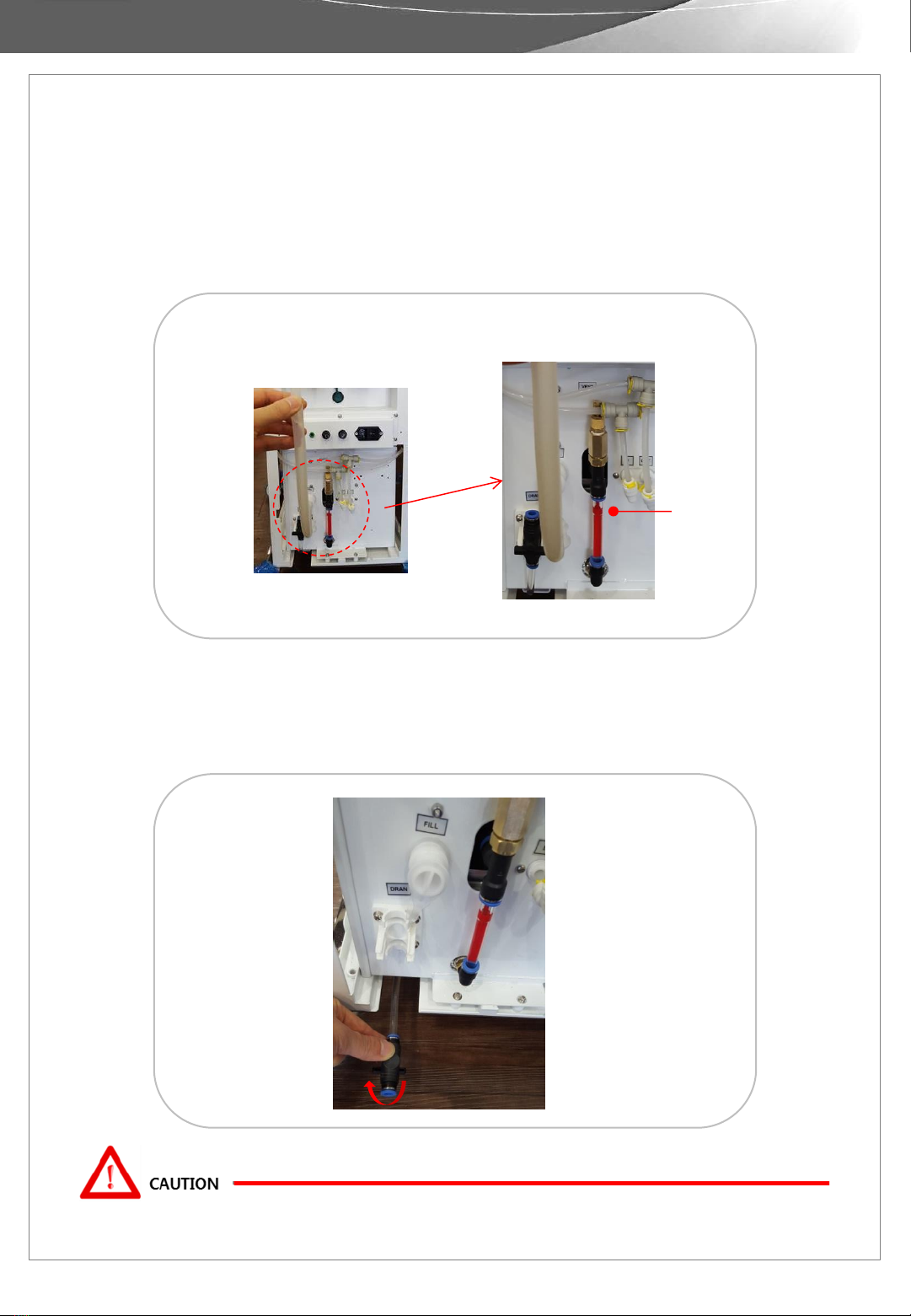

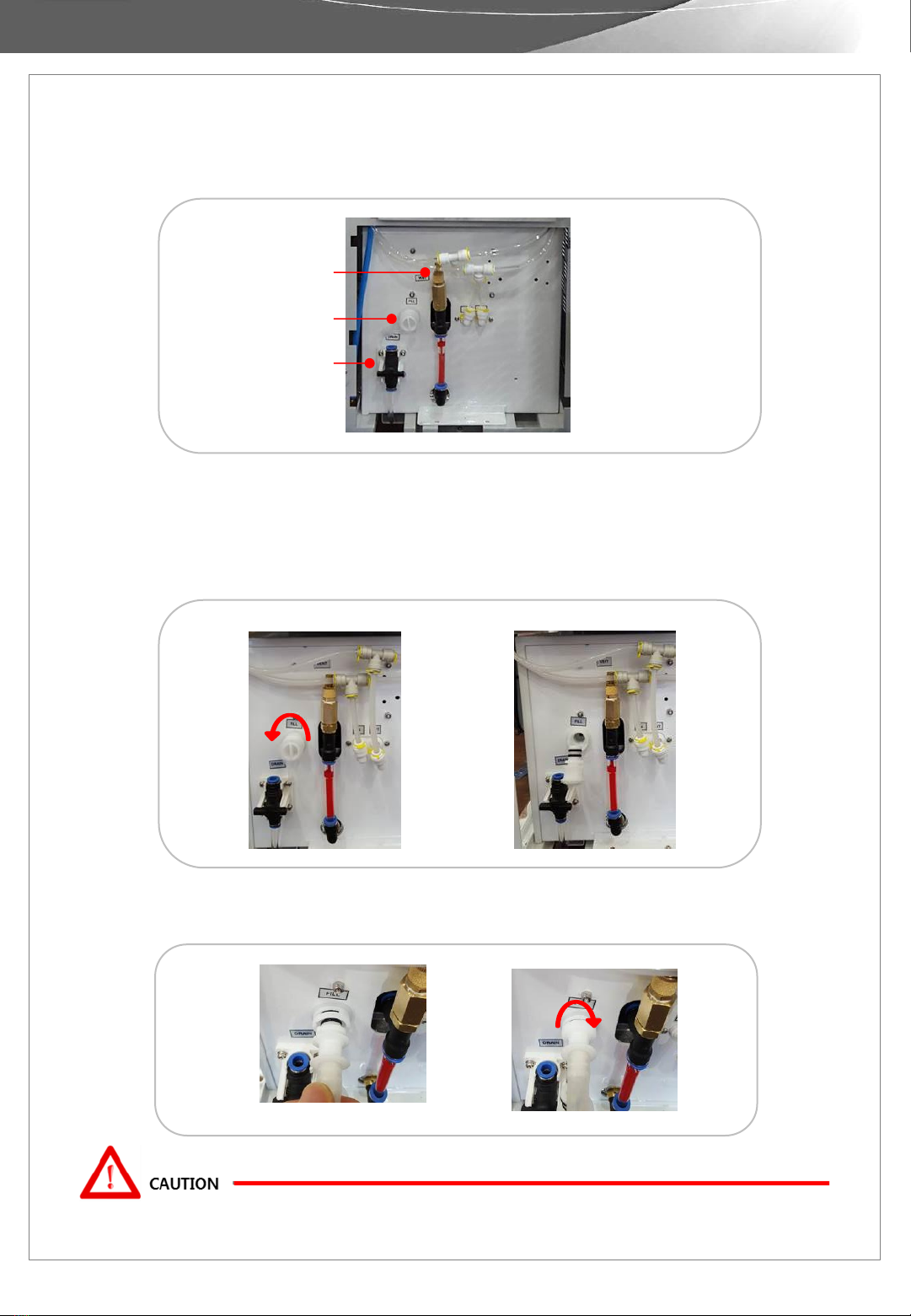

1) Open the Fill port by turning in a counterclockwise direction.
[ Fill the Water ]
2) Connect the funnel hose to Fill port then slowly fill the water up to the device.
Vent
Fill
Drain

5. Installation
5.3. Fill up the water
Never fill the water reservoir with regular tap water. Use only either distilled or deionized water.
CoolShaping
18
Red line
1) Unwind Drain port for water drainage.(If the device is not in use for a long period of time, please drain
the water and store the device.)
3) The water fills up the red line of the hose.
※Fill water up and power on the Handpiece for 30 seconds and then re-fill the more water (at the
time of first installation, water re-filling is a necessarily must step for effective water circulation)
[ Drain the Water ]

5.4. Connect the Power cable
Insert the safety key into a key hole in the middle of device.
5.5. Insert the Safety key
Power on by press the power button at the lower back side of device and then turn the safety key switch
clockwise to the power on.
5.6. Turn on the Power
- Main Power Switch- - Key switch -
5. Installation
CoolShaping
19

CoolShaping
20
6.1. About Operating Instructions
1) This section of the manual explains how to start and operate the system inclusive of possible
warning & caution at each level of the procedure.
2) Prior to use the system, make sure that following conditions are all met
Main body & all applicators are clean & disinfected?
Wheels of the device[if any] is safely latched to the ground?
Power cable is connected to grounded socket?
6. Operating Instructions
6.2. System Operation
6.2.1. Prepare the system for operation

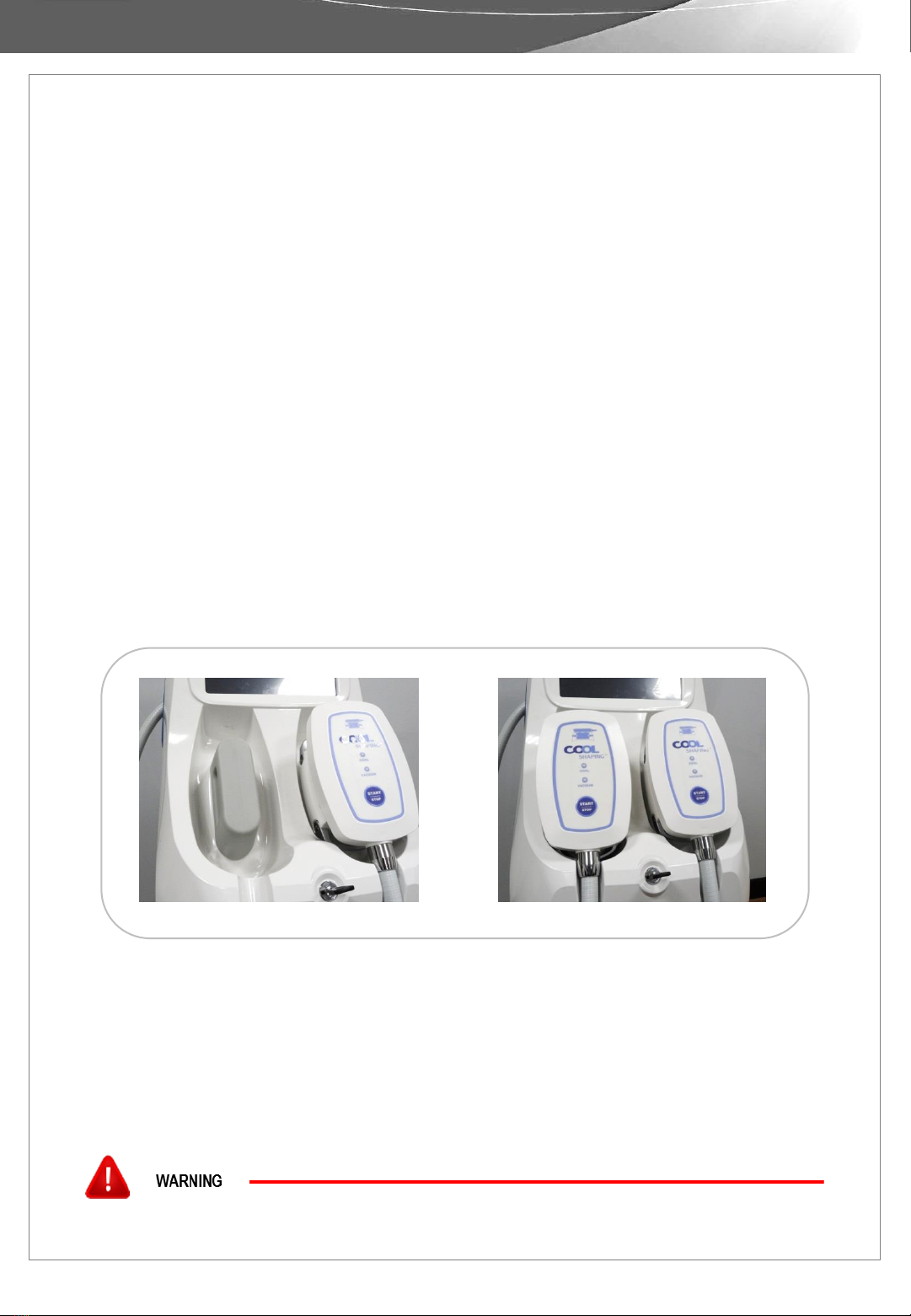

1) Connect the system to the AC main power.
2) Connect both applicators at respective socket and locate in their cradles.
3) Turn on the system by pressing the power button & turn the safety key in the right direction.
6.2.2. Turn on the CoolShaping
Once the system powers up, booting & loading screens appear one after another as shown
below.
- Booting - - Loading -
Applicators should be connected and positioned in their cradles during system start-up.
Always turn the system off before connecting/disconnecting the applicators.
This system may only be operated by a licensed practitioner, according to the local laws in every country.
Improper use or adjustment of this system may invalidate the service warranty agreement. Please contact your
authorized distributor before attempting to use the system in any manner other than those specified in this
operator’s manual.
