EunSung Vital Injector 2 User manual

Operator Manual

EUNSUNG GLOBAL CORP.
#1102~1105, Hanrasigma Valley 345-90,
Gasan-Dong, Geumcheon-Gu,
Seoul, Korea
Tel. : [phone]
Fax. : [phone]
E-mail : [e-mail]
Website : www.esglobal.co.kr
Manufactured by EUNSUNG GLOBAL CORP.
1) #1316~1317, Daeryung Techno Town 12Cha,
Gasan Digital 2ro 14, Geuncheon-Gu, Seoul, Korea
2) #1302~1305, Hanrasigma Valley, Gasan Digital 2ro
53, Geuncheon-Gu, Seoul, Korea
Tel. : [phone]
Fax. : [phone]
E-mail : [e-mail]
Website : www.esglobal.co.kr
Authorized representative:
EUNSUNG GLOBAL CORP.
#1302~1305, Hanrasigma Valley Gasan Digital 2ro 53,
Geumcheon-Gu,
Seoul, Korea
Copyright© 2015 Eunsung Global Corp. All rights reserved.
Eunsung Global reserves the right to make changes to its products or specifications to improve performance, reliability, or
manufacturability. Information furnished by Eunsung Global is believed to be accurate and reliable. However, Eunsung
Global assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or
patent rights of Eunsung Global.
No part of this document may be produced or transmitted in any form or by any means, electronic or mechanical, for any
purpose, without the express written permission of Eunsung Global.
Data is subject to change without notification.
The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other
intellectual property rights except as expressly provided in any written agreement from Eunsung Global.
Specifications are subject to change without notice.
Before using the device, please check local regulations. If any local legislation is violated, use cannot be
authorized.
2

Contents
1. Introduction
1.1. About the Manual................................................................................................................6
1.2. About the Device.................................................................................................................6
2. Equipment Safety
2.1. About Equipment Safety......................................................................................................7
2.2. General Precaution & Caution.............................................................................................7
2.3. Electrical Hazard.................................................................................................................7
3. Medical Safety
3.1. About Medical Safety..........................................................................................................8
3.2. Indication for Use................................................................................................................8
3.3. Patient Safety......................................................................................................................9
4. Device Description
4.1. Main Console....................................................................................................................9
4.2. Injector..............................................................................................................................10
4.3. Equipment List........................................................................... .......................................11
5. Site Preparation
5.1. About site preparation.......................................................................................................12
5.2. Spatial Requirements........................................................................................................12
5.3. Electrical Requirements....................................................................................................12
5.4. Environmental Requirements...........................................................................................12
3

5. Site Preparation
5.5. Storage & Transportation Requirements............................................................................13
6. Installation
6.1. About the installation..........................................................................................................14
6.2. Assemble main body & trolley............................................................................................14
6.3. Assemble main body & injector..........................................................................................14
6.4. Power On/Off......................................................................................................................15
6.5. Mounting filter........ ........ ........ ........ .................................................................................15
6.6. Multi-needle mounting & exchanging.................................................................................15
6.7. Mounting Syringe................................................................................................................16
6.8. Connect syringe to multi-needle.........................................................................................16
6.9. Tighten syringe holder screw..............................................................................................16
7. Operating Instruction
7.1. About operating instruction.................................................................................................17
7.2. System Operation...............................................................................................................17
8. Maintenance
8.1. About maintenance.............................................................................................................23
8.2. Cleaning.............................................................................................................................23
8.3. System error messages......................................................................................................24
8.4. Troubleshooting..................................................................................................................25
9. Warranty
9.1. About warranty...................................................................................................................26
9.2. One year limited warranty..................................................................................................26
9.3. Limitation & Exclusion........................................................................................................26
4
Contents

5
Contents
10. Specification.....................................................................................................................................27
11. Customer Support...........................................................................................................................27

6
1. Introduction
1.1. About the Manual
Vital Injector2 is designed to meet international safety and performance standards.
Personnel operating the system must have a thorough understanding of the proper operation of Vital Injector2.
This manual has been prepared to aid medical and technical personnel to understand and operate the system.
Do not operate the system before reading this manual and gaining a clear understanding of system operation.
If any part of this manual is not clear, please contact your local representatives of Eunsung Global for further
clarification.
The information provided in this manual is not intended to replace the professional training on the clinical use of
the system. Please contact your local representatives of Eunsung Global whether there are any updated
information on available training.
For information on technical guideline, refer to the respectively offered treatment guideline manual.
This manual should always accompany the system and all operating personnel must know its location.
1.2. About the Device
Vital injector2 system is a meso injection device using a separately offered syringe to safely inject drugs within it
into the skin.
Use of controls, adjustments or performance of procedures other than those specified herein may put the operator
and/or the patient at risk. Therefore, before attempting to use or operate the system, personnel operating Vital
Injector2 should read this manual and become thoroughly familiar with all its safety requirements and operating
procedures.

7
2. Equipment Safety
2.1. About Equipment Safety
This chapter describes general safety issues regarding the use of Vital Injector2. With proper operation and
maintenance, trained and qualified medical practitioners can use the Vital Injector2 safely. The supervising
physician and all other personnel operating or maintaining Vital Injector2 must be familiar with the safety
information provided in this chapter.
The primary consideration should be for the safety of the patient, the physician and other personnel. Patient
safety is mainly assured with a well trained staff and a well laid out treatment room.
Patient education is also important, including information about the nature of the given treatment.
2.2. General Precaution & Caution
2.2.1. General
Physicians and clinicians should read this manual thoroughly before attempting to operate the system
While not in use, injector & multi-needle should be detached from each other and store separately for the
safety.
There are no user-serviceable parts inside the system. Only Eunsung Global-authorized personnel may
service the system, especially inside its cabinet.
The system, inclusive of console & a injector, weighs approximately 2.4kg (5.3lbs.) and may cause injury if
proper care is not used when moving it. The system is well balanced and is designed to be moved, but
should always be moved carefully and slowly.
Verify that the Vital Injector2 is wired for the appropriate electrical voltage of your country (110 VAC - 240
VAC).
2.2.2. Injector & multi-needles
Do not twist or pull the connecting cable. This could cause damage to internal wires and connections.
Do not use the injector if any it is dropped or if any other type of excessive force has been applied. Injectors
may be permanently damaged if dropped onto the hard surface. The system must be examined for safe
operation after such an occurrence.
Multi-needle comes in different packet. Be sure to have needle first prior to make treatment.
Keep new multi-needle in a sterilized pouch until ready for use.
Multi-needle is a disposable item. Do not reuse.
2.3. Electrical Hazard
Do not arbitrarily untighten the screws, keep all covers and panels of the system closed. Removing the
covers creates a safety hazard.
Always make sure the system is turned off before connecting/disconnecting the Injector to/from the system
and before cleaning the system.
Do not immerse any part of the system into liquids.
It is forbidden to connect any third-party equipment to the system.
Disconnect the power cord from the outlet by pulling on the plug not the cord.
No modification of this equipment is allowed.
Unattended use of Vital Injector2 with and/or without the multi-needle attached on, by children or incapacitated
persons may be dangerous.

8
3. Medical Safety
3.1. About Medical Safety
This chapter describes various cases of safety issue while using the device in clinical setting.
3.2. Indication for Use
Vital Injector2 is a multi-use meso injector for various medical use. This advanced capacity machine now featuring
with a detachable hygienic- filter technology promises better controlled hygienic treatment. Vital Injector2 is originally
developed to assist in the delivery of stabilized hyaluronic acid filler to restore hydrobalance in the skin and
improve skin elasticity and tone to create a revitalized look.
3.3. Patient Safety
Delivering excessive amount of drug not considering individual’s skin sensitivity would result in side effect or
some adverse events.
Trial test should be done before making full facial treatment.
Use this system only if you are trained and qualified to do so.
If any problems occur during the system operations, take immediate actions; lift the injector off the patient’s skin,
press the button to STOP to discontinue treatment in progress.

4. Device Description
4.1 Main Console

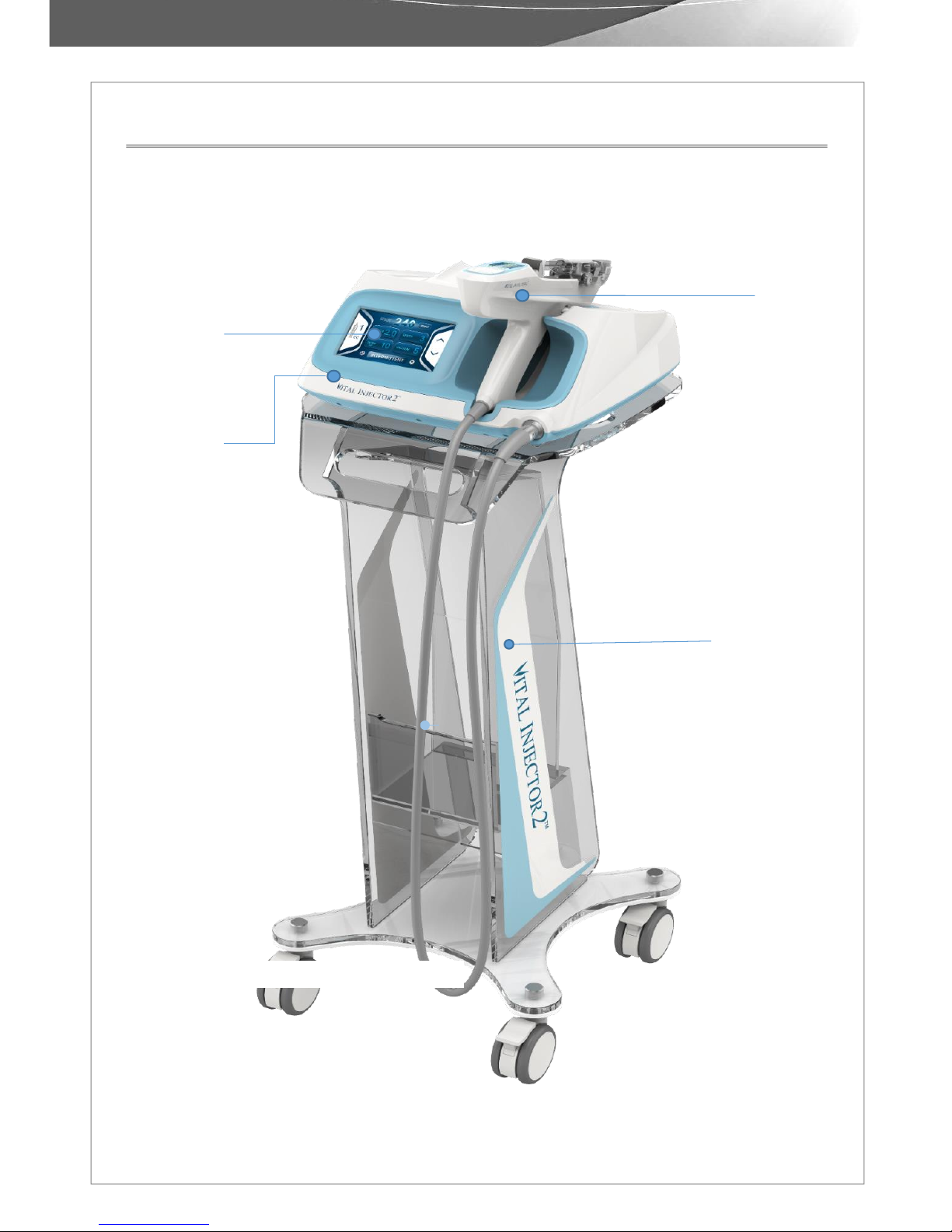

9
LCD Control
Panel
Trolley
Console
Injector
- Main Body & Trolley -

10
Multi Needle
Trigger
Position Holder
Syringe Holder
Injector LCD
START/STOP
Syringe
Backward
Button
Forward Button
Connecting Cable
4. Device Description
4.2. Injector
The device is conveniently designed easily operated. LCD panel on the device enables an operator to check
the operation during treatment.
- Injector -
Filter
