Eureka Forbes Dr. Aquaguard MAGNA UV User manual

Retains essential natural minerals in water that other RO purifiers deplete
W I T H A D V A N C E D
MINERAL GUARD
TECHNOLOGY
USER MANUAL
More than shudh. HEALTHY WATER.

Drink More than Shudh, healthy Water .......................................................................................................................2
Why Dr. Aquaguard Magna is just the right purifier for you .....................................................................................3
The power of Dr. Aquaguard Magna HDRO+UV/ HD RO ...........................................................................................4
The power of Dr. Aquaguard Magna UV ......................................................................................................................5
How does Dr. Aquaguard Magna unlock nutrients in water, benefits of magnetized water ...................................6
Installing your Dr. Aquaguard Magna ........................................................................................................................7
What makes your Dr. Aquaguard Magna so special .....................................................................................................8
Here’s how your Dr. Aquaguard Magna UV works ....................................................................................................9
Purification process of Dr. Aquaguard Magna UV ...................................................................................................10
Here’s how your Dr. Aquaguard Magna HD RO works .............................................................................................11
Purification process of Dr. Aquaguard Magna HD RO ..............................................................................................12
Here’s how your Dr. Aquaguard Magna HD RO + UV works .....................................................................................13
Purification process of Dr. Aquaguard Magna HD RO + UV .....................................................................................14
Cleaning and disinfection of water storage tank ..................................................................................................15
Maintaining your Dr. Aquaguard Magna ..............................................................................................................16
Technical Specifications UV .....................................................................................................................................17
Technical Specifications HD RO ...............................................................................................................................18
Technical Specifications HD RO + UV .....................................................................................................................19
Dr. Aquaguard Advantage ......................................................................................................................................20
Warranty Terms and Conditions ............................................................................................................................21
1

2
Drinking water is essential for health. And that is precisely why it is crucial to ensure that the water you're drink is
healthy. Not just pure, or safe. Healthy water is water that has all the minerals it naturally contains intact in it.
Minerals like Calcium, Sodium, Potassium, Magnesium, Iron, Zinc and others are essential for healthy growth.
Other water purifiers remove these nutrients while purifying water, robbing it of its various health benefits.
Only Dr. Aquaguard with its advanced Mineralguard technology retains these nutrients, delivering the healthiest
water on earth. Its Mineral Cartridge replenishes the water with necessary minerals.
DRINK MORE THAN SHUDH, HEALTHY WATER

3
Dr. Aquaguard, the water expert, is as qualified as a doctor when it comes to
prescribing a water purification solution and as a man who knows what water
means to life.
Every water purifier that Dr. Aquaguard prescribes, such as the one you have, is
prescribed after rigorous analysis of a water type and accurate diagnosis of its
condition. Your water purifier is not just any water purifier. It is a customized
purification solution, that's designed to deliver you the more than shudh healthy
water, to protect your family's health. And with Dr. Aquaguard by your side, you
can be sure of it.
WHY Dr. AQUAGUARD IS JUST THE RIGHT PURIFIER FOR YOU

Equipped with Biotron, the Dr. Aquaguard Magna HD RO + UV / HD RO
is the world's first water purifier that unlocks the nutrients in water,
helping your body absorb them better.
Its Biotron technology magnetizes water to de-clutter water molecules
and unlock the nutrients in it, making them more bio-available.
It also has a special Mineral Cartridge that automatically replenishes
minerals in your drinking water.
The Dr. Aquaguard Magna HD RO + UV comes with a special HD RO
membrane that purifies water and the advanced Mineralguard
technology that retains the essential minerals in water that other purifiers
remove.
4
THE POWER OF Dr. AQUAGUARD MAGNA HD RO+UV/HD RO

Equipped with Biotron, the Dr. Aquaguard Magna UV is the world's first
water purifier that unlocks the nutrients in water, helping your body
absorb them better.
Its Biotron technology magnetizes water to de-clutter water molecules
and unlock the nutrients in it, making them more bio-available.
It also has a special Mineral Cartridge that automatically replenishes
minerals in your drinking water.
The Dr. Aquaguard Magna UV comes with a 11 watt UV lamp with a UV
reflector housing for an enhanced UV dose to ensure 100% elimination of
waterborne disease-causing microorganisms and the advanced Hybrid
Carbon Chemi Block (HCCB) technology that removes heavy, metals,
lead, pesticides and new age contaminants while retaining essential
minerals.
It also has a special Mineral Cartridge that automatically replenishes
minerals in your drinking water.
5
THE POWER OF Dr. AQUAGUARD MAGNA UV

6
HOW DOES Dr. AQUAGUARD MAGNA
UNLOCK NUTRIENTS IN THE WATER?
The benefits of “bio-available” magnetic water include * -
1. Providing more hydration of the water you drink.
2. Carrying minerals to the cell faster, as the water is more easily absorbed.
3. Reducing acidity and helping to regulate the body’s pH level.
4. Dissipating toxic deposits within the body’s connective tissues by getting absorbed better.
5. Generalised therapeutic effects on the body, especially the digestive, nervous and
urinary systems.
*as per independent survey conditions conducted amongst doctors.
BENEFITS OF MAGNETIZED WATER
Water is made up of molecules, and forms when one oxygen atom fuses with two hydrogen
atoms. In their neutral salts, these molecules of water bond with each other and form clusters.
These clusters vary from micro to macro clusters, depending on water quality and water
chemistry.
Macro clusters are less permeable into human cells, which result in a reduction of bio-availability
of water (hydration). Micro clusters are recognized as bio-friendly due to their fast celluar
permeability. Due to the bio-friendly nature of micro clusters, the hydration process is very fast
and efficient. The result is, availability of more nutrients and minerals in human cells.

2
Make sure that the tap water pressure is between 0.6 and 2.0 kg/cm for Magna HD RO+UV/HD RO and
2
between 0.4 and 2.0 kg/cm for Magna UV.
Make sure that the reject water pipe (Blue colour pipe - available in Dr. Aquaguard Magna HD RO + UV/HD
RO models only) is placed lower than the purifier, to avoid stagnation of high TDS reject water in the pipe.
7
INSTALLING YOUR
Dr. AQUAGUARD MAGNA
Make sure that your Dr. Aquaguard Magna is installed by a trained Eureka Forbes Service Technician only.
2. Install your Dr. Aquaguard Magna in a dry, ventilated place

BIOtron
universal water pUrifier*
hd ro*
intelligent alert interface
health in each drop
unique
*Available only in HD RO + UV and HD RO models only. **Available only in HD RO + UV and UV models only.
8
Ensures that every drop of water is as pure, as safe, as water boiled for 20 minutes. Plus More.
WHAT MAKES YOUR
Dr. AQUAGUARD MAGNA SO SPECIAL?
The user-friendly interface of Dr. Aquaguard Magna indicates usage and alerts the
user when the purification cartridge nears end of life
The new space-age high definition RO Membrane of Dr. Aquaguard Magna is designed for
superior performance, to ensure high water recovery and retention of natural minerals.
**

9

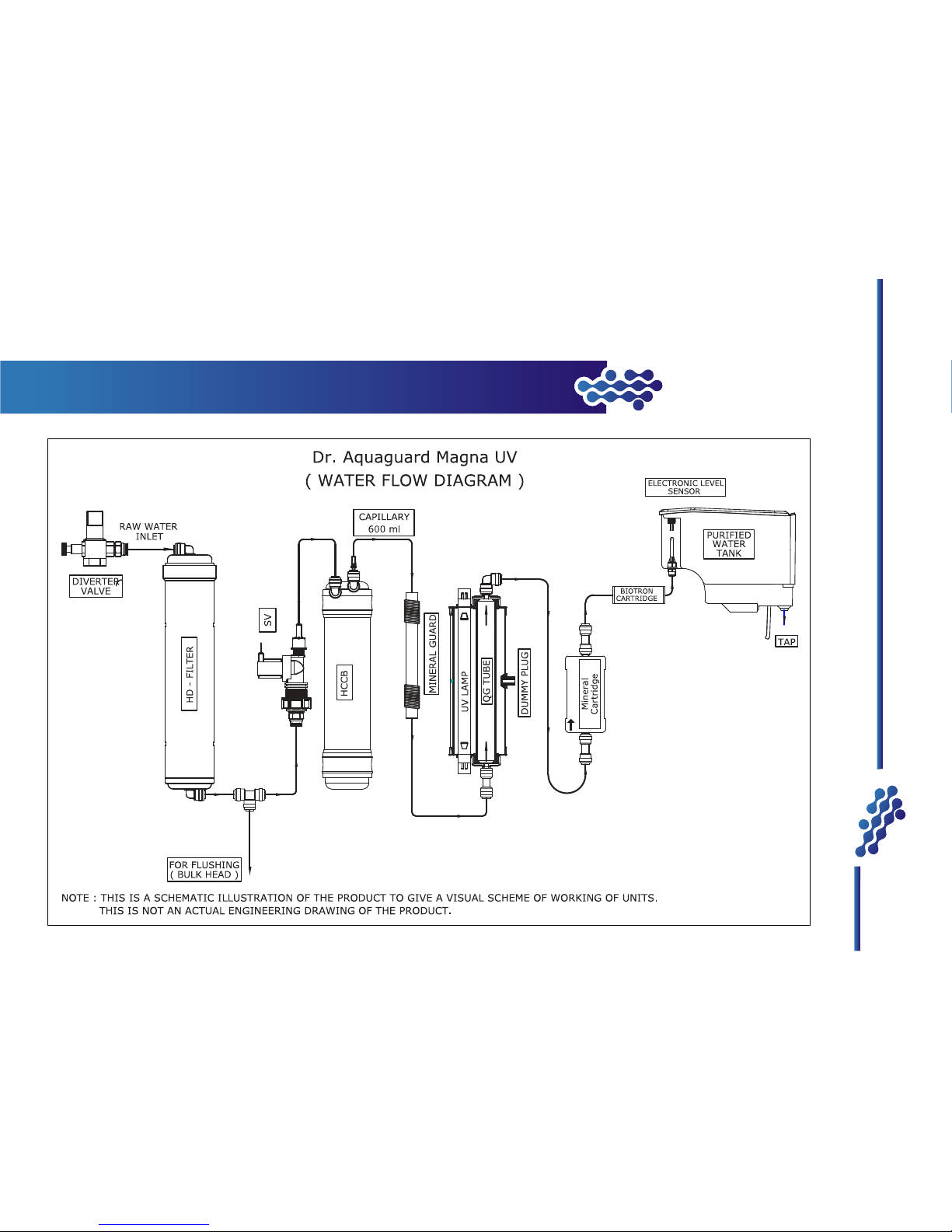

HERE’S HOW YOUR
Dr. AQUAGUARD MAGNA UV WORKS

PURIFICATION PROCESS
FOR MAGNA UVDr. AQUAGUARD
10
HD Filter Cartridge™
HCCB Cartridge™
(Hybrid Carbon
Chemi Block)
Mineral Guard™
UV Chamber
Mineral Cartridge™
Biotron Cartridge™
High Density multiple layer Polypropylene yarn
Special anti-bacterial carbon block with US
Patented pesticide removal silver Nano
technology and Heavy metal removal media
Micro-controller based electronic impulse
producer
Germicidal UV Lamp
A combination of Silver impregnated activated
carbon granules with patented technology that
slowly releases essential Natural minerals
(Calcium & Magnesium)
Patented Multiple Magnetic field (MMF)
generating device
Removes turbidity and other fine suspended particles such as dust, dirt, mud
and sand giving you crystal clear water
Removes excess chlorine, bad odour, colour and organic impurities. It also
removes new age contaminants like heavy metals like Lead, Arsenic, Mercury,
Chromium and pesticides making water safe from harmful chemical
contaminants
Produces electronic impulses to prevent scaling on quartz glass tube of UV
chamber thereby ensuring optimal UV penetration in water maintaining the
essential minerals like Calcium and Magnesium in water.
UV disinfects the water by eliminating water-borne disease causing bacteria,
virus and protozoa, thereby making it safe to drink.
Enhances the taste of the water by removing residual dissolved harmful gases
like VOCs and increases the level of Calcium and Magnesium minerals in the
water and balances pH of the water making it healthy
Breaks complex water molecules into fine micro clusters making water more
bio-permeable so that your body can easily absorb the goodness of water along
with its much needed nutrients
1.
2.
3.
4.
5.
6.
Stage Treatment Material Benefits

11

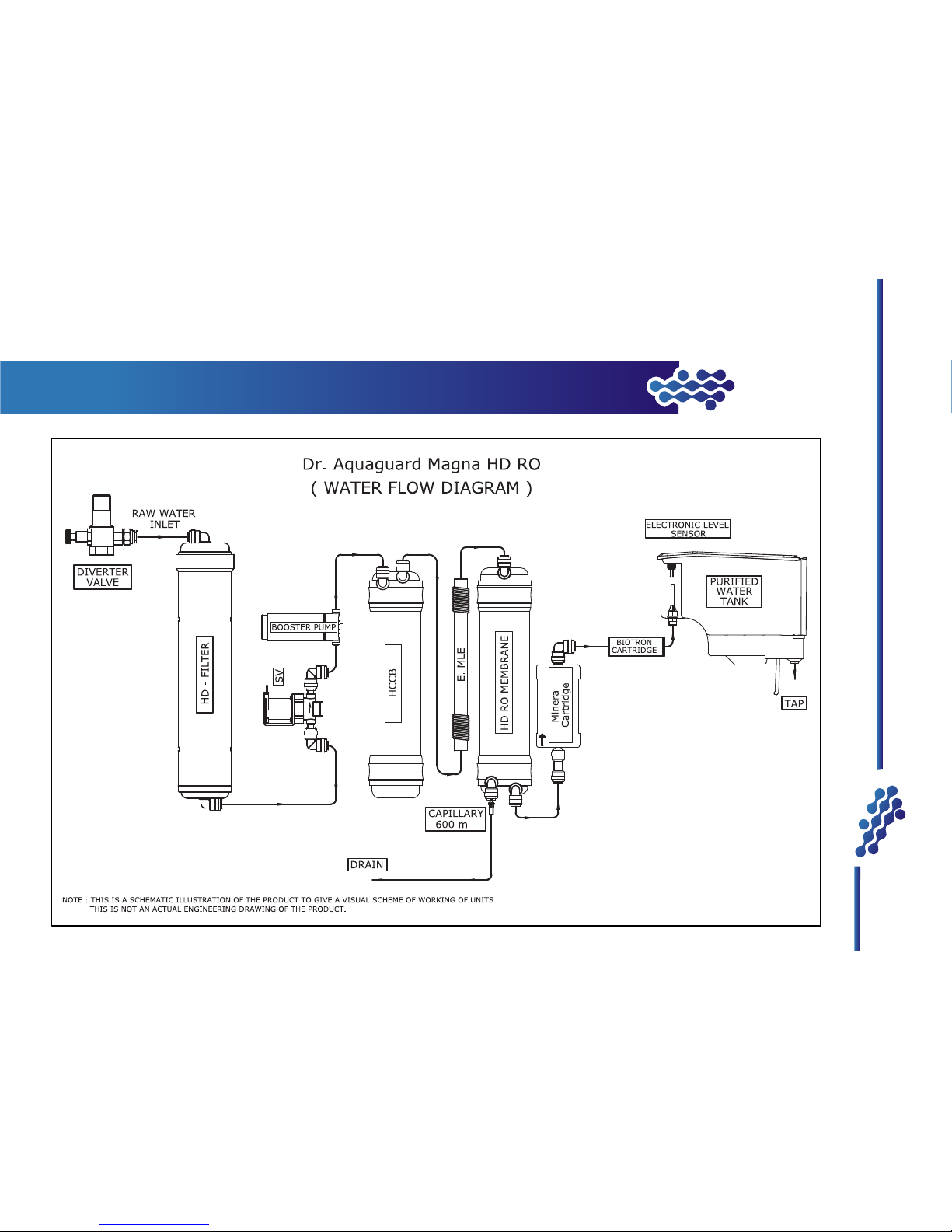

HERE’S HOW YOUR
Dr. AQUAGUARD MAGNA HD RO WORKS

PURIFICATION PROCESS
FOR MAGNA HD RODr. AQUAGUARD
12
HD Filter Cartridge™
HCCB Cartridge™
(Hybrid Carbon
Chemi Block)
Electronic Membrane
Life Enhancer
HD RO Cartridge
Mineral Cartridge™
Biotron Cartridge™
High Density multiple layer Polypropylene yarn
Special anti-bacterial carbon block with US
Patented pesticide removal silver Nano
technology and Heavy metal removal media
Micro-controller based electronic impulse
producer
Thin flim composite (TFC) Reverse Osmosis
Membrane
A combination of Silver impregnated activated
carbon granules with patented technology that
slowly releases essential Natural minerals
(Calcium & Magnesium)
Patented Multiple Magnetic field (MMF)
generating device
Removes turbidity and other fine suspended particles such as dust, dirt, mud
and sand giving you crystal clear water
Removes excess chlorine, bad odour, colour and organic impurities. It also
removes new age contaminants like heavy metals like Lead, Arsenic, Mercury,
Chromium and pesticides making water safe from harmful chemical
contaminants
Prevents scaling of dissolved salts on the surface of the membrane thereby
enhancing the membrane life and performance
Reduces TDS, hardness, pesticides and heavy metals like arsenic, lead and
mercury. Eliminates micro-organisms like bacteria, virus, protozoa and cysts.
Enhances the taste of the water by removing residual dissolved harmful gases
like VOCs and increases the level of Calcium and Magnesium minerals in the
water and balances pH of the water making it healthy
Breaks complex water molecules into fine micro clusters making water more
bio-permeable so that your body can easily absorb the goodness of water along
with its much needed nutrients
1.
2.
3.
4.
5.
6.
Stage Treatment Material Benefits

13

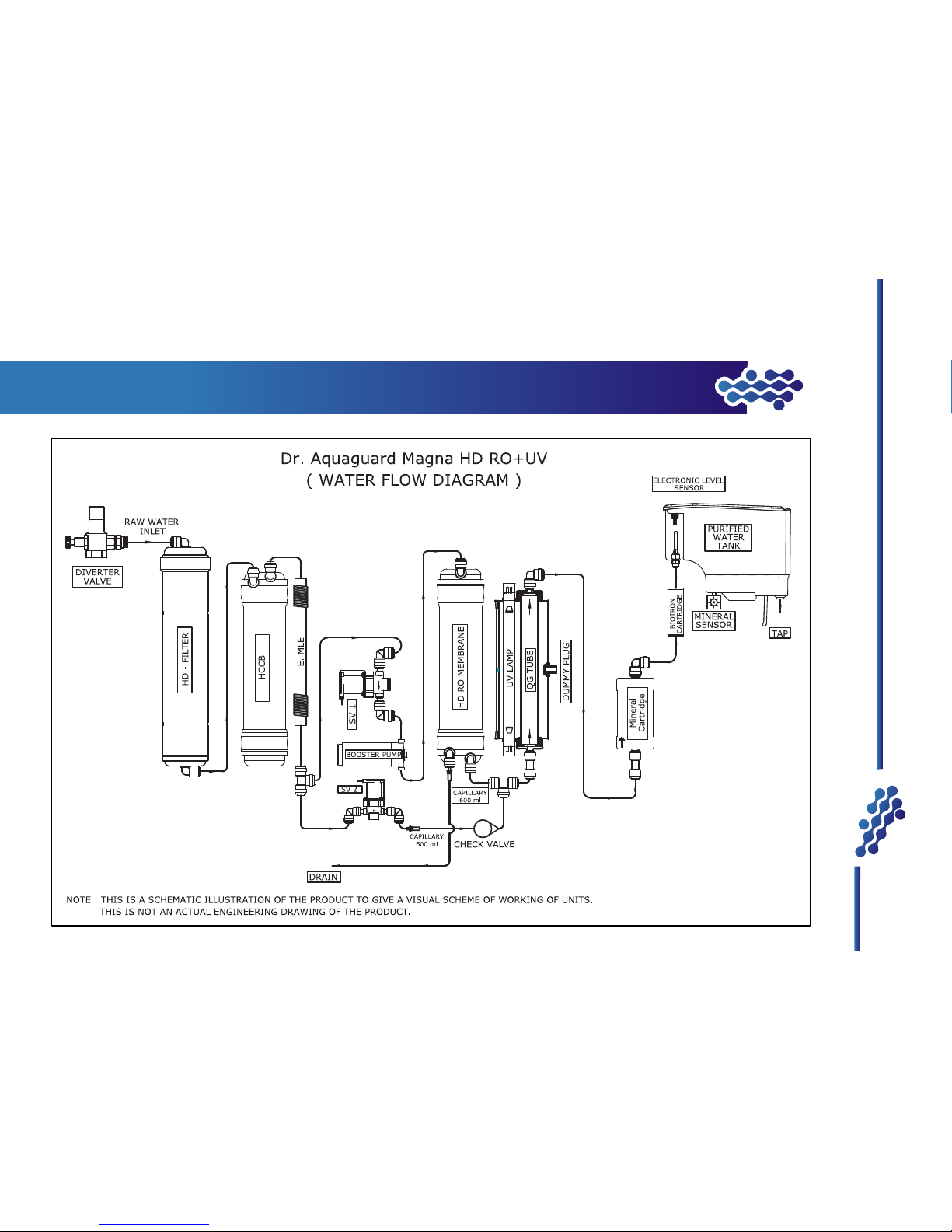

HERE’S HOW YOUR
Dr. AQUAGUARD MAGNA HD RO + UV WORKS

PURIFICATION PROCESS
FOR MAGNA HD RO+UVDr. AQUAGUARD
14
HD Filter Cartridge™
HCCB Cartridge™
(Hybrid Carbon
Chemi Block)
Electronic Membrane
Life Enhancer
HD RO Cartridge
UV Chamber
Mineral Cartridge™
Biotron Cartridge™
High Density multiple layer Polypropylene yarn
Special anti-bacterial carbon block with US
Patented pesticide removal silver Nano
technology and Heavy metal removal media
Micro-controller based electronic impulse
producer
Thin flim composite (TFC) Reverse Osmosis
Membrane
Germicidal UV Lamp
A combination of Silver impregnated activated
carbon granules with patented technology that
slowly releases essential Natural minerals
(Calcium & Magnesium)
Patented Multiple Magnetic field (MMF)
generating device
Removes turbidity and other fine suspended particles such as dust, dirt, mud
and sand giving you crystal clear water
Removes excess chlorine, bad odour, colour and organic impurities. It also
removes new age contaminants like heavy metals like Lead, Arsenic, Mercury,
Chromium and pesticides making water safe from harmful chemical
contaminants
Prevents scaling of dissolved salts on the surface of the membrane thereby
enhancing the membrane life and performance
Reduces TDS, hardness, pesticides and heavy metals like arsenic, lead and
mercury. Eliminates micro-organisms like bacteria, virus, protozoa and cysts.
UV disinfects the water by eliminating water-borne disease causing bacteria,
virus and protozoa, thereby making it safe to drink.
Enhances the taste of the water by removing residual dissolved harmful gases
like VOCs and increases the level of Calcium and Magnesium minerals in the
water and balances pH of the water making it healthy
Breaks complex water molecules into fine micro clusters making water more
bio-permeable so that your body can easily absorb the goodness of water along
with its much needed nutrients
1.
2.
3.
4.
5.
6.
7.
Stage Treatment Material Benefits

15

Consumable Components Average Service life
HD Filter Cartridge™ 6,000 litres
HCCB Cartridge™ 6,000 litres
HD RO Membrane 6,000 litres
(In case of Magna HD RO+UV/HD RO Models)
UV Lamp 5,000 burning hrs.
Mineral Cartridge 6,000 litres
Biotron 6,000 litres
FOR MAGNA HD RO+UV/UV/Dr. AQUAGUARD HD RO
16
MAINTAINING YOUR
Dr. AQUAGUARD MAGNA

S.No Parameters Specifications
1. Dimensions (WxDxH) in mm 316x251x462
2. Net weight 4.5 kgs
3. Power Rating 20 W
4. Storage Tank Capacity 7 ltrs.
5. Purifying Technology UV
6. Filter Cartridges HD Filter cartridge™
HCCB cartridge™
Mineral Guard
UV Chamber
Mineral Cartridge™
Biotron Cartridge™
7. Input Power Supply 230 AC/50 Hz
8. Input Water Temperature 10ºC (min) ~ 40ºC (max)
2
9. Input Water Pressure (min) 0.4 kg/cm
2
10. Input Water Pressure (max) 2.0 kg/cm **
11. Input water TDS ideal up to 500 mg/litre (max)
12. Solenoid Valve 12V DC
TECHNICAL SPECIFICATIONS*
FOR Dr. AQUAGUARD MAGNA UV
17

S.No Parameters Specifications
1. Dimensions ( WxDxH) in mm 316x251x462
2. Net Weight 7.8 kgs
3. Power Rating 35 W
4. Storage Tank Capacity 7 ltrs.
5. Purifying Technology HD RO
6. Filter Cartridges HD Filter Cartridge™
HCCB Cartridge™ (Hybrid Carbon Chemi Block)
Electronic Membrane Life Enhancer
HD RO Cartridge
Mineral Cartridge
Biotron Cartridge™
7. Input Power Supply 230 AC/50 Hz
8. Input Water Temperature 10ºC (min) ~ 40ºC (max)
2
9. Input Water Pressure (min) 0.6 kg/cm ***
2
10. Input Water Pressure (max) 2.0 kg/cm **
11. Allowable TDS Range 500-2000 mg/litre (max)
12. Solenoid Valve 24V DC
FOR Dr. AQUAGUARD MAGNA HD RO
18
TECHNICAL SPECIFICATIONS*

S.No Parameters Specifications
1. Dimensions ( WxDxH) in mm 316x251x462
2. Net Weight 8.2 kgs
3. Power Rating 45 W
4. Storage Tank Capacity 7 ltrs.
5. Purifying Technology HD RO+UV
6. Filter Cartridges HD Filter Cartridge™
HCCB Cartridge™ (Hybrid Carbon Chemi Block)
Electronic Membrane Life Enhancer
HD RO Cartridge
UV Chamber
Mineral Cartridge™
Biotron Cartridge™
7. Input Power Supply 230 AC/50 Hz
8. Input Water Temperature 10ºC (min) ~ 40ºC (max)
2
9. Input Water Pressure (min) 0.6 kg/cm ***
2
10. Input Water Pressure (max) 2.0 kg/cm **
11. Allowable TDS Range 2000 mg/litre (max)
12. Solenoid Valve 24V DC
FOR Dr. AQUAGUARD MAGNA HD RO+UV
19
TECHNICAL SPECIFICATIONS*
