Eureka 4880 Series User manual

Upright Vacuum Cleaner
Owner’s Guide
4880 Series
IMPORTANT
Do not return this
product to the store.
For assembly problems or
questions contact: Eureka’s
Customer Service Division toll
free at 1-800-282-2886*, 8 a.m.
- 7:30 p.m. (CST) Monday -
Friday and 10 a.m.- 6:30 p.m.
(CST) Saturday.
For replacement of broken
or missing items to be
shipped direct to you, call
1-800-438-7352*, 8 a.m. to
4:45 p.m., Central Standard
Time, Monday through Friday.
*En Mexico llame al 5670-6169
Index
Important Safeguards ........... 2
Service Information............... 4
Assembly ........................... 5-6
Use..................................... 7-8
Thermal Cut Off ..............4 & 8
Accessories........................... 9
Brush Roll ........................... 10
Brush Roll Belt ............... 10-11
Dust Cup ........................ 11-12
Filters ............................. 12-13
HEPA Filter.......................... 13
Light Bulb ............................ 13
Clear Tube ..................... 14-15
Problem Solving.................. 16
Customer Order Form......... 17
Warranty.............................. 19
www.eureka.com
Household Type

IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
•Do not use outdoors or on wet surfaces.
•Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and
before servicing.
•Do not allow to be used as a toy. Close attention is necessary when used by or near children.
•Use only as described in this manual. Use only manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center before using.
•Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do
not run vacuum cleaner over cord. Keep cord away from heated surfaces.
•Do not use extension cords or outlets with inadequate current carrying capacity.
•Turn off all controls before unplugging.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle plug or vacuum cleaner with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce airflow.
•This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
•Do not place cleaner on furniture or stairs as the brush roll may cause damage. Place cleaner on floor with the handle in
storage position while using attachments.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
•Do not use without dust cups and all filters in place.
•Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive
belt.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
•Store your cleaner indoors in a cool, dry area.
•Keep your work area well lighted.
•Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
2

CONSEILS DE SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes:
LISEZ TOUTES LES INSTRUCTIONSAVANT D’UTILISER VOTREASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de choc électrique, ou de blessure:
•Ne pas utiliser à l’extérieur ou sur des surfaces mouillées.
•Fermez le commutateur et débranchez l’appareil lorsque vous ne l’utilisez pas ou avant le nettoyage ou l’entretien.
•Ne permettez pas qu’il soit utilisé comme jouet. Une attention particulière est nécessaire lorsque utilisé par ou prés d’un
enfant.
•Suivezles recommandations d’utilisation de cemanuel.Utilisezuniquementlesaccessoiresrecommandésparle fabriquant.
•Ne pas utiliser si le cordon ou la fiche sont endommagés. Si l’aspirateur ne fonctionne pas comme il le devrait, s’il a été
échappé, s’il est endommagé, s’il a été laissé à l’extérieur ou échappé dans l’eau, retournez-le à un centre de service
avant d’utiliser.
•Ne pas le tirer ou le transporter par le cordon, ne pas utiliser le cordon en guise de poignée. Ne pas fermer une porte sur
le cordon ou tirer le cordon sur des coins ou bordures pointus. Ne pas circuler sur le cordon avec l’aspirateur. Tenir le
cordon à distance des surfaces chauffantes.
•Ne pas utiliser des rallonges ou des prises qui n’ont pas de capacité suffisante pour transporter le courant.
•Fermer tous les contrôles avant de débrancher.
•Ne pas débrancher en tirant sur le cordon. Pour débrancher, tenez la fiche et non le cordon.
•Ne pas manipuler la fiche ou l’aspirateur avec les mains mouillées.
•Ne pas rien insérer dans les ouvertures. Ne pas utiliser si des ouvertures sont bloquées; assurez-vous qu’elles soient
dégagées de poussière, mousse, cheveux ou toute autre chose qui pourrait réduire le passage de l’air.
•Cet aspirateur créé de la succion et contient un rouleau-brosse tournant. Tenir les parties mobiles et les ouvertures loin
des cheveux, du linge, des doigts et de toute partie du corps.
•Ne pas mettre l’aspirateur sur les meubles ou sur les escaliers car le rouleau-brosse peut faire des dommages. Placer
l’aspirateur sur le plancher avec le manche en entreposage position temps que les accessoires sont en usage.
•Ne pas ramasser des objets qui brûlent ou fument comme les cigarettes, allumettes ou cendres chaudes.
•N’utilisez pas sans le godet de poussière et de toute filtres en place.
•Les poulies du courroie peuvent devenir chaudes pendant l’utilisation normale. Pour prévenir des brûlures, évitez de
touché la poulie du courroie lorsque vous réparez la courroie.
•Portez une attention particulière lorsque vous nettoyez les escaliers.
•Ne pas utiliser pour ramasser des liquides inflammables ou combustibles comme de l’essence: Ne pas utiliser dans les
endroits où ces liquides pourraient être présents.
•Entreposez votre aspirateur à l’intérieur dans un endroit propre et sec.
•Maintenez un bon éclairage à l’endroit où vous travaillez.
•Débrancher les appareils électrique avant de les balayer.
CONSERVEZ CES INSTRUCTIONS
3

To reduce the risk of electric shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit
in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not change the plug in any way.
Afin de réduire le risque de choc électrique, cet appareil est muni d’une fiche polarisée (une des lames est plus large).
Cettefiche ne peutêtre insérée dansuneprise polarisée qued’une seule façon.Sila fiche nepeut être inséréedans la prise,
retourner la fiche. Si la fiche ne peut toujours pas être insérée dans la prise, faire installer une prise adéquate par un
électricien qualifié. Ne pas modifier la fiche.
GENERAL INFORMATION
The cleaner is designed to pick up dirt and dust particles.Avoid picking up hard or sharp objects with the cleaner to prevent
cleaner damage and hose clogs with subsequent motor damage.
Service Information
The instructions in this booklet serve as a guide to routine maintenance. For additional service information telephone our toll
free number for the nearest Eureka Authorized Warranty Station. You should know the model, type and serial numbers
when you call:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
If you prefer, you can write to The Eureka Company, Service Division, 807 N. Main Street, Bloomington, Illinois 61701, USA.
In Canada write to The Eureka Company, 866 Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Limited
Warranty for complete service information.
DO NOT OIL the motor or the brush roll at any time. The bearings are permanently lubricated and sealed.
4
Rating Plate
The model, type, and serial numbers are indicated on the
rating plate located on the underneath side of the cleaner.
Forprompt and complete serviceinformation,always refer
to these numbers when inquiring about service.
Model & Type__________________________
Serial No. _____________________________
MODEL TYPE SERIAL NO.
VOLTS AMPS. HERTZ
SERVICE INFORMATION: 1-800-282-2886
THE EUREKA COMPANY
BLOOMINGTON, ILLINOIS 61701
Thermal Cut Off
This vacuum cleaner has a special thermostat that protects the cleaner in case of motor overheating. If the cleaner suddenly
shuts off, push the rocker switch to off (O) and unplug the cleaner. Check the cleaner for a possible source of overheating
such as a full dust cup, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes
beforeattempting to usethe cleaner.Afterthe 30 minuteperiod,plug the cleanerback in andturn on theswitch. Ifthe cleaner
still does not run, then take it to a Eureka Authorized Service Center for repair.

5

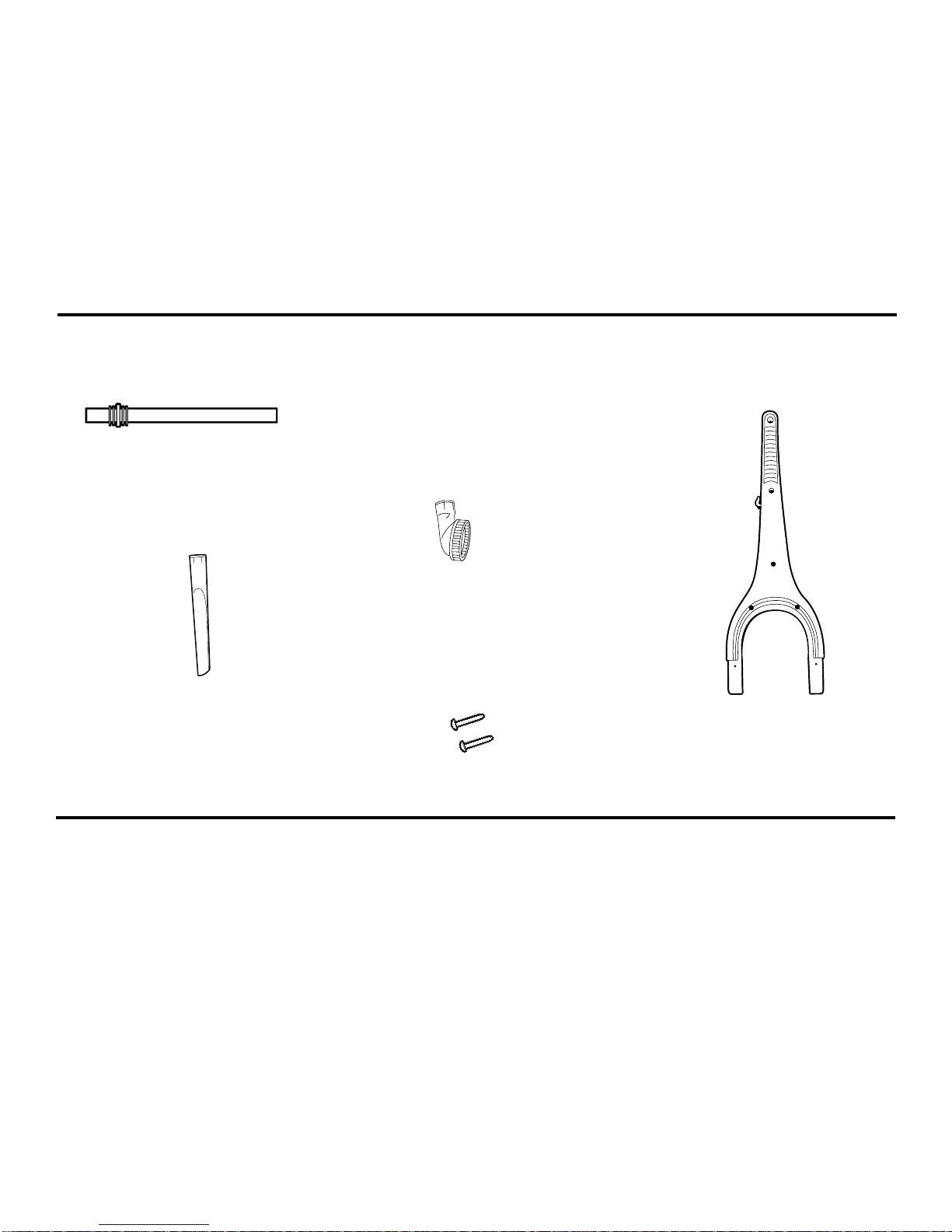

HOW TO ASSEMBLE - See Back Page for Assembly Items Packed in Carton.
CAUTION: Assemble the cleaner before using.
CAUTION: Moving parts. Make sure on/off switch is in off (0) position before plugging in.
NOTE: Features may vary by model yet all parts assemble the same.

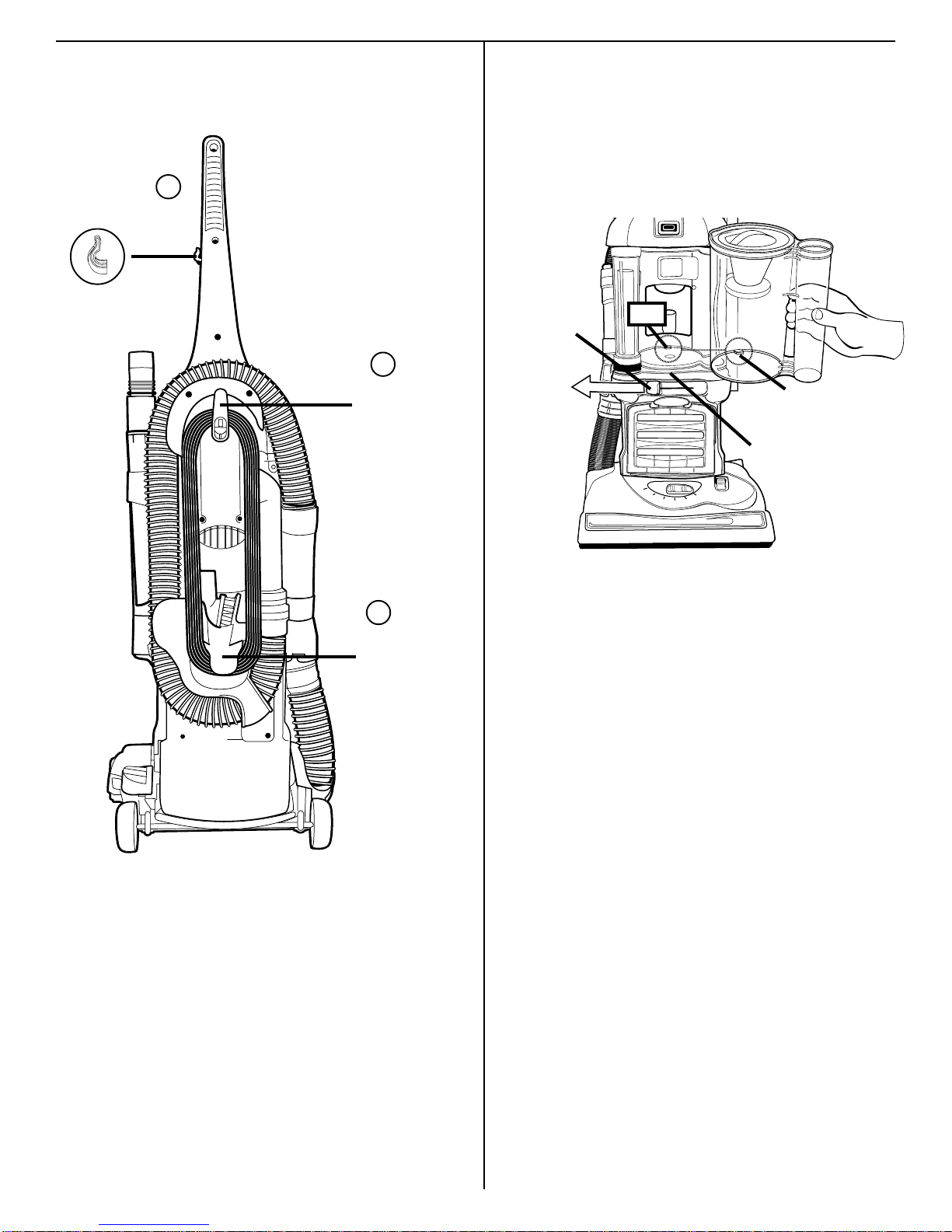

Step A Attach Handle
1. Move hose from the storage position to expose screw
holes on cleaner. (See above.)
2. From rear ofcleaner,align handle withscrew locations
on cleaner. Slide handle into position.
3. Attach handle with the two screws provided in the
assemblypacket.Usea Phillips®#2head screwdriver.
Handle
Step B Store Hose and Accessories
4. To store hose, lay hose over hose retainer.
5. Store tools. Place crevicetool,combination brush and
nesting wands where indicated above.
Crevice
Tool
22
2 Locations
for Screws
Hose
Retainer
Combination
Brush
Hose
Retainer
Nesting
Wands

6
6. You will find your cord retainer on the handle above
the upper cord hook. Firmly push the electrical cord
downinto thecord retainerbefore using thevacuum.
This will place the cord out of the way while you are
vacuuming. Remove cord from retainer when ready
to store vacuum or when using hose and
attachments.
7. Next wind the cord around the two cord hooks on
the back of cleaner. The upper cord hook turns to
release the cord. Turn the hook up to store the cord.
8. Secure the plug to the cord to prevent unwinding.
Cord
Hook
Step C Store Electrical Cord Step D Check Dust Cup
Cord
Hook
7
7
Cord
Retainer
6How to Remove the Cyclonic Dust Cup
9. With handle in upright position, locate dust cup lever
on the front of the cleaner. When facing the cleaner,
slide the lever to the left to the release position. The
dust cup platform will drop down.
10. Lift dust cup from the dust cup compartment.
Dust Cup
Lever
How to Replace the Cyclonic Dust Cup
11. See the above illustration. When replacing dust cup
tilt handle back slightly for easier installation. Locate
the notch on the dust cup and the tab on the inside of
the dust cup compartment. Line them up and slide
the dust cup into place on the dust cup platform.
12. Check to be sure the filter tube and dust cup are
properly lined up with the seals at the top of the dust
cup compartment for maximum performance.
13. Slide the dust cup lever to the right to the engage
position to secure the filter tube and dust cup.
Notch
Tab
Dust Cup
Platform
Remove and replace the dust cup to ensure it is properly
linedup with theseals inthe dustcup compartment. During
shipment the dust cup may have moved affecting overall
performance.

7

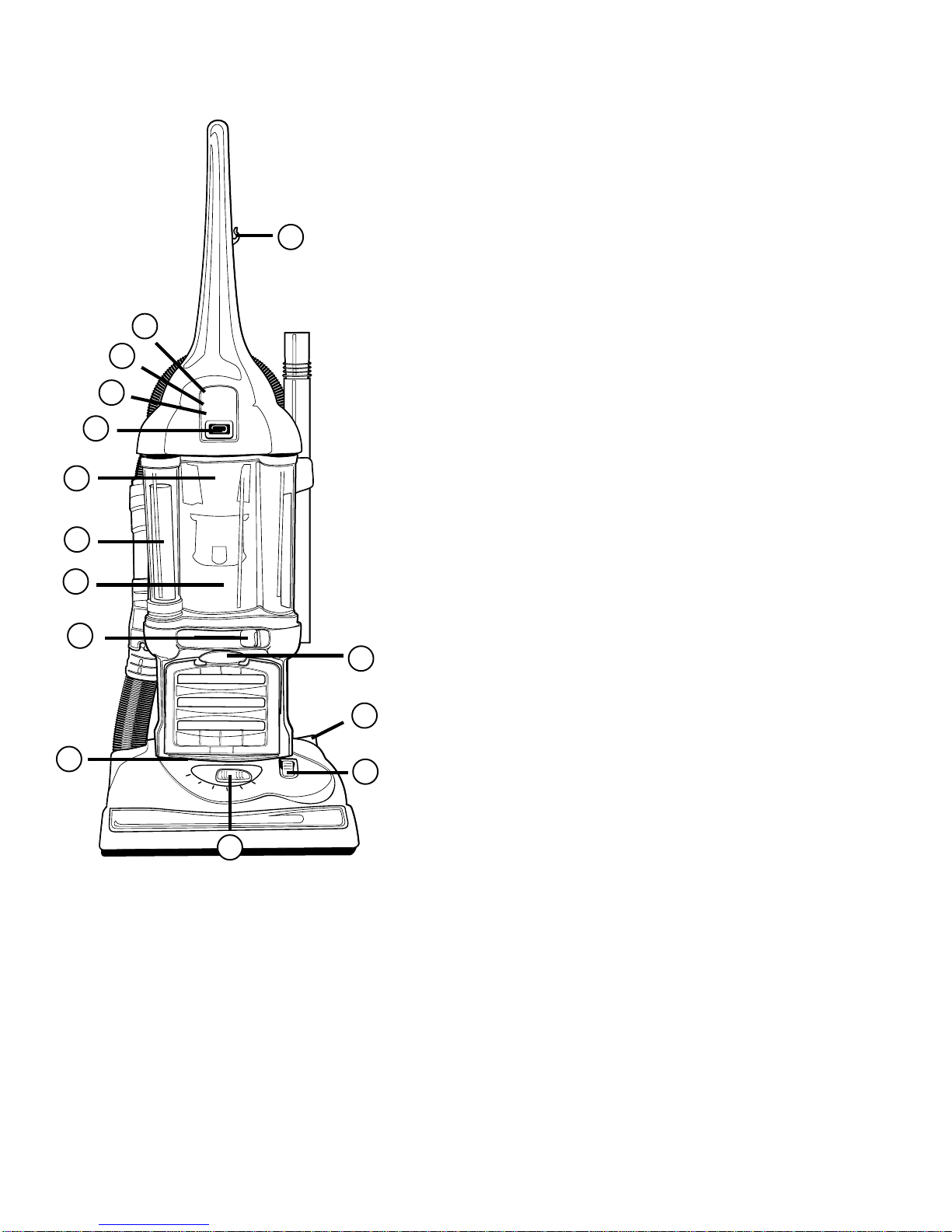

HOW TO USE
1. Cord Retainer. To use, push electrical cord down into cord retainer.
2. Motor Filter Indicator (red light) (on some models). Indicates when
motor filter needs to be cleaned or replaced.
3. HEPA Filter Indicator (red light) (on some models) Indicates when
the HEPA filter needs to be replaced.
4. Dirt Alert Indicator (on some models). The dirt alert sensor uses infra-
red technology to indicate whether or not floors are clean. When debris
breaks the light beam, the yellow light comes on indicating additional
cleaning is needed in this area. If there is no break in the light beam, the
floor is clean and no light will come on.
When using your new vacuum you may be cleaning deep down dirt
missed by your old vacuum causing the light to stay yellow longer. With
frequentcleaning, after thefirst fewtimesyou use yourEureka vacuum,
the yellow light should go on less.
To check if the dirt alert sensor is working properly:
A. Whiletheyellowlightis on, tipthevacuumbackwardson rear wheels,
lifting the brush roll off the carpet a couple of inches.
B. After a few seconds the yellow light should turn off.
5. ON/OFF Switch.International symbol Imeans On, Internationalsymbol
Omeans Off.
6. Filter Screen.Located inside dustcup. Must beremoved fromdust cup
to empty cup. Must be reinstalled in dust cup before use for correct
operation.
7. Pre-motor tube filter. The pre-motor tube filter removes the smallest
dust particles. Clean or replace as needed to maintain maximum
performance.
8. Dust Cup. The dust cup collects the dust and debris. Empty before
debris reaches the maximum fill line on dust cup.
Certain types of fine particles like powder, plaster dust, or fine road dust
can restrict airflow very quickly. The fine particles will decrease
performance even before the dust cup appears to be full. Empty the
dust cup and clean the motor filter to restore maximum performance.
9. Dust Cup Lever. When facing cleaner, slide the dust cup latch to the
left release position to release dust cup and motor filter. Slide the dust
cup latch to the right to the engage position to secure dust cup and
motor filter in cleaner. You will notice a snap as the lever locks in place.
10. HEPA Filter Door Latch. Squeeze latch and pull out to remove HEPA
FilterDoor giving accessto the HEPAFilter. Pushonlatch to closedoor.
11. Handle Release.There are two positions. Step on handle release. The
first is the normal operating position. Step on handle release again to
lower handle for cleaning under furniture.
12. Brush Roll Control. Flip this lever to choose between cleaning hard
floorsandcarpeting. Brush roll is “off”for hard floors and“on”for carpets.
NOTE: When handle is in upright position, brush roll automatically
shuts off.
1
2
3
13. Cleaner Height Setting. The front of the cleaner has an adjustment that raises or lowers the cleaner base to match the
type of floor surface. With the cleaner cord unplugged, set the adjustment to lowest setting for maximum carpet cleaning.
If the cleaner is difficult to push, move adjustment to next highest setting until cleaner is comfortable to push. The
brush roll bristles must reach the carpet for effective cleaning.The optimal hard floor cleaning adjustment is located next to
lowest carpet setting. For ease in moving the adjustment knob, place handle in operating position and tilt cleaner back to
remove weight from front wheels.
NOTE: The suction against some types of flooring may require higher cleaner height setting. The Hard Floor
setting is recommended, but the actual setting used for your hard floor may need to be adjusted for best
performance and ease of movement.
WARNING: Avoid injury. Keep loose clothing, hair, fingers, and all other parts of body away from any moving part
(such as the revolving brush). Turn off the switch and unplug the cleaner before changing the cleaner
height setting.
14. Headlight. The headlight is visible when cleaner is in operating position.
4
5
6
910
7
12
11
13
14
8

8
HOW TO USE (continued)
15. Hose Retainers (2). Place hose on retainers to store hose on unit.
16. Electrical Cord Hooks (2). Wrap electrical cord around them to store
electrical cord on unit. The upper cord hook turns to release the cord.
Turn the hook up to store the cord.
17. Clear Dirt Tube.The clear tubecarries the dirtfrom thebrush roll area
and the hose into the dust cup.
18. QuarterTurnFastener. Locatedbehindtheelectricalcord, this fastener
locks the clear tube in place.
19. Carrying Handle. Use this handle to carry unit from one place to
another.
20. Combination Brush Storage. Store combination brush here.
21. Crevice Tool Storage. Store crevice tool here.
22. Nesting Wand Storage. Store nesting wands here.
Thermal Cut Off
This cleaner has a special thermostat that protects the cleaner in case
of motor overheating. If the cleaner suddenly turns off, follow this
procedure:
1. Push rocker switch to off (O) position.
2. Unplug cleaner.
3. Check for source of overheating problem (i.e. full dust cup, clogged
hose, clogged tubes or clogged filters).
4. If a full dust cup, clogged hose, clogged tube or clogged filters is found,
empty dust cup, unclog the hose and clean or replace the filters.
5. Wait at least 30 minutes before attempting to reuse the cleaner.
6. After 30 minute cool down period, plug the cleaner in and push the
rocker switch to the on (I) position. The cleaner should turn on.
7. If the cleaner still does not operate, take it to any Eureka Authorized
Service Center for repair.
NOTE: WHEN UNIT IS RUNNING, DO NOT
ATTEMPT TO REMOVE ANY OBJECT
WHICH PREVENTS THE BRUSH ROLL
FROM TURNING.
First, lock handle in storage position, turn off
unit, unplug from the electrical socket, then
remove object from brush roll area. Ex: sock,
rug, etc.
15
15
16
16
17
19
20
21
22
18

9
How To Use Accessories
NOTE: Place cleaner on floor with the handle
in storage position while using
accessories. Do not place cleaner on
furniture or steps.
1. Separatehose endfrom cleanerby pulling upwith
a slight twisting motion. Remove hose from hose
retainers.
2. Place desired accessory onto endof hose or wand.
•Turn ridge end to center. •Push wands together.
..
..
.
•Pull apart.
..
..
.
•Grasp both wands near ridge.
Nested Extension Wands to add reach.
Extension Wands
..
..
.
Combination Brush isfor furniture,blinds, books, lampshades,
shelves, curtains, draperies, cushions, and fabrics.
Crevice Tool cleans corners, baseboards, between cushions.
..
..
.
End of
Hose
..
..
.
1
1

10
1
2
NOTE: Turn off the switch and unplug the electrical cord
before replacing belt. Belt pulleys can become hot
during normal use. To prevent injury, avoid
touching the motor shaft when checking the belt.
1. Move brush roll control lever to hard floor position.
3. Remove brush roll. Discardbroken ordamaged belt. Place
newbelt around motorshaft and brush roll.Avoid touching
motor shaft, it may be hot.
NOTE: The new belt will appear to be too large. This is
normal.
34
HOW TO MAINTAIN
The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the dust
cup, filters, belt, and brush roll often.
Brush Roll
The brush roll turns as it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues
brushing the carpet. To maintain the most efficient cleaning, the bristles must touch the carpet. To test the bristle length,
hold a ruler against the underneath side of the cleaner. If the bristles no longer touch the ruler, replace the brush roll.

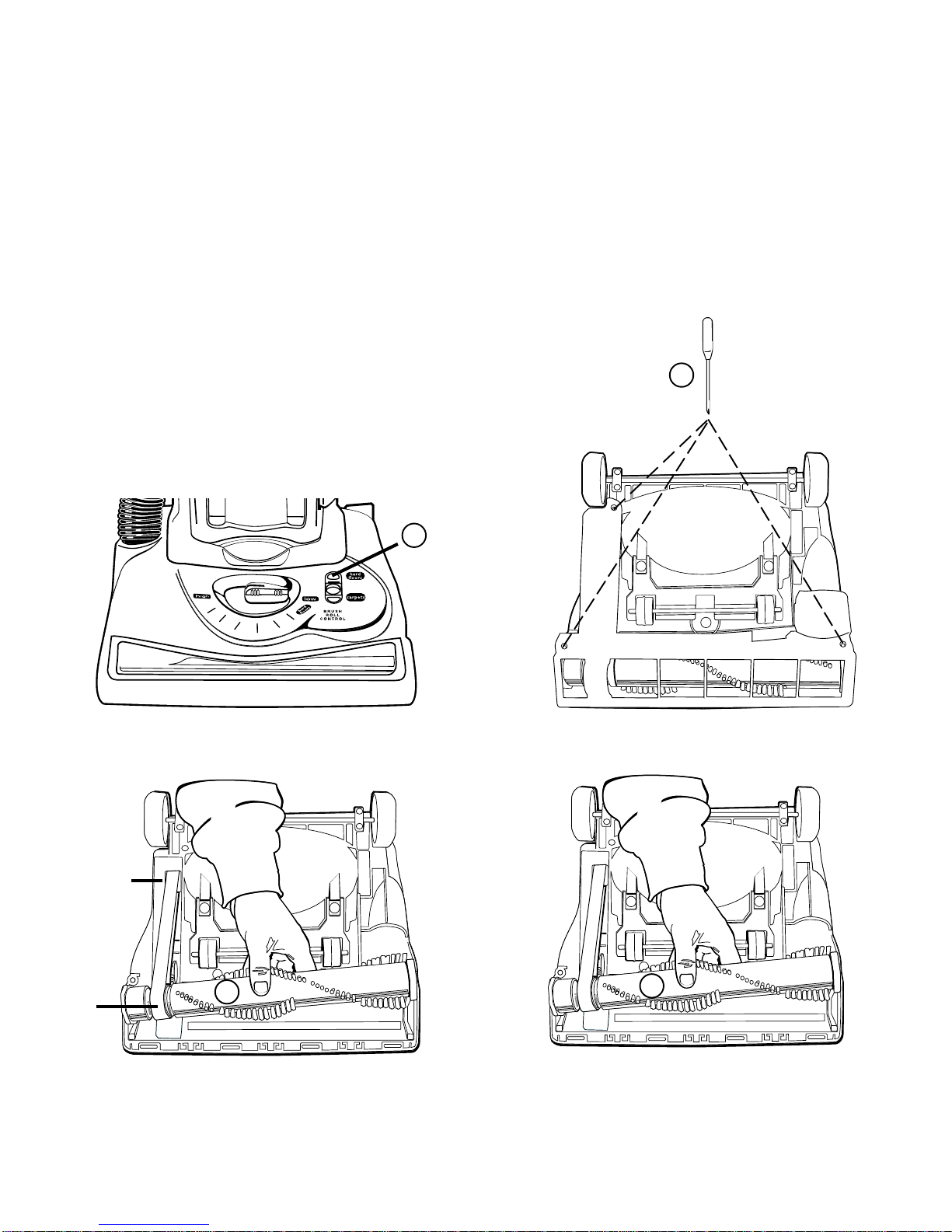

Brush Roll Belt
The brush roll belt turns the brush roll to agitate, sweep, and comb the carpet nap. Check the belt regularly to be sure it is
in good condition and rotating the brush roll. Replace the belt if it cracks or tears. Cut away any hair or threads wound
around the brush roll or the belt pulley because the buildup could cause the belt to rotate unevenly.
NOTE: Belt breakage may occur as a result of brush roll stall.
2. Remove 3 base plate screws usinga Phillips®#2 head
screwdriver. Lift base plate off base.
4. Insert left end (pulley end) of brush roll into base.
Motor
Shaft
Brush
Roll
Pulley
How To Replace Brush Roll Belt, Part No. 61110

5. Insert right end into base. Make sure it is fully into
position. Ensure belt is centered on brush roll pulley.
NOTE: The new belt will appear to be too large. This
is normal.
How To Replace Brush Roll Belt (continued)
5
6. Replace base plate by first inserting all 4 front tabs
intoslotsonbase.Rotatedownoncleanerandreplace
3 screws.
Slots
6

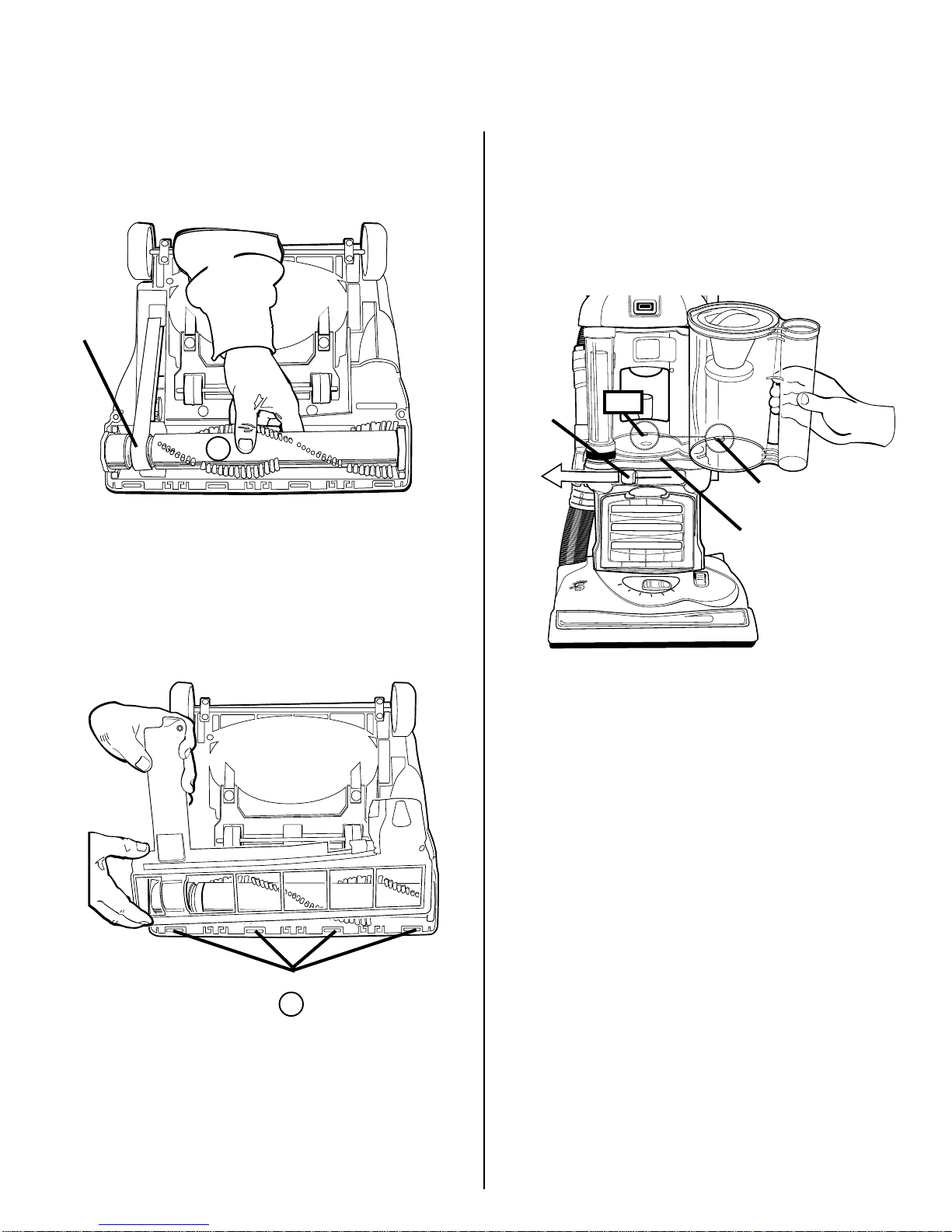

How to Remove the Cyclonic Dust Cup
11
NOTE: Turn off the switch and unplug the electrical
cord before emptying dust cup. Never operate
the vacuum cleaner without the dust cup or
filters properly installed.
1. With handle in upright position, locate dust cup lever
on the front of the cleaner. When facing the cleaner,
slide the lever to the left to the release position. The
dust cup platform will drop down.
2. Slide dust cup out of the dust cup compartment.
Dust Cup
Lever
How to Replace the Cyclonic Dust Cup
1. See the above illustration. When replacing dust cup
tilt handle back slightly for easier installation. Locate
the notch on the dust cup and the tab on the inside of
the dust cup compartment. Line them up and slide
the dust cup into place on the dust cup platform.
2. Check to be sure the filter tube and dust cup are
properly lined up with the seals at the top of the
dust cup compartment.
3. Slide the dust cup lever to the right to the engage
position to secure the filter tube and dust cup.
Notch
Tab
Dust Cup
Platform
HOW TO MAINTAIN (continued)
The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the dust
cup, filters, belt and brush roll often.
Brush
Roll
Pulley

12
Dust Cup
Lever
1
2Filter
Tube
3Filter
6
Filter
Tube
Retainer
Seals
6
7
HOW TO MAINTAIN (continued)
NOTE: Turn off the switch and unplug the electrical cord before emptying
dust cup. Never operate the vacuum cleaner without the dust cup
and filters properly installed.
Emptying the Dust Cup:
It is clearly visible when the dust cup is full and needs emptying. Do not fill
above the maximum fill line on dust cup.
Remove dust cup from cleaner body, pull filter screen up and out of dust cup
and dump debris in a waste container.
Before reassembling the dust cup, clean the filter screen with a brush or rinse with clear water. It must
be thoroughly dry before reinstalling. Alignment features (circled above) on filter screen and dust cup
must be in position to reinstall. Filter screen will fit snugly in dust cup when properly installed.
FOR INSTRUCTIONS ON HOW TO REMOVE AND
REPLACE THE DUST CUP FROM THE CLEANER
BODY, SEE THE PREVIOUS PAGE.

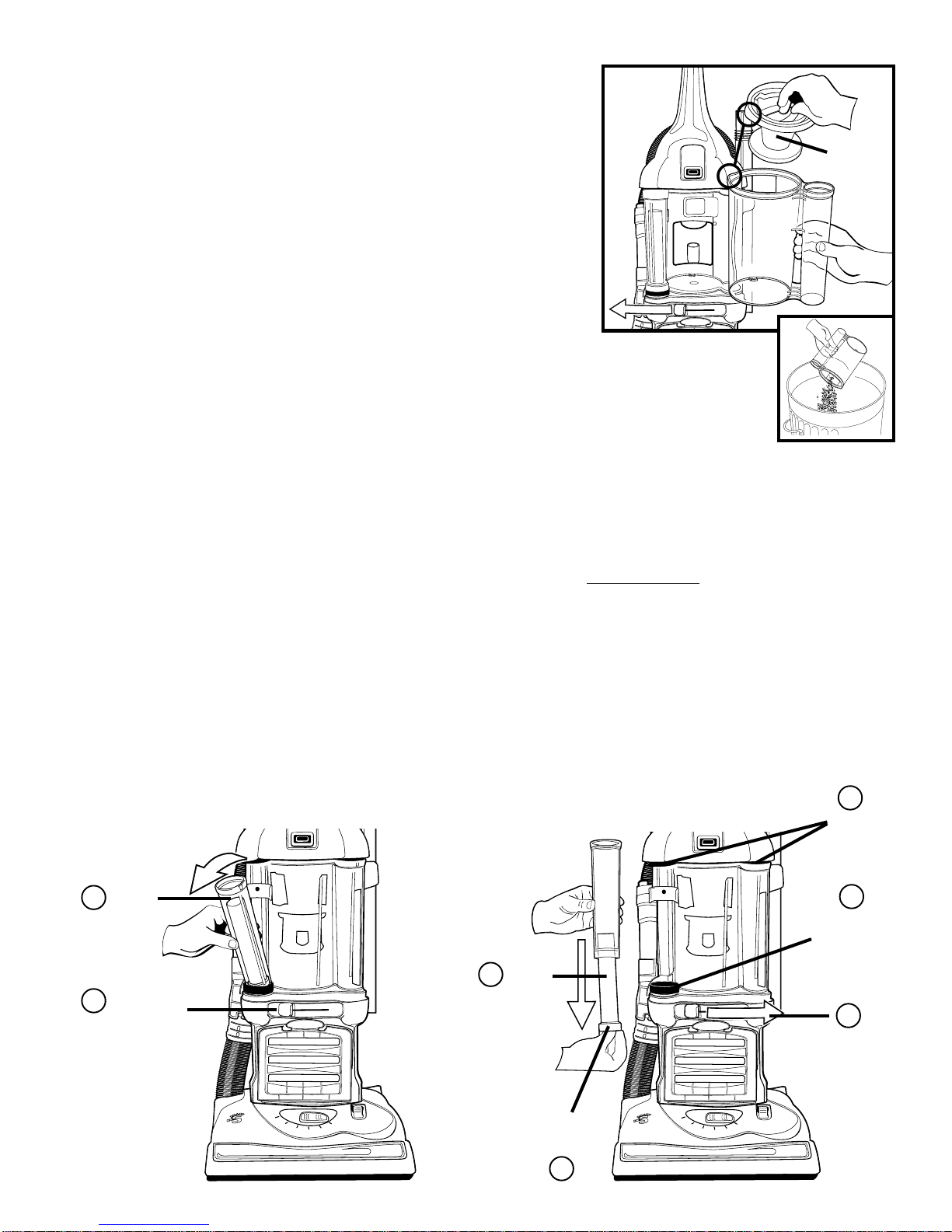

To Replace Pre-Motor Tube Filter
5. Slide the completely dry filter back up into the filter
tube.The yellowring shouldfit snugly intothe clear filter
tube.
6. Placethe bottom of the filtertube in the filter tuberetainer
on dust cup platform, then push filter tube against the
base until it snaps into place. Make sure the seals in
the top of the dust cup compartment line up with both
the filter tube and dust cup.
7. Slide the dust cup lever to the right to the engage
position.This will raisethe dust cupplatformand secure
the filter tube and dust cup.
Use replacement motor filter, 71643.
Filter
Screen
Cleaning and Replacing Filters
Pre-Motor Tube Filter
Check the pre-motor filter each time the dust cup is emptied. The pre-motor filter removes the smallest dust paticles. Clean
or replace as needed to maintain maximum performance. Never operate without motor filter in place. Do not place the
filter frame, dust cup or pre-motor filter in a dishwasher.
Yellow
Ring
5
To Clean Pre-Motor Tube Filter
1. When facing the cleaner, slide the dust cup lever to the
left to the release position. The dust cup platform will
drop down releasing the filter tube.
2. Removefilter tube fromdust cupplatformby pulling out
and lifting up at the top.
3. Grasp the yellow handle in the bottom of the filter and
pull down out of filter tube.A twisting motion may help.
4. The filter can be cleaned by vacuuming with another
cleaner or can be rinsed under running tap water and
airdried.Filter must be thoroughly dry before using.

Cleaning And Replacing Filters (continued)
HEPA Filter
ChecktheHEPAfilter once a month. Replace at least twice
a year or if suction is declining. Some models have a
red HEPA Filter warning light. If light comes on and
stays on, replace filter.
HINT: For ease of assembly, lay cleaner on its back
and proceed to the following instructions.
To Remove HEPA Filter - Style HF2
1. Squeeze HEPA door latch and swing door down and
out of cleaner.
2. Remove HEPA filter.
To Replace HEPA Filter
1. Place HEPAfilterinside HEPAcompartment with rubber
seal against the back of the compartment.
2. Replace HEPAdoor. Placetab onbottomof HEPAdoor
intoslot oncleaner andswing door uppushing against
the latch until it locks into place.
How To Change Light Bulb
NOTE: Turn off the power switch and disconnect the
electrical cord before changing light bulb.
1. Lower handle to remove two screws from lens cover.
2. Remove lens cover from cleaner.
3. Pull up on light bulb to remove.
4. Push new light bulb into socket.
5. Replace lens cover.
6. Secure with two screws.
Use replacement bulb, 57940-2.
13
Use replacement HEPA filter, 61111.
HEPA
Door
Latch
HEPA
Filter
HEPA Door
Tab

14
How to Remove and Check Clear Tube
Low suction or poor pickup may be due to a blockage in the vacuum cleaner.
To Check Attachment Hose
1. Remove hose and check suction at end of hose - if little or no suction, check
dust cup and filters. Empty dust cup and clean or replace filters, if needed . If no
improvement proceed to step 2.
NOTE: Turn off the switch and unplug the electrical cord before checking tubes.
To Check Large base hose coming from hood, go directly to step 2.
2. To release base hose, rotate twist lock clockwise to release from hose adapter.
3. Clear base hose of any blockages.
4. Reconnect base hose to hose adapter. Place base hose in hose adapter and
rotate twistlock counter clockwise to secure.
5. At clear tube/cleaner connection, use a coin to turn quarterturn lock downward
to release tube.
6. Remove large clear tube by swinging out, up and away from cleaner.
7. Check for blockages in cleaner opening.
8. At clear tube/hose connection, rotate twistlock clockwise to release clear tube
from hose.
9. Check for blockages in clear tube and hose opening,
NOTE: Clean tube with mild detergent. Do not put in a dishwasher. Make sure
all parts are completely dry prior to reassembling.
1
2
5
6
8
3
4
7
9

How to Reassemble Clear Tube
10. Reattach hose to clear tube. Insert hose and rotate clockwise to secure.
11. Hook the bottom of the clear tube on the cleaner next to the combination brush storage location.
12. Swing top of tube up and against the cleaner till quarterturn lock is in place. Then fasten using a coin turning the
quarterturn lock clockwise.
13. Place accessory nozzle into hose adapter.
15
10
11
12
13
How to Check for Blockages in Brush Roll Compartment
14. Remove 3 base plate screws using a Phillips®#2 head screwdriver. Lift base plate off base.
15. Remove brush roll from brush roll compartment.
16. Check for blockages at hose inlet location inside the brush roll area.
Reassemble following above directions in reverse.
14 15
16

Motor will not start. 䡺Electric Plug 䡺Push plug securely into outlet.
䡺Try another outlet.
䡺Check circuit breaker.
Motor suddenly stops. 䡺Thermal Cut Off 䡺Refer to page 8.
Does not clean the carpet or 䡺Dust Cup and Filter(s) 䡺Empty the dust cup. Hint: If picking up fine dust, the dust
floor. cup may not look full, but a fine substance tends to
reducesuction when itblocks theairflow through thedust
cup and filter(s). Make sure the dust cup is installed
properly. Make sure dust cup platform is engaged
properly.
䡺Belt 䡺Replace a cut, broken or out of shape belt.
䡺Brush Roll 䡺Clean hair and thread from bristles and end cap area.
Replace brush roll if bristles are worn.
䡺Hose 䡺Remove any clogs from the hose that restrict the airflow.
䡺Brush Roll Control 䡺For carpet cleaning make sure brush roll control lever is
in carpet position.
䡺Cleaner Height Setting 䡺For hard floor cleaning, make sure hardfloor/carpet lever
is in hard floor position.
No suction at the end of the 䡺Dust Cup and Filter(s) 䡺Empty the dust cup. Hint: If picking up fine dust, the
hose. dust cup may not look full, but a fine substance tends to
reducesuction when itblocks theairflow through thedust
cup and filters.
䡺Check the filters and clean or replace if necessary.
䡺Hose 䡺Remove any clogs from the hose that restrict the airflow.
䡺Check both ends of the hose. (See pages 14-15)
䡺Remove any clogs from the clear tubes that restrict the
airflow.
䡺Motor Filter Tube 䡺Dust cup and motor filter tube must be properly lined up
with seals at the top of the dust cup compartment.
Headlight not working. 䡺Light Bulb 䡺Replace light bulb.
Noise from the brush roll area. 䡺Brush Roll 䡺Remove base plate and clean debris from the brush roll
area.
䡺Belt 䡺Replace a cut, broken or out of shape belt.
Cleaner is hard to push. 䡺Cleaner Height Setting 䡺Turn height adjustment knob to a higher position. Hint:
Put handle in operating position. Tilt the cleaner back to
raise the front wheels off floor. Then turn the knob.
䡺Belt 䡺Replace a cut, broken or out of shape belt.
䡺Brush Roll On/Off 䡺Flip brush roll control lever to carpet position.
Brush roll will not turn. 䡺Belt 䡺Replace a cut, broken or out of shape belt.
䡺Brush Roll On/Off 䡺Flip brush roll control lever to carpet position.
NOTE: Brush roll is not designed to turn while the
handle is in the upright position.
Dirt Alert yellow light will not 䡺New carpet fibers. 䡺Over time loose new carpet fibers will diminish and will
go off. not trip the dirt alert sensors.
Dirt Alert yellow or Filter Sensor 䡺Sensors are not working. 䡺Call 1-800-282-2886 8 a.m. - 7:30 p.m. (CST) Monday -
red lights will not come on. Friday and 10 a.m.- 6:30 p.m. (CST) Saturday for the
nearest authorized Eureka service center.
Cleaner height knob will not 䡺Cleaner Height Setting 䡺Hint: Put handle in operating position. Tilt the cleaner
turn. backtoraise the frontwheelsofffloor.Thenturn the knob.
PROBLEM SOLVING - Call 1-800-438-7352 for replacement of broken or missing items.
NOTE: Turn off the switch and unplug the electrical cord before servicing.
PROBLEM CAUSE SOLUTION
3
16
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3

71643
61111
61110
71119-2
28251-119N
60990-2
61499-1
61250-1
57940-2
61498-1
71548
71681
70557-1
9.99
19.99
4.99
8.49
4.99
4.99
19.49
31.49
1.49
15.99
5.99
2.99
5.99
Motor Filter/Tube Filter
HEPA Filter Cartridge (style HF2)
Belt (style R) - Extended Life, package of 1
Extension Tubes
Crevice Tool
Combination Brush
Hose Assembly
Brush Roll Assembly
Headlight
Dust Cup
Filter Screen Assembly
Dirt Tube
Hepa Filter Cover
Name
Address (street address needed for UPS)
City State Zip
Telephone (Day) (Eve) (Fax)
TOTAL ENCLOSED
VACUUM CLEANERS
Name
Address (street address needed for UPS)
City State Zip
Telephone (Day) (Eve) (Fax)
S
O
L
D
T
O
S
H
I
P
T
O
71404 © 2003 White Consolidated Ltd.
Printed in U.S.A.
Postage & Handling Charge (within U.S.A.)
Tax (add state tax & local taxes as required by law)
Total (prices subject to change without notice)
$5.50
Accessories/Tools
The Eureka Company
P.O. Box 2799
Bloomington, IL 61702-2799
Part No. Qty. Price (USD) Total
ORDER FORM
1/03
(Not applicable in Canada)
IMPORTANT:
Be sure to include
your model, type,
and serial numbers.
These numbers
may be found on
the rating plate.
Model Number:
Type:
Serial Number:
#
Genuine Eureka Belts and Filters
To Order
By Phone
1-800-
438-7352*
HOURS:
Call between 8 a.m.
and 4:45 p.m.,
central standard time
Monday through Friday.
By FAX
1-309-
823-5789
To Answer Problems
or Questions for U.S.A.
and Canada call:
1-800-282-2886*
8 a.m. - 7:30 p.m. (CST)
Monday - Friday and
10 a.m. - 6:30 p.m. (CST)
Saturday
*En Mexico llame al
5670-6169
By Mail
Simply fill out
this Order Form.
Please be sure to
include day
and evening
phone numbers.
ON-LINE
www.eureka.com
Method of payment (no C.O.D. orders)
Check or money order (payable to The Eureka Company). Do not send currency.
Visa (16 digits) DiscoverCard (15 digits) MasterCard (13 digits) Amer. Express (15 digits)
Acct. number Expiration Date
Signature (full name as shown on acct.)
®
.

THE EUREKA LIMITED WARRANTY
What This Warranty Covers
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the
original purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
What This Warranty Does Not Cover
•Parts of the cleaner that require replacement under normal use, such as disposable dust bags, filters, drive belts, light bulbs, and brush roll bristles.
•Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
•Defects or damages caused by unauthorized service or the use of other than Genuine Eureka parts.
What The Eureka Company Will Do
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company
will not refund the consumer’s purchase price.
Warranty Registration
Please fill out and return the warranty registration card accompanying your cleaner.
Obtaining Warranty Service
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
You will find the nearest location in theYellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
For the location of the nearest EurekaAuthorized Warranty Station or for service information, telephone toll free:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
If you prefer, you can write to The Eureka Company, Service Division, 807 N. Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company,
866 Langs Drive, Cambridge, Ontario N3H 2N7.
If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the EurekaAuthorized Warranty Station.
Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial number from the data plate on the cleaner.
Further Limitations and Exclusions
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness ForA Particular
Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental damages you
may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights.You may also have other rights which vary by state.
Questions & Answers about Genuine Eureka Products
Q: Why should I use only Genuine Eureka paper bags, belts, and parts in my Eureka vacuum cleaner?
A:
Using Genuine Eureka Products, which are made to our exacting specifications and engineered with emphasis on quality, performance, and customer satisfaction,
ensures the long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
Q: How can I be sure I am using only genuine Eureka products in my vacuum cleaner?
A:
Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification assistance,
you may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Station.
Q: Are there any differences between “made to fit” or “imitation” and Genuine Eureka paper bags, belts, and parts?
A:
Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly purchased “imitation” paper bags and parts
while thinking they purchased genuine. Unfortunately, many of these customers discovered the differences after they experienced related difficulties.
For Genuine Eureka Value, Accept No Imitations!
THE EUREKA COMPANY
Bloomington, Illinois 61701
Household Warranty
abs 190
GENUINE
EUREKA PRODUCT
19

©2001 White Consolidated, Ltd.
Printed in U.S.A.Part No. 71389 (1/03)
Thank you for selecting a Eureka cleaner.
1 set of nesting wands
1 crevice tool
1 vacuum cleaner
handle to be installed
on unit
Accessory Items in This Carton
1 hardware package
(2 screws)
Questions?
Do Not Return To Store
Call
1-800-282-2886
8 a.m. to 7:30 p.m., Central Standard Time, Monday thru Friday
and 10 a.m. to 6:30 p.m., Central Standard Time, Saturday
Don’t Forget to Use
Genuine Eureka
Filters and Belts
Caution: Damages caused by the use of non-genuine
Eureka filters are not covered by the Eureka Limited
Warranty.
1 combination
dusting brush
