Feet (MV9) p. 02
Pedestal Module
(MV2 / MV2L40) p. 02
Basic Module (MV1 / MV1L40) p. 03
Corner Pedestal Module (MV17) p. 04
Basic Corner Module
(MV16) p. 05
Bar Module (MV6) p. 06
Rack Module
(MV8) p. 07
Cross Module (MV18) p. 08
Shelves (MV10-101/MV22-221/MV12-121
MV14-141/MV15-151/MV20-201/MVMS10-1/
MVMS15-151/MVMS10L40-MVMS1L40/MV10L40/
MV101L40)
p. 09
Upper Finish
(MV3) p. 10
Shelves
(MV7) p. 10
Vertical Bottle Holder (MV4) p. 11
Horizontal Bottle Holder (MV5) p. 11
Pivoting Bottle Holder
(MV21) p. 12
Grill (MV19) p. 13
Finishing Plugs
(MV13) p. 14
Rack Module
(MV8)
Shelves (x2)
(MV7)
Upper Finish (x2)
(MV3)
Vertical Bottle
Holder
(MV4)
Horizontal Bottle
Holder
(MV5)
Feet (x2)
(MV9)
Cross Module
(MV18)
Bar Module
(MV6)
Corner Pedestal Module
(MV17)
Pedestal Module
(MV2)
Pedestal Module 40 cm
(MV2L40)
Storage Shelf
(MV10-101)
Sliding Shelves
(MV22-221/MV12-121
MV14-141/MV15-151
MV20-201)
MODULOTHEQUE
Basic module
(MV1)
Basic module 40 cm
(MV1L40)
Pads (x10)
(MV13)
Basic Corner Module
(MV16)
GB
• Decide where you want the racking to be installed.
• Place the pedestal module(s) on a flat surface.
• Attach the basic module(s) to the wall (from the 2nd one up).
• Do not tighten the screws completely until assembly is
complete.
• Do not pull out several shelves at the same time.
• Do not lean on the shelves.
• Do not sit on the bar module shelf.
• Do not climb on the side modules.
!!!!!!IIMMPPOORRTTAANNTT!!!!!!
CONTENTS
Pivoting Bottle Holder
(MV21)
Grill
(MV19)

1 : Position the foot supports (C) (4 for the first
pedestal module and just 2 for every other
abutting pedestal) in the grooves provided, lining
them up with the holes in the wooden pedestal.
Screw together diagonally until tight, using 2
screws (a).
2 : Place the module on the floor and set the level
and height if it is to be a single or initial module.
3 : Locate the rack (B) in its housing.
B
C
A
B
a
+ 2 foot supports for the 1st module (MV9)
FEET (MV9)
1
23
4
5
6
4 : Line up the module with the previous module
and locate the previous module’s foot supports in
the grooves of the new basic module.
5 : Line up the holes and insert the 2 screws (a) in
the remaining holes in each foot support.
6 : Check the height and level of the assembly.
7 : Locate the rack (B) in its housing.
FASTENINGS
PART
ax8
TOOL REQUIRED
PART S
A
B
Cx2
1st MODULE
ADDITIONAL MODULES
a
GB
B
7
x2
Abutting columns of Modulotheque share a pair of feet (see Pedestal Module figs. 5 and 6) Thus to enable you to
assemble a run of abutting columns each Pedestal module (MV2) is supplied with 1 pair of feet. You need 1 extra pair
of feet to complete the run or for an isolated single column. See installation and assembly (Chapter MV2 or MV17).
PEDESTAL MODULE (MV2/MV2L40)
GB
2
(supplied)

BASIC MODULE (MV1/MV1L40)
3
4
PART
ASSEMBLY
FASTENINGS
ax2
TOOL REQUIRED
PART S
A
Bx2
C
ERECTION
g
To be wall mounted
bx4
dx6
ex2
gx4
B
C
A
a
2
1 : Fit the 6 dowels (d) and the 2 connecting bolts
(e) in the sides (B). Place the 2 bolt locks (c) in the
back piece(C).
Fit the back piece (C) on one side (B).
Turn the bolt lock (c).
Fit the rack (A) onto the 2 dowels (d).
Push the 2 screws (b) into the rack and screw
together the assembly.
Repeat the same procedure on the other side (B).
2 : Position the 2 dowels (f) in the lower module
(Pedestal or Basic).
Fit the basic module onto the lower module.
Place the 2 securing plates (a) on the pedestal
module and screw together.
3 : When the 2 modules abut, you will need to link
them using 4 linking screws (g). Push the linking
screws into the holes provided in the shelf support
strips on the 2 contacting panels. Tighten until the
2 panels are flush and in line.
4 : The basic modules above the first should be
secured to the wall from the 2nd level using 2 securing
screws (not supplied) suitable for the wall type..
VERTICAL ASSEMBLY
e
dd
f
3
GB
1
c
b
b
cx2
fx2

B
1 : Locate the foot supports (C) (4 for the first
pedestal module and just 2 for every other
abutting pedestal) in the grooves provided and
align the foot support holes with those in the
wooden pedestal (A).Tighten the 2 screws (a) in
each foot support diagonally inside the pedestal
and lock off.
2 : Place the module on the floor and check the
height of pedestal using a spirit level.
3 : Place the rack (B) in its housing.
Warning:Take the size of the corner module into account before positioning the assembly.
A
CB
CORNER PEDESTAL MODULE (MV17)
1
2
4
5
6
7
FASTENINGS
ax8
TOOL REQUIRED
PART S
A
B
Cx2
1st MODULE
ADDITIONAL MODULES
4 : Place the module next to the previous one,
remembering that each corner module makes a
45° curve. Position the foot supports of the
previous module in the grooves of the new
pedestal module.
5 : Line up the holes and insert the 2 screws (a) in
the remaining free holes in each foot support.
6 : Check the level of the assembly.
7 : Place the rack (B) in its housing.
4
GB
a
a
3
B
+ 2 foot supports for the 1st module (MV9)

2 : Position the 2 dowels (c) in the pedestal
module. Fit the two sides onto the pedestal
module.
3 : When the 2 modules are back to back, you will
need to link them using 4 linking screws (d). Push
the linking screws into the holes provided in the
shelf support strips on the 2 contacting panels.
Tighten until the 2 panels are in contact and
correctly aligned.
4 : Position the 4 rack supports (C) in the shelf
support strips and locate the rack (A). Position the
2 bottle stops (D) at either end of the rack (widest
part).Then insert your first row of 4 bottles in the
rack slots, followed by a series of 5 bottles.
1 : Position the 4 dowels (b) in the sides (B).
Fit the rack (A) onto the 4 dowels (b).
Push the 4 screws (a) into the rack and screw
together the assembly.
BASIC CORNER MODULE (MV16)
1
3
FASTENINGS
TOOL REQUIRED
PART S
A
Bx2
Cx4
Dx4
dx4
ASSEMBLY
5
GB
ax4 bx4 cx2
B
A
b
a
ASSEMBLY
BOTTLE STORAGE
2
c
d
4
A
C
D
ASSEMBLY
FASTENINGS

6
F
A
3 : Position the 4 shelf supports (E) in the shelf
support strips and set up the shelf (C).
BAR MODULE (MV6)
1
2
3
1
2
1 : Position the 4 rack support pins (F) on the shelf
support strips so as to create a level.
2 : Position the glass rack (D) aligning it on the
racks. Tighten the 4 screws (a) lining up the rack
support pins holes (F) with those in the glass rack.
FASTENINGS
ax4
TOOL REQUIRED
PART S
Ax2
B
C
D
Ex4
Fx4
SHELF
GLASS HOLDER
GB
C
B
1 : Place the guides (A) in the shelf support strips.
2 : Insert the sliding shelf (B).
E
F
D
a
Guide
Shelf Support Strip

B
A
bb
b
b

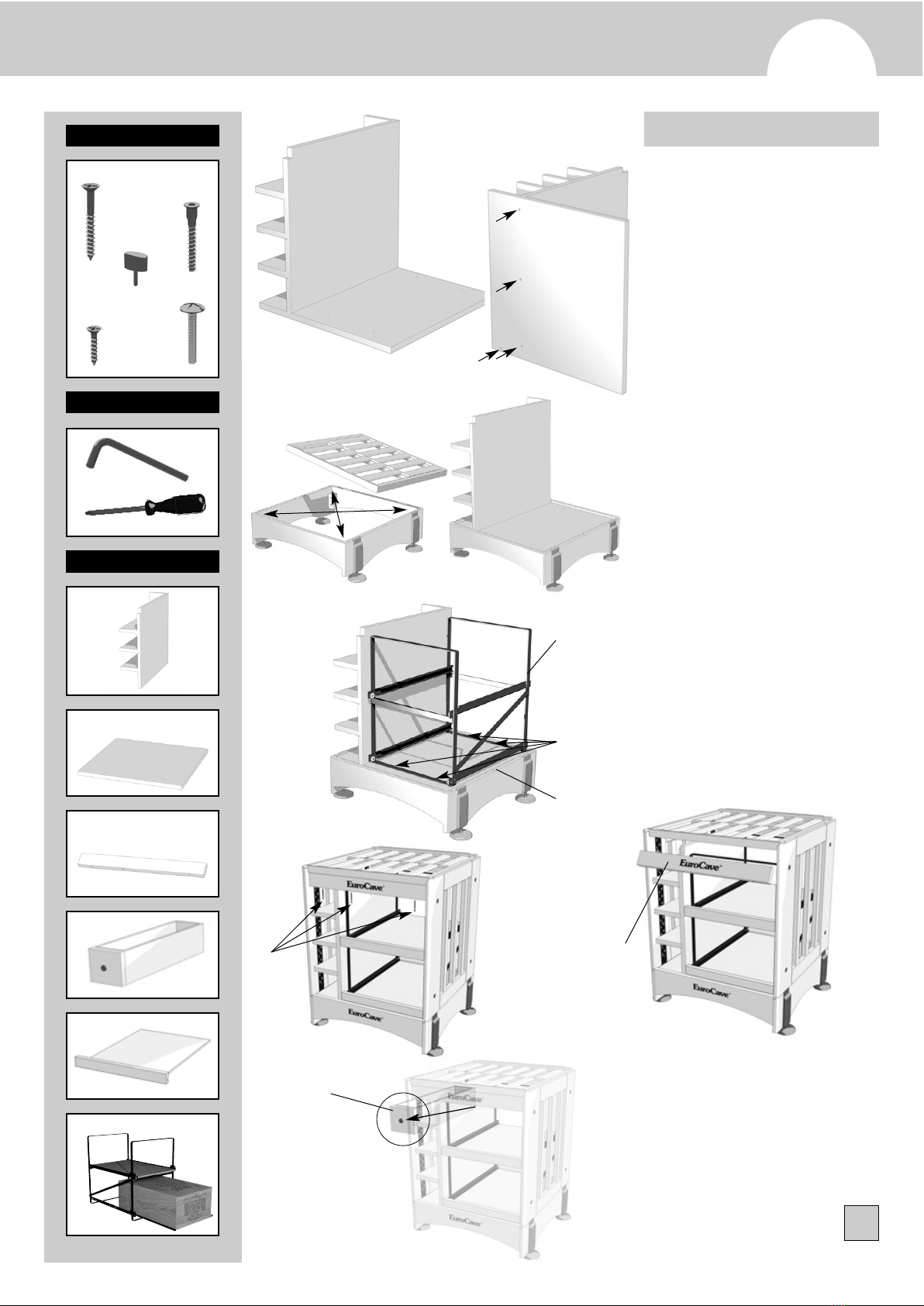

RACK MODULE (MV8)
1
2
3
5
FASTENINGS
ax3
TOOLS REQUIRED
PART S
A
B
C
D
E
F
ASSEMBLY
1 : Secure the “magnum shelving unit” (A) to its
base plate(B) using the 4 screws (b) and by lining
up the various holes.
2 : Remove the rack from the pedestal module,
nail the 4 parts (e) onto the 4 wedges, and
introduce the ready assembled unit in its place.
WARNING!
The Modulorack comes in a separate box.
3 : Assemble the Modulorack (F) (following
directions in the box) and secure it onto the base
plate(B) using 4 screws (c) and by lining up the
holes in the Modulorack with the holes in the base
plate.
4 : Position the upper cross piece (C) under the
rack of the basic module and position it on the
edge of the rack, securing it with 3 screws (a).
5 : Position the drawer (D) at the required height.
From the inside, screw on the drawer ‘handle’
button with the screw provided (d).
NN..BB..::oak panels (
E ) are supplied with the Rack
module to replace the original Modulorack ones.
C
c
e
d
ex4
GB
4
cx4
bx4
7
B
F
a
d
D

CROSS MODULE (MV18)
1
2
3
45
FASTENINGS
a*x4
TOOL REQUIRED
PART S
Ax2
Bx2
Cx2
ARRANGEMENT
OF SUPPORTS
1 : Unfold the 2 support cross-pieces (A) Pull up
ends in relation to centre to form an X. Notice
that the arms of the X are NOT of equal length.
2 :
a: The rear support cross-piece is placed with the
long arms uppermost.
b: The front support cross piece is placed with the
long arms downward
3 : Remove the 4 securing screws (a) from the
upper rack. Install the rear support at the back of
the basic module.
4 : Centre the rear support (a) by screwing it
onto the rear metal 135º guides (B) on the upper
rack.
5 : Install the front support in front of the rear
support and centre it (a) by screwing it onto the
front metal 90º guides (C) on the upper rack
NN..BB..::You may expect slight play on the cross
modules inside the basic module. This is normal
because wood is a living material that moves with
levels of atmospheric moisture.
8
GB
WARNING!
Before locating the cross module, remove all the bottles from the top module.
*No screws are provided, the
screws to be used are the ones
for the basic module.
SETTING UP
SUPPORTS
Rear securing
guide
Front securing
guide
a
A

UNIVERSAL STORAGE SHELF
(MV10-101)
SHELVES
(MV10-101/MV10L40 - MV101L40/MVMS10-1/MVMS15-151/MVMS10L40 - MVMS1L40)
9
GB

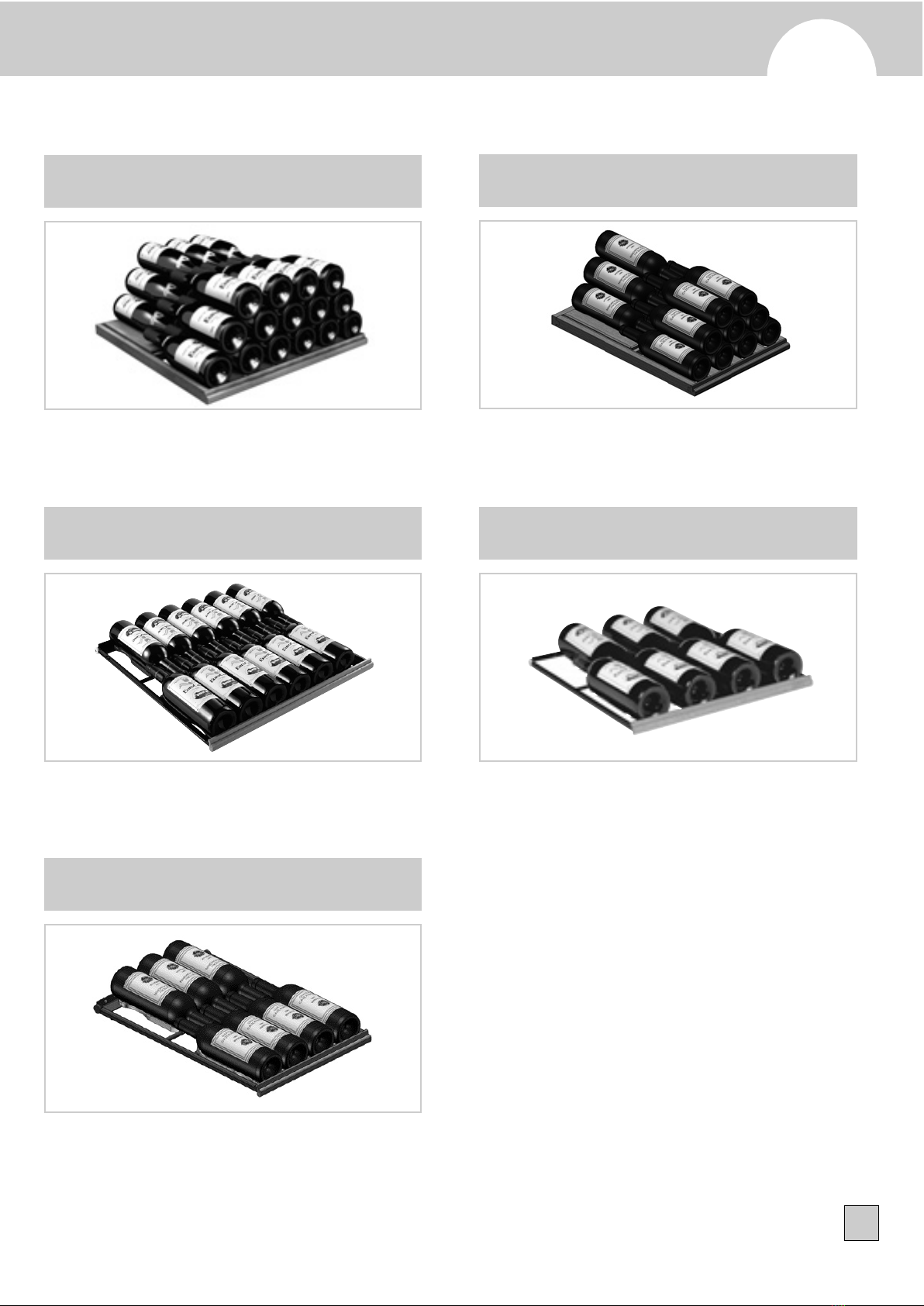

Your EuroCave Modulotheque adapts to your requirements and evolves to suit your storage needs.
Capacity: 77 bottles
UNIVERSAL SLIDING SHELF,FITTED WITH THE
“MAIN DU SOMMELIER” (MVMS10-1)
Capacity: 12 bottles Capacity: 7 bottles
MAGNUM SLIDING SHELF,FITTED WITH THE
“MAIN DU SOMMELIER” (MVMS15-151)
UNIVERSAL SLIDING SHELF,FITTED WITH THE “MAIN DU
SOMMELIER” 40 CM (MVMS10L40/MVMS1L40)
Capacity: 7 bottles
Capacity: 49 bottles
UNIVERSAL STORAGE SHELF 40 CM
(MV10L40/MV101L40)

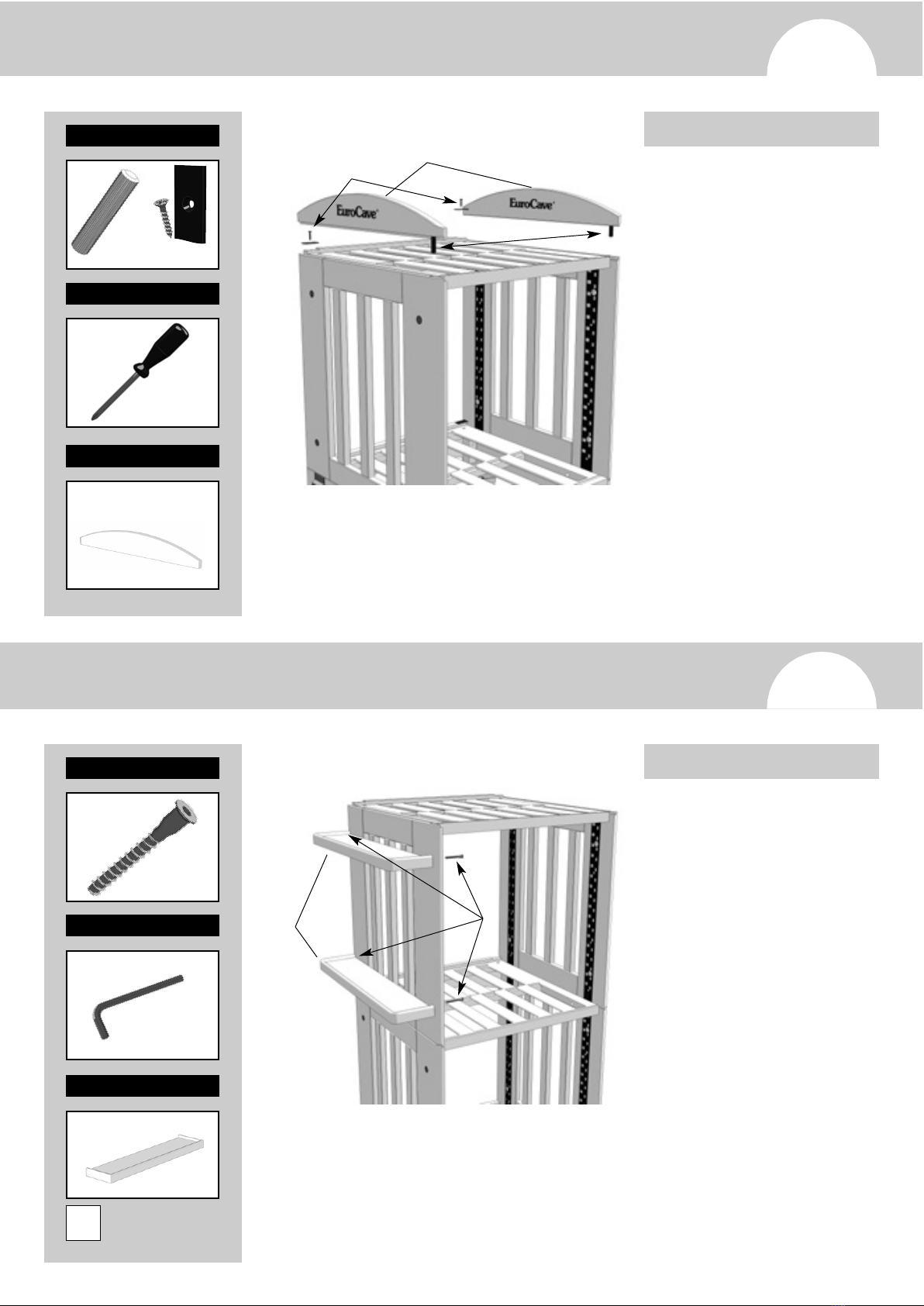

1 : Insert the dowels (a) into the front hole of the
upper finish (A), pushing them in until they stop
and keeping the pressure on until the upper finish
makes contact with the module underneath.
2 : Once the finish is in place, secure it with the
securing plates (b), using a Phillips screwdriver.
UPPER FINISH (MV3)
FASTENINGS
ax2
bx2
TOOL REQUIRED
PART S
Ax2
FASTENINGS
TOOL REQUIRED
ASSEMBLY
GB
1 : Secure the shelves (A) using the 4 screws (a)
onto the side of a basic module, lining up the holes
on the shelving unit with those on the module.
ax4
Ax2
ASSEMBLY
SHELVES (MV7) GB
a
a
b
1
2
A
A
10
PART S
1

11

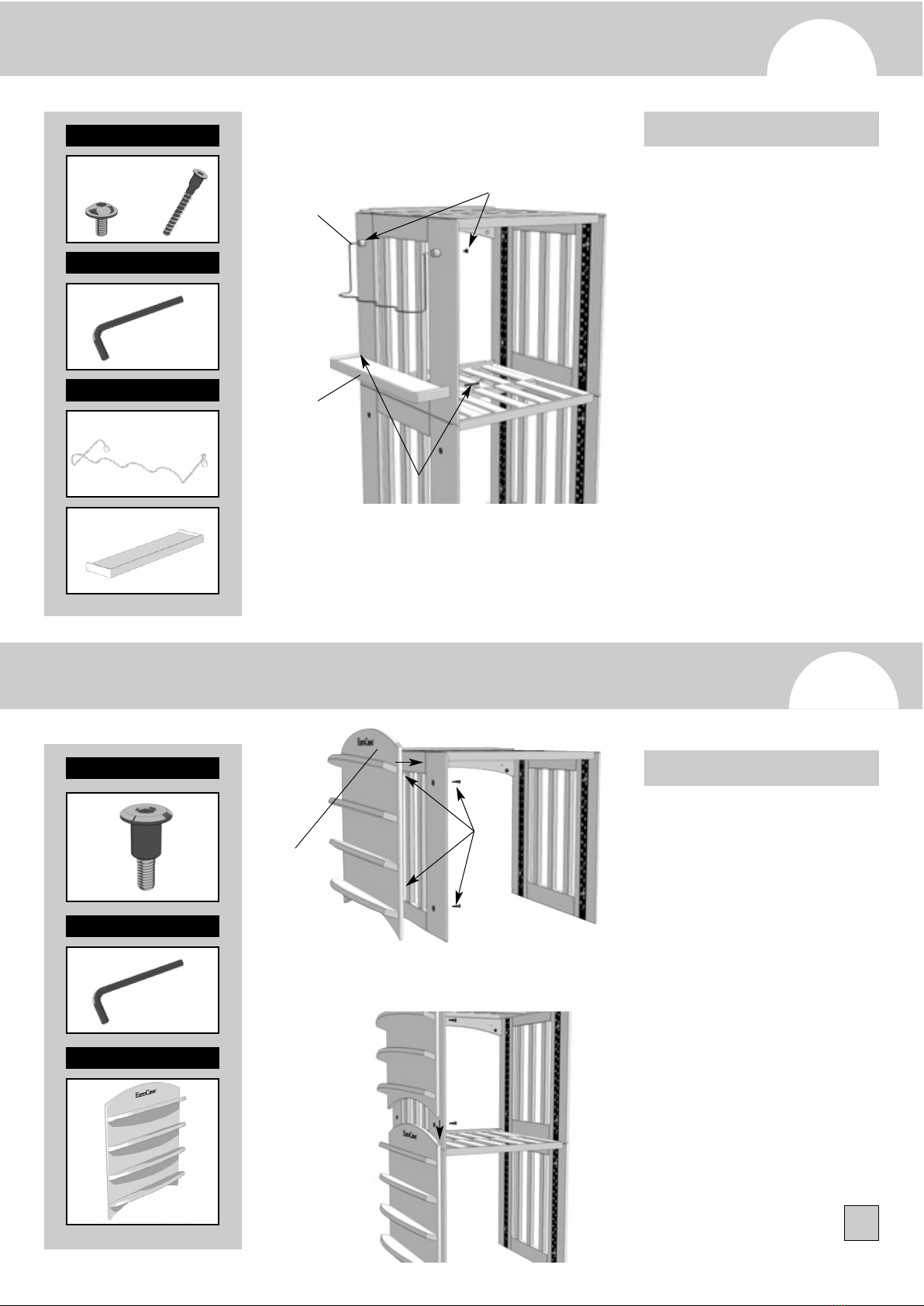

1 : Secure the bottle holder (A) using the 2
screws (a) onto the side of a basic module at the
top, lining up the holes on the support with those
on the module.
VERTICAL BOTTLE HOLDER (MV4)
1
2
FASTENINGS
FASTENINGS
TOOL REQUIRED
PART S
A
PART S
A
B
TOOL REQUIRED
ASSEMBLY
2 : Secure the shelves (B) using the 2 screws (b)
onto the side of a basic module at the bottom,
lining up the holes on the shelving unit with those
on the module.
GB
B
ax4
ax2 bx2 a
b
A
HORIZONTAL BOTTLE HOLDER (MV5) GB
1
2
ASSEMBLY
1 : Position the horizontal bottle holder (A)
against a basic module and line up the 4 holes,
inserting the 4 linking screws (a) into all 4 of them.
Tighten from inside the basic module.
2 : Place the bottle holder on the one below, and
secure it using the 4 linking screws and tighten
from inside the basic module.
a
A

12
PIVOTING BOTTLE HOLDER (MV21)
1&2
3
4
5
FASTENINGS
ax2
a
TOOLS REQUIRED
PART S
A
B
ASSEMBLY
GB
1 : Position the securing tab (A) inside the basic
module, to the right or left and at the required
height. Pierce 2 starter holes using a bradawl.
2 : Secure using 2 screws (a)
3 : Equip the bottle holder (B) with the two
plastic protective end pieces (C).
4 : Position the bottle holder on the securing tab,
insert the 2 rivets (D) and fit by exerting light
pressure on each of them.
5 :When the bottle holder is in place, it swings on
itself so as not to hinder the movement of the
sliding shelves.
WARNING!
Before setting up your bottle holder in position, remove the shelves and the bottles from the basic module.
If your module is equipped with sliding shelves, the securing tab will be located between two sliders.
A
C
B
D
View from above
Shelf closed
Shelf open
Cx2
Dx2

1 : Position the hinge (A) so that the lower part
is lined up with the upper corner of the shelf.
2 : Secure the hinge (A) on the side panel of the
module using 4 screws (a). (Pierce starter holes
with a bradawl for easier penetration into the
wood).
**NN..BB..::The grill is reversible and it can be set to open
either on the left or right.
WWaarrnniinngg::The grill adapts to any basic module
irrespective of equipment: Shelves, cross storage, etc.
However, the Rack Module allows for grid opening only
to the right. In the same way, for the Bar module, the
hinge must be positioned 25 mm higher.
A
B

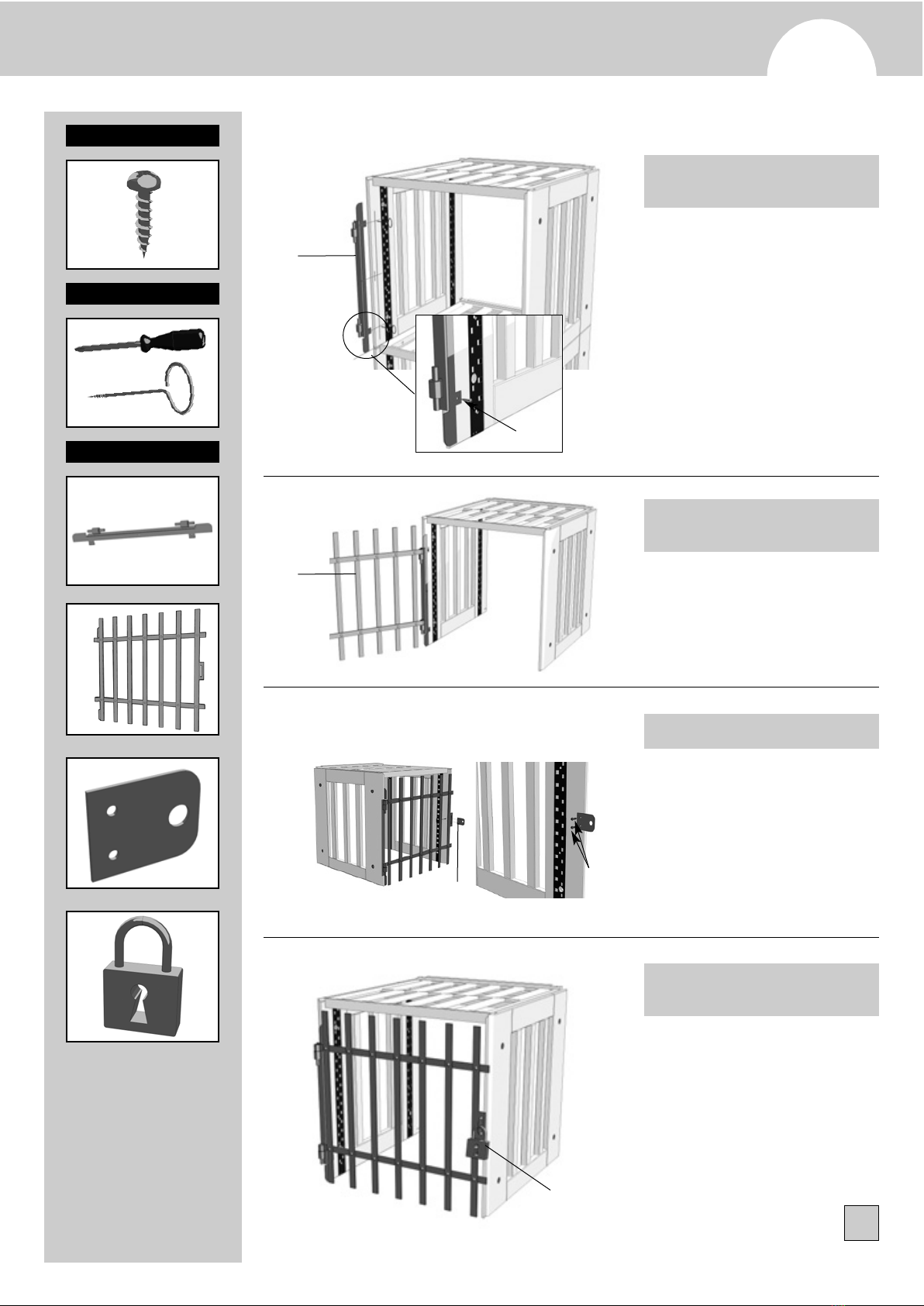

GRILL (MV19)
1
2
3
4ab
5
3 : Set up the grill (B) on the hinge pins.
FASTENINGS
ax6
TOOLS REQUIRED
PART S
A
B
C
D
SECURING
THE HINGE*
INSTALLING
THE GRILL
4 :
a) Position the bolt (C) against the panel on the
opposite side to the hinge.Align it with the recess
in the grill.
b) Mark the position of the holes,and make starter
holes with a bradawl. Secure the bolt using 2
screws (a).
SECURING THE BOLT
GB
WARNING!
Before setting up the grill, remove all bottles from the module
C
5 : Put the padlock in place (D)
SETTING UP THE
PADLOCK
D
13
a
a

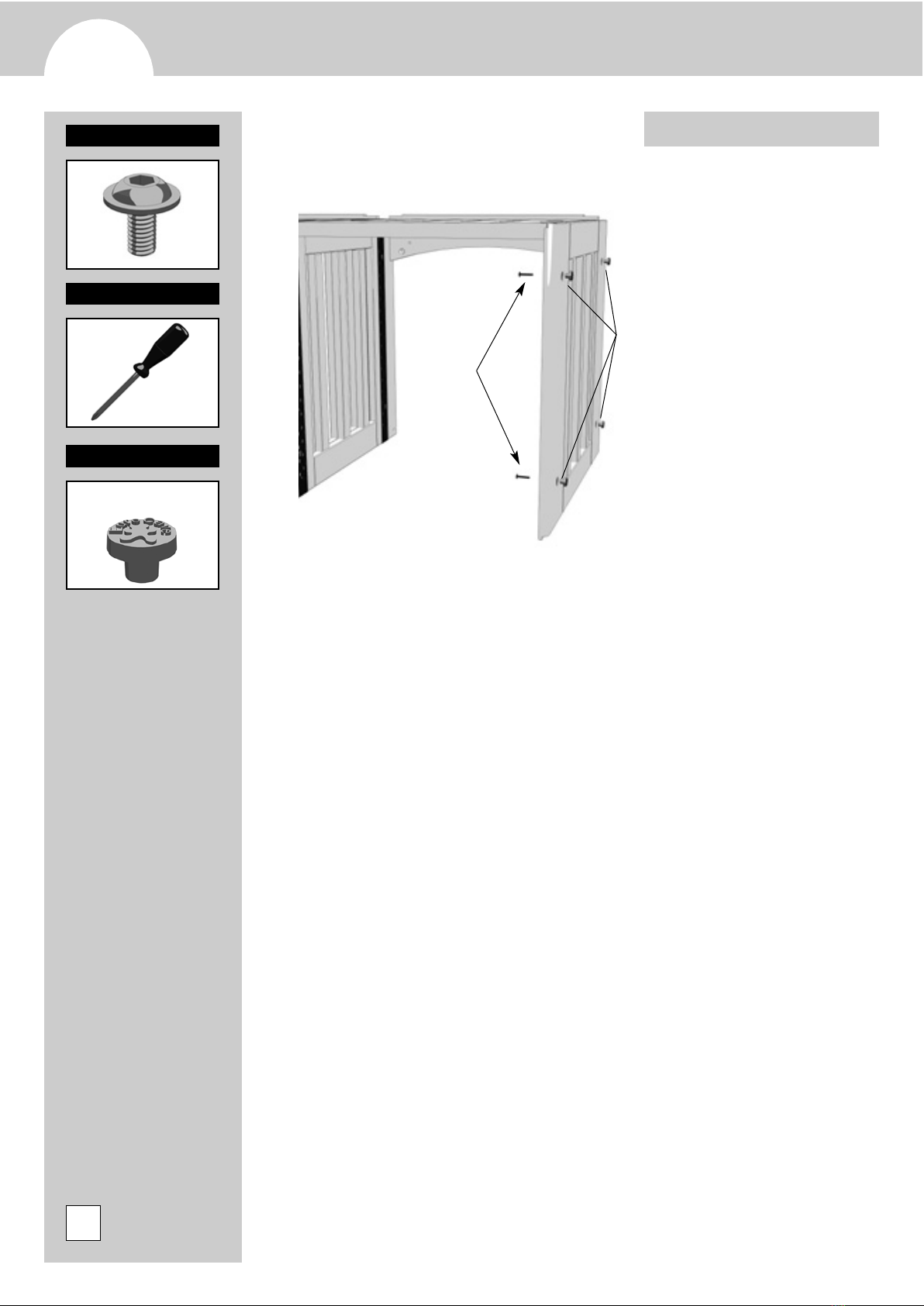

1 : In order to fill in any holes left empty, secure
the plugs (A) using screws.
A
a
FINISHING PLUGS (MV13)
1
FASTENINGS
ax10
TOOL REQUIRED
PART S
Ax10
ASSEMBLY
14
GB

www.eurocave.com
Cachet du revendeur EuroCave :
EuroCave Dealer Stamp :
Firmenstempel des Verkäufers EuroCave :
Sello del vendedor de EuroCave :
Références / References / Zeichen / Referencias :
EuroCave ©. 8200420 / 09/2008 / 3 000
