Euromaid IRI6SE1 User manual

User Manual
IRI6SE1 FP Integrated Rangehood - S/S
IRI9SE1 FPIntegrated Rangehood - S/S

CONTENTS
For You Safety.......................................................................................................................... 3
Safety Precautions....................................................................................................... 3
Before Connecting...................................................................................................... 3
Warnings....................................................................................................................... 4
Use and Care .......................................................................................................................... 6
LED Lamps.................................................................................................................... 6
Operating Instructions................................................................................................. 
Cleaning your rangehood.......................................................................................... 
Installing the carbon filter ..........................................................................................
Installation ............................................................................................................................. 
Electrical Connection ............................................................................................... 
Instructions for Installation......................................................................................... 
Troubleshooting ......................................................................................................... 
Disposal ...................................................................................................................... 
Warranty..................................................................................................................... 
2

For Your Safety
Carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet
accessible for future reference.
This appliance has been designed for use in Ducted or
Recirculated installation.
Optional extras: Carbon filters for recirculated installation.
Part CF260
Safety Precautions
Take care when the Range Hood is operating simultaneously with
an open fireplace or burner that depend on natural ventilation as
the Range Hood removes air from the room, which a burner or
fireplace may need for combustion.
Provide adequate ventilation for safe operation of the Range
Hood. Follow any local laws that apply to external air evacuation.
Before connecting to the electricity network:
Look at the data plate (located inside the appliance) to ascertain
that the voltage and power correspond to the available power
supply and the power outlet is suitable. If in doubt ask a qualified
electrician.
If the appliance is used intensively for a long period of time, you
may need to opening a window to improve airflow.
3

For Your Safety
WARNINGS!
·Do not check the status of the filters while the Range Hood
is operating.
·Do not touch bulbs or adjacent areas, during or straight
after use.
·CAUTION: Accessible parts may become hot when used
with cooking appliances.
·Do not flambé under the Range Hood.
·Avoid free flame, as it is damaging to the filters and can
cause fire hazard.
·Constantly check food frying, overheated oil may become a
fire hazard.
·Disconnect the electrical plug prior to any maintenance.
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
·Children should be supervised to ensure that they do not
play with the appliance.
·There shall be adequate ventilation in the room when the
Range Hood is used at the same time as appliances
burning gas or other fuels.
·There is a fire risk if cleaning is not carried out in
accordance with the instructions.
·WARNING: DO NOT penetrate any screws into the range
hood as this may result in electrical hazards.
·WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
4

WARNINGS!
·If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
·The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
·The minimum distance between the cooktop hob and the
lowest part of the range hood shall be at least 60cm. If the
instructions for installation of the gas hob specify a
greater distance, this has to be taken into account.
·Regulation concerning the discharge of air has to be
fulfilled.
For Your Safety
·565cm rangehoods can only be installed above hobs with
4 or less burners / elements.
·865cm rangehoods can only be installed above hobs with
6 or less burners / elements.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGES CAUSED BY BREACHING THE ABOVE
WARNINGS.
5

Operating Instructions
OPERATING THE RANGEHOOD
 Turn the rangehood on by pushing the POWER button.
 To start the rangehood on its 1st speed, push the LOW SPEED button. An indicator light
surrounding the button will illuminate. Push the LOW SPEED again to turn the motor off.
 To operate the 2nd and 3rd speed of the rangehood, push either the MEDIUM SPEED or HIGH
SPEED buttons
 To operate the lights, push the LIGHT button. To switch off, push the LIGHT button again.
 The rangehood can be switched off by pushing the POWER button once to firstly cease
operation of the motor and then a second time to power down the unit.
,WLVUHFRPPHQGHGWRVWDUWWKH5DQJH+RRGSULRUWRFRPPHQFLQJWRFRRNDQGOHDYHWKH
5DQJH+RRGLQRSHUDWLRQIRUPLQXWHVDIWHUFRRNLQJLVILQLVKHGLQRUGHUWRFRPSOHWHO\
HOLPLQDWHFRRNLQJYDSRXUVDQGRGRXUV

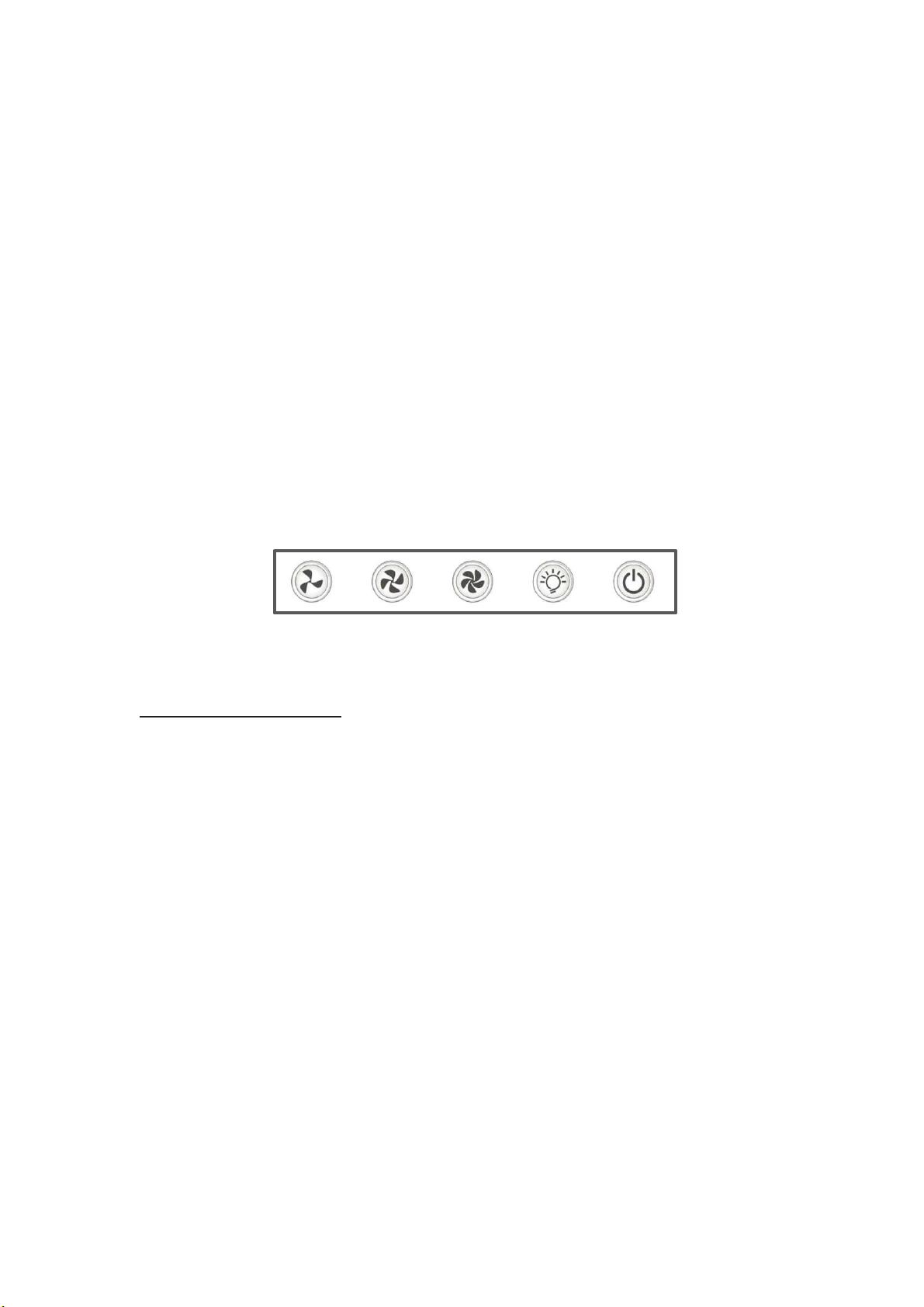

LOW MEDIUM HIGH LIGHT POWER
SPEED SPEED SPEED
LED Lamps
LED lamp assemblies are a spare part and are not repairable or
replaceable by the customer.
If an LED lamp fails, it must be replaced by a suitably qualified
technician.
Please call Glen Dimplex after sales service.
6

Cleaning your rangehood
The proper function of the rangehood requires regular
maintenance operations.
The anti-grease filters capture the grease particles suspended in
the air, and are therefore subject to clogging according to the
frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the
filter at a minimum of every 2 months by carrying out the following
instructions:
- Remove the filters from the cooker hood and wash them in a
solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This
is not cause for customer complaint nor replacement of panels.
Clean the fan and other surfaces of the cooker hood regularly
using a cloth moistened with denatured alcohol or non abrasive
liquid detergent.
Keep motor and other parts free from water as this will cause
damage to the appliance.
Use and Care

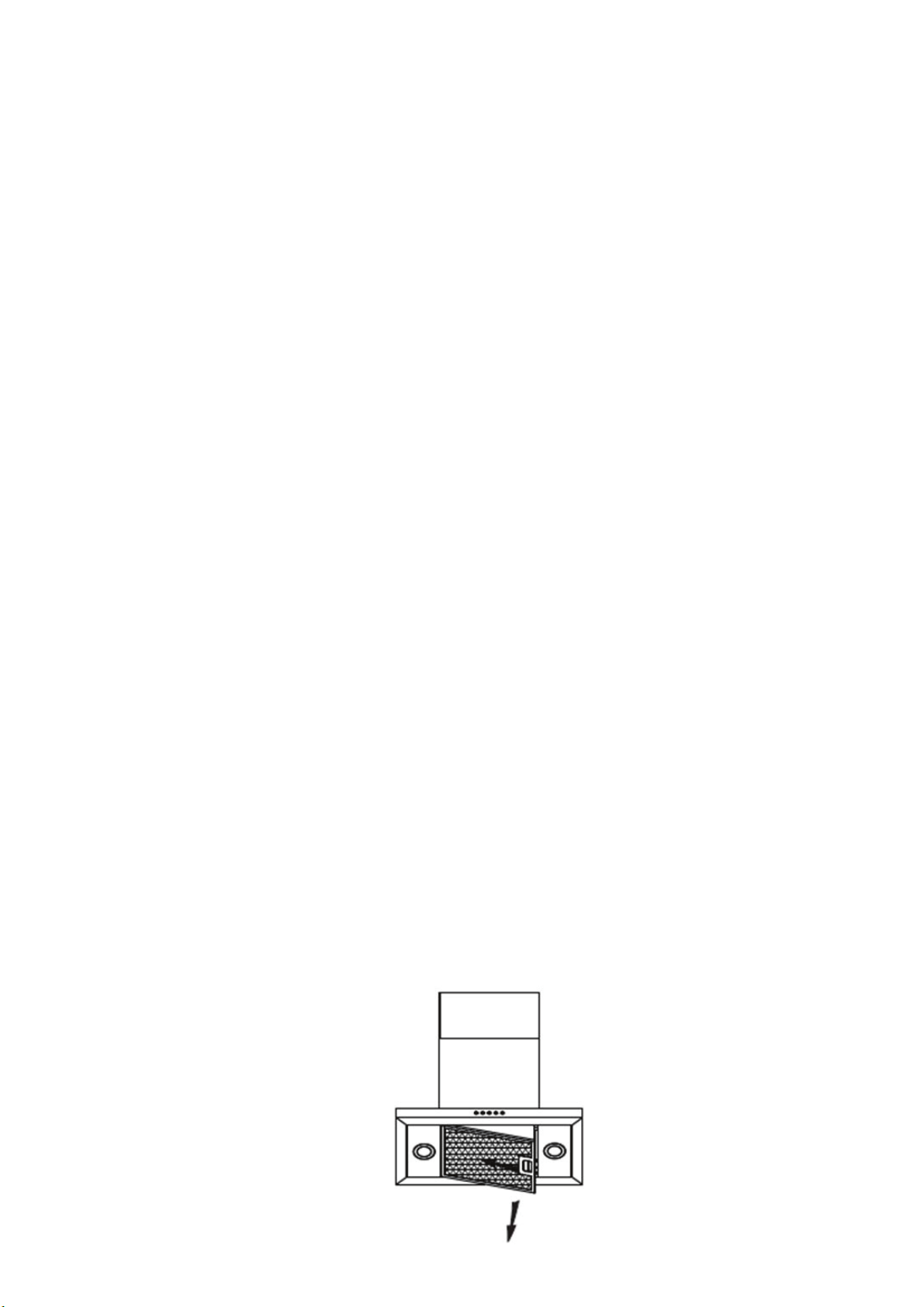

Removing the anti grease filters:
2. Slide the plastic filter handle inwards and pull the filter down.
To refit the filters:
1. Angle the tabs on the filter into slots at one end.
2. Slide plastic filter handle inwards and push the filter into place.
7

Installation
Assembly and electrical connections must be carried out by
authorised personnel.
Electrical Connection
The Range Hood is fitted with a power cord and 3 pin plug. Install
the Range Hood so that the plug is easily accessible. Plug the 3-
pin plug into a properly earthed, 10A general purpose power
outlet.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
The appliance has been manufactured as a class I, therefore
earth cable is necessary.
The connection to the mains is carried out as follow:
If not provided, connect a plug for the electrical load indicated on
the description label. Where a plug is provided, the cooker hood
must be installed so that the plug is easily accessible after
installation.
An omnipolar switch with a minimum aperture of 3mm between
contacts, in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.
IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green
8

Instructions for Installation
WARNING: DO NOT penetrate any screws into the range hood
as this may result in electrical hazards.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
If a connection flue composed of two parts is used, the upper part
must be placed outside the lower part.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
Installation must comply with any local regulations concerning the
discharge of exhaust air.
Before proceeding with the assembly, remove the anti-grease filter
so that the unit is easier to handle. Prepare the hole in the ceiling
or wall for the evacuation of the air.
Installation
650-750
Rangehood
Cooking Surface
Recommended Clearances
Install Range Hoods in accordance
with the manufacturer’s instructions.
For optimum performance, we
recommend that all Range Hood
clearances be a minimum of 650mm
to a maximum of 750mm between
the top of the cooking surface to the
underside of the Range Hood. The
distance may be reduced to 600mm
to align with AS/NZS 5601.
9

Installation
The IRI6WE3, IRI9WE3, IRI6SE1 & IRI9SE1 are designed to
be
installed fully integrated into an overhead cupboard as
pictured below. The IRI6WE3& IRI6SE1 are suited for a
600mm cupboard and the IRI9WE3 & IRI9SE1 are suited for
a 900mm cupboard.
Installation of the IRI9WE3Integrated rangehood in an overhead cupboard
The Integrated Rangehood is mounted to the rear of the
overhead cupboard. Supplied with the rangehood is a
mounting bracket (Fig. 2)
Fig. 2
10

Installation

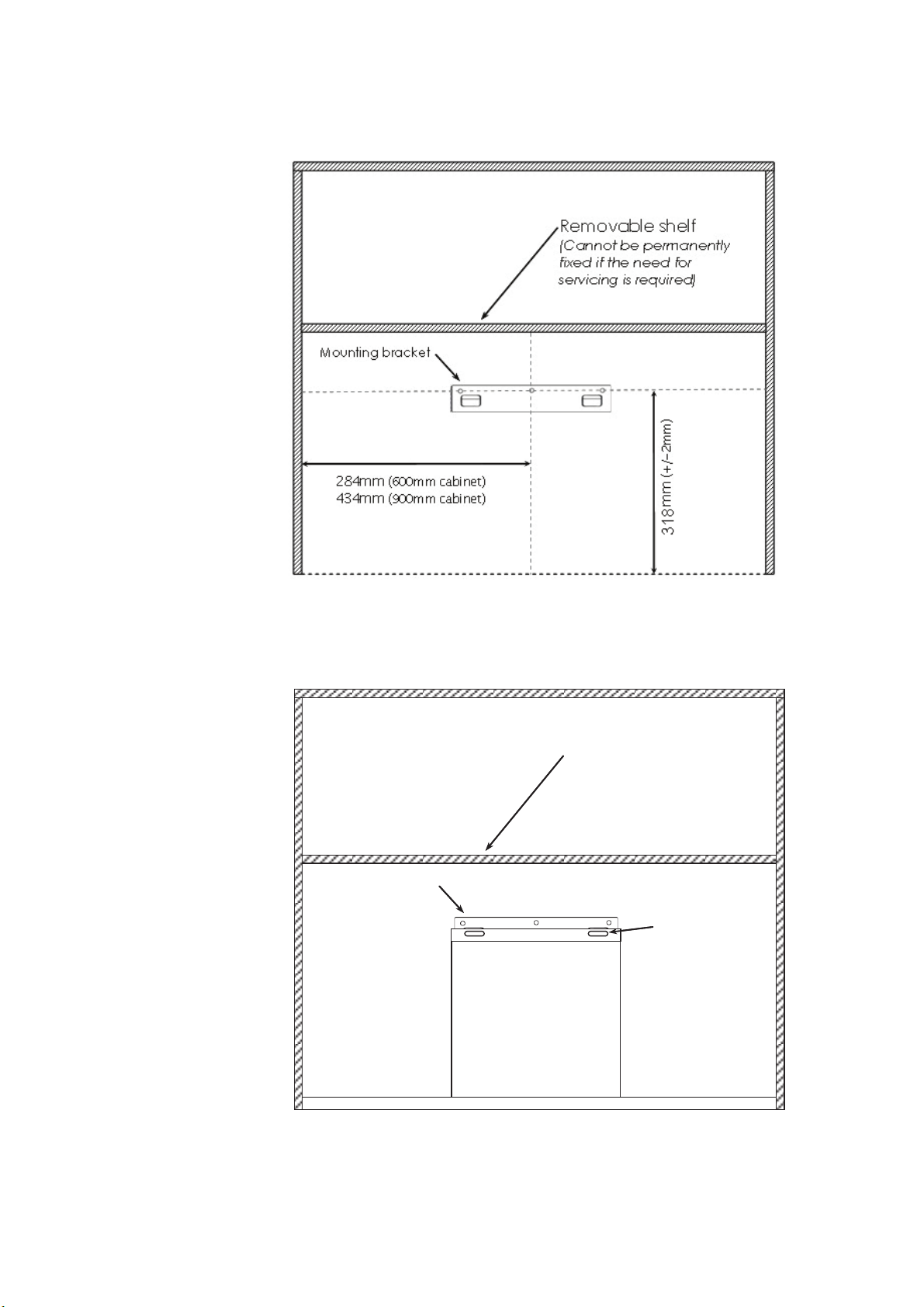

Mount the Integrated Rangehood onto the two tabs on the
mounting bracket into the two matching slots located at the rear
of the rangehood. (Fig. 4)
Mounting bracket
Integrated Rangehood
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Fig. 4
Slots to mount to
tabs of mounting
bracket
Mounting bracket
Integrated Rangehood
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Fig. 4
Slots to mount to
tabs of mounting
bracket
The shelf above the top of the rangehood needs to removable,
should the need for servicing
be required at a later date. The shelf
needs to be located no less than 400mm above the top of the
rangehood as the metal motor housing supplied needs to be put in
place after the rangehood has been installed.
11

Fit 150mm duct spigot (pictured below) with the four 8mm screws
provided over the rectangular hole located at the top rear of the
integrated rangehood. Fit 150mm flexible ducting (pictured
below), supplied, to the ducting spigot, Using one of the nylon
ties, supplied, secure the ducting to the duct spigot.
A hole or cutout needs to be made in the centre rear of the
removable shelf positioned above the integrated rangehood for
the ducting to go through.

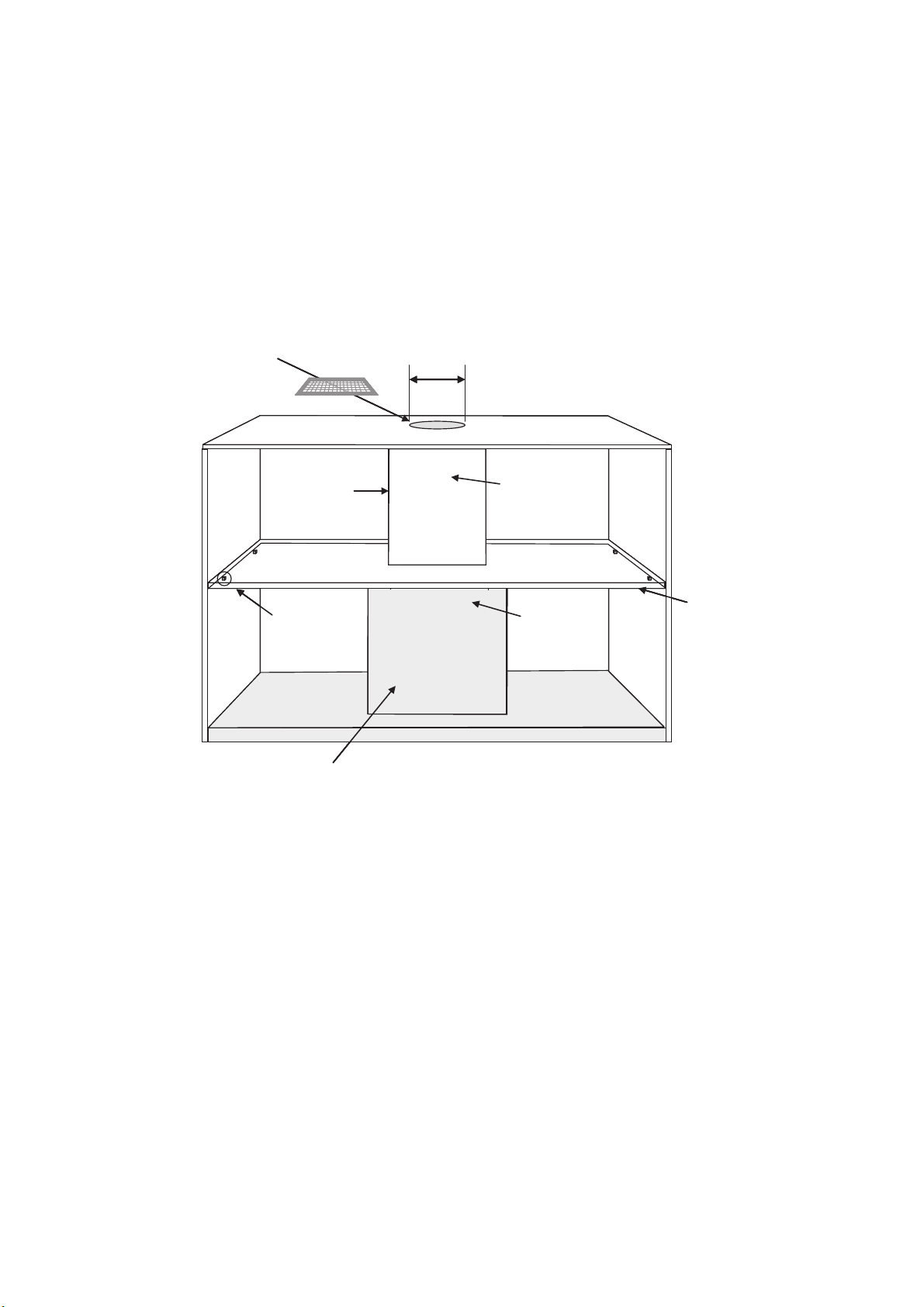

150mm duct spigot 150mm flexible ducting
Ducting
Motor housing cover
Duct spigot
150mm Ducting required
and ducted to outside of
the home
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Fig. 5
Motor housing cover
Duct spigot
150mm Ducting required
and ducted to outside of
the home
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Fig. 5
Above the shelf a U-shaped box can be made to cover the duct so
it cannot be seen when the overhead cupboard is open. (Fig.5)
Installation
12

Installation
The integrated rangehood can be installed in either ducted or
re-circulating method. The integrated rangehood is supplied
with a small length of flexible duct, although may not be
sufficient in all installations. The installer needs to determine
the method in which the rangehood will be installed and may
need to supply the appropriate components to duct the
rangehood correctly.
Ducting components will need to be supplied by the installer as
every installation can be different. The size of the duct pipe
needs to be no less than 150mm in diameter. Use of
smaller diameter duct pipe will effect performance and create
air noise from the rangehood.
Re-circulation installation
150mm flexible duct is provided with the integrated rangehood for
re-circulatiing installation. This type of installation can be executed to
the top of a cupboard or through a bulkhead above the cupboard. In
both cases a mesh cover will need to be supplied by the installer to
keep out insects and vermin. The size of the duct pipe needs to be no
less than 150mm in diameter. Use of smaller diameter duct pipe will
effect performance and create air noise from the rangehood.
The shelf above the top of the rangehood needs to removable, should
the need for servicing be required at a later date. The shelf needs to
be located no less than 400mm above the top of the rangehood as the
metal motor housing supplied needs to be put in place after the
rangehood has been installed. Above the shelf a U-shaped box can
be made to cover the duct so it cannot be seen when the overhead
cupboard is open. (Fig.6)
13

Carbon filters may be required to reduce any fumes or smells being
re-directed back into
the kitchen environment.
OPTIONAL Carbon Filter code – CF260
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Fig. 6
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Fig. 6
Installation
14

INSTALLING AND CHANGING THE CARBON FILTER – PART NO. CF260
This rangehood can be fitted with an optional carbon filter that will aid in the removal of grease,
smoke and cooking odours from the air before it is recirculated into the room.
The square carbon filter attaches to the base of the motor housing above the aluminum mesh
filters. Detailed instructions for fitting and replacing the carbon filter can be found below.
We recommend replacing the carbon filter every 3-4 months or sooner, depending on how
frequently the rangehood is used, otherwise the performance of the rangehood can be impeded.
1. If the rangehood has a perimeter panel,
then pull down to reveal the mesh filters,
otherwise proceed directly to Step 2.
2. Push the handle of the aluminum mesh
filters towards the rear of the rangehood
until they’re released from the housing
and then remove them and set aside.
3. If replacing a carbon filter, release the
old one from the housing and pull down.
4. Insert the new carbon filter and snap into
the housing.
5. Re-insert aluminum mesh filters (set aside
in step 2) into the housing ensuring they
click into place.
6. Close the perimeter panel (if applicable)
3
4
2
1
15

Use and Care
Troubleshooting
Contact service department
No electricity supply
Motor turns off after
a few minutes
Contact service department
Check that the main switch/circuit
breaker/safety switch is turned on
The hood must be at least 600mm
from the top of the cooktop
Disposal
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city council
office.
16

MANUFACTURER GUARANTEE
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN
9429000069823 (Phone number 09 274 8265) in respect of the Euromaid product. 
1. Euromaid Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a) In the case of Euromaid products used for personal, domestic or household purposes, a
period of 2 years from the date the product is purchased as a brand-new product from a
retailer located in Australia / New Zealand.
b) In the case of Euromaid products used for purposes other than personal, domestic or
household purposes (including business or commercial use), a period of 90 days from the
date the product is purchased as a brand-new product from a retailer located in Australia /
New Zealand. Euromaid products are designed and intended for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail and
builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
17

c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any
other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line
or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of
this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first become
aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a
store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at
which the product is located at times nominated by us (so that we can inspect the product).
18

5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply,
we will, at our election, either repair the product or replace the product with a product of identical
specification (or where the product is superseded or no longer in stock, with a product of as close a
specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this
warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
[email protected] [email protected]
19

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the
relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the use of
ductwork, by a licenced installer with adherence to the relevant state and national building codes
and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Distributed by:
Glen Dimplex New Zealand LtdGlen Dimplex Australia Pty Ltd
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 09 274 8265Ph: 1300 556 816
[email protected] [email protected]
VERSION1REVISION 20201029 
