Euromaid INLU90 User manual

User Manual
Off Board Undercupboard
Rangehood
INLU90

Page ii INLU90 Off Board Undercupboard Rangehood User Manual
Product / Installer details
For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the
information is always at hand.
Product Details
Model number: ________________________________________________________________________________________
Description: ___________________________________________________________________________________________
Serial number: _________________________________________________________________________________________
(Located on the product rating label)
Purchase Details
Date of purchase: ______________________________________________________________________________________
Place of purchase: _____________________________________________________________________________________
Store name: ___________________________________________________________________________________________
Address: ______________________________________________________________________________________________
Telephone: ____________________________________________________________________________________________
Invoice / receipt number: ________________________________________________________________________________
Installation Details
Electrical date of installation: ___________________________________________________________________________
Electrician Installers Details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Gas date of installation: _________________________________________________________________________________
Gas installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Plumbing date of installation: ___________________________________________________________________________
Plumbers installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________

INLU90 Off Board Undercupboard Rangehood User Manual Page iii
Dear Customer,
Congratulations on the purchase of your new product from
Home Appliances Pty Ltd.
We recommend you please take some time to read the instruction manual
thoroughly to familiarise yourself with the functionality and operations to ensure
optimum performance of your new appliance.
After reading the manual, please store it in a safe and accessible location for
future reference.
Installation
The installation of your new appliance must be carried out by a qualied
installer / technician in accordance to local regulations.
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are disposed
of correctly.
Customer Care
Our Customer Care centre is available should you wish to learn more about your
appliance in relation to how to use it to its best potential, or tips on cleaning as
well as available accessories.
For further details please contact our Customer Care team on
1800 444 357 or email: customercar[email protected]
Thank you
Regards,
Home Appliances

Contents
Notice 1
Safety Warnings 2
Caution 3
Features 4
Schematic Diagram 5
Installation 6
Operation 9
Maintenance 10
Bulb Replacement 11
Troubleshooting and Possible Solutions 12
Supplied Accessories 13

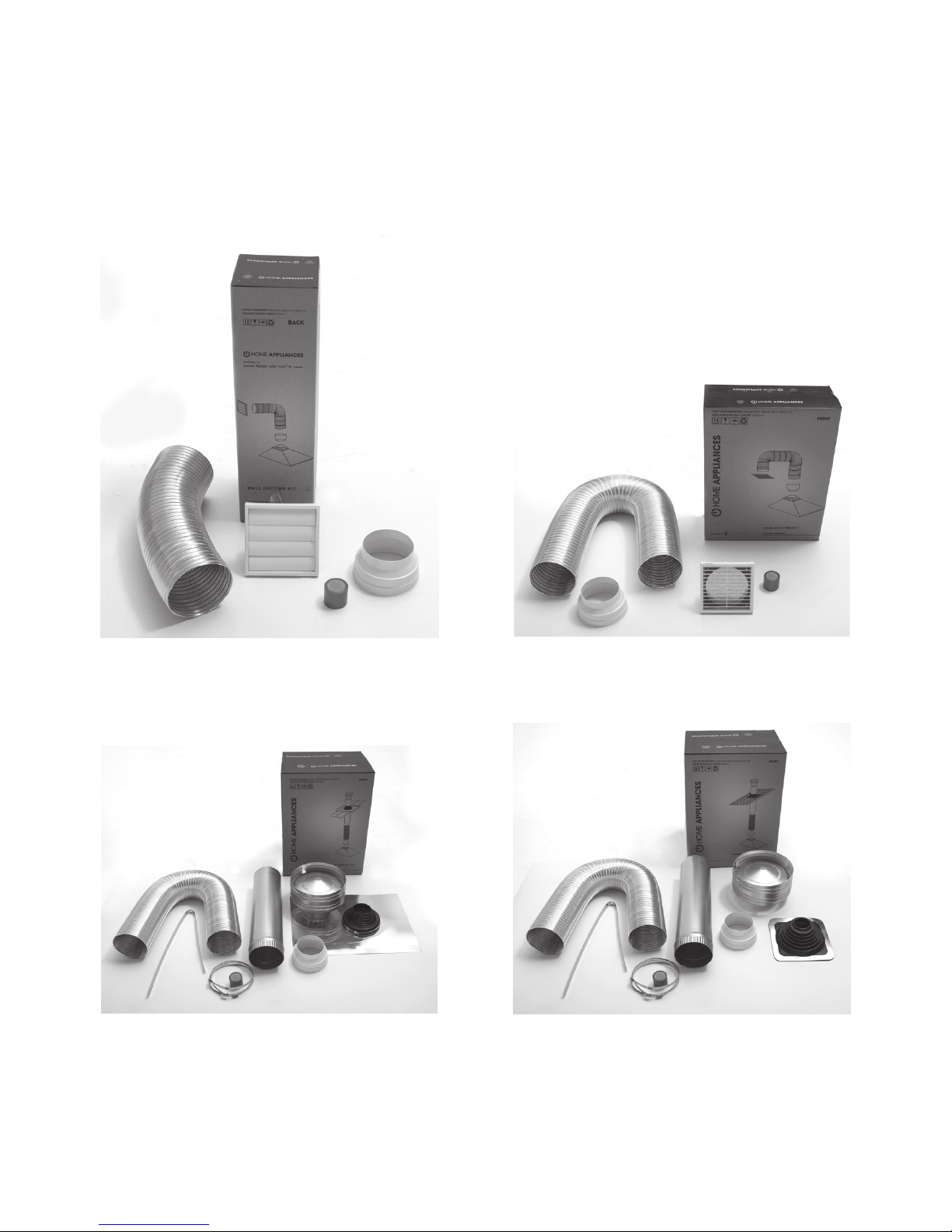

HAPL Ducting Kit Solutions 14

INLU90 Off Board Undercupboard Rangehood User Manual Page 1
Notice
1. Thank you for choosing your Euromaid Off-Board Canopy Rangehood.
Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent installer.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not
following the instructions for the installation and or operation contained within this instruction
manual.
4. The Rangehood operates on 220/240V, 50Hz.

Page 2 INLU90 Off Board Undercupboard Rangehood User Manual
Safety Warnings
• Please ensure that children do not use the Rangehood.
• Your Rangehood is for domestic use only, not suitable to be used with barbeque, or any
commercial applications.
• Any installation work must be carried out by a trained qualified electrician and or an experienced
installer.
• The Rangehood and its filter mesh should be cleaned regularly to keep them in good working
order.
• Before cleaning your Rangehood, please always ensure that the power has been switched off.
• Clean the Rangehood according to the instruction manual to ensure its longevity.
• If there is any fault with your Rangehood, please contact our service department for assistance
(1800 444 357).
• Please ensure the room has sufficient ventilation when operating this Rangehood with a gas hob.
• Do not flambé under the Rangehood
• The exhaust air from the Rangehood must not be discharged into any existing flue which may
carry combustion or fumes from any other sources such as kitchen appliances etc.
• Before installation and usage, please read the instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on your Rangehood are the same as the voltage (V) and the
frequency (Hz) in your home.
• To get the most out of your Rangehood, please read the instruction manual before installing &
using, and keep it in a safe place.
• Please ensure that the warranty card and purchase receipt for your Rangehood are kept in a safe
place if you require service assistance.

INLU90 Off Board Undercupboard Rangehood User Manual Page 3
Caution
• Exhaust air must be discharged in accordance with the local regulations, it is recommended that
a suitable ducting kit should be used.
• Accessible parts may become hot when used with cooking appliances.
• This Rangehood is not intended for used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the Rangehood.
• If the power cord is damaged, it must be replaced by a recommended service agent to avoid a
hazard.

Page 4 INLU90 Off Board Undercupboard Rangehood User Manual
Features
• This Rangehood is designed to reduce the noise level within the kitchen by utilising a separate
fan motor that is positioned in the roof cavity of your home. The motor is designed to be fixed in
a suitable and secure position.
• This Rangehood uses high quality materials, Stainless steel construction with easy to operate
controls and is made with a streamlined design.
• Equipped with a large power low noise electric motor and centrifugal fan, it produces strong
suction and low noise.
• With the isolated low voltage circuit board control, 12vAC input, the lights are therefore safer.

INLU90 Off Board Undercupboard Rangehood User Manual Page 5

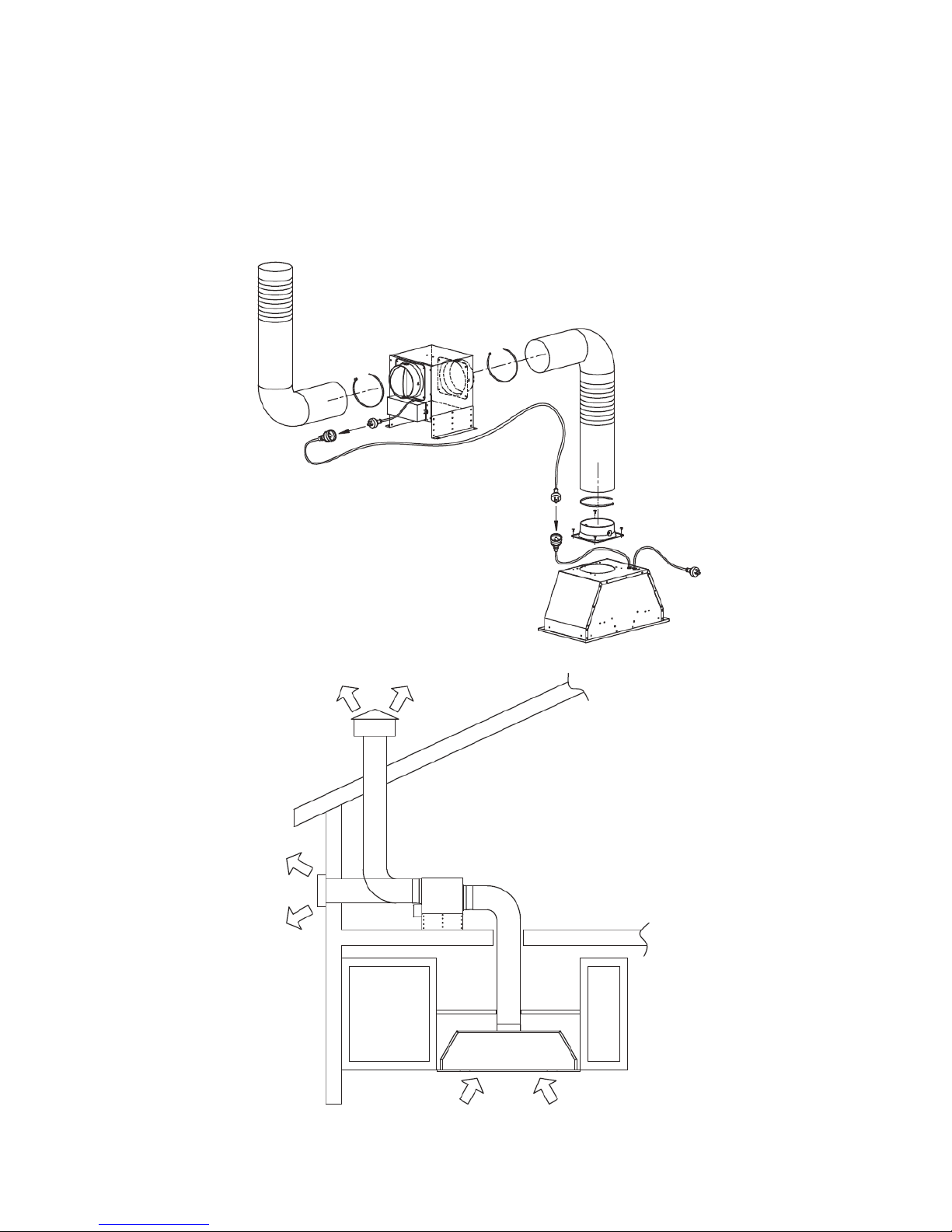

Schematic Diagram
1. The main body and the external motor are connected by the supplied 4 metre extension cable. A
separate cable is plugged into the power.
2. The supplied 3 metre extension ducting will connect the main body and external motor, and
cooking residues will be extracted and discharged to outside via a ducting kit.

Page 6 INLU90 Off Board Undercupboard Rangehood User Manual
Installation
The Rangehood should be placed at 65 - 75cm from the
cooking surface for the best effect.
See Pic 1
1. Cut the required size hole in the underside of the cabinet
for the hood body
2. Detach the front panel by unscrewing the 2 screws (M4 x
10mm) see below diagram
3. Mount the Rangehood into the cabinet by using the 8
screws (ST4 x 18mm), and mount the front panel on the
hood body by 2 screws (M4 x 10mm)

INLU90 Off Board Undercupboard Rangehood User Manual Page 7
Installation (continued)
4. Install the 150mm outlet by (ST4*8mm) screws, and attach the extension ducting pipe.
5. Connect the power cord on main body with extend wiring
6. Fix the left and right support bracket on the side of external motor, by using 6 pcs (ST4*8mm)
screws
7. Connect the power cable to the external motor with extension cable

Page 8 INLU90 Off Board Undercupboard Rangehood User Manual
Important points to consider for installation
1. The location of the fan unit shall allow access for maintenance and repair. Permanent fixed
means of access is required where the fan unit location is beyond the extent of normal steps or
ladders.
2. Before installation, please ensure the area is clean to avoid suction of the remaining bits of debris
and dust.
3. Please ensure that the fan motor is firmly secured to either a flat surface such as an MDF panel
affixed across the ceiling rafters, or fixed to the ceiling rafters themselves. Ensure the fan motor
is level and there is no vibration when in use.
4. The Rangehood cannot share the same air ventilation tube with other appliances such as gas
tube, warmer tube, and hot wind tube.
5. After installation, make sure that the main body is level to avoid grease collection at one end.
6. Please note the dimensions of the fan motor below for installation purposes.
7. The use of a ducting kit is imperative for the performance of the fan motor.
8. The bending of ducting tube should be ≥120°, parallel or above the start point and should be
connected to the external wall, roof or eave.
9. The recommended maximum lengths of ducting pipe should be no more than:
– Four (4) metres for connection between the hood body and fan motor.
– Three (3) metres for connection between the fan motor and outside.
The fan motor must be secured using the supplied bracket and screws
Correct Incorrect

INLU90 Off Board Undercupboard Rangehood User Manual Page 9
Operation
1. Push the low button, the indicating light on, and the motor runs at low speed. Push it again and
the motor will stop.
2. Push the middle button, the indicating light on, and the motor runs at mid speed. Push it again
and the motor will stop
3. Push the high button, the indicating light on, and motor runs on high speed. Push it again and
the motor will stop
4. Push the light button; the indicating light on, and the two lighting lamps will come on. Push it
again and the lamps will turn off.

Page 10 INLU90 Off Board Undercupboard Rangehood User Manual
Maintenance
Cleaning and Maintenance:
Changing and cleaning the anti-grease filters
• Remove the filters as per shown below.
• You can clean the filter using the following methods.
– Soak them for about 3 minutes in hot water (40-50 degrees) with a grease-loosening
detergent then brush it gently with a soft brush. To avoid damaging the filter, please do not
apply too much pressure.
– It can be put into a dishwasher with detergent, set the temperature at around 45 degrees.
• Please do not use abrasive detergent for it will damage the hood.
Note: Make sure that cooker hood is shut down before cleaning

INLU90 Off Board Undercupboard Rangehood User Manual Page 11
Bulb Replacement
1. Firstly, switch the unit off at the power and pull out the plug.
2. Wait until the light bulb is cooled down before replacement.
3. Replace with the same type of bulb by pushing the bulb slightly and screwing in or out.
Please note:
Alternatively, you can change the bulb from the inside of the Rangehood, take out the metal filter and
have the bulb replacement from inside of the Rangehood.

Page 12 INLU90 Off Board Undercupboard Rangehood User Manual
Troubleshooting and Possible Solutions
Fault Cause Solution
Light on, but
motor does not
work
The fan blocked Service call to clear the blockage
The capacitor damaged Service call to replace capacitor
The motor jammed bearing
damaged Service call to replace motor
A electrical or burning smell from
the motor Service call to replace motor
Light does not
work, motor does
not work
Beside the above mentioned, check the following:
Light damaged Replace lights
Power cord loosen from power
supply
Switch off power and carefully engage
plug
Oil leakage One-way valve and the air
ventilation entrance are not
tightly sealed
Service call to repair one-way valve
and seal.
Leakage from the connection of
U-shaped section and cover Service call to repair
Vibration of the
body
The fan is damaged and causes
vibration Service call to repair fan
The motor is loose Service call to repair tighten the motor
The hood is not securely fixed
to the wall
Refer to installation section to secure
to the wall
Insufficient
suction
The distance between the body
and the gas top is incorrect
Readjust to the specified mandatory
distance
Too much ventilation from open
doors or windows
Choose a new place and resemble the
machine
For product enquires including warranty support, please contact our Customer Care team on
1800 444 357 or via email, customer[email protected]

INLU90 Off Board Undercupboard Rangehood User Manual Page 13
Supplied Accessories
Part picture QTY - hood body QTY - motor
Wall plug Nil 4
Screw
(4mm x
14mm)
8Nil
Screw
(4mm x
30mm)
Nil 4
Screw
(4mm x
8mm)
410
Outlet 1 2
Butterfly flap Nil 2

Page 14 INLU90 Off Board Undercupboard Rangehood User Manual
HAPL Ducting Kit Solutions
The ducting kit connects to the outlet of the external roof cavity fan motor. There is a ducting solution
available for most installations. Please ensure you have selected the correct kit for your requirements.
The HAPL ducting kits include all parts required to complete off-board Rangehood installation.
*Please contact HAPL on 1800 805 300 for information regarding your local retailer of the
recommended ducting kit solutions from Home Appliances.
Wall Ducting Kit - DKW
Tile Roof Ducting Kit - DKRT
Eave Ducting Kit - DKE
Metal Roof Ducting Kit - DKRM

For all product enquiries (including warranty support),
please contact our Customer Care team on
1800 444 357 or via email: customerca[email protected]
