Euromaid RPT9 User manual

User Manual
Description: Canopy Rangehood
MODEL NO. RPT9
euromaid.com.au
Model Variation 01/21

1
INTRODUCTION
Dear Customer,
We thank you for choosing this quality appliance and hope you enjoy many
years of reliable service.
Please ensure this manual is read carefully before installation and use. If you
follow the recommendations contained in this Instruction Manual, our
appliance will give you constant high performance and will remain efficient for
many years to come.
Keep this manual in a safe and accessible location should future reference
be required.
Regards
Home Appliance

2
CONTENTS
1 ………………………………………… Introduction
2 ………………………………………… Contents
3 ………………………………………… Warning & Safety
4 ………………………………………… Recommendations & Suggestions
5 ……..………………………………….. Characteristics
6 …………………………………………. Installation & Use
7 …………………………………………. Maintenance
7 ………………………………………… Product Specification &
Technical Parameters
8 …………………………………………. Trouble shooting

3
SAFETY WARNINGS
WARNING!!
In certain circumstances electrical appliances may be a danger hazard.
* Do not check the status of the filters while the cooker hood is operating.
* Do not touch the light bulbs during or immediately after appliance use.
* Do not disconnect the appliance with wet hands.
* Avoid naked flame, as it may damage the filters and a fire hazard.
* Constantly check a frying food to avoid that the overheated oil may become
a fire hazard.
* Disconnect the electrical plug prior to any maintenance.
* Children don’t recognize the risks of electrical appliances. Therefore use or
keep the appliance only under supervision of adults and out of the reach from
children.
* Don’t use this product outdoor.
* This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
* There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
* There is a fire risk if cleaning is not carried out in accordance with
instructions.
* Do not leave bare flames under the range hood.
* The discharge air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.

4
WARNING:
1. Always switch off the electrical supply before carrying out any operation
on the appliance.
2. Only a qualified and trained service technician can undertake the work of
blubs replacement and servicing.
CAUTION:
1. The surface and the cover of the lamp may be hot. TAKE CARE while
replacing.
2. Bulbs may be hot. Take care while replacing.

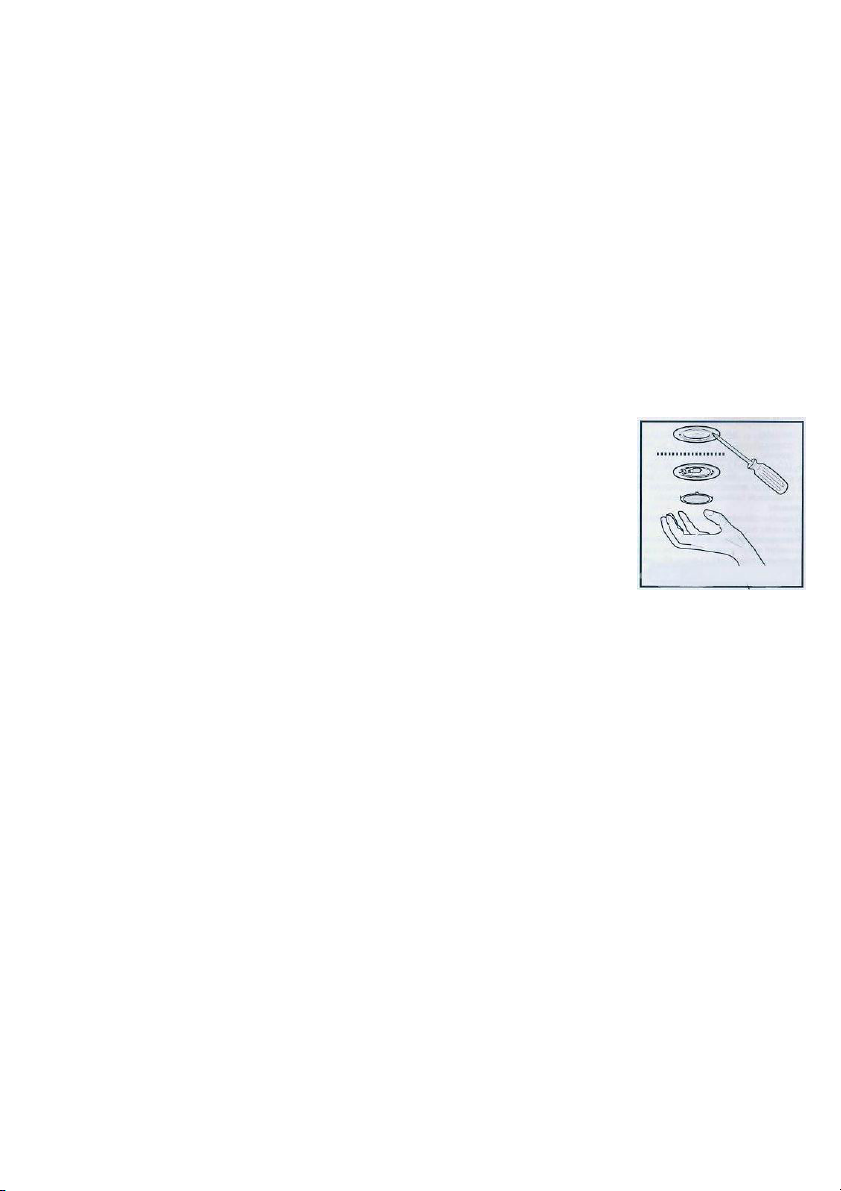

Replace lamp
1. Take off the cap by a screw driver.
2. Remove the metal ring
3. Replace the bulb with a 20 watt halogen light.
We recommend only using lamps of the same specification
as the one being replaced.

5
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
* Please read this instruction manual carefully before installing and using this
rangehood. Please keep this instruction manual in a safe place for future
reference.
* This rangehood is designed to be used only in the Ducted Mode
* Only a qualified and trained service technician can undertake the work of
the installation and servicing.
* Check that the mains voltage corresponds to the one indicated on the rating
plate fixed inside the hood.
* Check that the domestic power supply guarantees adequate earthing.
* Do not connect the hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.)
* If the hood is used in conjunction with non-electrical appliances (e. g. gas
burning appliances), a sufficient degree of ventilation must be guaranteed in
the room in order to prevent the backflow of exhaust gas. The kitchen must
have an opening directly with the open air in order to guarantee the entry of
clean air.
* The minimum distance is 750mm from the cooker hood to a gas hob, and is
650mm to an electric hob. If the installation instructions for gas/electric hobs
specify a greater distance the same must be taken into account.
NOTICE: Considering excessive weight, two or more people are required to
install or move this appliance. Failure to do so can cause physical injuries
and damage to the product.

6
OPERATION
* The rangehood has been designed only for domestic use to eliminate
kitchen fumes.
* Never use the hood for purposes other than what it has been designed for.
* Never leave high naked flames under the hood when it is in operation.
* Adjust the flame intensity to direct it onto the bottom of the pan only make
sure that it does not engulf the pan sides.
* Deep fryer must be continuously monitored during use: overheated oil can
burst into flame.
* The hood should not be used by children or person not instructed on its
correct usage.
MAINTENANCE
* Proper maintenance of the rangehood will assure proper performance of the
unit.
* Disconnect the hood from the main supply before carrying out any
maintenance work.
* Clean and/or replace grease filters after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.

7
CHARACTERISTICS

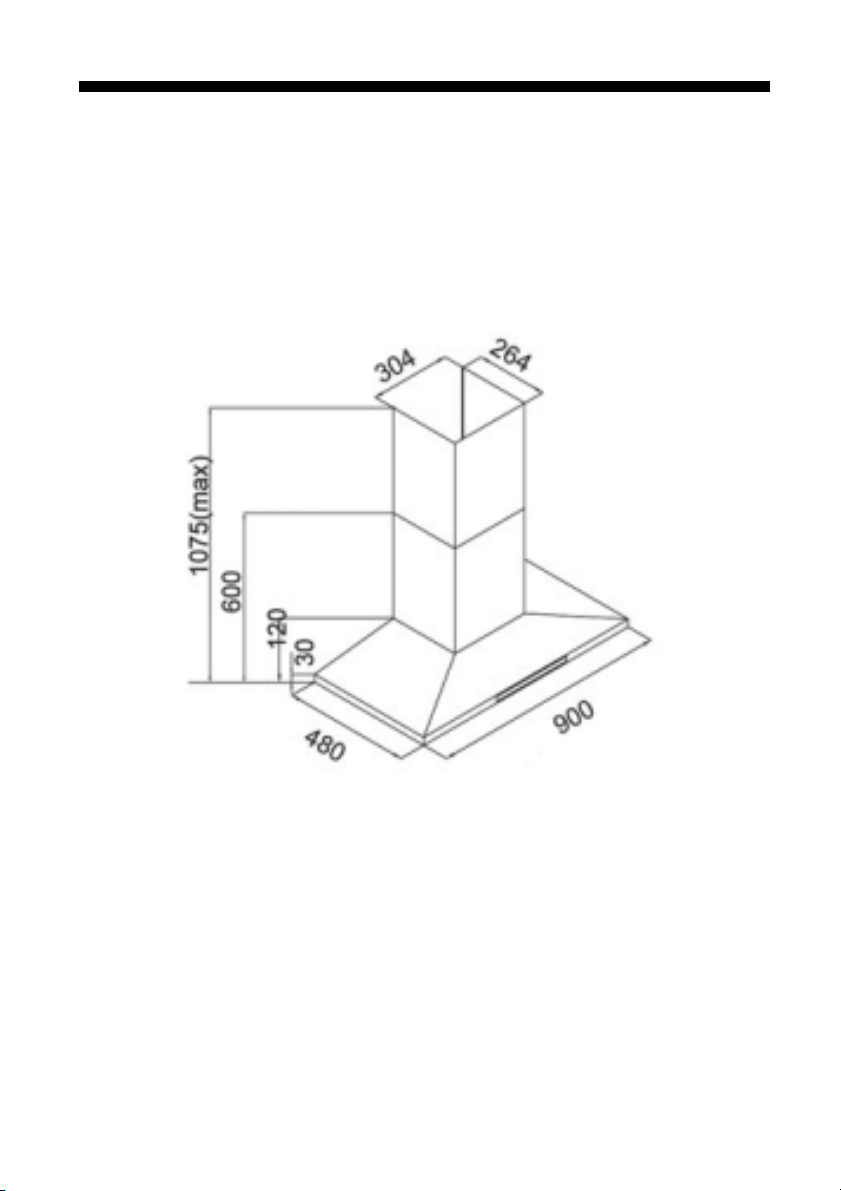

DIMENSIONS
Total height -1075mm
Width – 900mm
Depth – 480mm

8
CHARACTERISTICS

9

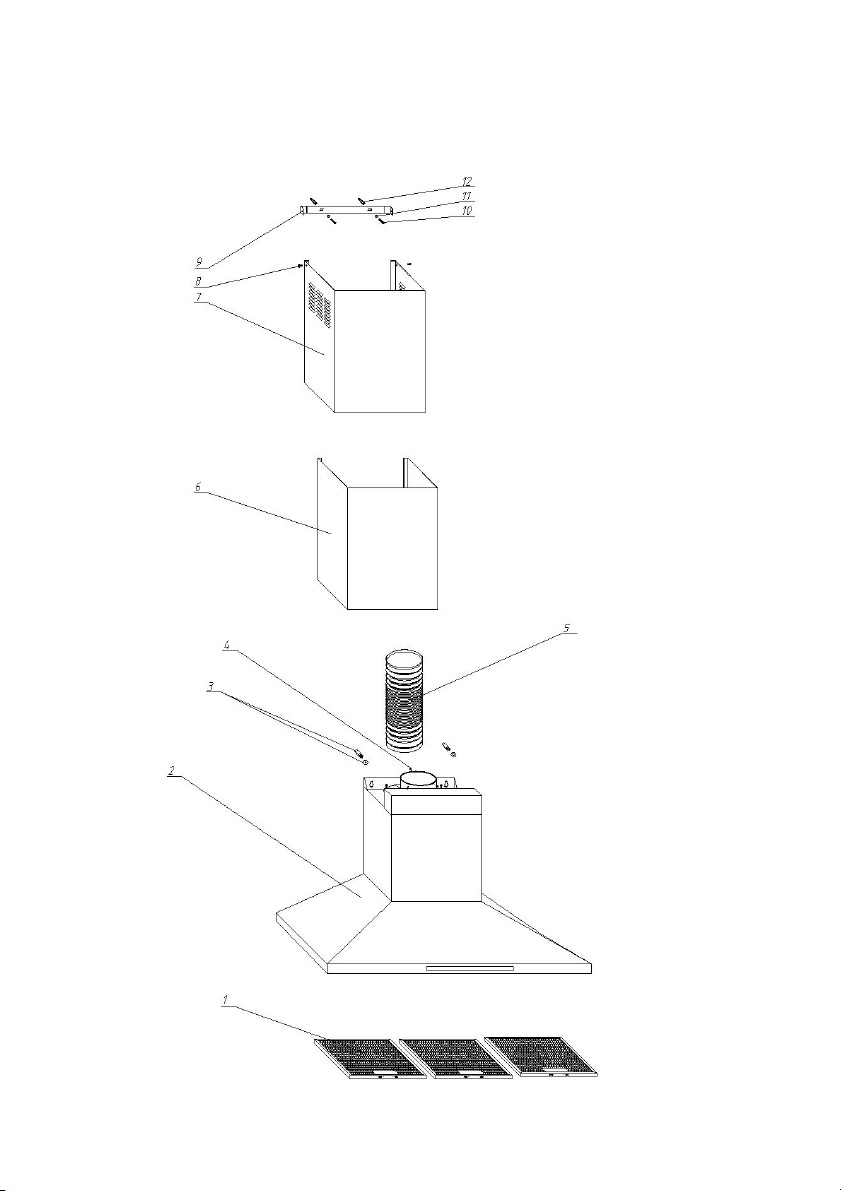

COMPONENTS
Ref Qty Components
1 2/3pcs Grease filter
2 1pcs Hood body
3 2pcs steel bolt
4 3pcs Cross self-drill bolt
5 1pcs Exhaust
6 1pcs Exterior chimney
7 1pcs Inner chimney
8 2pcs Cross discal thread bolt
9 1pcs Fixing frame
10 2pcs Cross discal bolt-big head
11 2pcs Flat rubber band
12 2pcs Plastic distensible sleeve
Ref Qty Documentations
13 1pc Instruction Manual
14 1pc Warranty Card

10
INSTALLATION & USE
Note 1: Carefully remove the protective film from chimney and front panel
prior to final installation.
Note 2: At least two people will be required to mount the hood.
FIXING TO THE WALL

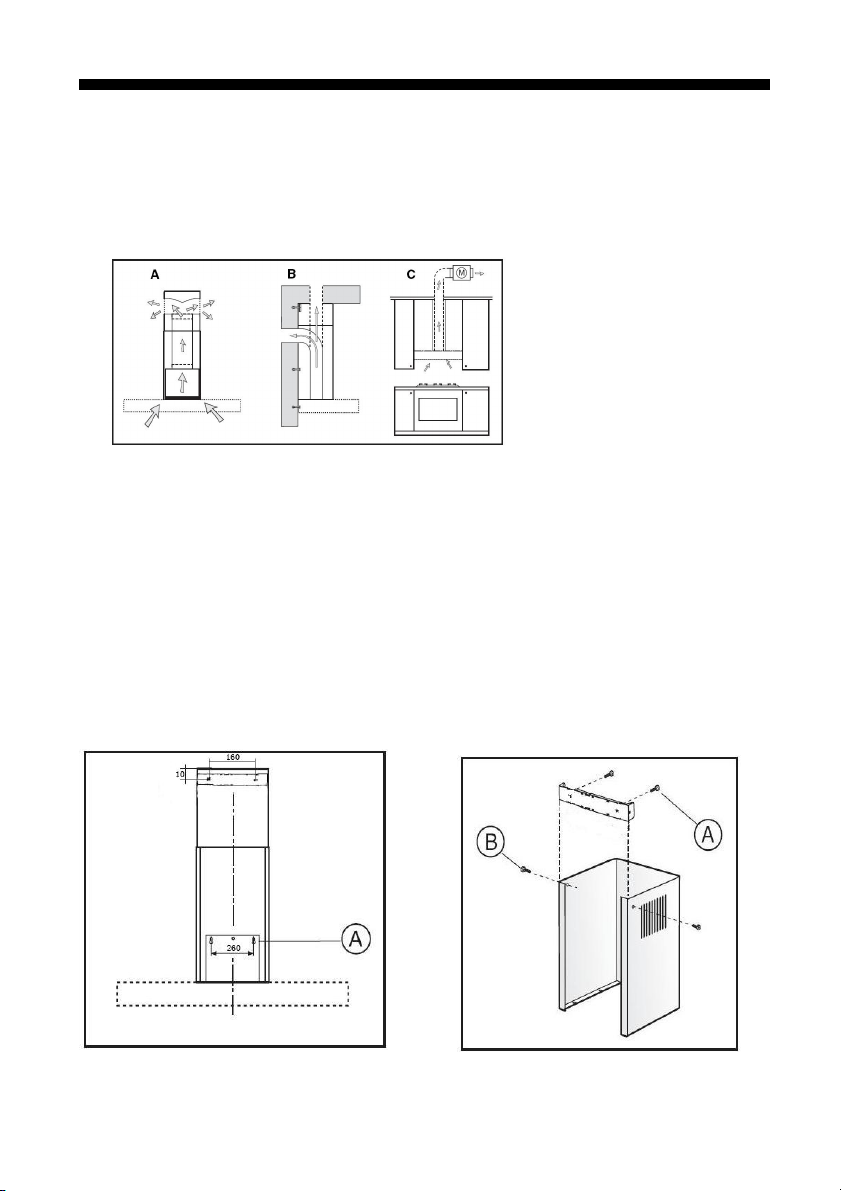

Fig.1
1. Drill the holes according to the distances indicated (Fig.2).
2. Fix the appliance to the wall and align it in horizontal position to the wall
units.
3. When the appliance has been adjusted, fix the hood using the screws A.
For the various installations use screws and screw anchors suited to the type
of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw
anchors are provided with the product, kindly check the screws are suitable
for the type of wall in which the hood is to be fixed.
Fig.2 Fig.3

11
Fixing Chimney
1. Arrange the electrical power supply within the dimensions of the chimney.
If your appliance is to be installed in the ducting version or in the version with
external motor, prepare the air exhaust opening.
2. Adjust the width of the support bracket of the exterior chimney (Fig.3).
Then fix it to the ceiling using the screws A (Fig.2) make sure that it is in line
with your hood and respecting the distance from the ceiling indicated in Fig.2.
Connect the flange C to the air exhaust hole using a connection pipe (Fig.4).
Fig.4 Fig.5
DUCT FIXING
Caution: To reduce the risk of fire, recommend use aluminium ductwork.
1. Attach an adequate length of φ150mm round duct into the recessed area
of the air outlet adapter.
2. The duct has to be secured using two screws from two sides of the air
outlet adapter. Make sure the duct is fixed well on.

12
DESCRIPTION / CONNECTIONS

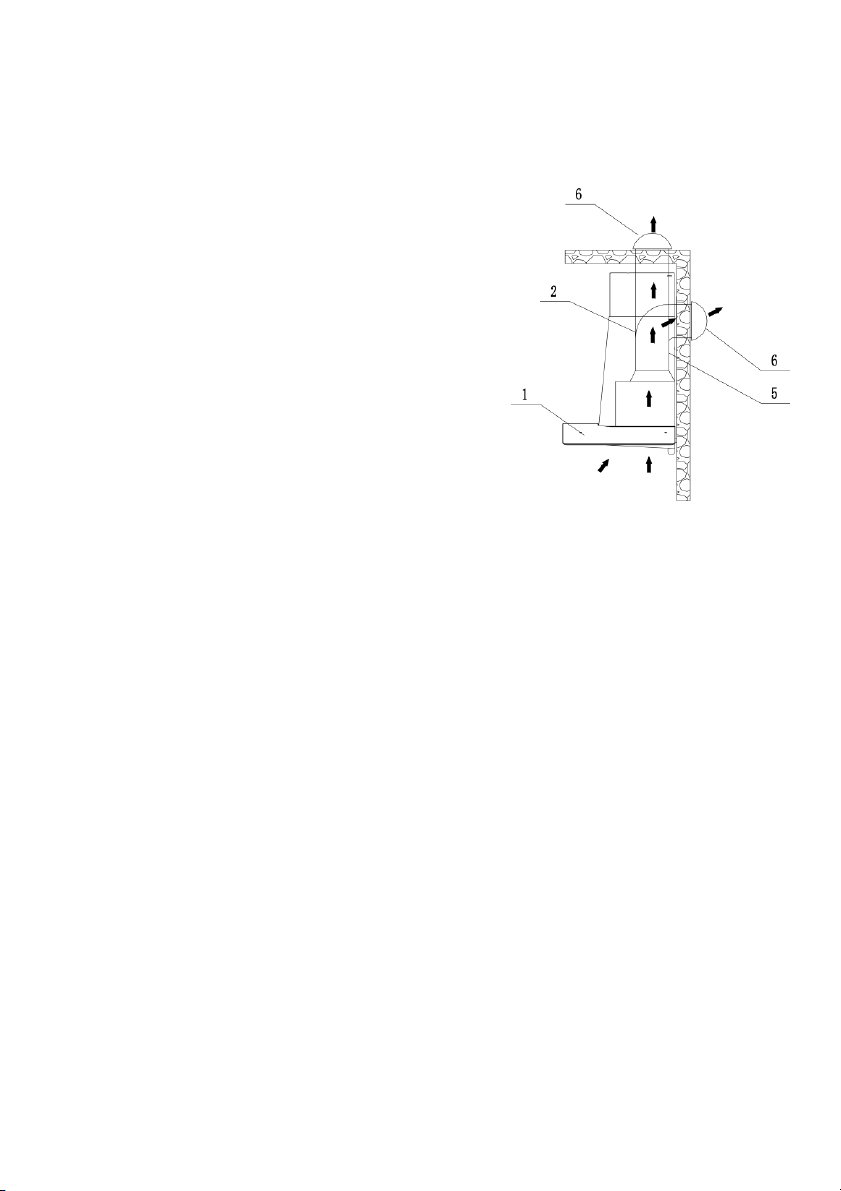

Ducted mode air exhaust system
The hood draws the cooking fumes saturated with fumes and odor through
the grease filters and expels it to the outside through an outlet pipe.
Caution: To reduce the risk of fire, use metal
ductwork only.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the
hood to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use
as few of them as possible. Larger ducting
may be required for best performance with
longer duct runs.
4. Attach an adequate length of φ150mm round duct to the air outlet adapter.
Let the exhaust run for a minimum of 1 meter in Straight line in between
bends / elbows for better efficiency.
5. The air must not be discharge into a flue that is used for exhausting
fumes from appliances burning gas or other fuels" "Regulations
concerning the discharge of air have to be fulfilled.
6. Install a roof/wall ducting kit. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal the joints
between ductwork sections.
Electrical Connection
* Electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards. Turn off electrical power at service
entrance before wiring.
* If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
* Do not use the plug and an extension cord other than the ones initially
supplied with the hood.
* The earthing of this hood is compulsory. Do not remove ground prong of the
plug.

OPERATION OF CONTROLS
A= Timer (automatic shut off)
B= Speed 1 / adjust / switch off
C= digital display screen (showing timer and speed)
D= Speed 3 / adjust / switch off
E= Light
When key A is being pressed, digital display screen will show "15 minutes" for timer where
as the minutes can be adjusted by pressing "+" or "-" on key B and D. When the first speed
is on, pressing key A once to switch off, the digital display will shows "00" on the screen.
When key B is being pressed, it shows "1" on the digital display screen at the same time
first speed is on. By pressing key B again to switch off, the digital display will show "00" on
the screen.
When key D is being pressed, it shows "3" on the digital display screen at the same time the
third speed is on. By pressing key D again to switch off, the digital display will show "00" on
the screen.
The second speed "2"and Turbo speed "4"can be adjusted by pressing key B or D. When
key E is being pressed, the light will on, by pressing key E again is to switch off the light.
If the motor and light are operating together or only the motor is working, pressing key A,
automatic switch off timer mode will get on. In other word the unit will delay 15 minutes to
turn off the motor and the light. To press key B or key D is to adjust the time, where as to
press key A again is to stop the timer.
13

14
MAINTENANCE
Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.
GREASE FILTER
* The grease filters should be cleaned frequently (every two months of
operation, or more frequently for heavy use). Use a warm detergent solution.
* Grease filters are washable.
1. Remove the grease filter by pressing the latch on the filter (Fig5). This will
disengage the filter from the hood. Tilt the filter downward and remove.
2. Wash the filters, taking care not to bend them. Allow them to be dry
before refitting.
3. To install the grease filter, press the latch on the filter again. Make sure
the filter is securely engaged after assembly.
GREASE FILTER CLEANING
* Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, leaving to soak.
*Rinse thoroughly with warm water and leave to dry.
*The filters may also be washed in the dishwasher.
* Please take note that the aluminum panels may alter in color after several
washes.
Hood Cleaning
Glass and aluminum are two of the easiest materials to keep clean.
Occasional care will help preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft
cloth to avoid water marks.
* For discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft cloth.
* For stubborn cases use a plastic scouring pad or soft bristle brush together
with cleanser and water. Rub lightly in direction of polishing lines or “grind” of

15
the aluminum finish. Avoid using too much pressure that may mar the
surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with aluminum finish for extended periods. Many of these
compounds contain chemicals that may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
* Painted surfaces should be cleaned with warm water and mild detergent
only.
PRODUCT SPECIFICATION & TECHNICAL PARAMETERS
Model RPT9
Rated Voltage 220-240V
Rated Power Frequency 50Hz
Light Power 2x2W
Motor Power 320W
Total Power
324W
Maximum suction
900m3/hr
Diameter of Exhaust Pipe 150mm
Product Dimension (mm) L 900 x W 480 x H 600-1075
Net Weight 17kg
Gross Weight
22kg

16
TROUBLE SHOOTING
In case if the Cooker Hood is not working or working improperly, before
calling the after sales service, switch off the appliance, unplug the power
supply and refer to the guide below to determine the problem
S.No. Status Reasons Solutions
1 Lamp doesn’t work Power supply not
connected
Check if the power cord is
properly connected or not
Lamp is damaged Call consumer service for
support
2 Hood gives out loud
noise
Filter not properly fitted Remove and refit the
filters in its place
Hood is not installed
properly
Call consumer service for
support
3 The air exhaust
performance is bad
Distance between
Hood and Hob is too
high
Call consumer service for
support
Filter is choked Clean filter and refit in its
place
Duct is damaged Call consumer service for
support

VERSION 20210208
Glen Dimplex Australia Pty Ltd
www.glendimplex.com.au
For service advice, please contact the Customer Care Centre by phone or email below.
Australia
Ph: 1300 556 816
customer[email protected]
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING
AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics. Glen Dimplex
constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes. All appliances
must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and
building codes, with compliance being issued as required by state or national legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to
the relevant standards by a licenced installer. For maximum effectiveness and efficiency all
rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to
the relevant state and national building codes and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Glen Dimplex New Zealand Ltd
www.glendimplex.co.nz
New Zealand
Ph: 09 274 8265
[email protected]
VERSION 20210208
