Euromaid ICF9BLS User manual

MODEL
ICF9BLS
900mm
Island Canopy
Manual
Installation and Operation

CANOPY
INSTALLATION
AND OPERATION
MANUAL

Dear Customer,
We thank you for choosing this quality appliance and hope you enjoy many
years of reliable service.
Please ensure this manual is read carefully before installation and use. Keep
this manual in a safe and accessible location should future reference be
required.
Regards
Home Appliances
CONTENT
2……………………………………….Notice
3……………………………………….Feature
4………………………………………..Installation
6………………………………………..Notice of installation
6………………………………………..Safety Warning
7…………………………………………Use
8…………………………………………Maintenance
9…………………………………………Abnormity and Solution
1

NOTICE
1. Thank you for choosing our cooker hood. Please read the
instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and
competent fitter.
3. The manufacturer disclaims all liability for any damage or
injury caused as a result of not following instructions for
installation contained in the following text.
The cooker hood is used on 220/240v, 50Hz.
2

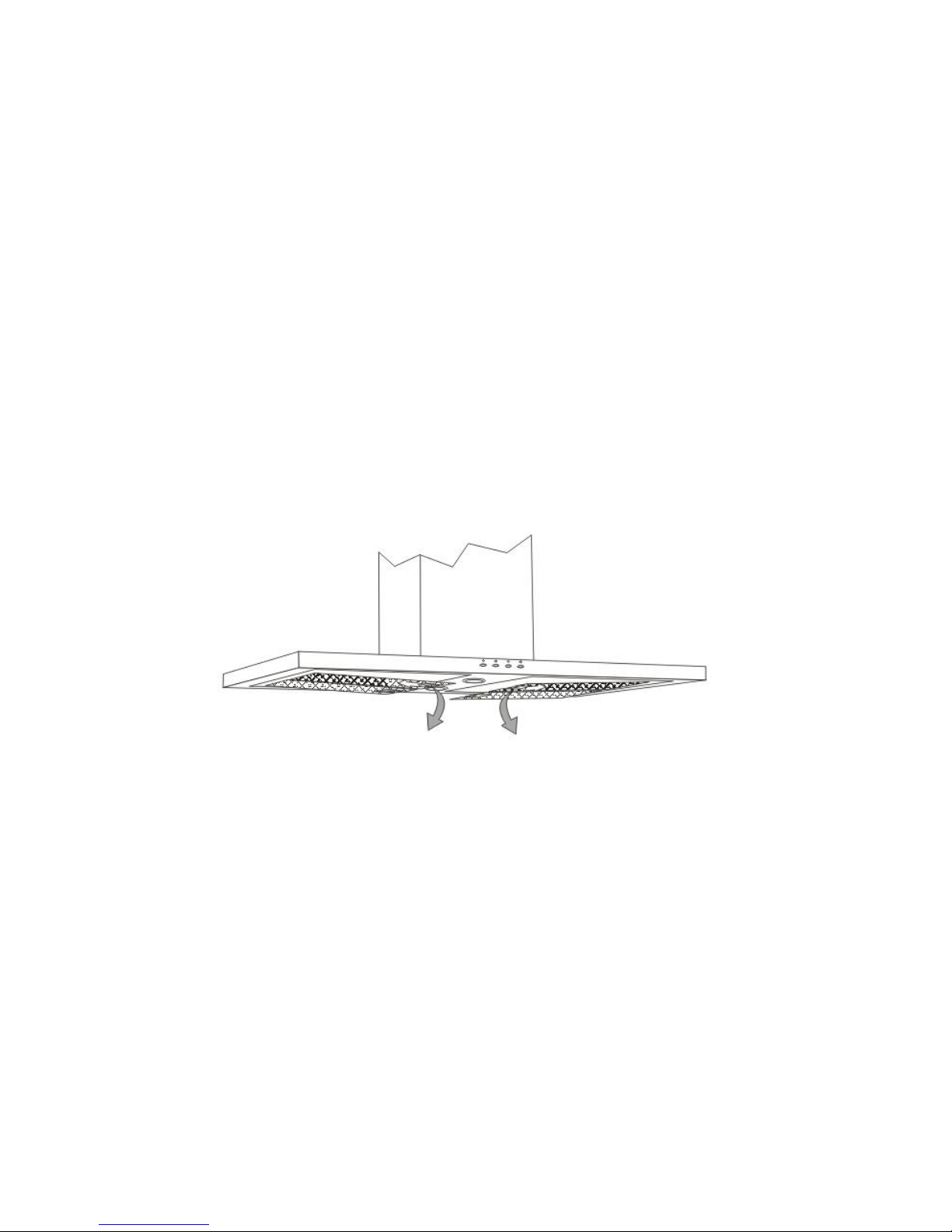

(2)FEATURE
1. The cooker hood uses high quality materials, and is made with a
streamlined design.
2. Equipped with a large power low noise electric motor and
centrifugal leaf, it produces strong suction, low noise, non stick
grease filter and easy to clean.
3. Special wind tunnel construction and oil collector design, free
dirt will be absorbed in a second.
3

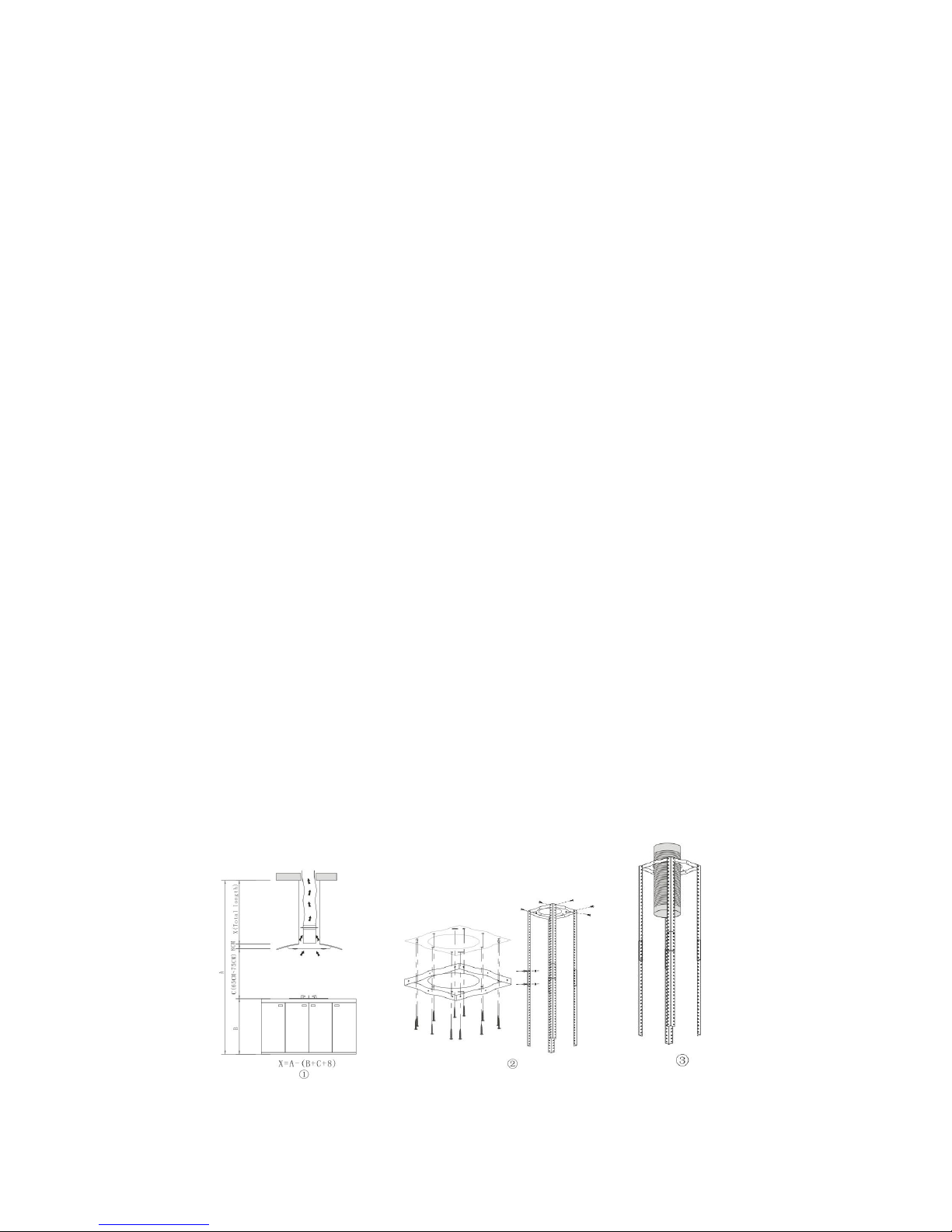

(3) INSTALLATION
1. The ceiling must can bear at least 40kgs weight, and the
thickness of the ceiling must be 30MM, see pic 2, drill
1*170mm round hole in the ceiling.
2. According to the hanging board, drill 12 holes in the ceiling, see
pic 2, 12pcs of ST6*40mm big flat screws will be used to fix the
hanging board on the ceiling, and then 8pcs of M4*10 screws
and M4 nut with gasket will be used to connect the angle iron
into the hanging board, see pic 1, calculated the length of the
angle iron, and 16pcs M4*10 big flat screws and M4 nut with
gasket will be used to connect the angle iron and another angle
iron ( the overlap length of angle iron can not less 100MM)
3. Let the one side of the extensible pipe go outside through the
hole of 170MM, see pic 3.
4. 4pcs ST4*8 big flat screws will be used to connect the internal
chimney into the hanging board, then put one the external
chimney, two hooks will be used to put up the external chimney
in order to the next installation, see pic 4.
5. 4pcs ST4*8 big flat screws will be used to install the outlet, see
pic 5.
6. Hold up the hood, 16pcs M4*10 big flat screws will be used to
connect the hood body into angle iron, see pic 6.
7. Put the extensible pipe on the outlet; after ensure all the things
ok, put down the hook, take from the external chimney, all the
installation is finished, see pic7& 8.
Warning: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards
4

5
5

(4) NOTICE OF INSTALLATION
1. Before installation, please ensure the area is clean to avoid
suction of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other
appliance such as gas tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≥120°, parallel or
above the start point and should be connected to the external
wall.

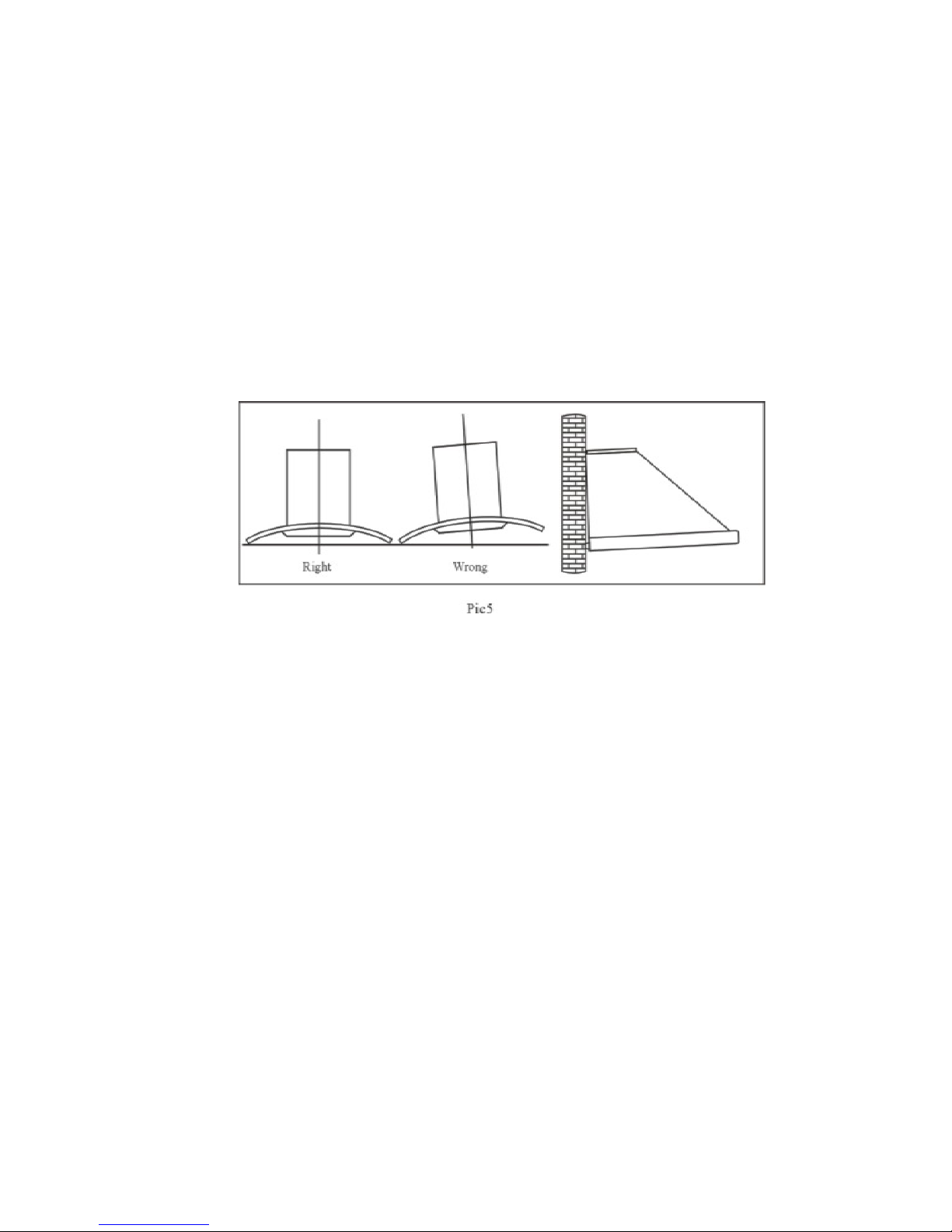

4. After installation, make sure that the extractor is level to avoid
grease collection at one end.
(5) SAFETY WARNING
•Never let the children operate the machine
•The cooker hood is for home use only, not suitable for
barbecue, Roast shop and other commercial purpose.
•Please ask the technical person to do the assembling.
•The cooker hood and its filter mesh should be clean regularly
in order to keep in good working order.
•Before cleaning, please switch the power off at the main
supply.
•Clean the cooker hood according to the instruction manual and
keep the cooker hood from the danger of burning.
•If there is any fault with the appliance, please call the service
department to arrange a service engineer.
CAUTION: Accessible parts may become hot when used with
cooking appliances.
6

（6）USE

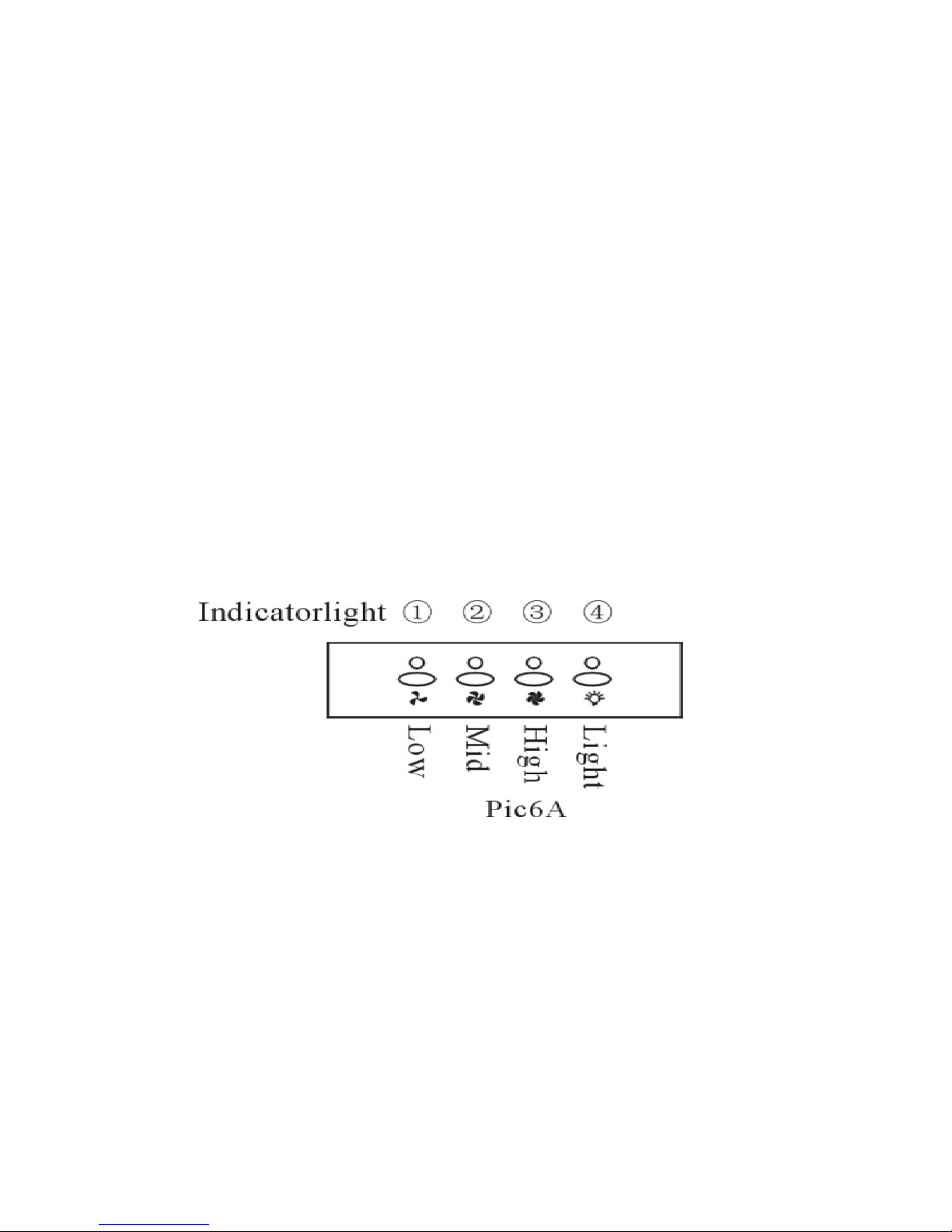

Electronic Button
1. Turn on the power; the buzzer will buzz five times. The sound shows that
the appliance is powered.
2. Push the low button, the indicating light 1 on, the buzzer will buzz once,
and the motor runs at low speed. Push it again and the motor will stop.
3. Push the middle button, the indicating light 2 on, the buzzer will buzz
once, and the motor runs at mid speed. Push it again and the motor
will stop
4. Push the high button, the indicating light 3 on, the buzzer will buzz
once, and motor runs on high speed. Push it again and the motor will
stop
5. Push the light button; the indicating light 4 on, and the two lighting
lamps will come on. Push it again and the lamps will turn off, with every
push the buzzer will buzz one time.

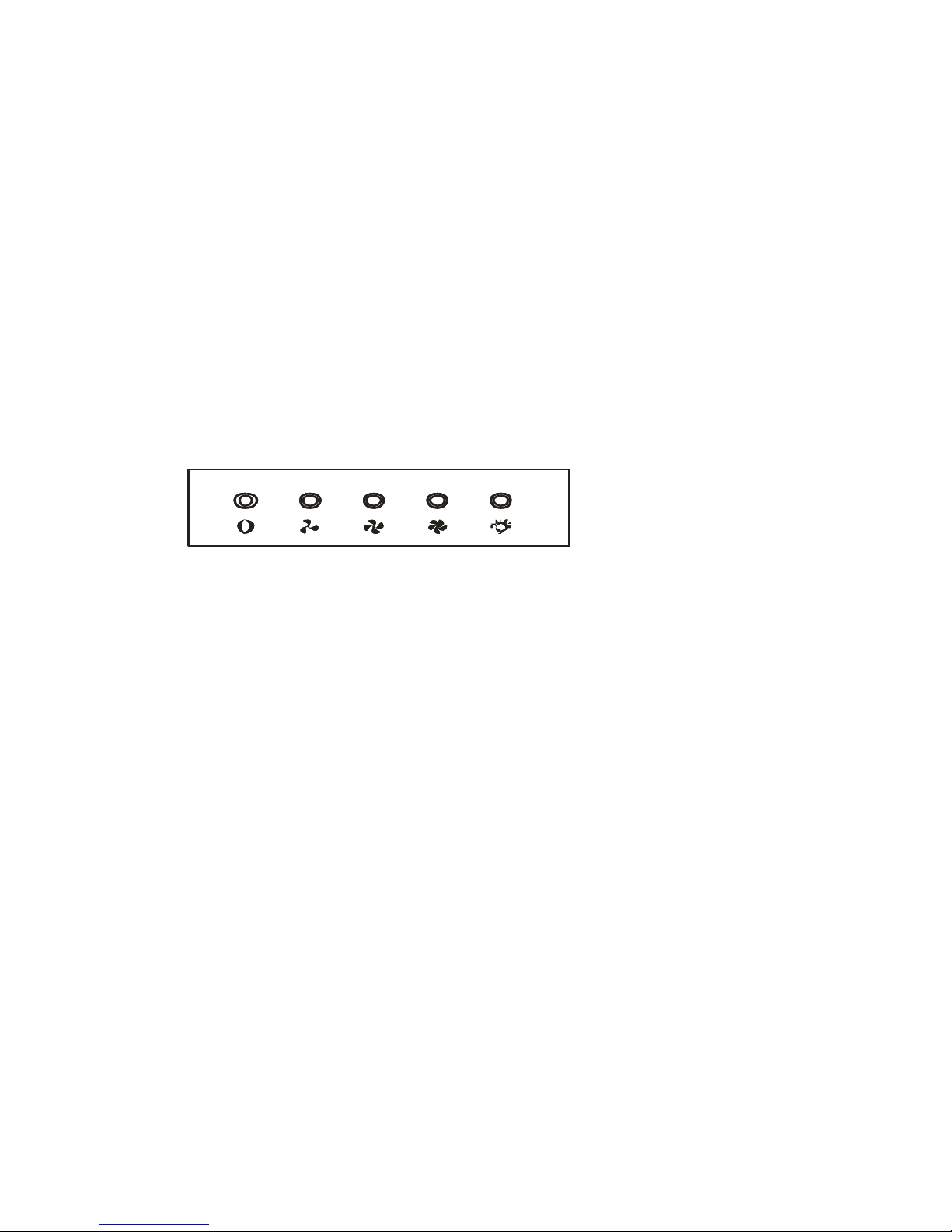

Push button
1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low
speed.
3. Push the Mid button, the buzzer will buzz once, and the motor runs at mid
speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high
speed.
5. Push the light button and the two lights will come on. Push it again and the
light will turn off.
pic6C
Low Mid High
Light
Stop
pic6C
Low Mid High
Light
Stop
pic6C
Low Mid High
Light
Stop

LCD Electronic button
Pic 7
1. Plug the hood; LCD will display 24-hour system with blue backlight.
Backlight will be extinguished after 30 seconds without any operation.
2. Press “ ” button once; lights will be on and LCD will show “ ”. Press
“” button again; lights will be off and “ ” on LCD will disappear.
3. Press “ ” button once; the hood works at LOW speed and LCD will show
“” and “ ” button will be on. Press “ ” button again; the hood
works at MEDIUM speed. Press “ ” button one more time; the hood
works at HIGH speed. Press “ ” button again; the hood works at LOW
speed again and it repeat. While pressing “ ” button; the “ ” button is
always on. If you want to stop the hood now; press the “ ” button once.
4. When the hood is not working; press “ ” button once. The hood will work
at the speed it works last time and LCD will show “ ”. Press “ ” button
again; the hood stop working and “ ” will disappear from LCD.
5. When both “ ” button and “ ” button don’t work; “ ” button is
used for time-setting. Press “ ” button for 2 to 3 seconds; will be
shown on LCD and flashes; which represents hour. Press “ ” button
once the number adds by 01. Continue pressing “ ” button; it will
display from 13;14… until 23. When LCD shows 23; it doesn’t work by

pressing “ ” button. Press “ ” button once; the number reduces by
01. When LCD shows 00; it doesn’t work by pressing “ ” button. After
setting hour; you can start setting minute by pressing “ ” button again.
on LCD flashes; which represents minutes. Press “ ” button once
the number adds by 01. Continue pressing “ ” button; it will display from
01;02… until 59. When LCD shows 59; it doesn’t work by pressing “ ”
button. Press “ ” button once; the number reduces by 01. When LCD
shows 00; it doesn’t work by pressing “ ” button. After setting hour and
minute; press “ ”to confirm.
When “ ” button doesn’t work; “ ” button is used for delay timer
function. Delay timer function allows you to set the hoods automatically
power off according to the delay timer you set from 1 minute to 60 minutes.
Press “ ” button once; it enters for delay timer setting and LCD
shows . Press “ ” button once the number adds by 01. Continue
pressing “ ” button; it will display from ; ;
… until Press “ ” button once; the number reduces
by 01. After setting delay timer you want; press “ ” button to confirm. If you
set delay timer as 05:00; the LCD display will show from 05:00; 04:59… until
00:01 00:00. When LCD shows 00:00; the hood will automatically power off
and LCD display will only show 24-hour system with blue backlight. After 30
seconds without operation; blue backlight will disappear. But please note the
Lamp is not under control of delay timer. Next time; if you want to use delay
timer function and you press “ ” button without any change on time. The
hood will automatically count time down from your previous setting after 5
seconds.

LCD Touch control
Pic 8
1. Power on: Switch on the power supply, and the backlight is lit, displaying
“24-hour system”. The output is then blocked up,and the soot machine
enters standby status. The backlight disappear automatically 30 seconds
later under the condition of none operation.
2. Press “Indicator” key: Press the indicator key once, the indicator is lit, and
on the LCD screen is lit. Press it for a second time, of the indicator
and the LCD screen will distinguish and it will be repeated again and
again.
3. Power on position and increase key , the motor is provided with three
positions, i.e. low, medium and high.
1. Press key once, the is displayed on the display screen, and the
motor starts operation. The is the low position (power on position.)
2. Press key once more at the low position, the is displayed on
the display screen, and the is the medium position.
3. Press key once more at the medium position, the is
displayed on the display screen, and the is the high position.
4. Go on pressing key at the high position, the is still
displayed on the display screen, and the motor works normally. It is
still at high position at this time.
4. Power on position and decrease key “ ”
1. Press “ ” key once, the motor is adjusted to a lower position, and
the LCD screen displays that position in the meantime; If it is
decreased continuously to none position, then, it is the power off
position (namely, the motor stops operation.)

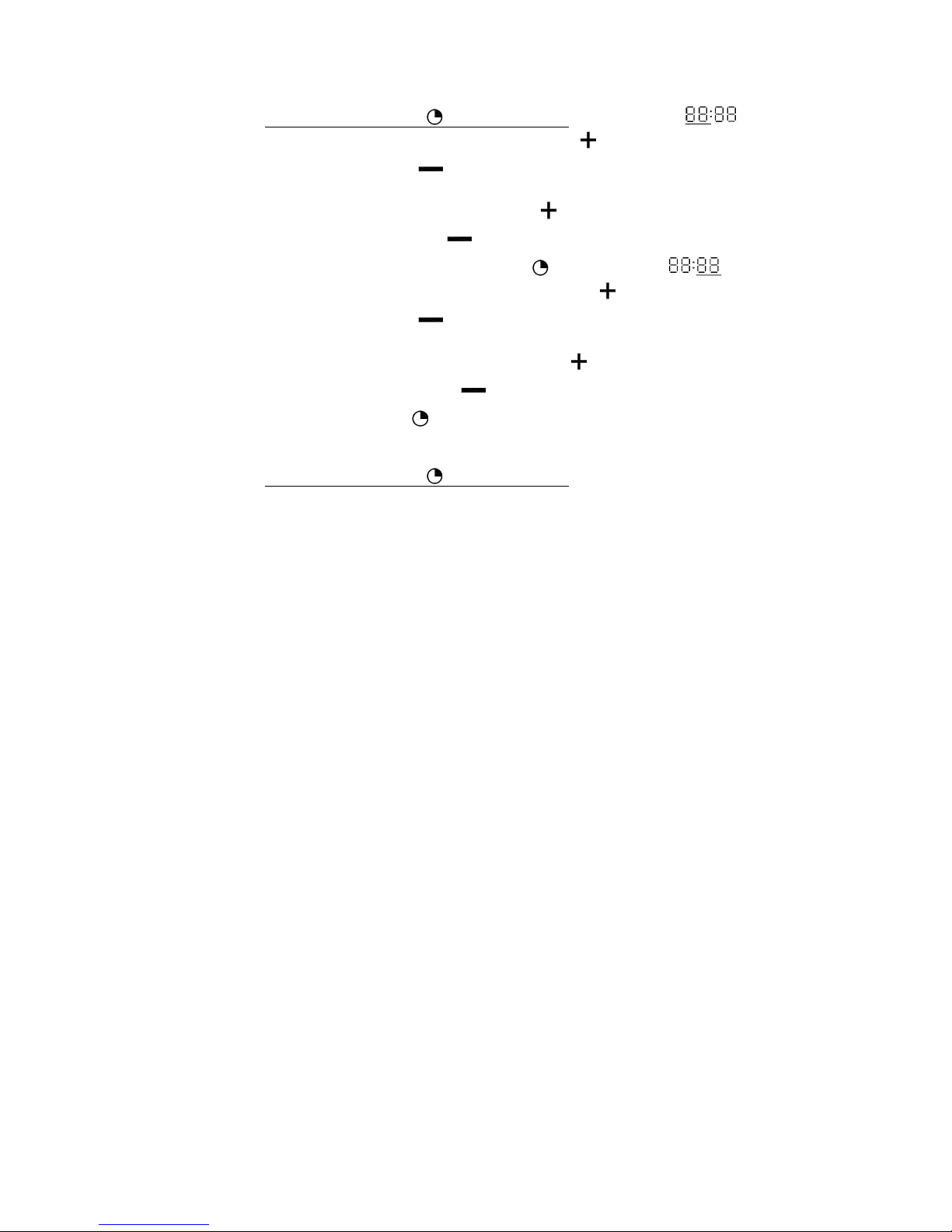

5. Timer key “ ”:
1. The timer key is the timer setting key if the timer key doesn’t work at
both the position and indicator.

Long press timer key for 2-3 seconds, time segment , and
the first two hour bit segment flash, use key for the digit
increase, and use key for the digit decrease. Namely: The
variable is 01 each time it is pressed; the hour segment is with the
largest digit of 23. If it exceeds 23, key is null and void. If it is
equal to 00, then, the key is null and void.
Press the timer key for the 2nd time , time segment , and
the last two minute bit segment flash, use key for the digit
increase, and use key for the digit decrease. Namely: The
variable is 01 each time it is pressed; the minute segment is with
the largest digit of 59. If it exceeds 59, key is null and void. If it
is equal to 00, then, the key is null and void.
Press the timer key for the 3rd time, and it is the time setting exit
and confirm key.
Long press timer key for 2-3 seconds under this operation
mode, and it is for the hour setting; Press it for the 2nd time:
Setting for the minute; Press it for the 3rd time: For the time setting
exit and confirm, and it will be repeated again and again (if the
1st time pressing doesn't exceed 2 seconds, then it can't run this
operating procedure.)
2. The timer key is the timer if the timer key works at either the position or
the indicator.
It is provided with three kinds of time segment, and they are
5min/15min/30min/timer cancel in sequence, and the 1st time is
5min, the 2nd time is 15min, the 3rd time is 30min, the 4th time is
timer cancel, the 5th time is 5min, and the 6th time is 15min ….,
and it will be repeated again and again.
Example: Let the setting time be 15min, the display is 00:15, 00:14,
…00:1, with 0:00 displays per minute, and once “00: 00” appears,
the motor position and the indicator power supply will be cut off
automatically, (the display screen displays “24-hour system”, the
output is blocked up, and the soot machine enters standby
status, and the backlight will be put out automatically 30
seconds later.)
Time segment change over, 5 seconds later, it starts to decrease
gradually (example: 15min is changed over to 30min, with a
delay of 5 seconds, and 00: 30 on the display screen starts to
decrease gradually).

(7) MAINTENANCE
7.1 The cleaning of the carbon grease filter mesh
The filter mesh is made of high-density stainless steel. Please do not
use the corrosive detergent on it. Keeping this filter clean will keep
the appliance running correctly. Please strictly follow the guidelines
below.
Method 1: Put the mesh into 40-50 c clean water, pour on detergent,
and soak for 2-3 mins. Wear gloves and clean with a soft brush.
Please do not apply too much pressure, as the mesh is delicate and
will damage easy.
Method 2: If instructed to do so, it can be put into a dishwasher, set
the temperature at around 60 degrees.
7.2 Notice of cleaning cooker hood
A. To protect the main body from corrosion over a long period of
time, the cooker hood should be cleaned with hot water plus
non corrosive detergent every one month.
B. Please do not use abrasive detergent for it will damage the
body.
C. Keep the motor and other spare parts free from water, as this
will cause damage to the appliance.
D. Before cleaning the appliance please remember to cut off
power
E. The carbon filter shouldn’t be exposed to heat.
F. Please don’t tear open the fixed bar around the carbon filter

G. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
(8) ABNORMITY AND SOLUTION
8.1 LED light replacing
Remove the filters, and push the light downwards, and unplug the wiring
connector.

8.2 Some solution
Fault
Cause
Solution
Light on, but motor
does not work
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor
The motor jammed bearing
damaged
Replace motor
The internal with of motor off or
a bad smell from the motor
Replace motor
Light does not work,
motor does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per
the electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not
tightly sealed
Take down the one way
valve and seal with glue
Leakage from the connection
of U-shaped section and
cover
Take U-shaped section
down and seal with soap
or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly
hanged
Lock the motor tightly
The body is not tightly
hanged
Fixed the body tightly
Insufficient suction
The distance between the
body and the gas top too long
Readjust the distance
Too much ventilation from
open doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw and make it
horizontal

The hanging screw not tight
enough
Tighten the hanging
screw and make it
horizontal
