Euromaid IRI9WE3 User manual

MODEL
IRI9WE3
900mm
Intergrated Canopy
Manual
Installation and Operation

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 1 -
Dear Customer,
We thank you for choosing this quality appliance and hope you enjoy many years of
reliable service.
Please ensure this manual is read carefully before installation and use. Keep this
manual in a safe and accessible location should future reference be required.
Regards
Home Appliances
CONTENTS
Contents 1
Safety Warnings 2
Dimensions 3
Installation 4-8
Operation 9
Maintenance and Cleaning 10-11
Service 11

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 2 -
SAFETY WARNINGS
•Installation of this Integrated Canopy Rangehood must be carried by a
qualified and competent installer.
•The manufacturer disclaims and liability for any damage or injury caused as a
result of not following instruction of installation contained in this instruction
manual.
•This Integrated Canopy Rangehood is not intended for use by young children
or infirm persons without supervison.
•Young children should be supervised to ensure they do not play with this
Integrated Canopy Rangehood.
•To avoid possible electric shock this Integrated Canopy Rangehood should
be unplugged before any maintenance or cleaning is carried out.
•This Integrated Canopy Rangehood cannot be installed in an external
environment.
•The Grease Filters should be cleaned at least once a month to avoid the risk
of fire.
•Flambe cooking cannot be carried out under the Integrated Canopy
Rangehood and is not recommended for use over Barbeques.
•Ducting must be independent from any other form of ducting of other
household heating sources.
•Ducting into wall cavities is prohibited unless the cavity has been designed for
this purpose
•Lit gas burner should never remain uncovered or on when there is no pan
present due to the risk of fire.
•Adequate ventilation of the room is required when the cooker hood is used
at the same time as appliances burning gas or other fuels.

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 3 -

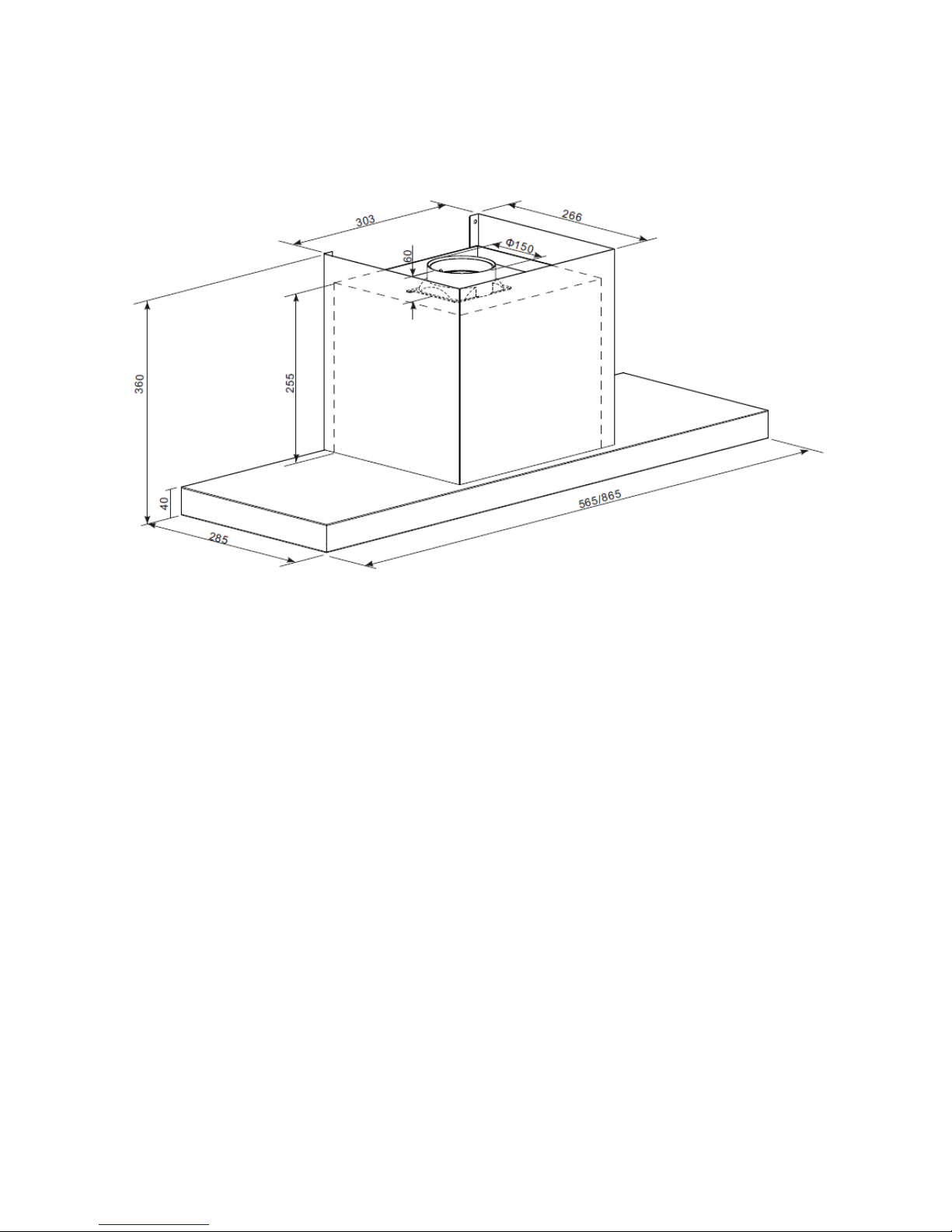

DIMENSIONS
Dimensions of IRI6WE3 and IRI9WE3

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 4 -
INSTALLATION
The IRI6WE3 and IRI9WE3 are designed to be installed fully integrated into an overhead
cupboard as pictured below. The IRI6WE3 is suited for a 600mm cupboard and the IRI9WE3
suited for a 900mm cupboard.
Installation of the IRI9WE3 Integrated rangehood in an overhead cupboard
Height Requirement
The minimum installation height requirement above the
highest point of the cooktop to the rangehood filter should
be no less than 65cm. For the best performance, the
maximum height should not exceed 75cm. (Fig. 1)
Fig. 1

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 5 -
INSTALLATION - Position of Mounting Bracket
The Integrated Rangehood is mounted to the rear of the overhead cupboard. Supplied with
the rangehood is a mounting bracket (Fig. 2)
Fig. 2
Prior to installation, check the measurement from the screw holes in the mounting bracket to
the base of the rangehood. Achieve this by placing the mounting bracket onto the rear of
the Integrated rangehood and measure from base of rangehood to the mid point of the
centre screw hole on the mounting bracket. This may vary slightly to the dimensions
mentioned in Fig. 3. and should be the one you use to ensure the base of the rangehood is
level with the base of the overhead cupboards.
Centre the mounting bracket on the rear panel of the overhead cupboard. Ensure the
mounting bracket is level and mark the 3 screw holes positions. Drill pilot holes into the rear
panel at the positions you have marked. Relocate mounting bracket and fasten it with
appropriate screws to the rear cupboard panel. Before tightening completely check the
level is correct. (Fig. 3)

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 6 -
INSTALLATION – Fitting of Integrated Rangehood

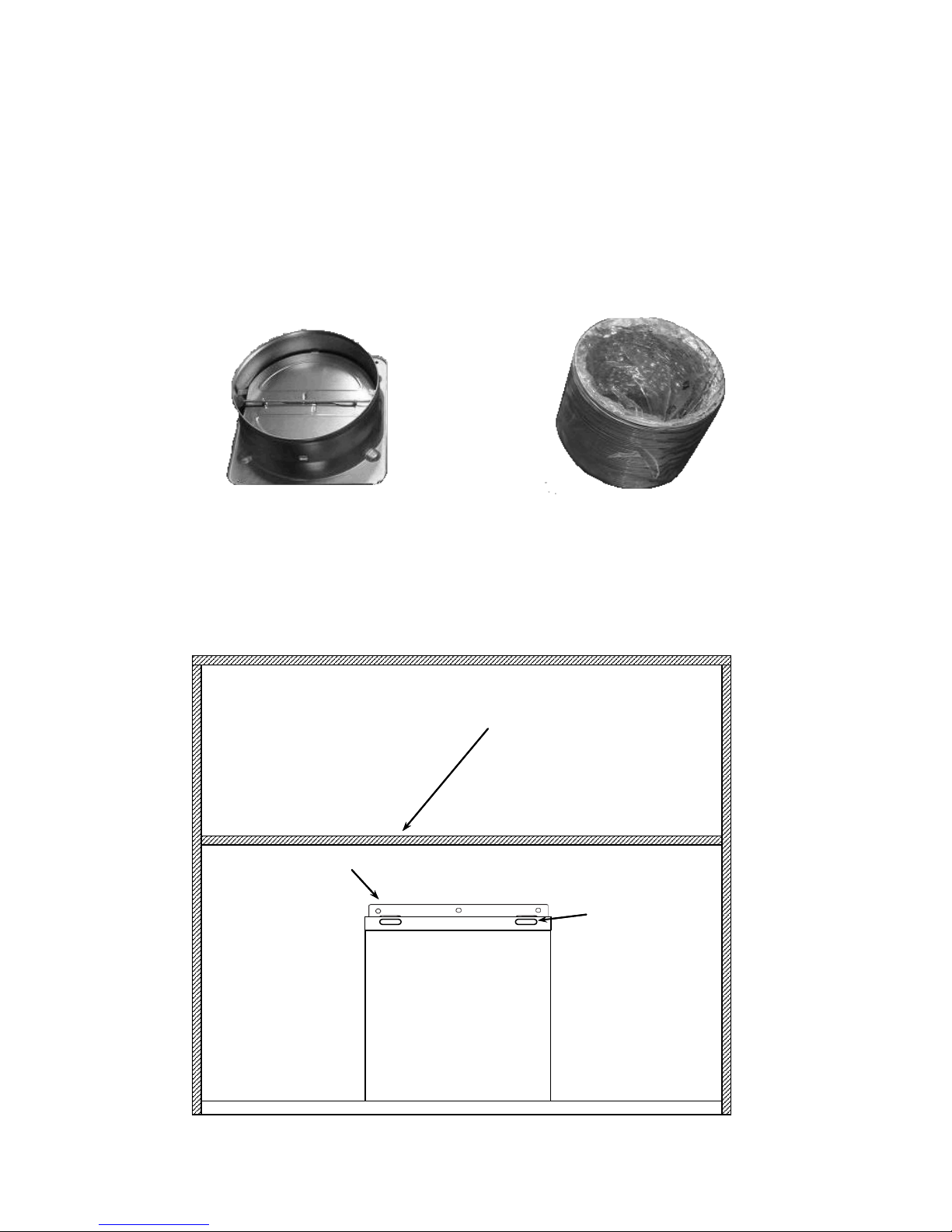

Fit 150mm duct spigot (pictured below) with the four 8mm screws provided over the
rectangular hole located at the top rear of the integrated rangehood. Fit 150mm flexible
ducting (pictured below), supplied, to the ducting spigot, Using one of the nylon ties,
supplied, secure the ducting to the duct spigot.
A hole or cutout needs to be made in the centre rear of the removable shelf positioned
above the integrated rangehood for the ducting to go through.
Mount the Integrated Rangehood onto the two tabs on the mounting bracket into the two
matching slots located at the rear of the rangehood. (Fig. 4)
Mounting bracket
Integrated Rangehood
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Fig. 4
Slots to mount to
tabs of mounting
bracket
Mounting bracket
Integrated Rangehood
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Fig. 4
Slots to mount to
tabs of mounting
bracket
150mm duct spigot 150mm flexible ducting

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 7 -
INSTALLATION – Ducted or Re-circulating
The integrated rangehood can be installed in either ducted or re-circulating method. The
integrated rangehood is supplied with a small length of flexible duct, although may not be
sufficient in all installations. The installer needs to determine the method in which the
rangehood will be installed and may need to supply the appropriate components to duct
the rangehood correctly.

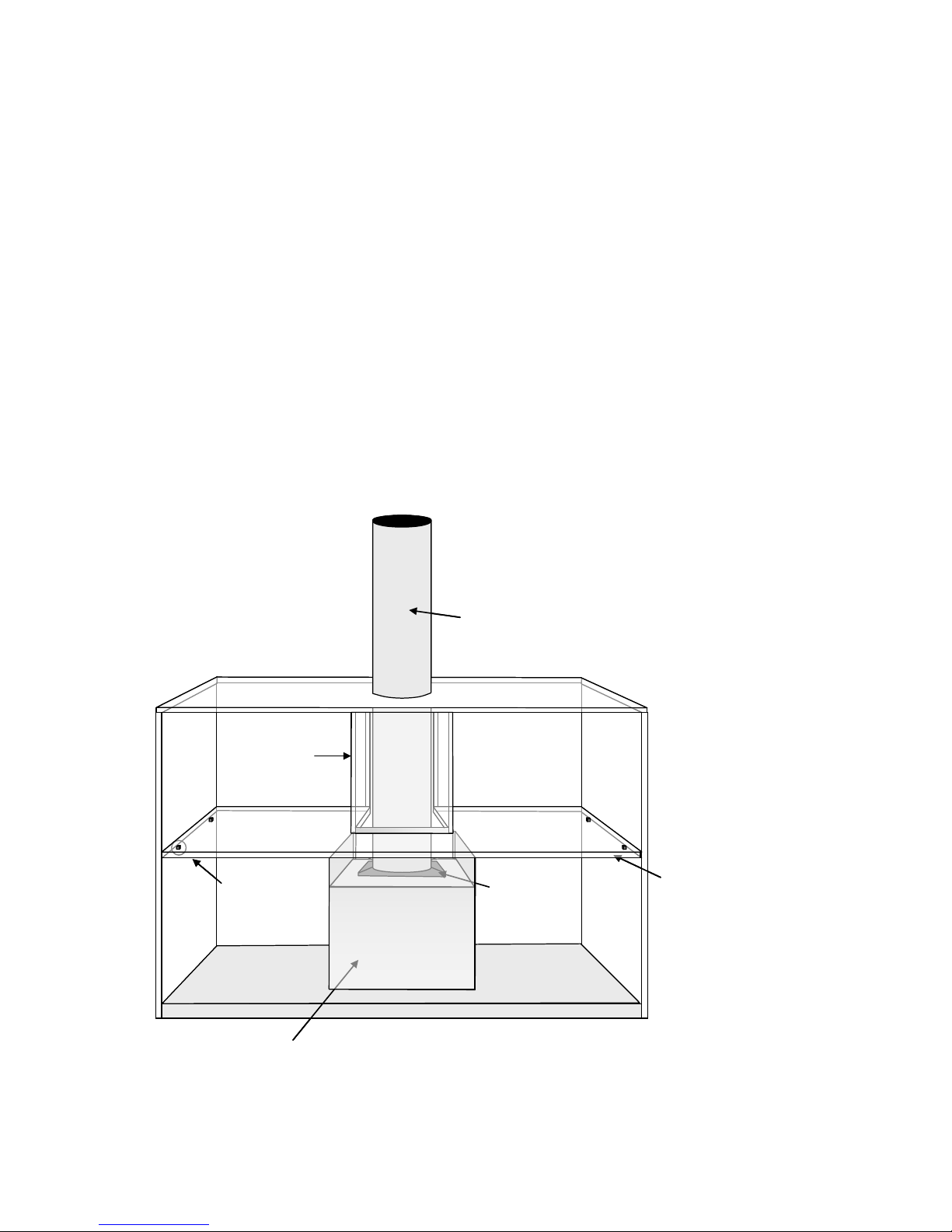

Ducted installation
Ducting components will need to be supplied by the installer as every installation can be
different. The size of the duct pipe needs to be no less than 150mm in diameter. Use of
smaller diameter duct pipe will effect performance and create air noise from the
rangehood.
The shelf above the top of the rangehood needs to removable, should the need for servicing
be required at a later date. The shelf needs to be located no less than 400mm above the
top of the rangehood as the metal motor housing supplied needs to be put in place after
the rangehood has been installed. Above the shelf a U-shaped box can be made to cover
the duct so it cannot be seen when the overhead cupboard is open. (Fig.5)
Motor housing cover
Duct spigot
150mm Ducting required
and ducted to outside of
the home
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Fig. 5
Motor housing cover
Duct spigot
150mm Ducting required
and ducted to outside of
the home
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Fig. 5

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 8 -
INSTALLATION – Ducted or Re-circulating

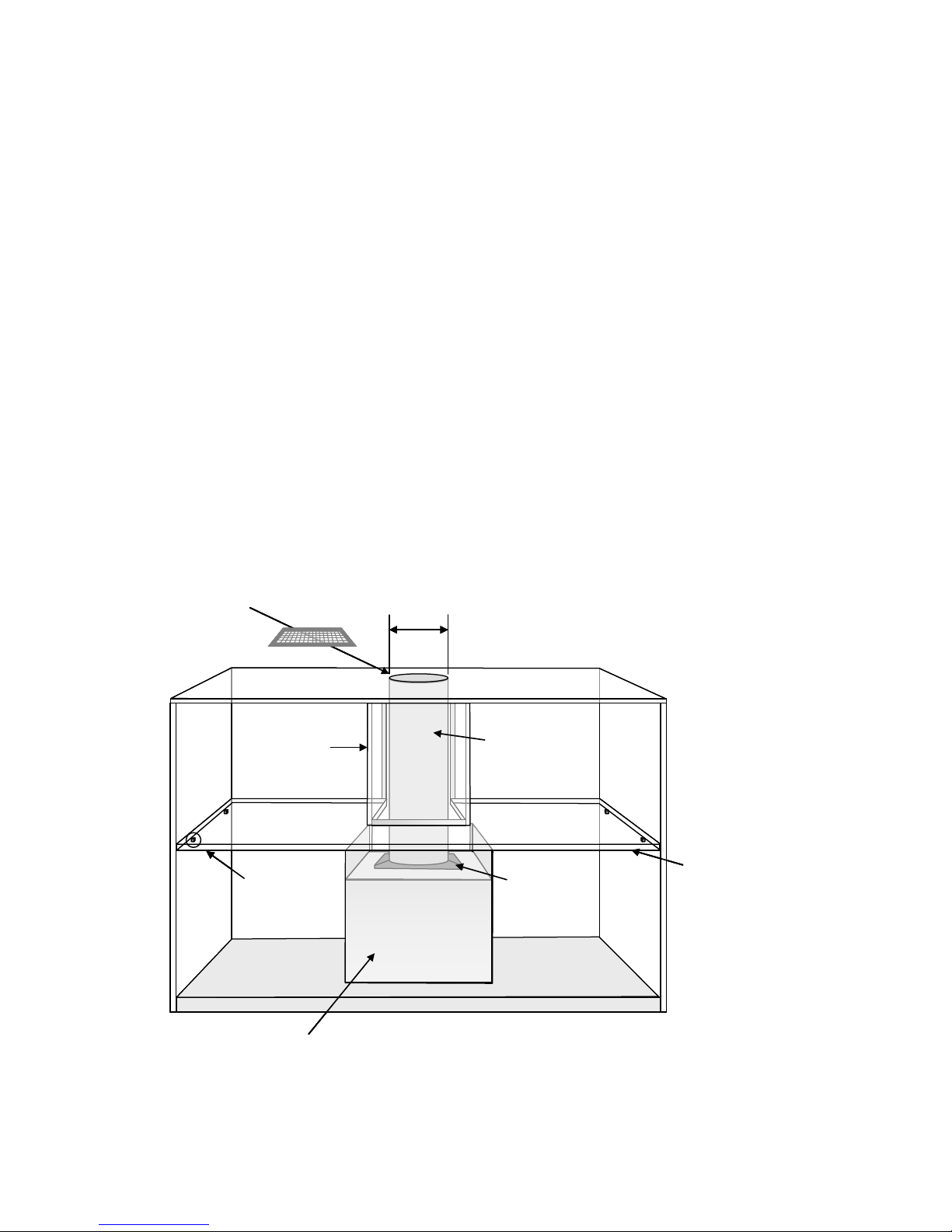

Re-circulation installation
150mm flexible duct is provided with the integrated rangehood for re-circulatiing installation.
This type of installation can be executed to the top of a cupboard or through a bulkhead
above the cupboard. In both cases a mesh cover will need to be supplied by the installer to
keep out insects and vermin. The size of the duct pipe needs to be no less than 150mm in
diameter. Use of smaller diameter duct pipe will effect performance and create air noise
from the rangehood.
The shelf above the top of the rangehood needs to removable, should the need for servicing
be required at a later date. The shelf needs to be located no less than 400mm above the
top of the rangehood as the metal motor housing supplied needs to be put in place after
the rangehood has been installed. Above the shelf a U-shaped box can be made to cover
the duct so it cannot be seen when the overhead cupboard is open. (Fig.6)
Carbon filters may be required to reduce any fumes or smells being re-directed back into
the kitchen environment. Call 1800 805 300 to order carbon filters if required.
Carbon Filter code – CF160 (2 supplied)
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Fig. 6
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Motor housing cover
Duct spigot
150mm
Ducting
(supplied)
150mm diameter hole in top of cupboard
U-shaped box
to cover
ducting
(Needs to be
removable)
Removable shelf
(Cannot be permanently
fixed if the need for
servicing is required)
Shelf support
brackets x 4
Mesh Cover
recommended to
keep out insect or
vermin.
Fig. 6

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 9 -
OPERATION
The integrated rangehood is fitted with push button Back-lit electronic controls.
There is 1 light push button and 3 speed push buttons, Low, Mid and High to control the air
flow speeds. (Fig. 7)
Light Control
To turn ON the halogen lights, depress the Light electronic push button once. When ON, the
back lit push button will glow blue. To turn lights OFF, depress the Light electronic push button
again.
Speed Control
To turn ON the rangehood, depress either the Low, Mid or High electronic push buttons.
When ON, the back lit push button will glow blue to indicate your selection. You may wish to
start on Low prior to cooking commencing and at any time switch to Mid or High without
having to turn off the Low speed first. You can depress any speed at any time and it will
cancel the previous speed chosen. To turn of OFF the rangehood depress the indicated
electronic push button again.
At the end of cooking it is recommended to run the rangehood on low for up to 10 minutes
to help remove any residual fumes and smoke produced during cooking.
Light High Mid Low
Fig. 7
Light High Mid Low Light High Mid Low
Fig. 7

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 10 -
MAINTENANCE and CLEANING
WARNING
ALWAYS un-plug the rangehood PRIOR to any maintenance or cleaning being
carried out, to avoid possible electric shock.
To ensure long lasting performance and efficiency, regular maintenance and cleaning of
your integrated rangehood should be performed.
Replacing Halogen Bulbs
After many hours of operation halogen bulbs may require replacement. This can be done by
the owner. Please follow the following steps to conduct this procedure.
Halogen bulb type – 20W 12V G4
NOTE: Replacement of halogen light bulbs are not covered under the 2 years parts and
labour warranty.

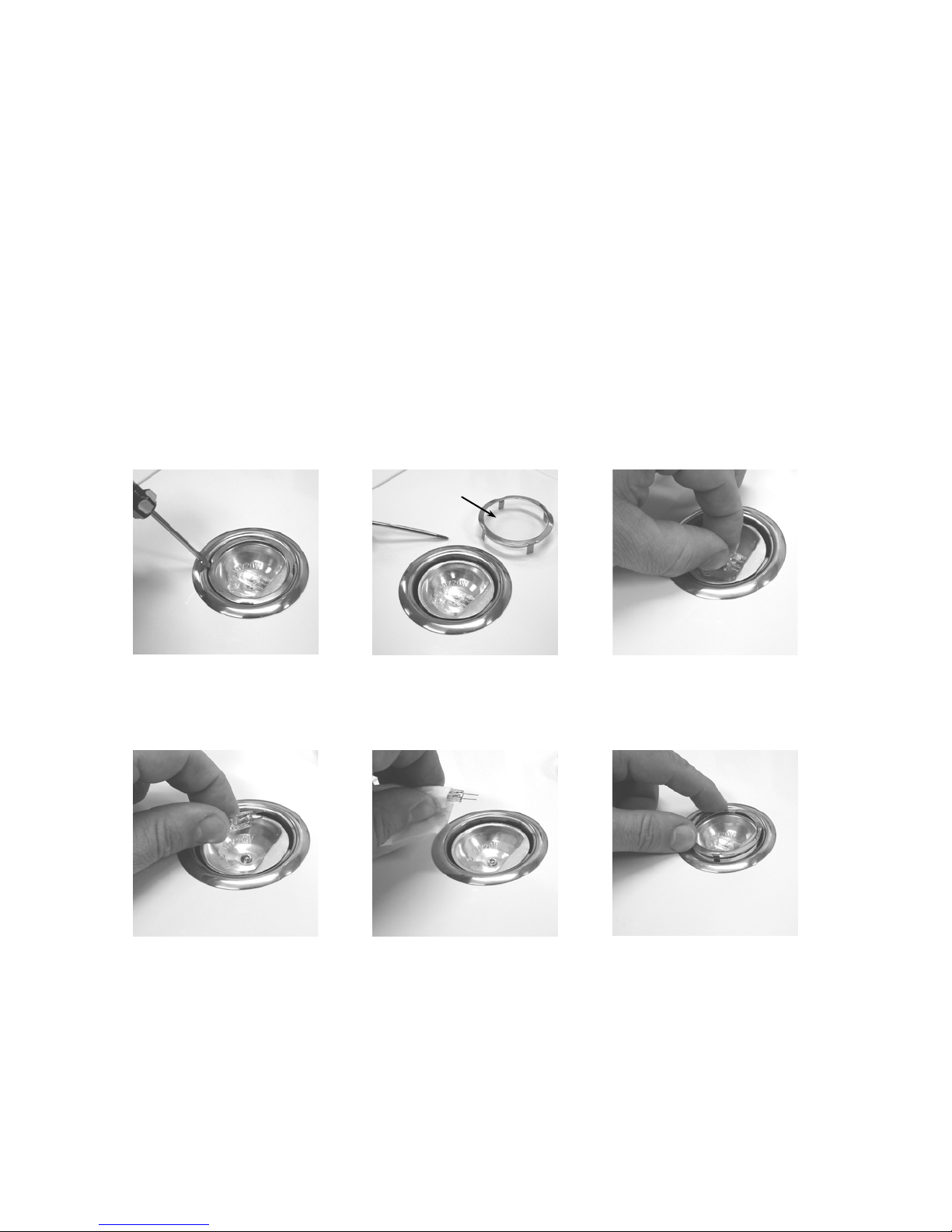

Step 1. Remove lamp cover using
a small screwdriver, there are 4
points to assist in easy removal
Step 2. Place cover in safe place
as it is made from glass
Step 3. Grip the halogen bulb and
pull from holder
Step 4. Remove lamp and discard
in a safe and proper manner.
Step 5. Using a tissue or gloves to
protect bulb, fit new halogen bulb.
(Oil from the skin can affect
halogen bulbs)
Step 6. Re-fit lamp cover carefully.
Ensure it is securely positioned.
Glass

IRI6WE3 and IRI9WE3 Installation and Operation Manual
- 11 -
MAINTENANCE and CLEANING
WARNING
ALWAYS un-plug the rangehood PRIOR to any maintenance or cleaning being
carried out, to avoid possible electric shock.
Cleaning of Grease Filter
We recommend cleaning of the grease filter to be done at least every 4 weeks. Cleaning of
the grease filter ensures continued performance of the rangehood.
Remove the grease filter and soak in warm to hot water containing liquid detergent. Soak for
at least 5 minutes to break down the grease build-up. Without applying too much pressure
use a soft brush to remove stubborn grease residue. Rinse under clean water. Ensure that the
filter is completely dry before re-fitting to rangehood.
The grease filter can be cleaned in the dishwasher on a normal wash program at a
temperature around 60 Degrees Celsius. NOTE: Some dis-colouration of the grease filter may
occur when cleaned in the dishwasher.
Cleaning of the Rangehood
As cooking can create a great deal of grease, we recommend that the rangehood body
and motor housing area be cleaned every 3 months. Ensure that non caustic, abrasive
detergents or harsh chemicals are not used to clean the rangehood as this could cause
damage.
Regularly cleaning the rangehood will ensure you get the best performance of your
appliance. Use hot water, detergent and a soft cloth to carry out the cleaning of your
rangehood. DO NOT excess water during cleaning and keep water away from the motor
and other electronic components.
Avoid cleaning immediately after using the rangehood as components and lights could still
be hot. Clean the rangehood when it has not been in operation.
Carbon Filters
Carbon Filters CANNOT be washed and re-used. Carbon filters, if used, require replacement
every 4 to 6 months depending on usage.
SERVICE
Should you experience any problems with your rangehood, please un-plug immediately and
as soon as possible, contact Service on
Toll Free 1800 805 300
Alternatively you can book a service call on our website
www.customersupport.integratedappliancegroup.com.au
