European Home VISION GAS FIREPLACE User manual

GAS STONES VENT FREE with FUSION BASKET
Installation, Operation and Owner’s Manual
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department. Installation and
service must be performed by a qualied
installer, service agency or the gas
supplier.
Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life.
This is an unvented gas-red heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and venti-
lating air must be provided. Refer to page 6.
INSTALLER: Leave this manual with the heater.
END USER: Retain this manual for future
reference.
This heater may be installed in an aftermarket,
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This heater is only for use with the type of gas
indicated on the rating plate. This heater is not
convertible for use with other gases.
Report Number 284-L-04-5
Nov. 2014

2
TABLE OF CONTENTS
Important Safety Information 3
Specications and Dimensions 9
Fireplace Requirements 12
Installing the Burner 14
Gas Supply 14
Stone Conguration 16
Operating Instructions 18
Maintenance 20
Troubleshooting 21
Parts List 23
Warranty 24
Programming the Remote Control Appendix A

3
1. Due to high temperatures, the heater should be located out of trac and away from
furniture and draperies.
2. Children and adults should be alerted to the hazard of high surface temperature and should
stay away to avoid burns or clothing ignition.
3. Young children should be carefully supervised when they are in the same room with the
heater.
4. Do not place clothing or other ammable material on or near the heater.
5. Any safety screen or guard removed for servicing a heater, must be replaced prior to
operating the heater.
6. Installation and repair should be done by a qualied service person.
7. To prevent malfunction and/or sooting, an unvented gas heater should be cleaned before
use and at least annually by a professional service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air passageways be kept clean.
8. CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar
to the u with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air
immediately. Have the heater serviced as it may not be operating properly.
9. The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.l/NFPA54.
10. This unit complies with ANSI Z21.11.2-2007 Unvented Heaters.
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or
death from re, burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the replace. Avoid any drafts
that alter burner ame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory,
not approved for use with this heater where applicable.
WARNING
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.

4
11. Do not install the heater in a bathroom or bedroom.
12. Correct installation of the ceramic stones, proper location of the heater, and annual cleaning
are necessary to avoid potential problems with sooting. Sooting, resulting from improper
installation or operation, can settle on surfaces outside the replace. See stone placement
instructions for proper installation.
13. WARNING: Avoid any drafts that alter burner ame patterns. Do not allow fans to blow
directly into replace. Do not place a blower inside burn area of rebox. Ceiling fans may
create drafts that alter burner ame patterns. Sooting and improper burning will occur.
14. Caution: Candles, incense, oil lamps, etc. produce combustion by-products including
soot. Vent Free heaters will not lter or clean soot produced by these types of products.
In addition, the smoke and/or aromatics (scents) may be reburned in the Vent Free heater
which can produce odors. It is recommended to minimize the use of candles, incense, etc.
while the Vent Free heater is in operation.
15. Keep room area clear and free from combustible materials, gasoline and other ammable
vapors and liquids.
16. Unvented gas heaters are a supplemental zone heater. They are not intended to be the
primary heating appliance.
17. Unvented gas heaters emit moisture into the living area. In most homes of average
construction, this does not pose a problem. In houses of extremely tight construction,
additional mechanical ventilation is recommended.
18. During manufacturing, fabricating and shipping, various components of this appliance are
treated with certain oils, lms or bonding agents. These chemicals are not harmful but may
produce annoying smoke and smells as they are burned o during the initial operation
of the heater; possibly causing headaches or eye or lung irritation. This is a normal and
temporary occurrence. The initial break-in operation should last two to three hours with the
burner at the highest setting. Provide maximum ventilation by opening windows or doors
to allow odors to dissipate. Any odors remaining after this initial break-in period will be
slight and will disappear with continued use.
19. Input ratings are shown in BTU per hour and are for elevations up to 2,000 feet. For
elevations above 2,000 feet, input ratings should be reduced 4 percent for each 1,000 feet
above sea level. Refer to the National Fuel Gas Code.
20. The heater and its main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of ½ psig (3.5 kPa).
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.

5
This appliance is for installation in a solid-fuel burning replace or UL
127 factory-built replace or in a listed ventless rebox enclosure.
Exception: DO NOT install this appliance in a factory-built replace that
includes instructions stating that it has not been tested or should not be
used with unvented gas logs.
WARNING
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
21. The appliance must be isolated from the gas supply piping system by closing its equipment
shuto valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than ½ psi (3.5 kPa).
22. Do not use this room heater if any part has been under water. Immediately call a qualied
service technician to inspect the room heater and to replace any part of the control system
and any gas control which has been under water.
23. This heater must not be used with glass doors in the closed position. This can lead to pilot
outages and severe sooting outside the replace.
24. Never burn solid fuels in a replace where an unvented room heater is installed.
25. Always have a replace screen in place when the appliance is in operation and, unless
other provisions for combustion air are provided, the screen must have an opening(s) for
induction of combustion air.
26. All outside air ducts and/or ash dumps in the replace must be permanently closed prior to
the installation of the heater.
27. This appliance has been certied by OMNI-Test Laboratories, Inc. to ANSI Z21.11.2-2007,
“Standard for Gas-Fired Room Heaters, Volume II, Unvented Room Heaters.”
28. This appliance is approved for installation in the Commonwealth of Massachusetts. The
Board of State Examiners of Plumbers and Gas Fitters has issued approval number G3-0311-
479 for this appliance.

6
GENERAL INSTALLATION INFORMATION
CODES
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or
NFPA54 which can be obtained from…
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
ADEQUATE COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a conned space or unusually tight construction unless provisions are provided
for adequate combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA 54), denes a conned space as a space whose volume is less than
50 cubic feet per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input rating of all appliances installed in that
space. An unconned space is dened as a space whose volume is not less than 50 cubic feet per 1,000 BTU per hour
(4.8 m3per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly
with the space in which the appliances are installed, through openings not furnished with doors, are considered a
part of the unconned space.
UNUSUALLY TIGHT CONSTRUCTION IS DEFINED AS CONSTRUCTION WHERE…
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of 1
perm (6 x 1011 kg per pa-sec-m2) or less with openings gasketed or sealed;
b) weather stripping has been added on operable windows and doors, and
c) caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and
oors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at
other openings.
This appliance is equipped for natural gas.
Field conversion is not permitted.
WARNING

7
If the area in which the heater may be operated is smaller than that de-
ned as an unconned space or if the building is of unusually tight con-
struction, provide adequate combustion and ventilation air by one of the
methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3 or applicable local codes.
WARNING
The following formula can be used to determine the maximum heater rating (per the denition of unconned space)
that is allowed in your space:
Maximum BTU/Hr. = x 1000
Example A: Consider two connecting rooms with an open area between, with the following dimensions: L1 = 15½ ft.,
L2 = 12 ft., W = 12 ft., H = 8 ft.
x 1000 = 52,800 BTU/Hr.
Example B: If there were a door between the two rooms the calculation would be based only on the room with the
heater.
x 1000 = 29,760 BTU/Hr.
Will my space support a Gas Stones Vent Free with Fusion Basket?
Maximum BTU/hr. my space will support (use formula above) 1) __________________
BTU/hr. of European Home Gas Stones Vent Free 2) ____39,000________
If the answer to 1) is greater than 2) then your space will support the installation of the Gas Stones Vent Free; if 1) is
less than 2) then your space will not support a Gas Stones Vent Free.
(L1 + L2)ft. x (W)ft. x (H)ft.
50
(15½ + 12)ft. x (12)ft. x (8)ft.
50
(15½)ft. x (12)ft. x (8)ft.
50

8
Listing Label for Gas Stones Vent Free Natural Gas Burner
Manufactured by
European Home, Inc.
Malden, MA 02148
[phone]

9
SPECIFICATIONS and DIMENSIONS
Fuel Type: Natural Gas ONLY
Manifold Pressure: 3.5”(0.87 kPa)
Minimum Supply Pressure: 4.0” (1.0 kPa)
Maximum Supply Pressure: 7.0” (1.7 kPa)
Orice Size: 6 Port #55 DMS
Input: High Fire - 39,000 BTU/hr.
Low Fire - 27,000 BTU/hr.

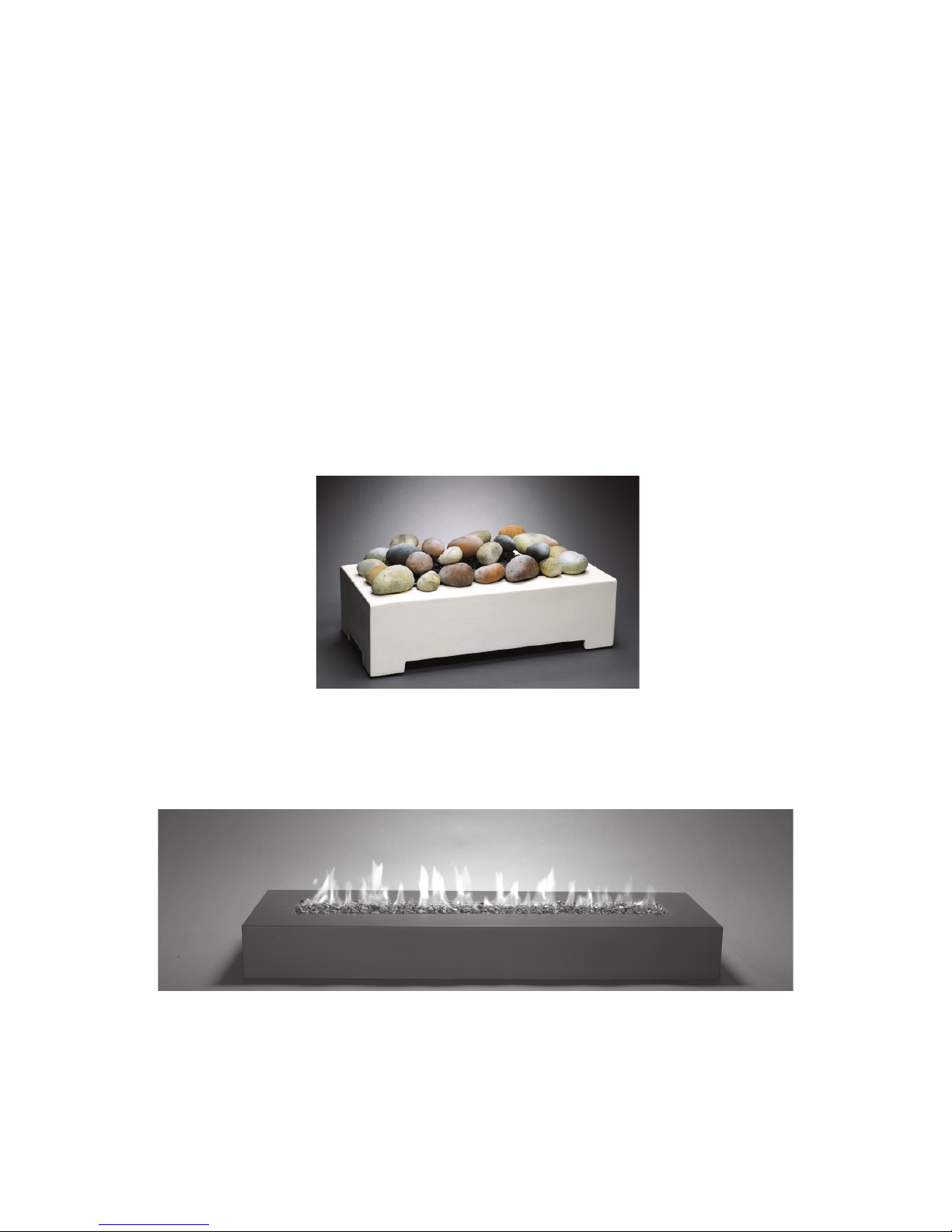

Gas Stones with 24” Fusion Basket
Gas Stones with 30” Fusion Basket

10

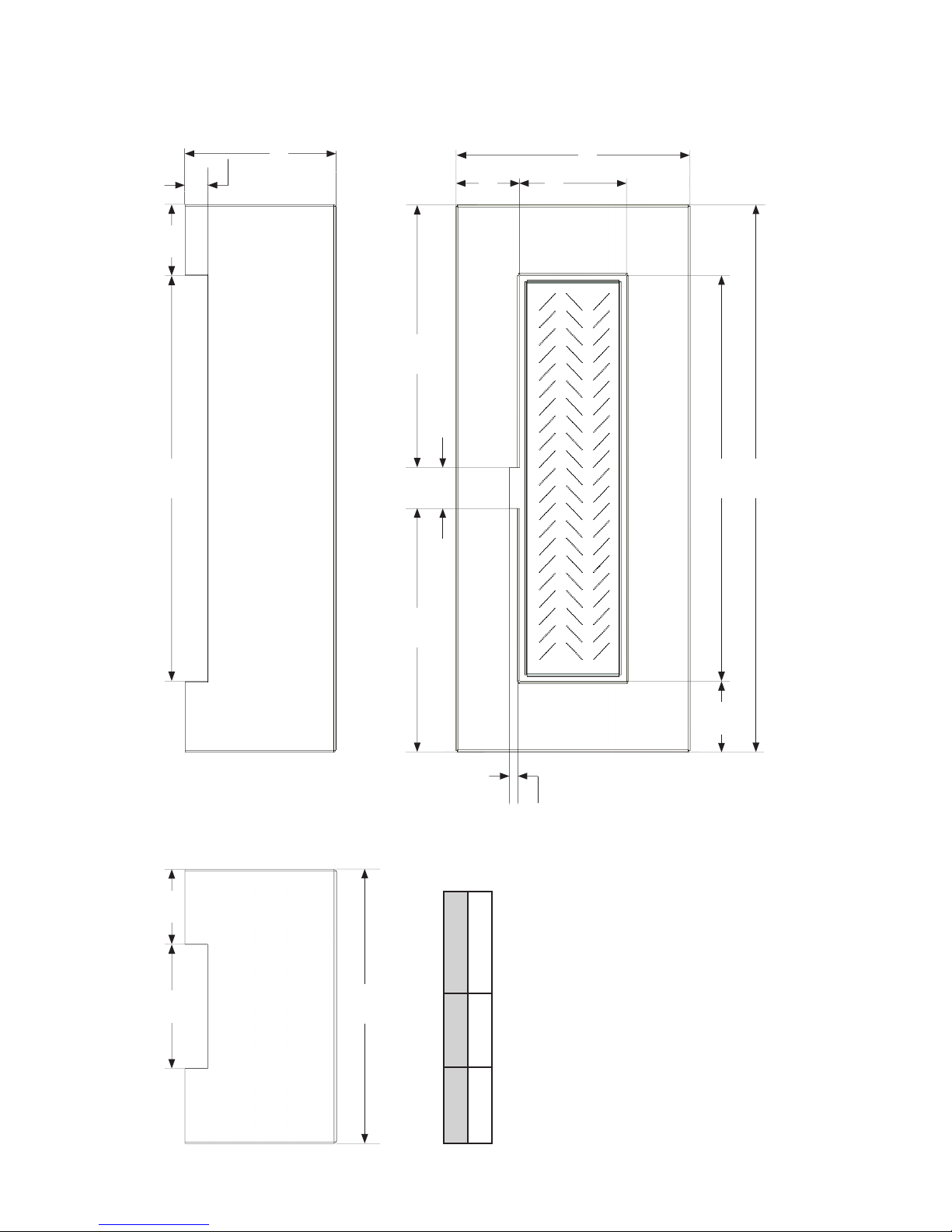

SPECIFICATIONS and DIMENSIONS
A
12.00
17.84
0.62
5.38
2.16
6.70
17.84
3.08
1.00
12.00
5.38
3.31
3.08
3.31
10.6111.23
Dimension
A 24” 30”

11

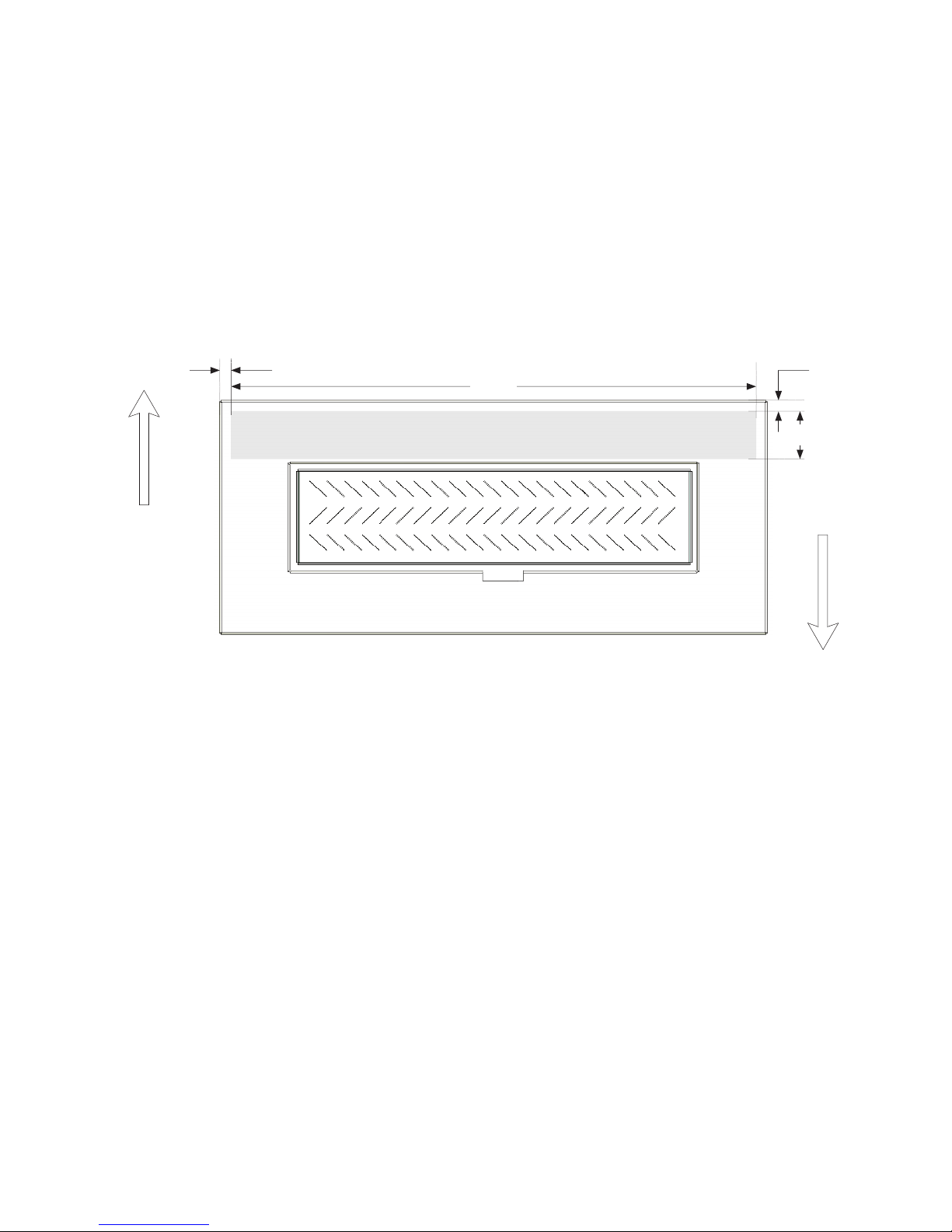

SPECIFICATIONS and DIMENSIONS
0.75 0.75
3.00
22.50
Room
Rear of
Fireplace
Premise gas supply should terminate within shaded area, shown on plan view, above.

12
Your Gas Stones Vent Free with Fusion Basket is for installation in a solid-fuel burning replace or
UL 127 factory-built replace or in a listed ventless rebox enclosure.
Exception: DO NOT install this appliance in a factory-built replace that includes instructions
stating that it has not been tested or should not be used with unvented gas logs.
When installed in a vented replace your Gas Stones Vent Free with Fusion Basket must sit fully
inside the replace so that it properly drafts up the chimney ue.
In all cases, be certain that the burner of your Gas Stones Vent Free with Fusion Basket is behind
the replace lintel. (see Figure 2)
WARNING: Before installing in a solid-fuel burning replace, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and loose paint by a qualied chimney cleaner.
Figure 2
Lintel
FIREPLACE REQUIREMENTS

13
23.0”
25.0”
MANTEL CLEARANCES
12.0”
5.0”
Existing replace
opening
Top of existing re-
place opening
Combustible mantels may be no closer to the replace opening than the distances shown in the
Figure 2a side view, above.
Figure 2a

14
The gas supply should terminate within
three inches (3”) of the rear of the burner
module. In this way the gas supply can
be hidden under the Fusion Basket.
Place the burner module in the center of
the replace and connect the gas supply
to the exible gas supply connector
provided with the burner. The gas supply
line must terminate with a male ½”NPT
pipe thread in the rear of the replace.
The gas supply piping should have a
separate gas shuto valve and a ⁄”NPT
plugged tapping up stream of the valve.
The Gas Stones Vent Free with Fusion
Basket and its main control valve must be
disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa).
GAS SUPPLY
INSTALLING THE BURNER
Figure 4

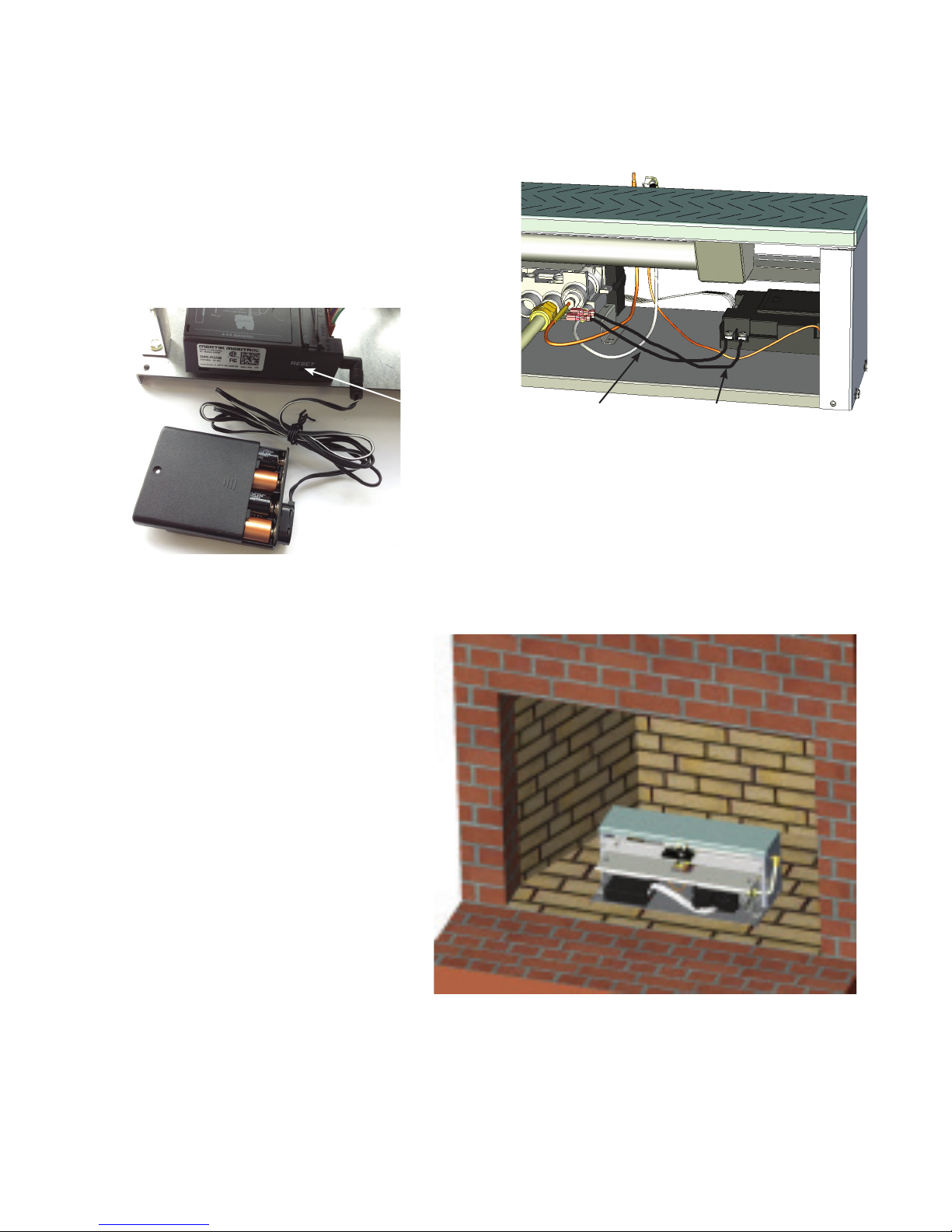

Place 4 AA batteries in the battery case and con-
nect the battery case to the receiver as shown in
Figure 3a.
Ensure that the wiring is connected as shown in
Figure 3b.
Figure 3b
Yellow-tipped
Wire (SW)
Red-tipped
Wire (TC)
Figure 3a
RESET
button

15
The Gas Stones Vent Free with Fusion
Basket must be isolated from the gas supply
piping system by closing the main control
valve during any pressure testing of the gas
supply system at test pressures equal to or
less than ½ psi (3.5 kPa).
After the gas supply has been connected,
open the main supply and apply a soapy
water solution to all the ttings to check
for gas leaks. Never use a ame to test for
leaks. Ensure that the burner inlet tube is in
the shutter box.
Place the Fusion Basket over the burner so the burner is centered in the opening in the Fusion
Basket as in Figure 5. Slide the Battery Case beneath the Fusion Basket
Figure 5
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only
parts specically approved with this heater may result in property damage or personal injury.

16
STONE CONFIGURATION
The Gas Stones Vent Free with Fusion Basket can be operated with, or without, the decorative
stones and/or the embers. The following is the recommended stone/ember conguration. Slight
dierences in the placements are acceptable.
When using the stones and embers, begin by placing one layer of the embers evenly over the en-
tire burner top as shown in Figure 6.
Sort your stones, by size, into sixteen small, three medium and four large. Place a row of six small
stones along the rear edge of the burner as shown in Figure 7.
Figure 6
SSSSSS
Figure 7

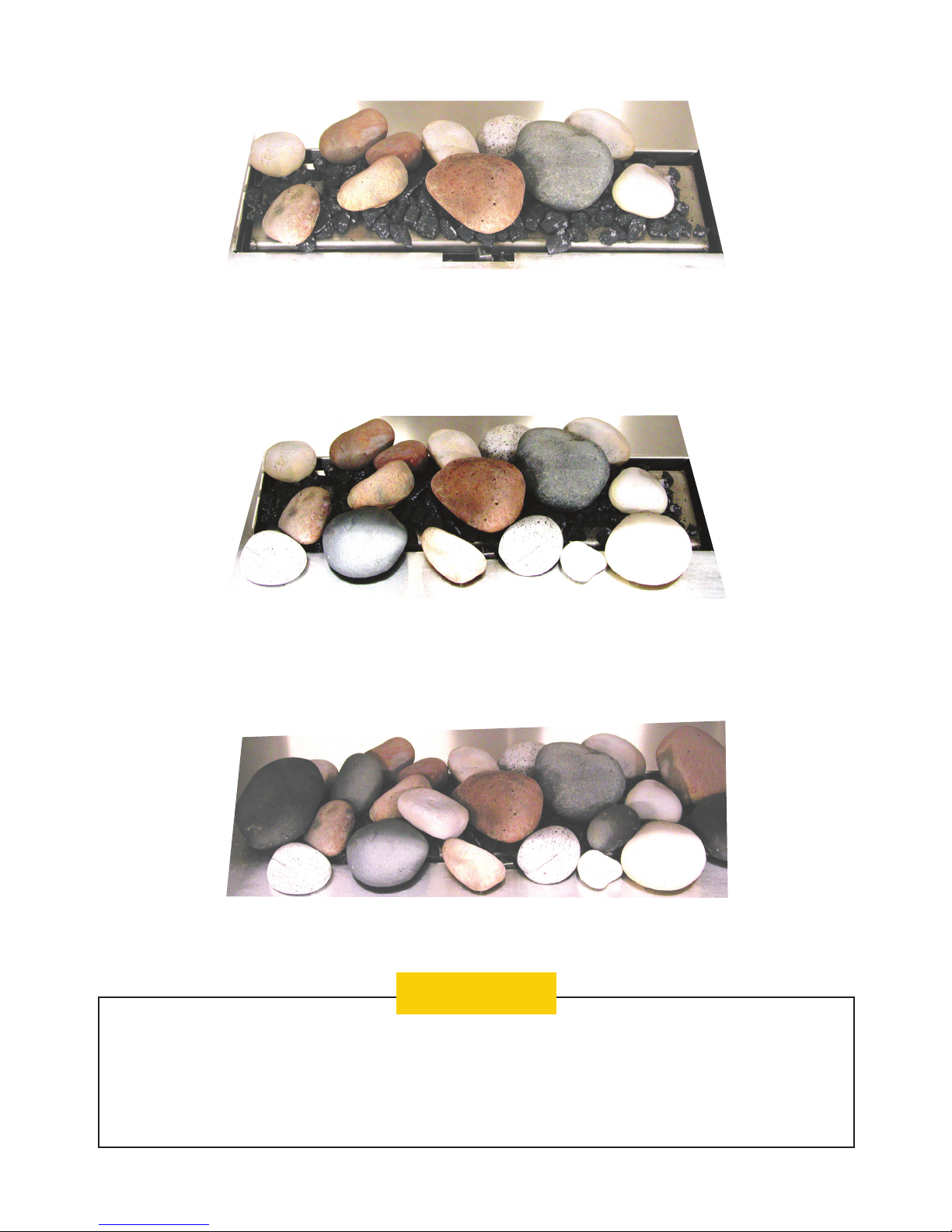

Next, place two large stones and three small stones on the burner as shown in Figure 8. Then place
two medium and four small stones along the front edge of the burner as shown in Figure 9.

17
Figure 10
Finally, place the remaining two large, one medium and three small stones on top as shown in
Figure 9.
Figure 8
SS
S
SSS
S
S
S
L
L
Figure 9
L
L
S
S
S
S
S
S
SS
S
S
S
S
MM
S
S
M
L
S
S
L
L
L
M
M
S
S
SSS
S
SSS
S
S
S
S
The stones installation must be per these instructions. This heater must use only the
stones provided by European Home. An excess amount of stones may adversely aect the
performance of the heater. All previously applied loose material must be removed prior to
reapplication.
WARNING
Figure 10 shows a completed installation of stones.

18
FOR YOUR SAFETY READ BEFORE LIGHTING!
A. This heater is equipped with an ignition device which automatically lights the pilot. Do not try
to light the pilot by hand.
B. BEFORE LIGHTING smell all around the heater area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions
• If you cannot reach your gas supplier, call the re department.
C. Do not use this heater if any part has been under water. Immediately call a qualied service
technician to inspect the heater and to replace any part of the control system and any gas control
which has been under water.
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
OPERATING INSTRUCTIONS
RESETTING THE SYSTEM (Synchronizing the Remote and Receiver)
Before the rst re the remote control and receiver must be synchronized. This is accomplished by
resetting the system as follows:
1. press and hold the receiver RESET button until you hear the second of two beeps then
2. release the RESET button and, within twenty seconds,
3. press the SMALL FLAME button on the remote until you hear a conrming beep. Release
the down button.
The receiver and remote are now each synchronized and ready for normal operation.

19
1. STOP! Read the safety information above.
2. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot
by hand.
3. Push the OFF button on the remote control to insure the
appliance is o.
4. Wait ve (5) minutes to clear out any gas. Then smell for
gas including near the oor. If you smell gas, STOP! Follow
“B” in the safety information above. If you don’t smell gas,
go to the next step.
5. Press the OFF and LARGE FLAME buttons simultaneously.
Release the buttons once you hear a beeping noise. This
acoustic signal tells you that the start sequence has begun.
Further short signals will continue until main gas ows and
the burner is lit. If the pilot or burner does not light, go
back to Step 3, above.
6. Use the LARGE FLAME and SMALL FLAME buttons to
adjust the ame height.
LIGHTING THE FIRE
OFF
LARGE
FLAME
SMALL
FLAME
SET

20
MAINTENANCE
A qualied service agency should conduct an annual inspection and maintenance of your Gas Stones
Vent Free with Fusion Basket, the replace, chimney, and the installation to keep it running safely. The
following procedures should be performed only by a qualied service person. The gas supply should
be turned o whenever a maintenance procedure is performed. All parts of the replace that are
removed for servicing must be replaced prior to operation.
Cleaning the Stones and Burner.
With all parts of the replace at room temperature, carefully remove and clean the stones with a
soft bristled brush. Never use a vacuum cleaner to clean the stones. Clean the burner surface with a
brush. Replace the components per the instructions starting on page 11 of this manual.
WARNING: Failure to keep the primary air opening of the burner clean may result in sooting and
property damage.
Inspecting the Chimney
An inspection of the chimney should be made as part of the annual service appointment. The
chimney must have no blockage and be in good repair.

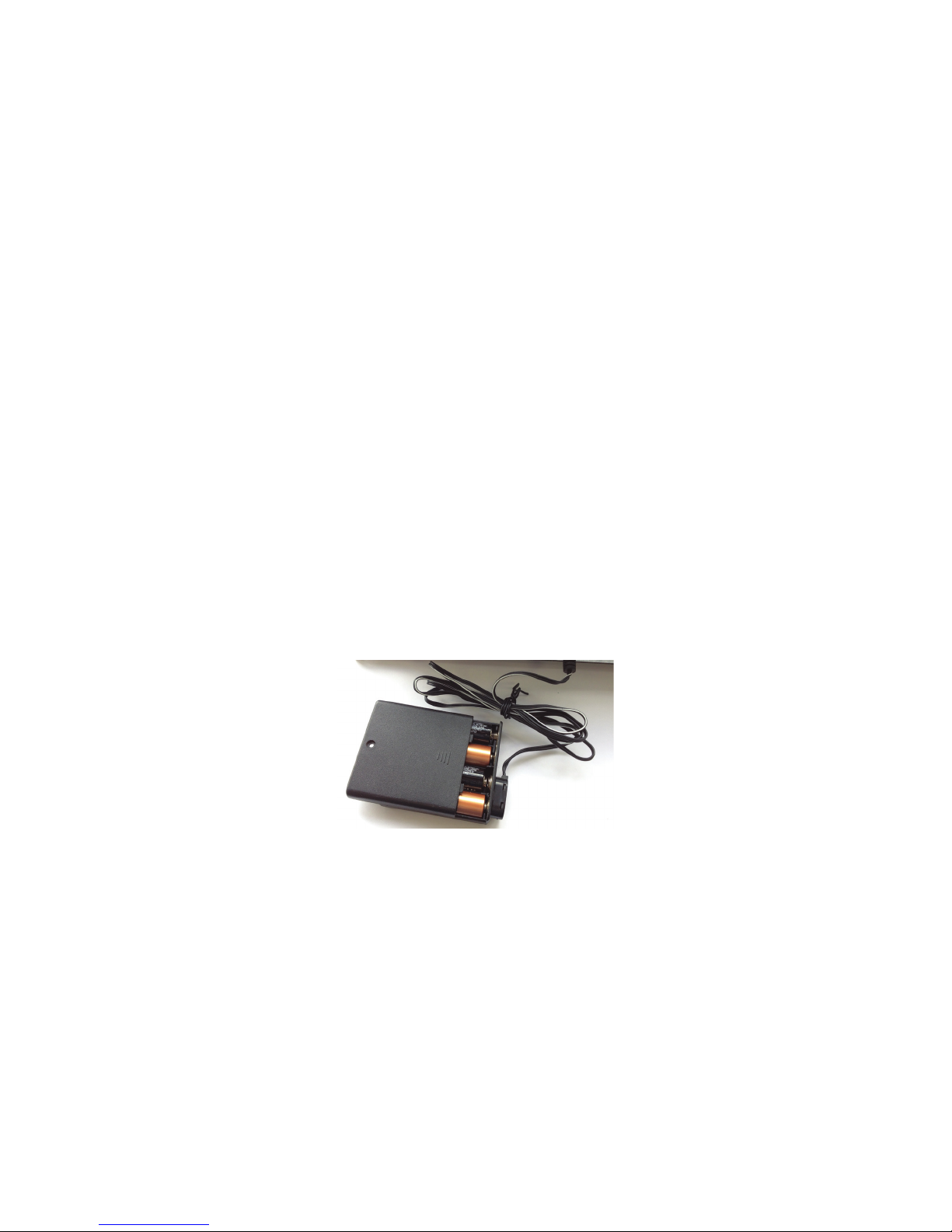

Replacing the Batteries
With all parts of the replace at room temperature, slide the Battery Case from beneath the Fusion
Basket. Replace the old batteries with four, new, high quality AA alkaline batteries.
Figure 10
