European Home evonicfires Tyrell Manual

1
Important Safety Informaon
Always read this manual rst before aempng to install or use this
replace. For your safety, always comply with all warnings and safety
Instrucons contained in this manual to prevent personal injury or property
damage.
Halo Instrucon Guide
English 31/05/20—Halo
SERIAL NUMBER LABEL
INSTRUCTIONS MUST BE KEPT AFTER INSTALLATION
FOR FUTURE MAINTENANCE
Models—Tyrell/Kiruna/Linnea
Please note: Once your e-smart product has been installed and switched
ON, the replace will take approximately 10 seconds to power up. This is a
normal operang procedure and NOT a fault.

2
This guide is designed to aid in the installaon and connued
performance of this product. This product conforms with all health,
safety, and environmental protecon standards as indicated by a CE
mark. For opmum performance this product requires a well-insulated
locaon and indoor use.
CONTENTS
1. Electrical Safety 3/4
2. Installaon Requirements 5
3. Installaon Method 6
4. 3-sided Installaon 7
5. 2-sided Installaon 8
6. 1-sided Installaon 9

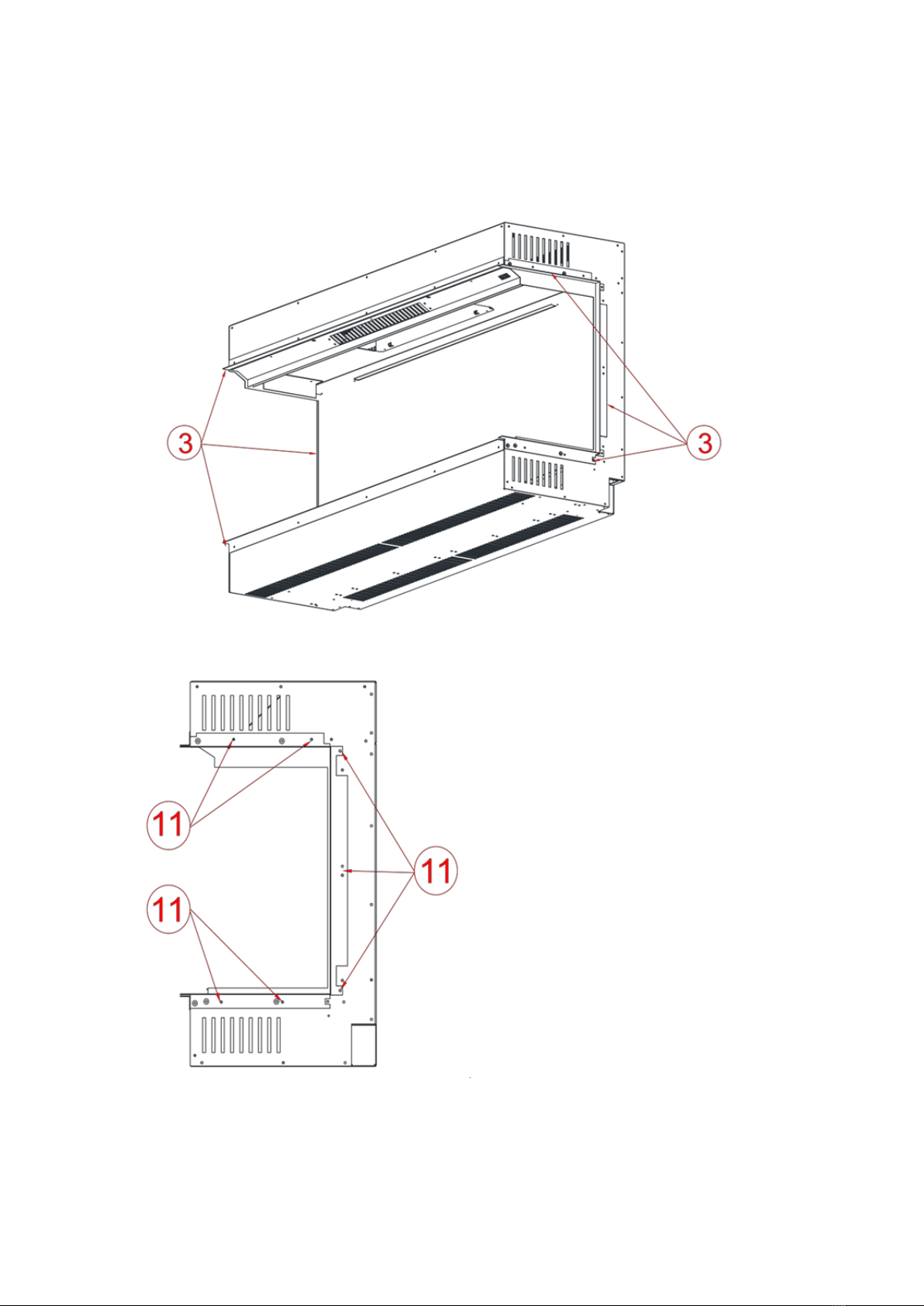

7. Glass Removal 10/11
8. Side Conversion Panels 12/15
9. App Interface 16
10. Log Guidance 17
11. Product Operaon 18
12. Specicaon Drawings 19/27
13. Troubleshoong chart 28/31
14. App & Alexa Instrucon 32/41
15. Warranty 42

3
When using electrical appliances, basic precauons should always be
followed to reduce the risk of re, electric shock, and injury to per-
sons, including the following:
① Read all instrucons before using this electric replace.
② This replace is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. The trim around the heater outlet becomes hot dur-
ing heater operaon. DANGER: High temperatures may be generated
under certain abnormal condions. Do not parally or fully cover or ob-
struct the front of this heater.
③ Extreme cauon is necessary when any heater is used by
or near children or people of reduced mobility and whenever
the unit is le operang and unaended.
④ Young children should be supervised to ensure that they do
not play with the appliance.
⑤ The appliance is not intended for use by young children or
inrmed persons without supervision.
⑥ In the event of a malfuncon, disconnect power at the service panel
and have the unit inspected by a reputable electrician before reusing.
⑦ If the power cord is damaged, it must be replaced by the
manufacturer, or its service agent, or a qualied person in order to
avoid a hazard.
⑧ Do not use outdoors.
⑨ Never locate replace where it may fall into a bathtub or other
water container.
⑩ To disconnect the replace, turn the controls o, and turn o pow-
er to heater circuit at main electrical panel.
⑪ Do not run the cord under carpeng. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from trac area and
where it will not be tripped over.
⑫ Do not locate the heater immediately below a xed socket-outlet.
ELECTRICAL SAFETY:

4
⑬ Do not insert or allow foreign objects to enter any
venlaon or exhaust opening as this may cause an
electric shock or re, or damage to the heater.
⑭ To prevent a possible re, do not block air intakes or
exhaust in any manner.
⑮ All electrical heaters have hot and arcing or sparking parts
inside. Do not use in areas where gasoline, paint, or ammable
liquids are used or stored.
⑯ Use this replace only as described in this manual. Any
other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
⑰ Do not change the plug in any way. Always plug heaters
directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
⑱ Do not burn wood or other materials in the electric
replace.
⑲ Do not strike the replace glass.
⑳ Always use a cered electrician should new circuits or
outlets be required.
㉑Always use properly grounded, fused and polarized outlets.
㉒Disconnect power supply before performing any cleaning,
maintenance or relocaon of the unit.
㉓When transporng or storing the unit and cord, keep in
a dry place, free from excessive vibraon and store to
avoid damage.
NOTE: Changes or modicaons not expressly approved
by the party responsible for compliance could void
warranty.

5
Review and consider all the following condions before installaon:
Ensure installaon does not allow the electric replace to be in direct contact with building vapor barrier or
insulaon and meets all local building code. A 15 Amp, 120 Volt circuit is required. A dedicated circuit is
preferred but not essenal in all cases. A dedicated circuit will be required if, aer installaon, the circuit
breaker trips or fuse blows on a regular basis when the heater is operang. Addional appliances on the same
circuit may exceed the current rang of the circuit breaker.
Ensure the power cord is not installed so that it is pinched
or against a sharp edge and ensure that the power cord is
stored or secured to avoid tripping or snagging to reduce the risk of
re, electric shock or injury to persons. Construcon and electrical
outlet wiring must comply with local building codes and other
applicable regulaons to reduce the risk of re, electric shock and
injury to persons.
WARNING: To reduce the risk of re, do not store or use gasoline or other ammable vapors or
liquids in the vicinity of the heater.
1. Select a locaon that is not suscepble to moisture and is away from drapes, furniture and high trac.
2. For ease of electrical hook up you may wish to locate the replace near an
exisng outlet (for plug-in convenience).
3. Remove electric replace, front glass and hardware from the box and remove all packaging materials
before installaon.
4. Store the replace in a safe, dry and dust free locaon unl you are ready to install the replace.
Grounding Instrucons:
This product must be grounded. If it should malfuncon or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER: Improper connecon of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product – if it will not t the outlet, have a proper
outlet installed by a qualied electrician. This product is for use on a nominal 120-volt circuit and has a
grounding plug that looks like the plug in Figure 1. Make sure that the product is connected to an outlet
having the same conguraon as the plug.
WARNING: Do not aempt to wire your own new outlets or circuits. To reduce the risk of re, electric
shock or injury to persons, always use a licensed electrician. PLEASE NOTE: This appliance cannot be
wired into a wall and must use the provided cord and a wall outlet.
INSTALLATION REQUIREMENTS:
Fig 1.

6
INSTALLATION METHOD:
PLEASE NOTE: It is crucial to ensure that the product has a minimum internal clearance directly above
and below the product of 4"(100mm), this is to ensure that the product can circulate the required
airow for the heater unit.
Any faults as a result of ignoring the installaon guidelines will invalidate the warranty.
This product has been designed to be installed into a plaster board, or exisng masonry chimney breast. Please note that
any corner style models are not suitable to be installed into an exisng chimney breast. Please seek advice from a
professional, with reference to the structural integrity of the installaon site.
If the product is to be installed into an open chimney or ue, it is important that the chimney/ue is blocked o to prevent
any up/down dras and falling debris which could restrict and alter the airow to the product.
It is also important to ensure that the product has a minimum internal clearance directly above and below the product of
4" (100MM), this is to ensure that the product can circulate the required airow for the heater unit.
The product should never be sealed into an opening with the use of silicones or adhesives as this can also alter the airow
and hinder any further servicing of the product.
Installing Product:
Each product is supplied complete with one or more wall mounng brackets. (Dependent on Model) Establish the desired
nished height from oor level to the boom of the plaster kit of the product.
Fix the wall bracket to the wall ensuring to use the correct hardware xings given the wall construcon, Plaster board
or Solid Wall.
Li and hook the product onto the wall bracket and secure using the wall brace brackets.
Once the product is secured to the wall and connected to the power supply, the false construcon such as plaster
board wall or chimney breast can be formed around it.
It is important to allow for the nished face board when seng the depth of the frame construcon.
It is essenal to include header/Lintel at the required height to ensure the appliance does not support the weight
of the nished wall.
Prepare the Cut-Out in the Plasterboard or Finishing Board and install ensuring that the plaster kit edges are ng to
the inside of the Cut-out of the board.
PLEASE NOTE: Once the product has been ed into place, please ensure the re is plugged in and tested to check the fan
and ribbons are aligned correctly, and the ribbons are moving freely. It may take up to 20 mins of usage for user to see
proper alignment.

7
3-SIDED INSTALLATION GUIDE
Model
Tyrell 33 1/8"
842mm
12 3/16"
310mm
39"
990mm
Kiruna 41 1/8"
1045mm
12 3/16"
310mm
29 3/4"
756mm
Linnea 60 3/4"
1543mm
12 3/16"
310mm
29 3/4"
757mm
The above table contains the minimum
opening sizes required to house a corner
model. This includes the recommended
4"(100mm) aperture above and below, 1
9/16"(40mm) to the width and 3/8"(10mm)
to the depth to allow ample space for the
re to t. Please follow the D & H
measurement above and ensure that the W
is no greater than the chimney breast or
opening that the product is to be installed
into.
Model
Tyrell 31 9/16"
802mm
11 13/16"
300mm
23 1/4"
590mm
Kiruna 39 1/2"
1003mm
11 13/16"
300mm
14 1/16"
357mm
Linnea 59 1/4"
1503mm
11 13/16"
300mm
14"
355mm
The above table shows the nished sizes
once the re has been installed.
Please note: Measurements do not include plaster kits.
Please refer to spec drawings for full measurements.

8
2-SIDED INSTALLATION GUIDE
Model
Tyrell 33 1/8"
842mm
12 3/16"
310mm
39"
990mm
Kiruna 41 1/8"
1045mm
12 3/16"
310mm
29 3/4"
756mm
Linnea 60 3/4"
1543mm
12 3/16"
310mm
29 3/4"
757mm
The above table contains the minimum
opening sizes required to house a corner
model. This includes the recommended
4"(100mm) aperture above and below, 1
9/16"(40mm) to the width and 3/8"(10mm)
to the depth to allow ample space for the
re to t. Please follow the D & H
measurement above and ensure that the W
is no greater than the chimney breast or
opening that the product is to be installed
into.
Model
Tyrell 31 9/16"
802mm
11 13/16"
300mm
23 1/4"
590mm
Kiruna 39 1/2"
1003mm
11 13/16"
300mm
14 1/16"
357mm
Linnea 59 1/4"
1503mm
11 13/16"
300mm
14"
355mm
The above table shows the nished sizes
once the re has been installed.
Please note: Measurements do not include plaster kits.
Please refer to spec drawings for full measurements.

9
1-SIDED INSTALLATION GUIDE
Model
Tyrell 33 1/8"
842mm
12 3/16"
310mm
39"
990mm
Kiruna 41 1/8"
1045mm
12 3/16"
310mm
29 3/4"
756mm
Linnea 60 3/4"
1543mm
12 3/16"
310mm
29 3/4"
757mm
The above table contains the minimum
opening sizes required to house a corner
model. This includes the recommended
4"(100mm) aperture above and below, 1
9/16"(40mm) to the width and 3/8"(10mm)
to the depth to allow ample space for the
re to t. Please follow the D & H
measurement above and ensure that the W
is no greater than the chimney breast or
opening that the product is to be installed
into.
Model
Tyrell 31 9/16"
802mm
N/A 23 1/4"
590mm
Kiruna 39 1/2"
1003mm
N/A 14 1/16"
357mm
Linnea 59 1/4"
1503mm
N/A 14"
355mm
The above table shows the nished sizes once the re
has been installed.
Please note: The depth of a 1-sided installaon is
shown as N/A as only the front face of the re is
showing once installaon is complete.
Please note: Measurements do not include plaster kits.
Please refer to spec drawings for full measurements.

10
Glass Removal:
1. Remove the two screws located in the
boom glass retaining bar.
2. Remove the boom glass retaining bar.

11
4. Place the log set as stated and replace the glass by reversing
steps 3 to 1.
3. Remove the glass by pulling the panel away from the body of the re. Ensure
that the glass is always supported. A sucon cup has been provided to aid with this step.
Please note: The sucon cup is provided for support only, not to hold the full
weight of the glass.
Please note: It is recommended that this step is carried out by 2 persons to reduce the
risk of injury.

12
Side Conversion Panels:
To complete this step, you must rst remove front glass
and side glass.
ITEM. DESCRIPTION. QTY.
1. SIDE GLASS 2
2. FRONT GLASS 1
3. PLASTER KIT (3 OF LEFT SIDE, 3 OF RIGHT SIDE) 6
4. MAIN HOUSING 1
5. FRONT GLASS BOTTOM SUPPORT 1
6. FRONT GLASS BOTTOM RETAINER 1
7. FRONT GLASS BOTTOM RETAINER SCREWS 2
8. FUEL BED 1
9. SIDE GLASS TOP RETAINER (INTERNAL) 2
10. SIDE GLASS TOP RETAINER (INTERNAL) SCREWS 4
11. PLASTER KIT SCREWS 16
12. IN-FILL SIDE PIECE SCREWS 16
13. IN-FILL RIGHT SIDE 1
14. IN-FILL LEFT SIDE 1

13
STEP 1 - REMOVAL OF FRONT GLASS (ITEM 2)
REMOVE THE 2 SCREWS (ITEM 7) THAT SECURE THE FRONT GLASS BOTTOM RETAINER (ITEM
6) TO THE FUEL BED (ITEM 8).
LIFT OFF THE FRONT GLASS RETAINER (ITEM 6) AND USING THE SUCTION CUP SUPPLIED (NOT
SHOWN) CAEFULLY REMOVE THE FRONT GLASS (ITEM 2).
STEP 2 - REMOVAL OF SIDE GLASS (ITEM 1)
REMOVE THE 2 SIDE GLASS TOP RETAINER BRACKETS (ITEM 9) BY TAKING OUT THE 4
SCREWS (ITEM 10), 2 ON EACH BRACKET.
CAREFULLY TILT THE SIDE GLASS INWARDS AT THE TOP AND LIFT IT AWAY FROM UNIT.

14
STEP 3 – REMOVAL OF PLASTER KIT (ITEM 3)
1. REMOVE THE PLASTER KIT SCREWS (ITEM
11) USING A PHILLIPS SCREWDRIVER (NOT
SUPPLIED). NOTE: ENSURE TO KEEP
SCREWS FOR FUTURE REFERENCE.
2. REMOVE THE PLASTER KIT (ITEM 3) FROM
BOTH SIDES OF THE UNIT

15
REMOVE IN-FILL SIDE SCREWS (ITEM 12)
PLACE THE IN-FILL SIDES OVER THE EXISTING SIDE PIECES
USING THE IN-FILL SIDE SCREWS (ITEM 12) TOGETHER WITH THE PLASTER KIT
SCREWS (ITEM 11) THAT WERE REMOVED IN THE PREVIOUS STEP SECURE THE
LEFT AND RIGHT IN-FILL SIDES (ITEM 13 & ITEM 14) TO THE UNIT.
STEP 4—FITTING IN-FILL SIDES (ITEM 13 & 14)

16
The Appliance is operated using the E-smart App Control.
The App Control can be used on either OS or Android operang systems.
To obtain the App please visit either the OS App Store Or Google Play and follow the on screen instrucons.
E-Smart & App Interface:
Screen shot taken from Apple App Store.Home Screen shot taken from e-smart
App

17
Log set guidance:
MODEL LOG LAYOUT/QUANTITY
Tyrell E800 split log set X 1 (5 logs)
Kiruna E1030 split log set X 1 (7 logs)
Linnea E1500 split log set X 1 (8 logs)
E800 Split log set X 1
E1030 Split log set X 1
E1500 Split log set X 1
AE
B
CD
A
BC
DEFG
AB
CDEF
GH

18
Product Operaon:
The appliance is operated by the e-smart App, the main standby power
switch to the Halo product is located to the right of the heater outlet,
which is marked with a light bulb image, to acvate the product, this
switch must be switch to the “ON” posion.
The rst me the halo product is acvated both the illuminaon and
heater will funcon, to switch the heater “OFF” simply reduce the Room
Temperature down to 10 degrees on the App control.
•isolate from the mains power supply.
•Leave product to cool.
•Aer a suitable cooling down period, remove the obstrucon if obstructed,
and check installaon.
•Aer 10 minutes the thermo switch (cut-out) in the heater will reset.
Please note that both the eect fan and heater fan omit a low decibel noise,
both of which are normal operang characteriscs.
Heater unit cut-out) (This is a safety feature, to safe guard against further
damage to the product).
If the airow is restricted the heater will automacally turn o. This is can
occur due to incorrect installaon or obstrucon.
To reset the heater funcon:

19
Tyrell Specicaon: 3-Sided
MODEL HEIGHT WIDTH DEPTH
TYRELL 31 1/8"
790mm
31 9/16"
802mm
11 13/16"
300mm
FIRE MEDIA QUANTITY
Glass—Amber & Clear X2 EACH
Vermiculite X3
BOXED WEIGHT UNBOXED WEIGHT
50KG (110 lbs) 39.55KG (87 lbs)

20
Kiruna Specicaon: 3-Sided
MODEL HEIGHT WIDTH DEPTH
KIRUNA 21 7/8"
556mm
39 9/16"
1005mm
11 13/16"
300mm
FIRE MEDIA QUANTITY
Glass—Amber & Clear X3 EACH
Vermiculite X4
BOXED WEIGHT UNBOXED WEIGHT
46KG (101 lbs) 35.55KG (78 lbs)
