European Home VBM-NG-02 User manual

1
GAS STONES WITH FUSION BASKET
Installation, Operation and Owner’s Manual
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance. Installation and service
must be performed by a qualied installer,
service agency or the gas supplier.
Report #284-L-02c-5
Feb. 2016

2
TABLE OF CONTENTS
Important Safety Information 4
Specications and Dimensions 6
Before You Begin 9
Fireplace Requirements 10
Installing the Burner 12
Gas Supply 12
Stone Conguration 14
Operating Instructions 17
Maintenance 19
Troubleshooting 20
Parts List 22
Warranty 23

3
IMPORTANT SAFETY INFORMATION
1. This appliance must be installed only in a solid-fuel burning replace with a working ue and
constructed of noncombustible material.
2. A replace screen must in place when the appliance is operating and must provide for the ow
of combustion air.
3. The installation and the provision for combustion and ventilation air must conform with lo-
cal codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 or the
Canadian Installation Code, CAN/CGA B149.1.
4. The appliance and its appliance main gas valve must be disconnected from the gas supply pip-
ing system during any pressure testing of that system at test pressures in excess of ½ psi (3.5
kPa).
5. The appliance must be isolated from the gas supply piping system by closing its equipment
shuto valve during any pressure testing of the gas supply system at test pressures equal to or
less than ½ psi (3.5 kPa).
6. The appliance area must be kept clear and free from combustible materials, gasoline and other
ammable vapors and liquids.
7. Do not use this appliance if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
8. Solid fuels shall not be burned in a replace where a decorative appliance is installed.
9. This appliance is equipped for use with natural gas or propane and cannot be converted to the
other fuel.
10. This appliance has been certied by OMNI-Test Laboratories, Inc. to ANSI Z21.60a-2003• CSA
2.26a-2003 Decorative Appliances for Installation in Solid-Fuel Burning Fireplaces and CAN1-
2.17-M91,Gas-Fired Appliances for Use At High Altitudes.
11. This appliance is approved for installation in the Commonwealth of Massachusetts. The Board
of State Examiners of Plumbers and Gas Fitters has issued approval number G3-1209-252 for
this appliance.
12. This appliance is approved for installation in New York City. The Department of Buildings has
issued MEA number 25-06-E for this appliance.

4
AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette
notice pour réduire au minimum le risque d’incindie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inammables dans le
voisinage de cet appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir des téléphones se trouvant dans le
bâtiment où vous trouvez.
• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivezles instructions
du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incindie.
L’installation et l’entretien doivent être assurés par un installateur ou un service d’entretien
qualié ou par le fournisseur de gaz.
AVERTISSEMENT: Risque de dommages ou de blessures si les pièces ne sont pas installées confor-
mément à ces schémas et ou si des pièces autres que celles spéciquement approuvées avec cet
appareil sont utilsées.
Les dêgagements sont conformes aux codes d’installation locaux et aux exigences du fournisseur
de gaz.
NE PAS UTILISER AVEC DES PORTES EN VERRE.
Ne pas se servir de cet appareil s’il a été plongé,dans l’eau, même partiellement. Faire inspecter
l’appareil par un technicien qualié et remplacer toute partie du système de commande et toute
commande qui ont été plongée dans l’eau.

5
EUROPEAN HOME
11-0047
Vision Gas Burner Module, Model VBM-NG-02
These burner modules are certified by OMNI-Test Laboratories to “ANSI Z21.50b-2005, CSA 2.22b-2005 and CGA 2.17-M91 Vented
Gas Fireplaces” when installed in the Vision Gas Fireplace (Report #284-F-01-5) and “ANSI Z21.60b-2004, CSA 2.28b-2004 and
CGA 2.17-M91 Decorative Gas Appliances for Installation in Solid Fuel Burning Fireplaces” when installed in the Gas Stones
with Fusion Basket (Report #284-L-02c-5).
Ces modules de brûleur sont certifiés par les laboratoires OMNI-Test (OMNI-Test Laboratories) conformes aux normes “ANSI
Z21.50b-2005, CSA 2.22b-2005 et CGA 2.17-M91 pour les foyers à gaz ventilés” lorsqu’ils sont installés dans le foyer à gaz Vision
(Rapport #284-F-01-5) et conformes aux normes “ANSI Z21.60b-2004, CSA 2.28b-2004 et CGA 2.17-M91 pour les appareil à gaz
décoratifs pour une installation dans les foyers alimentés au combustible solide” lorsqu’ils sont installés dans le foyer Gas
Stones with Fusion Basket (Rapport #284-L-02c-5).
This appliance equipped only for altitudes 0-2000 feet (0-610m) in the USA and 0-4500 feet (0-1370m) in Canada without change.
Cet appareil n’est équipé que pour les altitudes de 0 à 610 m (0 à 2000 pi) aux États-Unis et 0 à 1370 m (0 à 4500 pi) au Canada
sans modification.
This appliance must be installed in accordance with local codes, if any; if none, follow the ANSI Z223.1, or CSA-B149.1. Installer
l'appareil selon les codes ou réglements locaux; ou, en l'absence de tels réglements, selon les codes d'installation ANSI Z223.1
ou CSA-B149.1 en vigueur.
WARNING:Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner's
information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or
the gas supplier.
AVERTISSEMENT: Une installation, un réglage, une modification, une réparation ou un entretien mal effectué puet causer des dommages
matériels ou des blessures. Voir la notice de l'utilisateur qui accompagne l'appareil. Pour de l'aide ou des renseignements supplémentaires,
consultez un installateur, un technicien agréé ou les fournisseur de gaz.
Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.
S'assurer que le brûleur et le compartiment des commande sont propres. Voir les instructions d'installation et d'utilisation qui accompagnent
l'appareil. IGN
Vision Gas Fireplace
Report #284-F-01-5
Gas Stones with Fusion Basket
Report #284-L-02c-5
Manufactured by
European Home
376 Washington Street
Malden, MA 02148
tel: [phone]
ATTENTION: L'appareil est chaud lorsqu'il founctionne. Ne
pas toucher l'appareil. Risque de brûlures graves surveiller les enfants. Garder
les vêtements, les meubles, l'essence ou autres liquides produisant des
vapeur inflammables loin de l'appareil.
CAUTION: Hot while in operation. Do not touch. Severe burns
may result. Keep children, clothing, furniture, gasoline and other liquids
having flammable vapors away.
This appliance is equipped for: Natural Gas/Gaz Naturel Propane Cet appareil est équipé pour:
Input Rating Btu/hr 42,000 43,500 Debit Calorifique
Min. Input (Btu/hr) 27,000 27,000 Puissance Minimum
Orifice (DMS) 6 Port #55 #48 L'injecteur
Manifold Press. 4.0"/1.0kPa 10"/2.5kPa Press. a la Tubulure
Min. Supply Press. 4.0"/1.0kPa 11"/2.7kPa Press. D'Arrivée Min.
Max. Supply Press. 7.0"/1.7kPa 13"/3.2kPa Press. D'Arrivée Max.
S/N
Vision Gas Burner Module, Model VBM-LP-02
Gas Stones with Fusion Basket Listing Label

6
SPECIFICATIONS and DIMENSIONS
Natural Gas Propane (LP)
Manifold Pressure: 4.0” (1.0 kPa) 10.0” ( 2.5 kPa)
Maximum Supply Pressure: 7.0” (1.7 kPa) 13.0” (3.2 kPa)
Minimum Supply Pressure: 4.0” (1.0 kPa) 11.0” (2.7 kPa)
Orice Size: 6 Port #55 DMS #48 DMS
Canadian Eciency P.4: 32% 39%
High Fire Input: 42,000 BTU/hr. 43,500 BTU/hr.
Low Fire Input: 27,000 BTU/hr. 27,000 BTU/hr.
Gas Stones with 24” Fusion Basket
Gas Stones with 30” Fusion Basket

7

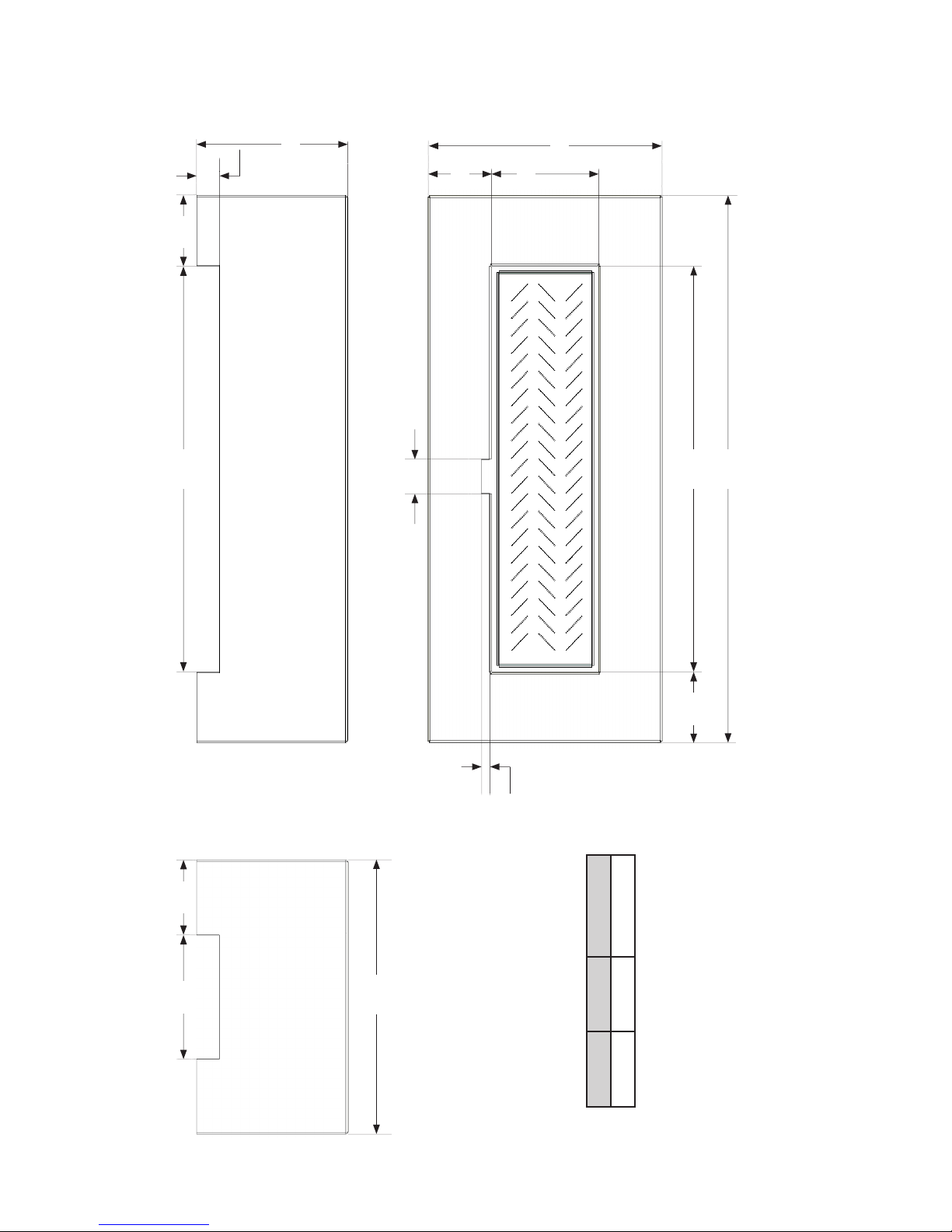

SPECIFICATIONS and DIMENSIONS
A
12.00
17.84
0.62
5.38
1.54
6.70
17.84
3.08
1.00
12.00
5.38
3.31
3.08
3.31
Dimension
A 24” 30”

8
0.75 0.75
3.00
22.50
Room
Rear of
Fireplace
SPECIFICATIONS and DIMENSIONS

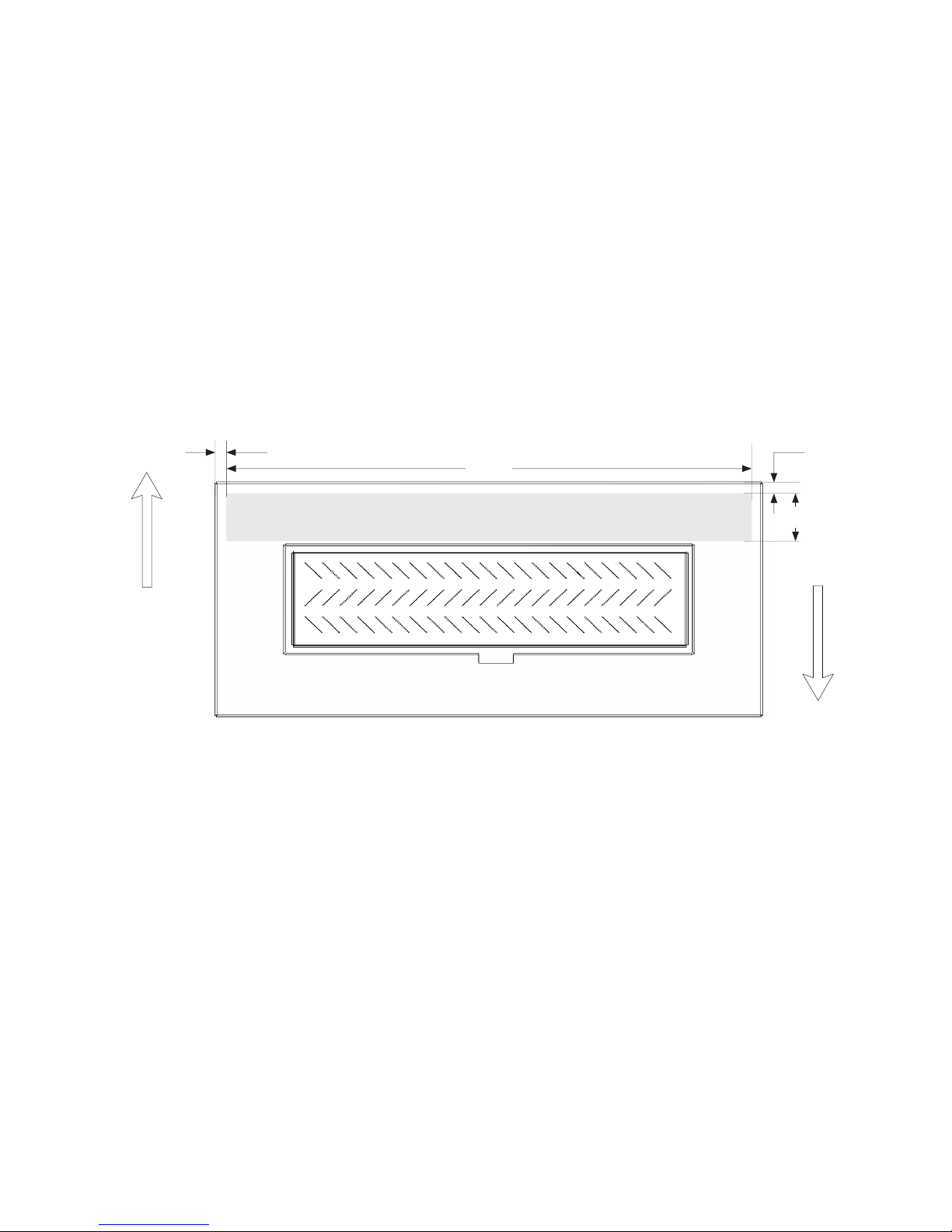

Premise gas supply should terminate within shaded area, shown on plan view, above.

9
BEFORE YOU BEGIN
Before starting the installation of your Gas Stones with Fusion Basket be sure to have the following
tools and supplies:
• Adjustable wrench
• Phillips and straight-blade screwdrivers
• Tape measure and framing square
• Safety glasses and gloves
• Manometer
• Leak detection uid (non-corrosive) or gas detector
Reset the Gas Stones with Fusion Basket before the rst re.
See Resetting the System under OPERATING INSTRUCTIONS for details.
NOTE!

10
FIREPLACE REQUIREMENTS
Your Gas Stones with Fusion Basket must
sit fully inside your replace so that it
properly drafts up the chimney ue.

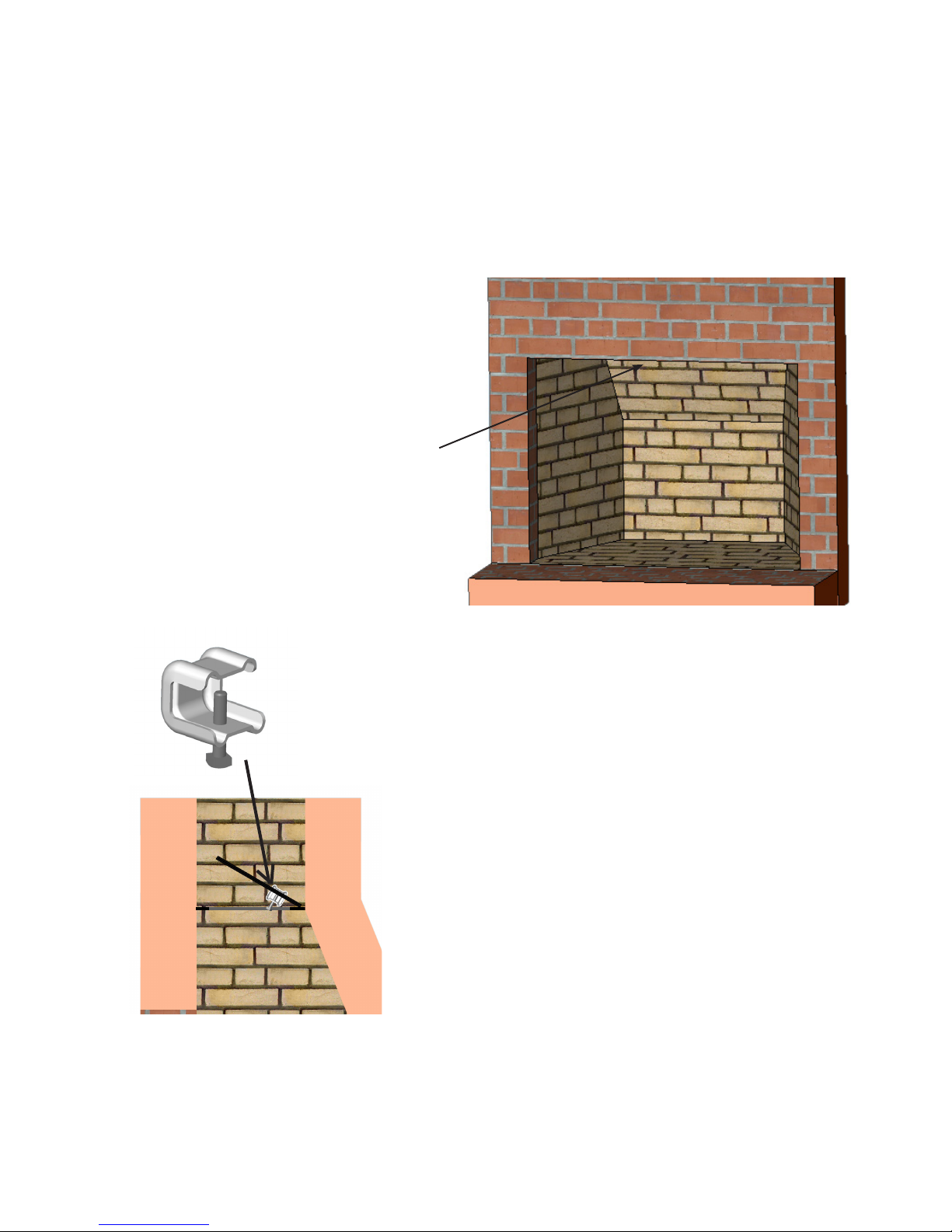

Be certain that the burner of your Gas
Stones with Fusion Basket is behind the
replace lintel. See Figure 1.
A minimum free opening of 50 square inches must
be provided by the chimney or damper to vent the
ue gases. The chimney damper must be xed with
the clamp provided to maintain the minimum free
opening. See Figure 2.
Note: The Commonwealth of Massachusetts
requires that the damper be removed or welded
in the fully open position.
Clamp
Figure 2
Figure 1
Lintel

11
8.0”
10.0”
MANTEL CLEARANCES
12.0”
5.0”
Existing replace
opening
Top of existing
replace opening
Combustible mantels may be no closer to the replace opening than the distances shown in the
Figure 2a side view, above.
Figure 2a

12
Place the burner module in the center of the replace and connect the gas supply to the exible
gas supply connector provided with the burner. The gas supply line must terminate with a male
½” NPT pipe thread in the rear of the replace. The gas supply piping should have a separate gas
shuto valve and a ⁄” NPT plugged tapping up stream of the valve. The Gas Stones with Fusion
Basket and its main control valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa). The Gas Stones
with Fusion Basket must be isolated from the gas supply piping system by closing the main control
valve during any pressure testing of the gas supply system at test pressures equal to or less than ½
psi (3.5 kPa).
GAS SUPPLY
INSTALLING THE BURNER
Warning: This product
must be installed by a
licensed plumber or gas
tter when installed within
the Commonwealth of
Massachusetts.
Figure 4
Figure 3b
Yellow-tipped
Wire (SW)
Red-tipped
Wire (TC)
RESET
button
Place 4 AA batteries in the battery case and con-
nect the battery case to the receiver as shown in
Figure 3a.
Ensure that the wiring is connected as shown in
Figure 3b.
Figure 3a
RESET
button

13
Place the Fusion Basket over the burner
so the burner is centered in the opening
in the Fusion Basket as in Figure 6.
After the gas supply has been connected, open the main supply and apply a soapy water solution
to all the ttings to check for gas leaks. Never use a ame to test for leaks. If you are installing a
propane burner, check that the air shutter (see Figure 5) is in the open position. Replace the burner
in the burner module. Ensure that the burner inlet tube is in the shutter box.
Air shutter shown in the
open position
(for propane only)
Figure 5
Figure 6

14
STONE CONFIGURATION
The Gas Stones with Fusion Basket can be operated with, or without, the decorative stones and/or
embers. The following is the recommended conguration. Slight dierences in the placements are
acceptable.

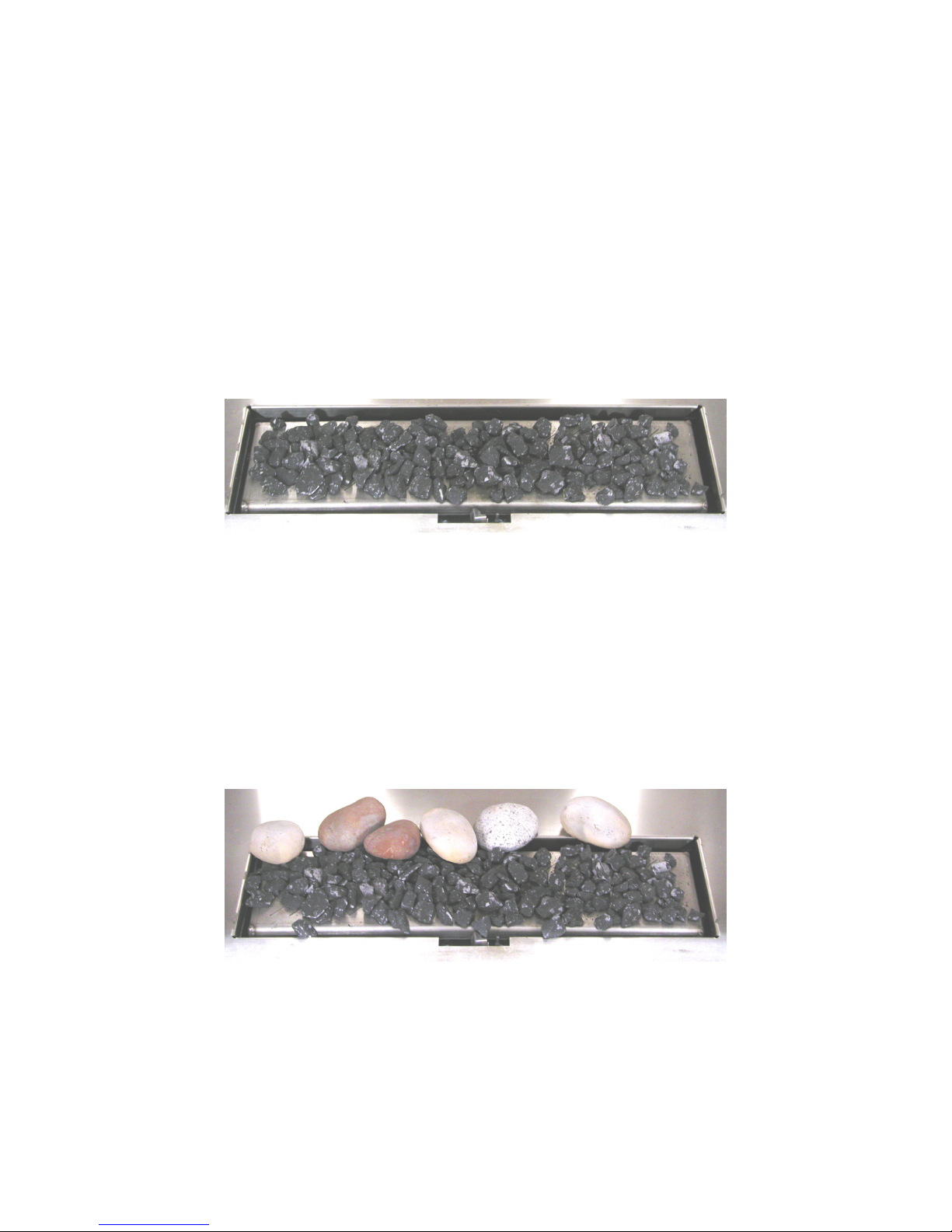

When using the stones and embers, begin by placing one layer of the embers evenly over the
entire burner top as shown in Figure 7.

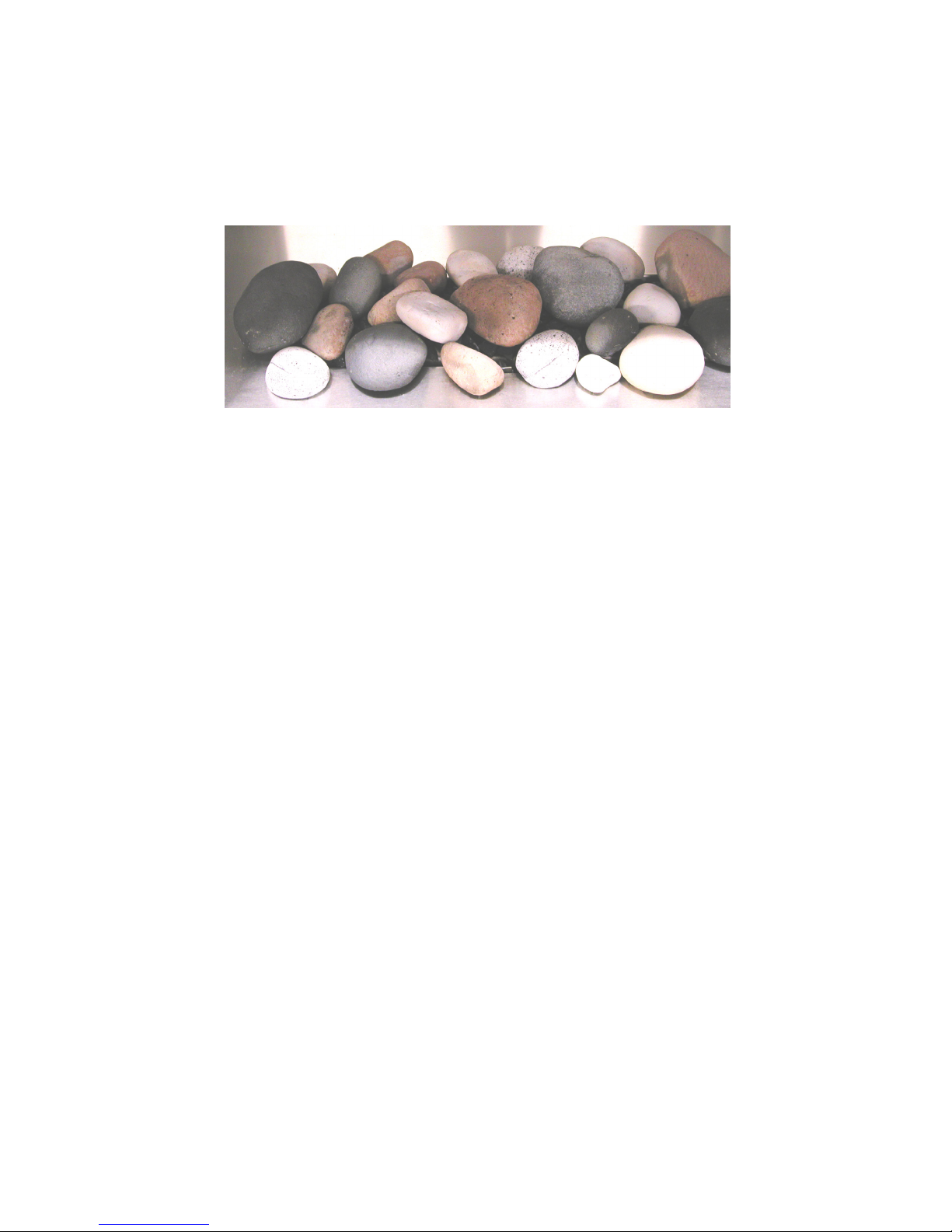

Sort your stones, by size, into sixteen small, three medium and four large. Place a row of six small
stones along the rear edge of the burner as shown in Figure 8.
Figure 7
SSSSSS
Figure 8

15
Next, place two large stones and three small stones on the burner as shown in Figure 9. Then place
two medium and four small stones along the front edge of the burner as shown in Figure 10.
Figure 9
SS
S
SSS
S
S
S
L
L
Figure 10
L
L
S
S
S
S
S
S
SS
S
S
S
S
MM
S

16
Finally, place the remaining two large, one medium and three small stones on top as shown in
Figure 11.
Figure 11
S
M
L
S
S
L
L
L
M
M
S
S
SSS
S
SSS
S
S
S
S

17
FOR YOUR SAFETY READ BEFORE LIGHTING!
A. This appliance is equipped with an ignition device which automatically lights the pilot. Do not
try to light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions
• If you cannot reach your gas supplier, call the re department.
C. Do not use this appliance if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and to replace any part of the control system and any gas con-
trol which has been under water.
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
OPERATING INSTRUCTIONS
The Gas Stones with Fusion Basket has two safety features which aect the operation:
1) two-button child safety ignition
2) 45 second safety timer
The safety ignition requires that two buttons be depressed to begin the ignition sequence and
the timer requires that 45 seconds elapse between start attempts.

18
1. STOP! Read the safety information above.
2. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot
by hand.
3. Push the OFF button on the remote control to insure the
appliance is o.
4. Wait ve (5) minutes to clear out any gas. Then smell for
gas including near the oor. If you smell gas, STOP! Follow
“B” in the safety information above. If you don’t smell gas,
go to the next step.
5. Press the OFF and LARGE FLAME (Ç) buttons
simultaneously. Release the buttons once you hear a
beeping noise. This acoustic signal tells you that the start
sequence has begun. Further short signals will continue
until main gas ows and the burner is lit. If the pilot or
burner does not light, go back to Step 3, above.
6. Use the LARGE FLAME (Ç) and SMALL FLAME (È)
buttons to adjust the ame height.
LIGHTING THE FIRE
OFF
LARGE
FLAME
SMALL
FLAME
SET
RESETTING THE SYSTEM
This procedure resets the system as well as‘pairs’ the remote and the receiver. It is only needed to be
performed once but can be done as often as necessary. To reset the system:
1. press and hold the receiver reset button until you hear the second of two beeps then
2. release the reset button and, within twenty seconds,
3. press the SMALL FLAME button on the remote until you hear two conrming beeps
The receiver and remote are now each reset and ready for normal operation.
TO TURN OFF THE HEATER
7. Push the OFF button on the remote control to turn the appliance o.
RESET BUTTON

19
Note: The system shuts o the appliance completely if there is no change in the ame height for 5
days.
Igniting the Appliance.
Ensure the ON/OFF switch is in the ON position.
On the remote control, simultaneously press and hold the OFF andÇbuttons.
An acoustic signal indicates that the start sequence has begun.
The electronic system then checks that the main gas is owing and ignites the main burner; this may
take up to 20 seconds.
NOTE: During start-up, the MANUAL knob on the gas valve cannot be in the MAN position.
Manual Flame Height Adjustment.
You are now able to use the remote control. To increase the ame, the LARGE FLAME (Ç)button
should be depressed. Pressing the SMALL FLAME (È) button on the handset will reduce the ame.
The main ame may be lowered all the way down until it is o, leaving only the pilot ignited.
Fully Extinguishing the Appliance
From any heat setting, press the OFF button for a few seconds. This will cause the burner to fully
extinguish.
The system has a safety interlock which will not allow the ignition until the interlock rests. This may
take a few minutes.
The appliance should be shut o completely using the OFF button on the handset and not left on
pilot only, except for temporary use. This resets the system and all safety features.
Automatic Turndown.
1. The valve will turn to pilot ame if there is no change in ame height for a six hour period.
Automatic Shut O.
1. With low battery power in the receiver, the system shuts o the re completely. This does not hap-
pen if the power supply is interrupted.
2. The system shuts o the re completely if there is no change in ame height for 5 days.
3. The system shuts o the re if the main burner does not completely ignite approximately 20 sec-
onds after ignition or after pushing the LARGE FLAME (Ç) button.

20
MAINTENANCE
A qualied service agency should conduct an annual inspection and maintenance of your Gas
Stones with Fusion Basket, the replace, chimney, and the installation to keep it running safely.
The following procedures should be performed only by a qualied service person. The gas supply
should be turned o whenever a maintenance procedure is performed. All parts of the replace
that are removed for servicing must be replaced prior to operation.
Cleaning the Stones and Burner.
With all parts of the replace at room temperature, carefully remove and clean the stones with a
soft bristled brush. Never use a vacuum cleaner to clean the stones. Clean the burner surface with
a brush. Replace the components according to the instructions starting on page 11 of this manual.
Inspecting the Chimney
An inspection of the chimney should be made as part of the annual service appointment. The
chimney must have no blockage and be in good repair.
Replacing the Batteries
With all parts of the replace at room temperature, remove the stones and embers. Remove the
Fusion Basket from the replace. Find the battery compartment door on top of the receiver and
slide it open. Remove the four batteries and, minding the correct polarity, replace them with fresh
AA batteries. Close the battery compartment cover and re-set the Fusion Basket, embers and
stones according to the previous instructions.
Battery
Compartment RESET button
RESET
