EUROPRO AC-50-G User manual

USER MANUAL
EUROPRO AC-50-G
Ref. 70141
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition of 06/07/2017

User manual - AC-50-G spray-gun 201707-231-ENGP2

201707-231-ENG User manual - AC-50-G spray-gun P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
4. YOUR SPRAY-GUN ........................................................p. 7
4.1. Description ..............................................................p. 7
4.2. Technical characteristics ..................................................p. 7
4.3. Identication of the components ...........................................p. 8
5. USE OF THE SPRAY-GUN .................................................p. 9
5.1. Prerequisites.............................................................p. 9
5.2. Starting up ...............................................................p. 9
5.3. Maintenance .............................................................p. 9
5.4. Failures and remedies ....................................................p. 9
8. DECLARATION OF CONFORMITY .........................................p.11
9. WARRANTY...............................................................p.13
9.1. Warranty conditions ......................................................p.13
9.2. Warranty certicate .......................................................p.15

User manual - AC-50-G spray-gun 201707-231-ENGP4
1. INTRODUCTION
You just acquired a EUROPRO AC-50-G spray-gun and all the team of Europe Projection thanks you
for the condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201707-231-ENG User manual - AC-50-G spray-gun P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your spray-gun. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your spray-gun.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the spray-gun, within reach of the user and held in good condition until
the nal destruction of the spray-gun.
In case of loss or deterioration of the manual, you can ask the spray-gun manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the spray-gun :
- people in charge of the transport of the spray-gun
- people in charge of the use of the spray-gun
- people in charge of the cleaning and maintenance of the spray-gun
- people in charge of the nal destruction of the spray-gun

User manual - AC-50-G spray-gun 201707-231-ENGP6
3. WARNING
Using the spray-gun in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your spray-gun.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Never direct an air jet or product jet on a person or an animal.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of needed After-Sale Service, always specify the equipment model and its serial
number.
• For any replacement of parts, only use genuine parts.
• Do not modify the spray-gun
• For the pneumatic circuit, only use recommaned parts which handle a pressure greater
than or equal to 10 bar.
• Always use the spray-gun in a ventilated area, ideally in a special cabin.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not use the equipment close to a ame or a source of ignition.
• Take away every not qualied person from the working area of the equipment, as well as children
and animals.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

201707-231-ENG User manual - AC-50-G spray-gun P7
4. YOUR SPRAY-GUN
4.1. DESCRIPTION
Spray-gun for all types of slurry products with air cut-off trigger.
AC-50-G is equipped with a 5L nylon upper bowl, a product ow-rate adjustment and an air pressure
adjustment.
4.2. TECHNICAL CHARACTERISTICS
Nylon upper bowl 5 L
Precision parts stainless steel
Product ow-rate adjustment yes
Air pressure adjustment yes
Air consumption at 4 bars 200 L/min
Operating pressure 2 to 5 bar
Weight 1 kg
Delivered with 2 nozzles Ø 6 & 8

User manual - AC-50-G spray-gun 201707-231-ENGP8
4. YOUR SPRAY-GUN (continued)

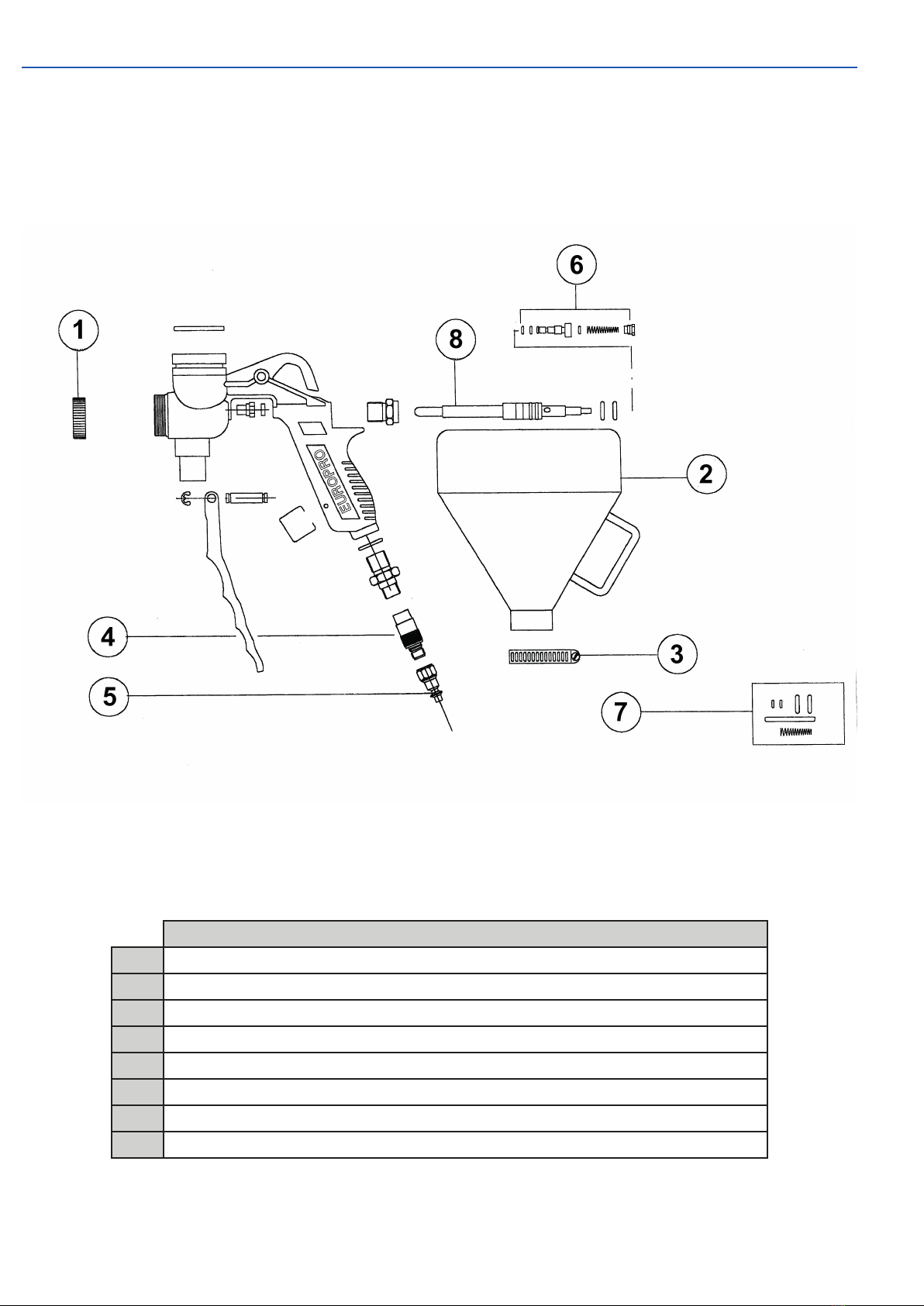

4.3. IDENTIFICATION OF THE COMPONENTS OF THE SPRAY-GUN
Description
1Nozzle ring
25 litres bowl
338 x 50 x 9 collar
4Air adjustment tap 1/4"M x 1/4"M
51/4" Ø6 male quick-connector
6Product ow-rate adjustment thumbwheel
7Seals kit
8Needle
The complete list of the machine components is available on our website
www.euromair.com

201707-231-ENG User manual - AC-50-G spray-gun P9
5. USE OF THE SPRAY-GUN
5.1. PREREQUISITES
• The AC-50-G spray-gun needs 3,5 bars of air per minute for good functionning (18 m3/h, compressor
of around 2,5 HP)
• If your compressor does not have such power, you can compensate with an air reserve.
• For good functionning, the spray-gun has to be clean and well greased.
5.2. STARTING UP
1. Connect the spray-gun to the air circuit with help of a pneumatic hose equipped with a female
connector (passage of 6), which will connect to the quick-connector (5).
2. Set the air pressure to 5 bar on the regulator of your air circuit.
3. Prepare the product to be sprayed following the instructions of the manufacturer.
4. Pour the product in the bowl (2).
5. Before you spray on the surface to be treated, make experiments to adjust the product ow-rate:
- adjust the product ow-rate with the thumbwheel (6). Screw to reduce the ow-rate, unscrew
to inscrease it.
- to rene the spraying, use the tap (4).
6. If the spraying is not correct, redo the operation and revise the product preparation.
5.3. MAINTENANCE
After every use, it is imperative to:
• dismantle the bowl of the spray-gun and to clean it
• dismantle, clean and grease the nozzle ring (1), the thread of the thumbwheel (6) and the needle (8).
Never plunge the spray-gun in solvent, at the risk of spoiling the joints.
5.4. DEFECTS AND REMEDIES
• The spraying is not optimal • Verify the product dilution
• Verify the nozzle diameter
• The product does not come out uidly • Verify the nozzle gasket and replace if needed

User manual - AC-50-G spray-gun 201707-231-ENGP10

201707-231-ENG User manual - AC-50-G spray-gun P11
6. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Pneumatic spray-gun
Model : EUROPRO AC-50-G
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• ROHS 2011/65/UE
AND WITH THE STANDARD:
• NF EN 1953
ROUSSET, APRIL 20th 2016
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - AC-50-G spray-gun 201707-231-ENGP12

201707-231-ENG User manual - AC-50-G spray-gun P13
7. WARRANTY
7.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
• This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.

User manual - AC-50-G spray-gun 201707-231-ENGP14

201707-231-ENG User manual - AC-50-G spray-gun P15
7. WARRANTY (continued)
7.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : EUROPRO AC-50-G spray-gun
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B
