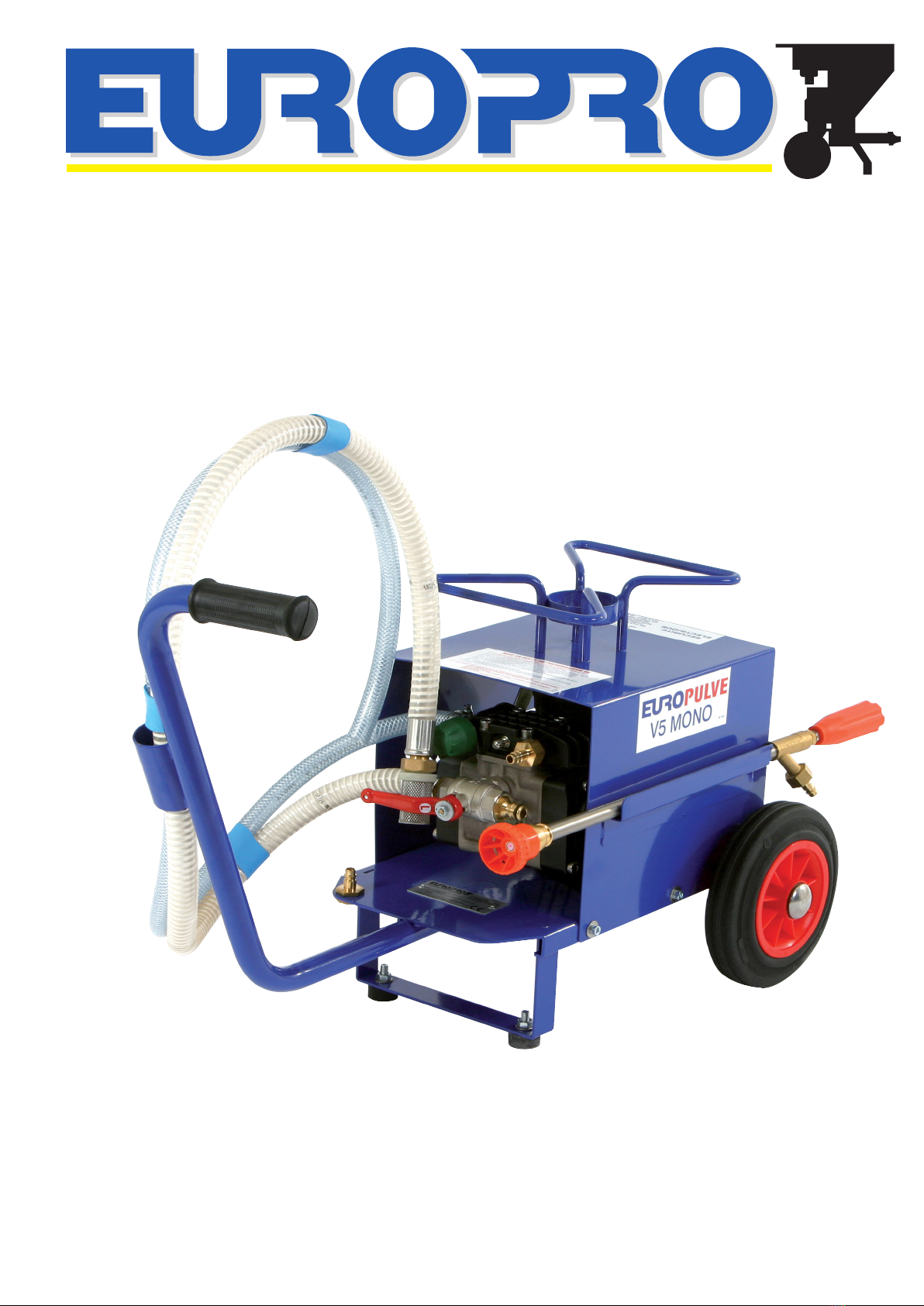

EUROPROPULVE V5
Ref. 91338
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition of 01/06/2016

User manual - EUROPROPULVE V5 201508-135A-ENGP2

201508-135A-ENG User manual - EUROPROPULVE V5 P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
3.1. Safety ...................................................................p. 6
3.2. Electric connection .......................................................p. 8
3.2. End-of-life of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 8
4. YOUR ATOMIZER .........................................................p. 9
4.1. Description ..............................................................p. 9
4.2. Technical characteristics ..................................................p. 9
4.3. Identication of the components of the atomizer .............................p.10
5. USE OF THE ATOMIZER ...................................................p.11
5.1. Prerequisites.............................................................p.11
5.2. Atomization of the product.................................................p.12
5.3. Injection of the product....................................................p.12
5.4. Cleaning of the atomization circuit .........................................p.12
5.5. Rinsing of the product.....................................................p.13
5.6. Draining of the atomization circuit ..........................................p.13
6. MAINTENANCE ...........................................................p.13
7. DECLARATION OF CONFORMITY .........................................p.15
8. WARRANTY...............................................................p.17
8.1. Warranty conditions ......................................................p.17
8.2. Warranty certicate .......................................................p.19

User manual - EUROPROPULVE V5 201508-135A-ENGP4
1. INTRODUCTION
You just acquired an EUROPROPULVE V5 atomizer and all the team of Europe Projection thanks you
for the condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201508-135A-ENG User manual - EUROPROPULVE V5 P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - EUROPROPULVE V5 201508-135A-ENGP6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.

201508-135A-ENG User manual - EUROPROPULVE V5 P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it
blocking up. The storage of a not greased pump can damage it seriously.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

User manual - EUROPROPULVE V5 201508-135A-ENGP8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline to [e-mail] or
04 42 29 08 96.

201508-135A-ENG User manual - EUROPROPULVE V5 P9
4. YOUR ATOMIZER
4.1. DESCRIPTION
EUROPROPULVE V5 is an electric atomizer designed for use with all types of products: anti-foaming
agents, de-moulding agents, water repellents, wallpaper remover, disinfectant, mounting products, etc.
It is equipped with a cast iron pump and 3 way valve.
The 3-way valve allows a water supply and product delivery to be connected simultaneously, and the
user can alternate between product atomization and rinsing without having to disconnect the hoses
during the work.
4.2. TECHNICAL CHARACTERISTICS
Pressure 15 bar
Flow-rate 10 L/min
Motor power 0,9 HP
Nominal voltage 230 V
Nominal current 5 A
Dimensions (L x w x h) 78 x 40 x 55 cm
Weight 26 kg
Delivered with
- 1 suction rod 1m
- 1 suction strainer
- 15 m hose
- 1 spray lance 60 cm round jet

User manual - EUROPROPULVE V5 201508-135A-ENGP10
4. YOUR ATOMIZER (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE ATOMIZER
1Motor 7Water inlet quick-connector
2Product suction rod 8Product hose connector
3Expulsion hose 93-way valve : closed position
4Lance handle 10 3-way valve : rinsing position
5Product hose 11 3-way valve : atomization position
6Pressure regulation valve
The complete list of the components of the machine is available on our website
www.euromair.com
1
2
4
5
9
10
7
8
11
6
3

201508-135A-ENG User manual - EUROPROPULVE V5 P11
5. USE OF THE ATOMIZER
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
• The connection to the water supply has to be on a source with a sufcient ow, with a hose of Ø19
minimum connected on the male quick-connector of the 3-way valve (7).
• The connection of the product hose has to be made on the connector (8).
• The temparature of the water used shall not be higher than +60°C.
Before each utilization of the aotmizer, verify the oil level of the pump, using the
gauge provided.
Do not use the atomizer neither in a closed room, nor in a space where the temperature
is under 0°C.
After every stop of the motor, it is important to vacuate the pressure remaining in the
hose. To do so, let the handle of the lance (4) open.

User manual - EUROPROPULVE V5 201508-135A-ENGP12
5. USE OF THE ATOMIZER (continued)
5.2. ATOMIZATION OF THE PRODUCT
1. Make sure that the 3-way valve is in colsed position (9).
2. Connect the product hose (5) on the connector (8) and the other extremity on the atomization lance.
3. Place the suction rod and the expulsion hose into the product to be atomized.
4. Put the interruptor on the ON position to start the motor.
5. Put the 3-way valve on "atomisation" position (11).
6. Point the lance down into an empty bucket, then open the handle (4).
7. Wait until the product ows regularly to the lance, then close the handle (4).
8. Point the lance in the direction of the surface to treat and unscrew the handle (4) to start the
atomization. The more the handle is unscrewed, the more the product jet will be large.
9. If needed, regulate the product pressure using the valve (6).
10.When the work is over, close the handle (4) and stop the motor.
5.3. INJECTION OF THE PRODUCT
1. Replace the lance by the rinsing spray-gun (réf. 11136) equipped with the nozzle (réf. 11138).
2. Make the same operations as for the previous procedure.
5.4. CLEANING OF THE ATOMIZATION CIRCUIT
1. Remove the suction rod from the product and put it in a clear water bucket (about 10 litres).
2. Put the expulsion hose into an empty bucket.
3. Put the 3-way vlave in "atomization" (11) and poitn the lance down into the empty bucket.
4. Open the handle of the lance (4) and the clear water bucket empty, as well as the lance.
5. Close the handle of the lance.

201508-135A-ENG User manual - EUROPROPULVE V5 P13
5. USE OF THE ATOMIZER (continued)
5.5. RINSING OF THE PRODUCT
For a quick and efcient rinsing of the product, use the rinsing spray-gun equipped with its nozzle (réf.
11136 and 11137).
1. Remove the atomization lance and connect the rinsing spray-gun in its place.
2. Connect the water supply hose on the connector (7).
3. Open the faucet of the water supply.
4. Put the handle of the 3-way valve onto "rinsing" position (10).
5. Point the spray-gun in the direction of the surface to rinse press the trigger to start rinsing.
5.6. DRAINING OF THE ATOMIZER CIRCUIT
1. Close the water supply faucet.
2. Disconnect the hose from the connector (8).
3. Put the 3-way valve on "atomization" position (11).
4. Press the trigger of the rinsing spray-gun until complete draining of the spray-gun and the expulsion
hose.
6. MAINTENANCE
• After every use of the atomizer, clean with water the external parts.
It is not recommended to use a high pressure washer at the risk to damage the
atomizer.
• For the cleaning of internal parts, make the pump work under pressure with clear water for 4 to
5 minutes. Remove the suction rod and let work for 15 to 20 seconds to evacuate all the water
remaining into the pump.
• After a prolonged stop of the atomizer, do the same operation as for the cleaning (see 5.4.) using a
diluted antilfreeze liquid.
• Change the oil of the pump after the rst 50 hours of work, then every 300 hours of work.
The atomizer has to be stopped during this operation.

User manual - EUROPROPULVE V5 201508-135A-ENGP14

201508-135A-ENG User manual - EUROPROPULVE V5 P15
7. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Electric atomizer
Model : EUROPROPULVE V5
COMPLIES WITH:
• the R.233-73 article of the Labour Code
THE DIRECTIVES:
• 2006/42/CE machines
• 2014/35/UE low-voltage
• CEM 2014/30/UE
• ROHS 2011/65/UE
AND THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
• NF EN 1829-1
• NF EN 1829-2
ROUSSET, APRIL 20th 2016
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - EUROPROPULVE V5 201508-135A-ENGP16

201508-135A-ENG User manual - EUROPROPULVE V5 P17
8. WARRANTY
8.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
• This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.

User manual - EUROPROPULVE V5 201508-135A-ENGP18

201508-135A-ENG User manual - EUROPROPULVE V5 P19
8. WARRANTY (continued)
8.2. WARRANTY CERTIFICATE
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : EUROPROPULVE V5 electric atomizer
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - EUROPROPULVE V5 201508-135A-ENGP20
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
