1. INTRODUCTION
You just acquired an EUROPRO AC-65-G spray-gun and all the team of Europe Projection thanks you
for the condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201605-162-ENG User manual - EUROPRO AC-65-G P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your spray-gun.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the spray-gun, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the spray-gun:
- people in charge of the transport of the spray-gun
- people in charge of the use of the spray-gun
- people in charge of the cleaning and maintenance of the spray-gun
- people in charge of the nal destruction of the spray-gun

User manual - EUROPRO AC-65-G 201605-162-ENGP6
3. WARNING
Using the spray-gun in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your spray-gun.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Never direct an air jet or product jet on a person or an animal.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of needed After-Sale Service, always specify the equipment model and its serial
number.
• For any replacement of parts, only use genuine parts.
• Do not modify the spray-gun
• For the pneumatic circuit, only use recommaned parts which handle a pressure greater
than or equal to 10 bar.
• Always use the spray-gun in a ventilated area, ideally in a special cabin.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not use the equipment close to a ame or a source of ignition.
• Take away every not qualied person from the working area of the equipment, as well as children
and animals.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

201605-162-ENG User manual - EUROPRO AC-65-G P7
4. YOUR SPRAY-GUN
4.1. DESCRIPTION
Light and manoeuvrable, this spray-gun is convenient for retouching slurry products: droplet, thick
plastic products, etc...
4.2. TECHNICAL CHARACTERISTICS
Nylon upper bowl 5 L
Precision parts brass
Product ow-rate adjustment yes
Air pressure adjustment yes
Air consumption at 4 bars 200 L/min
Operating pressure 2 to 5 bar
Weight 1 kg
Delivered with - 4 nozzles Ø3, 4, 6 & 8 mm
- standard male quick-connect terminal coupling

User manual - EUROPRO AC-65-G 201605-162-ENGP8
4. YOUR SPRAY-GUN (continued)

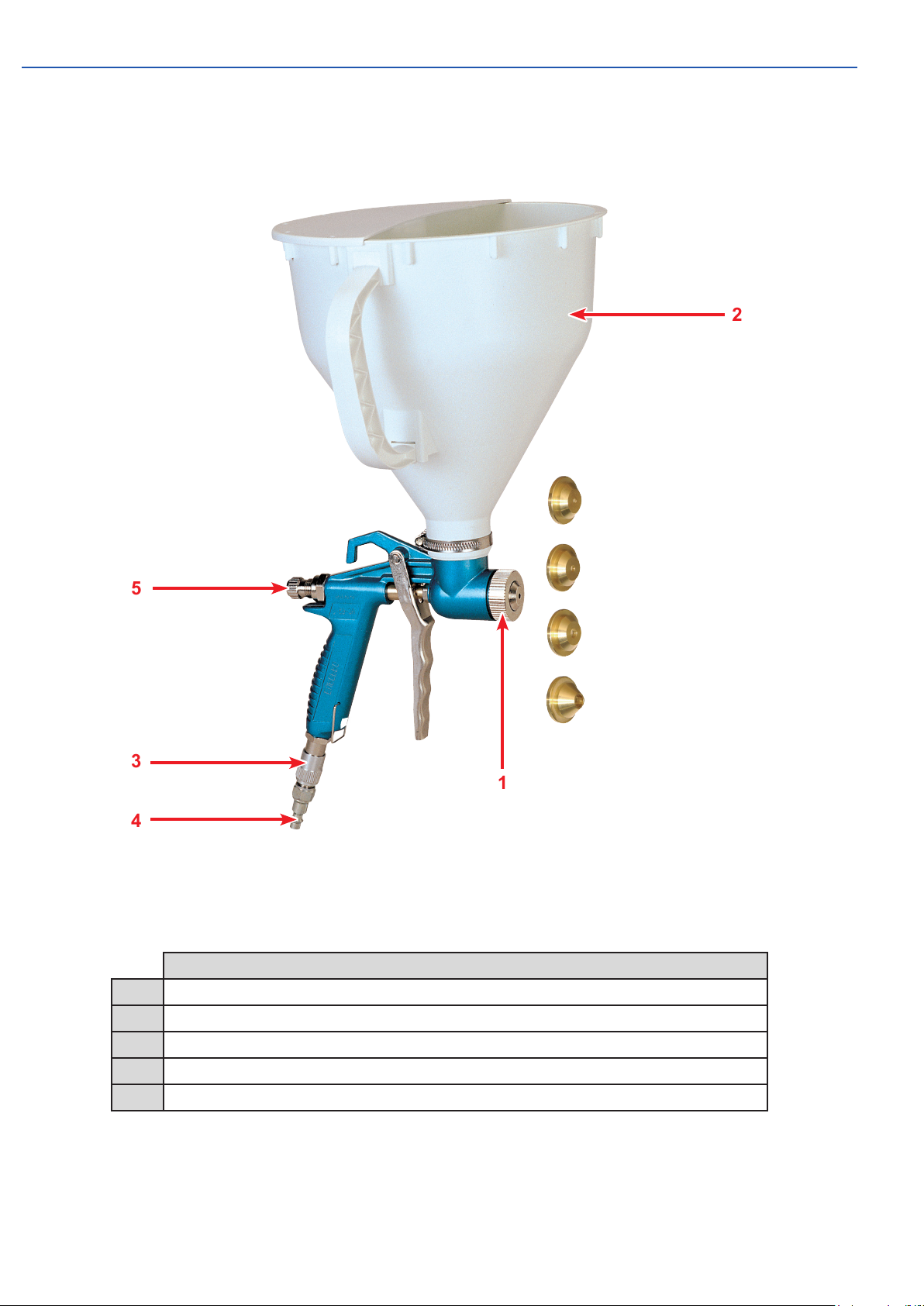

4.3. IDENTIFICATION OF THE COMPONENTS OF THE SPRAY-GUN
Désignation
1Nozzle ring
25 litres bowl
3Air adjustment tap
4Quick-connector
5Product ow-rate adjustment thumbwheel
The complete list of the machine components is available on our website
www.euromair.com
2
1
4
5
3

201605-162-ENG User manual - EUROPRO AC-65-G P9
5. USE OF THE SPRAY-GUN
5.1. PREREQUISITES
• The AC-65-G spray-gun needs 3,5 bar of air per minute for good functionning (18 m3/h, compressor
of around 2,5 HP)
• If your compressor does not have such power, you can compensate with an air reserve.
• For good functionning, the spray-gun has to be clean and well greased.
5.2. STARTING UP
1. Connect the spray-gun to the air circuit with help of a pneumatic hose equipped with a female
connector (passage of 6), which will connect to the quick-connector (4).
2. Set the air pressure to 5 bar on the regulator of your air circuit.
3. Prepare the product to be sprayed following the instructions of the manufacturer.
4. Pour the product in the bowl (2).
5. Before you spray on the surface to be treated, make experiments to adjust the product ow-rate:
- adjust the product ow-rate with the thumbwheel (5). Screw to reduce the ow-rate, unscrew
to inscrease it.
- to rene the spraying, use the tap (3).
6. If the spraying is not correct, redo the operation and revise the product preparation.
5.3. MAINTENANCE
After every use, it is imperative to:
• dismantle the bowl of the spray-gun and to clean it
• dismantle, clean and grease the nozzle ring (1), the thread of the thumbwheel (5) and the needle.
Never plunge the spray-gun in solvent, at the risk of spoiling the joints.
5.4. DEFECTS AND REMEDIES
• The spraying is not optimal • Verify the product dilution
• Verify the nozzle diameter
• The product does not come out uidly • Verify the nozzle gasket and replace if needed
