Ever SINLINE RT User manual

EVER UPS SINLINE RT / RT XL series instruction manual
2017-04-26 12:41
Pomoc Techniczna, tel.: [phone]
www.ever.eu
2
CONTENTS
INTRODUCTION ..........................................................................................................................................................3
GENERAL FEATURES OF THE UPS UNIT.............................................................................................................4
SAFETY INSTRUCTIONS AND RECOMMENDATIONS ......................................................................................6
TECHNICAL DESCRIPTION....................................................................................................................................12
UNPACKING THE PRODUCT.....................................................................................................................................12
What’s in the box? ................................................................................................................................................12

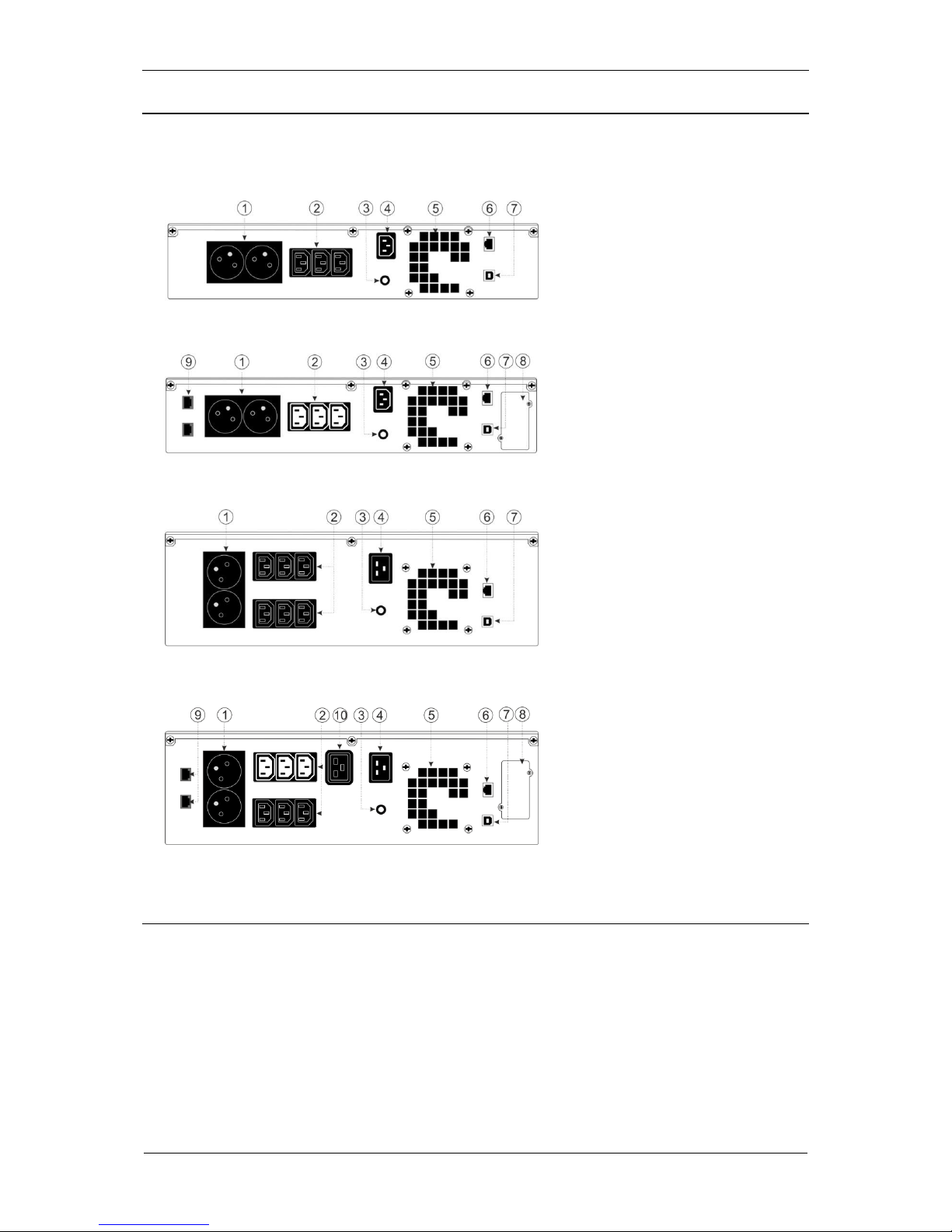

ELEMENTS OF THE UPS - REAR PANEL.................................................................................................................13
HOW IT WORKS...........................................................................................................................................................13

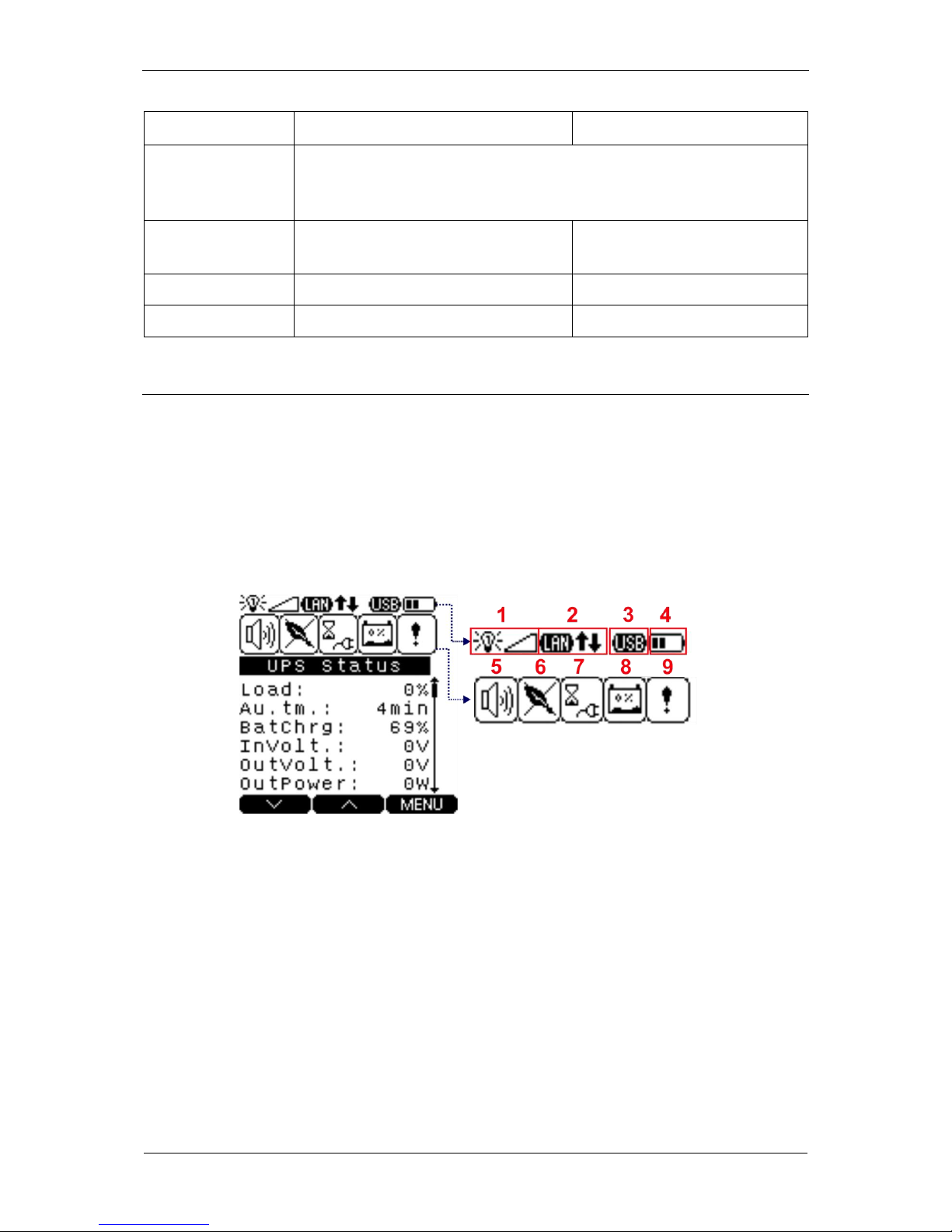

LCD DISPLAY ICONS .................................................................................................................................................16
DESCRIPTION OF LCD DISPLAY ICONS .........................................................................................................17

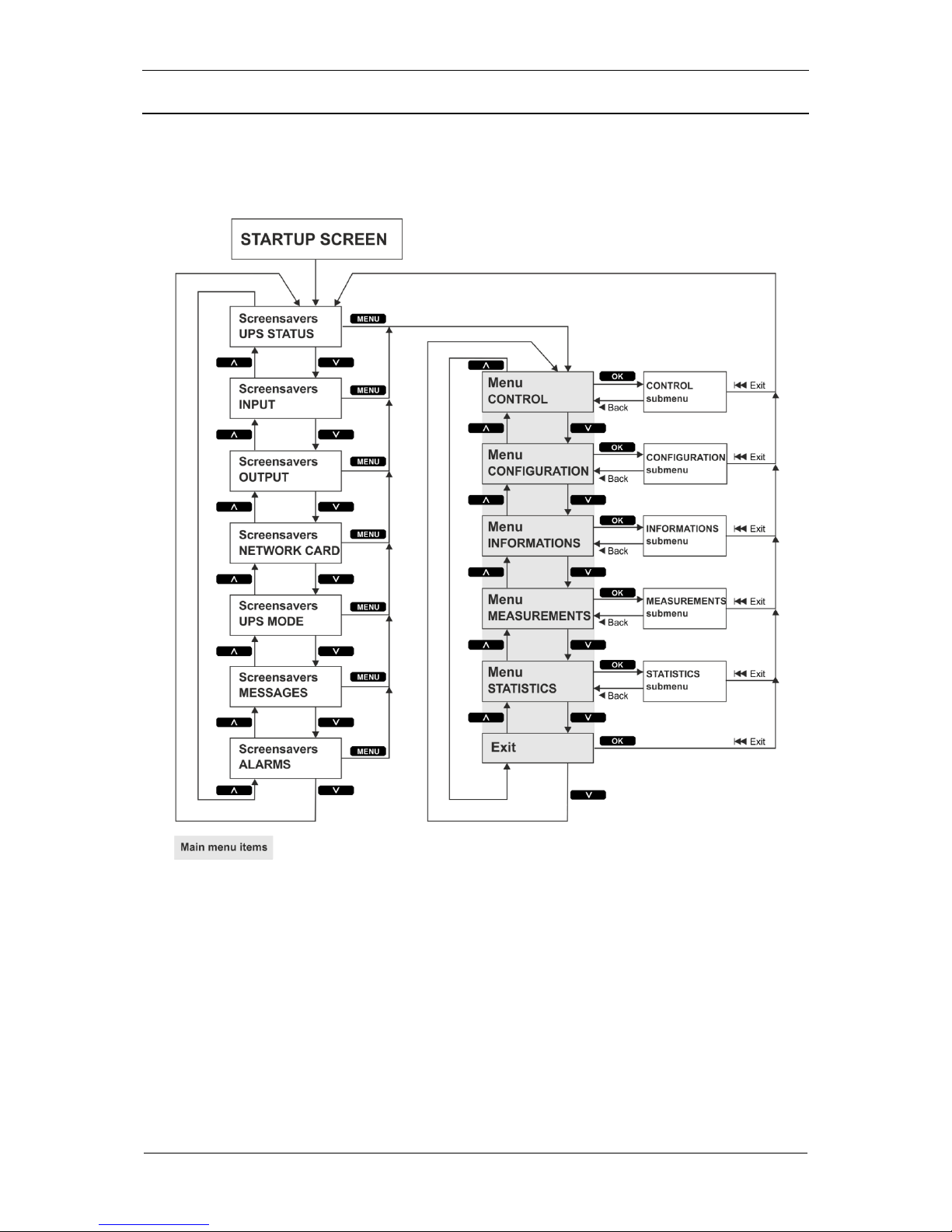

USER INTERFACE MENU STRUCTURE ..................................................................................................................19
DESCRIPTION OF SCREENS SHOWN IN THE LCD DISPLAY..............................................................................20
Information screens ..............................................................................................................................................20
Main menu............................................................................................................................................................23
CONTROL submenu .............................................................................................................................................23
CONFIGURATION Submenu...............................................................................................................................25
INFORMATIONS submenu...................................................................................................................................30
MEASUREMENTS submenu.................................................................................................................................31
STATISTICS submenu...........................................................................................................................................33
UPS OPERATION MODES ..........................................................................................................................................35
PROTECTIONS AND SAFEGUARDS.........................................................................................................................37
Overload protection..............................................................................................................................................37
Short-circuit protection.........................................................................................................................................37
Against overvoltage (Anti-surge)..........................................................................................................................38
Thermal protection ...............................................................................................................................................38
EPO (expansion card - optional equipment for SINLINE RT XL UPS units) .......................................................38
INSTALLATION..........................................................................................................................................................39
INSTALLING THE UPS UNIT.....................................................................................................................................39
Input installation...................................................................................................................................................40
Output installation................................................................................................................................................41
TOWER VERSION UPS INSTALLATION..................................................................................................................42
Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) .......................................43
RACK VERSION UPS INSTALLATION.....................................................................................................................46
Installation of the UPS with a battery module (applies to SINLINE RT XL UPS units) .......................................48
DISCONNECTING THE BATTERY MODULE (applies to SINLINE RT XL) ..........................................................50
FIRST START-UP OF THE UPS ..................................................................................................................................51
STARTING UP THE UPS UNIT (power supply from the mains).................................................................................52
STARTING THE UPS UP FROM THE BATERY (cold start) .....................................................................................52
SWITCHING THE UPS OFF.........................................................................................................................................53
REPLACING THE UPS UNIT'S INTERNAL BATTERY ......................................................................................54
REPLACING THE BATTERY IN THE UPS................................................................................................................55
SINLINE RT 1000 - 1200 and SINLINE RT XL 650 - 850....................................................................................55
SINLINE RT 1600 - 3000 and SINLINE RT XL 1250 - 2250................................................................................56
SINLINE RT XL 3000 ...........................................................................................................................................58
REPLACING THE BATTERIES IN THE BATTERY MODULE................................................................................59
COMMUNICATION WITH PC.................................................................................................................................62
COMMUNICATION USING USB HID DEVICES......................................................................................................62
SNMP/HTTP NETWORK MANAGEMENT CARD....................................................................................................62
EXPANSION CARDS (applies to SINLINE RT XL UPS units) ..............................................................................63
EPO CARD.....................................................................................................................................................................63
Installation of the card..........................................................................................................................................63
OPERATING INSTRUCTIONS.................................................................................................................................65
INTERACTION WITH ELECTRICAL GENERATORS..............................................................................................66
STORAGE, MAINTENANCE AND TRANSPORT.....................................................................................................66
DISPOSAL.....................................................................................................................................................................67
TECHNICAL PARAMETERS - SINLINE RT series...............................................................................................69
TECHNICAL PARAMETERS - SINLINE RT XL series ........................................................................................71
DIAGNOSTICS OF ERRORS REPORTED BY THE UPS.....................................................................................73
LEGAL REGULATIONS AND WARRANTY..........................................................................................................75
DECLARATION OF CONFORMITY...........................................................................................................................75
WARRANTY.................................................................................................................................................................75

EVER UPS SINLINE RT / RT XL series instruction manual
3
www.ever.eu
Pomoc Techniczna, tel.: [phone]
2017-04-26 12:41
INTRODUCTION
Thank you for purchasing the EVER SINLINE RT / SINLINE RT XL UPS system.
This UPS unit has been designed and engineered to provide the highest standard of
protection against power failure. We hope that the purchased UPS unit will meet your
expectations.
This manual contains all relevant information to ensure correct and safe operation of
the unit. Please read this manual carefully and thoroughly prior to using the EVER
SINLINE RT / SINLINE RT XL unit. This will help to operate the unit correctly and
safely. The UPS unit has been designed, engineered and manufactured in Poland.
Its design and construction are fully compliant with the CE marking standards.
SINLINE RT / SINLINE RT XL is the newest range of technologically advanced UPS
units designed mainly for computer servers, small computer networks, workstations
and other electrical, electronic ad IT systems. With the universal rack / tower
housing, the UPS orientation can be changed quickly.

EVER UPS SINLINE RT / RT XL series instruction manual
2017-04-26 12:41
Pomoc Techniczna, tel.: [phone]
www.ever.eu
4
GENERAL FEATURES OF THE UPS UNIT
The SINLINE RT / SINLINE RT XL units are LINE-INTERACTIVE (VI) class units
designed to work with equipment supplied from ~ 230 VAC single-phase electric
power mains. They provide energy for practically any device whose power rating is
not greater than the UPS unit’s power rating.
Alongside their excellent performance and reliability, the SINLINE RT / SINLINE RT
XL range of UPS units offer a number of other advantages:
The universal rack / tower housing, thanks to which the UPS orientation can be
changed quickly. The LCD's rack / tower mode selection is done via software.
Network interface as a default feature (supports SNMPv1 and HTTP) - for
remote management of the UPS unit through SNMPv1 protocol (compatible with
RFC1628) or a website browser.
HID USB communication interface - the UPS can operate with other devices
without the necessity to install software
Firmware that can be updated by the user - as soon as the new version is
available, the user can enjoy its new functionalities.
CDS System (Clear Digital Sinus) - generates a clear sine wave in the unit's
output (in battery mode)
AVR, a system for regulating (increasing and decreasing) the mains voltage - for
adapting incorrect input voltage to a level that is acceptable to the receivers,
without the use of the battery
The LCD display grants the user complete control over the UPS.
The unit's battery charging system with thermal compensation additionally
protects the built-in batteries, prolongs their life and consequently leads to
reduced maintenance costs.
Back-up time prediction - for determining the UPS autonomous operation (in
back-up mode) in real time.
The start-on-battery function allows to start the UPS even if there is no power in
the mains (so-called "cold start").
The battery can be replaced by the user.

EVER UPS SINLINE RT / RT XL series instruction manual
5
www.ever.eu
Pomoc Techniczna, tel.: [phone]
2017-04-26 12:41
Moreover, the SINLINE RT XL units have the following features:
Output active power is equal to apparent power (PF=1).
Manageable outputs - customized operation for specific needs of the more
demanding receivers.
LAN filter (1 Gbit/s) –for protecting the network card against power surges.
Possibility of connecting a battery module - the back-up time is extended thanks
to the external battery module.
Remote Emergency Power Off (Remote EPO) functionality which interrupts
power supply from the UPS output to loads in extreme situations or
emergencies, such as a fire (optional).
RS232/RS485 communication interface with MODBUS protocol - for integrating
the device in automatic systems (optional).
Programmable outputs (relay contacts) and control inputs card - for integrating
the device in automatic systems (optional).

EVER UPS SINLINE RT / RT XL series instruction manual
2017-04-26 12:41
Pomoc Techniczna, tel.: [phone]
www.ever.eu
6
SAFETY INSTRUCTIONS AND RECOMMENDATIONS
A) General remarks
CAUTION! Before starting the procedures described in this manual,
please read the general safety instructions (including the instructions
found in this document), health & safety information, environmental
protection information and legal regulations that may apply. Always
observe the instructions and recommendations in these documents.
CAUTION! The user is strictly forbidden from performing any repairs, as
this would constitute a health hazard and may result in death. Any
repairs and replacement of batteries should be carried out only by
suitably qualified service technicians with professional licenses required
by law.
CAUTION! The unit should be operated and stored in conditions
complying with the requirements set in the specification (technical
documentation).
CAUTION! The device is completely disconnected from the mains only
when the power lead is removed from the mains socket (the plug is
removed from the mains socket).
CAUTION! The unit is equipped with an internal power source (batteries)
or it may operate in combination with a fixed, external source of power
(battery packs). Dangerous voltage may be present at the output
terminal(s), even if the unit has been disconnected from the mains.
CAUTION! The user should place warning labels on all remotely
installed primary isolation switches in order to warn electrical service
technicians that the circuit is powered by a UPS unit. The following (or
equivalent) text should be used on such warning labels:
DISCONNECT THE UPS SYSTEM BEFORE STARTING WORK ON THIS
CIRCUIT.

EVER UPS SINLINE RT / RT XL series instruction manual
7
www.ever.eu
Pomoc Techniczna, tel.: [phone]
2017-04-26 12:41
CAUTION! Opening the unit’s casing may result in electric shock.
CAUTION! Do not touch any electrical connectors, terminals and internal
metal elements, unless power supply has been properly disconnected.
CAUTION! All openings and spaces designed to provide access to the
unit's electrical connections must remain covered (with applicable
covers). Failure to observe this requirement may create hazard
potentially resulting in injury or death for persons who touch such
connectors. It may also cause damage to the unit.
CAUTION! In the event of a short circuit, the resulting high current may
cause serious burns or scalds.
CAUTION! There are no user-serviceable parts inside the UPS unit.
CAUTION! SINLINE RT / SINLINE RT XL UPS units are not intended for
use directly with medical equipment, life support systems or equipment
that may affect health.
B) Installation information and requirements
CAUTION! Before installation of the UPS unit, the staff and users must
become familiar with the Health and Safety regulations when working
and handling electrical equipment up to 1 kV voltage.
CAUTION! Before connecting any cables or making any connections
within the UPS unit or in the electrical system, make sure there is no
dangerous voltage on electrical terminals and cables in the system.
CAUTION! The UPS may only be connected to a ~230V mains socket
with a grounding connection (a bolt). The facility's electrical system to
which the UPS unit is connected must be fitted with overload and short-

EVER UPS SINLINE RT / RT XL series instruction manual
2017-04-26 12:41
Pomoc Techniczna, tel.: [phone]
www.ever.eu
8
circuit protection.
CAUTION! Only TN-S or TN-C-S configuration is allowed on the UPS
unit's input side, and only TN-S configuration is allowed on the UPS
unit's output side.
CAUTION! No extension cords should be used for connecting the UPS
unit.
CAUTION! Installing a UPS unit in proximity of flammable materials or
substances is strictly prohibited!
Technicians must not work alone in hazardous conditions that may be dangerous
to health and/or life.
Shortly after the UPS unit has been moved from a cold environment to a warm
environment, moisture condensation may appear. The UPS unit must be
completely dry before installation and operation. The acclimatization time should
be at least 2 hours.
UPS units and battery packs must not be installed in humid environment.
UPS units and battery packs must not be installed in places where they would be
exposed to direct sunlight. They must not be installed near sources of heat.
Ventilation openings in the UPS unit casing must not be blocked. Always observe
distances to ventilation openings specified in the manual.
Before connecting the units, is necessary to check the condition of all leads,
cables, connectors, sockets and plugs, as well as that of the unit itself.
The device must be connected to a power circuit (mains socket) with three
terminals (phase, neutral and grounding), including a PE grounding conductor.
Failure to observe this requirement may result in electric shock.
To reduce the risk of electric shock (in case the grounding cannot be checked),
the unit must be disconnected from the mains before installation or connecting to
other equipment. The power lead may only be connected again after making all
required connections.
A device powered through a lead with a plug has a grounding conductor that
carries away the leakage current from the receivers. The leakage currents of all
loads connected to the UPS unit's output are combined in the UPS unit's power

EVER UPS SINLINE RT / RT XL series instruction manual
9
www.ever.eu
Pomoc Techniczna, tel.: [phone]
2017-04-26 12:41
lead. The summary leakage current may trigger protective devices (RCD) and
result in disconnecting power to the loads.
When connecting and disconnecting signal cables, all actions should be
performed with one hand only (if feasible). This is to avoid electric shock when
touching two surfaces with different electrical potentials.
Leads connected to the UPS's output should not be longer than 10 m, in order to
maintain conformance with the EMC directive for products sold in Europe.
Connecting leads should be placed so that people walking over them will not step
or trip on them.
An emergency power-off button (EPO), dedicated to the UPS system, should be
installed in the building's electrical system. This is to allow disconnecting, in
emergency, the UPS unit from the connected loads regardless of the mode in
which the UPS is operating.
To minimize the risk of fire, connections should only be made to circuits (electrical
systems) whose rating is adequate for the connected loads, with properly selected
overcurrent protection. Additionally, the breaker should feature at least a 3 mm
insulating air gap.
C) Operation of the UPS unit
Health and Safety regulations and guidelines specified in the UPS unit operating
manual must be observed when handling and operating the UPS unit.
All these instructions must be executed step by step. If any problems emerge
when executing the instructions given in this document, please contact EVER
service support (www.ever.eu).
Never disconnect the grounding at the UPS unit or at the terminals of the
building's electrical system, as this will disable the UPS unit's protective
grounding.
There may be voltage on the UPS's output terminals, even if the UPS is
disconnected from the building's electrical system (due to presence of power in
the device's internal batteries).
Liquids and foreign bodies must not be allowed to penetrate the UPS casing.
WARNING: This is a C2 category UPS. If installed in residential environment, this
product may interfere with radio signals, which may require additional precautions
to be employed by the user.

EVER UPS SINLINE RT / RT XL series instruction manual
2017-04-26 12:41
Pomoc Techniczna, tel.: [phone]
www.ever.eu
10
D) Maintenance, repair and breakdown information
Dangerously high voltages are present in the UPS unit. Only qualified service
technicians may perform maintenance works.
CAUTION - Risk of electric shock! Even if the unit has been disconnected from
the mains (from terminals of the electrical power supply), parts inside the UPS
unit remain connected to the batteries, which may create hazards. Disconnect the
battery before carrying out any service and/or maintenance works. Make sure
there is no dangerous voltage on the DC circuit internal elements.
WARNING: Only properly authorized and qualified service technicians who have
legally required protection gear may replace batteries.
CAUTION - Risk of electric shock! Dangerous voltage may be present between
the battery circuit and the grounding point!
Batteries have high short-circuit current and pose a risk of electric shock. The
following precautions should be taken when working with batteries:
－remove jewellery, watches, rings and other metal items,
－only use tools with insulated handles.
When replacing batteries, always use the same type and the same number of
batteries. Using batteries of incorrect type may result in explosion.
Always dispose of used batteries according to relevant instructions.
WARNING: Disposing of batteries in a fire may result in explosion.
WARNING: Opening or damaging batteries may cause electrolyte to leak;
electrolyte is harmful to skin and eyes, and may also be toxic.
To avoid the danger of fire and damage to the mains or power supply system,
always replace broken or blown fuses with fuses of the same type and
parameters.
Disconnect the device from the mains before cleaning. Do not use liquid or
sprayed cleaning agents.
UPS units may only be disassembled by suitably qualified service technicians.
