INSTALLATION, OPERATION
& MAINTENANCE INSTRUCTIONS
FOR EVERDURE RANGE HOODS
Models:
RBES622
RBES62B2

EASY DECISION
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE
RANGE HOODS
RBES622 and RBES62B2
CONGRATULATIONS
Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic cooking appliances.
We are confident that you will now be able to meet your cooking needs. Before you use the cooktop we strongly
recommend that you read though the whole user manual which provides the description of this product and the proper use
of its functions. To avoid the ever-present risks involved with using an electrical appliance it is vital that the appliance is
installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
It is important that you retain these instructions and your proof of purchase along with any other important documents
about this product for future reference. Due to continual product development, Everdure reserves the right to alter
specifications or appearances without notice.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ..........................................................................................................................1
APPLIANCE DETAILS....................................................................................................................................................2
WHAT IS SUPPLIED......................................................................................................................................................2
WHAT MAY BE NEEDED FOR INSTALLATION..............................................................................................................2
INSTALLATION INSTRUCTIONS................................................................................................................................ 3-6
OPERATING INSTRUCTIONS........................................................................................................................................7
LEDS ............................................................................................................................................................................8
CLEANING ...................................................................................................................................................................8
TROUBLESHOOTING ...................................................................................................................................................8
It is important that you retain these instructions, proof of purchase as well as other important documents
about this product for future reference.
Due to continual product development, Everdure reserves the right to alter specifications or appearances
without notice.
Remove all packaging and dispose responsibly –recycle where facilities are available.

1
EASY DECISION
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the
contents of this carton.
1. In certain circumstances electrical appliances may be a safety hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety. Young children should be supervised to ensure
that they do not play with the appliance.
3. Do not check the status of the filters whilst the cooker hood is operating.
4. Do not touch the light bulbs after use.
5. Do not disconnect the appliance with wet hands.
6. Do not disconnect the power supply by pulling on the cable.
7. Do not flambé underneath the range hood.
8. Avoid free flame, as it may cause damage to the filters and can be a fire hazard.
9. Unplug the appliance before carrying out maintenance, cleaning or replacing lamps.
10. If the power cord is damaged, it must be replaced by the manufacturer, an authorised service centre or similarly
qualified persons to avoid a hazard.
11. For indoor use only.
12. It is recommended to operate the range hood prior to cooking.
13. It is recommended to leave the range hood in operation for 15 minutes after cooking is terminated in order to
completely eliminate cooking vapours and odours.
14. Turn off the range hood when not in use.
15. Do not use the range hood if it is damaged, especially the supply cord and the case.
16. Do not immerse the range hood in liquid.
17. The exhaust air must not be discharged into a flue which is used for exhausting fumes from an appliance burning
gas or other fuels (not applicable to appliances that only discharge the air back into the room).
18. Regulations concerning the discharge of air have to be fulfilled.
19. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances
burning gas of other fuels (not applicable to appliances that only discharge the air back into the room).
20. Clean the surface of the cooker hood regularly using a cloth moistened with denatured alcohol or a non-abrasive
liquid detergent.
21. There is a fire risk if cleaning is not carried out in accordance with the instructions.
22. The 600mm units are intended for use above hobs that are 600mm wide and the 900mm units are intended for
use above hobs that are 900mm wide.
23. The range hood must be mounted at a minimum distance of 60cm above the cooking surface.
24. CAUTION: Accessible parts may become hot when used with cooking appliances.
25. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical
hazards.

2
EASY DECISION

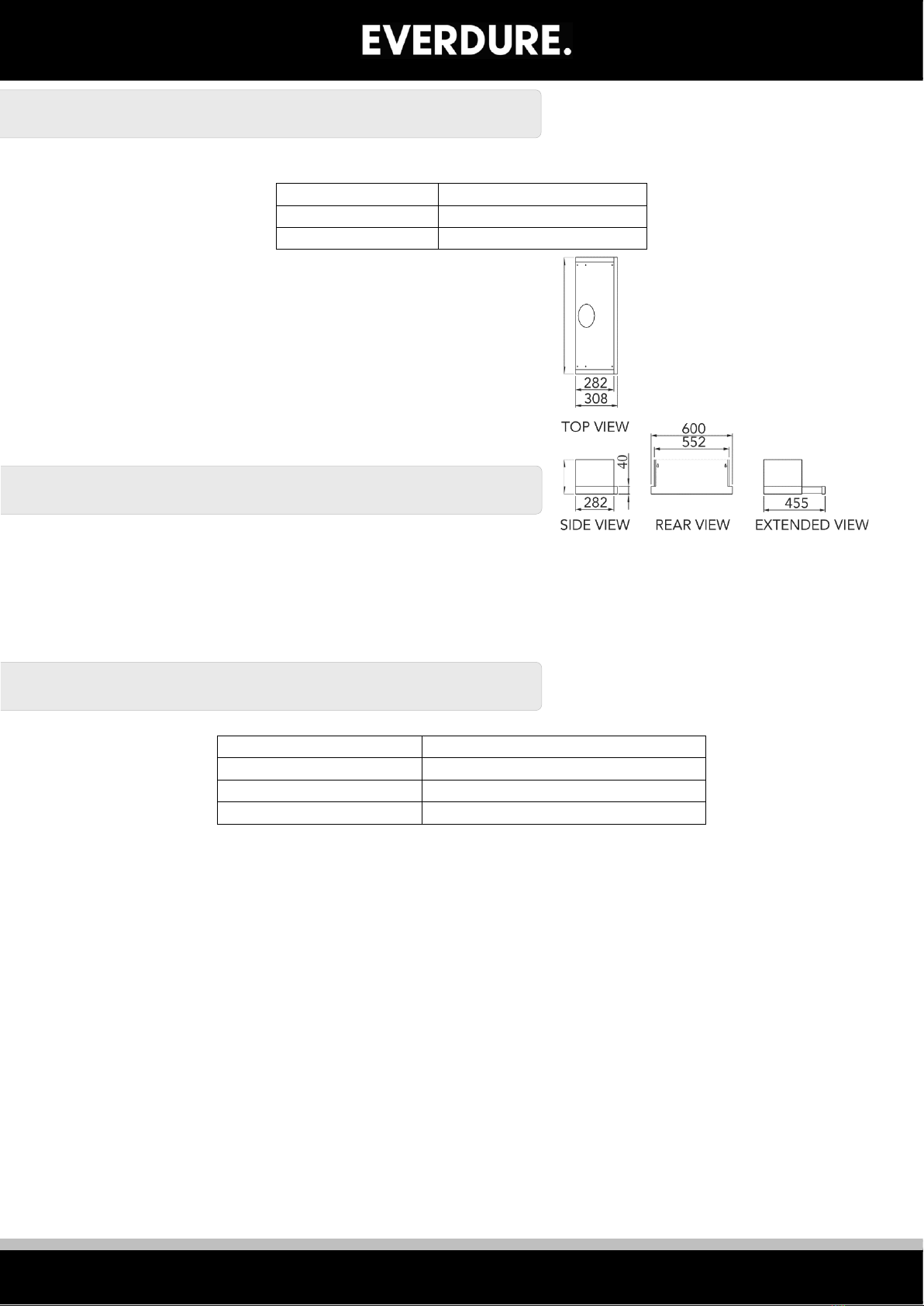

APPLIANCE DETAILS
RBES622 and RBES62B2
Voltage:
220-240V ~50Hz
Lamp Max:
1 x 2W LED
Rated Input Power:
202W
General Information
Before installing and operating the rangehood, carefully read the following
important information regarding installation safety and maintenance. Keep
this information booklet accessible for further consultations. The appliance
has been designed to exhaust cooking fumes externally, or it may be used
as a re-circulating rangehood (Filters required for recirculating type).
Before installation, please ensure that the following have been supplied
and that the tools listed below are readily available.
WHAT IS SUPPLIED
•Rangehood (including plug (re-circulating) and one way valve
(flued)) x 1
•Installation kit (bolt x 4, washer x 8, screw x 4, nut x 4, plastic wall plug x 4) x 1
•Instruction booklet x 1
NOTE: Parts needed for the ducted option must be purchased separately.
WHAT MAY BE NEEDED FOR INSTALLATION
Electric Drill
Duct Tape
Tape Measure
Jig Saw
Spirit Level
Ladder
Screwdrivers
Torch (if natural lighting is minimal)

3
EASY DECISION
INSTALLATION INSTRUCTIONS
Please ensure that that all power is switched off before installing the rangehood. Installation must be in accordance to the
local electrical authority and codes. The switched power outlet for the rangehood should be positioned to enable the user
to turn the power off, to enable cleaning and any maintenance required.
The switched power outlet should be installed within 600mm from the rear of the appliance. Ensure that when installing
the rangehood, that it is protected from any possible damage from tools etc. Ducting for this appliance must be installed in
accordance with the local authority. Ensure that the fixings used for this rangehood are suitable. Check the area where the
rangehood is to be fitted and ensure that it is structurally sound.
The Everdure RBES622 and RBES62B2 rangehoods are intended to be fitted into kitchen cabinetry. They can also be installed
directly onto a wall if required.

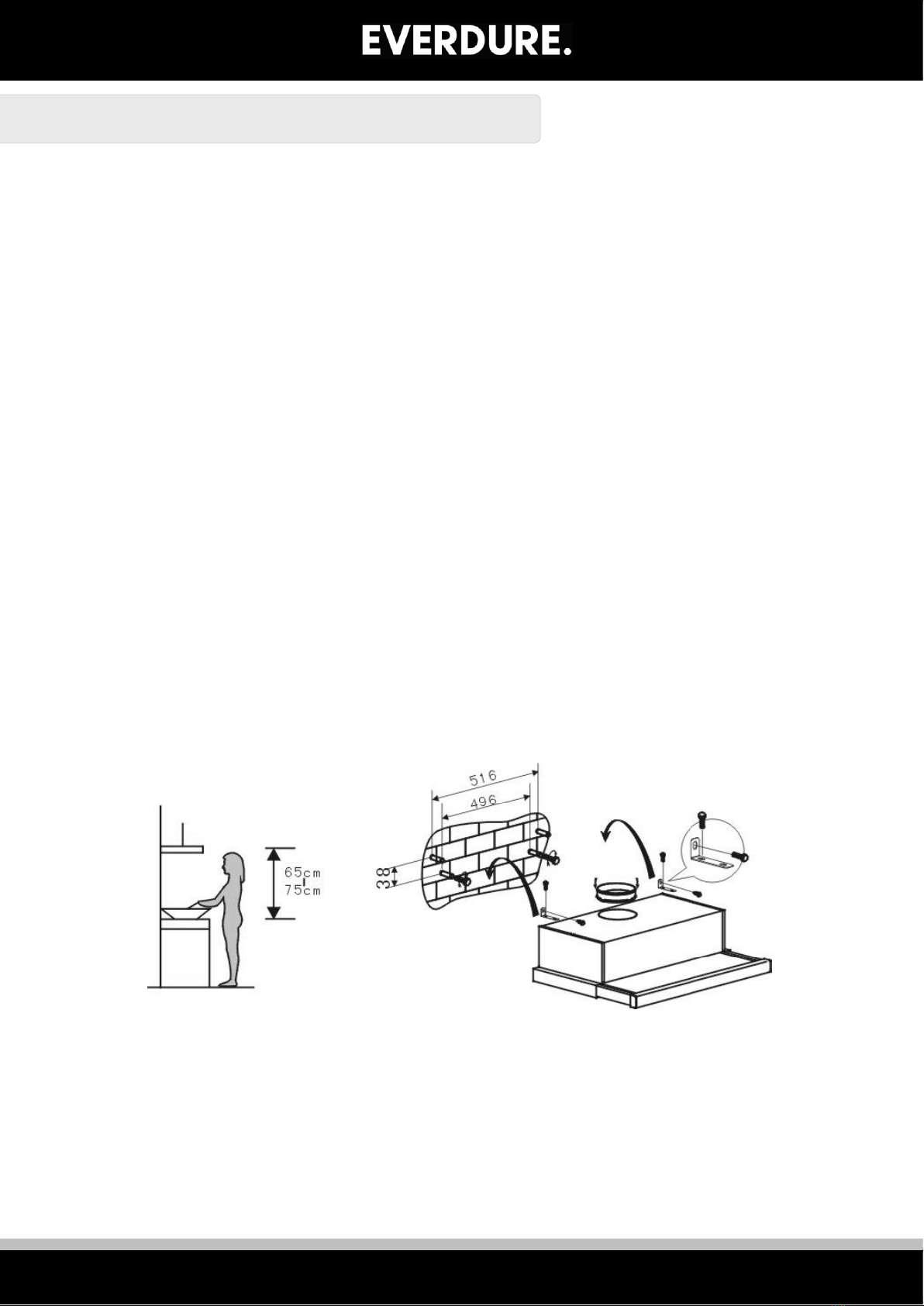

INSTALLATION OF THE EVERDURE RBES622 AND RBES62B2 RANGEHOOD DIRECTLY TO A WALL
Ensure that the wall is structurally sound, and is capable of carrying the weight of the rangehood. The lowest point of the
rangehood must be placed at a minimum of 650mm away from the cooking surface of a gas or electric cooktop. The
cooktop may require a different minimum distance; the greater minimum distance must be followed.
Measure the distance between the two fixing holes on the back of the appliance. Due to manufacturing processes, there
may be slight variations on each rangehood produced.
Mark the distance on the wall in the desired location, at the correct distance above the cooktop.
For timber framed houses, the rangehood should be attached to a wall stud. Drill holes of a suitable size to fix the screws
into, which will take the weight of the rangehood. Using a screwdriver, attach the screws to the studs in the pre drilled
holes, leaving an adequate amount for the rangehood to rest on. Locate the rangehood onto the screws, via the mounting
holes in the back of the appliance.
For masonry walls, mark the position of the holes on the wall, and drill holes of a suitable size, to accept the size of masonry
anchor to be used. Alternatively, a wall plug of a suitable size may be fitted. Fit the masonry anchor (if being used) into the
hole, or if using wall plugs, attach a screw into the plug. Allow an adequate amount of the screw or anchor out for the
rangehood to be fitted onto. Locate the rangehood onto the anchor or the screw, via the mounting holes in the back of the
appliance.
Fit the one-way valve onto the rangehood, ready for the ducting to be installed.

4
EASY DECISION
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE EVERDURE RBES622 AND RBES62B2 RANGEHOOD TO A CABINET
The diagram below shows the distance required between the holes in the top of the rangehood. Due to manufacturing
procedures, it is recommended that the dimension be checked on the rangehood before installing.
Drill the 4 x 6mm diameter holes into the bottom of the cupboard.
Fit the one-way valve onto the rangehood, ready for installation of the ducting.
Install the rangehood to the bottom of the cupboard using the 35mm bolts & nuts supplied with the rangehood. The holes
in the rangehood are already threaded. Fully tighten the bolts.
Rangehoods may be installed in two ways:
1. Ducted to the atmosphere-Extraction (outside).
2. Recirculating. -Filtration (Inside)
We recommend ducting to the atmosphere to ensure optimum performance. Recirculating the air back into the
room should only be used when outside extraction is not possible. To ensure maximum performance when
ducting it is important the ducting that carries the fumes away, be as short and as straight as possible. When
incorporating a rangehood in the design of a kitchen the following points need to be considered to achieve the
most benefit from the rangehood.
Ducting from a rangehood carrying the exhaust air, should not exceed a length of three (3) metres. For ducted
installation we recommend using galvanised or similar metal type flue pipe. PVC pipe is not recommended.
Ducting containing a 90°-degree bend will encounter a loss in efficiency of approximately 35%. Additional 90°-
degree bends can cause losses of up to 15% per bend. Ducting size should always comply with the
manufacturer’s specification. We recommend carbon filters be used when re-circulating the air into the room.
There will be some loss of air movement when carbon filters are fitted.
The following instruction should be followed to carry out the correct installation of the rangehood.
1) Mounting of the rangehood on the lower side of the cupboard.
2) Selection of the version (extraction or filtration)
Mounting the rangehood on the lower side of the cupboard. This appliance must be fitted to a cupboard or
other suitable support. When mounting align the front of the rangehood to the door of the cupboard and rear of
the appliance must then align with the cupboard.

5
EASY DECISION
INSTALLATION INSTRUCTIONS
Extraction through an outside wall
The appliance expels the fumes through an outside wall or a duct. It is necessary to buy a telescopic pipe (tube)
in accordance with the standards in use and connect it to ring flange.
Recirculation
To transform the rangehood from the extraction version to the re circulating one ask your supplier for an
activated carbon filter. The activated carbon filter cleans the air of the room. This filter is not washable or re-
usable.it recommended that the filter be substituted at least every 4-6 months. Saturation of the activated
carbon depends on how often the appliance is used, the type of kitchen and how regularly the grease filter is
cleaned.
The clean air is returned into the room through a connecting telescopic pipe (tube) passing inside the cupboard
and connected to the ring flange.
Ducted Installation:
Ducted installation with expelled air going Ducted installation with expelled air going through
the wall into the atmosphere. through the roof into the atmosphere.

6
EASY DECISION
INSTALLATION INSTRUCTIONS

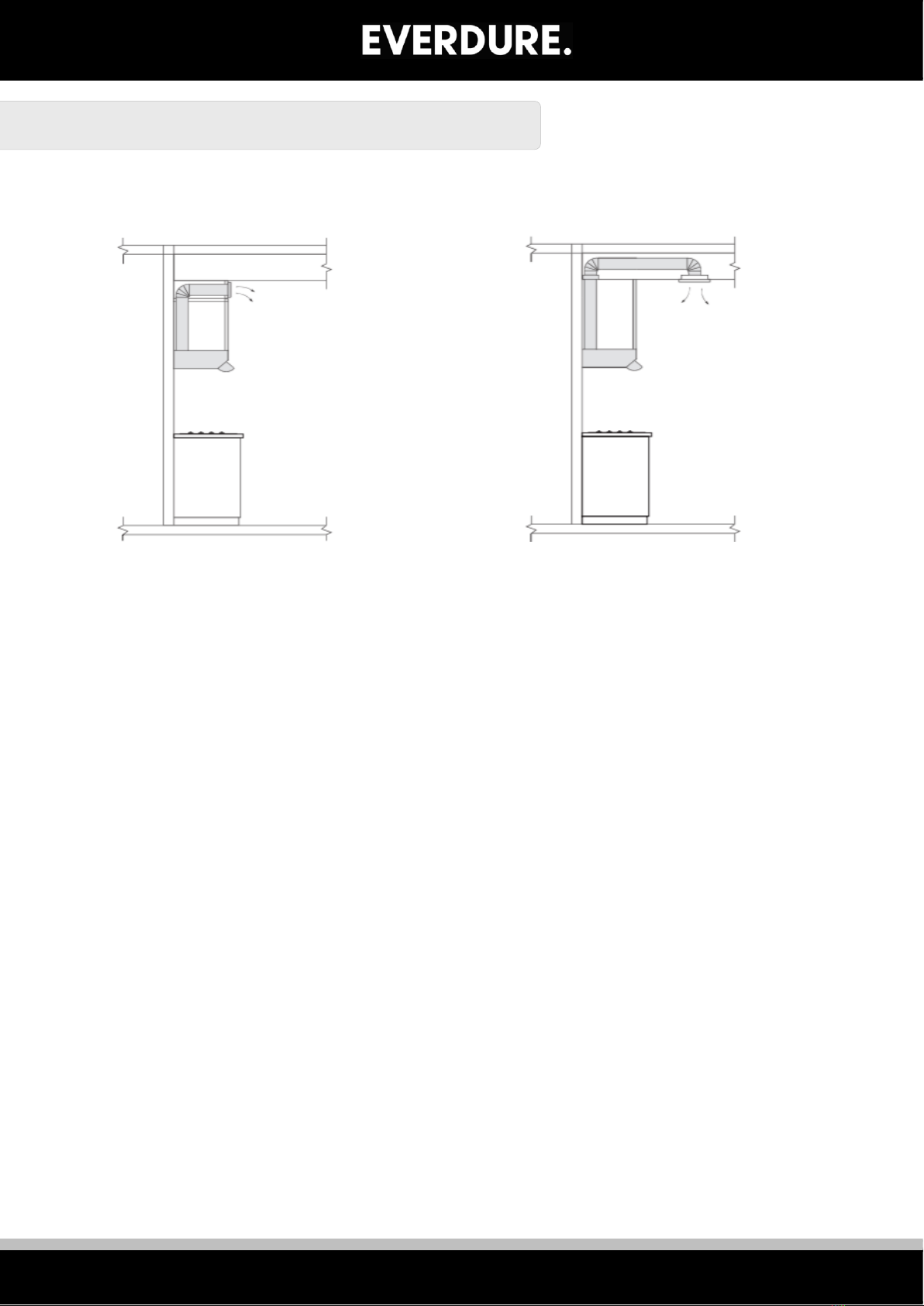

Recirculation Installation:
Recirculation into kitchen with the expelled air going Recirculation into kitchen with the expelled
through a vent located in the bulkhead above cupboard. air going through a vent located in ceiling.

7
EASY DECISION
OPERATING INSTRUCTIONS
Note: Before the appliance can be operated, it must either be ducted or, if the model is installed as a recirculating
rangehood, it must be fitted with charcoal filters.
Connect the plug into the power.
Below is a diagram of the light and fan functions, with an explanation of how the light and the fan
functions operate.
To operate the light, push the switch ①into “I” position to switch the light on, or into “0” to turn the light off.
To operate the fan, push the switch ②onto either:
1 –Low Fan Speed
2 –Medium Fan Speed
3 –High Fan Speed
0 –To turn the fan Off.
If your rangehood does not function correctly when attempting any of the above, please ensure that your power is on and
functioning correctly. If the power seems to be functioning correctly in the house, there may be a problem with the
rangehood. Please call your authorised service centre in this case to organise a service call or replacement appliance.

8
EASY DECISION
LEDS
The LED lamp used in this appliance cannot be replaced by the end user. If there is a fault with the LED lamp, please contact
the Service Department.
CLEANING
SAFETY PRECAUTION
Before cleaning your rangehood or performing any maintenance, please ensure that the rangehood is turned off at the
power point.
Do not use abrasive cleaners to clean the rangehood. The use of warm soapy water and a cloth are recommended.
Ensure that the rangehood is cleaned regularly, as a build-up of grease and fat may occur otherwise.
The filters on the rangehood must be cleaned regularly to maintain efficiency, and prevent grease build up. It is
recommended that this is undertaken every 4 –6 weeks, depending on frequency of use.
The filters can be cleaned with warm soapy water or a cloth.
Cleaning of the rangehood must be performed as described above; otherwise there is a possibility of a fire hazard due to
grease and fat build up.
If the rangehood is fitted with charcoal filters (for re-circulating) it is recommended that the filters be changed every 3 –4
months. Filter replacement will ensure correct function of the rangehood, and ensure that the air being re-circulated back
into the room is clean.
TROUBLESHOOTING
Fault
Possible Cause
Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact Service Department.
Motor failed
Contact Service Department.
Light does not
work, motor does
not work
House fuses blown
Reset/Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the air ventilation entrance
are not tightly sealed
Take down the one way valve and seal with
sealant.
Leakage from the connection of U-shaped
section and cover
Take U-shaped section down and seal.
Lights not working
Broken/Faulty globes
Contact Service Department.
Insufficient suction
The distance between the range hood and the
gas top is too far
Refit the range hood to the correct distance.
The Range hood
inclines
The fixing screw not tight enough
Tighten the hanging screw and make it
horizontal.
NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service
centre if in any doubt before undertaking any of the above. Always disconnect the appliance from the power source when
opening the appliance.

EASY DECISION
A division of Shriro Australia Pty Limited
2-34 Davidson Street, Chullora NSW 2190
AUSTRALIA: 1300 355 541
www.everdure.com
NEW ZEALAND: [phone]
www.everdure.co.nz
IM Ref: RBES62(B)2 - 17/2021/03FC
FOR INDOOR USE ONLY
