Everdure RBES63 Guide

DESIGNED TO PERFECTION
INSTALLATION, OPERATION
& MAINTENANCE INSTRUCTIONS
FOR EVERDURE RANGE HOOD
Models Included:
RBES63
RBES64
RBES65
RBES91
RBES92
RBES96

DESIGNED TO PERFECTION
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR
EVERDURE RANGE HOOD RBES63, RBES64, RBES65, RBES91, RBES92, RBES96
CONTENTS
SECTION PAGE NO.
Important Safety Instructions……………… 3
Appliance Details ………………………… 4
General Information …………………….. 4
What Is Supplied ………….……………… 4
What May Be Needed For Installation … 4
Installation Instructions …………………… 4-7
Operating Instructions …………………… 7-8
Cleaning …………………………………… 9
Replacing The Bulbs ….………………….. 9-10
Troubleshooting …………………………… 10
It is important that you retain these instructions, proof of purchase as well as
other important documents about this product for future reference.
Due to continual product development, Everdure reserves the right to alter
specifications or appearances without notice.
Dispose of packaging responsibly – recycle where facilities are available.
2

DESIGNED TO PERFECTION
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet
carefully before removing the contents of this carton.
1. In certain circumstances electrical appliances may be a danger hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety. Children should
be supervised to insure that they do not play with the appliance.
3. Do not check the status of the filters while the cooker hood is operating.
4. Do not touch the light bulbs after appliance use.
5. Do not disconnect the appliance with wet hands and do not disconnect the power cord with extreme
force.
6. Do not flambé underneath range hood.
7. Avoid free flame, as it may cause damage to the filters and be a fire hazard.
8. If frying food, ensure to check regularly to avoid the oil overheating and becoming a fire hazard.
9. Unplug the appliance before carrying out maintenance or replacing lamps.
10. If the power cord is damaged, it must be replaced by the manufacturer, an authorized service centre or
similarly qualified persons to avoid a hazard.
11. Indoor use only.
12. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
13. It is recommended to operate the range hood prior to cooking.
14. It is recommended to leave the range hood in operation for 15 minutes after cooking is terminated in
order to completely eliminate cooking vapours and odours.
15. Turn off the range hood when not in use.
16. Don’t use the range hood if it is damaged, especially the supply cord and the case.
17. Don’t immerse the range hood in liquid.
18. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance
burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
19. Regulations concerning the discharge of air have to be fulfilled. There shall be adequate ventilation of
the room when the range hood is used at the same time as appliances burning gas of other fuels.
20. Clean the surface of the cooker hood regularly using cloth moistened with denatured alcohol of non
abrasive liquid detergent.
21. There is a fire risk if cleaning is not carried out in accordance with the instruction.
22. The 600mm units are intended for use above hobs with four elements and the 900mm units are
intended for use above hobs units with five elements.
23. If the instruction for the minimum distance between the supporting surface of the cooking vessels on the
hob and the lowest part of the range hood are specified by hob instructions, these instructions should be
taken into account.
24. CAUTION: Accessible parts may become hot when used with cooking appliances.
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTION BOOKLET
3

DESIGNED TO PERFECTION
APPLIANCE DETAILS
Voltage & Frequency: 220-240V 50Hz
Lamp Max:
RBES63, RBES91, RBES92, RBES64:2x20W G4 halogen lamps
RBES65, RBES96: 2x40W E14 lamps
Rated Input Power: RBES63, RBES91, RBES92:230W RBES64:165W RBES65, RBES96:205W
GENERAL INFORMATION
Before installing and operating the range hood, carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes externally. Before installation, please ensure that
the following have been supplied and that the tools listed below are readily available.
WHAT IS SUPPLIED
Range hood (including one way valve for flue x 1) x 1.
Installation kit x 1 – RBES63, RBES65, RBES91 & RBES96: 8mm bolts x 10, 30mm screws x 2, 40mm screws x 7,
plastic plugs x 9.
Installation kit x 1 – RBES64: 8mm bolts x 8, 30mm screws x 2, 40mm screws x 7, plastic plugs x 9.
Installation kit x 1 – RBES92: 8mm bolts x 8, 25mm bolts (with nuts & washers) x 4, 30mm screws x 2, 40mm
screws x 7, plastic plugs x 9.
Mounting brackets x 3.
Instruction booklet x 1.
WHAT MAY BE NEEDED FOR INSTALLATION
Electric Drill Duct Tape
Tape Measure Jig Saw
Spirit Level Ladder
Screwdrivers Torch (If natural lighting is minimal)
INSTALLATION INSTRUCTIONS
Please ensure that before installing the range hood, all power is switched off.
Installation must be in accordance to the local electrical authority and codes.
This range hood must be earthed at all times for the operators’ safety.
The switched power outlet for the range hood should be positioned to enable the user to turn the power off,
to enable cleaning and any maintenance required.
The switched power outlet should be installed within 600mm from the rear of the unit.
Ensure that when installing the range hood, that it is protected from any possible damage from tools etc.
Ducting for this unit must be installed in accordance to the local authority.
Ensure that the fixings used for this range hood are suitable.
Check the area where the range hood is to be fitted, to ensure that it is structurally sound.
The Everdure RBES63, RBES64, RBES65, RBES91, RBES92 & RBES96 range hoods are intended to be installed
directly onto a wall.
4

DESIGNED TO PERFECTION
INSTALLATION OF THE EVERDURE RBES63, RBES65, RBES91 & RBES96 RANGE HOODS DIRECTLY TO A WALL
Ensure that the wall is structurally sound, and is capable of carrying the weight of the range hood.
The range hood can be placed at a minimum of 600mm away from an electric cooktop, or 650mm
minimum from a gas cooktop. The unit is held to a wall via 3 brackets (supplied with the unit):
1) Hook Bracket. 2) Centre Bracket (flat). 3) Top Bracket (U-shaped).
Place the hood main unit (no u-shaped section) against the wall at the correct position and mark off the top
edge of the unit. Remove the unit and measure up 22mm to get the top level for the hook bracket. Place the
hook bracket (hooks up) under the mark and mark in the 3 screw holes. Remove the bracket and drill three
(3) Ø8mm holes 100mm apart. Insert plastic plugs into the holes and fix the hook bracket onto the wall (see
figure 1) with three (3) 40mm screws. Place the hood main unit onto the hooks.
If the position is correct, mark out the positions for the safety screw holes (through the back of the unit), and
remove the hood body. Drill two (2) Ø8mm holes and fit in two (2) plastic plugs.
Screw the one way valve in position at the top of the body (4 x 8mm bolts) & fit the soot tube to the one way
valve (see figures 2 & 3).
Fit the u-shaped sections together & screw the centre bracket onto the back of the outer u-shaped section
using the supplied 8mm screws (this helps keep the width at the back even with the front) (see figure 4).
Place the u-shaped section onto the main unit and fix in place with two (2) 8mm screws (see figure 5).
Hook the main unit with the u-shaped sections back onto the wall. Mark the positions of the 2 holes needed
to fix the centre bracket to the wall & remove the assembly. Drill two (2) Ø8mm holes and fit in two (2)
plastic plugs. Place the assembly back on the hooks. Fix the centre bracket to the wall with two (2) 40mm
screws and fix the body to the wall with the 30mm screws (through the back of the main unit). Run the loose
end of the soot tube outside.
Calculate the final height of the u-shaped section and pull out the inside u-shaped section to a suitable
height (see figure 5) to check. Mark the 2 sides near the top and push the inner section out of the way.
Place the top bracket (slots to the bottom) centred between the 2 marks, mark the 2 screw holes. Remove the
bracket and drill two (2) Ø8mm holes at the marks. Insert plastic plugs into the holes and fix the hook
bracket onto the wall (slightly loose) using 40mm screws.
Pull up the inside u-section to allocate the top bracket correctly, and tighten the screws holding the bracket.
Pull the u-section over the bracket completely and fix into place with 2 screws at the sides (see figure 7).
Note: The top edge of the u-shaped bracket matches the top edge of the u-shaped section – adjust according
to your own needs.
For timber framed houses, special care should be taken that all brackets are attached to areas that will
support the weight of the range hood.
NOTE: Remove all protective plastic coatings from the stainless steel surfaces before use.

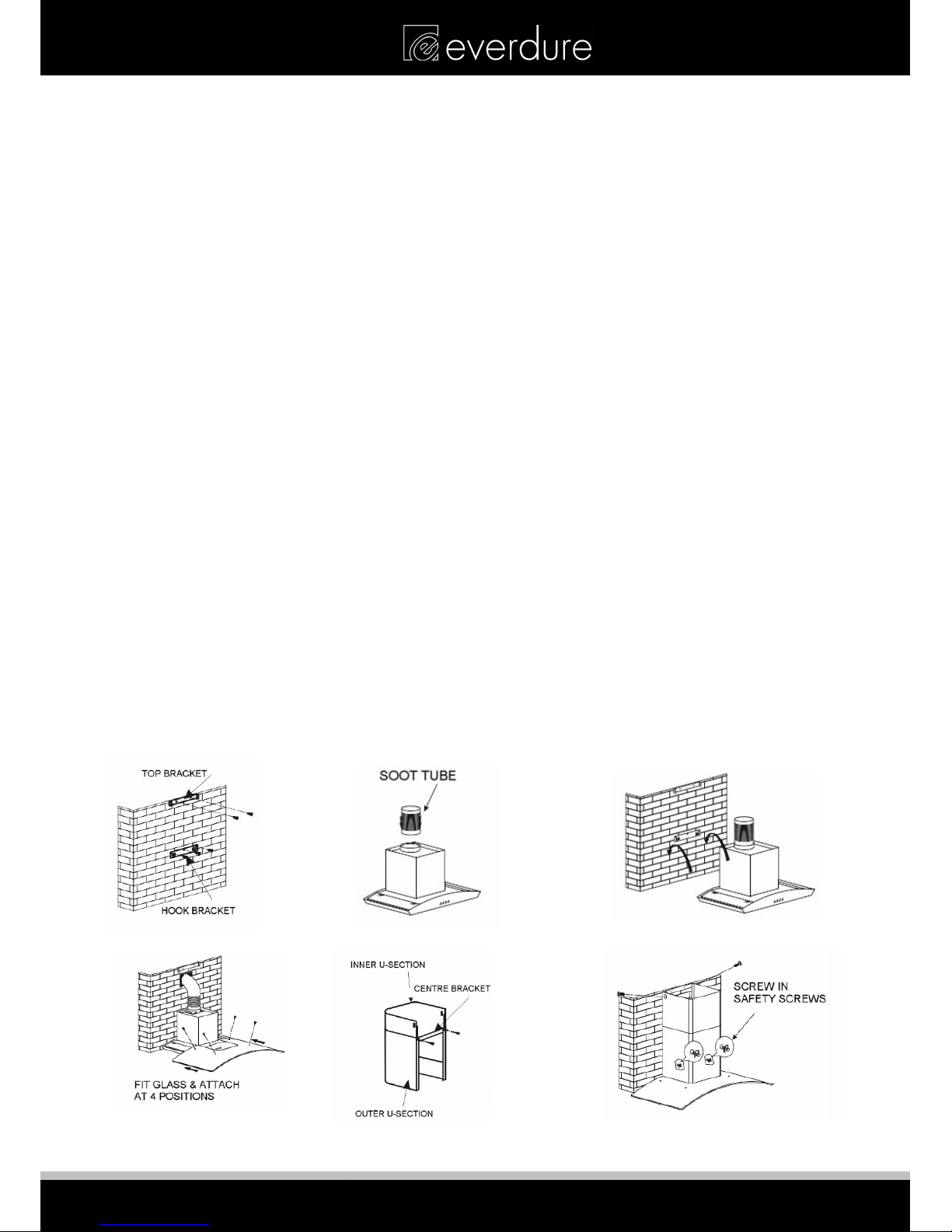

Figure 1 Figure 2 Figure 3 Figure 4
Figure 5 Figure 6 Figure 7
6
5

DESIGNED TO PERFECTION
INSTALLATION OF THE EVERDURE RBES64 & RBES92 RANGE HOODS DIRECTLY TO A WALL
Ensure that the wall is structurally sound, and is capable of carrying the weight of the range hood.
The range hood can be placed at a minimum of 600mm away from an electric cooktop, or 650mm
minimum from a gas cooktop. The unit is held to a wall via 3 brackets (supplied with the unit):
2) Hook Bracket. 2) Centre Bracket (flat). 3) Top Bracket (U-shaped).
Place the hood main unit (RBES92-no u-shaped section) against the wall at the correct position and mark off
the lowest level of the unit. Remove the unit and measure up 20mm to get the top level for the hook bracket.
Place the hook bracket (hooks up) under the mark and mark in the 3 screw holes. Remove the bracket and
drill three (3) Ø8mm holes 115mm apart. Insert plastic plugs into the holes and fix the hook bracket onto
the wall (see figure 1) with three (3) 40mm screws. Place the hood main unit onto the hooks.
If the position is correct, mark out the positions for the safety screw holes (through the back of the unit), and
remove the hood body. Drill two (2) Ø8mm holes and fit in two (2) plastic plugs.
Screw the one way valve in position at the top of the body (4 x 8mm bolts) & fit the soot tube to the one way
valve (see figure 2). Hook the main unit back onto the wall (see figure 3). Screw the 30mm screws into the
wall through the back of the unit. RBES92-Slide the glass into position and fix into place with 4 bolts, nuts &
washers (See fig 4).
Fit the u-shaped sections together & screw the centre bracket onto the back of the outer u-shaped section
using the supplied 8mm screws (this helps keep the width at the back even with the front) (see figure 5).
Place the u-shaped sections onto the main unit and mark the hole positions to fix the centre bracket to the
wall. Remove the u-shaped sections, drill two (2) Ø8mm holes and fit in two (2) plastic plugs. Place the u-
shaped sections back onto the main unit, fix to the wall with two (2) 40mm screws and run the loose end of
the soot tube outside.
Calculate the final height of the u-shaped section and pull out the inside u-shaped section to a suitable
height (see figure 6) to check. Mark the 2 sides near the top and push the inner section out of the way.
Place the top bracket (slots to the bottom) centred between the 2 marks, mark the 2 screw holes. Remove the
bracket and drill two (2) Ø8mm holes at the marks. Insert plastic plugs into the holes and fix the hook
bracket onto the wall (slightly loose) with two (2) 40mm screws.
Pull up the inside u-section to allocate the top bracket correctly, and tighten the screws holding the bracket.
Pull the u-section over the bracket completely and fix into place with 2 screws at the sides (see figure 6).
Note: The top edge of the u-shaped bracket matches the top edge of the u-shaped section – adjust according
to your own needs.
For timber framed houses, special care should be taken that all brackets are attached to areas that will
support the weight of the range hood.
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5 Figure 6
5
6

DESIGNED TO PERFECTION
NOTE: Care should be taken that the range hood is fitted correctly (see diagram below). Incorrect
installation can cause a build up of grease and oils and cause damage to the unit.
NOTE: Remove all protective plastic coatings from the stainless steel surfaces before use.
OPERATING INSTRUCTIONS
Note: Before the unit can be operated, it must be ducted.
Connect the plug into the power.
FOR RBES92 ELECTRONICALLY OPERATED RANGEHOODS
The range hood has indication diagrams to allow you to easily select the fan operating speed required.
Push the low button, indicated by a fan with 3 blades, and the motor will run at a low speed. An indicator
light will also illuminate. Push it again and the motor will stop.
Push the medium button, indicated by a fan with 4 blades and the motor will run at a medium speed. An
indicator light will also illuminate. Push it again and the motor will stop.
Push the high button, indicated by a fan with 5 blades and the motor will run at a high speed. An indicator
light will also illuminate. Push it again and the motor will stop.
Push the light button; the indicating light on, and the two lighting lamps will come on. Push it again and the
lamps will turn off.
6
7

DESIGNED TO PERFECTION

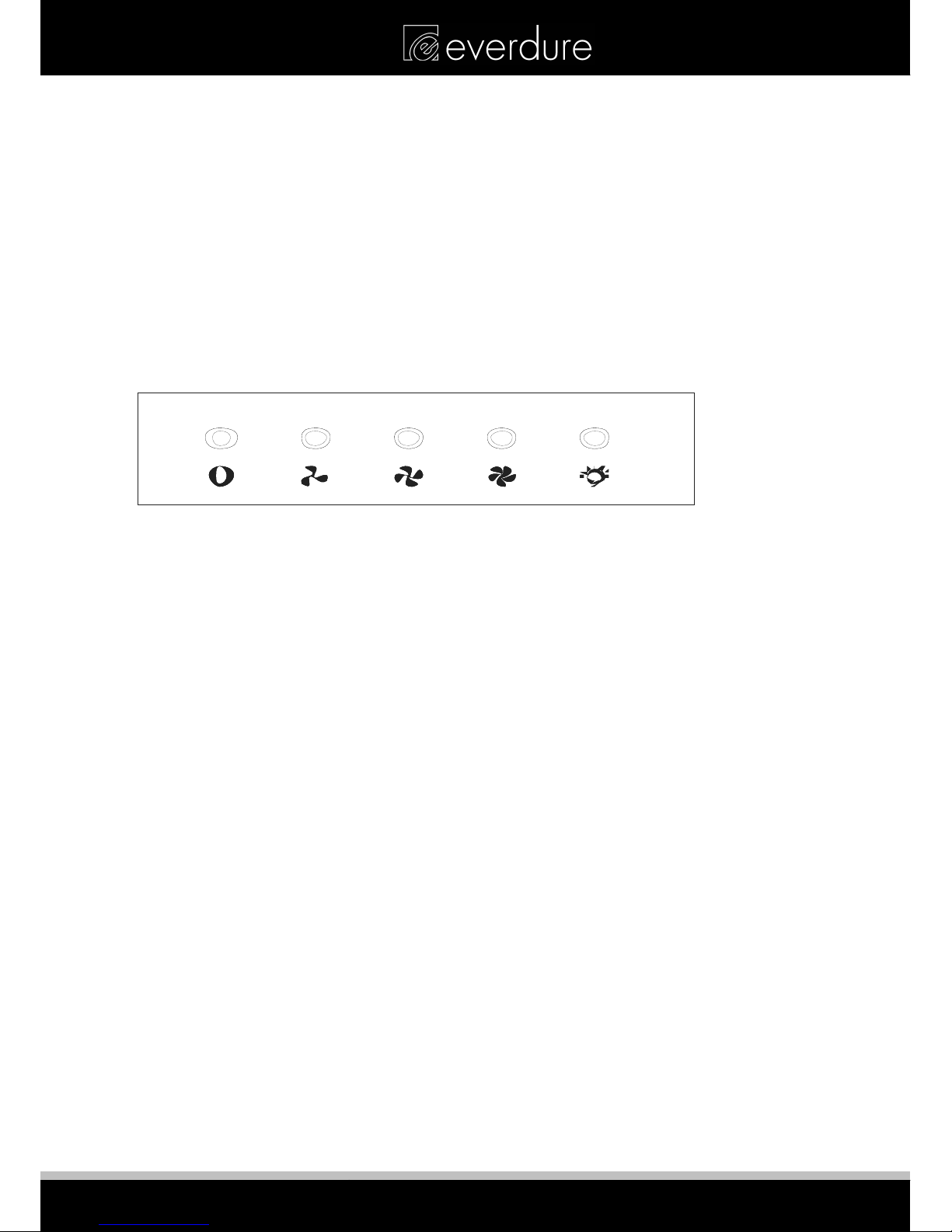

FOR RBES63, RBES64, RBES65, RBES91 & RBES96 PUSH BUTTON OPERATED RANGEHOODS
The range hood has indication diagrams to allow you to easily select the fan operating speed required.
Push the low button, indicated by a fan with 3 blades, and the motor will run at a low speed.
Push the medium button, indicated by a fan with 4 blades and the motor will run at a medium speed.
Push the high button, indicated by a fan with 5 blades and the motor will run at a high speed.
Push stop button, indicated by an (O) and the motor will stop.
Push the light button, indicated by a lit globe and the two lights will come on. Push it again and the light will
turn off.
Low Mid High
Ligh t
Stop
Low Mid High
Ligh t
Stop
Low Mid High
Ligh t
Stop
8

DESIGNED TO PERFECTION
CLEANING
SAFETY PRECAUTION
Before cleaning your range hood or performing any maintenance, please ensure that the range hood is
turned off at the power point.
Do not use abrasive cleaners to clean the range hood. The use of warm soapy water and a cloth are
recommended.
Ensure that the range hood is cleaned regularly, as a build up of grease and fat may occur otherwise.
The filters on the range hood must be cleaned regularly to maintain efficiency, and prevent grease build up.
The filter mesh is made of a high density Stainless Steel. It is recommended that this is undertaken every 4 – 6
weeks, depending on frequency of use. The filters can be cleaned with warm soapy water or a cloth.
Cleaning of the range hood must be performed as described above, otherwise there is a possibility of a fire
hazard due to grease and fat build up.

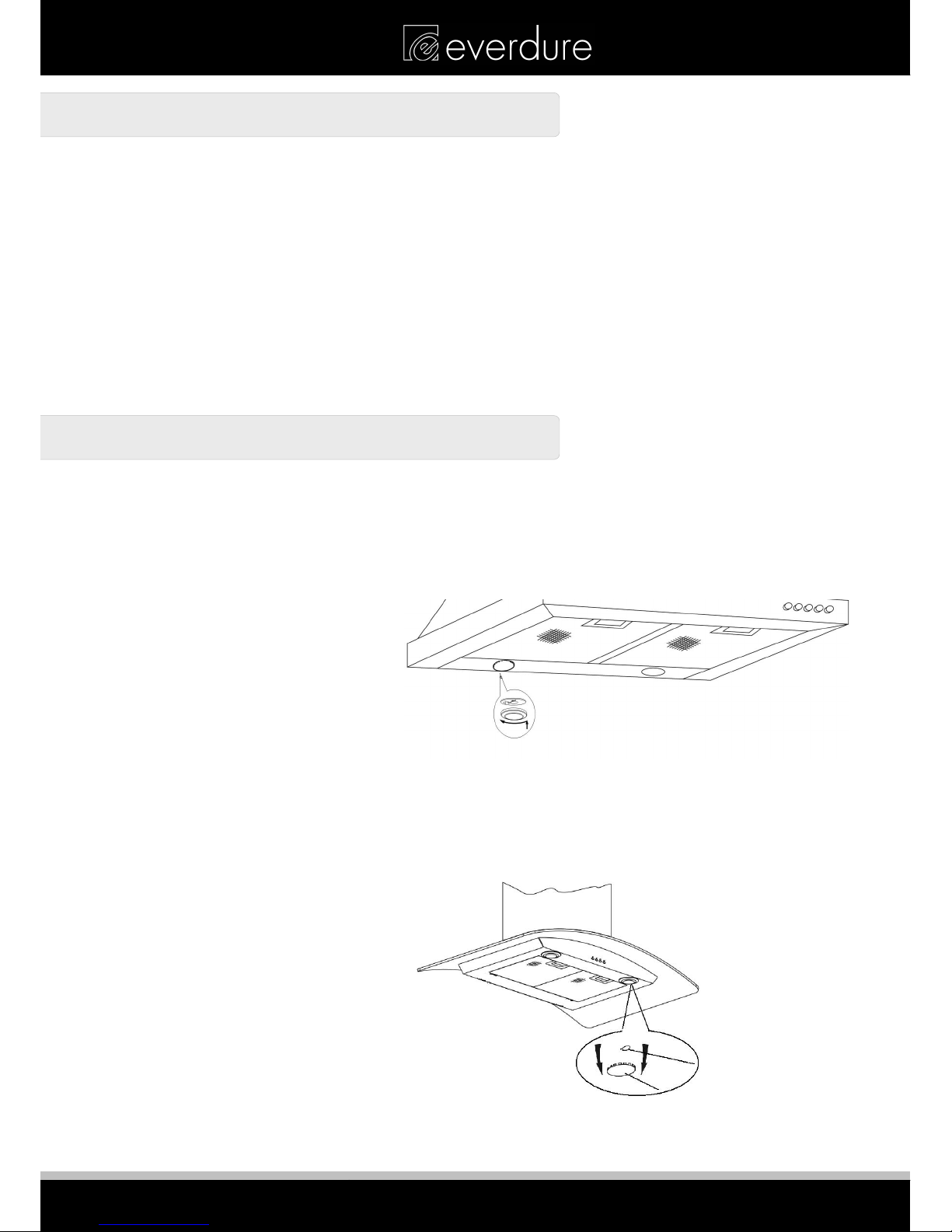

REPLACING THE BULBS
MODELS RBES63 & RBES91
1. Switch the unit off and disconnect from mains power first.
2. Remove the light chrome rims by turning in anti-clockwise direction.
3. Pull out the halogen light bulb carefully and replace by same type and same rated halogen light
bulb (12V G4 base 20W MAX).
4. Assembly the chrome rims back to the unit.
MODEL RBES64 & RBES92
1. Switch the unit off and disconnect from mains power first.
2. Remove the light chrome rims with glass by prizing carefully with a screwdriver.
3. Pull out the halogen light bulb carefully and replace with the same type and rated halogen light
bulb (12V G4 base 20W MAX).
4. Replace the chrome rims back to the unit with glass.
9

DESIGNED TO PERFECTION
MODEL RBES65 & RBES96
1. Switch the unit off and disconnect from mains power
first.
2. Remove the filters.
3. Unscrew the bulbs by rotating them and replace with the
same type and rating (230-240Vac E14 40W).
4. Replace filters.

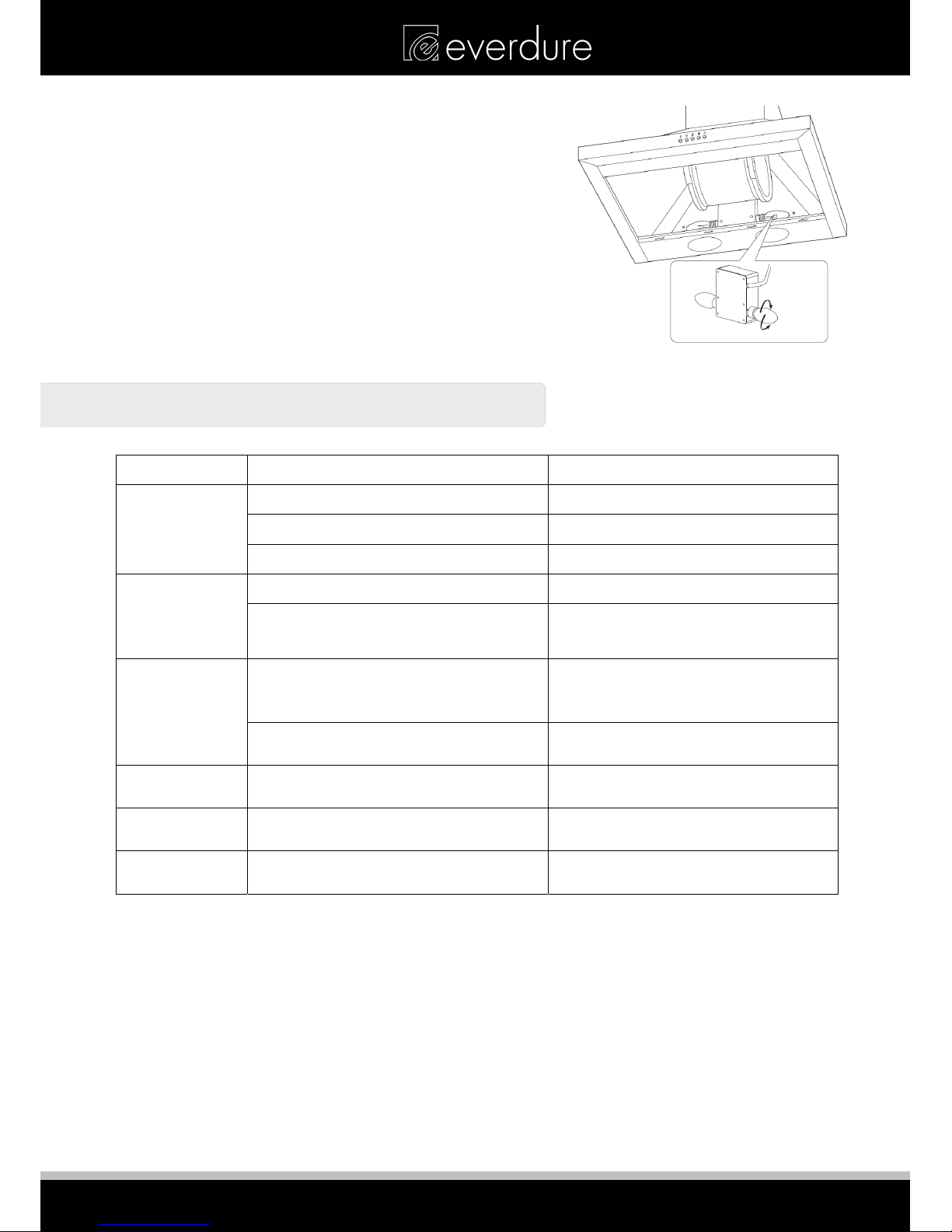

TROUBLESHOOTING
Fault Possible Cause
Solution
Light on, but
motor does
not work
Fan switch turned off
Select a fan switch position.
Fan switch failed Contact Everdure Service.
Motor failed Contact Everdure Service.
Light does not
work, motor
does not work
House fuses blown Reset
/
Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the air
ventilation entrance are not tightly
sealed
Take down the one way valve and
seal with sealant.
Leakage from the connection of U-
shaped section and cover
Take U-shaped section down and
seal.
Lights not
working
Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient
suction
The distance between the range
hood and the gas top is too far
Refit the range hood to the correct
distance.
The Range
hood inclines
The fixing screw not tight enough
Tighten the hanging screw and
make it horizontal.
NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws.
Please contact the service centre if in any doubt before undertaking any of the above.
Always disconnect the unit from the power source when opening the unit.
7
10

DESIGNED TO PERFECTION
10
11

DESIGNED TO PERFECTION
All Service and Assembly Enquiries:
1300 766 066
A division of Shriro Australia Pty Ltd
104 Vanessa St Kingsgrove NSW 2208
In Australia: 1300 355 541
In New Zealand: [phone]
www.everdure.com
IM Ref: RBES63 21/2014/02FC
FOR INDOOR USE ONLY
