Everdure RBES9012 Guide

INSTALLATION, OPERATION
& MAINTENANCE INSTRUCTIONS
FOR EVERDURE RANGEHOOD
Model:
RBES9012

EASY DECISION
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FOR EVERDURE RANGEHOOD
RBES9012
CONGRATULATIONS
Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic cooking
appliances. We are confident that you will now be able to meet your cooking needs. Before you use the
cooktop we strongly recommend that you read though the whole user manual which provides the description of
this product and the proper use of its functions. To avoid the ever-present risks involved with using an electrical
appliance it is vital that the appliance is installed correctly and that you read the safety instructions carefully to
avoid misuse and hazards.
It is important that you retain these instructions and your proof of purchase along with any other important
documents about this product for future reference. Due to continual product development, Everdure reserves
the right to alter specifications or appearances without notice.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ..........................................................................................................................1
APPLIANCE DETAILS ....................................................................................................................................................2
INSTALLATION INSTRUCTIONS................................................................................................................................ 3-5
OPERATION INSTRUCTIONS........................................................................................................................................6
TROUBLESHOOTING ...................................................................................................................................................6
CLEANING ...................................................................................................................................................................7
LEDS ............................................................................................................................................................................7
It is important that you retain these instructions, proof of purchase as well as other important
documents about this product for future reference.
Due to continual product development, Everdure reserves the right to alter specifications or
appearances without notice.
Remove all packaging and dispose responsibly – recycle where facilities are available.

1
EASY DECISION
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before
removing the contents of this carton.
1. In certain circumstances electrical appliances may be a safety hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
3. Do not check the status of the filters whilst the cooker hood is operating.
4. Do not touch the light bulbs after use.
5. Do not disconnect the appliance with wet hands.
6. Do not disconnect the power supply by pulling on the cable.
7. Do not flambé underneath the range hood.
8. Avoid free flame, as it may cause damage to the filters and can be a fire hazard.
9. Unplug the appliance before carrying out maintenance, cleaning or replacing lamps.
10. If the power cord is damaged, it must be replaced by the manufacturer, an authorised service centre or
similarly qualified persons to avoid a hazard.
11. For indoor use only.
12. It is recommended to operate the range hood prior to cooking.
13. It is recommended to leave the range hood in operation for 15 minutes after cooking is terminated in
order to completely eliminate cooking vapours and odours.
14. Turn off the range hood when not in use.
15. Do not use the range hood if it is damaged, especially the supply cord and the case.
16. Do not immerse the range hood in liquid.
17. The exhaust air must not be discharged into a flue which is used for exhausting fumes from an
appliance burning gas or other fuels (not applicable to appliances that only discharge the air back into
the room).
18. Regulations concerning the discharge of air have to be fulfilled.
19. There shall be adequate ventilation of the room when the range hood is used at the same time as
appliances burning gas of other fuels (not applicable to appliances that only discharge the air back into
the room).
20. Clean the surface of the cooker hood regularly using a cloth moistened with denatured alcohol or a
non-abrasive liquid detergent.
21. There is a fire risk if cleaning is not carried out in accordance with the instructions.
22. The 600mm units are intended for use above hobs that are 600mm wide and the 900mm units are
intended for use above hobs that are 900mm wide.
23. The range hood must be mounted at a minimum distance of 65cm above the cooking surface.
24. CAUTION: Accessible parts may become hot when used with cooking appliances.
25. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.

2
EASY DECISION
APPLIANCE DETAILS
Voltage:
220 – 240V 50Hz
Lamp Max:
2 x 1.5W LED
Rated Input Power:
193W
General Information
Before installing and operating the rangehood, carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes externally. Before installation, please ensure that
the following have been supplied and that the tools listed below are readily available.
What may be needed for Installation
Electric Drill
Duct Tape
Tape Measure
Jig Saw
Spirit Level
Ladder
Screwdrivers
Torch (If natural lighting is minimal)

3
EASY DECISION
INSTALLATION INSTRUCTIONS
•Please ensure that before installing the rangehood, all power is switched off.
•Installation must be in accordance to the local electrical authority and codes.
•This rangehood must be earthed at all times for the operators’ safety.
•The switched power outlet for the rangehood should be positioned to enable the user to turn the
power off, to enable cleaning and any maintenance required.
•The switched power outlet should be installed within 600mm from the rear of the appliance.
•Ensure that when installing the rangehood, that it is protected from any possible damage from tools
etc.
•Ducting for this appliance must be installed in accordance to the local authority.
•Ensure that the fixings used for this rangehood are suitable.
•Check the area where the rangehood is to be fitted, to ensure that it is structurally sound.
Mounting the V-Flap
If the rangehood does not have an assembled V-flap, you will need to assemble it.
1. Mount the two halves (2) to the rangehood body (6).
2. Attach the pin (3) to the flaps.
3. Attach the axle rods (4) to the rangehood body using the holes (5).
Installation of the Rangehood
If you have an outlet to the outside, your rangehood can be connected as below by means of an extraction duct
(enamel, aluminium, flexible pipe or non-flammable material with an interior diameter of 150mm).
Warning: The unit must not be connected to a power source before it is properly installed.
1. The rangehood should be mounted at a distance of 65cm – 75cm above the
cooking surface for best effect. The rangehood must not be mounted closer
than 65cm above the cooking surface. Some cooktops specify a minimum
distance that a rangehood can be mounted above them. If the distance
specified by your cooktop is greater than 65cm, the value specified by the
cooktop must be used.

4
EASY DECISION
INSTALLATION INSTRUCTIONS
2. Install the hook bracket once the installation height is determined. Install the inside
chimney bracket above the hook bracket.
3. Attach the glass canopy to the rangehood body.
4. Attach the assembled V-flap and expansion pipe the to rangehood body. Fix the
expansion pipe with cable ties.
5. Attach the rangehood to the hook bracket.
6. Install the outside chimney bracket onto the outside chimney with 2pcs ST4*8mm screws. Ensure that
the inside chimney can move inside freely. After adjusting the height, fix the body with 2 pcs ST4*30mm
safety screws. Put the two chimneys together onto the rangehood body and lead the expansion pipe to
your outlet.
7. Adjust the height of the inside chimney to a suitable height. Fix the inside chimney to the inside
chimney bracket with 2pcs ST4*8mm screws.
NOTE: The two safety vents are positioned on the back housing, with a diameter of 6mm.
NOTE: Remove all protective plastic coatings from the stainless steel surfaces before use.

5
EASY DECISION
INSTALLATION INSTRUCTIONS
The following rules must be strictly followed to obtain optimal air extraction:
•Keep expansion pipe short and straight.
•Do not reduce the size or restrict expansion pipe.
•When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
•Failure to observe these basic instructions will reduce the performance and increase noise levels of
the cooker hood.
•Any installation work must be carried out by a qualified electrician or competent person.
•Do not connect the ducting system of the hood to any existing ventilation system which is being
used for any other appliance ,such as warmer tube, gas tube , hot wind tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe
horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an
outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards and is fire
retardant.

6
EASY DECISION
OPERATION INSTRUCTIONS

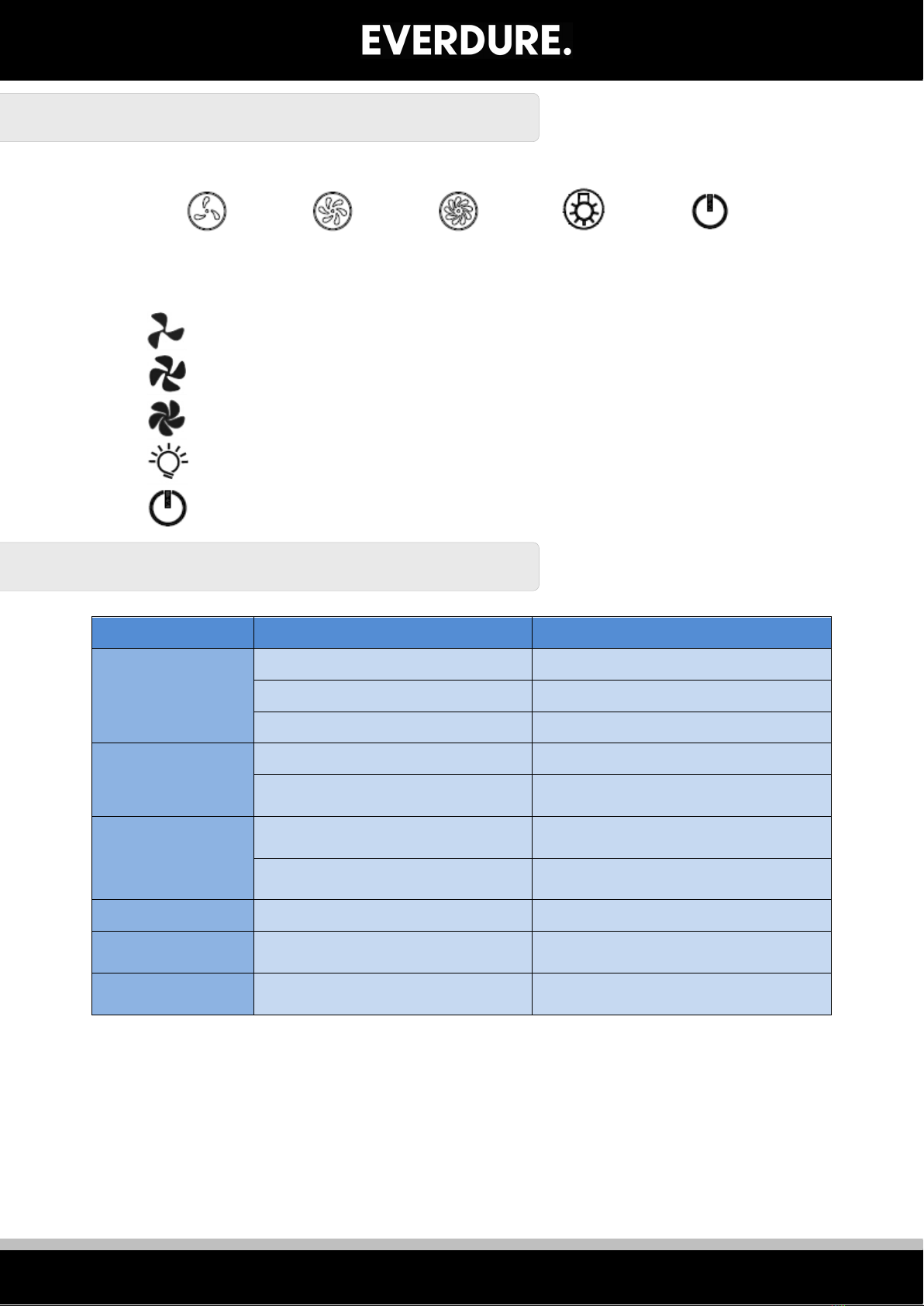

Touch Control with LED Display
To operate the rangehood, press one of the three fan buttons. The fan will start. To stop the fan, press the
same button again.
Low Fan
Medium Fan
High Fan
Light Button
Press this button to turn the light on and off.
Power Button
Press this button to turn the extractor fan on and off.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact Everdure Service.
Motor failed Contact Everdure Service.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One-way valve and the air ventilation
entrance are not tightly sealed
Take down the one-way valve and seal
with sealant.
Leakage from the connection of U-
shaped section and cover Take U-shaped section down and seal.
Lights not working Broken/Faulty LED lamp Contact Everdure Service.
Insufficient suction
The distance between the
rangehood and the gas top is too far
Refit the rangehood to the correct
distance.
The Rangehood
inclines The fixing screw not tight enough
Tighten the hanging screw and make it
horizontal.

7
EASY DECISION
CLEANING
SAFETY PRECAUTION
Before cleaning your rangehood or performing any maintenance, please ensure that the rangehood is turned
off at the power point.
Do not use abrasive cleaners to clean the rangehood. The use of warm soapy water and a cloth are
recommended.
Ensure that the rangehood is cleaned regularly, as a build-up of grease and fat may occur otherwise.
The filters on the rangehood must be cleaned regularly to maintain efficiency, and prevent grease build up. The
filter mesh is made of a high density Stainless Steel. It is recommended that this is undertaken every 4 – 6
weeks, depending on frequency of use. The filters can be cleaned with warm soapy water or a cloth.
Cleaning of the rangehood must be performed as described above; otherwise there is a possibility of a fire
hazard due to grease and fat build up.
LEDS
Warning: Make sure to switch off the unit, unplug it from the wall socket and ensure the bulb has cooled down
before attempting to replace the LED bulb.
•Remove the grease filter.
•Press the spring splinter of both sides of the LED light until the light is released (see image below).
Lightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire.
•Reverse the procedure to install the new 1.5W 12V DC MAX LED lamp.
•Replace the grease filter.

EASY DECISION
A division of Shriro Australia Pty Ltd
104 Vanessa Street, Kingsgrove NSW 2208
AUSTRALIA: 1300 355 541
www.everdure.com
NEW ZEALAND: [phone]
www.everdure.co.nz
IM Ref: RBES9012 v2 29-10-2019
FOR INDOOR USE ONLY
