EverFocus EDSR400H User manual

EDSR400H
INSTRUCTION MANUAL
Digital 4-Channel Video Recorder
About this manual
Before installing and using this unit, please read this Manual carefully.
Be sure to keep it handy for later reference.
V1.0

WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Note:
This equipment has been tested and found to comply with the limits for a Class A digital device,
The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notice:
The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are
therefore subject to change without notice.
Safety Warning
Note:
This is a class A product. In a domestic environment this product may cause radio interference
In which case the user may be required to take adequate measures.

Refer all work related to the installation of this product to qualified service
personnel or system installers.
Do not block the ventilation opening or slots on the cover.
Do not drop metallic parts through slots.This could permanently damage
the appliance. Turn the power off immediately and contact qualified service
personnel for service.
Do not attempt to disassemble the appliance.To prevent electric shock,
do not remove screws or covers. There are no user-serviceable parts
inside. Contact qualified service personnel for maintenance. Handle the
appliance with care. Do not strike or shake, as this may damage the
appliance.
Do not expose the appliance to water or moisture, nor try to operate it in
wet areas. Do take immediate action if the appliance becomes wet.
Turn the power off and refer servicing to qualified service personnel.
Moisture may damage the appliance and also cause electric shock.
Do not use strong or abrasive detergents when cleaning the appliance
body. Use a dry cloth to clean the appliance when it is dirty. When the
dirt is hard to remove,use a mild detergent and wipe gently.
Do not overload outlets and extension cords as this may result in a risk of
fire or electric shock.
Do not operate the appliance beyond its specified temperature, humidity
or power source ratings. Do not use the appliance in an extreme
environment where high temperature or high humidity exists. Use the
appliance at temperature within 0oC ~ +40oC and a humidity below 90%.
The input power source for this appliance is AC100~240V
Safety Precautions
Safety Precautions

The exclamation point within an equilateral triangle is
intended to alert the user to presence of important operating
and maintenance(servicing)instructions in the literature
accompanying the appliance.
Warning :
To prevent fire or shock hazard, do not expose units not
specifically designed for outdoor use to rain or moisture.
Safety Precautions
The lightning flash with an arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence
of uninsulated ” dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons
Attention:
Installation should be performed by qualified service personnel only
in accordance with the National Electrical Code or applicable local codes.
Power Disconnect:
Units with or without ON-OFF switches have power supplied to the unit
whenever the power code is inserted into the power source; however, the
unit is operational only when the ON-OFF switch is in the ON position.
The power cord is the main power disconnect for all units.
External Power Supplies
Use only the recommended power supplies.
Power supplies must comply with the requirement of
the latest version of IEC 60065/CNS 13439. Substitutions
may damage the unit or cause a fire or shock hazard
AC100~240V Power Cords
AC100~240V power cords
Warning:
Electrostatic-sensitive device. Use proper
CMOS/MOSFET handing precautions to avoid
electrostatic discharge.
UNPACKING
Unpack carefully.
This is electronic equipment and should be
handled carefully.
Check to ensure that the following items are included;
•1. Digital Video Recorder unit
•2. User’s manual
•3. Power Cord
•4. CF card reader
•5. Adapter
•6. HDD tray key and screws
If an item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper.
Safety Precautions
Do not place on uneven or unstable work surfaces.
Seek servicing if the casing.

Important Safeguards
Read Instruction---All the safety and operating instructions should be read before the init is operated
Retain Instructions---The safety and operating instructions should be retained for future reference.
Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to.
Follow Instructions—All operating and use instructions should be followed
Cleaning—Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning
Attachments—Do not use attachment not recommended by the product manufacturer as they may cause hazards.
Water and Moisture—Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area which is
classified as a wet location.
Servicing—Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Power Cord Protection—Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, playing particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
Object and Liquid Entry—Never push objects of any kind into this unit through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock, Never spill liquid of any kind on the unit.
Important Safeguards

Table of Contents
1. Product Overview……….…...……………………………………………………………………… 1
1.1 Feature………...…………….….…………………………………….…………..……………….……1
1.2 Specifications…………….…...………….………………….……………..……….…….…………………………………..2
2. Front & Rear Panels………...…….………………………………………..………………………..3
3. Back Panel Connections…….………...……………………………………..……………………..5
4. System Connection…....………………………...…………………………..…………….………...8
4.1 Before Installation……..………………………………………………..……………………………..…………8
4.2 Basic Connection……………………………………………………………………………………………………..…………………9
5. Installation………...………………………………………………..……………….….…………....10
6. Menu………...……………….……………………………………..…………………………………11
6.1 Clock/Language Setup Menu…………………………………………….………………………...…...……13
6.2 Title Setting Menu……………………………………………………………………………………………..14
6.3 Daylight Setting Menu…………………………….……………………………………………………………15
6.4 Timer Setting Menu………………………………………………………………………………….…………17
6.5 Normal Setting Menu…………………………………………………………………………………….……18
6.6 Alarm Record Setting Menu………………………………………………………………………………...…19
6.7 Buzzer Setting Menu…………………..………………………………….…………………………………….24
6.8 Archive Setting Menu…………………………………………………………………………..……………….25
6.9 Network Setting Menu…………………..….…………………………………………………………………..26
6.10 Sequence Setting Menu……………………………………………………………………………………….27
6.11 RS232/485 Setting Menu……………..………...…………………………………………………………….28
6.12 Motion Record Setting Menu…………………….……………………………………………………………29
6.13 System Setting Menu………………………………………………………………….……………………….31
7. Recording…...………………………………………………..………………………………………..33
7.1 Instant Recording………….…..……………………………………...…………….……………………………………... ..33
7.2 Alarm Recording………………..……………………………………………………………….………………………….. ..34
8. Playback…...……………………….……………………….…………………………………..……..36
8.1 Normal Playback……………………………………………………………………………………………………………….36
8.2 Search Playback……………………………………………………………………………………………………………….38
9. Copy………...……………………….……………………………………………………….………….41
9.1 Still Image Copy………………………………...………………………………………………………………………………41
9.2 Copy to Movie File……...…………………………………………………...…………………………………………………42

10. Interface Specifications……..………...………………………………………………………44
10.1 Transmission setting……..……………………………..………………………….…………………………………..44
10.2 Remote Control Protocol…………………………………..………………………………………………………..…45
11. Remote Controller………….…….……………………………………………………….……49
12. Appendix-A/Time Lapse Mode Recording Time…….……..…………………………..…50
12.1 Recording with and 80 GB HDD…..…………...………………….…………………………………………………..50
12.2 Recording with and 160 GB HDD…………..………………………………………………………………………….51
Table of Contents
13.View from Internet/Intranet……………………………………………………………………..52

1. Product Overview
The Digital Video Recorder is the industry’s first full-featured digital video recorder designed
specifically for use in security industry. The Digital Video Recorder incorporates all the benefits
of digital video recording, is simple to install, and operates just like a VCR. Highly efficient
compression technology and superior resolution of recorded images make the Digital Video
Recorder stand out from the competition as the best choice for security surveillance.
1.1 Features
Product Overview and Features
Easy-to-use control panel with common VCR and Multiplexer functions
Shuttle/Jog dial for picture-by-picture or fast/slow viewing
No tapes to manage, clean or replace
Instant retrieval of stored video
On-screen setup menu and system timer
Ethernet TCP/IP connectivity for remote viewing and controlling
Pre-Alarm and Post-Alarm process
Built-in M-JPEG compression/decompression with configurable quality
Programmed with various time-lapse speeds
3.5”IDE Type Hard Disks for storage with Hot-Swap tray
RS232 and RS485 for Remote Control.
Real-Time Live Display for all Cameras
Variable recording speeds up to 60/50 fps for NTSC/PAL
Alarm-activated recording
Data can be stored in CompactFlash
Audio recording capabilities
1

Specifications
2
4 camera inputs (BNC),1Vp-p/75ohmVideo Input
M-JPEGVideo Compression
0℃~+40℃Operating Temperature
320.8mm (L) x 215mm (W) x 100mm (H)Dimension
RJ11 ConnectorRS485
9-pin female connectorRS-232
YesWatch Dog Timer
Built-in real time clockTimer
Front Panel KeypadUser Input Device
Menu DrivenUser Interface
On screen display setupSetup
By Date/Time or Event/SegmentPlayback Search
Up to 60/50 fps for NTSC/PALPlayback Rate
Up to 60/50 fps for NTSC/PALRecording Rate
Continuous, Time-lapse recording, Schedule or Event RecordingRecording Mode
3.5” IDE type, Hot- swappableHard Disk Storage
YesEvent Log
RJ45 connectors for network communicationsEthernet
YesVideo Loss Detection
Full, PIP, Quad and 2x2 zoom for Live and PlaybackVideo Display
1 alarm outputsAlarm Output
4 alarm inputsAlarm Input
Yes, Built-in Compact Flash card slotCompactFlash Memory
720x484 (NTSC); 720x576 (PAL)Recording Resolution
1 BNC video out (1Vp-p/75 ohm) for Main Monitor
1 BNC video out (1Vp-p/75 ohm) for CALL Monitor
4 video out (1Vp-p/75ohm)for looping
Video Output
NTSC/PALVideo Format
1.2 Specifications
Power Consumption
Power Source
60W
AC100~240V

20 10
912
11 13 14 16
21
19
18
17
Front Panel Keypads
CH1 ~CH4:.
14
3
2. Front Panel Keypads
15
22
2
143 5 6 8
7
Press channel key (1~4) to display video image in the full screen format
, the picture of the corresponding will fill the whole screen of the monitor display.
~
SEQ :Press this key to enter the auto sequential switching mode.
7
6ZOOM: Press this key while viewing the full screen image to display a magnified resolution on the
monitor.
5MODE:
8MENU: Press this key to enter Setup menu.
STOP : Press this key to stop recording and play back.
PAUSE: Press this key to pause the playback picture.
SEARCH: Press this key to enter the Search Menu.
10
9
11
12
13
15
14
REC : Press this key to start recording.
COPY: Under PAUSE or PLAYBACK, Press this key to start copy still picture or video stream into
Compact Flash card.
REV. PLAY : Reverse Play Back.
PLAY: Play Back.
KEY

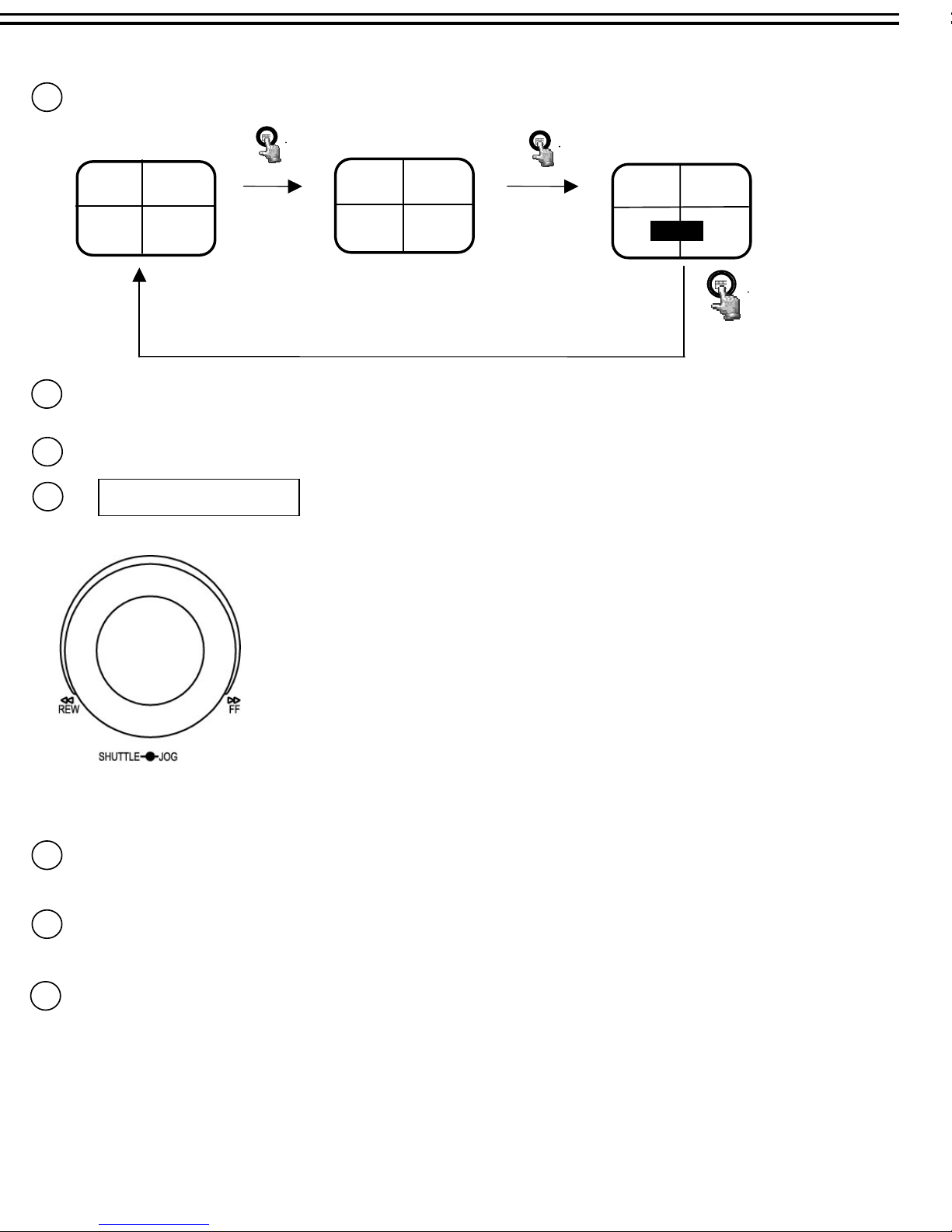

Switch PIP/Quad.

Display: Press this key to switch ON/OFF.
16
Display OFF Display Date/Time and titles
Shuttle and Jog Dial
Shuttle : In Playback mode, turn the shuttle dial can fast
forward/rewind the picture.
In Pause mode, turn the shuttle dial can slow forward/rewind
the picture.
Jog Dial :
19
In Pause mode, turn the jog dial can forward/rewind the
Picture.
In Menu mode turn the jog dial to change setting Menu page.
17
18
20
21
22
Compact Flash Card Slot: Insert a Compact Flash Card.
Hard Disk Tray: Hard Disk holder for HDD.
LEDs: LEDs for system active power ,LAN and ALARM access.
Remote Control: IR Remote receiver
HDD KEY: Protect HDD without steal and Turn on HDD power
2003/04/22
10:41:00
Disk:120 GB(0)
4
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
2003/04/22
10:42:00
LIVE: 60IPS
DISK:80G

Back Panel Connections
Audio IN : Audio input for recording.
Audio OUT : Audio output can be set to “ON” or “OFF” in Setup Menu.
When in recording or standby mode,
the out of SW1 is connected to Audio IN.
Playback Audio
When in playback mode the out of SW1 is
connected to SW2 Audio.
When Playback Audio is enabled then the output
of SW2 will be connected to Playback Audio.
When Playback Audio is disabled then there is no
audio output (MUTE).
When Audio Out is enabled and machine is in Recording or Standby mode, the Audio IN is loop-through to Audio Out
connector.
When Audio Out is enabled and machine is in Playback mode then the Audio Out playback audio.
AUDIO
5247 9
1
2
Operation of SW1 : Operation of SW2 :
Audio IN
Audio OUT
OFF / Mute SW1
SW2
A
( Internal circuit )
5
3. Back Panel Connections
6
1
10 38
Main Power plug: Connect the DC12~24V power source to Adapter for AC100~240V.
POWER

VIDEO IN (1~4): The BNC connectors of video input enables the system to receive the signals from
each camera through the 75 ohm coaxial cables.
VIDEO IN /Output
VIDEO OUT(1~4) : Connect the other devices with four cameras to the other devices.
MAIN MONITOR : This connector is used for the Main monitor display, A number of different
display modes may be selected for viewing.
MAIN
MONITOR MONITOR OUT
INTERNAL
VIDEO
SW3
A
When the machine is in Menu, Search or Copy mode, the internal Video is switched to Monitor Out, so that the user
can view full screen OSD. In other modes, the Video from multiplexer main monitor will be loop-through to the Monitor
Out.
MONITOR
3
5
Back Panel Connections
6
( Internal circuit )
4CALL MONITOR : This connector is used for the Call(secondary) monitor. This monitor can only
display full screen.
ALM-OUTPUT : Normal Close Alarm output. In normal condition, this terminal is
shorted to the terminal of ALM-COM. In alarm status, it is open
between ALM-NC and ALM-COM terminals.
ALM-INPUT : Normal Open or Normal Close type alarm sensor input.
The Alarm Input can be selected as Normal Open or Normal Close input in the setup
menu. When an alarm occurs, alarm recording will automatically start.
Alarm Input/ Output
6Alarm Input

LAN Connector : The RJ-45 LAN connector.
LAN
7
RS232
RS232 connector : Connect D-Sub 9 pins connector to RS232 ports for remote control
8
Back Panel Connections
7
RS485
RS485 connector : RJ 45 Connector to Cascade multi Digital Video Recorder.
9
10 FAN: Cooling FAN.

CALL Monitor
System Connection
8
4. System Connection
The installations described below should be made by qualified service personnel or system installers.
4.1 Before Installation
Please refer to the following diagram for the system connections.
Camera 1~4
Audio Output
Speaker
Main Monitor
Ethernet
RS232
Alarm In/Out
Note: Monitor and Camera must be purchased separately.
RS485

System Connection
9
Speaker
Connect the speaker or other audio devices.
Ethernet
Digital Video Recorder is enabled control form the PC via Ethernet. Connect the LAN connector to a standard
RJ45 connector
Ethernet cable.
RS232/RS485
Digital Video Recorder is enabled control from the PC via RS232/RS485
Main/Call Monitor
Connect the Main/Call monitor output connector to a Main/Call monitor. The Main/Call monitor displays
selected live or recorded cameras in any available format.
Power
Connect the power source or adapter into the power socket.
Cameras
Connect each camera video input connector to the video output from a camera or other composite video source.
At least one camera must be connected before the system is running for the auto detection of video standard to
take effect.
Audio In/Out:
The camera audio In/output is connected to the audio input terminal at the rear panel.
4.2 Basic Connections

INSTALLATION
10
(1) Insert a HDD (IDE) for Video Storage
(2) Connect cable for video/audio input and video/audio out,
The detail connection is described in SYSTEM CONNECTION.
(3) Switch Power On
The POWER LED lights if power is normal.
(4) Press MENU key to enter SET UP MENU.
Once inside the main menu you will find there are
13 set up pages as below:
MENU
(5) Turn the Jog dial clockwise or counterclockwise to change set up page.
1. CLOCK/LANGUAGE SETTING MENU
2. TITLE SETTING MENU
3. DAYLIGHT SAVING SETTING MENU
4. TIMER SETTING MENU
5. NORMAL RECORD SETTING MENU
6. ALARM RECORD SETTING MENU
7. BUZZER SETTING MENU
8. ARCHIVE SETTING MENU
9. NETWORK SETTING MENU
10. SEQUENCE SETTING MENU
11. RS232/RS485 SETTING
12. MOTION RECORD SETTING MENU
13. SYSTEM SETTING MENU
5. Installation
Insert a HDD(IDE) for Video Storage
The HDD should be set as MASTER.
(Normally the default setting of HDD is Master)
Note: After hard disk case is inserted into the hard disk tray, be sure to turn the tray key in lock position.
Otherwise, HDD will not be detected.

MENU
6. MENU FLOW
DAYLIGHT SAVING
SETTING MENU
( See page 15 )
TITLE SETTING MENU
( See page 14 )
CLOCK/LANGUAGE
SETTING MENU
( See page 13 )
Turn the Jog dial clockwise or counterclockwise to change
setting menu page.
11
: 2003/07/04 FRI
: 13:01:02
CLOCK/LANGUAGE SETTING MENU
DATE
TIME
MENU LANGUAGE
VIDEO SYSTEM
: ENGLISH
: NTSC
TITLE SETTING MENU
VERSION: 1.00, 07/04/2003
CH1:_ _ _ _ _ _ _ _ _ _ _ _
CH2:_ _ _ _ _ _ _ _ _ _ _ _
CH3:_ _ _ _ _ _ _ _ _ _ _ _
CH4:_ _ _ _ _ _ _ _ _ _ _ _
DAYLIGHT SETTING MENU
DAYLIGHT SAVING: OFF
START TIME:
FIRST SUN
IN MARCH
CHANGE FROM 03:00
TO 04:00
STOP TIME:
FIRST SUN
IN APRIL
CHANGE FROM 04:00
TO 03:00
TIMER
SETTING MENU
( See page 17 )
TIMER SETTING MENU
WEEK START STOP SPEED QUALITY SET
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
SUN 00:00 23:59 60 IPS STANDARD OFF
BUZZER
SETTING MENU
( See page 24 )
BUZZER SET SETTING MENU
BUZZER
ALARM –IN
RECORD -IN
DISK FULL
VIDEO LOSS
TIMER
: DISABLE
: ON
: ON
: ON
: ON
: OFF
NORMAL RECORD SETTING MENU
SPEED
QUALITY
DISK FULL
NORMAL RECORD
SETTING MENU
( See page 18 )
: 60 IPS
: STANDARD
: REWRITE
ALARM RECORD
SETTING MENU
( See page 19 )
ALARM RECORD SETTING MENU
: OFF
: 60 IPS
: STANDARD
: N.O.
: N.O.
: N.O.
:N.O.
: N.O.
: 05 SECS
: ON
: 60 IPS
ALARM OPERATION
RECORDING SPEED
RECORDING QUALITY
ALARM – 1 TYPE
ALARM- 2 TYPE
ALARM- 3 TYPE
ALARM- 4 TYPE
ALARM -RESET TYPE
ALARM DURATION TIME
PRE-ALARM OPERATION
RECORDING SPEED
PICTURE SIZE
TIME STAMP
TIME STAMP POS
WATER MARK
WATER MARK POS
ARCHIVE SETTING
MENU
( See page 25 )
ARCHIVE SETTING MENU
: 720 X 480
: ON
: TOP
: ON
: TOP
IP ADDRESS
NET MASK ADDRESS
GATEWAY ADDRESS
USER-MANE PASSWORD LEVEL
GUEST GUEST GUEST
GENERAL GENERAL GENERAL
ADMIN ADMIN SUPER
NETWORK SETTING MENU
( See page 26 )
NETWORK SETTING MENU
:192.168.010.005
:255.255.255.000
:192.168.010.001
SEQUENCE SETTING MENU
MAIN MONITOR
DWELL TIME: 03 SECS
SEQ WITH QUAD: YES
CALL MONITOR
DWELL TIME: 03 SECS
OPERATION: CH1
SEQUENCE SETTING MENU
( See page 27 )
RS232/RS485
SETTING MENU
( See page 28 )
RS232 BAUD RATE
RS232 STOP BIT
RS232 PARITY
RS232 DATA BIT
RS485 BAUD RATE
RS485 STOP BIT
RS485 PARITY
RS485 DATA BIT
RS232/RS485 ID
: 9600 BPS
: 1
: NONE
: 8
: 9600 BPS
: 1
: NONE
: 8
: 001
RS232/RS485 SETTING MENU

ON
NO
NO
NO
NO
123456
SYSTEM SETTING MENU
( See page 31 )
SYSTEM SETTING MENU
:
:
:
:
:
:
PLAY WITH AUDIO
DISK RENEW
SYSTEM UPDATE
LOAD DEFAULT
PASSWORD INABLE
PASSWORD
MOTION RECORD SETTING MENU
MOTION RECORD
SETTING MENU
( See page 29 )
RECORDING SPEED
RECORDING QUALITY
CH OP SEN
1 OFF STANDARD
2 OFF STANDARD
3 OFF STANDARD
4 OFF STANDARD
: 60 IPS
: STANDARD
MANUAL EDIT: CH1
12

MENU
13
In CLOCK/LANGUAGE SETTING MENU , we define:
(1) DATE : Current date
Year: 2000 ~ 2099 Month: 01~ 12 Date: 01~31 Week: Sunday~Saturday
(2) TIME : Current time
Hour: 00 ~ 23 Minute : 00 ~ 59 Second: 00 ~ 59
(3) MENU LANGUAGE:
ENGLISH
(4) VIDEO SYSTEM:
Factory default setting depend on machine “NTSC” or “PAL” .
(5) VERSION:
Current /Revision and Release Date.
CLOCK/LANGUAGE SETTING MENU
DATE
TIME
MENU LANGUAGE
VIDEO SYSTEM
: 2003/07/04 FRI
: 13:01:02
: ENGLISH
: NTSC
: Press or to move the cursor to the left or right.
: Press or to change the value.
6.1 CLOCK/ LANGUAGE SETTING MENU
VERSION: 1.00, 07/04/2003
