CHAPTER 1 PRODUCT OVERVIEW
2
Parts List
Please be careful when you unpack the box due to the electronics devices inside. Check
and make sure that you have all the items below inside the original box:
¾1 125kHz Proximity Reader
¾1 User manual
¾2 ST4*20 self-tapping panhead screws
¾2 M4*20 screws
¾1 L-type Spanner
If an item appears to have been damaged in shipment, replace it properly in its carton
and notify the shipper. If any items are missing, notify your Everfocus Electronics
Corp. Sales Representative or Customer Service. The shipping carton is the safest
container in which the unit may be transported. Save it for possible future use.
In addition, EverAccess recommends the following parts, to be provided by the
installer:
¾9 Wire Splice
¾1 DC Power Supply, 6.5-18VDC, 150mA
¾Up to 500 ft. Cable, 22AWG, 5 Conductor

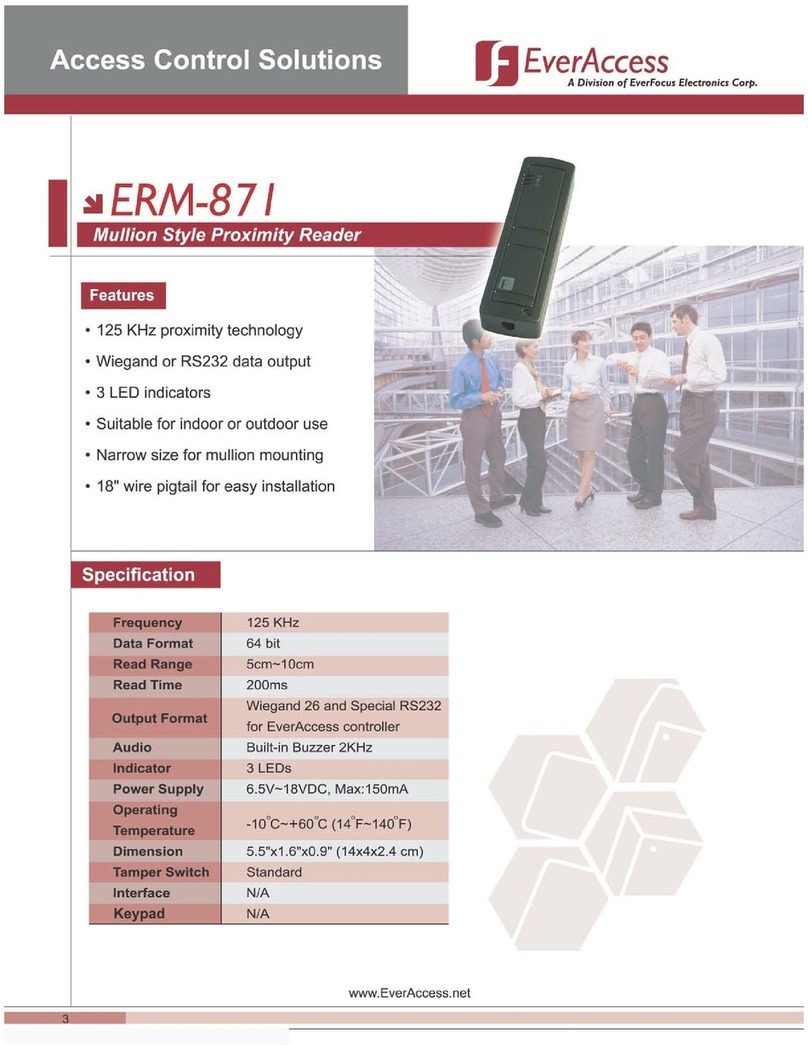

Specifications
Regular reader Keypad reader Mullion reader
Frequency 125 KHz
Data format 64 bit
Read range 5-12cm (2-4.7”) 5-12cm (2-4.7”) 5-10cm (2-3.9”)
Read time 200 ms
Output format Wiegand 26 and Special RS232 format for EverAccess controller
Audio Built-in Buzzer, 2 kHz
Indicator
3 LEDs:
Red: Power
Green: Card Present
Yellow: Outer Source
Power supply 6.5V-18V DC, Max:150mA
Operation
temperature
14°F-0°F (-10°-60°C)
Dimension 4.85”x3.03”x0.76”
(12.3x7.7x1.9cm)
4.85”x3.03”x0.85”
(12.3x7.7x2.1cm)
5.52”x1.58”x0.95”
(14.0x4.0x2.4cm)
Transition distance 500 ft.
Tamper switch Yes, Normally Closed
Keypad N/A 4*4 N/A
