Evervox EV-7010MWHD User manual

Pairing Switch
GND
DC:12-24V
GND
DC:12-24V

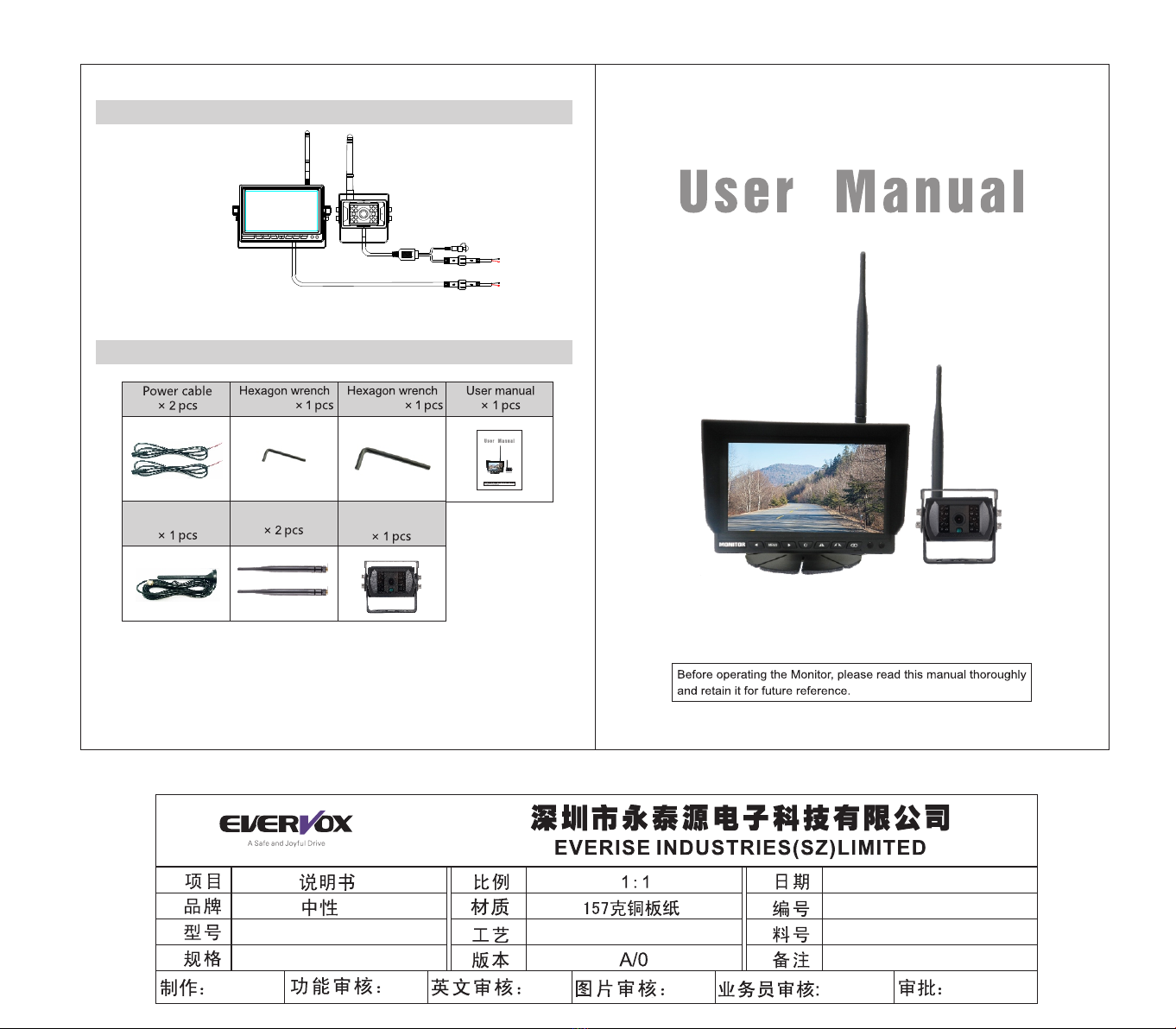

3.Connection Introduction
4
2019.03.11
颜冰
黑白刷
EV-7010MWHD
105*140mm
WITE/04/05-445
PAC-20701000-025
4.Accessories
1. Camera pairing switch
2. Camera power supply: DC12-24V input
3. Monitor power supply: DC12-24V input
2.4G wireless
backup camera
2.4G antenna
2.4G antenna with
3 meters extension
cable
for camera for monitor

Attention......................................................................... 1
Accessories....................................................................
Function And Parameter Introduction..............................
Product Introduction.......................................................
1.Function And Parameter Introduction
1. LCD: 7 inch high definition IPS panel
2. Screen ratio: 16: 9
3. Resolution: 1024*RGB*600
4. Panel Button: 7 mechanical keys
5. Wireless video input: 1CH
6. Using digital wireless encryption technology to code connection,
strong anti-interference ability
7. 2.4G Wireless transmission distance up to 150m in open area
8. Power supply: DC12V~24V
9. Power consumption: 3W
10.Working temperature: -20℃~7 5℃
11.Storage temperature: -30℃~80℃
12.Size: 180* 121* 24mm
Monitor
1. CMOS: 1/3" sensor
2. Resolution: 1280*720,1 million pixels
3. Viewing angle: 100 degrees
4. Night vision distance: about 6 meters
Camera
Attention
For your safety, Do not watch video or set monitor while driving.
Non-professional please do not disassemble the product at will,
please consult the after-sales service organization when the product
malfunctions, or send it to the local maintenance department for
inspection and repair.
Warning
When installing this product, please install it in the position permitted
by laws and regulations, and we shall not be responsible for the liability
caused by the illegal installation of the product.
Tips
In cold weather, the product may appear dark screen phenomenon
when startup. Which will heat up slowly and return to normal with the
increase of temperature.
Connection Introduction.................................................
1-2
2-3
4
4

2.Product Introduction
1. 2.4G antenna
2. LCD screen
3. LOGO
4. Brightness Decrease: Reduce the
brightness value of the display screen
5. MENU: open or exit the menu
6. Brightness increase: Increase the
brightness value of the display screen
7. Power key
8. Flip set: Turn Up/Down/Left /Right
9. Parking guide line
10.Pairing button 3 4 5 6 7 8 9 10
2
1
Monitor Introduction
Camera Introduction
1. 2.4G antenna
2. Night vision infrared light
3. Night vision sensor
4. U-shaped bracket and sun shade
1
2
4
3
Menu Setting
Press the “MENU” key on the panel, can open the option of the
“contrast”, “saturation” and “brightness” in menu, press “ ▶ ” or
“ ◀ ” to set the “contrast”, “saturation” and “brightness” of the
camera, pictures below:
Flip Setting
Press “ ” , set UP Down Left and Right quickly
Parking Guide Line
Press “ ”, set it ON/OFF, picture below:
Camera Pairing
Press and hold “ ”on monitor and the camera pairing button to
pair the wireless rear view system. It will show a text “Successfully
Pairing” in about 2-5 seconds, or will show “Pair fail” means failure
to pair, needs pair again, picture below:
5. Waterproof rating: IP69
6. 2.4G Wireless transmission distance up to 150m in open area
7. Power supply: DC12V～24V
8. Power consumption: 3W
9. Working temperature: -20℃~60℃
9. Storage temperature: -10℃~70℃
10.Size: 86.5* 74.5* 77mm

FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
