Evikon E2610-VOC User manual

Solvent Vapor Detector
E2610-VOC
User Manual

E2610-VOC Rev 24.03.2021
Table of contents
Acetone 3
Benzene 4
Ethanol 5
Ethyl acetate 6
Toluene 7
Xylene 8
Specifications 9
Product description 10
Safety requirements 10
Operating conditions 10
Installation guidelines 11
Connections 12
Operation 14
Maintenance 14
Calibration 14
Delivery set 15
Order code for E2610-VOC options 15
Warranty 16
Manufacturer contacts 16
2

E2610-VOC Rev 24.03.2021
Acetone
A colorless organic solvent with a characteristic pungent odor that is volatile and
flammable with the chemical formula (CH3)2CO.
Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone.
Chemical formula
(CH3)2CO
Molar weight
58
Relative gas density (to air)
2.0
Conversion*
1 ppm = 2.38 mg/m3
Boiling point
56.11 °C
Low explosive limit (LEL), % vol. in air
2.5
Upper explosive limit (UEL), % vol. in air
12.8
Odor
Characteristic pungent smell
Hazards
Highly flammable.
Slightly toxic in normal use. Irritant causing mild skin
irritation and moderate to severe eye irritation. At high
vapor concentrations, it may depress the CNS.
Exposure limits
8 hours
(2000/39/EC)
1900 mg/m3/ 500 ppm
NIOSH REL TWA
590 mg/m3/250 ppm
IDLH (NIOSH)
2500 ppm [10%LEL]
3

E2610-VOC Rev 24.03.2021
Benzene
A colorless liquid with an aromatic odor that is highly flammable with the molecular
formula C6H6.
Synonyms/Trade Names: Benzol, Phenyl hydride.
Chemical formula
C6H6
Molar weight
78
Relative gas density (to air)
2.69
Conversion*
1 ppm = 3.19 mg/m3
Boiling point
80 °C
Low explosive limit (LEL), % vol. in air
1.2
Upper explosive limit (UEL), % vol. in air
7.8
Odor
Hyacinth-like odor
Hazards
Highly flammable.
Irritant. Carcinogen.
May cause dizziness; headache, nausea, staggering
gait; anorexia, lassitude.
Target organs: eyes, skin, respiratory system, blood,
central nervous system, bone marrow.
Exposure limits
(NIOSH REL)
Ca TWA
0.319 mg/m3/0.1 ppm
STEL
15 minutes
1 ppm
Ca IDLH
500 ppm
4

E2610-VOC Rev 24.03.2021
Ethanol
A clear colorless liquid with a faintly sweet odor and pungent taste.
Synonyms/Trade Names: ethyl, alcohol.
Chemical formula
CH3CH2OH
Molar weight
46
Relative gas density (to air)
1,59
Conversion*
1 ppm = 1.89 mg/m3
Boiling point
78.37°C
Low explosive limit (LEL), % vol. in air
3 - 3.3
Upper explosive limit (UEL), % vol. in air
19
Odor
The characteristic smell of alcohol
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation of vapors leads to cough, headache, fatigue,
and drowsiness. High concentrations may damage the
fetus. Repeated high exposure may affect the liver and
the nervous system.
Exposure limits
according to
Commission
Directive 2006/15/EC
TWA
8 hours
1210 mg/m3/ 1000 ppm
STEL
15 minutes
-
5

E2610-VOC Rev 24.03.2021
Ethyl acetate
A colorless organic compound with a sweet pear-like smell that is highly flammable.
Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc.
Chemical formula
C4H8O2
Molar weight
88
Conversion*
1 ppm = 3.60 mg/m3
Boiling point
77.1 °C
Low explosive limit (LEL), % vol.
in air
2
Upper explosive limit (UEL), %
vol. in air
11.5
Odor
Sweet “pear” smell
Hazards
Flammable.
Short-term exposure to high levels of ethyl acetate results first in
irritation of the eyes, nose, and throat, followed by headache,
nausea, vomiting, sleepiness, and unconsciousness.
Exposure limits
(NIOSH)
TWA
8 hours
1400 mg/m3/400 ppm
IDLH
2000 ppm [10%LEL]
6

E2610-VOC Rev 24.03.2021
Toluene
A clear, colorless liquid with a sweet smell that is highly flammable.
Synonyms/Trade Names: methylbenzene, phenylmethane.
Chemical formula
C6H5CH3
Molar weight
92
Conversion*
1 ppm = 3.77 mg/m3
Boiling point
110.7°C
Low explosive limit (LEL), % vol.
in air
1.1 - 1.27
Upper explosive limit (UEL), %
vol. in air
6.75–7.1
Odor
Characteristic “chemical” smell
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation possible effects: irritation eyes, nose; lassitude
(weakness, exhaustion), confusion, euphoria, dizziness,
headache; dilated pupils, lacrimation (discharge of tears); anxiety,
muscle fatigue, insomnia; paraesthesia; dermatitis; liver, kidney
damage
Exposure limits
according to
Commission
Directive
2006/15/EC
TWA
192 mg/mm3/ 50 ppm
STEL
384 mg/mm3/ 100 ppm
7

E2610-VOC Rev 24.03.2021
Xylene
A colorless, flammable liquid with a chemical smell. Xylenes are produced by the
methylation of toluene and benzene.
The term is used for any of three isomers of dimethylbenzene, or a combination thereof.
Synonyms/Trade Names: xylol, dimethylbenzene.
Chemical formula
C6H4(CH3)2
Isomers
ortho-xylene meta-xylene para-xylene
Molar weight
106
Conversion*
1 ppm = 4.34 mg/m3
Boiling point
144.4 °C
139 °C
138.35 °C
Low explosive limit (LEL), % vol.
in air
0.9 - 1.1
Upper explosive limit (UEL), % vol.
in air
6.0–7.0
Odor
Characteristic “chemical” smell
Hazards
Flammable.
Inhaling can cause dizziness, headache, drowsiness, and nausea.
Exposure limits
according to
Commission
Directive
2000/39/EC
TWA
8 hours
221 mg/mm3/ 50 ppm
STEL
15 minutes
442 mg/mm3/ 100 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
8

E2610-VOC Rev 24.03.2021
Specifications
Detected gas
Acetone, Benzene, Ethanol, Ethyl Acetate, Toluene, Xylenes, etc
Default calibration
Toluene
Sensor type
Metal oxide semiconductor
Sampling method
Diffusion
Detection range
0...100% LEL
0...500 ppm
Alarm setpoints
(release-LOW-HIGH)
7 - 10 - 25 %LEL
70 - 100 - 300 ppm
Resolution / digital unit
0.1% LEL
1 ppm
Response time
<120 seconds
Sensor lifetime
> 5 years
Calibration interval
12 months
Power supply
24 VAC/DC or 90...265 VAC
Power consumption
< 2 VA
Digital interface
UART
Relay outputs
2 × SPDT, max 5 A, 30 VDC / 250 VAC
Alarm
Buzzer 85 dB
Enclosure
ABS plastic with ventilation slots, wall-mount, protection class IP20
Dimensions
H85 × W85 × D37 mm
CE marking
According to 2014/30/EU and 2014/35/EU, EN 50491-4-1:2012
EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity)
EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014
Operating conditions
-40...+70 °C, <95% RH without condensation, 0,9...1,1 atm
Explosion-safe areas, Normal ambient oxygen level
Avoid strong mechanical shock, vibrations, or EMI Avoid exposure to
corrosive gases.
9

E2610-VOC Rev 24.03.2021
Product description
E2610 series gas detectors are compact and easy-to-use instruments. The devices utilize
novel fully calibrated and temperature compensated gas sensors with excellent
repeatability, stability, and long lifetime.
Two relays with switch-over contact may be used for remote signaling or ventilation
control. Flashing LED and an internal buzzer give alarms at two setpoints.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the connections section. The device might not
perform correctly or be damaged if the wrong power supply is connected.
External circuits connected to the equipment should have sufficient insulation rating
according to the environmental conditions and equipment power.
A disconnecting device that is marked as such and easily accessible should be included in
the installation of this product.
Operating conditions
The device should be used both in a non-hazardous indoor area and in a basic
electromagnetic environment, where the latter is defined in EN 61326-1. Avoid strong
mechanical shock and vibrations. Avoid corrosive atmosphere and areas highly
contaminated with dust, oil mist, etc. Keep the instrument away from direct sunlight. A
sudden temperature or humidity change might affect the sensitivity of the sensor.
10

E2610-VOC Rev 24.03.2021
Installation guidelines
There are no precise rules or standards to follow when installing gas detectors. The
following points must be taken into account:
●Application (the instrument is intended for leakage control.)
●Properties of the space under investigation (room geometry, direction, and
velocity of airflows, etc.),
●Solvent vapors are heavier than air and tend to sink. Consider, if the vapors are
heated or not if the detector is used for fire safety (LEL range) or air quality control
(0...100 to 0...1000 ppm range), etc.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. however,
the coverage area for a detector is usually between 2.5 to 5 meters radius.
For early leakage detection install the sensor as close as possible to the potential leakage
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other
points listed above.
For general area monitoring without definite leakage sources, the detector should be
distributed evenly in the room.
Do not locate the detector close to ventilation openings and strong air currents. Avoid the
areas without air circulation (corners, niches) as well.
For personal safety control, the detectors are installed in the breathing zone (at the height
of the head of people or animals). The recommended sensor position is vertical, pointing
downwards.
11

E2610-VOC Rev 24.03.2021
Connections
1. Detach the base of the enclosure by gently pulling along four guiding pins.

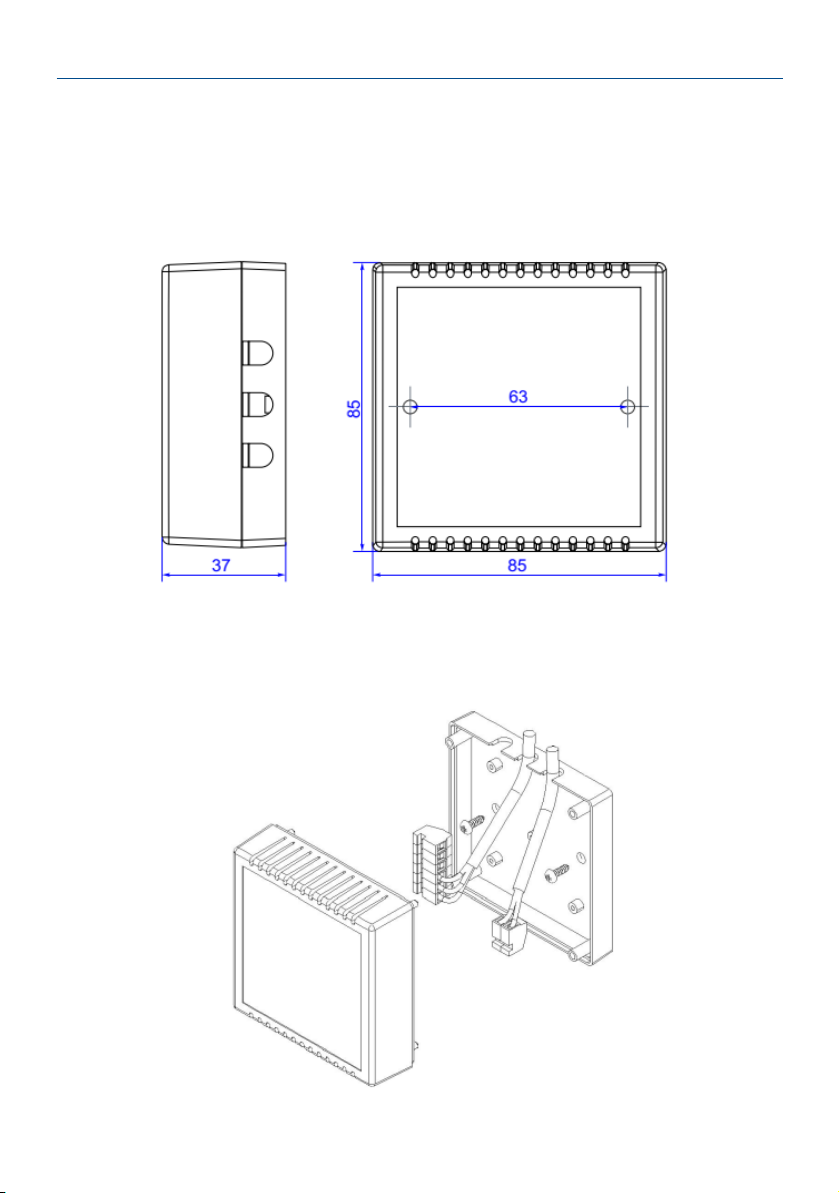

2. Attach the base to the wall with two screws. (see drawings below).
3. Use rounded cutouts on the side of the base to let in the cables from the power supply
and of the external devices as shown below.
12

E2610-VOC Rev 24.03.2021
For easier connection, terminal blocks of E2610 series devices are removable. To dismount
the terminal block, pull it off from the PCB. Connect the power terminals N and L to the 24
V power source if you are using detector version -24 or to 230 V AC mains if you are using
detector version -230 (see diagram below).
The terminals on the E2610 series devices are suitable for a wide range of wires with
cross-section 0,2...1,5 mm2. We recommend to strip the wire end by 5...6 mm and tin it, or
to use the wire end sleeves. To connect the wire, loosen the screw, insert the wire end into
the terminal hole and tighten the screw.
Connect external devices. Relay switch-over outputs may be used to control directly 24 V or
230 V (for versions -24 and -230 respectively) powered alarm sirens, ventilation fans,
shut-off valves, or other actuators. Attach terminal blocks to the board.
4. Push enclosure to the base.
13

E2610-VOC Rev 24.03.2021
Operation
Turn on the power. During the first ca.60 seconds after powering on E2610 performs a
warming-up and self-diagnostic routine, indicated by the flashing of each LED. The upper
dual-color LED remains continuously green in normal operation and blinks red in case of
device or sensor fault.
The warm-up time depends on the sensor type, unpowered period, and atmosphere. During
the first 30 seconds after powering on you may select the automatic or manual mode of
alarm release. By shortly (< 2 s) pressing the button on the device’s front panel you enable
the automatic mode, by pressing the button for 2...10 s — manual mode. The activation of
the automatic mode is followed by a single LED blinking and acoustic signal. If manual
mode is activated, the double acoustic and light signal follows.
If the gas concentration exceeds the LOW alarm setpoint, the bottom red LED starts
flashing at a rate of 1 Hz, and the relay RE1 switches over. The first alarm stops
automatically if the gas concentration drops below 70% of the LOW alarm setpoint.
If the gas level exceeds the HIGH alarm setpoint, the bottom red LED starts flashing and
the buzzer starts beeping at a rate of 2 Hz, and also the relay RE2 switches over.
Depending on the selected release mode, the HIGH alarm stops automatically or can be
stopped by pressing the button, on the condition that the gas level has dropped below 70%
of the LOW alarm setpoint.
Beyond the warm-up period, holding down the button for 2...10 seconds and releasing
causes E2610 to reset and perform the self-diagnostic routine for testing purposes. When
holding the button down for over 10 seconds, E2610 imitates the reaching of the HIGH
setpoint with the respective light and sound indication and switching over the relays.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not
immerse the device in water or any cleaning media.
Calibration
E2610-VOC detectors have been calibrated by the Manufacturer with standard gas
mixtures before delivery. Provided that the sensor is used under moderate conditions, field
recalibration is recommended every 12 months Please contact your dealer for more
information.
14

E2610-VOC Rev 24.03.2021
Delivery set
●Solvent Vapors Detector E2610-VOC
●Mounting accessories:
○2 screws and 2 plastic dowel plugs
Order code for E2610-VOC options
E2610 options
Order code
Integrated 90...265 V mains power supply module
E2610-VOC-230
Integrated 24 VAC power supply module
E2610-VOC-24VAC
15

E2610-VOC Rev 24.03.2021
Warranty
This product is warranted to be free from defects in material and workmanship for a period
of one year from the date of the original sale. During this warranty period, the Manufacturer
will, at its option, either repair or replace a product that proves to be defective. This
warranty is void if the product has been operated in conditions outside ranges specified by
the Manufacturer or damaged by customer error or negligence or if there has been an
unauthorized modification.
Manufacturer contacts
Evikon MCI OÜ
Teaduspargi 7/9, Tartu
50411 Estonia
[email protected]
www.evikon.eu
16
