evoheat FORCE Series User manual

2 3
CHAPTER 1: Installation
Chapter 1 deals with installation of your Evoheat pool heater
and is predominately for use by your installer/
technician. Evo recommends however that owners make
themselves familiar with this chapter.
CHAPTER 2: Operation
Chapter 2 covers operation of your Evoheat pool heater
including basic and advanced operation modes and
maintenance/ troubleshooting.
Please take the time to read this manual thoroughly.
Failure to do so can void customer warranty, cause possible
damage to your heater, and may cause a loss of
heater efciency.

4 5
Table of Contents
1. General information 4
1.1 Introduction 4
1.2 Consumer and Safety Information 4
1.3 Energy Saving Tips 4
2. Specications 5
2.2 Dimensions 6
CHAPTER 1 Installation 8
1. Air Flow 8
2. Water Flow 8
3. Electrical Connection 9
4. Heater Condition 9
3. General Installation Information 9
3.1 Inspection 9
3.2 Location 10
3.3 Clearances 11
3.4 Water Flow and Plumbing Setup 11
3.5 Water Pump Connection 12
Installation Options 12
1. Slave Mode 12
2. Seperate Systems 12
3. EVO JBox 13
3.6 Drainage 13
3.7 Electrical Connection 14
3.8 Remote Controller Connection 15
Table of Contents
CHAPTER 2 Operation 16
Display Explanation 16
1. Controller Operation 16
Control Panel Explanation 16
Operation Instructions 17
a) On-off Operation 17
b) Mode Selection 18
d) Keyboard Lock and Unlock 19
e) Clock Setting 20
f) Timer On and Off Setting 21
g) Parameter Setting 24
2. PCB I/O Ports Description 28
3. Parameter 28
Parameter Table 28
Description of the Parameters 30
MAINTENANCE AND TROUBLESHOOTING 35
4.1 Maintenance 35
4.2 Troubleshooting 35
Troubleshooting Guide 36
Appendix Temp Sensor Probes 37
Appendix A – Wiring Diagrams 38
Appendix B – Technical Data 41
EVOHEAT Warranty 46
Warranty Registration 47

6 7
1. General information
1.1 Introduction
This manual provides installation and operation instructions for EVOHEAT heat pumps. Read
these installation and operation instructions carefully before proceeding with the installation
and operation of your heater. Consult your EVOHEAT Distributor with any questions regarding
this equipment.
Installation and service must be performed by a qualied installer. The manufacturer will not
be responsible for any damage to the unit or injury caused by improper installation, operation
or maintenance.
1.2 Consumer and Safety Information
a. Evo recommends 27°C as the optimum water temperature for swimming.
b. The consumption of alcohol or drugs before or during spa or pool use can cause
drowsiness which could lead to unconsciousness and subsequent risk of drowning.
c. Immersion in water exceeding 38°C during pregnancy is not recommended.
d. The water temperature should always be checked with an accurate thermometer before
entering a spa or hot tub.
e. Persons with a medical history of heart disease, diabetes, circulatory or blood pressure
problems should consult their physician before using a hot tub or spa.
f. Persons taking any medication or drugs which induce drowsiness (e.g., tranquilizers,
antihistamines, or anticoagulants) should not use spas or hot tubs.
g. Prolonged immersion in hot water can induce hyperthermia.
1.3 Energy Saving Tips
It is important to note that a heat pump will not heat a pool as fast as a large gas pool heater.
If the pool water is allowed to cool signicantly, it may take several days to return to the
desired swimming temperature. For weekend use, it is more economical to maintain the pool
water temperature at or near your desired swimming temperature. If you do not plan to use
your pool for a prolonged period, then you might choose to turn the heat pump completely
off or decrease the temperature setting of the control several degrees to minimize energy
consumption.

8 9
a. Use an accurate pool thermometer. A difference of 2°C, between 26°C and 28°C,
will signicantly increase energy consumption.
b. Carefully monitor the water temperature of your pool in the summer time. You can
reduce heat pump usage due to warmer air temperatures.
c. When the pool is not to be used for long periods, turn off the heat pump.
d. Where possible, shelter the pool from prevailing winds with well-trimmed hedges or
other landscaping, cabanas, or fencing.
e. Always use a high quality pool cover when practical. Besides providing a valuable water
saving feature, a pool cover will dramatically reduce heat loss. See attached appendix
for further information.
Model:Force 5 unit mm
340
372
98 350
50
Water outlet
50
Water inlet
600
956
360
545
372
264
290
746
569 280
395
290
92
50
Water outlet
Water inlet
300
50
Model:Force 9 / Force 14
430
630
1003
395
50
50
440
103
Water Inlet
Water Outlet
455
1248
455
Model:Force 18 unit mm
50
50
470
430
400
98
Water Inlet
Water Outlet
868
1115
447
790
470
Model:Force 22 / Force 26

10 11
CHAPTER 1 Installation
Example of a unit with a
refrigerant leak and zero
pressure – notify
Evoheat Dealer.
Before installation it is very important to ensure 4 variables
are carefully checked to allow the unit to operate correctly:
1. Adequate Air Flow
2. Correct water ow volume
3. Correct electrical connection & supply
4. Heater condition
1. Air Flow
Installing the heater indoors or in an enclosed space will result in very poor performance and
can in extreme cases damage the heater. Ensure the heater is installed in a well ventilated
area with plenty of fresh air, a minimum gap between walls/fences etc of 600mm on the
sides and 1500mm overhead clearance.
Important: Ensure that the cold air off the top of the heater does not
recycle through the heater.
SEE PAGE 8 FOR FURTHER INFORMATION
2. Water Flow
It is CRITICAL that there is sufcient water ow to the unit. Incorrect water ow can cause a
loss of efciency and possible damage to the unit. Optimal water ow rates are listed in the
Evoheat sales brochure and in this manual on page 5. It is imperative that water ow is kept
as close as possible to these ow rates. Correct water ow not only offers optimal heater
performance, but may also prevent possible damage to your heater.
SEE PAGE 9 FOR FURTHER INFORMATION
3. Electrical Connection
Always use a qualied Electrician to perform any electrical work. Ensure the power cable and
circuit breaker are of a suitable size for the heater being installed. Also check that there is
adequate voltage and current available at the heater connection to run the unit. Voltage range
should be 220-240 volts for single phase, and 380-415 volts for 3 phase units. Voltage ranges
outside these parameters will cause heater damage and void your warranty. Correct phase
connection is important with 3 phase heaters.
SEE PAGE 10 FOR FURTHER INFORMATION
4. Heater Condition
Check the heater packaging upon delivery for any obvious signs of damage. Inform your
supplier IMMEDIATELY if there is any evidence of rough handling.
When the heater has been removed from the packaging check the refrigerant gauge on the
front panel of the unit. The gauge should be showing a pressure of approx 1Mpa on the
outside black band – any less than this gure means there may be a leak in the refrigerant
system and you should immediately contact your Evoheat Dealer.
3. General installation information
3.1 Inspection
Inspect the packaging, the heater and other items after receipt for possible damage in
transportation. Please contact your EVOHEAT dealer immediately should you suspect any
damage has occurred during transportation.
Install your EVOHEAT heat pump in accordance with the procedures in this manual. Always
check that your installation will comply with local building and council regulations.

12 13
From pump
PVC Coupler
Recommended (Provided)
To pool
Condensation Drain
Barb FTG
2500mm
Air outlet
Air inlet
500mm
700mm
300mm
700mm
1000mm
800mm
Air inlet
Air outlet
2000mm
Correct installation is required to ensure safe and efcient operation of your pool heater.
Installation requirements for EVOHEAT heat pumps include the following:
a. Appropriate site location and clearances.
b. Sufcient air ventilation.
c. Correct electrical connection.
d. Adequate water ow.
This manual provides the information needed to meet these requirements.
Review all application and installation procedures completely before
continuing the installation.
3.2 Location
Evo recommend the heat pump should ONLY be installed in an outdoor location with
appropriate ventilation.
In the event that a suitable outdoor location is unavailable contact Evo Industries for
specialist technical advice.
If installing the heater on an existing pump/ltration system the heater must be installed
AFTER the lter and BEFORE the chlorinator/sanitizer.
The heat pump should be installed on a at level surface as close as possible to the pool.
Large runs of uninsulated piping can signicantly contribute to heat loss. A rough estimate
of heat loss over a 30m pipe run can be as high as 600 Watts per hour per 5 degrees of
temperature difference between the air/ground and the pool water. These losses need to
be taken into account over long distances and piping may need to be insulated to reduce
heat leakage.
The heat pump should be installed a maximum of 5m below the water level of the pool/spa.
Make sure the heat pump is not located where large amounts of water may run-off from a
roof into the unit. Sharp sloping roofs without gutters will allow excessive amounts of rain
water mixed with debris from the roof to be forced through the unit. A water deector may
be needed to protect the heat pump.
3.3 Clearances
The unit needs continuous fresh
air whilst running. The heater
draws up to 80m3/min ambient air
through the sides and discharges
through the top fan cowl. Leave
sufcient space for unobstructed
airow into and out of the heater.
Do not locate the heater in an
enclosed area, or the discharged
cold air will recirculate into the
unit and consequently lower the
heating efciency.
3.4 Water Flow and
Plumbing Setup
All EVOHEAT heat pumps have a
factory preset internal water ow
switch. If there is insufcient water
ow the heater will not operate.
Before connecting the heater
to the plumbing, all piping must
be thoroughly ushed to ensure
no debris can enter the heater.
Failure to remove pipe debris
can jam or damage the ow
switch and may cause damage
to the heater.
When cleaning the pool it is
advisable to turn off your heater
as restricted water ow may
cause the heater to shut down
and indicate low water ow fault
(P08 error).
Minimum required clearances
A Variable speed pump or bypass valve and plumbing MUST be tted to allow
water ow to be adjusted through the heater. Do not direct connect a water
pump with higher ow than required to the heat pump.

14 15
3.5 Water Pump Connection
How do I connect up my new
EVO heater to my pool or spa?
The EVO JBox is the answer. The JBox
will save you money on water pumps
and running costs.
The JBox allows either the heater
OR the chlorinator to supply power
to the water pump so each system
can run independently of the other.
Installation Options
There are 3 methods to install an
Evo heat pump.
1. Slave Mode
Heater is connected to the ltration
system but relies on water ow from
the chlorinator for start and stop times.
Advantages
• Only 1 pump needed – savings on
purchase and running costs.
Disadvantages
• As the heater may need to run
18+hrs a day the chlorinator will
need to be adjusted to allow the
pump to run longer. This can
cause water chemical balance
issues resulting from over or
under chlorinating the pool. You
will need to constantly monitor
and ddle with the chlorinator
output to keep it.
2. Seperate Systems
Heater runs on a dedicated circuit
to the ltration system. The heater
controls the start and stop times
of this pump.
Advantages
• Easy to use – set and forget the heater operation and leave your chlorinator to
work as normal
• No water balance issues due to adjusting the chlorinator running time.
Disadvantages
• Purchase of 1 extra water pump at up to $800
• Electrical use from this pump could add up to over $1000 per year
3. EVO JBox
Heater is connected into the ltration plumbing. After installing the Evo JBox and having your
electrician hard wire the JBox to the heater, simply plug the water pump into the JBox and
plug the JBox into the Chlorintor.
Advantages
• Only 1 pump needed – savings on purchase and running costs
• Save up to $1000pa on electricity
• Easy to use – set and forget the heater operation and leave your chlorinator to
work as normal
• No water or chemical balance issues due to adjusting the chlorinator running time
Disadvantages
• None!
Order an EVO JBox with your heater and relax in your pool while maximising the savings.
3.6 Drainage
Whilst the heater is operating, water in the air condenses on the ns of the evaporator. In
the instance of high humidity, the condensate may be several litres per hour. This may give
the impression that the heater is leaking, however this is a normal function of heat pumps.
The heater will automatically activate reverse cycle or de-icing mode when required which
also increases condensate discharge. This normally occurs at temperatures below 8 degC.
The condensate water will discharge through the base of the heater. As an option a pipe
can be connected to the drain on the base of the unit to direct condensate water to an
appropriate location.
Typical Plumbing Layouts
Pool Chlorinator
Heater
Filter
3 way
valve
Slave Mode
Electrical Control
Heater
Bypass
Pool
Filter
Chlorinator
Heater
Electrical
Control
Electrical
Control
3 way
valve
Heater
Bypass
Pool Chlorinator
Heater
JBox
Filter
Electrical
Control
3 way
valve
Heater
Bypass
1. Slave Mode
2. Separate Systems
3. Evo JBox

16 17
Condensate Drain Barb
Fit these into the 2 holes under the unit if you need to direct water away from the heater.
Put in hot water if stiff.
3.7 Electrical Connection
NOTE: EVO heat pumps MUST be connected by a licensed electrician.
Under no circumstances should you attempt to install or repair your
heat pump yourself.
Heater electrical installation undertaken by an unlicensed installer may cause electric shock
or even death, and will void the warranty.
A licensed electrician must read the information in this manual before connecting.
a. Ensure power is disconnected during installation or service.
b. Always comply with the national and local electrical codes and standards.
c. Ensure electrical cable size is adequate for heater requirements at the
installation location.
d. The heater must be equipped with a circuit breaker and isolation device.
e. Circuit breaker must be installed between the heater and the water circulation pump if
the water pump is hard-wired into the heater. Please note recommended circuit breaker
sizes make no allowance for a water pump hard wired into the heater.
f. Evo strongly recommends the installation of a Residual Current Device.
g. The unit must be well earthed.
Remove the front panel to access the electrical connection terminals of the heater.
The electrical wiring diagram is afxed to the inside of the front panel.
SEE APPENDIX “A” FOR WIRING DIAGRAM INFORMATION
3.8 Remote Controller Connection
All Evo heaters are able to be controlled remotely by any device capable of opening and
closing a circuit. The circuit must be low voltage 5V or lower.
Remove the cable loop between DI01 and GND on the pcb and connect the remote cable
from the external controller into these terminals.
When this circuit is open (no connection) the Evo heat pump will not operate. When the
circuit is closed the unit will operate according to the parameters set on the controller(s).
Connect here

9
4. USAGE AND OPERATION
1.Function of controller
Main display area
Aux. Display area
1
2
3
4
145
3
TEMP
IN
SET
C
F
A
min
ON
OFF
TEMP
OUT
VOL
MODE
SET
2
MODE
SET
Clock
1）Button function
NO Symbol Name Function
On/off
Mode
Up
Press this button can start up or shut down the unit,
cancel the current operation or back to the upper
interface
Press this button can switch modes or save
parameter setting.
Press this button can move up or increase
parameter value.
Press this button can move down or decrease the
parameter value.
Down
5
Press this button can set the clock and timer
10
A
Electric-
heating
ON
OFF
Timer on
Timer off
It is showed when the unit sets the timer on
It is showed when the unit sets the timer off
IN
OUT
TEMP
Temperature
VOL
F
min
Fahrenheit
C
SET
Symbol Meaning Function
Cooling
Heating
Automatic
It is showed when the unit in cooling mode.
It is showed when the unit in heating mode and flashed
in defrosting.
It is showed when the unit in automatic mode.
Inlet water It is showed when the main display area gives the inlet
water temperature.(measured value)
Outlet water It is showed when the AUX display area gives the outlet
water temperature.(measured value)
Minute It is showed when the main display area gives minute value
Centigrade It is showed when the main/AUX display area
gives centigrade value
Parameter
setting It is showed when the parameter can be setted.
Lock It is showed when the keyboard is locked.
Flow It is showed when the main display area gives the water
flow value
It is showed when the main/ AUX display area gives
temperature
It is showed when the main/AUX display area
gives Fahrenheit value
It is showed when the unit in electric-heating mode.
(Swimming pool unit without this display）
4. USAGE AND OPERATION

9
4. USAGE AND OPERATION
1.Function of controller
Main display area
Aux. Display area
1
2
3
4
145
3
TEMP
IN
SET
C
F
A
min
ON
OFF
TEMP
OUT
VOL
MODE
SET
2
MODE
SET
Clock
1）Button function
NO Symbol Name Function
On/off
Mode
Up
Press this button can start up or shut down the unit,
cancel the current operation or back to the upper
interface
Press this button can switch modes or save
parameter setting.
Press this button can move up or increase
parameter value.
Press this button can move down or decrease the
parameter value.
Down
5
Press this button can set the clock and timer
10
A
Electric-
heating
ON
OFF
Timer on
Timer off
It is showed when the unit sets the timer on
It is showed when the unit sets the timer off
IN
OUT
TEMP
Temperature
VOL
F
min
Fahrenheit
C
SET
Symbol Meaning Function
Cooling
Heating
Automatic
It is showed when the unit in cooling mode.
It is showed when the unit in heating mode and flashed
in defrosting.
It is showed when the unit in automatic mode.
Inlet water It is showed when the main display area gives the inlet
water temperature.(measured value)
Outlet water It is showed when the AUX display area gives the outlet
water temperature.(measured value)
Minute It is showed when the main display area gives minute value
Centigrade It is showed when the main/AUX display area
gives centigrade value
Parameter
setting It is showed when the parameter can be setted.
Lock It is showed when the keyboard is locked.
Flow It is showed when the main display area gives the water
flow value
It is showed when the main/ AUX display area gives
temperature
It is showed when the main/AUX display area
gives Fahrenheit value
It is showed when the unit in electric-heating mode.
(Swimming pool unit without this display）
4. USAGE AND OPERATION

11

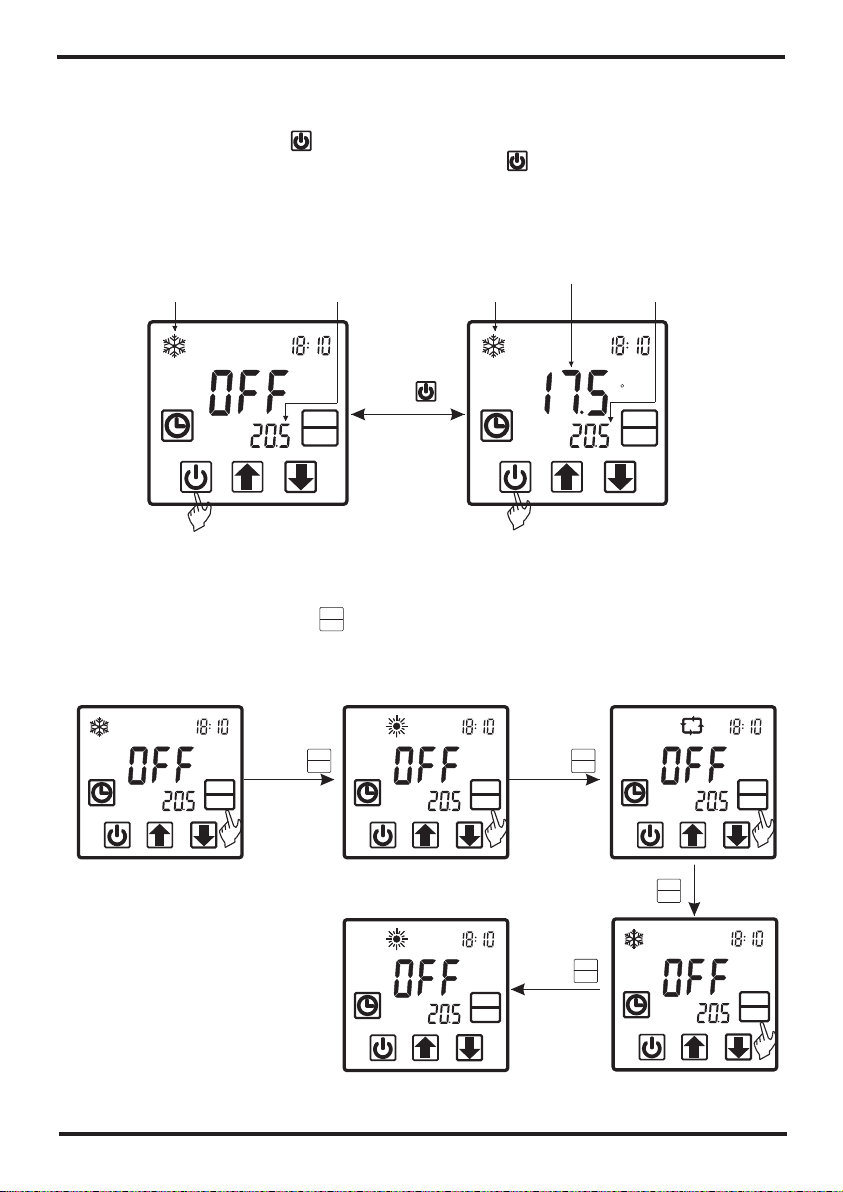

2.The controller usage
2.1Starting up and shutting down
Press“ ”
for 0.5 second
can switch
between unit
on and unit off
Water outlet
temperature
Actual Mode display
Off unit
2.2 Modes switching
If it is cold/ heat unit, in the main interface, you can switch different modes of cooling,
heating, auto mode by pressing“ ”.
Attention：The modes switching is useless if the unit you buy is single-cold/ single-heat unit.
For example:
Press“ ”Press“ ”
Press“ ”
Press“ ”
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
A
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
MODE
SET
MODE
SET
MODE
SET
MODE
SET
MODE
SET
In the off interface, press" " for 0.5s can start up the unit, and aux. display-area shows
water outlet temperature; In the running interface, press" " for 0.5s can shut down the unit
and aux. display-area shows “OFF”.
Attention: the operation of Starting up and shutting down can only be done in the main interface.
For example:
Actual Mode display
Water inlet
temperature Water outlet
temperature
On unit
4. USAGE AND OPERATION
12
4. USAGE AND OPERATION
2.3 Temperature setting
Press“ ”
or“ ”
Press“ ”
or“ ”to change the value
Press“ ”
to save value
setting
Cooling target temperature
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
SET
TEMP
C
TEMP
OUT
MODE
SET
SET
TEMP
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
MODE
SET
2.4 Clock setting
In the main interface，press“ ” twice，Hours start to flashing ，and press“
to increase value or press“ ”to decrease value，and press“ ”to save setting；
At the same time, minute start to flashing ，press“ ”to increase value or press“
” to decrease value，and press“ ”to save setting.
Press“ ”can not save setting parameter and back to main interface.
Attention：If there is no operation for 5s system will remember parameter setting and back
to the main interface.
For example：
In the main interface，press“ ”or“ ” and the current mode target-temperature
flashes, then press“ ”to increase the temp.value, or press“ ”to decrease it.
Press“ ”can save setting parameter and back to the main interface；
Press“ ”can not save setting parameter but back to the main interface；
Attention：If there is no operation for 5s，system would remember parameter setting and
back to the main interface.
For example:

11
2.The controller usage
2.1Starting up and shutting down
Press“ ”
for 0.5 second
can switch
between unit
on and unit off
Water outlet
temperature
Actual Mode display
Off unit
2.2 Modes switching
If it is cold/ heat unit, in the main interface, you can switch different modes of cooling,
heating, auto mode by pressing“ ”.
Attention：The modes switching is useless if the unit you buy is single-cold/ single-heat unit.
For example:
Press“ ” Press“ ”
Press“ ”
Press“ ”
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
A
TEMP
OUT
MODE
SET
TEMP
OUT
MODE
SET
MODE
SET
MODE
SET
MODE
SET
MODE
SET
MODE
SET
In the off interface, press" " for 0.5s can start up the unit, and aux. display-area shows
water outlet temperature; In the running interface, press" " for 0.5s can shut down the unit
and aux. display-area shows “OFF”.
Attention: the operation of Starting up and shutting down can only be done in the main interface.
For example:
Actual Mode display
Water inlet
temperature Water outlet
temperature
On unit
4. USAGE AND OPERATION
12
4. USAGE AND OPERATION
2.3 Temperature setting
Press“ ”
or“ ”
Press“ ”
or“ ”to change the value
Press“ ”
to save value
setting
Cooling target temperature
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
SET
TEMP
C
TEMP
OUT
MODE
SET
SET
TEMP
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
MODE
SET
2.4 Clock setting
In the main interface，press“ ” twice，Hours start to flashing ，and press“
to increase value or press“ ”to decrease value，and press“ ”to save setting；
At the same time, minute start to flashing ，press“ ”to increase value or press“
” to decrease value，and press“ ”to save setting.
Press“ ”can not save setting parameter and back to main interface.
Attention：If there is no operation for 5s system will remember parameter setting and back
to the main interface.
For example：
In the main interface，press“ ”or“ ” and the current mode target-temperature
flashes, then press“ ”to increase the temp.value, or press“ ”to decrease it.
Press“ ”can save setting parameter and back to the main interface；
Press“ ”can not save setting parameter but back to the main interface；
Attention：If there is no operation for 5s，system would remember parameter setting and
back to the main interface.
For example:

4. USAGE AND OPERATION
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
Hour minute Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
Flashing
Press“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
to save hour
value setting
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
to save minute value setting
Flashing
Flashing Flashing
13 14
2.5 Timer setting
In the main interface，press“ ”hold on 2 seconds and "on" is flashing, at this time,
you can set the timer on（means the unit timer is on） ，then press“ ”again and hold on
2 seconds and "off" is flashes you can set the timer off（means the unit timer is off）.
If you want cancel the timer off, In the "off" flashing interface，press“ ” to cancel
Attention：1) If there is no operation for 5s，system will remember clock setting and back to
the main interface.
2) By pressing " " till the "off" flashing, you can set the timer off without timer on.
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Press“ ”
for 2 second
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
Flashing
Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Press“ ”
Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
press“ ”
or“ ” Press“ ”
4. USAGE AND OPERATION

4. USAGE AND OPERATION
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
Hour minute Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
Flashing
Press“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
to save hour
value setting
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
to save minute value setting
Flashing
Flashing Flashing
13 14
2.5 Timer setting
In the main interface，press“ ”hold on 2 seconds and "on" is flashing, at this time,
you can set the timer on（means the unit timer is on） ，then press“ ”again and hold on
2 seconds and "off" is flashes you can set the timer off（means the unit timer is off）.
If you want cancel the timer off, In the "off" flashing interface，press“ ” to cancel
Attention：1) If there is no operation for 5s，system will remember clock setting and back to
the main interface.
2) By pressing " " till the "off" flashing, you can set the timer off without timer on.
TEMP
IN
C
TEMP
OUT
MODE
SET
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Press“ ”
for 2 second
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
Flashing
Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Press“ ”
Flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
press“ ”
or“ ”Press“ ”
4. USAGE AND OPERATION

15
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
Press“ ”
or“ ”
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
Press“ ”
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
OFF
The timer on and off has been set
Flashing Flashing
Flashing Flashing Flashing Flashing
Flashing Flashing
4. USAGE AND OPERATION
16
2.6 Cancel the timer setting
Press“ ”for 2s and "ON" is flashing，at this time, press “ ”to cancel the setting
of timer on; It is the same way to cancel the setting of timer off .
For example：
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
The timer on/off has been set
Press“ ”
for 2s
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
"ON" is flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
OFF
The setting of timer on has
been cancelled
Press“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
OFF
Press“ ”
for 4s
"OFF" is flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
The setting of timer off has
been cancelled
Press“ ”
4. USAGE AND OPERATION

15
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
Flashing
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
Press“ ”
or“ ”
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
Press“ ”
Press“ ”
or“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
TEMP
IN
C
TEMP
OUT
MODE
SET
Press“ ”
ON
OFF
The timer on and off has been set
Flashing Flashing
Flashing Flashing Flashing Flashing
Flashing Flashing
4. USAGE AND OPERATION
16
2.6 Cancel the timer setting
Press“ ”for 2s and "ON" is flashing，at this time, press “ ”to cancel the setting
of timer on; It is the same way to cancel the setting of timer off .
For example：
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
The timer on/off has been set
Press“ ”
for 2s
TEMP
IN
C
TEMP
OUT
MODE
SET
ON
OFF
"ON" is flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
OFF
The setting of timer on has
been cancelled
Press“ ”
TEMP
IN
C
TEMP
OUT
MODE
SET
OFF
Press“ ”
for 4s
"OFF" is flashing
TEMP
IN
C
TEMP
OUT
MODE
SET
The setting of timer off has
been cancelled
Press“ ”
4. USAGE AND OPERATION

17
2.4 Keyboard lock
To avoid mis-operation, please lock the controller after parameter setting.
At the main interface, press“ ”for 5 seconds, the keyboard will be locked.
When the keyboard is locked, press“ ”for 5 seconds, the keyboard will be
unlocked.
NOTES: When the unit is in alarming state, the key lock can be removed automaticly.
TEMP
IN
C
TEMP
OUT
MODE
SET
Hold on“ ”
Locked
TEMP
IN
C
TEMP
OUT
MODE
SET
MODE
SET
2.5 Malfunction display
There will be malfunction code showing on the controller screen when relative
malfunction occurs.
You can refer to the malfunction table to find out the failure cause and solution.
For example：
Water inlet temp. Sensor failure
4. USAGE AND OPERATION
18
27℃
27℃
27℃
Meaning
Heating inlet target temp. Adjustable
Adjustable
Adjustable
3. Parameter table
Cooling inlet target temp.
Auto inlet target temp.
Remark Default
4. USAGE AND OPERATION
Remark:
The wire controller can display the temperature unit as "℉" or "℃" according to the unit
Model you bought.

17
2.4 Keyboard lock
To avoid mis-operation, please lock the controller after parameter setting.
At the main interface, press“ ”for 5 seconds, the keyboard will be locked.
When the keyboard is locked, press“ ”for 5 seconds, the keyboard will be
unlocked.
NOTES: When the unit is in alarming state, the key lock can be removed automaticly.
TEMP
IN
C
TEMP
OUT
MODE
SET
Hold on“ ”
Locked
TEMP
IN
C
TEMP
OUT
MODE
SET
MODE
SET
2.5 Malfunction display
There will be malfunction code showing on the controller screen when relative
malfunction occurs.
You can refer to the malfunction table to find out the failure cause and solution.
For example：
Water inlet temp. Sensor failure
4. USAGE AND OPERATION
18
27℃
27℃
27℃
Meaning
Heating inlet target temp. Adjustable
Adjustable
Adjustable
3. Parameter table
Cooling inlet target temp.
Auto inlet target temp.
Remark Default
4. USAGE AND OPERATION
Remark:
The wire controller can display the temperature unit as "℉" or "℃" according to the unit
Model you bought.

30 31
2. PCB I/O Ports description
No. Type Parameter and description Setting value Default
Level
Code Setting
1 d Start defrosting temperature d01 -30-0°C F/U
2 End defrost temperature d02 0-30°C F/U
3 Defrosting cycle d03 1-90min F/U
4 Maximum defrosting time d04 1-20min F/U
5 E EEV mode E01 0-1 F/U
6 Super heat E02 -20-20°C F
7 Initial place E03 0-500 F
8 Minimum place E04 0-500 F
9 Defrost place E05 0-500 F
10 Cooling place E06 0-500 F
3. Parameter
Parameter table
11 F Fan parameter F01 0-4 F/U
12 Coil temp. in high speed fan mode
(Cooling)
F02 -15-60°C F
13 Coil temp. in low speed fan mode
(Cooling)
F03 -15-60°C F
14 Coil temp. when the fan stop (Cooling) F04 -15-60°C F
15 Coil temp. in high speed fan
mode(Heating)
F05 -15-60°C F
16 Coil temp. in low speed fan
mode(Heating)
F06 -15-60°C F
17 Coil temp. when the fan stop(Heating) F07 -15-60°C F
18 Fan start low speed running time F08 0-23h F
19 Fan stop low speed running time F09 0-23h F
20 Fan speed control temp. F10 0-1 F
21 h Automatic restarting H01 0-1 F
22 Model(cooling only/AUTO/heating only) H02 0-2 F/U
23 Temperature unit transformation H03 0-1 F
24 PWater pump model P01 0-2 F/U
25 Water pump running cycle P02 0-120min F/U
26 Water pump running time P03 0-30min F/U
27 Delay in switching on the compressor
after switching on the pump
P04 0-30min F/U
28 r Inlet water setting temp. (cooling) r01 r08-r09 F
29 Inlet water setting temp. (Heating) r02 r10-r11 F
30 Target setting temp. (Auto mode) r03 r08-r11 F
31 Cooling differential r04 0-10°C F
32 Cooling stop differential r05 0-10°C F
33 Heating differential r06 0-10°C F
34 Heating stop differential r07 0-10°C F
35 Minimum set point in Cooling r08 -30-r09°C F
36 Maximum Cooling set point r09 r08-80°C F
37 Minimum Heating set point r10 -30-r11°C F
38 Maximum Heating set point r11 r11-80°C F
