Exact solutions PAULINE TH-PROJ-UNI User manual

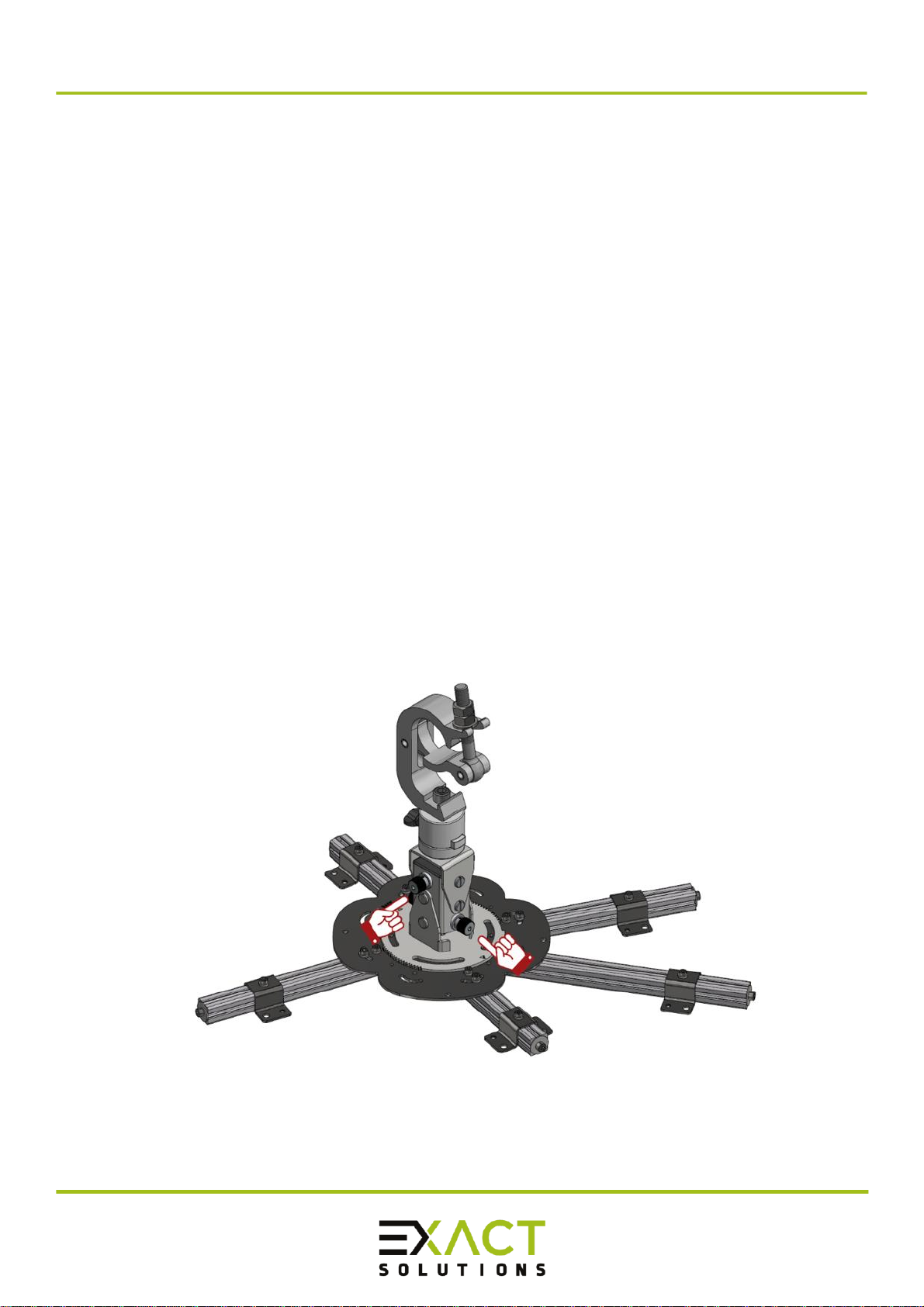

PAULINE
Universal truss mount for projectors TH-PROJ-UNI
Manual Version 1.1
Date
Revision No.
Author
Checked
Approved
Description
12.06.2019
1.0
KWR
DWN
RPA
Version 1.0
02.02.2020
1.1
TSN
DWN
VIU
Layout change
The following projectors can be attached to this ceiling mount:
PT-EZ590
PT-EW650
PT-EX620
PT-EW550
PT-EX520
PT-RZ570
PT-MZ770
PT-MZ670
PT-DZ870
PT-DW830
PT-DX100
PT-DZ6710
PT-DZ6700
PT-DW6300
PT-D6000
PT-D5000
EP-EB-L510U
The listed projectors are only examples. Nearly every projector with a maximum
weight of 25kg / 55,1 lbs can be attached to the PAULINE ceiling mount.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 1of 16
Table of content
1. Preamble ....................................................................................................... 2
1.1 Tools required...........................................................................................................................3
2. Safety instructions......................................................................................... 4
3. What’s in the box?.........................................................................................8
4. Adjustment options..................................................................................... 11
5. Mounting the PAULINE ceiling mount to a truss ......................................... 12
6. System maintenance and inspection (Re-examination).............................. 14
7. Dimensions .................................................................................................. 15
Imprint............................................................................................................. 16
Contact
Tel.: [phone]
E-Mail: [email protected]
Web: www.exactsolutions.de

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 2of 16
1. Preamble
Congratulations on your purchase of the PAULINE universal ceiling mount for
projectors from EXACT solutions.
Please read very carefully the instructions provided in this manual. In the
following pages you will find all the information needed for a safe and fast
installation.
After the installation is done properly, you can enjoy all the features of your new
product.
Please consider keeping the original box and packaging materials, in case you
ever need to ship the ceiling mount.
Model number: TH-PROJ-UNI

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 3of 16
1.1 Tools required
The tools required are:
3 mm hex key to adjust the 5 arms of the PAULINE, a 4mm hex key to turn
the adjustment screws (Figure 1)
SW19 Wrench (Figure 2) to tighten and loosen the C-clamp on top
Figure 1: 3mm, 4mm hex key (Allen key)
Figure 2: SW19 wrench
These installation instructions must always be handed over to the installing
person.
1
Read these instructions carefully before installing the system.
1
Only a qualified person should install this product

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 4of 16
2. Safety instructions
INTENDED USE
The PAULINE ceiling mount is intended for use by fully qualified, trained
and competent persons to provide a safe and secure installation and
adjustment of projectors.
Only use the ceiling mount with projector in a closed environment
(conference rooms, theatres, convention halls, etc.) where there is no wind,
moisture, excessive heat etc.
Make sure that only the corresponding projectors are installed to this
ceiling mount! Do not try to use it with projectors that are too heavy,
because serious accidents can occur!
WARNINGS
Installation work should only be carried out by a qualified technician.
If this product is not installed correctly, serious accidents may result.
Do not use the PAULINE ceiling mount outdoor.
This product is made only for indoor usage. If the PAULINE ceiling mount
is mounted outdoor, there are many influences like wind or rain that can
have an effect on the stability of the whole system. This can cause serious
accidents and property damage.
Do not hang the ceiling mount from unstable or inappropriate structures.
If the ceiling mount is hung on an unstable structure, the entire system
can fall down and injuries may occur. Make sure that the construction can
support a total weight of 28,5 kg (62,83 lbs) plus the weight of all
additional equipment as well as other potential systems.
Before hanging the ceiling, mount make sure the quick-snap is locked.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 5of 16
If the quick-snap is not locked, the entire system can fall down and
property damage or injuries may occur.
Make sure not to exceed the maximum weight load limits of 25 Kg / 55,1
lbs.
If the attached projector is too heavy, it can break of the ceiling mount, or
the entire system can fall down and property damage or injuries may
occur.
Do not install the PAULINE or the projector while people are present under
the mounting zone.
When installing the projector, make sure no one is in the area underneath
the installation zone to prevent serious injuries.
Always secure the ceiling mount to the rigging truss with a safety steel
cable.
The ceiling mount should always be secured with an appropriate safety
steel cable so that in case of a malfunction it doesn’t fall more than 5 cm.
Please consult the local laws or regulations regarding the additional safety
of hanging equipment.
CAUTION
Before installing the projector to the PAULINE ceiling mount, please read
the projector’s user manual.
The PAULINE ceiling mount with the projector attached must be installed
only in an environment that is recommended by the projector
manufacturer.
Make sure that the structure from which you hang the PAULINE ceiling
mount including the projector is capable of carrying the overall weight of
approx. 28,5 kg (62,83 lbs) plus the weight of all additional equipment as
well as other potential systems.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 6of 16
Prior to any installation, you must do a visual inspection to make sure that
the system is in a good condition. For more information please refer to
chapter “6. System maintenance and inspection (Re-examination)”
RISK SITUATIONS
Risk of injury due to the possibility of falling objects during the assembly or
disassembly of the PAULINE ceiling mount.
Protection objective: Avoid injury from falling parts.
Wear appropriate safety shoes, gloves and helmet.
Make sure the area under the ceiling mount is clear during installation.
Risk of hitting the head with the PAULINE ceiling mount during the hanging
set up process.
Protection objective: Avoid injury from hitting the head.
Wear a helmet.
Incorrect installation may lead to certain parts of the PAULINE ceiling
mount or the entire PAULINE ceiling mount to fall down.
Protection objective: Prevent personal injury and property damage.
Double check the PAULINE ceiling mount and its installation.
Read the PAULINE manual carefully.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 7of 16
Insufficient load capacity of the supporting structure may lead to certain
parts of the PAULINE ceiling mount or the entire PAULINE ceiling mount to
fall down.
Protection objective: Prevent personal injury and property damage.
Provide adequate dimensioning of the supporting structure. The
supporting structure must be able to support the combined weight of all
the equipment attached to, or hung from it
Ensure correct installation of the supporting structure.
The fingers or the hand of the user can be caught between the metal plate
and the moving upper parts of the ceiling mount while adjusting the image.
Protection objective: Prevent personal injury by using safety gloves.
When the adjustment of the image is made, the user must always keep his
hands on the adjustment screws (see Figure 3) or the tools to adjust the
screws.
Figure 3: Adjustment screws position

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 8of 16
3. What’s in the box?
PAULINE
Used for projector installation
Number of units: 1
Weight: 3,5 kg / 7,71 lbs
1) 5x M4x16 DIN 912 g. steel 10.9
5 x M5x16 DIN 912 g. steel 10.9
5x M6x16 DIN 912 g. steel 10.9
2) 5x Ø4,2 RippLOCK Saftey Washer g. steel
5x Ø5,2 RippLOCK Saftey Washer g. steel
5x Ø 6,2 RippLOCK Saftey Washer g. steel
User manual and installation guide
for PAULINE
Make sure your box contains everything you ordered. If any pieces are
missing, contact the vendor.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 9of 16
4. Attaching the Projektor to the ceiling mount.

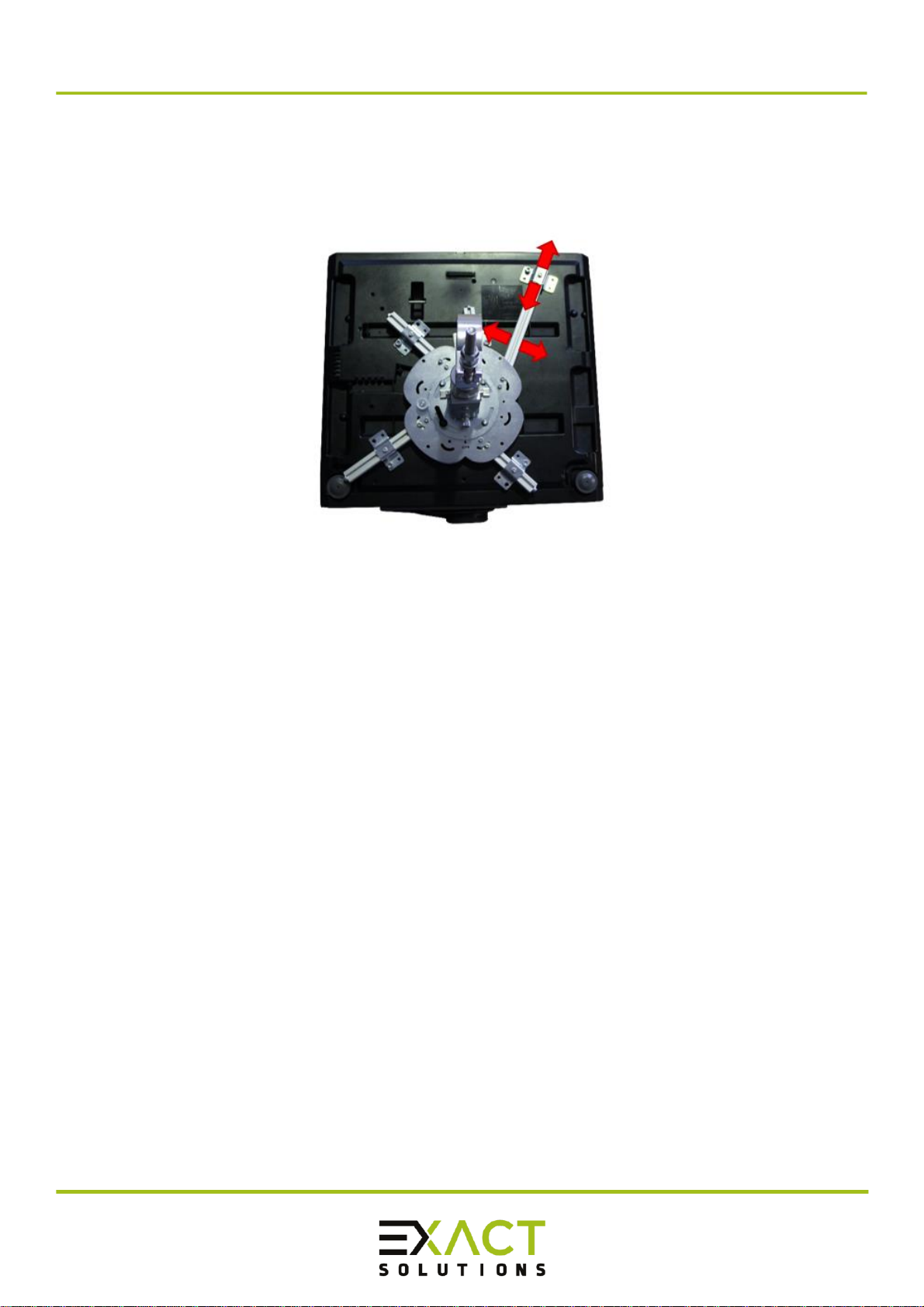

Step 1: Position the PAULINE ceiling mount in the middle over the projector. For
the following process, it’s beneficial to loosen all three screws on each arm, so
you can move the arms and the metal plates freely around. Then align the arms
of the ceiling mount with the threads in the Projector. If needed, you can switch
the places of the arms and screw of the metal plates and turn them by 180
degrees. Please put the projector in the right position so that the front/back
position is correct when installing. If possible, you should install the center of the
ceiling mount as close as possible to the center of gravity of the projector.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 10 of 16
Step 2: Place the RippLOCK Safety Washers (2) over each corresponding hole.
Secure the screws (1) into each hole. Ensure each screw runs through the plate
and catches into the corresponding thread in the projector surface.
Depending on the projector you are using, you can use up to five screws to
mount the PAULINE on the projector.
Do not forget to use the RippLOCK Safety Washers (2) as they are
preventing the screws to loosen themselves!
Do only use screws, which match the threads in the projector!
Step 3: Make sure to tighten all three screws of each arm after you finished
adjusting them.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 11 of 16

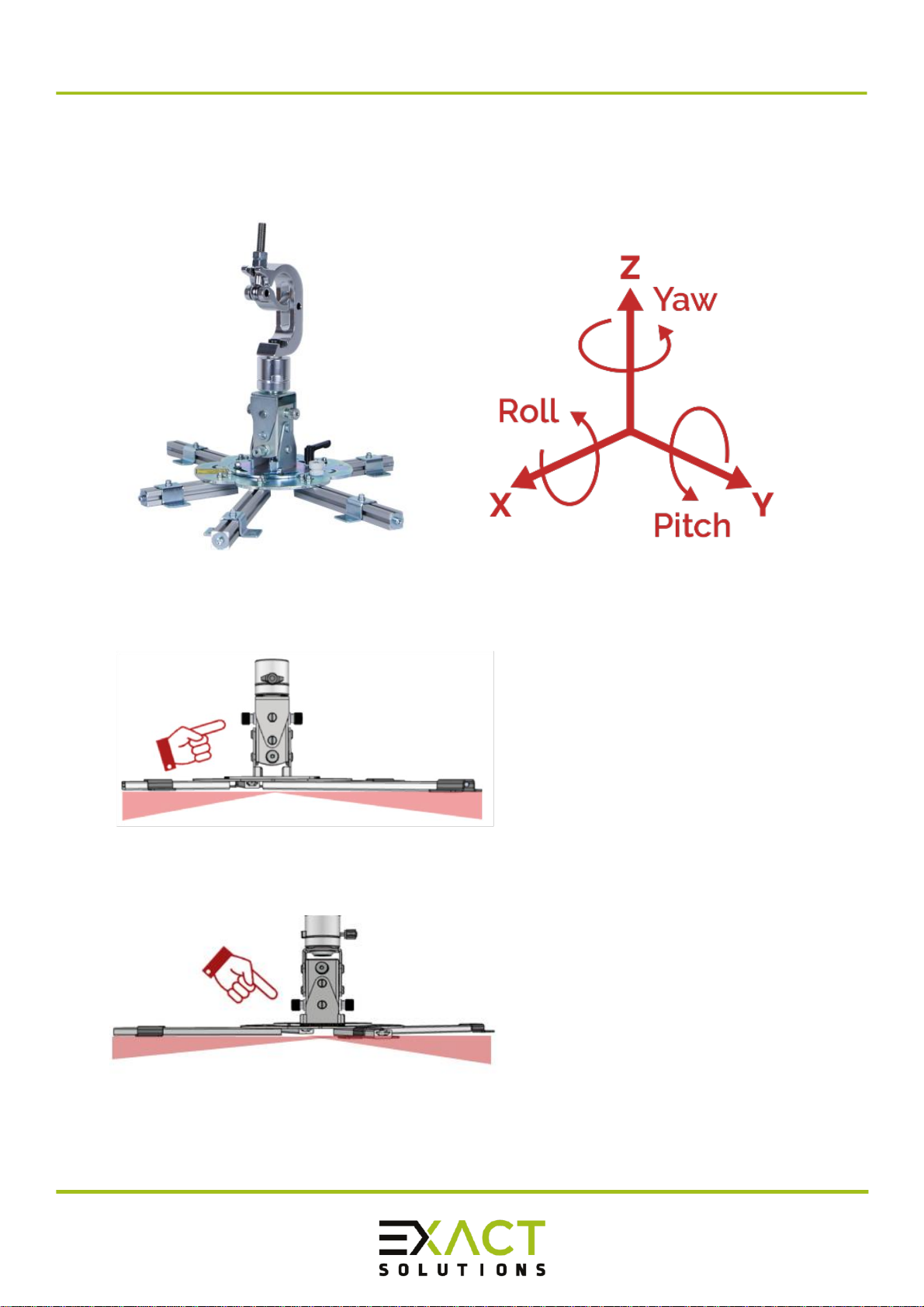

4. Adjustment options
Roll
By turning the upper adjustment
screws to the left and right you can
adjust the position of the projector
with an angle of ± 22 degrees.
Pitch
By turning the lower adjustment
screws in the front and the back
you can lower and lift the projector
with an angle of ± 22 degrees.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 12 of 16
Yaw
Before installation:
By unlocking the quick release (shown in
the picture to the left) the C-clamp can
be turned around the Z-Axis by 360
degrees.
Attention: Do not use this adjustment
option, while the ceiling mount is
already hanging on a truss. If the quick
snap button, which is on the opposite
side of the quick snap screw, is pressed
accidentally while the quick snap screw
is unlocked, the lower part including the
projector will fall off.
After installation:
For the fine adjustment you have to
unlock the quick release on top of the
metal plate.
By turning the white adjustment screw
on top of the metal plate, you can turn
the projector around the Z-Axis with an
angle of ± 25 degrees.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 13 of 16
5. Mounting the PAULINE ceiling mount to a truss
To hang the ceiling mount on a truss one must use the attached C-clamp. Always
use both M12 nuts to make sure the clamp cannot loosen itself.
Make sure the quick snap is locked, otherwise the lower part of the ceiling mount
including the projector can fall off.

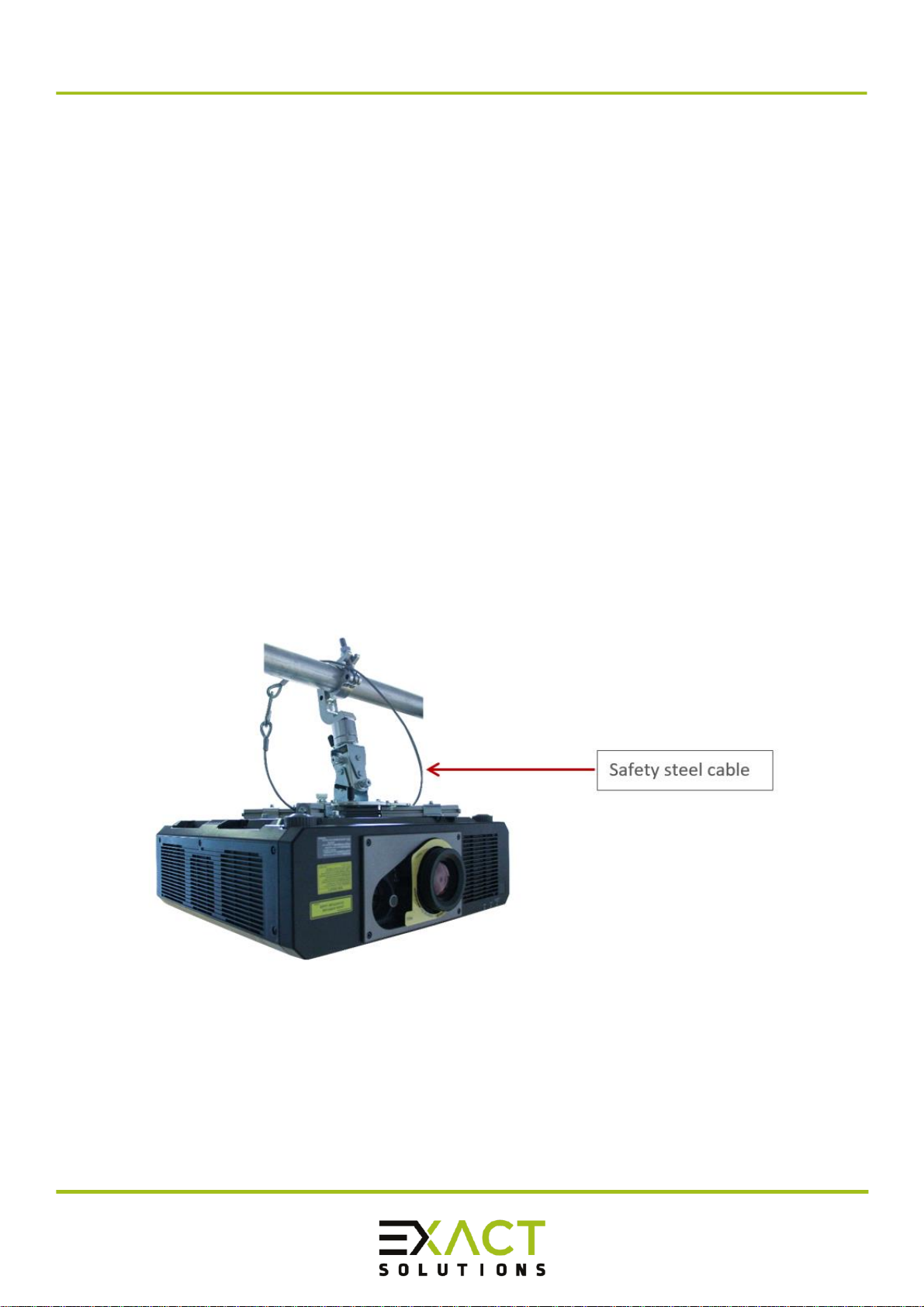

Note: Always secure the ceiling mount using appropriate safety steel cables.
Make sure they are chosen correctly regarding strength, format and length.
Please avoid high dynamic forces by ensuring that the mounting clamp will not
drop more than 5cm into the safety. You can place the safety steel cable
between the ceiling mount and the projector.
Please consult the local laws or regulations regarding the additional safety of
hanging equipment.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 14 of 16
6. System maintenance and inspection (Re-examination)
The PAULINE does not require special maintenance but a visual inspection must
be done prior to every installation in which the system is involved:
Please make a visual inspection to be sure that all the screws on each arm
are in the right place and none are missing.
Make sure that the screws, nuts, arms, metal plate and all the components
are not bended, damaged, or broken.
If any parts are broken or missing, please contact the vendor for spare
parts.
Please control, with a corresponding tool, that all the screws are properly
tightened.
Do not exchange broken or malfunctioning parts with ones that are not
accredited by the manufacturer because serious injuries and property
damage can occur!
The inspection must be done by a qualified person!
One meticulous inspection must be performed every year. For that, a qualified
person needs to carefully check that none of the components are damaged or
broken.

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 15 of 16
Figure 4: PAULINE ceiling mount drawings, weight: 3,5 kg / 7,71 lbs
7. Dimensions

Manual Pauline TH-PROJ-UNI
Version 1.2
02.01.2020
Page 16 of 16
Imprint
EXACT solutions GmbH
Lustheide 85
51427 Bergisch Gladbach
GERMANY
Tel.: [phone]
E-Mail: i[email protected]
Web: www.exactsolutions.de
