Exact solutions FRAME-EVO-P20 User manual

FRAME-EVO-P20 / P20-US
Mounting frame for projectors
Manual Version 1.8
Date
Revision No.
Author
Checked
Approved
Description
03.01.2018
1.5
DWN
VIU
DWN
Several information added
10.01.2018
1.6
DWN
DWN
DWN
Layout changed
11.03.2020
1.7
DWN
VIU
DWN
EVO-LINK added
18.05.2020
1.8
DWN
GJN
DWN
Update rigging slings
The following projectors can be mounted in this frame:
3 Chip DLP
PT-DZ21K
PT-DZ21K2
PT-DZ16K
PT-DZ16K2
PT-DS20K
PT-DW17K
PT-DW17K2
PT-RQ13K
PT-RQ22K
PT-RZ12K
PT-RZ21K
PT-RS11K
Contact
Tel.: [phone]
E-Mail: [email protected]
Web: www.exactsolutions.de

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 1of 39

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 2of 39
Table of content
1. Preamble.................................................................................................... 3
1.1 FRAME-EVO-P20 / P20-US designation......................................................................................... 3
1.2 Optional accessory designation..................................................................................................... 4
1.3 Tools required ............................................................................................................................... 5
2. Safety instructions...................................................................................... 6
3. What’s in the box? ....................................................................................11
4. Optional Accessories .................................................................................12
5. Fitting the projectors in the frame ............................................................15
6. Removing the Upper Ring - Installation Version ........................................17
7. Reinstalling the Upper Ring .......................................................................20
8. Adjustment options...................................................................................22
9. Stacking frames ........................................................................................24
10. Mounting the frame on a truss................................................................25
11. Maximum stacking information...............................................................27
12. System maintenance and inspection (Re-examination) ...........................33
13. Declaration of Conformity.......................................................................36
14. Dimensions..............................................................................................37
14.1 FRAME-EVO-P20 / P20-US......................................................................................................... 37
14.2 FRAME-EVO-P20 / P20-US Installation Version - without the Upper Ring................................ 38
Imprint..........................................................................................................39

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 3of 39
1. Preamble
Congratulations on your purchase of the FRAME-EVO-P20 / P20-US projector frame from EXACT
solutions GmbH.
Please read very carefully the instructions provided in this manual. In the following pages you will
find all the information needed for a safe and fast installation.
After the installation is done properly, you can enjoy all the features of your new product.
Please consider keeping the original box and packaging materials, in case you ever need to ship the
frame.
Model number: FRAME-EVO-P20 / P20-US
Copyright © 2020 EXACT solutions GmbH. All rights reserved.
1.1 FRAME-EVO-P20 / P20-US designation
European market
Non-European market
Manufacturer m.no.: FRAME-EVO-P20
Panasonic EU m.no.: ET-RFD60
Manufacturer m.no.: FRAME-EVO-P20-US
Panasonic USA m.no.: ET-PFD565
m.no. = model number
Note: In this manual, when reference is made to the manufacturer model number it is also
automatically a reference to the Panasonic EU / USA model number like described in the
table above

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 4of 39
1.2 Optional accessory designation
European market
Non-European market
Manufacturer m.no.: FRAME-PF-UNI-PORAD
Panasonic EU m.no.: ET-CLP-P
Manufacturer m.no.: FRAME-PF-UNI-PORAD
Panasonic USA m.no.: - (non-USA product)
Manufacturer m.no.: FRAME-PF-UNI-CLP5030
Panasonic EU m.no.: ET-CLP50
Manufacturer m.no.: FRAME-PF-UNI-CLP5030
Panasonic USA m.no.: ET-PFD50CLAMP
Manufacturer m.no.: FRAME-PF-UNI-CLP30PT
Panasonic EU m.no.: ET-CLP30
Manufacturer m.no.: FRAME-PF-UNI-CLP30PT
Panasonic USA m.no.: ET-PFD30CLAMP
Manufacturer m.no.: EVO-LINK-200
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-200-US
Panasonic USA m.no.: ET-PFD065TMS2
Manufacturer m.no.: EVO-LINK-201
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-201-US
Panasonic USA m.no.: ET-PFD165TMS2
Manufacturer m.no.: EVO-LINK-210
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-210-US
Panasonic USA m.no.: ET-PFD265TMCX2
Manufacturer m.no.: EVO-LINK-211
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-211-US
Panasonic USA m.no.: ET-PFD365TMCX2
m.no. = model number
Note: In this manual, when reference is made to the manufacturer model number it is also
automatically a reference to the Panasonic EU / USA model number like described in the
table above

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 5of 39
1.3 Tools required
The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-P20 / P20-
US.
4 mm hex key (Allen key)

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 6of 39
2. Safety instructions
These installation instructions must always be handed over to the installing person.
1
Read these instructions carefully before installing the system.
INTENDED USE
The FRAME-EVO-P20 / P20-US frame is intended for use by fully qualified, trained and
competent persons to provide safe and secure transportation, installation and adjustment
of projectors.
Only use the frame with projector in a closed environment (conference rooms, theaters,
convention halls, etc.) where there is no wind, moisture, excessive heat etc.
Make sure that only the corresponding projectors are installed in this frame! Do not try to
use it with other projectors because serious accidents can occur!
1
Only a qualified person should install this product

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 7of 39
WARNINGS
Installation work should only be carried out by a qualified technician.
•If this product is not installed correctly, serious accidents may result.
Do not use the FRAME-EVO-P20 / P20-US frame outdoors.
•This product is made only for indoor usage. If the FRAME-EVO-P20 / P20-US frame is
mounted outdoor, there are many influences like wind or rain that can have an effect
on the stability of the whole system. This can cause serious accidents and property
damage.
Do not place the frame on top of unstable surfaces.
•If the frame is placed on top of a surface which is sloped or unstable, it may fall down
or tip over and injury or damage could result. Make sure that the surface can support
a load of 290 kg (639.34 lbs)
2
plus the weight of all additional equipment as well as
other potential systems.
Do not hang the frame from unstable or inappropriate structures.
•If the frame is hung on an unstable structure, the entire system can fall down and
injuries may occur. Make sure that the construction can support a total weight of 290
kg (639.34 lbs) plus the weight of all additional equipment as well as other potential
systems.
Make sure to not exceed max. weight loads for ceiling mounting.
•For suspended installations, use only designated hanging accessories, like EVO-LINK-
200 series, FRAME-PF-UNI-PORAD Portrait Adapter and FRAME-PF-UNI-CLP5030 or
FRAME-PF-UNI-CLP30PT rigging clamps for a max. weight load of 290 kg (639.34 lbs).
Please refer to the corresponding instructions for the accessories used. Please also
refer to chapter “4. Optional Accessories” and “11. Maximum stacking information”.
2
290 kg (639.34 lbs) = 3 x (weight of heaviest projector + weight of heaviest lens + weight of FRAME-EVO-P20 / P20-US)

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 8of 39
For stacking, make sure that all four locking pins pass completely through the female
stacking bolt.
•Make sure the four male bolts enter into the correspondent female bolts and are
locked.
Do not install the FRAME-EVO-P20 / P20-US or the projector while people are present
under the mounting zone during the installation process.
•When installing the projector, make sure no one is in the area underneath the
installation zone.
Always secure the frame to the rigging truss with rigging slings with steel cable insert and
shackles (two sets of rigging sling and shackle are recommended).
•The frame must always be secured with an appropriate rigging sling and shackle so
that in case of a malfunction it doesn’t fall more than 10 cm. It is recommended to
use two sets of rigging sling and shackle to avoid too much dynamic forces as well as
the projector swinging. Please consult the local laws or regulations regarding the
additional safety of hanging equipment.
CAUTION
Before installing the projector in the FRAME-EVO-P20 / P20-US frame, please read the
projector’s user manual. When the projector has a lens attached, please remove it.
•The FRAME-EVO-P20 / P20-US frame with the projector inside must be installed only
in an environment that is recommended by the projector manufacturer.
Minimum two persons are required to install the FRAME-EVO-P20 / P20-US frame.
•With regard to the overall weight of all necessary installation devices, make sure to
handle those with at least two people.
Make sure that the structure from which you hang up to 3 FRAME-EVO-P20 / P20-US
frames including projectors is capable of carrying the overall weight of approx. 290 kg
(639.34 lbs) plus the weight of all additional equipment as well as other potential systems.
•Prior to any installation, you must do a visual inspection to make sure that the system
is in a good condition. For more information please refer to chapter “12. System
maintenance and inspection (Re-examination)”

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 9of 39
RISK SITUATIONS
Risk of injury due to the possibility of falling objects during the assembly or disassembly of
the FRAME-EVO-P20 / P20-US frame.
•Protection objective: avoid injury from falling parts.
•Wear appropriate safety shoes, gloves and helmet.
•Make sure the area is clear under the frame during installation.
Risk of hitting the head with the FRAME-EVO-P20 / P20-US frame during the hanging set
up process.
•Protection objective: avoid injury from hitting the head.
•Wear a helmet
Incorrect installation may lead to certain parts of the FRAME-EVO-P20 / P20-US frame or
the entire FRAME-EVO-P20 / P20-US frame to fall down.
•Protection objective: prevent personal injury and property damage.
•Double check the FRAME-EVO-P20 / P20-US frame and its installation.
Insufficient load capacity of the supporting structure may lead to certain parts of the
FRAME-EVO-P20 / P20-US frame or the entire FRAME-EVO-P20 / P20-US frame to fall
down.
•Protection objective: prevent personal injury and property damage.
•Provide adequate dimensioning of the supporting structure. The supporting structure
must be able to support the combined weight of all the equipment attached to, or
hung from it
•Ensure correct installation of the supporting structure.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 10 of 39

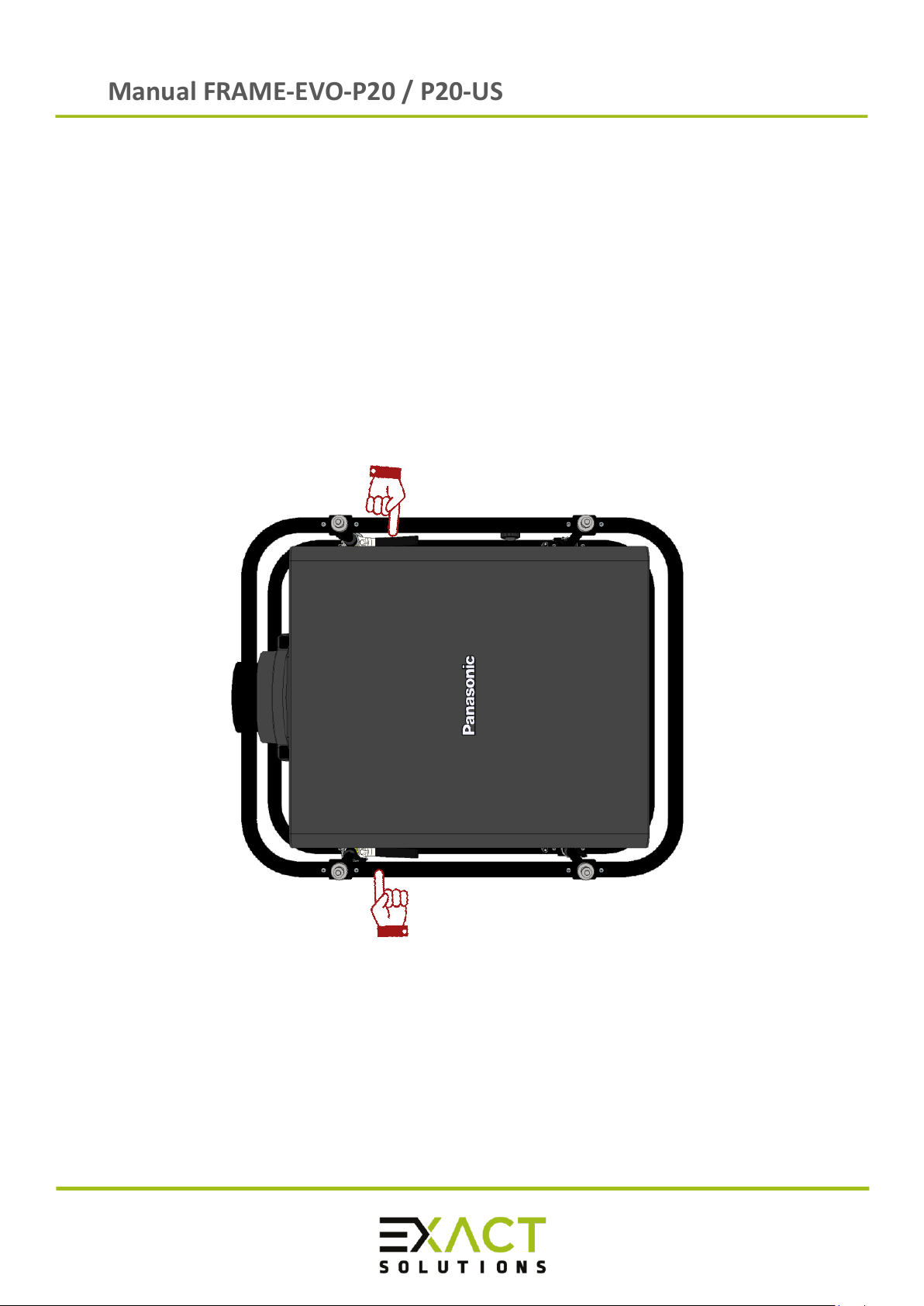

The fingers or the hand of the user can be caught between the outer rings and the plates
or projector.
•Protection objective: prevent personal injury by using safety gloves.
•When the adjustment of the image is made, the user must always keep his hands on
the hand levers (see picture below).
•Because the spring of the spring clip is strong, please be careful not to clamp your
fingers between the spring and the attachment nut.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 11 of 39
3. What’s in the box?
FRAME-EVO-P20 / P20-US
•Used for projector installation
•Number of units: 1
•Weight: 16 kg / 35.27 lbs
1) 6 x M6x30 ISO 7380 screws
(galvanized steel 10.9)
2) 6xØ6 Schnorr Washer
Used to secure the projector
in the frame
User manual and installation guide
for FRAME-EVO-P20 / P20-US
Make sure your box contains everything you ordered. If any pieces are missing, contact the
vendor.
2
1

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 12 of 39

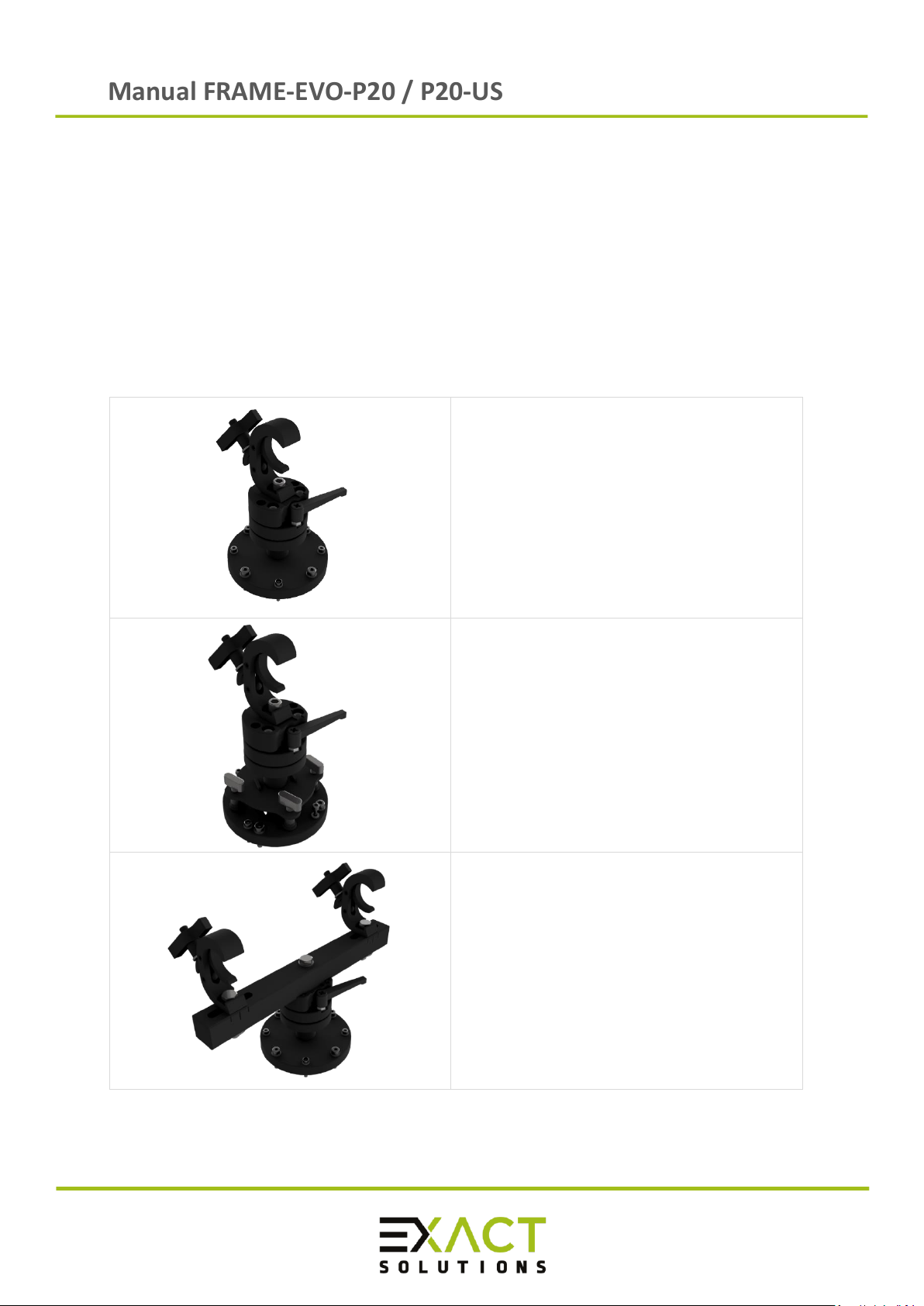

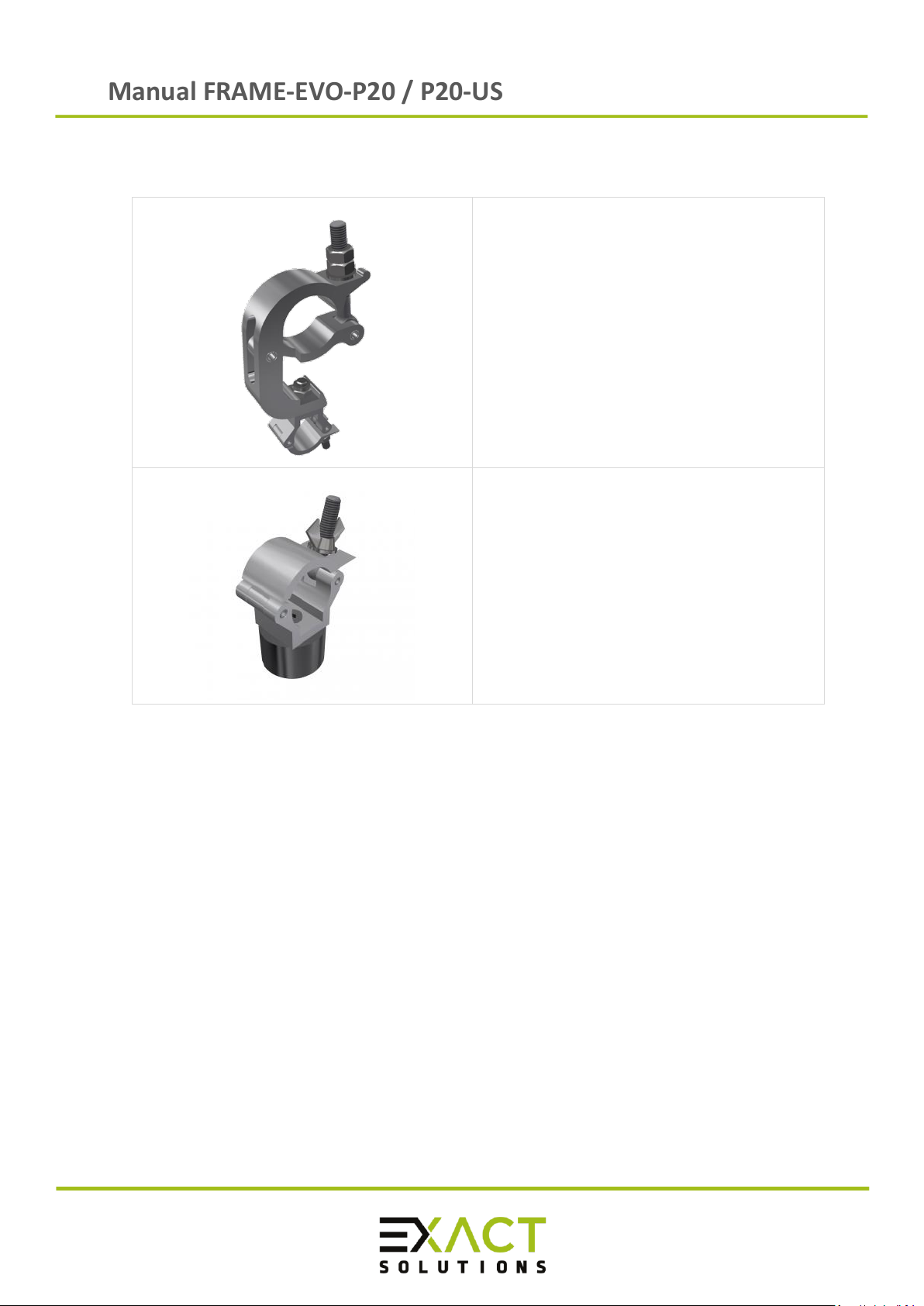

4. Optional Accessories
Please refer to “1.1 FRAME-EVO-P20 / P20-US designation” to assign the Panasonic EU and
USA model numbers to the model numbers below.
Please refer to chapter “10. Mounting the frame on a truss” and the following for
information regarding the usability of the optional accessories.
EVO-LINK-200
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
EVO-LINK-201
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
EVO-LINK-210
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 13 of 39
EVO-LINK-211
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
FRAME-PF-UNI-PORAD
Portrait Adapter for Projector Frames
Optional accessory for portrait mode truss
mount installations.
Does not include the EVO-LINK-200 series
More information can be found in the
FRAME-PF-UNI-PORAD installation manual.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 14 of 39
FRAME-PF-UNI-CLP5030
Optional accessory for hanging one FRAME-
EVO-P20 / P20-US or two in tandem mode
on a truss.
FRAME-PF-UNI-CLP5030 represents a
complete set of 4 pieces.
FRAME-PF-UNI-CLP30PT
Optional accessory for portrait mode table
installation
FRAME-PF-UNI-CLP30PT represents a
complete set of 4 pieces
The optional accessories must be purchased separately. They are not included in the
standard package!

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 15 of 39
5. Fitting the projectors in the frame
Step 1: Place the projector upside down on a suitable flat surface then remove the lens
(if it is pre-installed). For easier access you may first remove the upper ring before mounting
the projector. Please refer to chapter “6. Removing the Upper Ring - Installation Version”.
Otherwise it is recommended to place an appropriate material underneath the projector so
that it is lifted up for about 10 cm. This will help during the following process.

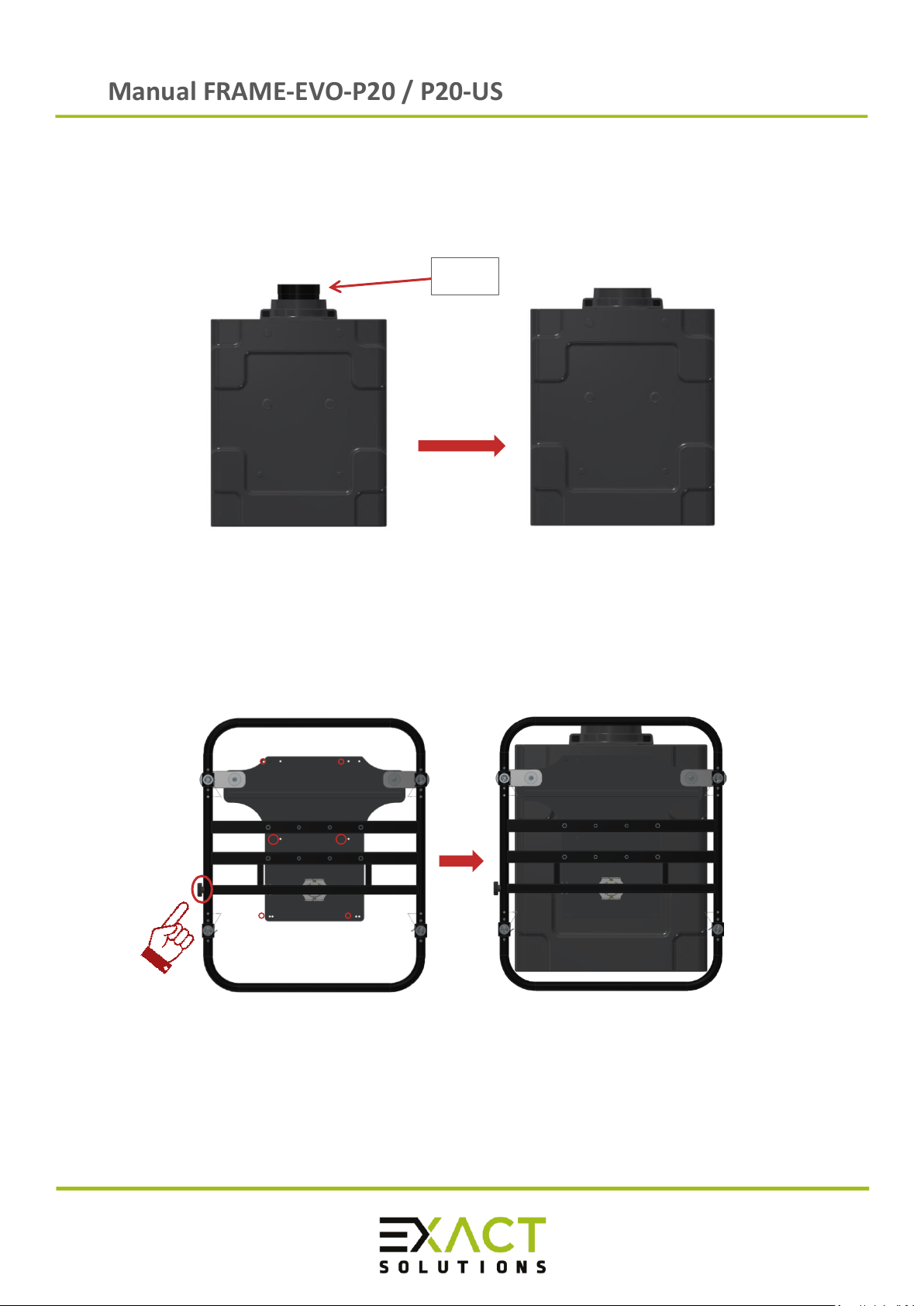

Step 2: Position the frame over the projector so that the adjustment screw is at the back,
aligning the M6 screw holes. Please put the projector in the right position so that the
front/back position is correct when installing. Otherweise the position of the holes will
not match.
Lens

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 16 of 39
Step 3: Place the 6 x Ø6 Schnorr Washers (2) over each corresponding hole. Secure the
6 x M6x30 ISO 7380 screws (1) into each hole with 4 Nm torque. Ensure each screw runs
through the plate and catches into the corresponding M6 hole in the projector surface.
Please make sure to use only the correspondent screw holes when installing a projector!
Do not forget to use the 6 x Ø6 Schnorr Washers (2) as they are preventing the screws to
loose themselves!
In case you removed the upper ring during Step 1 please now refer to chapter
“7. Reinstalling the Upper Ring” and attach the upper ring back to the base.
Step 4: The lens can be attached back to the projector.
Torque: 4±0.5 Nm
1
2

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 17 of 39
6. Removing the Upper Ring - Installation Version
The purpose of the Installation Version is to have a quick, simple and tool free possibility to
install the ET-D75LE90 or ET-D75LE95 ultra-short throw lens, or any other short throw
lenses, without any limitation regarding the frame.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 18 of 39

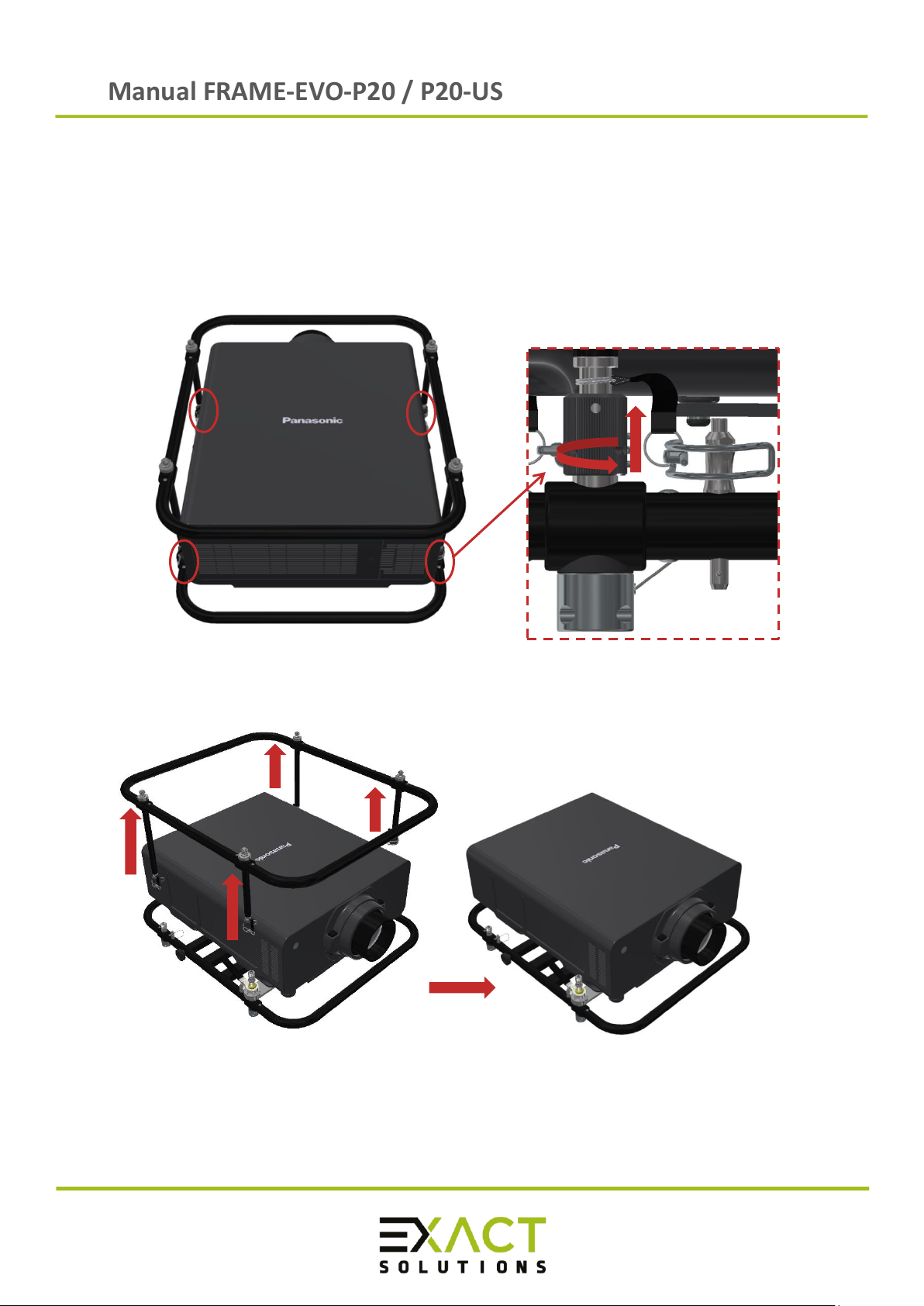

Step 1: Remove the 4 x spring clips as presented in the above picture. Because the spring of
the spring clip is strong, please be careful not to clamp your fingers between the spring and
the attachment nut
Step 2: Unscrew the 4 x attachment nuts (as presented in the above picture) until they are
completely loose and can be move up and down freely.
Step 3: Remove the Upper Ring and you will have the Installation Version of the frame.

Manual FRAME-EVO-P20 / P20-US
02.01.2020
Page 19 of 39

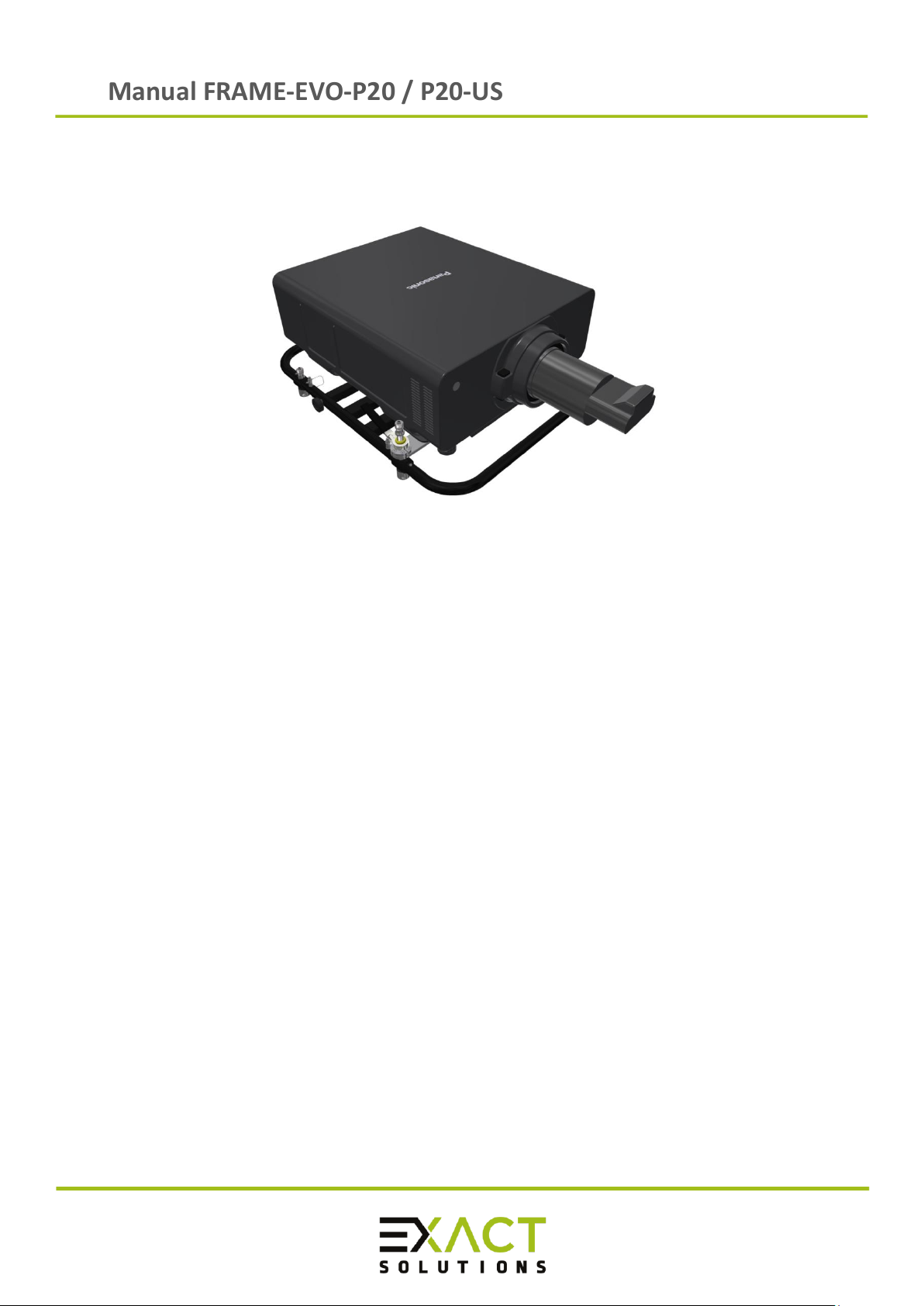

Step 4: Now the ET-D75LE90 or ET-D75LE95 ultra-short throw lens can be attached to the
projector.
