Product information
EFC21 is used to control gas replaces that have Exodraft chimney fans installed.
The control system functions as a safety monitoring system and will switch off the gas replace if there is
insufcient chimney draught.
The system has been developed in accordance with standards BS 5440-1: 2008,
BS 6644 :2005+A1:2008, Appliances Burning Gaseous Fuels Directive 2016/426/EC and
EN298 (2012).
Incorrect use may result in problems with soot, chimney res, etc. which might damage the product.
Please check out this site for advice about the product:
www.exodraft.com
Scope of supply
• EFC21
• Temperature sensor
• Installation manual and user instructions
Accessories
The table below shows the accessories and spare parts available for the RHG-models.
Accessories*
Temperature sensor
Isolation switch
*This manual does not describe the specic use of accessories. We refer to the separate manuals for such components.
For more details contact your Exodraft dealer.

8|UK
Your energy. Optimized.
Warranty
All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For
some countries an extended period of guarantee may apply depending on either national legislation or
other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or who-
lesaler (preferably where the Exodraft product has been bought originally). An updated list of Exodraft
specialised dealers can be found on our website for the country in question.
Exodraft products must always be installed by properly qualied personnel. Exodraft reserves the right to
change these guidelines without prior notice.
The warranty and liability does not cover instances regarding personal injury or damage to property or the
product that can be ascribed to one or more of the following causes:
• Failure to follow this installation and operation manual
• Incorrect installation, start-up, maintenance or servicing
• Improper repairs
• Unauthorised structural modications made to the product
• Installation of additional components that have not been tested/approved with the product
• Any damage resulting from continued use of the product despite an evident defect
• Failure to use original spareparts and accessories
• Failure to use the product as intended
• Exceeding or failure to meet the limit values in the technical data
• Force majeure

UK |9
3112017_EFC21_UK
Technical specications
The fan will start at full speed when the EFC21 is activated. Once the system detects there is sufcient
chimney draught, the gas replace can be lit and the fan speed will fall to the pre-set level.
The control has a step-up function and a built-in 15 second delay to avoid inadvertent cut-outs.
If the control system is switched off the chimney fan will stop.
But an optional three-minute run on can be set by the DIP switch.
Technical data
Description EFC21
H x W x D [mm] 85 x 126 x 32
Supply voltage 230 V ±10%/50 Hz
Fuses: T 3,15 A
Release out Max. 3,15 A 250 VAC/3,15 A 30 VDC
EFC21 SMG out 230 VAC, max. 100 VA
Chimney fan out Max. 1.8 A/230 V (AC3)
Air inlet (Damper) 24 VDC (closed-circuit supply)
External start 24 VDC (closed-circuit supply)
Ingress Protection IP 30
Material ABS plastic
Ambient temperature: -10 °C to + 40 °C

10 |UK
Your energy. Optimized.
AAlarm LED
BOperating LED
C ON/OFF button
DFuse T 3,15 A 230 V
(spare fuse is also included)
E Pressure switch terminal
F Fan terminal
G SMG solenoid valve)
H Connection cable
I Service mode button
JDIP switch
KPotentiometer for adjusting the fan
speed
LProduct ID
Mn/a
Nn/a
OGas replace start terminal
P Air inlet monitoring terminal
Q External ON/OFF terminal
R Power supply terminal
Sn/a
Construction and components
SERVICE
MODE
1 2
MANUAL RESET
POST PURGE
Umin
+
-
OFF
ON
4 51 2 3
12 138 9 10 11
L N
NregLINO NC C
FAN
OUT
PDS
IN
+24V
C NO
24V
+24V
24V
IN
START AIR INLET
IN OUT
RELEASE
230 VAC
SUPPLY
R
5ATPULL
KJIFEDC
R Q P O
BA H
L
STEP 2
OUT
NO
15
C
14
M
N
S
21 22 23
GREEN BROWN WHITE
RD11281
Ext. IR-sensor
76
L N
OUT
SMG
G
Ret også RD11472
(anden positionering, til brochure)
Rev. 1 09-09-2010 Pil til nu fast monteret sikring er ernet

UK |11
3112017_EFC21_UK
Installation
Fitting the controller

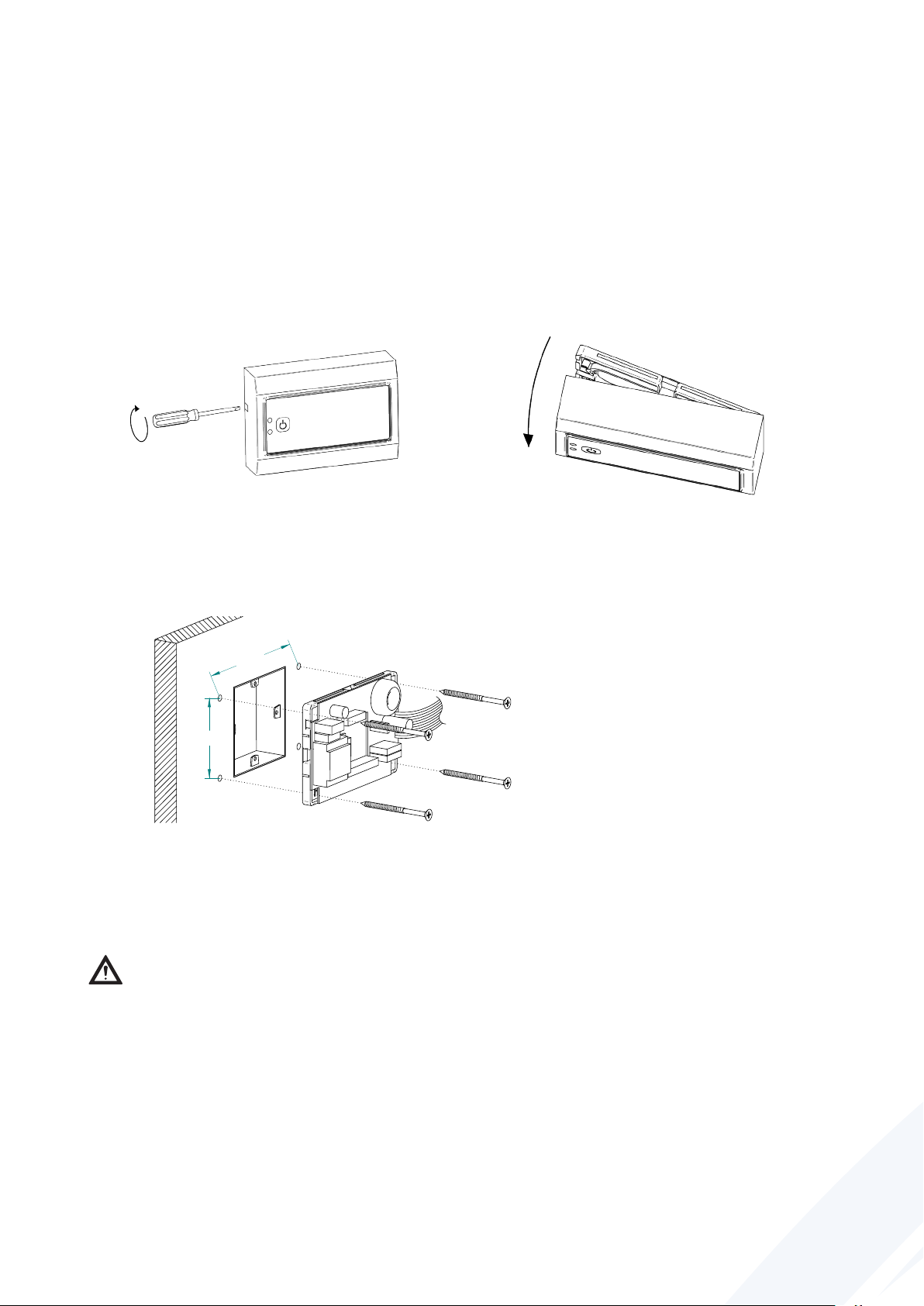

The control panel must be tted onto a level surface with a minimum distance of 100 mm to any corner.
The front cover is removed from the frame by twisting a screwdriver in the two holes on the sides of the
cover. The front cover can then be tipped carefully and the frame can be tted onto the wall.
The front cover is tted with connection cable on the right side which limits how much this side can be opened.
The controller covers a standard dry lining box (80 x 80 mm).
110
65
Fig. 3
Electrical wiring
Electrical wiring of the controller must be carried out in accordance with national legislation
and regulations. Earth must always be connected.

12 |UK
Your energy. Optimized.
Standard installation

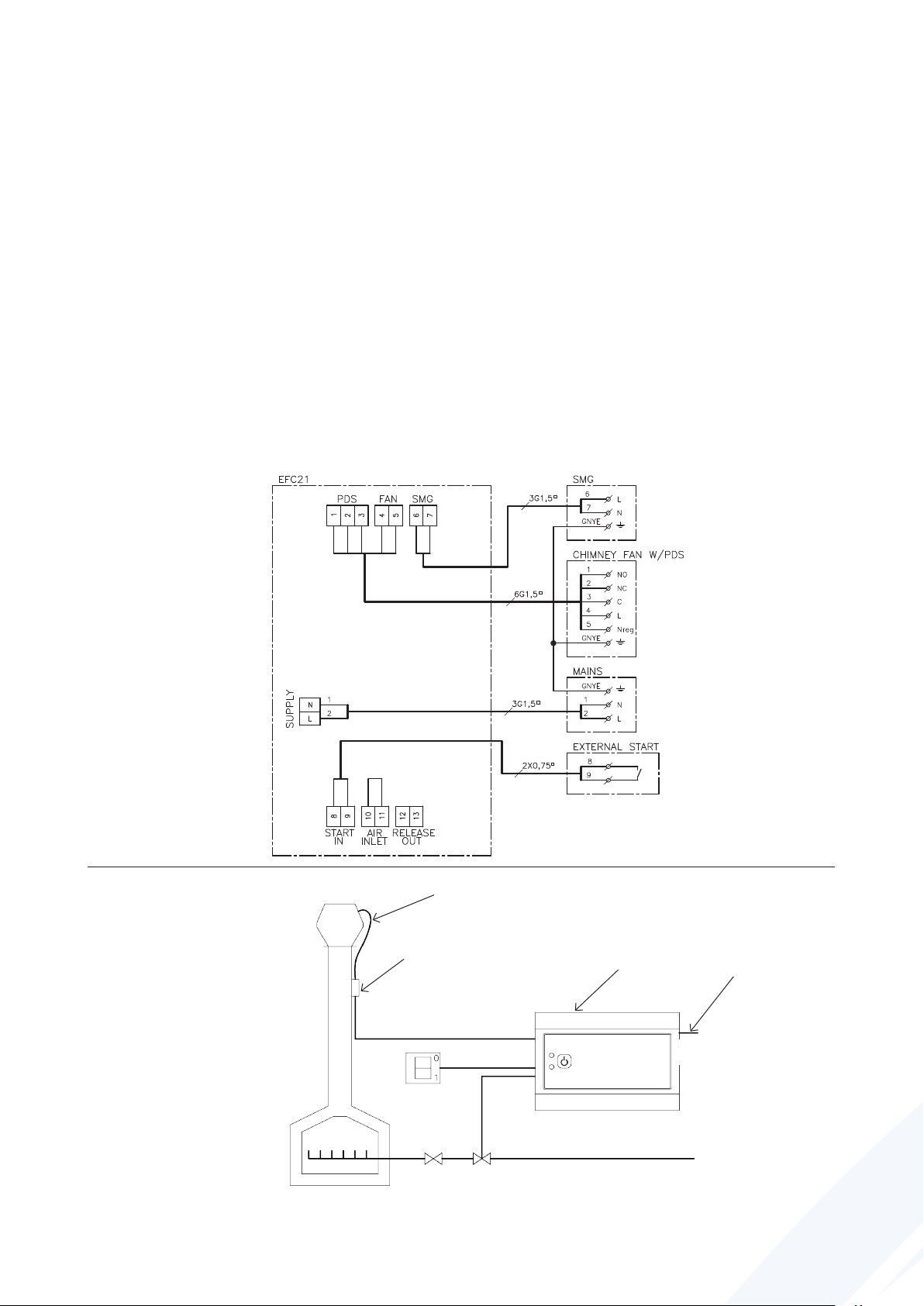

The diagram shows how a separate solenoid valve (SMG) must be connected to the EFC21.
The solenoid valve is part of the separate fail-safe system and will cut off the gas supply in the case of
insufcient system chimney draught (controlled by the fan pressure switch).
• Connect the earths of the mains supply, chimney fan and solenoidvalve together (SMG).
• Connect the chimney fan and pressure switch to terminals 1–5.
• Connect the SMG to terminals 6–7.
• Connect the optional Air inlet monitoring to terminals 10–11.
If this monitoring is not mandatory, then a jumper must be tted across terminals 10–11.
• Connect mains supply to terminals marked ”Supply”.
Wiring diagram
Unit Chimney fan with pressure switch (PDS)
Isolation switch EFC21 Mains
SMG (solenoid valve) Gas

UK |13
3112017_EFC21_UK
Installation with external ON/OFF
Example showing how a EFC21 controller can be connected directly to a gas re without having to use an
extra SMG. This type of installation requires a re with a controller that has ame-detection and automatic
ignition – or a permanent pilot light. If there is insufcient chimney draught (detected by the fan pressure
switch) the controller will switch off the gas replace (potential-free switch).
• Connect the mains earth to the earth terminal of the chimney fan.
• Connect the chimney fan and pressure switch to terminals 1–5.
• Optional external ON/OFF switch is connected to terminals 8–9.
• Connect the optional Air inlet monitoring to terminals 10–11.
If this monitoring is not mandatory then a jumper must be tted across terminals 10–11.
• Connect start/activate burn control to terminals 12–13 (potential-free switch).
• Connect mains supply to terminals marked ”Supply”.
Wiring diagram
Unit
Chimney fan with pressure switch (PDS)
Isolation switch EFC21 Mains
External ON / OFF
SMG (solenoid valve) Gas

14 |UK
Your energy. Optimized.
EFC21 coupled directly to a gas replace control
Example showing how a EFC21 controller can be connected directly to a gas re without having to use an
extra SMG. This type of installation requires a re with a controller that has ame-detection and auto-
matic ignition – or a permanent pilot light. If there is insufcient chimney draught (detected by the fan
pressure switch) the controller will switch off the gas replace (potential-free switch).
• Connect the mains earth to the earth terminal of the chimney fan.
• Connect the chimney fan and pressure switch to terminals 1–5.
• Optional external ON/OFF switch is connected to terminals 8–9.
• Connect the optional Air inlet monitoring to terminals 10–11.
If this monitoring is not mandatory then a jumper must be tted across terminals 10–11.
• Connect start/activate burn control to terminals 12–13 (potential-free switch).
• Connect mains supply to terminals marked ”Supply”.
Wiring diagram
Unit Chimney fan with pressure switch (PDS)
Isolation switch
EFC21
Mains
Air inlet
Gas replace control
Step 2
Gas

UK |15
3112017_EFC21_UK
Commissioning
All windows and doors must be closed prior to commissioning. If there is another form of ventilation in the
room, it should be run at full speed during the commissioning.
DIP switch
Check the factory-set DIP switch setting before commissioning (Fig. 1-J)
DIP switch Function Factory setting OFF ON
1 MANUAL RESET ON
Automatic RESET
following power
failure or faulty
chimney draught
Manual RESET
following power
failure or faulty
chimney draught
2
RUN-ON
AFTER
VENTILATION
OFF No fan run-on Fan runs on for
three minutes
Service mode
• Open control panel.
• Press ON/OFF button (Fig. 1-C).
• If the re has to be lit during the commissioning then wait until GREEN LED is on, but not ashing.
• Press the service mode button (Fig. 1-I) on the back of the cover.
Alarm LED (Fig. 1-A) will ash RED, and the operating LED (Fig. 1-B)
will ash according to the position of the pressure switch – see the table below.
RED Insufcient chimney draught (C-NC)
GREEN Sufcient chimney draught (C-NO)
YELLOW No signal from pressure switch. Check the wiring
The service mode will deactivate automatically after 30 minutes or the next time the ON/OFF button is pressed.
Commissioning is carried out with the control box open.
Only touch components with electrically insulated tools.
In service mode the PDS and Air inlet safety function are disabled.

16 |UK
Your energy. Optimized.
Setting the potentiometer
• The potentiometer (Fig. 1-K) is set to maximum by turning clockwise.
• Slowly adjust the fan speed using the potentiometer. Check there are no spillages by thoroughly
checking the edge of the replace.
• If there is some leakage, increase the fan speed until leakage from the replace is no longer detectable.
Setting the pressure switch
The pressure switch is normally tted in the chimney fan.
• Set the pressure switch to a minimum by turning anti-clockwise.
• Slowly increase the pressure switch setting until it cuts out (you will hear a click) or until the operating
LED (Fig. 1-B) changes from GREEN to RED.
• Make a note of the pressure switch setting at cut-off.
• Set the pressure switch to 10 Pa below the previously noted cut-off value.
• Press ON/OFF button (Fig. 1-C). Service mode is now deactivated.
Testing the commissioning set-up
• Prior to the test, the required speed of the fan must be determined and adjusted according to replace
manufacturer instruction.
• Check the start-up function after the commissioning by pressing the ON/OFF button.
• Start replace.
• Check there is no leakage (all doors and windows must be closed) If some other type of ventilation is
installed, it must be on and running at full speed.
• If a leak is detected, repeat the commissioning.
• After running for ten minutes with no leakage, turn the isolation switch off and the fail-safe function
is being checked. The replace should cut-out after 15 seconds after the pressure switch has cut-off.
Remember to switch the isolation switch back on.
• Fit the cover.
• Inform the end user about the controller functions and leave the instructions with the end user.

UK |17
3112017_EFC21_UK

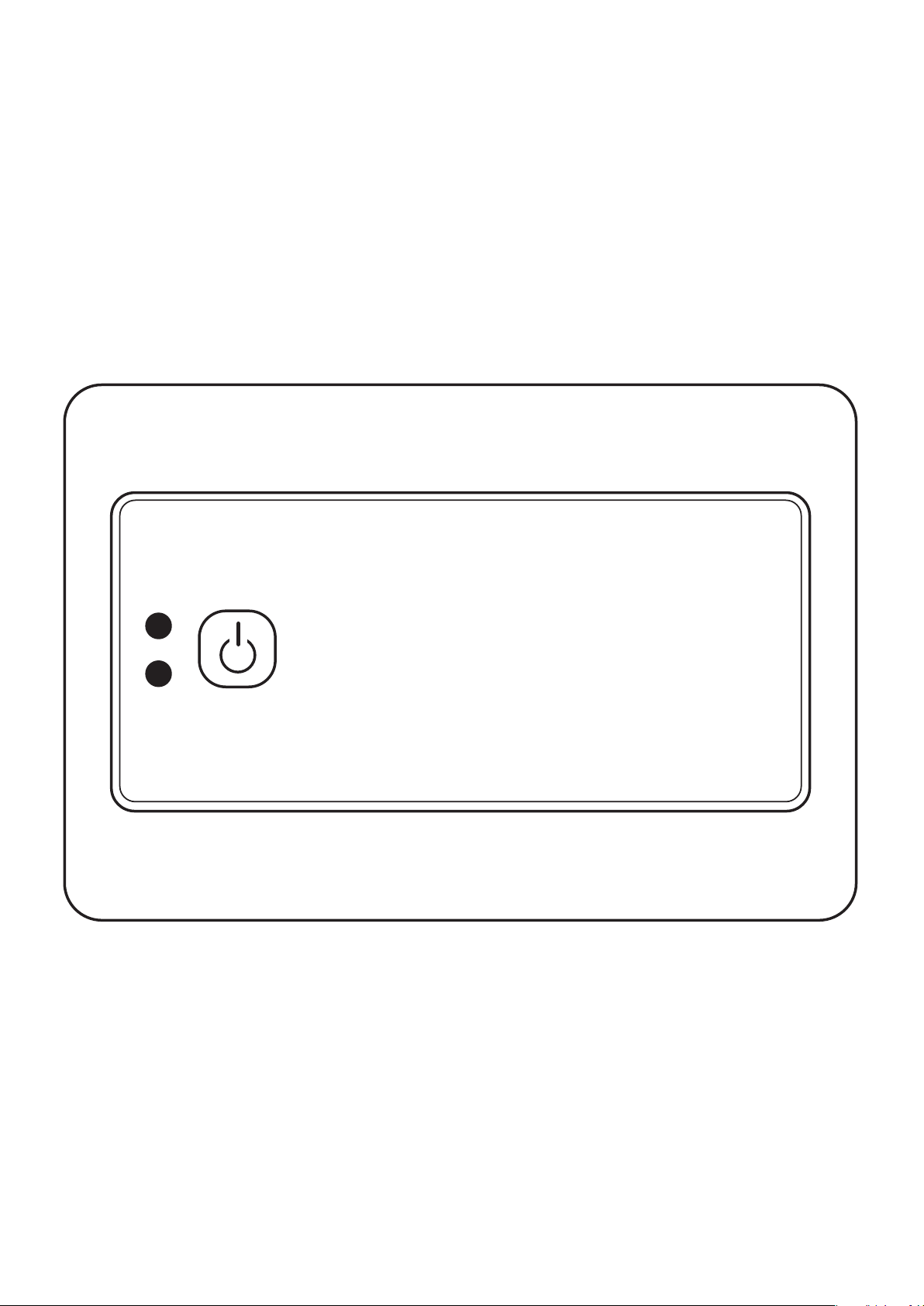

Daily use
Using the
EFC controller
• Press the ON/OFF button (A).
• The operating LED (B) will ash GREEN until the correct chimney draught is conrmed.
• If it ashes YELLOW, then the Air inlet must be opened The operating LED will then
become GREEN and the replace can be lit.
• To stop the fan press the ON/OFF button.
External
ON/OFF switch
• The ON/OFF switch can be used to start, stop and reset the controller.
• If the external ON/OFF switch is used, it has priority over the control panel and the remote control.
NB! The switch must be in the OFF position before the controller can be re-started.
Operating LED
Observation (B) Type of fault
Flashing RED No start-up signal from the safety circuit Typically, because the fan is restarted while it is still running
Flashing GREEN The fan has started and the controller is waiting for the chimney-draught-ok signal
Flashing YELLOW Chimney draught is conrmed correct but signal from the Air inlet is missing
Constant GREEN Start up ok and the re can be lit
Constant YELLOW The ventilation function is active and the re is OFF
Alarm LED
Constant RED indicates a power failure has occured.
To reset and start the controller, press the ON/OFF button once. If the alarm LED (C) activates during ope-
ration, press the ON/OFF button twice to stop the fan and restart the controller. If the alarm LED remains on
after reset, please refer to the “Troubleshooting” section.
Extra function
Press the ON/OFF button (A) for at least four seconds to increase the fan’s operating speed. If the controller
is switched off, the fan speed will be reset.
B
A
C

18 |UK
Your energy. Optimized.
Troubleshooting
Start
Observation Type of fault Solution
Operating LED Alarm LED
Constant
RED Power failure 1. Press the ON/OFF button twice or the external ON/OFF button to reset and start up
Flashing
RED
Safety monitoring fault
(pressure switch)
1. Check the wiring
2. The PDS setting may be too low
3. Adjust the pressure switch setting
Flashing
GREEN Unit fault
1. Check the isolation switch
2. Check the fan is running. If it is not running, check wiring to the
fan and PDS
3. Check that the ue, chimney and/or chimney fan are not
blocked
4. Check the ow sensor in the chimney fan
5. Check settings and go through the commissioning again
Flashing
YELLOW Air volume/Air inlet signal
1. Check the Air inlet is open
2. Check the switch and wiring
3. If the installation does not have an Air inlet, check that there is
a jumper across terminals 10–11
Flashing
RED, GREEN
or YELLOW
Flashing
RED Service mode Press the ON/OFF button
No response No
response
Check remote control
battery Change battery
Operating
Observation Type of fault Solution
Operating LED Alarm LED
Constant
GREEN
Constant
RED
Insufcient chimney
draught, the correct draught
is being established
1. Press the ON/OFF button, or if the external ON/OFF switch
is in use, turn it OFF before resetting
2. Press the ON/OFF button or use the external ON/OFF switch
to restart
Flashing
GREEN
Constant
RED Faulty chimney draught
1. Check the isolation switch
2. Check the fan is running. If it is not running, check wiring to
the fan
3. Check that the ue, chimney and/or chimney fan are not
blocked
4. Check the ow sensor in the chimney fan
5. Check settings and redo the commissioning again

UK |19
3112017_EFC21_UK
Approvals
Third part approvals
The EFC21 is certied by GASTEC and have the certication number: PIN: 0063 BT1395
Safety check by Gas Safe Register
Gas appliances should be checked for safety once a year by a installer registered in the Gas Safe Register.
Details of local installers can be obtained by ringing the gas safe register on 0800 408 5500 or by
accessing the website at https://www.gassaferegister.co.uk/

UK Conformity Assessed
Exodraft a/s
Industrivej 10
DK-5550 Langeskov
Hereby declares that the following products:
Were manufactured in conformity with the provisions of the following regulations:
The Supply of Machinery (Safety) Regulations 2008
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
Langeskov, 01-11-2022
Managing Director
Anders Haugaard
UK Conformity Assessed
EFC21
