Exor CDW10U2UL User manual

WARNING 230V a.c.
The connections to this equipment should be made by a suitably
qualified person in accordance with the current wiring regulations.
It is strongly recommended to use Ex-Or latching type connectors.
The unit must be earthed.
Connect UltraLite provides an efficient way to inter-connect presence
detectors and luminaires using industry standard connectors. One or two
detectors can be connected to up to ten luminaires depending upon the
configuration required.
Electrical Connections
Screw terminals are provided under the cover for power supply
connections and extension of the dimming control to other Connect
Boxes. Override switches may also be connected here providing a
means to control the switched live connections to the luminaires.
The installation should provide means of supply disconnection and over-
current protection. Please refer to diagrams overleaf for further
information.
The cover of the cable chamber is removed by inserting the tip of a flat
bladed screwdriver into the catch recess and exerting light pressure on
the handle in an inboard direction while lifting the long outboard edge of
the cover.
The cable entries, for 20mm conduit, bushes or glands are semi-pierced
in the walls of the cable chamber and can easily be removed from the
outside with a 20mm hole saw.
If the cables are not routed right into the box through conduit or trunking,
a cable restraining gland must be fitted at the cable entry for strain relief.
Fixing
The box should be sited on a suitable, smooth, flat surface using the two
end fixing flanges. Consideration should be given to the box’s location as
access will be required to install the plugs. The box must not be distorted
when fixing.
Alternatively, the box may be rod-fixed. In this case, the fixing should be
substantial enough to withstand the action of plugging and un-plugging
connectors.
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
PRODUCT RATING/RECOMMENDED CIRCUIT PROTECTION: 16 Amps
MAXIMUM LOAD PER OUTLET: 6 Amps*
MAXIMUM TOTAL LOAD: 16 Amps*
22
SUPPLY TERMINAL CAPACITY: 6.0mm (2 x 2.5mm )
2
DIMMING TERMINAL CAPACITY: 4.0mm
CASE MATERIAL: Polycarbonate
CASE FINISH: Lightly textured light grey
Technical Data
Installation Instructions

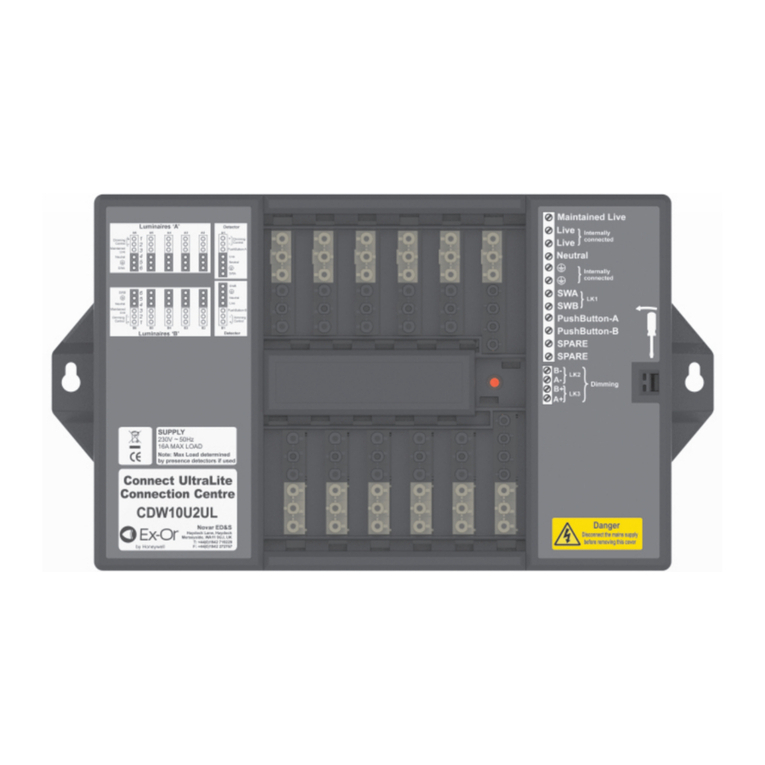

Connect UltraLite
Connection Centre
CDW10U2UL
Factory Configuration
When the unit is shipped, the dimming control and switched lives are
linked in the terminal space. LK2 and LK3 MUST BE REMOVED if two
detectors with dimming outputs are connected to the box. (LK1 must also
be removed when using analogue detectors.)
A red indicator in the connection chamber indicates that power is
present.
D
H
F
D
2
W
Height (H) = 50mm (108mm including plug and lead)
Width (W) = 315mm (361mm including mounting feet)
Depth (D) = 205mm
Dimensions
W5007A
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
Connections are made as
illustrated to the left. Two spare
terminals are provided for
termination purposes.
Live (Lin) is routed to the two
detector connectors (A1 and B1).
Maintained Live (ML) is routed
to the ten luminaire connectors,
A2-A6 and B2-B6.
SWA is the switched live output
from a detector connected toA1.
SWB is the switched live output
from a detector connected to B1.
LK1 is a common connection
between the switched live from
each detector position. It must be
re mov ed to separa te th e
luminaires into two groups.
Dimming Control Terminals
The Dimming Control signals
from each detector to its group
of luminaires are accessible at
terminals under the connection
chamber cover. Links are factory
fitted to join the two groups on to
one detector.
Lin
ML
MAINTAINED LIVE
Internally connected to A2-6 and B2-6
LIVE INPUT
Internally connected to A1 and B1
Lin internally linked
MAINS INPUT: 230V 50Hz
Max load on any single outlet: 6A
Max total load: 16A
tc: 5 - 50 C
No user-serviceable parts inside
EARTH INPUT
Protected Earth
E terminals internally linked
GROUP A
(Connect wall switches
here if not using
plug-in detectors)
GROUP B
Manual input OneSwitch
Group A
(Only when used with compatible detectors)
Manual input OneSwitch
Group B
LK1
External
Link
Spare
Spare
Spare terminals have
no internal connection
A
B
B+
A+
_
_
LK2
LK3
External Links
Dimming Control
NOTE: Links 2 and 3
MUST BE
REMOVED when
using two dimming
detectors
PB-A
PB-B
SWA
SWB
N
E
E
Lin
* Note: These specifications relate to the product when used as a simple wiring
device. When mains-switching presence detectors are used in conjunction with
this equipment, it is the presence detectors which will normally dictate the
maximum load. It is important to check, and not exceed, the specification of the
current-switching presence detectors, which will typically be around 6 Amps.
by Honeywell
Ex-Or
Novar ED&S Limited
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: [phone] Fax: [phone]
Email: [e-mail]
www.ex-or.com
Fixing Centres (F) = 340mm
Weight = 1.85 kg

Detector Connection
There are two detector connection positions on each box. The detector is
connected by a flying lead and GST18/7 plug.
Luminaire Connection
There are ten luminaire outlets on each box. Each luminaire is connected by a
flying lead and GST18/6 plug.
Notes:
(i) The dimming control connections are mains rated
(ii) Unit must not be used with multi-phase connections
(iii) Mains-based dimming must not be used in conjunction with
Ex-Or’s range of presence detectors.
Connection Examples
Auxiliary Items
Luminaire Leads:
CPWL633 3m, 3-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL635 5m, 5-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL643 3m, 4-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL645 5m, 4-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL653 3m, 5-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL655 5m, 5-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
Emergency Luminaire Leads:
CPWL663 3m, 6-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
CPWL665 5m, 6-core, 6-pole GST 18/6 Plug & Ex-Or Latching Shell
Plug & Latching Shell:
CPW7 GST 18/7 Plug & Ex-Or Latching Shell
Detectors:
MS1100PFSWCWL7 Bronze Series Detector with photocell for CDW10U2UL - slimline flush
MS1200PFSWCWL7 Silver Series Detector with photocell for CDW10U2UL - slimline flush
Ensure max
detector load is
not exceeded
Dimming control
See Detector Data
for allowed ballast load
-Switched Live
Neutral
Maintained Live
+
-
Max load 6A
per output
Dimming control -
Detector output
Switched Live
Neutral
Live - Supply to detector
+
-
Push Button input to detector
Single Detector with 10 Luminaires (For load information,
see Note under Technical Data)
A6 A5 A4 A3 A2 A1
Up to 10 luminaires
Detector
B6 B5 B4 B3 B2 Not
used
LK2
LK3
B-
B+
A-
A+
E
ML
E
N
L
E
L
ML
SWB
SWA
PB-B
PB-A
N
From
Supply
Isolator
L
no
connection
Manual
control
Distribution Unit with Mains-Based ‘OneTouch’ Dimming
(for use with compatible Digital Ballasts)
no
connection
no
connection
no
connection
no
connection
A6 A5 A4 A3 A2 A1
Up to 12 luminaires
B6 B5 B4 B3 B2 B1
Remove
Links
LK2 and LK3
Remove
Links
LK2 and LK3
A-
A+
B-
B+
E
ML
E
N
L
E
L
ML
SWB
SWA
PB-B
PB-A
N
From
Supply
Isolator
L
Manual
control
Distribution Unit with Mains-Based ‘OneTouch’ Dimming
(for use with compatible Dimmable Ballasts)
Up to 6 luminaires
B6 B5 B4 B3 B2 B1
A6 A5 A4 A3 A2 A1
Up to 6 luminaires
E
ML
E
N
L
E
L
ML
SWB
SWA
PB-B
PB-A
N
From
Supply
Isolator
L
LK1
LK1
no
connection
no
connection
no
connection
no
connection
no
connection
A-
A+
B-
B+
From
External
Dimming
Control
Two Detectors (For load information, see Note under Technical Data)
LK1 is not required for analogue or switching type of detectors
E
ML
E
N
L
E
L
ML
SWB
SWA
PB-B
PB-A
N
From
Supply
Isolator
L
Detector
Detector
GROUP B
B6 B5 B4 B3 B2 B1
GROUP A
B-
B+
A-
A+
Manual
control
A6 A5 A4 A3 A2 A1
If sockets A1 and B1 are not occupied by presence detector, those sockets may be
used for luminaires, however the plug will need to be 7-pole and wired appropriately.
LK1 is not required for analogue or switching type of detectors
Maintained Live
Live In
Live In
Neutral
Earth
Earth
SWA
SWB
PushButton-A
PushButton-B
Spare
Spare
B-
A-
B+
A+
Group A
Top
Half
Bottom
Half
Group B
Detector A
Detector B
A simple schematic showing connection information (including two spare
terminals) follows:
LK1
LK1
