Explore Scientific WSH4102 User manual

Art.No.: WSH4102 (EU/AUS/US Version)
Weather station • Stazione meteo • Wetterstation
Smart Multi-Channel
Weather Station
With Wireless Sensor
EN INSTRUCTION MANUAL.............2
IT ISTRUZIONI PER L’USO.............34
DE BEDIENUNGSANLEITUNG.........64

2
EN INSTRUCTION MANUAL
ABOUT THIS INSTRUCTION MANUAL
These operating instructions are to be considered
a component of the device.
Please read the safety instructions and the operating
instructions carefully before use.
Keep these instructions for renewed use at a later date.
When the device is sold or given to someone else, the
instruction manual must be provided to the new owner/
user of the product.
This symbol represents a warning. To ensure safe
use, always adhere to the instructions described in this
documentation.
This symbol is followed by a user’s tip.
GENERAL WARNINGS
•Risk of electric shock — This device contains
electronic components that operate via a power
source (batteries). Children should only use the
device under adult supervision. Only use the
device as described in the manual; otherwise, you
run the risk of an electric shock.
• Choking hazard —Children should only use the
device under adult supervision. Keep packaging
material, like plastic bags and rubber bands, out
of the reach of children, as these materials pose a
choking hazard.
• Risk of chemical burn —Keep batteries out of
the reach of children! Make sure you insert the
batteries correctly. Leaking battery acid can lead to
chemical burns. Avoid contact of battery acid with
skin, eyes and mucous membranes. In the event
of contact, rinse the affected region immediately
with a plenty of water and seek medical attention.
• Risk of re/explosion —Do not expose the
device to high temperatures. Use only the
recommended batteries. Do not short-circuit the
device or batteries, or throw them into a re.
Excessive heat or improper handling could trigger
a short-circuit, a re, or an explosion.
• Do not disassemble the device. In the event of
a defect, please contact your dealer. The dealer
will contact the Service Centre and can send the
device in to be repaired, if necessary.
• Use only the recommended batteries. Always
replace weak or empty batteries with a new,
complete set of batteries at full capacity. Do not
use batteries from different brands or with different
capacities. The batteries should be removed from
the unit if it has not been used for a long time.
PRECAUTIONS

3
EN
- This product is not to be used for medical purposes
or for public information.
- Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
- Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
- Placement of this product on certain types of wood
may result in damage to its nishing for which
manufacturer will not be responsible. Consult
the furniture manufacturer’s care instructions for
information.
- This product is intended for use only with the
adaptor provided: Manufacturer: HUAXU Electronics
Factory, Model: HX075-0501000-AB, HX075-
0501000-AG-001 or HX075-0501000-AX.
- The console is intended to be used only indoors.
- Place the console at least 20cm from nearby
persons.
- This device is only suitable for mounting at height
< 2m.
SCOPE OF DELIVERY
Base station, Thermo-Hygro sensor, AC/DC adapter
(5V), CR2032 cell button battery
BEFORE YOU BEGIN
• We recommend using alkaline batteries. If
temperatures regularly fall below 0°C (32°F), we
recommend using lithium batteries.
• Avoid using rechargeable batteries. (Rechargeable
batteries cannot maintain correct power
requirements.)
• Insert batteries before rst use, matching the polarity
in the battery compartment. Connect the AC/DC
adapter with the Base station and insert the CR2032
bell button battery as backup power. 2x AA batteries
are required for for the Thermo-Hygro sensor.

4
TABLE OF CONTENTS
ABOUT THIS INSTRUCTION MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GENERAL WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SCOPE OF DELIVERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WIRELESS THERMO-HYGRO SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALL WIRELESS THERMO-HYGRO SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SETUP THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ADDITIONAL WIRELESS SENSOR(S) (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . . . 11
SMART LIFE APP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ACCOUNT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CONNECT WEATHER STATION TO WIFI NETWORK . . . . . . . . . . . . . . . . . . . . . . . 13
DEVICE SCREEN OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
IOT APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
OTHER FEATURE IN SMART LIFE APP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
FIRMWARE UPDATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
OTHER SETTING & FUNCTIONS OF THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . 21
SETTING ALARM TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ACTIVATING ALARM FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WIRELESS SENSOR SIGNAL RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TEMPERATURE / HUMIDITY FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5
EN
TO VIEW MAX / MIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
BACK LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SET LCD DISPLAY CONTRAST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
BATTERY REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
TROUBLESHOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WIRELESS THERMO-HYGRO SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
EC DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
RCM DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
FCC DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
NOTES ON CLEANING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
WARRANTY & SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6
13
12
11
14
15
16
2
3
4
5
8
7
6
9
10
113
12
11
14
15
16
2
3
4
5
8
7
6
9
10
1
INTRODUCTION
Thank you for selecting SMART multi-channel weather
station. The console has Wi-Fi module built-in and
through its smart system is compatible with Tuya® IOT
platform. Through the Smart Life App, you can view the
temperature and humidity of main console and wireless
sensor(s), check history records, set high / low alarm
and trigger tasks in anywhere. This system come with
a wireless thermo-hygro sensor and can support up to
7 additional sensors (optional). User can monitor and
set multi trigger task to control other Tuya® compatible
device(s) according to the specic condition(s). The
colourful LCD display shows the readings clearly and
tidy, this system is a truly IoT system for you and your
home.
NOTE:
This instruction manual contains useful information on
the proper use and care of this product. Please read
this manual through to fully understand and enjoy its
features, and keep it handy for future use.

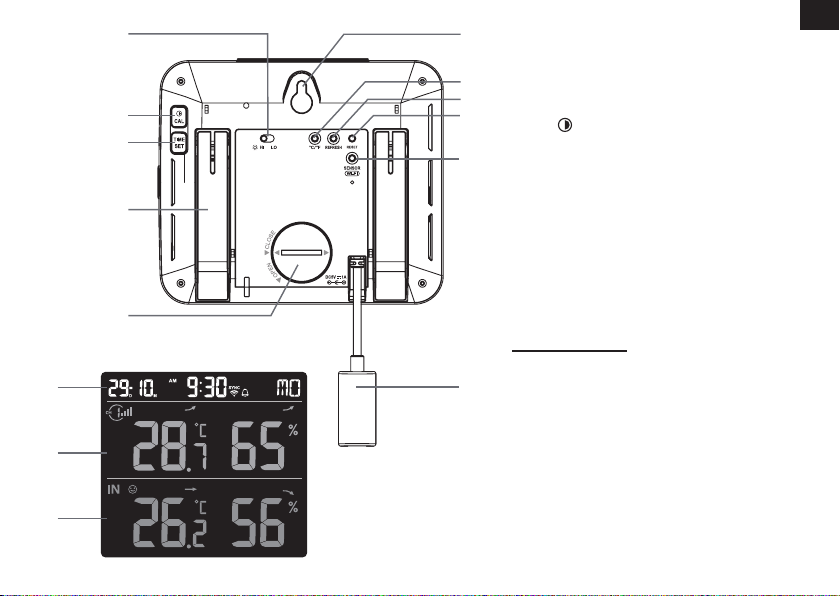

OVERVIEW
CONSOLE
1. [ ALARM/SNOOZE ] key
2. LCD display

7
EN
13
12
11
14
15
16
2
3
4
5
8
7
6
9
10
1
3. [ CHANNEL / + ] key
4. [ MODE / ALARM ] key
5. [ MAX / MIN / - ] key
6. [ HI / LO ] slide switch
7. [ / CAL ] key
8. [ TIME SET ] key
9. Table stand
10. Battery door
11. Wall mounting hole
12. [ °C / °F ] key
13. [ Refresh ] key
14. [ RESET ] key
15. [ SENSOR / WI-FI ] key
16. Power jack
LCD DISPLAY
1. Time & Date
2. Temperature & humidity
3. Indoor temperature & humidity
1
2
3

8
1 2
3
4
5

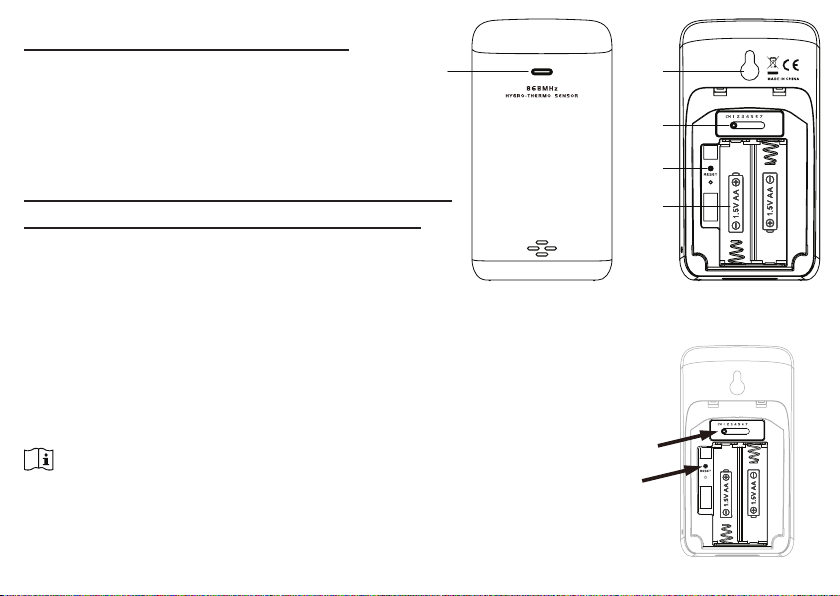

WIRELESS THERMO-HYGRO SENSOR
1. LED indicator
2. Wall mounting holder
3. Channel slide switch
4. [ RESET ] key
5. Battery compartment
INSTALLATION AND SETUP
INSTALL WIRELESS THERMO-HYGRO SENSOR
NOTE:
- If you need to re-assign the sensor channel, slide the channel slide switch
to the new channel position and press [ RESET ] key on the sensor for the
new channel number to be effective.
- Avoid placing the sensors in direct sunlight, rain or snow.
1. Remove the battery door of the sensor.
2. Use the channel slide switch to set the channel number for the
sensor (e.g. Channel 1)
3. Insert 2 x AA size batteries into the battery compartment according
to the polarity marked on the battery compartment, and close the
battery door.
4. The sensor is in synchronization mode, and can be registered to the
console within the next few minutes. The transmission status LED
will begin to ash every 1 minute.

9
EN
- To avoid the sensor/s and console pairing failure during new console setup, please power up
the sensor(s) rst, and then press [ SENSOR/WiFi ] key on the main unit.

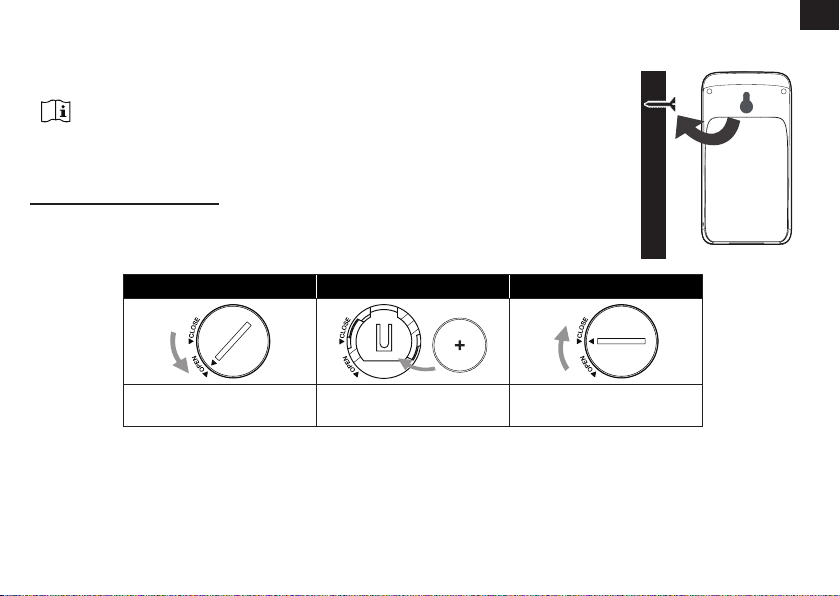

PLACING THE WIRELESS THERMO-HYGRO SENSOR
Place a screw on the wall that you wish to hang the sensor on.
Hang the sensor onto the screw by the wall mounting holder. You
can also place the sensor on a table by itself.
SETUP THE CONSOLE
INSTALL THE BACKUP BATTERY
Backup battery provides power to the console to retain clock time and
date, max/min records and calibration value.
Step 1 Step 2 Step 3
Remove the console
battery door with coin
Insert a new CR2032
button cell battery
Replace the battery door.
NOTE:
- The backup battery can back up: Time & Date, Max/Min records and calibration value.
- The built-in memory can back up: Router setting server settings.

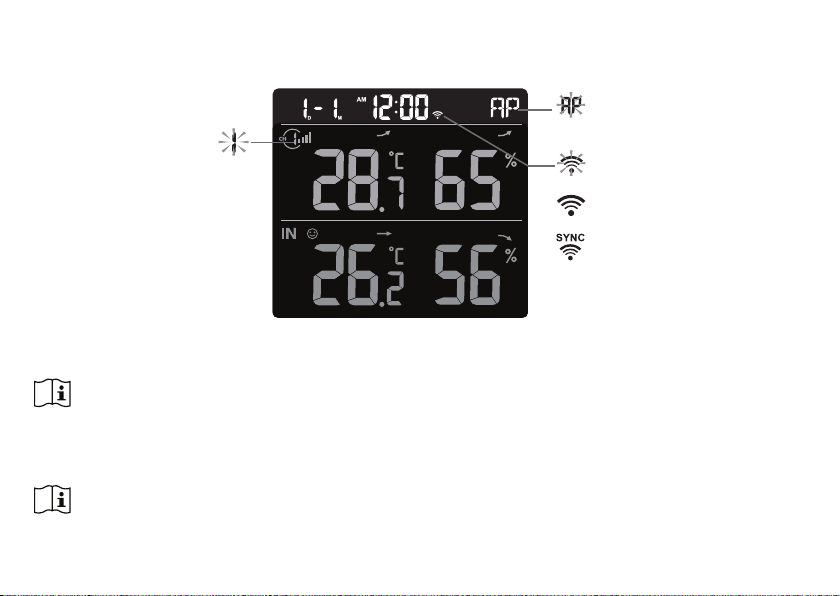

POWER UP THE CONSOLE
1. Plug in the power adapter to power up the console.

10
2. Once the console is power up, all the segments of the LCD will be shown.
3. The console will automatically enter AP mode and sensor synchronization mode
automatically.
Blinking:
Trying to connect to router
Stable:
Connected to router
Stable:
Connected to router and
synchronized to local time
Flashing:
Console currently in Access
Point (AP) mode
Blinking:
Sensor synchronization
process
4.The wireless sensor will automatically pair up with console (about 1 minute). Upon successful
synchronization, display will change from "--.-°C --%" to actual reading.
NOTE:
If no display appears when power up the console. You can press [ RESET ] key by using a pointed
object. If this process still not work, you can remove the backup battery and unplug the adaptor then
re-power up the console again.
RESET AND FACTORY HARD RESET
To reset the console and start again, press the [ RESET ] key once or remove the backup
battery and then unplug the adapter. To resume factory settings and remove all data, press and

11
EN
hold the [ RESET ] key for 6 seconds.
CHANGING BATTERIES AND MANUAL
PAIRING OF SENSOR
Whenever you changed the batteries of the
wireless sensor, re-synchronization must be
done manually.
1. Change all the batteries to new ones in
the sensor.
2. Press [ SENSOR / WI-FI ] key on the
console to enter sensor Synchronization
mode.
3. Console will re-register the sensor after its
batteries are changed (about 1 minute).
ADDITIONAL WIRELESS SENSOR(S)
(OPTIONAL)
The console can support up to 7 wireless
sensors.
1. In the new wireless sensor, slide the
Channel switch to a new CH number
2. Press the [ RESET ] key on the new
sensor.
3. At the back of the console, press the
[ SENSOR / WI-FI ] key enter sensor
synchronization mode
4. Wait for the new sensor(s) to pair up with
the console. (about 1 minute)
5. Once the new sensor(s) are connected
to the console successfully, their
temperature and humidity will be shown
accordingly.
NOTE:
- Channel number of the sensor must not
be duplicated among the sensors. Please
refer to “INSTALL Wireless thermo-hygro
SENSOR” for details
- This console can support different type
of additional wireless sensor(s), e.g. soil
moisture. If you would like to pair up
additional sensors, please check with your
retailer for more detail.
SENSOR(S) RESYNCHRONIZATION
Press the [ Sensor / wi- ] key once for the
console to enter sensor Synchronization
mode (channel number blinking), and the
console will re-register all the sensors that
have already been paired to it before.

12
REMOVE WIRELESS SENSOR
User may manually delete any sensor from the
console.
1. Press the [ CHANNEL ] key until the console
shows the display of the selected sensor.
2. Press and hold [ REFRESH ] key for 10
seconds, until its readings are reset " -- , -°C
-- % " is shown.
SMART LIFE APP
ACCOUNT REGISTRATION
The console works with Smart Life
App for Android and iOS smart phone.
1. Scan the QR code to go to the
Smart Life download page
2. Download Smart Life from
Google Play or Apple App store.
3. Install the Smart Life App.
4. Follow the instruction to create
your own account using phone
number or email.
5. Once the account registration is
completed, the Home Screen
will be shown.
NOTE:
- There is no Registration code needed if
email method is chosen.
- The App may be subject to change without
notice.
- You may be prompted to allow the App
to have access to your location. This will
allow the app to give you general weather
information in your area. The app will still
work if you don' t allow access to that.
Smart Life for
Andriod /IPhone

13
EN

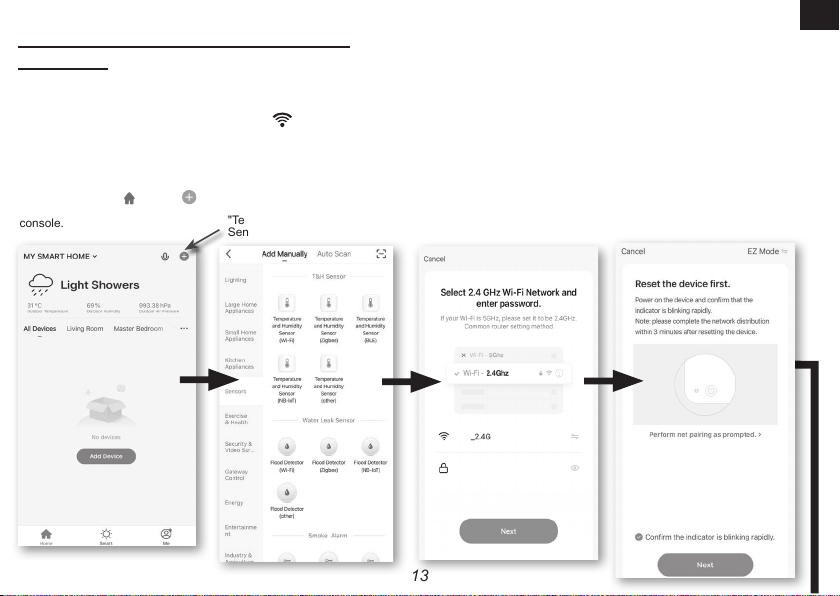

Step 2:
On "Add Manually" screen,
choose "Sensors" in the left
menu bar and then select
"Temperature and Humidity
Sensor(Wi-Fi)".
Step 1:
At the home screen , tap the
on the top right corner to add your
console.
Step 3:
Make sure you select the 2.4G
network and enter your Wi-Fi
password then tap the "Next".
Step 4:
Conrm your device is in "AP
mode" and tap "Next".
CONNECT WEATHER STATION TO WIFI
NETWORK
1. Press and hold the [ SENSOR / WI-FI ] key
for 6 seconds to enter AP mode manually,
indicated by blinking AP and . When the
console is power up for the rst time, the
console will automatically enter and stay at
AP mode.
2. Open Smart Life App and follow the in-
app instructions to connect weather
station to your Wi-Fi network.

14
- Smart weather station can only connect to
2.4G WI-FI network
- Enable the location information in your
mobile when you add your console to App.
- User may press and hold [ SENSOR / WI-FI
]for 6 seconds to exit AP mode any time.
Step 5:
There will auto scan and register
your device.
Step 6:
Once it success, the console icon
will shown, and you can customize
its information.
Step 7:
The console will appears on your
Home Screen. Tap to see the
readings.
3. The console will automatically exit AP
mode and return to normal operation once it's
connected to Wi-Fi router.
NOTE :

15
EN
34
57
6
2
1
DEVICE SCREEN OVERVIEW
The device screen can show the IN and (CH)
Channel's readings, max / min records, and
access to graphs, alert setting, alert history and
unit conversion.
1. Temperature and humidity reading with
max/min records for INDOOR
2. Temperature and humidity reading with
max/min records for wireless sensor (CH1
- CH7)
3. Back to home page icon
4. Device management for advance feature
and rmware update
5. View the alert history
6. Setting for alert notication
7. Change temperature unit

16

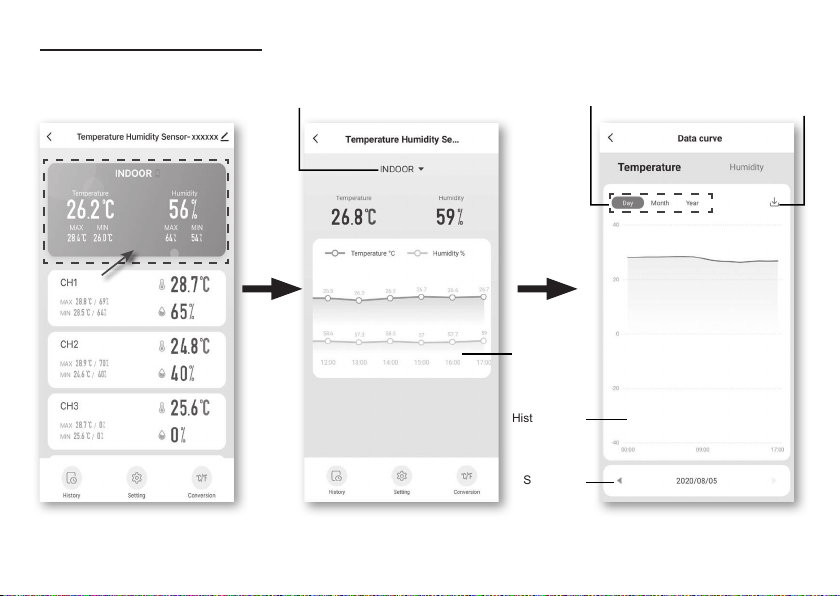

TO VIEW HISTORY GRAPH
You can view the history graph by tapping the INDOOR or CH region in "device page".
Select the period Download
data by email
History graph
Select date
Hourly graph,
tap to view
"data curve"
page
Select IN or other CH graph

17
EN
TO SET ALERT NOTIFICATION
You can set the temperature and humidity high / low alarm.
Step 1:
Tap the "Setting" on the bottom
of the "device Screen".
Step 2:
Tap the "Temperature Alarm" or
"Humidity Alarm".
Step 3:
Tap the "INDOOR" or "CH 1 ~ 7 ".
Step 4:
Set the High / Low trigger values and slide the switch to activate the alert.

18
AUTOMATION WITH OTHER DEVICE USING SMART LIFE
Smart Life
Console
Wireless Sensor (s)
Smart Switch Devices
Heater BulbsFans
Humidifier Dehumidifier
Smart Sockets

19
EN

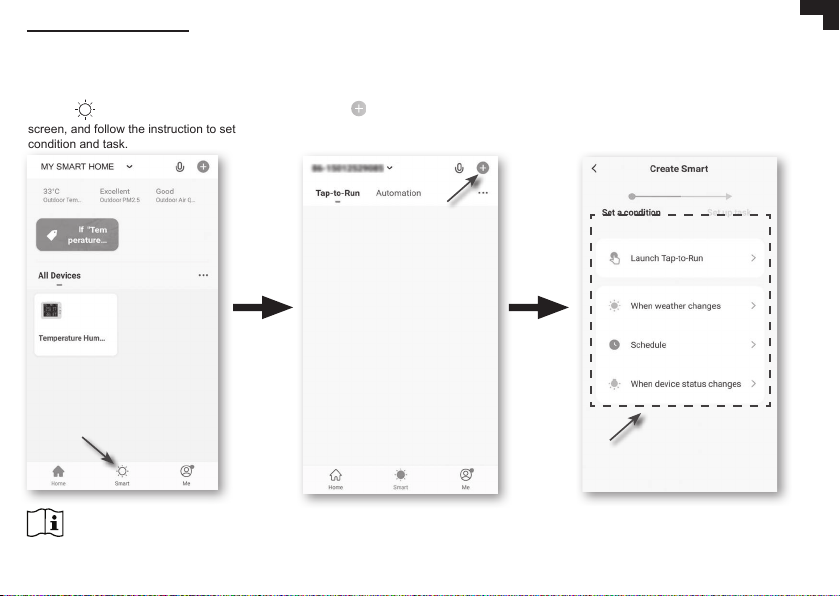

IOT APPLICATIONS
Through the Smart life App, you can create the temperature and humidity trigger conditions to
control other Smart Life compatible device(s) automatically.
Step 1:
Tap the " Smart" icon on Home
screen, and follow the instruction to set
condition and task.
Step 2:
Tap the " " icon.
Step 3:
Tap one of below tag to set different
trigger condition.
NOTE :
- Any tasks required or performed by third party devices are at user's own choice and risk.
- Please note no guarantee can be assumed regarding the correctness, accuracy, uptodateness,

20
Step 2
Step 1
reliability and completeness of IOT applications.
OTHER FEATURE IN SMART LIFE APP
Smart Life have many advance features, please check the FAQ
in the App to know more about Smart Life. Tap "Me" in home
page then tap the FAQ & Feedback for more detail.
FIRMWARE UPDATE
The console can be updated through your WI-FI network.
If new rmware is available, a notication or pop up
message will be shown on your mobile when you open
the App. Follow the instruction in the App to do the
update.
During the update process, the console will show the
progress status percentage at the bottom of the screen.
Once the update complete, the console screen will reset
and back to normal mode. Please ignore App update fail
message, if the console can restart and show the normal
screen after the update process completed.
IMPORTANT NOTE:
- Please keep connecting the power during the rmware
update process.
- Please make sure your PC's WI-FI connection is stable.
