Extron electronics Cable Cubby 600 User manual

Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
USA
714.491.1500
Fax [phone]
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax [phone]
Extron Electronics, Asia
135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax [phone]
Extron Electronics, Japan
Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax [phone]
www.extron.com
© 2006 Extron Electronics. All rights reserved.
User’s Manual
Surface Access Productsfor Cables, AAPs, and Power Outlets
68-701-01 Rev. G
10 06
Cable Cubby®200
Cable Cubby®300C
Cable Cubby®300S
Cable Cubby®600
Cable Cubby®800
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Precautions
Thissymbolisintendedtoalerttheuser of important
operatingandmaintenance(servicing)instructionsin
the literature provided with the equipment.
This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating
instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future
reference.
Follow Warnings • Follow all warnings and instructions marked on the
equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not
recommended by the equipment manufacturer because they may be
hazardous.
Warning
Power sources • This equipment should be operated only from the power source
indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power
cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be
stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-
serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are
provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly
replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructionsimportantesconcernantl’exploitationet
la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence
dansleboîtierdel’appareilde tensionsdangereuses
non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de
sécurité et d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir
les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes
marqués sur le matériel ou présentés dans la documentation utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils
non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation
indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de
manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-
maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur.Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci
servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.
Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.
Safety Instructions • English
Consignes de Sécurité • Français
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.
DiesesSymbolsolldenBenutzerdaraufaufmerksam
machen, daß im Inneren des Gehäuses dieses
ProduktesgefährlicheSpannungen,dienichtisoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,
sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit
des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und
Anleitungen auf dem Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,
die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene
Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten
Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im
Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.
Wartung •Alle Wartungsmaßnahmen sollten nur von qualifiziertem Servicepersonal
durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,
dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt
wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Este símbolo se utiliza para advertir al usuario
sobre instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y
seguridad, antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para
futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas
en el equipo o en la documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no
sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo
de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida
de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben
instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal
calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,
es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.
Instrucciones de seguridad • Español
Extron’s Warranty
Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:
USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America:
Extron Electronics, Europe
Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands
Asia: Japan:
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan
This Limited Warranty does not apply if the fault has been caused by misuse, improper
handling care, electrical or mechanical abuse, abnormal operating conditions or non-
Extron authorized modification to the product.
If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.
Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fitness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

i
Cable Cubby®Products • Table of Contents
i
Table of Contents
Chapter 1• Introduction........................................................... 1-1
About the Cable Cubby®Products ....................................... 1-2
Features ........................................................................................ 1-5
Chapter 2• Installation ............................................................. 2-1
Installation Overview............................................................... 2-2
Preparing the Routing Template .......................................... 2-3
Preparing the Table.................................................................. 2-4
Preparing the table with a router........................................ 2-4
Preparing the table with a hole saw
(Cable Cubby 300C only) ....................................................... 2-6
Installing the Cables and AAPs ............................................. 2-7

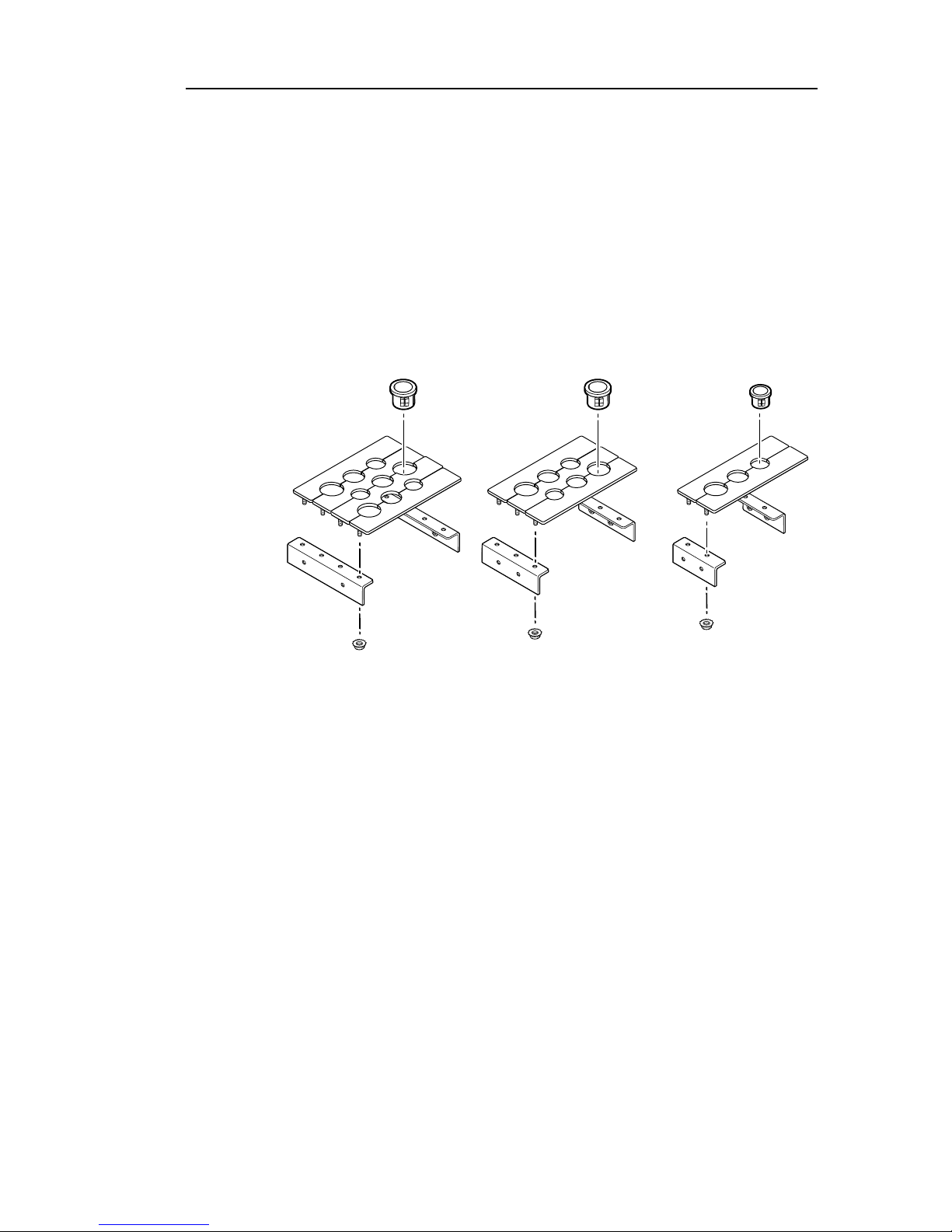

AAP shelf brackets (CC 300, 600, and 800)........................... 2-7
Installing the power module (CC 300, 600, and 800) .......... 2-8
Installing the cables............................................................... 2-8
Installing the AAPs................................................................. 2-9
Installing the shelf assembly (CC 300, 600, and 800) ........ 2-10
Adjusting the cable position (CC 200) ................................ 2-10
Mounting the Cable Cubby.................................................. 2-11
Chapter 3 • Maintenance and Modifications............. 3-1
Removing and Replacing the Cable Cubby....................... 3-2
Replacing Cables or an AAP................................................... 3-5
Adding an Additional Power Module
(CC 600 and CC 800)................................................................. 3-6
Appendix A • Reference Information..............................A-1
Specifications ..............................................................................A-2
Cable Cubby Part Numbers ....................................................A-7
Included Parts .............................................................................A-8
Replacement/Modification Part Numbers.........................A-9
Routing Template Part Numbers ........................................A-11
Top Plate Dimensions .............................................................A-11
Appendix B • Packaging for Shipment........................... B-1
Chapter One • Introduction.................................................... 1-1
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

ii Cable Cubby®Products • Table of Contents
Table of Contents, cont’d
All trademarks mentioned in this manual are the properties of their respective owners.
68-701-01 Rev. G
10 06
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products
1
Chapter One
Introduction
About the Cable Cubby®Products
Features
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Introduction
Introduction
1-2
About the Cable Cubby®Products
The Extron Cable Cubbies are furniture-mounted, architectural
solutions for inconspicuous cable access and connection points.
When cables are not in use, they can be stored out of the way
while remaining connected to the presentation system.
Most US/domestic Cable Cubby models provide two
unswitched USA AC power outlets. The US/domestic Cable
Cubby 200 provides one outlet. Each of the international
versions provides a single unswitched AC power outlet
appropriate to the region where the Cable Cubby is sold.
Several different types of power receptacles are available for the
international version, including UK, French, Israeli, Australian,
Indian, European, and Swiss receptacles.
The four different sizes of Cable Cubbies provide room for
the indicated number of Extron’s Architectural Adapter Plates
(AAPs):
• Cable Cubby 800 USA/domestic model — Eight single-
space (single-height) AAPs
• Cable Cubby 800 (international model) — Seven single-
space (single-height) AAPs
• Cable Cubby 600 USA/domestic model — Six single-
space AAPs
• Cable Cubby 600 (international model) — Five single-
space AAPs
• Cable Cubby 300 USA/domestic model — Three single-
space AAPs
Cable Cubby 300S — Square cover (figure 1-1)
Cable Cubby 300C — Circular (round) cover
• Cable Cubby 300 (international model) — Two single-
space AAPs
Cable Cubby 300S — Square cover
Cable Cubby 300C — Circular (round) cover
• Cable Cubby 200 (all models) — Two single-space AAPs
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Introduction
1-3

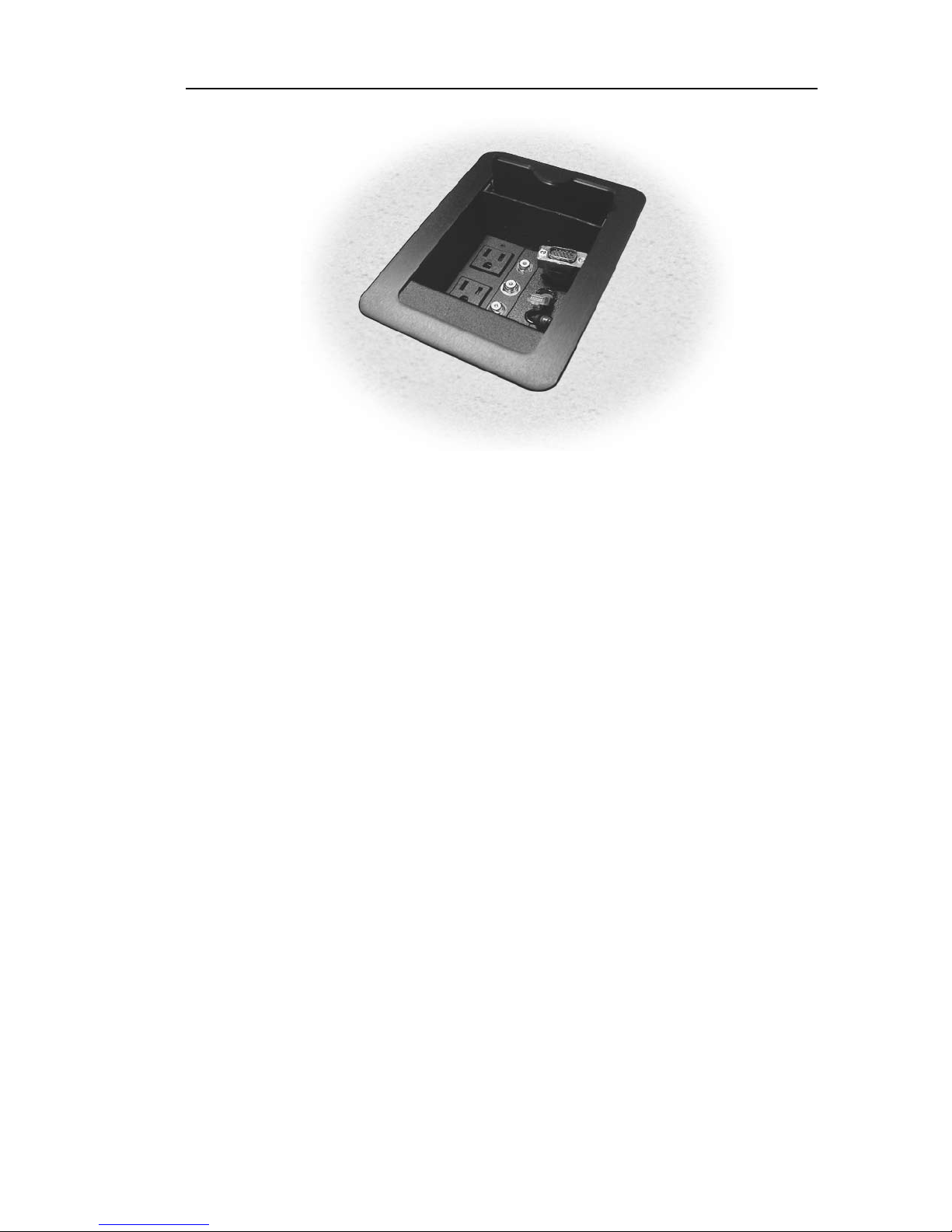

Figure 1-1 — Cable Cubby 300S US/domestic enclosure
The AAP spaces inside the cubbies allow you to customize the
enclosure to meet your unique needs, with the included split
double space AAPs and Extron’s full line of optional passive
AAPs. The split AAPs can store almost any type of cable
you might encounter. The line of passive AAPs allows you
to customize the AAP with almost any kind of pass-through
connectivity you may need.
The elevation of the AAPs inside the cubby and the arrangement
of the AAPs and the power outlets are adjustable to suit cable
lengths and connector types.
NThe elevation and arrangement of the power outlet
and AAPs in the Cable Cubby 200 are fixed and not
customizable.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Introduction
Introduction, cont’d
1-4
The installed Cable Cubbies fit nearly flush within a table or
podium top, storing the AAPs and cables out of the way and
out of sight. To access the AAPs and connectors, lift the lid
(figure 1-2). Half-moon cutouts in the lid allow you to run
cables in or out and then close the lid. For Cable Cubby 300s,
600s, and 800s, you can lower the lid into its recessed position.
Mounted
through a table
or podium
Extron
Cable Cubby 800
Hideaway Cable
Access Enclosure
Audio Cable,
Network Cable
15-pin HD Cable
Figure 1-2 — Typical Cable Cubby 800 application
The Cable Cubby 300 is available with either a round or a
rectangular top. The other cubbies all have rectangular tops
only. Preparing the table to install a Cable Cubby 300C (round)
requires simply drilling a hole in the table with a 6-inch hole
saw (figure 1-3). Preparing the table to install a square cubby
requires routing a square hole in the table top. Sheet metal
routing templates are available on request for all models at no
cost.
12 3

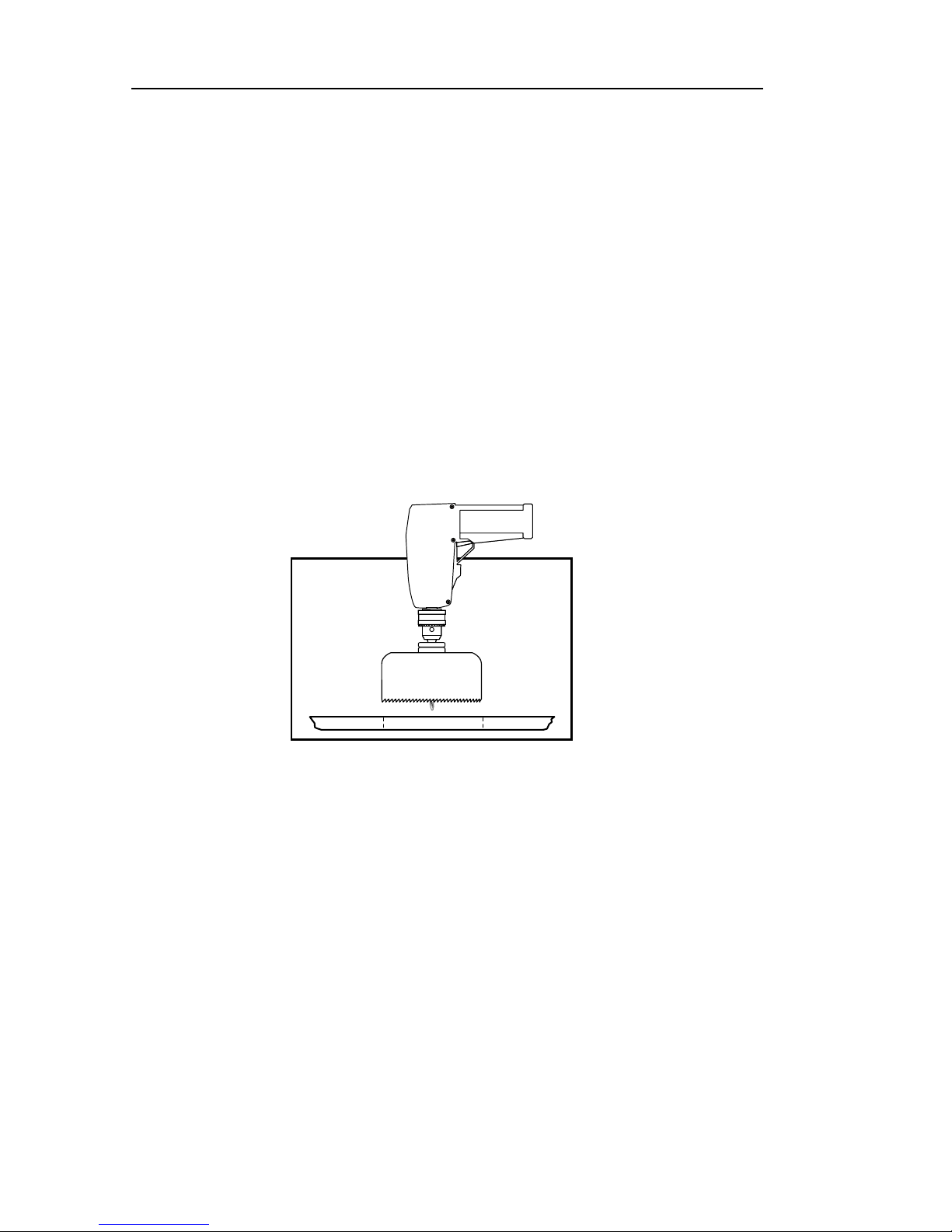

Figure 1-3 — Cable Cubby 300C mounting
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Introduction
1-5
Features
• Easy access to cables and AAPs
• Durable mechanical movement
• Cable Cubby 300, 600, and 800 available in a variety of
surface finishes
• Compact size
• Flexible installation of Extron passive AAPs
• Grounded AC receptacle(s)
• UL/CUL listing
• CSA certification
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Introduction
Introduction, cont’d
1-6
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products
2
Chapter Two
Installation
Installation Overview
Preparing the Routing Template
Preparing the Table
Installing the Cables and AAPs
Mounting the Cable Cubby
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
Installation
2-2
Installation Overview
Install and set up the Cable Cubby enclosures as follows:
1
If you plan to use a mounting template that has not been
prepared, prepare the template. See Preparing the Routing
Template, later in this chapter.
2
Cut a hole in the surface where the enclosure will be
installed. See Preparing the Table, later in this chapter.
3
Run all cables necessary to support the AC connector,
the cables stored in the cubby, and all planned AAP
connectors. Leave enough slack in the cables to connect or
route them before the cubby is installed in the table.
4
If applicable, install the power module. If your location
requires electrical conduit, install an Extron flexible
conduit kit. Refer to the Flexible Conduit Kit Installation
Guide, Extron part #68-734-01.
5
Install all desired cables into the cable pass-through (split)
AAPs and install the AAPs into the Cable Cubby. See
Installing the Cables and AAPs, later in this chapter.
6
If applicable, connect cables to the rear connectors on
the passive AAPs and install the AAPs in the cubby. See
Installing the AAPs, later in this chapter.
7
Mount the Cable Cubby in the table. See Mounting the
Cable Cubby, later in this chapter.
8
Peel the protective film from the top surface.
9
Connect the Cable Cubby power cord.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
2-3

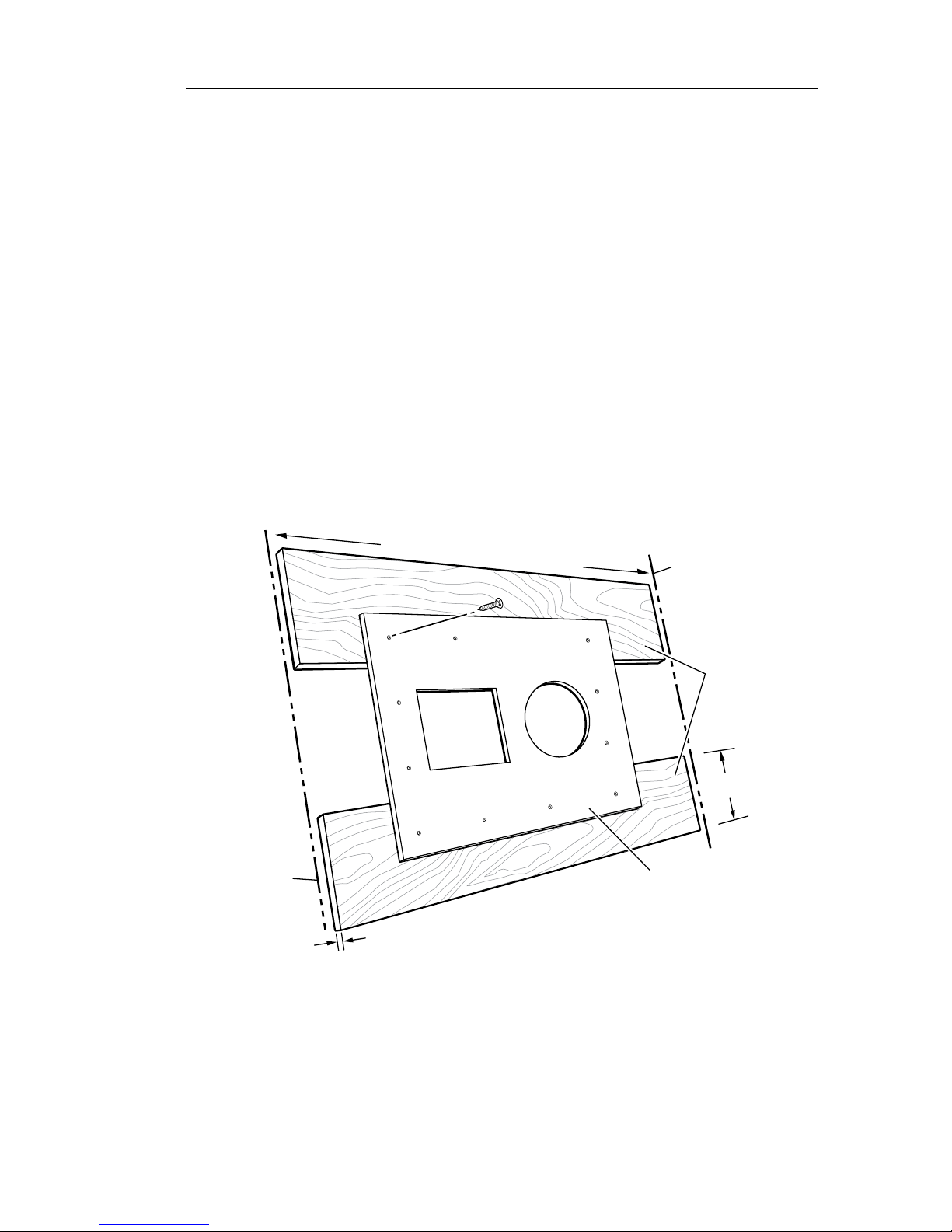

Preparing the Routing Template
Extron provides metal templates for the Cable Cubbies at no
charge. See Routing Template Part Numbers, in appendix A,
Reference Information, for part numbers. Extron recommends
using this template as a guide to cut the hole in the table where
the cubby will be installed.
NThe metal routing template is reusable. Do not discard
this template when the installation is complete. Save it
for installing Cable Cubby models of the same size.
1. Cut 1/2" x 4" strips of soft, finished lumber at least
long enough to span the distance between the desired
installation location on the mounting surface and the edges
of the mounting surface (figure 2-1).
These strips raise the routing template above the mounting
surface to provide room for the router’s collar, protect the
mounting surface, and extend the routing template’s reach
so that it can be clamped to the edge of the surface.
Mounting
Surface
Edge
Mounting
Surface
Edge
Wood Thickness
0.5" / 1.3 cm
Width of Mounting Surface
Routing Template
Wood Strip
Height
4" / 10.2 cm
Minimum
4 Screws
Wood
Strips
Figure 2-1 — Prepared CC 300 mounting template
2. Using four or more short wood screws, secure the
mounting template to the lumber strips.
CDo not allow the wood screws to protrude through
the bottom of the wooden strips. Protruding screws
will mar the table when the template is used.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
Installation, cont’d
2-4
Preparing the Table
The preferred and recommended method for preparing the table
for square Cable Cubbies and one of two preferred methods for
the Cable Cubby 300C is to use the appropriate Extron routing
template and a router.
For the Cable Cubby 300C, another preferred method is to use a
6" hole saw.
CThe opening in the table for the Cable Cubby should
be cut only by licensed and bonded craftspeople.
Exercise care to prevent scarring or damaging the
furniture.
The surfaces of the Cable Cubby enclosure have
screws and other protruding hardware that could
damage fine furniture. Do not rest the enclosure on
unprotected furniture.
Alternatively, for any model, you can use a paper cut-out
template (see appendix A) and a sabre saw or keyhole saw; but
this method is not recommended.
Preparing the table with a router
Prepare the table with a router as follows:
CThe routing templates for the various Cable Cubbies
are not interchangeable. If you use the wrong
template, you will cut an improperly-sized hole. If
you use a larger template than required, the cut will
result in gaps in the table surface on either side of
the enclosure.
CEnsure that only the wooden strips on the routing
template contact the furniture. Failure to do so may
mar the furniture.
NThe metal routing template is reusable. Do not discard
the template when the installation is complete. Save it
for installing other Cable Cubbies of the same size.
1. Mark the desired mounting location on the tabletop or
other installation surface.
2. Place the mounting template assembly on the table,
centered on the mounting location. Angle the template
for the optimum positioning. If necessary, use a square to
ensure that the template is properly positioned. Extron is
not responsible for improperly positioned Cable Cubbies.
3. Once the template assembly is positioned properly, secure
the assembly to the table with C-clamps.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
2-5
WWear safety glasses when operating the router.
Failure to comply can result in eye injury.
4. Using a router with a 5/8" (or 16 mm) outside diameter
guide bushing and a 1/2" (or 12 mm or 12.7 mm) diameter
straight router bit, carefully cut the opening in the surface
(figure 2-2).
Figure 2-2 — Cutting the opening with a router
5. Remove the C-clamps and the routing template.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
Installation, cont’d
2-6
Preparing the table with a hole saw
(Cable Cubby 300C only)
Prepare the table with a hole saw as follows:
1. On the tabletop or other installation surface, mark the 6"
circle, then find and mark the center of the circle.
WWear safety glasses when operating the drill.
Failure to comply can result in eye injury.
2. Using a portable drill with a 6" (or 152 mm) hole saw,
carefully cut the opening in the table surface at the
desired location (figure 2-3). Extron is not responsible for
improperly positioned Cable Cubbies.
CUse a portable drill with sufficient power to handle
the 6” hole saw. Exercise caution when handling
the drill and hole saw. Take care to protect the
mounting surface from damage.
Figure 2-3 — Cutting the opening with a hole saw
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
2-7
Installing the Cables and AAPs
Each Cable Cubby 300, 600, and 800 model ships with one or
two moveable AAP shelf assemblies. The Cable Cubby 200’s
AAP shelf is fixed in place.
AAP shelf brackets (CC 300, 600, and 800)
Each shipped AAP shelf assembly consists of a set of shelf
brackets and a number of cable pass-through (split) AAPs.
Depending on the Cable Cubby model, each set of shelf
brackets supports either two, three, or four single-space AAPs
(figure 2-4).
Four-Space Shelf Bracket
and Split AAPs
Three-Space Shelf Bracket
and Split AAPs
Two-Space Shelf Bracket
and Split AAPs
Figure 2-4 — Shelf brackets
The simplest way to install the cables and AAPs in the Cable
Cubby 300, 600, and 800 is to populate the shelf brackets with
split and/or standard AAPs outside the cubby and then install
the populated AAP shelf assembly into the cubby.
NCable cubby 300, 600, and 800 only —
On US/domestic models, the power module takes up
two AAP spaces. On IEC, EU, Swiss, UK, Israeli, and
Australian models, the power module takes up three
AAP spaces. Cable pass-through AAPs take two, three,
or four AAP spaces. Consider the arrangement of the
Cable Cubby AAPs when you install them so that you do
not waste AAP space.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Cable Cubby®Products • Installation
Installation, cont’d
2-8
Installing the power module (CC 300, 600, and 800)
From the underside of the Cable Cubby, gently push the power
module into the desired position at the desired elevation. Secure
the power module into position with four Phillips head screws.
Installing the cables
Three half-moon cutouts in each set of cable pass-through (split)
AAPs loosely channel three cables in the cubby. Each channel
is padded with a split grommet to prevent cable wear. Each
channel and each associated split grommet is a different size
(figure 2-5).
Large
Medium
Small
Large
Medium
Small
Large
Medium
Small
Cable hole Hole size Grommet size
Large 0.625" (1.59 cm) 0.453" (1.15 cm)
Medium 0.562" (1.43 cm) 0.390" (0.99 cm)
Small 0.5" (1.27 cm) 0.312" (0.79 cm)
Figure 2-5 — Cable pass-through AAPs
A typical installation consists of a VGA cable, an audio cable,
and a network cable. In a typical installation, the VGA cable
runs in the largest channel, the network cable runs in the middle
(medium) channel, and the audio cable runs in the smaller
channel. In a non-standard installation, just match the diameter
of the cable to the size of the channel as best you can.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]
