DTP DVI/HDMI 4K 230 D • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP DVI 4K 230 D
and DTP HDMI 4K 230 D Extenders.
Installation
Step 1 — Prepare the Mounting Surface
NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm).
Alternatively, the included mud ring (MR 200) can be used.
For more information, see the full product user guides at
www.extron.com
a. Place the wall box against the installation surface and mark the
opening guidelines.
TIP: Use a level to mark the opening.
b. Cut out the material from the marked area.
c. Secure the wall box with 10-penny nails or #8 or
#10 screws, leaving the front edge ush with the surface.
d. Run all required cables (see steps 4, 5, and 6) and secure them with
cable clamps.
TIP: In order to t in the junction box, do not install a boot
on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment power sources.
Step 3 — Connect Inputs to the Transmitter
DVI or HDMI input connector — Connect a DVI or HDMI cable between this port and the output port of the digital video source.
Local output (DTP DVI 4K 230 D only) — If desired, connect a DVI monitor for local monitoring of the input digital image.
DDC Route DIP switch (DTP DVI 230 4K D only) — If the local output is not used, set the
DDC Route DIP switch to remote. Ensure that you power the display before the video source.
Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.
RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device into the RS-232/IR
Pass-Through port. Wire the cable as shown below.
Ground
Receive pin on connected uni
t
Transmit pin on connected uni
t
Connected RS-232
and IR Device Pins
Tx/Rx
Pins
Receive pin on connected uni
t
Transmit pin on connected uni
t
RxTx
RS-232 IR
RxTx
G
Signal Output
Cable
Cable
Clamp
Decorator-Style Faceplate
Extron
DTP DVI 4K 230 D
Screws or
Nails
Wall opening is
flush with edge of box.
Wall Stud
LOCAL OUT
Tx Rx GTx Rx
RS-232 IR
INPUTS
DVI-D
AUDIO
INPUTS LOCAL OUT
DVI-D
AUDIO
Tx Rx GTx Rx
RS-232 IR
INPUTS LOCAL OUT
DVI-D
AUDIO
REMOTE
DDC
ROUTE
LOCAL Tx Rx G Tx Rx
RS-232 IR
ON
1 2
INPUTS
AUDIO
Tx Rx G Tx Rx
RS-232 IR
OVER DTP
DTP DVI 4K 230 D Tx DTP HDMI 4K 230 D Tx

68-2367-50 Rev. B
05 17
Extron Headquarters
+800.633.9876 Inside USA/Canada Only
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX [phone] FAX
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+4000.EXTRON
+4000.398766
Inside China Only
+86.21.3760.1568
+86.21.3760.1566
FAX
Extron
Middle East
+971.4.2991800
+971.4.2991880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
Extron India
1800.3070.3777
Inside India Only
+91-80-3055.3777
[phone]
FAX
© 2017 Extron Electronics All rights reserved. www.extron.com

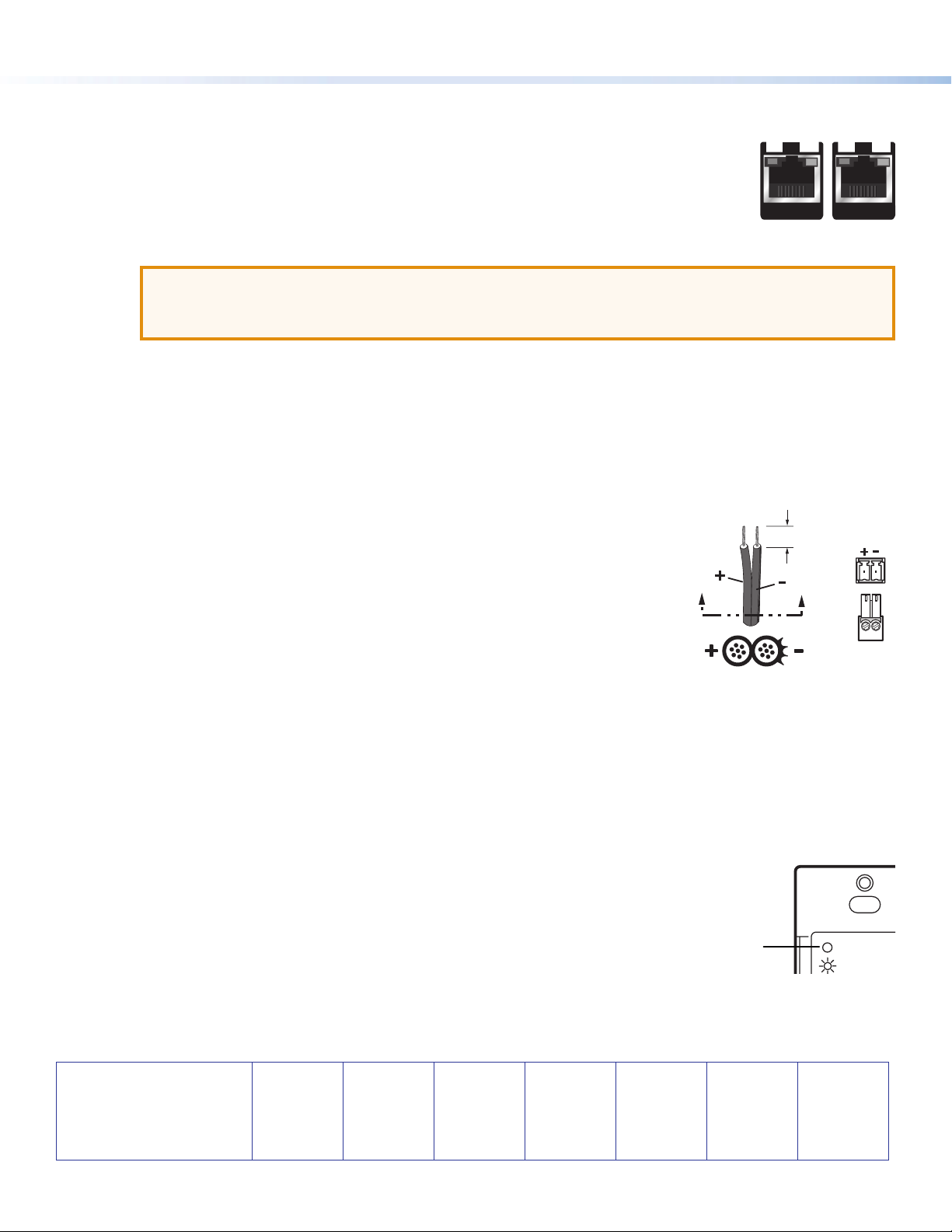

Step 4 — Run Cables Between Units
Connect the rear panel transmitter output to the rear panel receiver input using twisted pair cable.
For optimal performance, Extron highly recommends the following:
RJ-45 termination with CATx cable must comply with TIA/EIA T 568B wiring standard for all connections.
For more information on TP cable wiring and termination, see the full product user guides at
www.extron.com.
Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400
MHz.
ATTENTION:
• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.
• N’utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF d’Extron ou le câble STP201.
Use shielded RJ-45 plugs to terminate the cable.
Limit the use of RJ-45 patches. Overall transmission distance capabilities vary depending on the number of patches used. If possible,
limit the number of patches to only 1 or 2 total.
If RJ-45 patches must be used in the system, shielded CAT 6 (or better) patches are recommended.
Step 5 — Connect Outputs from the Receiver
DVI or HDMI output connector — Connect a DVI or HDMI cable between this port and the input port of the display.
Audio output — Connect a stereo audio device to this 3.5 mm mini stereo jack to receive the
passed through unbalanced audio.
RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device into the
RS-232/IR Pass-Through port. Wire the connector as shown for step 3.
Step 6 — Power the Units
Wire the 2-pole captive screw connector for the included external 12 VDC power supply as shown
at right. Plug the power supply into either unit; the powered unit powers the other unit.
Step 7 — Final Installation
a. Make all connections and test the system for satisfactory operation.
b. At the power outlet, unplug the power supply.
c. Mount the transmitter or receiver into the wall box, and attach the supplied decorator-style faceplate to the unit.
d. At the power outlet, reconnect the power supply. This powers up both units.
Operation
After all devices are powered up, the system is fully operational. See the denitions of the power indications below:
Transmitter and Receiver Power Indicator
1Power LED — This two-color front panel LED on both transmitter and receiver lights to indicate signal and
power status as follows:
Amber — The unit is receiving power but no signal on the DVI or HDMI input (TP input for receiver).
Green — The unit is receiving power and a signal is present on the DVI or HDMI input (TP input for receiver).
SECTION A–A
AA
Power Supply
Output Cord
Captive Screw
Connector
Ridges
Smooth
3/16"
(5 mm) Max.
LOCAL OUT
DVI-D
AUDIO
REMOTE
DDC
ROUTE
LOCALTx Rx GTxR
x
RS-232 IR
ON
12
1
SIG LINK
