DTP HDMI 230 • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate the Extron DTP HDMI 230 digital video
extender. The DTP HDMI 230 transmitter and receiver pair can extend an HDCP-compliant HDMI signal up to 230 feet (70 m).
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the Tx and Rx units as required.
Step 2 — Connections
aHDMI Input connector (Tx) — Connect an HDMI cable
between this port and the HDMI output port of the digital
video source.
NOTE: See the “LockIt™ Lacing Brackets“ on the back of this guide for to
securely fasten the input HDMI connector to the transmitter.
bAudio input (Tx) — Connect an unbalanced stereo audio source to this 3.5 mm mini
stereo jack for an analog audio input.
cRS-232 and IR connectors — To pass serial or infrared data or control signals, such as
serial control of a projector, connect the primary device to the transmitter and the secondary
device to the receiver via the RS-232 and IR captive screw connectors on both units.
dDTP RJ-45 connectors — Connect transmitter DTP Out to receiver DTP In.
Extron recommends that you terminate both cable ends in accordance with the following
specifications, at a minimum:
• TIA/EIA T 568 B •CAT 6A, shielded •24 AWG, solid conductor
ATTENTION:
• Do not connect these devices to a computer data or telecommunications network.
• Ne connectez pas ces appareils à un réseau de télécommunications ou de données
informatiques..
Signal LED — Lights when the unit is receiving a TMDS clock signal on the HDMI input (transmitter) or
any valid signal on the DTP In connector (receiver).
Link LED — Lights when a valid link is established between the units on the DTP cable.
eHDMI Output connector (Rx) — Connect a display with an HDMI input for display of the
transmitted direct digital image.
NOTE: See the “LockIt™ Lacing Brackets“on the back of this guide for to securely fasten
the output HDMI connector to the receiver.
DTP HDMI 230 Tx Rear Panel DTP HDMI 230 Rx Rear Panel
Front Panel
DTP HDMI 230 Rx
OVER DTP
RS-232 IR
Tx Rx Tx RxG
LR
POWER
12V
0.7A MAX
AUDIO
SIG LINK
DTP IN
OUTPUTS
AUDIO
INPUTS OVER DTP
RS-232IR
Tx Rx Tx RxG
POWER
12V
0.7A MAX
SIG LINK
DTP OUT
3 6
3
7 71 54 42
5
Pin
1
2
3
6
7
8
4
Wire color
White-green
Green
White-orange
White-blue
Orange
White-brown
Brown
Blue
TIA/EIA T568B
TP Wires
12345678
Pins:
Ground
Receiv
e pin on connected unit
Tr
ansmit pin on connected unit
Connected RS-232
and IR Device Pins
Tx/Rx
Pins
Receiv
e pin on connected unit
Tr
ansmit pin on connected unit
RS-232IR
Tx Rx Tx RxG
LR
AUDIO
OUTPUTS
AUDIO
INPUTS

2
68-2244-50 Rev. B
10 20
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide on the Extron website.
© 2012-2020 Extron — All rights reserved. www.extron.com
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
fAudio Output connector (Rx) — Connect a balanced or
unbalanced stereo or mono audio device to the receiver via the
Audio captive screw connector. See the drawing below.
Unbalanced Stereo Output Balanced Stereo Output
Do not tin the wires!
Tip
Ring
Tip
Ring
Sleeves
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR
LR
gPower connector — Connect an IEC power cord between the included 12 VDC
power supply and a 100-240 VAC, 50-60 Hz source. Connect the power supply
to either unit as shown at right. Use the included tie-wrap to strap the cord to the
captive screw connector.
NOTE: Only one power supply is required. A single power supply
connected to either unit in the pair powers both units. A power supply is
included with each transmitter.
Operation
After all devices are powered up, the system is fully operational. See the denitions
Rear Panel
R
ear
P
ane
l
Front Panel
F
ront
P
ane
l
POWER
12V
0.6 A MAX
21
of the power indications (shown at right), below:
aPower LED (front panel) —
Amber — The unit is receiving power, either locally or remotely (on the DTP cable).
Green — The unit is powered on and is receiving an active HDMI signal, either on the
HDMI input if a transmitter, or transmitted on the DTP cable if a receiver.
bPower LED (rear panel) —
Amber — The unit is receiving power remotely (on the DTP cable).
Green — The unit is receiving power locally.
If any problems are encountered, verify that the cables are routed and connected properly. If your problems persist, call the Extron S3
Sales and Technical Support Hotline that is closest to you, at the number shown below.

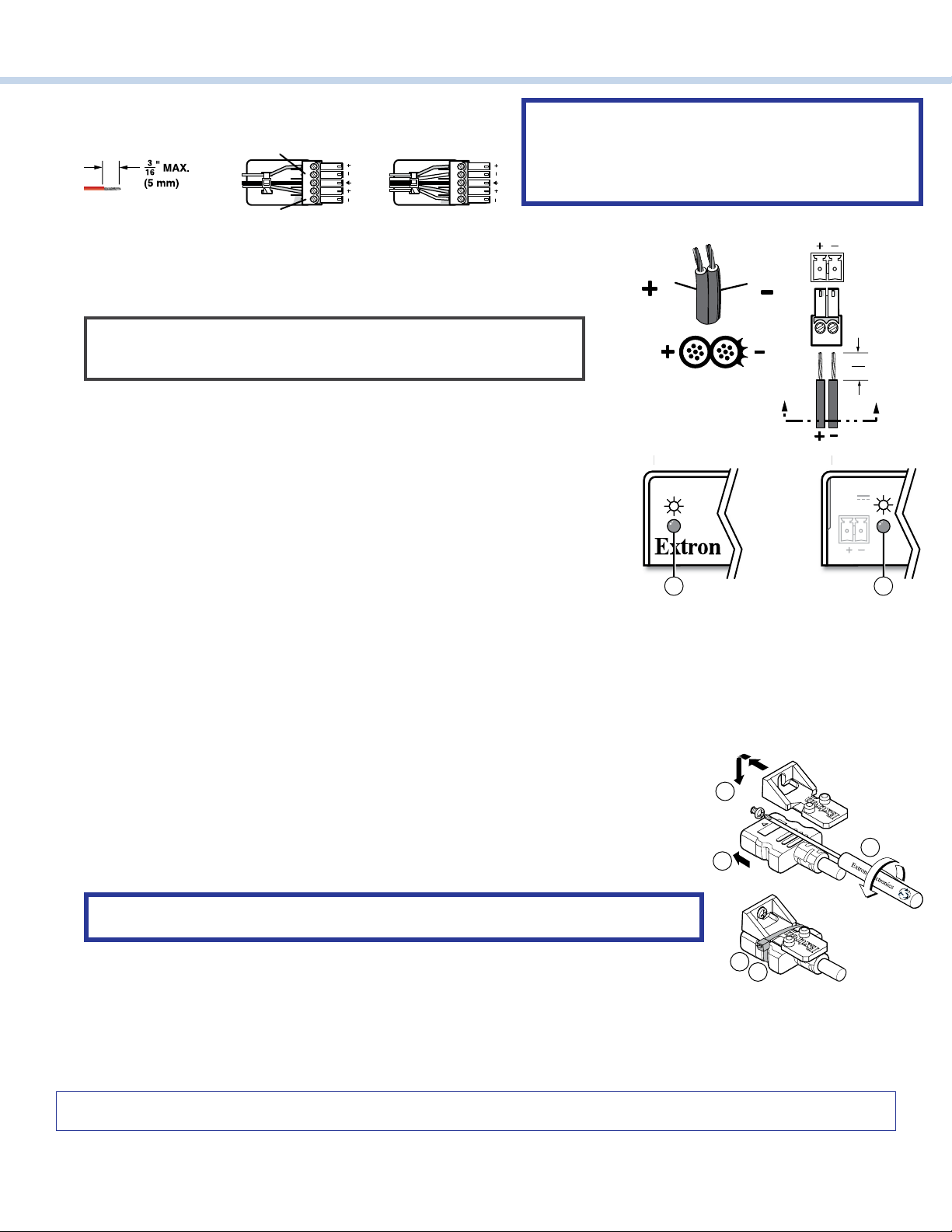

LockIt™ Lacing Brackets
1. Use an included LockIt Lacing Bracket to securely fasten an HDMI cable to each device as
follows.
2. Plug the HDMI cable into the panel connection (a).
3. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing
bracket to be placed over it (b). The screw does not have to be removed.
4. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the
screw to secure the bracket (c).
ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield it fastens
to is very thin and can easily be stripped.
5. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as
shown (d).
6. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any
excess length (e).
Power Supply
Output Cord
Ridges
Smooth
Captive
Screw
Connector
3"
16 (5 mm) Max
.
SECTION A–A
AA
3
3
1
2
45
ATTENTION:
•Connect the sleeves to the ground contact. DO NOT
connect the sleeves to the negative (-) contacts.
•Raccordez les manchons à la masse (GND). Ne PAS
connecter les manchons aux contacts négatifs (–).
