DTP T HWP 4K D Series • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP HWP 4K 231 D and
DTP HWP 4K 331 D HDMI extenders.
Installation
Step 1 — Prepare the Mounting Surface
NOTE: Use a wall box with a depth of at least 3.0 inches
(7.6 cm). Alternatively, the included mud ring (MR 100)
can be used.
For more information, see the full product user guide at
www.extron.com. The installation must comply with the
National Electrical Code and all applicable local codes.
a. Place the wall box against the installation surface and mark the
opening guidelines.
b. Cut out the material from the marked area.
c. Secure the wall box with 10-penny nails or #8 or #10 screws,
leaving the front edge ush with the surface.
d. Run all required cables (see steps 4, 5, and 6) and secure them with cable clamps.
TIP: To ensure a proper t the unit in the junction box, do not
install boots on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment from power sources.
Step 3 — Connect Inputs to the Transmitter
A HDMI input connector — Connect an HDMI cable between this port and the output port of the digital video source.
B Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.
NOTE: The units do NOT embed analog audio onto the HDMI signal. This analog audio signal is
transmitted simultaneously with audio embedded within the HDMI signal.
Wall Stud
Screws
or Nails
Signal
Output
Cable
HDMI IN
AUDIO IN
Decorator-Style Faceplate
Extron
DTP T HWP 4K D Series
Extender
HDMI IN
AUDIO IN
E
Tx Rx Tx Rx
RS-232 IR
G
HDBT
DTP
OVER TP
OUT
POWER
12V
0.7A MAX
DTP T HWP 4K D Series
Front Panel
DTP T HWP 4K D Series
Rear Panel
A
F
B
C
D
E
A HDMI Input Connector
B Audio Input Connector
C Over TP RS-232/IR Connector
D HDBaseT/DTP Mode Switch
E TP Out Connector
F Power Connector

2
DTP T HWP 4K D Series • Setup Guide (Continued)

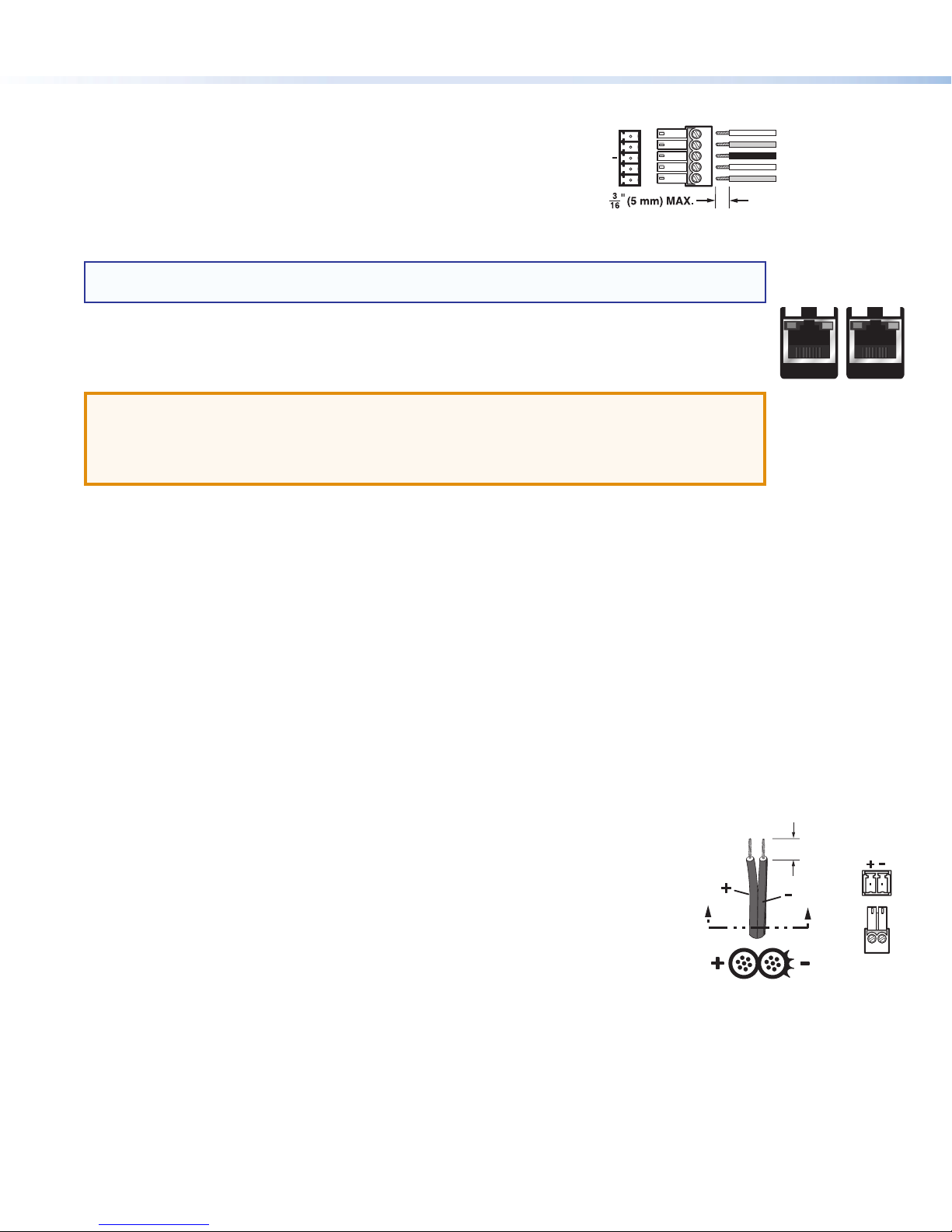

C Over TP connector — Plug an RS-232 or modulated IR device into this
RS-232/IR pass-through port. Wire the cable as shown to the right.
D HDBT/DTP mode switch — Set this 2-position, recessed switch
to congure the output between HDBaseT and DTP modes. When
congured for HDBaseT, use an HDBaseT-compatible receiver. When
congured for DTP, use a DTP-compatible receiver.
Step 4 — Run Cables Between Units
NOTE: The DTP T HWP 4K 231 D and DTP T HWP 4K 331 D products can transmit video, control, and
audio (if applicable) signals up to 230 feet (70 m) and 330 feet (100 m), respectively.
Connect the rear panel transmitter output (E) to the rear panel receiver input using shielded twisted pair
(STP) cable.
For optimal performance, Extron highly recommends the following:
ATTENTION:
• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.
• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou le
câble STP201.
zRJ-45 termination with STP cable must comply with TIA/EIA T 568B wiring standard for all connections. For more
information on cable wiring and termination, see the full product user guide at www.extron.com.
zUse shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400 MHz.
zUse shielded RJ-45 plugs to terminate the cable.
zLimit the use of RJ-45 patches. Overall transmission distance capabilities vary depending on the number of patches
used. If possible, limit the number of patches to only 1 or 2 total.
zIf RJ-45 patches must be used in the system, shielded CAT 6 (or better) patches are recommended.
Step 5 — Connect Outputs from the Receiver
The DTP T HWP 4K D Series products are compatible with DTP 230 and DTP 330 receivers (sold separately).
a. HDMI output connector — Connect an HDMI cable between this port and the input port of the display.
b. Audio output — Connect a stereo audio device to this 3.5 mm mini stereo jack to receive the passed through
unbalanced audio.
c. RS-232/IR Over TP connector — Plug an RS-232 or modulated IR device into the RS-232/IR pass-through port.
Wire the connector as shown in step 3.
Step 6 — Power the Units
When the unit is congured for DTP mode via the rear panel switch (D), the unit can be powered
either locally, with the included external 12 VDC power supply, or over the DTP line by a locally
powered receiver or switcher.
When congured for HDBaseT mode, remote power capability is disabled, and the unit must be
powered locally.
To power the unit locally in either mode, wire the 2 pole captive screw connector for the included
external 12 VDC power supply as shown at right. Plug the power supply captive screw connector
into F.
Step 7 — Final Installation
a. Make all connections and test the system for satisfactory operation.
b. At the power outlet, unplug the power supply.
c. Mount the transmitter or receiver into the wall box and attach the supplied decorator-style faceplate to the unit.
d. At the power outlet, reconnect the power supply. This powers up both units (unless in HDBaseT mode).
