EZCast QuattroPod Manual

QuattroPod
Web Setting Manual
For FW Ver. 1.5529.13

Introduction
Thanks for choosing QuattroPod, the most advanced casting
equipment powered by EZCast Technology.
QuattroPod can support up to four mobile devices as input
sources, casting the screen content to one external screen
simultaneously. Also, QuattroPod supports Windows, macOS
Android, and iOS, which could realize the true BYOD.
Configure your QuattroPod via Web
Browser
For most EZCast products, user must download EZCast App
before start using, such as EZCast 4K, EZCast Pro Dongle, etc.
However, with QuattroPod, user may configure their device via a
web browser interface instead, which greatly enhances user
experience.
Based on different needs and usage scenarios, in QuattroPod Web
Setting sections, customers may do custom setting including
output resolution, preferred language, max connections, etc.

Begin Casting with QuattroPod
Before casting with QuattroPod, please follow the instructions
below to connect your phone, tablet, or laptop to QuattroPod.
We provide user with the following methods for connection: Direct
Connection or Through Wi-Fi
1Connect via Direct Connection
1.1 Connect QuattroPod Receiver to an external power
supply.
1.2 Connect QuattroPod Receiver to an external display
via HDMI port.
Once the Receiver is successfully connected, the external
display will show the landing page below.

1.3 Please see the upper middle of the landing page for the
SSID and Password.
1.4 Find the SSID on the connecting devices’ Wi-Fi list.
1.5 Enter the Password to connect to QuattroPod.
1.6 Once the connection is established, enter the IP
address on the bottom left corner of the landing page to
your browser’s URL bar.
1.7 As soon as the page is loaded, the browser will enter
the Web Setting Home Page shown as below.

2Connect via external Wi-Fi

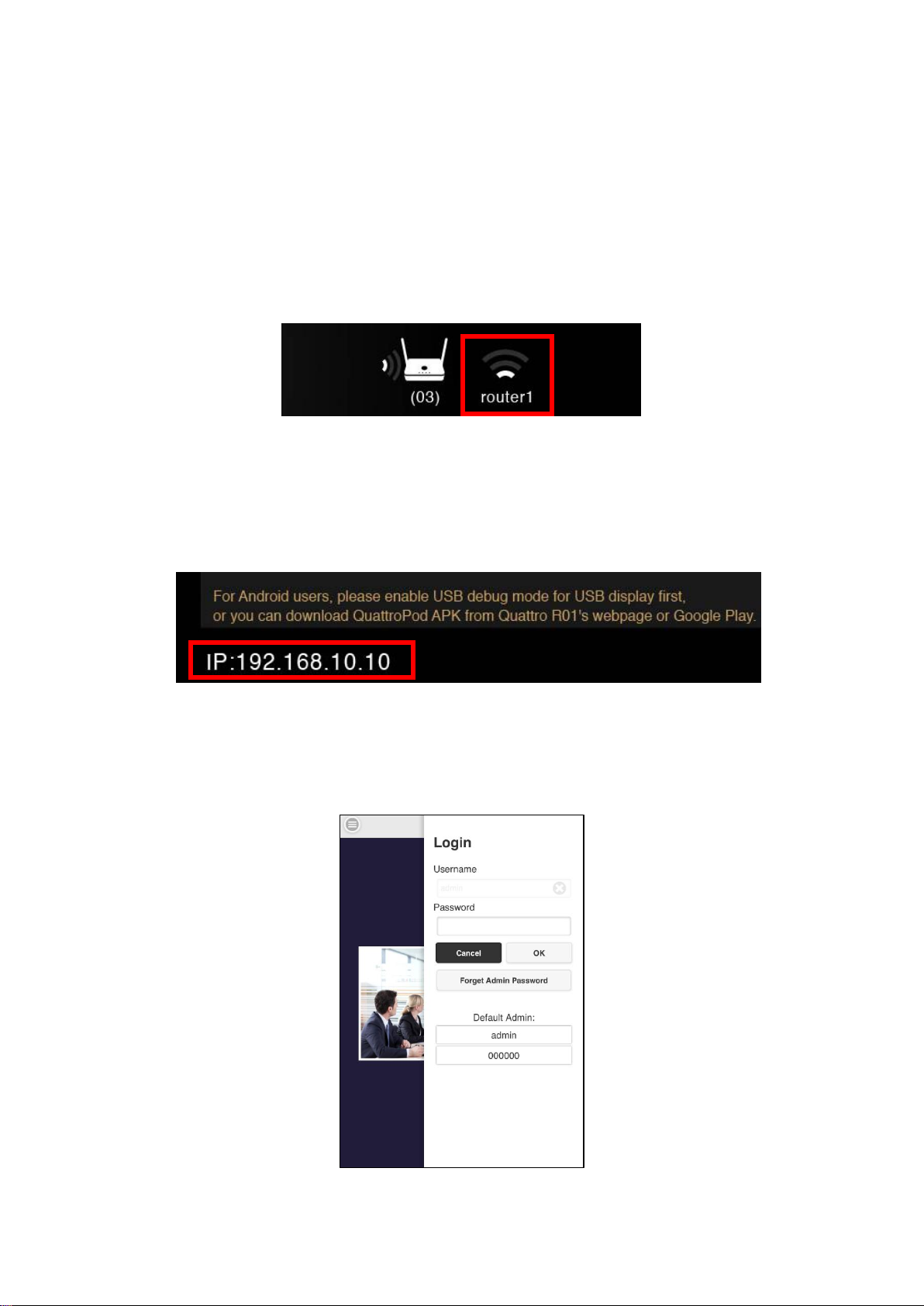

2.1 Confirm the connection by checking the Wi-Fi icon on
the upper right of the landing page. The icon will light
up as QuattroPod connects to external router.
2.2 Enter the IP address on the bottom left corner of the
landing page to your browser’s URL bar. Please be
advised that QuattroPod and the connecting device
must connect to the same network.
2.3 As soon as the page is loaded, the browser will enter
the Web Setting Home Page shown as below.

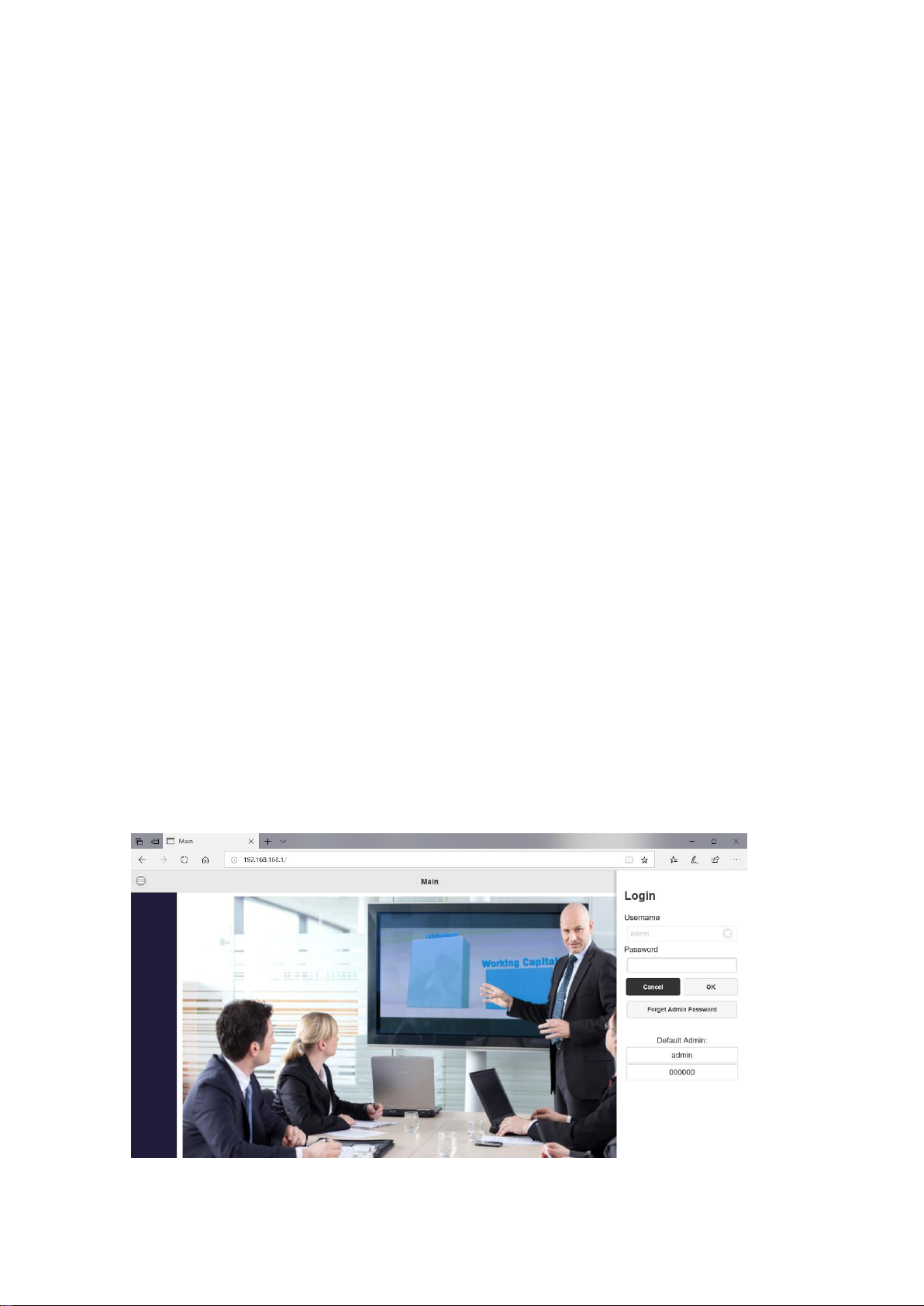

Web Setting Home Page

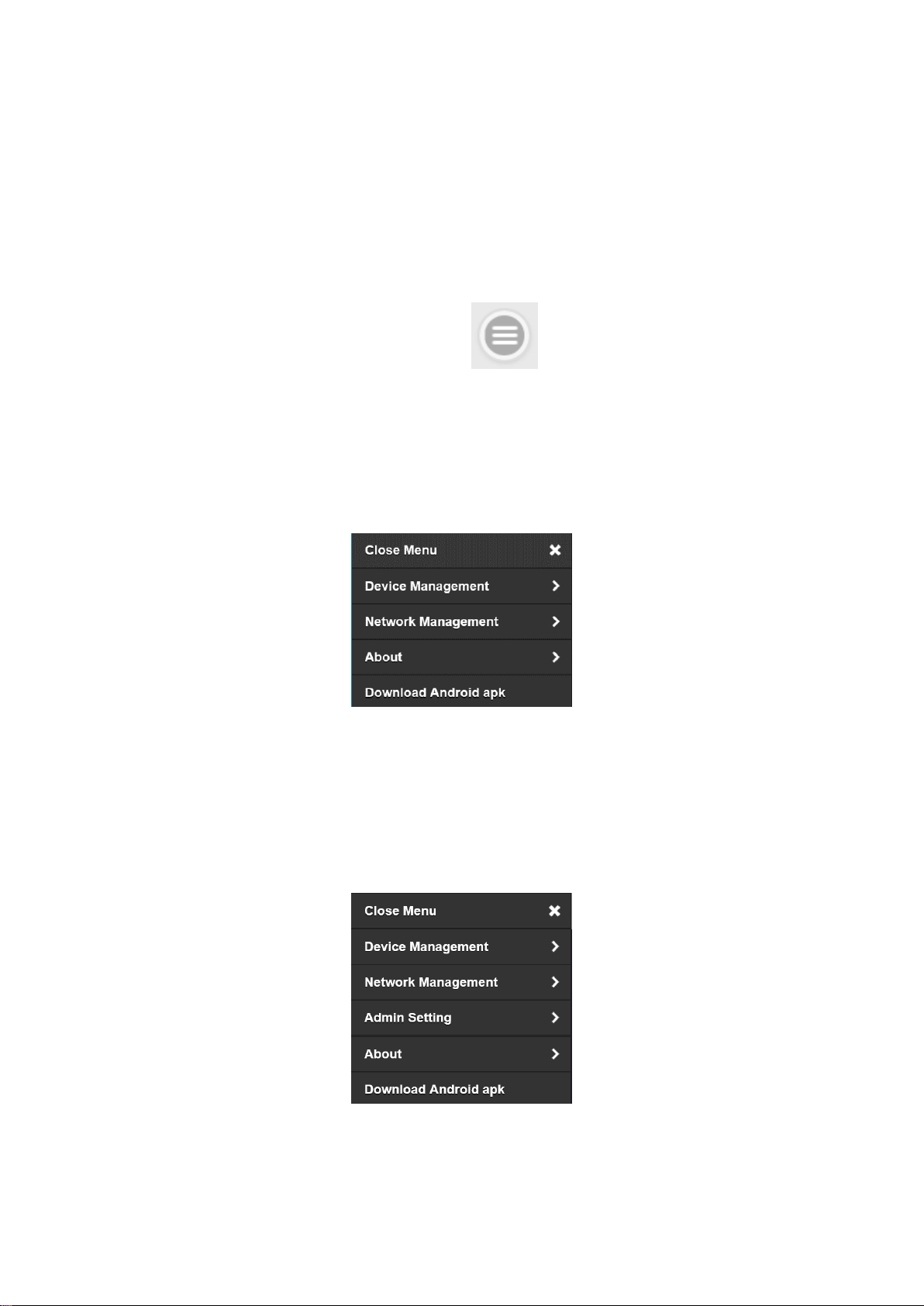

QuattroPod provides two levels of access: Non-Admin and Admin.
Please log in as administrator for higher level of access
authorization.
1QuattroPod Setting
1.1 Non-Admin User
Basic access control right: Device Management, Network
Management, etc.
1.2 Admin User
Higher level of access authorization with advanced
features and setting.

2Login as Admin
2.1 Press the above icon to login as the administrator.
The defualt password is 000000.
2.2 For better security, please change the password after
login.

Start Configuring your QuattroPod

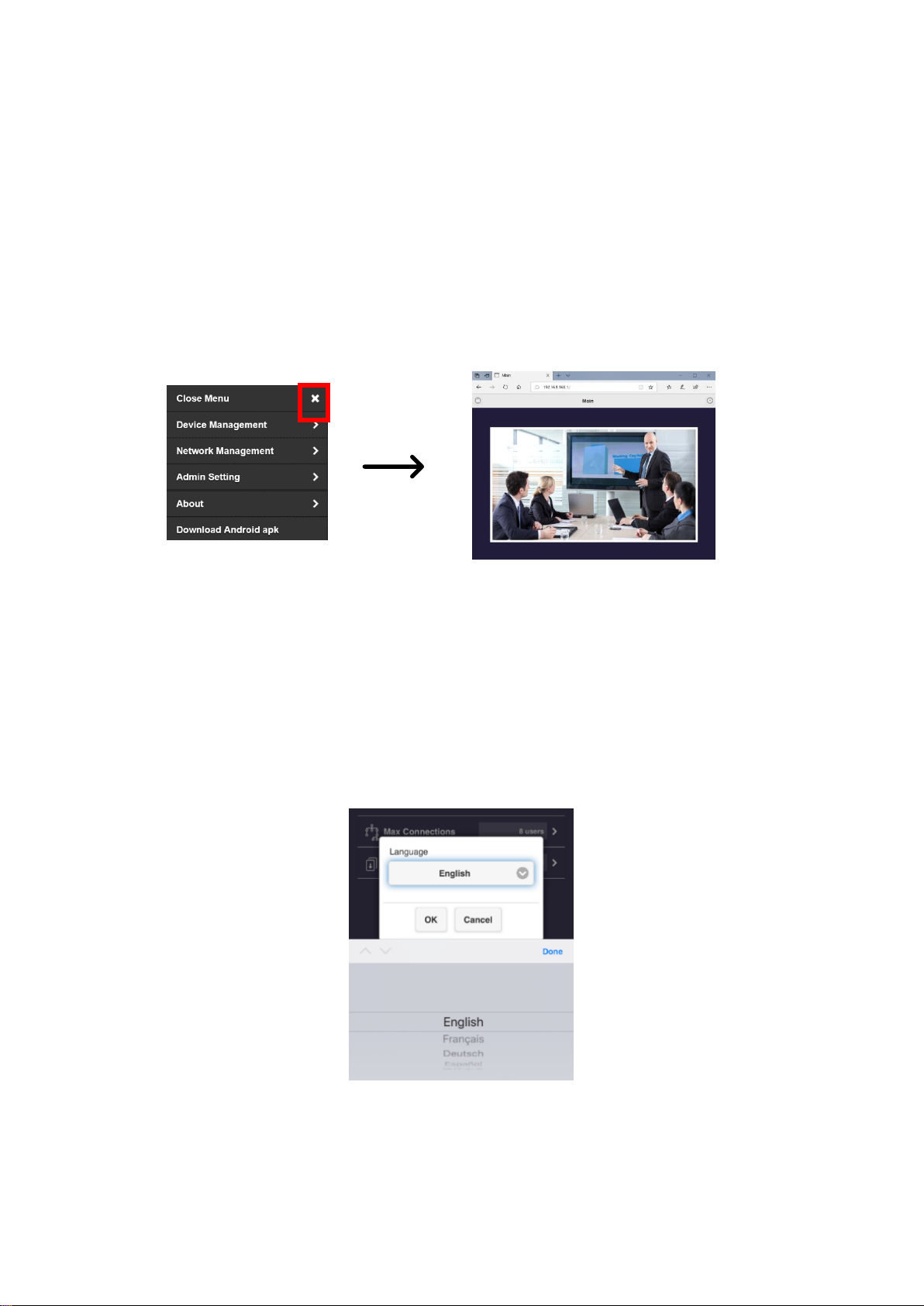

1Close Menu
Click the X mark to return to Web Setting Home Page.
2Device Management
Please see Device Manage for the options to configure
Language, Resolution, Max Connections, and Download
Pairing File.
2.1 Language:
Please select the applicable language.

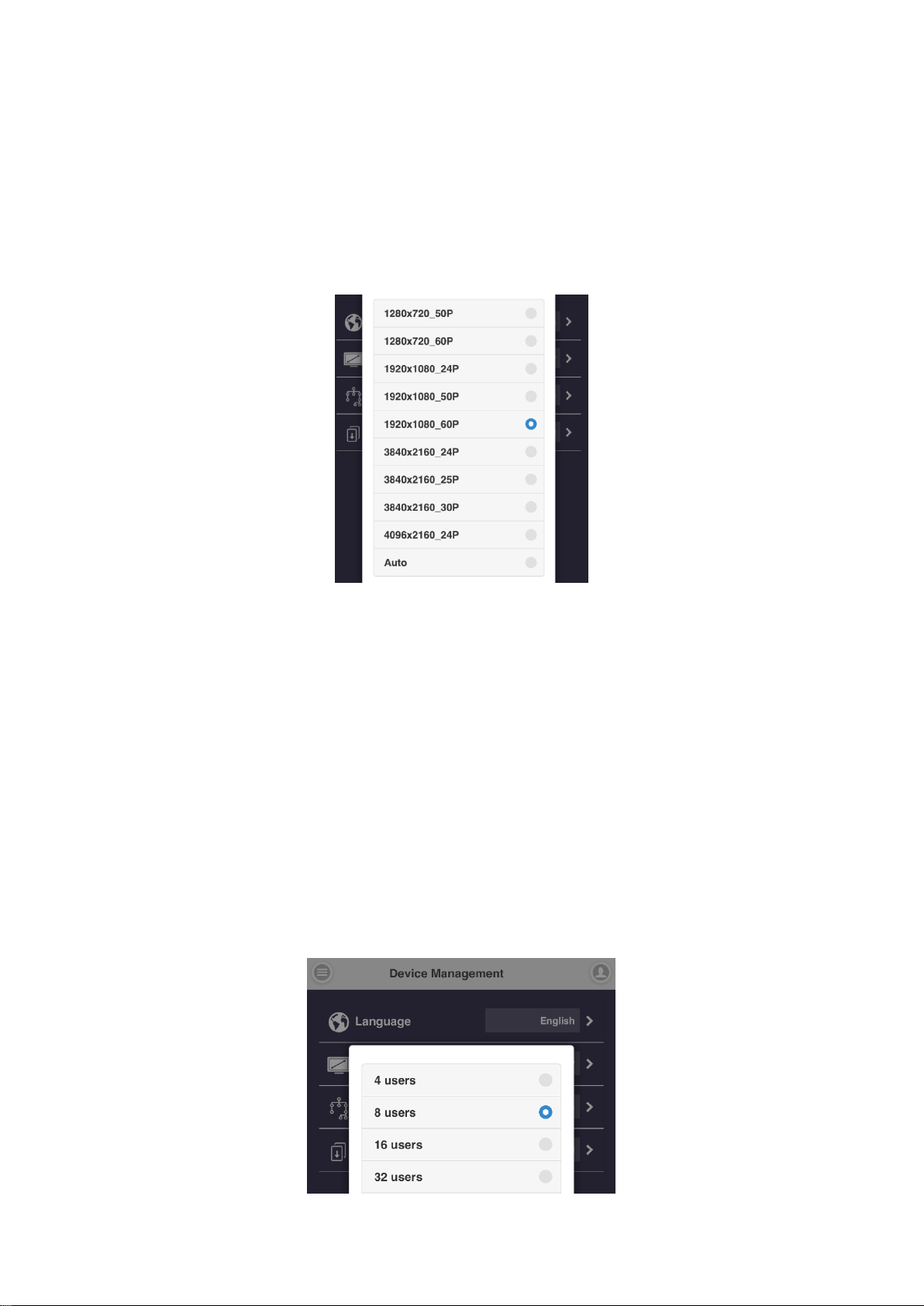

2.2 Resolution:
Please select the applicable resolution for your usage.
QuattroPod supports up to 4K with frame rate 24P while
the defaults output resolution is 1920 x 1080_60P.
2.3 Max Connections:
Please select the applicable maximum connections for your
usage.
QuattroPod supports up to 32 users and the defaults
maximum connection is 8 users.
Please be advised that since all the connecting devices
share the same network, the increase number of
connections may lower the network bandwidth for individual
devices.

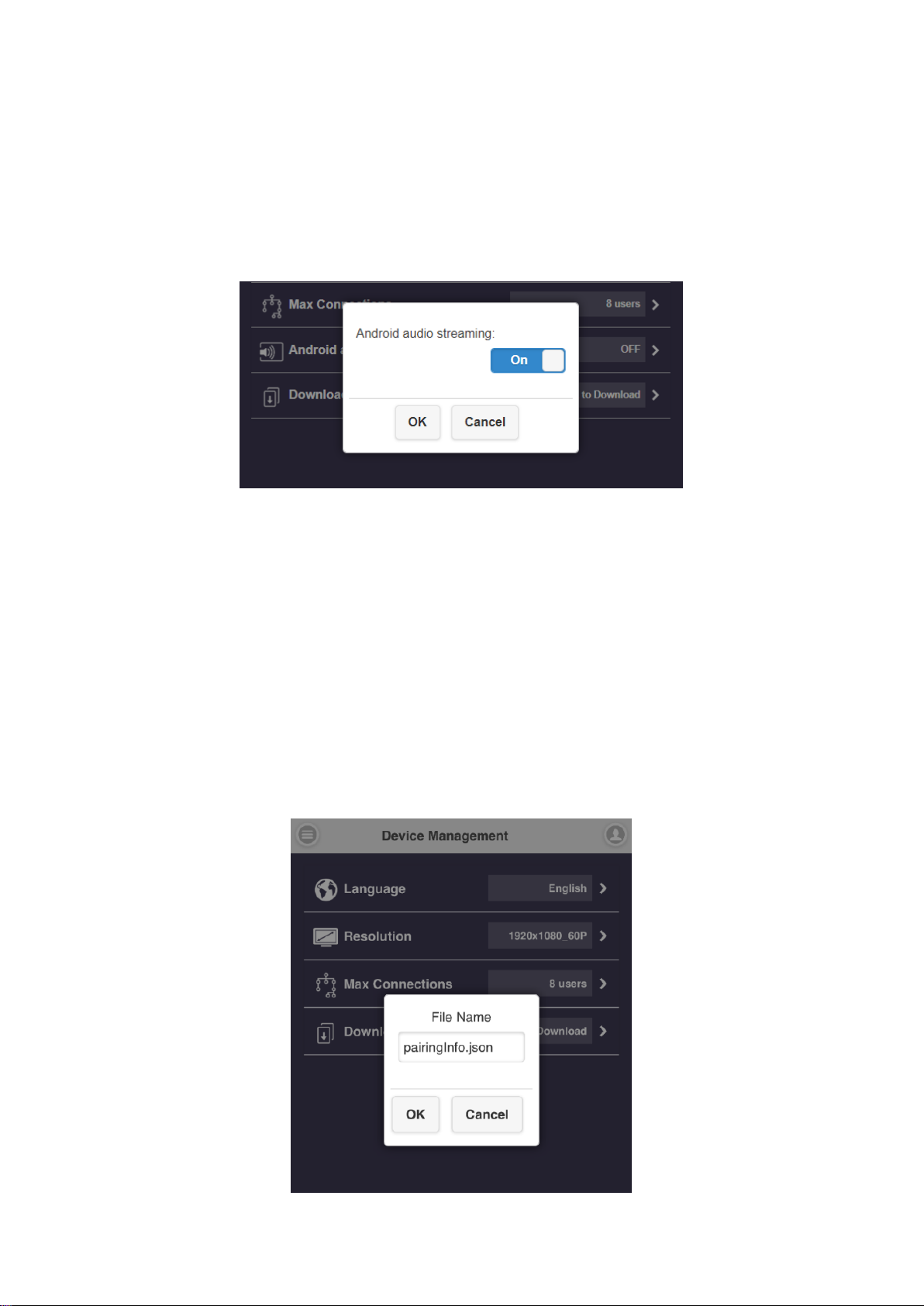

2.4 Android audio streaming:
Enable Android users to cast video and audio to the
external display.
Please be advised that the default setting of Android
audio streaming is OFF.
2.5 Download Pairing File:
Download the file to pair QuattroPod Receiver and
QuattroPod Transmitter(s).
2.5.1 Download and copy the file to USB drive.
2.5.2 Plug it into the Transmitters for pairing.
Please be advised that the switch on Transmitter
shall be adjusted to mobile.

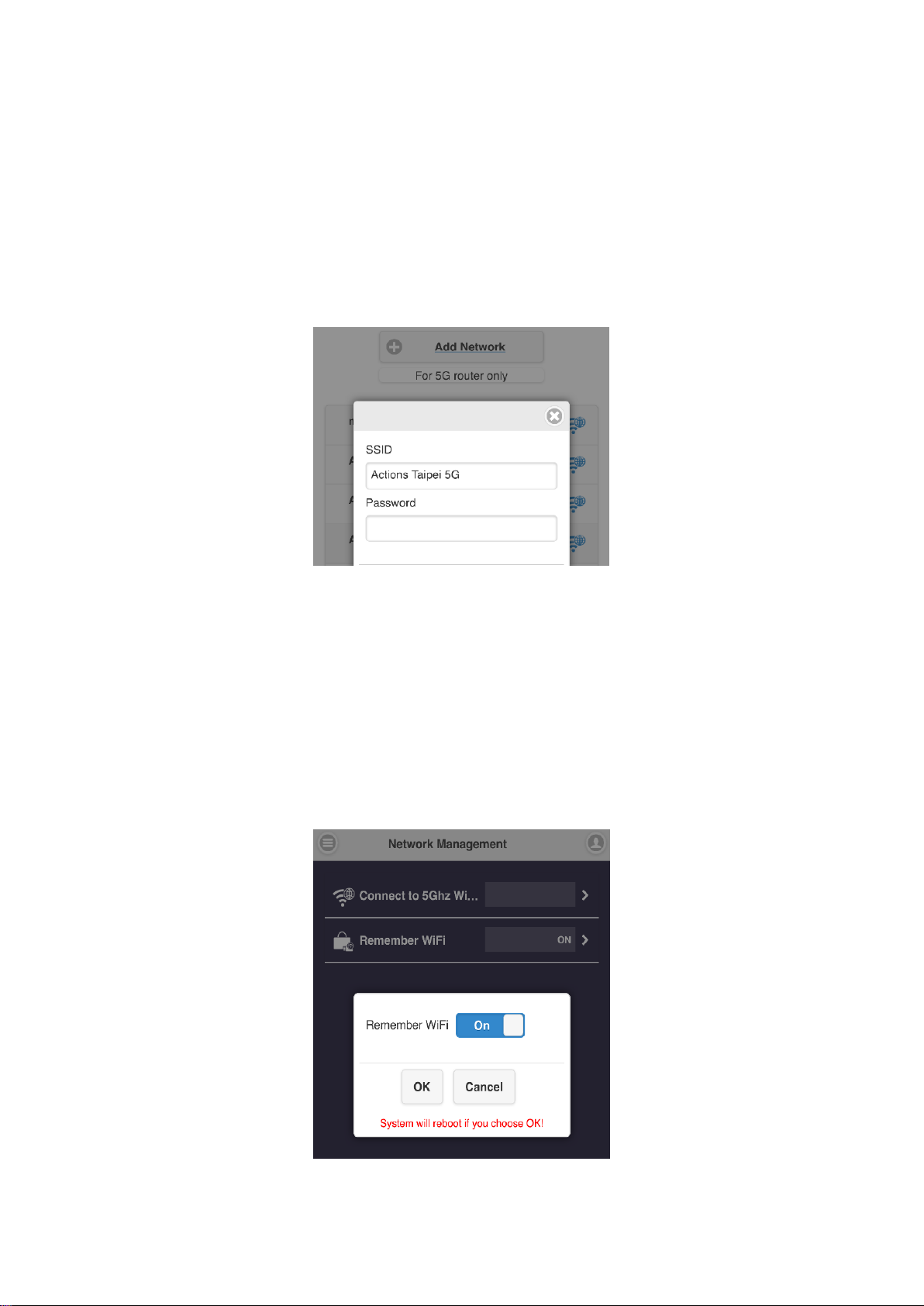

3Network Management
Connect QuattroPod to the internet via external Wi-Fi.
3.1 Connect to 5Ghz Wireless Access Point:
Once the device is connected to QuattroPod, enter the Wi-
Fi password to connect to the external Wi-Fi.
3.2 Remember Wi-Fi:
Allow QuattroPod to remember the previous Wi-Fi setting.
3.2.1 Remember Wi-Fi “On”: QuattroPod will remember
the previous Wi-Fi configuration.
3.2.2 Remember Wi-Fi “Off”: QuattroPod will erase the
Wi-Fi configuration once disconnected.

4Admin Setting
Admin Setting allows individuals with higher access
authorization to customized QuattroPod’s network and
features.
4.1 Wi-Fi Channel:
Set up QuattroPod’s Wi-Fi Channel
4.1.1 Country: Please select the applicable
country/region for specific 5Ghz spectrum policy
4.1.2 Channel: For better Wi-Fi performance, please
select available Wi-Fi channel.
4.1.3 Bandwidth: Please select applicable bandwidth to
avoid wireless interference,.
Please be advised that users cannot configure the Wi-Fi
Channel while QuattroPod is connected to external internet.

4.2 LAN IP Setting:
Configure LAN network, including IP address, Gateway,
Netmask, DNS, etc.
4.3 SSID:
Customize the SSID, including renaming, Hide SSID or
Turn Off SSID.
Please reconnect to QuattroPod with the new SSID
and re-pairing the Receiver and the Transmitters
after naming the SSID.

4.3.1 Hide SSID: Hide SSID from the landing page.
Please make sure you have written the SSID down.
4.3.2 Turn Off SSID: Deactivate the SSID function.
Please make sure the device is connected via LAN.
4.4 Password:
Change or hide the Wi-Fi connection password on the
landing page.
4.5 My Screen:
Replace the default image of landing page by uploading
photos(png.).
Please be advised that the image format must be PNG
in 1920x1080 or smaller than 2MB.

4.6 Wallpaper Switch:
Update the wallpaper with the image embedded in the
URL.
4.6.1 Wallpaper url: Enter an URL with an image file.
Please be advised that Wallpaper switch only supports
PNG.
4.6.2 Wallpaper check interval: The time needed to
check for any update in the URL.
The minimum checking frequency/time is 1minute. (e.g.
1 = 1min, 2 = 2 mins)
Please round up the number to the nearest minute.
4.7 Host Control:
Control all the casting devices and splitscreen feature.

4.7.1 Auto Allow Request: Once turned on, all the
connecting devices can cast without the host
transmitter’s approval.
4.7.2 Share Screen: Once turned on, the external display
will be split into two or four display based on the
number of casting devices.
4.8 EZAir:
Direct casting via AirPlay for iOS and macOS users.
Please be advised that the default setting is Off.
EZAir Passcode:
Use passcode to prevent unauthorized casting.
4.8.1 OFF: Deactivate passcode.
4.8.2 Random: Random generated passcode.
4.8.3 Fixed: Set fixed passcode.

4.9 Admin Password:
Change the Admin password for better security.
4.10Screen Saver:
Set the idle time for QuattroPod.
The QuattroPod will be activated once the connecting
devices are being used.

4.11Wi-Fi Enterprise:
Available for higher level of access authorization to upload
Digital certificates.
4.12Fixed Host: Set a specific device as fixed host.
4.12.1 Dynamic: The first connecting device will be
recognized as host.
4.12.2 Fixed IP: Assign a specific IP as fixed host.
4.12.3 Fixed device: Assign certain device as fixed host.

4.13Upgrade:
Upgrade your QuattroPod Receiver and Transmitters’
firmware to latest version.
Please make sure QuattroPod is connected to the
internet during the entire process.
We recommend users to use the newest firmware for
QuattroPod Receiver and Transmitters at all time.
Please see below for the upgrading procedure
4.13.1 Connect QuattroPod Receiver to the internet.
4.13.2 Connect QuattroPod Transmitter to an external
power supply.
Please make sure the Transmitters has been paired
with the Receiver.
4.13.3 Click “Select All” to update all the QuattroPod
devices.
4.13.4 Click “Update” to activate the download process.
Please do not turn off the power while QuattroPod
is upgrading.
Step 4
Step 3

4.14Reboot:
Reboot for all new configurations.
4.15Reset to default:
Reset QuattroPod to factory default.
Please note that all customized configurations will be
cleared.
Please make sure the Transmitters has been paired
with the Receiver.
4.15.1 Reset RX: Reset QuattroPod Receiver only.
4.15.2 Reset TX: Reset QuattroPod Transmitter only.
4.15.3 Reset RX + TX: Reset both QuattroPod Receiver
and Transmitters.
