EzCam® VCS-C9 videoconferenza all in one
Quick Installation Guide
Dichiarazione di conformità
Il fabbricante: Ezdirect srl a unico socio
Via Nerino Garbuio (SS1 Aurelia) 54038 Montignoso (Massa Carrara)
Dichiara che i prodotti con denominazione: EzCam VCS-C9, C9S-SDI, CS9-HDMI
Sono conformi alle seguenti disposizioni legislative e direttiva EMC EU 2014/30/EU
•Test standard: EN55022: 2010+AC:2011
•EN61000-3-2: 2014
•EN61000-3-3: 2013
•EN55024: 2010+A1::2015
Montignoso (Ms) 25-05-2019

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Copyright Statement
All rights reserved by Ezdirect srl No part of this publication may be reproduced, distributed, or transmitted
in any form or by any means, including photocopying, recording, or other electronic or mechanical
methods. The product specifications and related information are subject to update without further notice.
==========================================================
Warning
This equipment has been tested and found to comply with the limits for a Class A digital device. The
equipment may generate radio interference in daily environment. Proper actions should be taken by users
for protection of harmful interference.

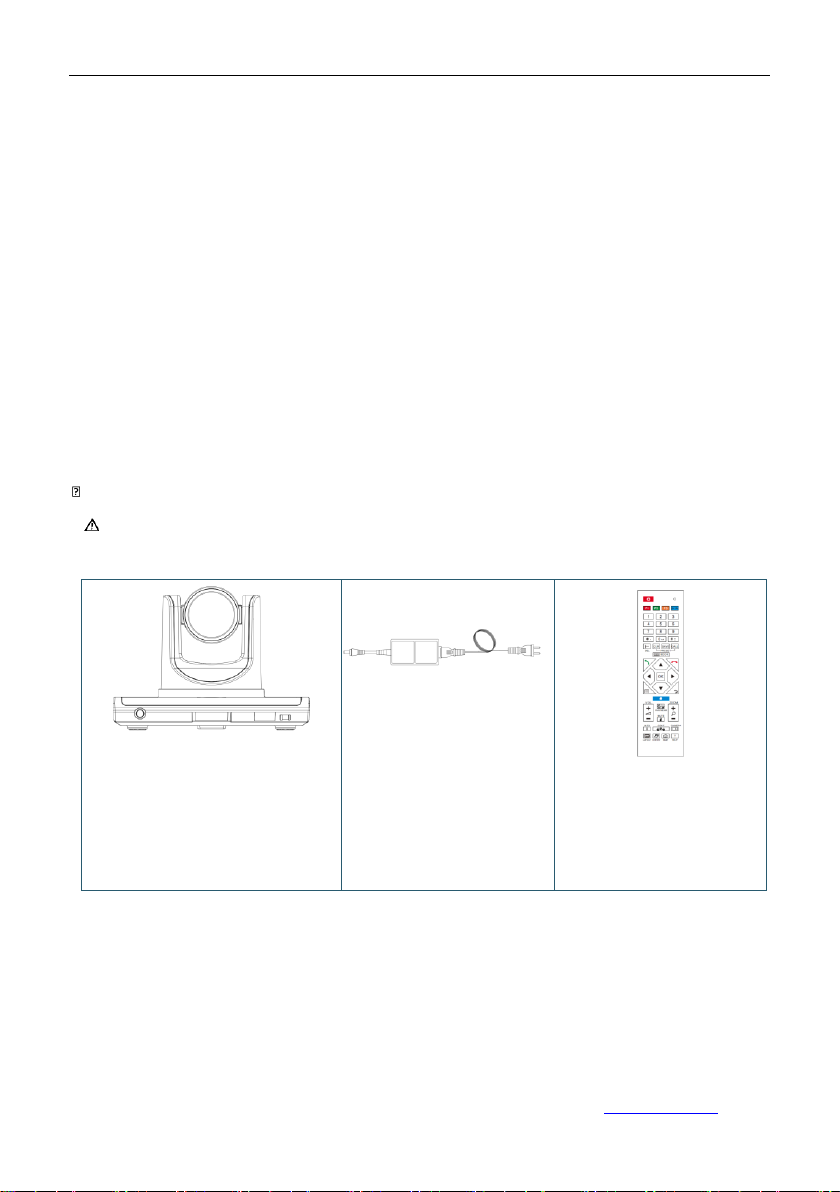

Packing List
Note:
Please check all the items below after opening the packages.
HD Video Conference Terminal (x1):
Encode and decode audio & video to
deliver high quality AV
communication.
Power supply adapter and
power cord (x1):
Supply power to the terminal.
Remote controller (x1):
Set up the terminal, manage
meetings and control cameras.

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Microphone (x1):
Collect audio signals during the
conference.
Audio Cable (x1):
XLR cable
Quick Installation Guide, Quick
Start Guide, Administrator
Guide (x1)
Serial Cable (x1):
Connect the terminal to cameras for
the control of external cameras and
transfer infrared signals from cameras
to the terminal.
HDMI Cable (x1, 1.5 meters):
Connect the terminal to video
device.
Introduction
The terminal is a compact and powerful HD Video Conference System. With built-in system design, the
terminal supports HD codec, H.323 and SIP protocols at 1080P. Featuring independent design for
convenient and quick installation, the terminal can be connected to networks, microphones and TV sets
for communications by simply plugging in the power supply. The terminal is available for mutual
transmissions between audio and video, which can save conference time and cost, improve work

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
efficiency, and deliver face-to-face experience on video conference interaction and all directional
communications.

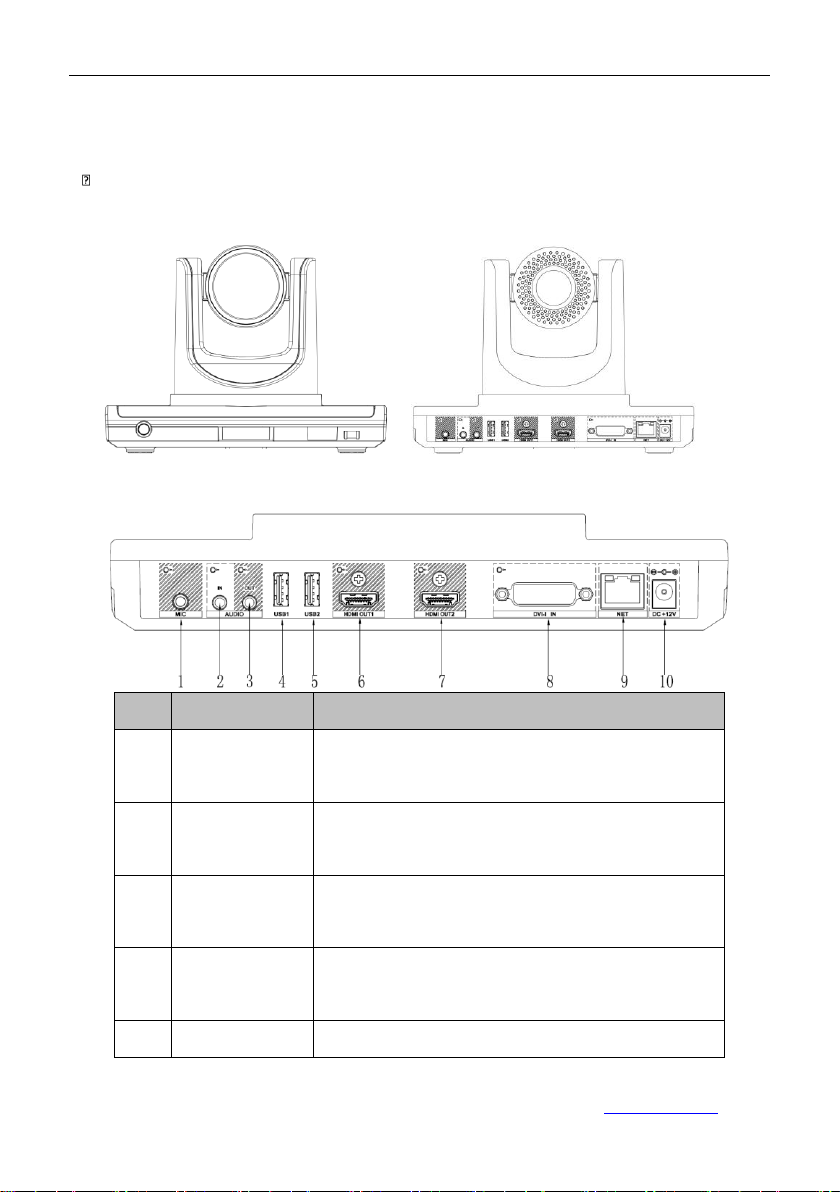

Appearance
No.
Interface
Function
1
MIC
Plug a microphone into the microphone connector to
receive audios.
2
AUDIO IN
3.5mm headphone jack for audio input and audio reception
via connection to PC and cellphones.
3
AUDIO OUT
3.5mm headphone jack for audio output by connecting
audio devices into AUDIO OUT connector.
4
USB1
Connection to external USB devices such as USB drive,
mouse and keyboard, etc. for upgrades and controls.
5
USB2
Connection to external USB devices such as USB drive,
Front View
Rear View

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
mouse and keyboard, etc. for upgrades and controls.
6
HDMI OUT1
Use HDMI cable to connect HD TV set to HDMI OUT1 (also
with audio output)
7
HDMI OUT2
Use HDMI cable to connect HD TV set to HDMI OUT2.
8
DVI-I IN
Connection to secondary video input device such as PC.
Use DVI cable to connect PC or secondary video source to
DVI-I IN input connector. Press button on the
remote control to send secondary video source to the
terminal.
9
NETWORK
Use the network cable to connect the terminal to the
Internet.
10
DC+12V
Connection to matched power supply adapter.
Parameters
Type
Item
Parameters
Electric Features
Work Voltage
100V AC~240V AC, 50Hz~60Hz; 12VDC
Power Consumption
Max. Consumption: 24W
Environment
Requirement
Operating Status
Temperature
0℃～40℃
Humidity
10%～80%
Ambient Noise
Less than 46dBA SPL
Standby or Power off Status
Temperature
-40℃～70℃
Humidity
0%～95%
Physical Features
Dimensions
239.4mm(W) × 148.4mm(H) × 157mm(D)

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Weight
1.7kg

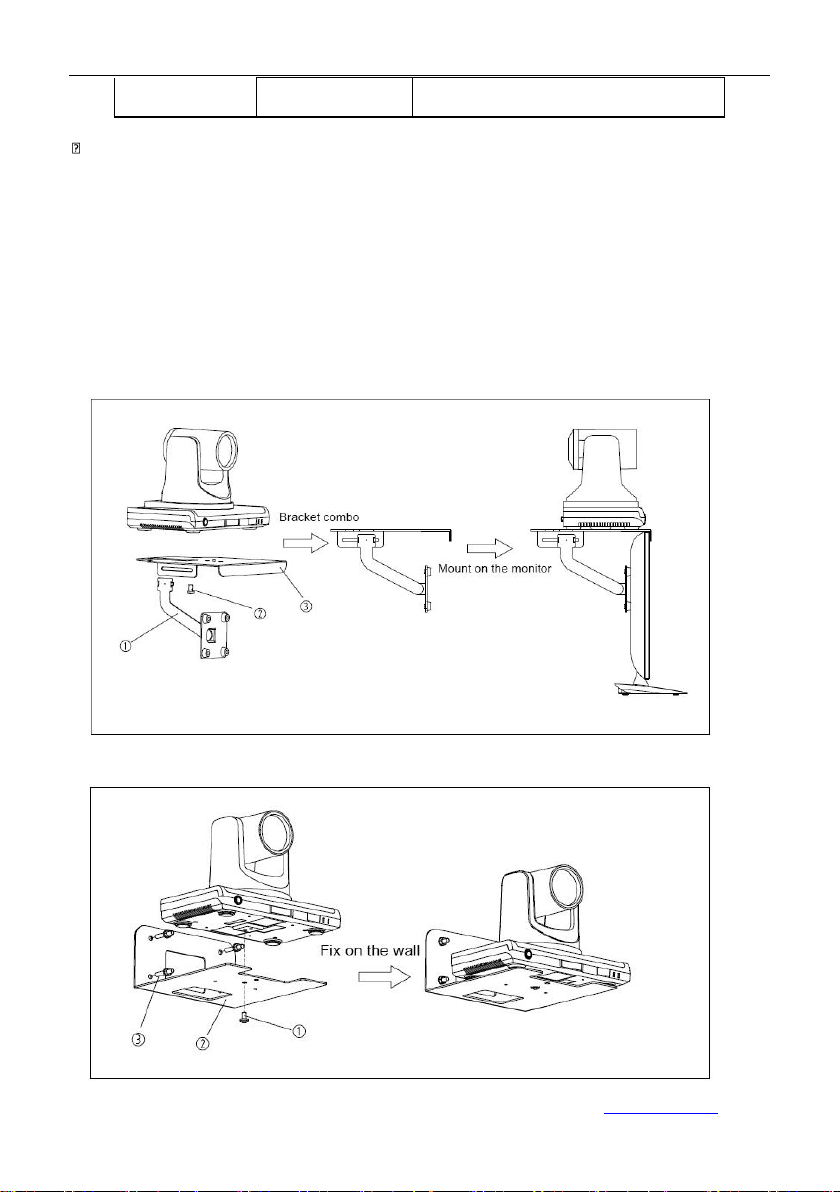

Installation
The terminal can be placed on desk surface ormounted toTV sets or walls. The following pictures show
how to mount the terminal on TV sets (Fig.1) and walls (Fig.2).
Note: mounting brackets are not included in the packing list.
Fig.1 How to mount the terminal on TV sets
Fig.2 How to mount the terminal on room walls

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Note
1.If the terminal is placed on a desk, please make sure the desk is stable and watch out for slippery.
2. If the terminal is mounted on TV sets, please use proper screws for the mounting according to TV
thickness.
3. Adjust the terminal direction to avoid direct light source. It is suggested to put the terminal
towards the meeting participants.

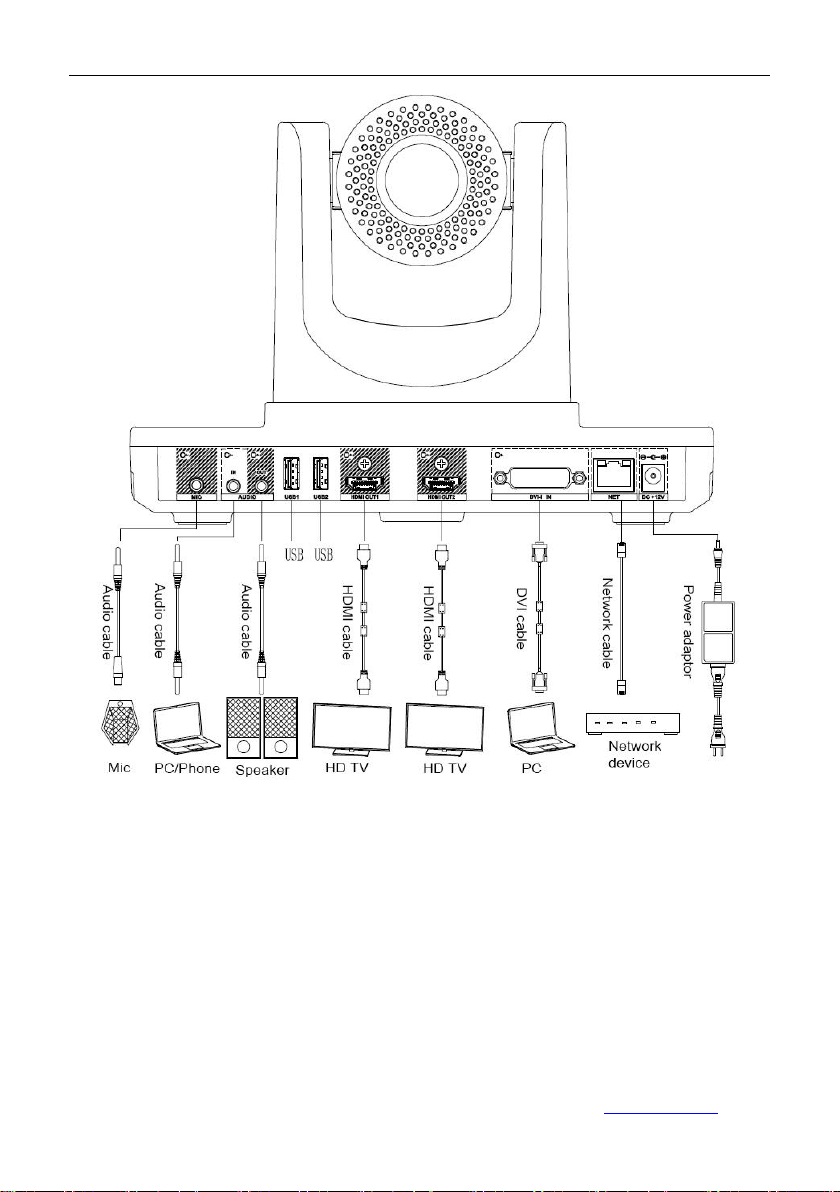

◼Cable Connections
Please get to know the rear interface details before connecting cables. Please simply take the
following cable layouts for your reference and connect cables based on real conditions.

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Layout details:
⚫Primary Video Input: connect an external camera to HDMI-IN.
⚫Secondary Video Input: connect a set of PC to the DVI-I IN by using a DVI cable
⚫Audio Input: connect a microphone to the MIC by using a XLR adapter.
⚫Audio Device Input: connect an audio device to AUDIO IN by using a 3.5 headphone cable.
⚫Primary Video Output: connect an external display device to HDMI OUT1 by using a HDMI cable.
⚫Audio Output: connect an external display device to HDMI OUT1 by using a HDMI cable or
connect a speaker to AUDIO OUT by using a 3.5mm audio cable.

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
⚫Secondary Video Output: connect an external display device to HDMI OUT2 by using a HDMI
cable.
⚫Network Connection: use a network cable to connect network port for Internet access.
⚫Power Supply Connection: connect a power adapter to the DC+12V connector and a power
socket.
Power On
Please connect all devices to the terminal before switching on power supply.
Attention:
⚫Do not let the power supply cable detach from the terminal in order to avoid power shortage when
it is powered on.
⚫Please turn off the terminal before cutting off external power supply (e.g. socket power). Please
check if power cables and power adapters are correctly connected to related devices.
⚫Please make sure the AC voltage range is within 100V-240V and frequency is 50Hz or 60Hz.
⚫The sequence of live line, null line and PE should be in right order and related voltage tolerance
should be within international standard. PE should be properly linked to the ground.
Arrange cable layouts in accordance with the above picture and connect adapter to power supply by
using HDMI OUT1 as output interface, a. Press POWER button (green indicator always lit), the
terminal is turned on and main menu will show up.
After the terminal is turned on, its indicators are shown as below:
Status
Description
Green power indicator always lit
Work in progress
Orange power indicator always lit
System turned off but power supply
still on
Power indicator off
Power supply cut off

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Infrared indicator flashes green
Receiving infrared signals
Basic Info
Language Setup
1. Select “Settings” in the main menu and enter “Settings->Network->Network
Settings->Language” for different language settings.
2. Select “English”, “Chinese (CN)”, “Chinese (TW)”, “Polish” or “Japanese” and return to setting
menu.
Time and date setup
1. Select “Settings” in the main menu and select “Network” for network setup.
2．Move down the menu and select “Time and Date” for time setup.
Parameters
Descriptions
Time Zone
Set up time zone in the user’s area.
Time Server
Set up NTP time server.
Auto Synch
Set up auto synch
24-hour format
Set up 24-hour format
Date Format
Set up sequence of day, month and year
Back
Save setup and back to network
Network Setup
1．Select “Settings” in the main menu and select “Network” for setup.
2．Select “Ethernet Settings”
Parameters
Descriptions
Network Type
Manual Setup: enter the IP, mask and gateway address distributed by
network administrator.
DHCP: Acquire IP automatically
IP
IP address
Mask
Mask address

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Gateway
Gateway address
DNS
Domain Name Server
Save
Save network settings and get back
Cancel
Cancel network settings and get back

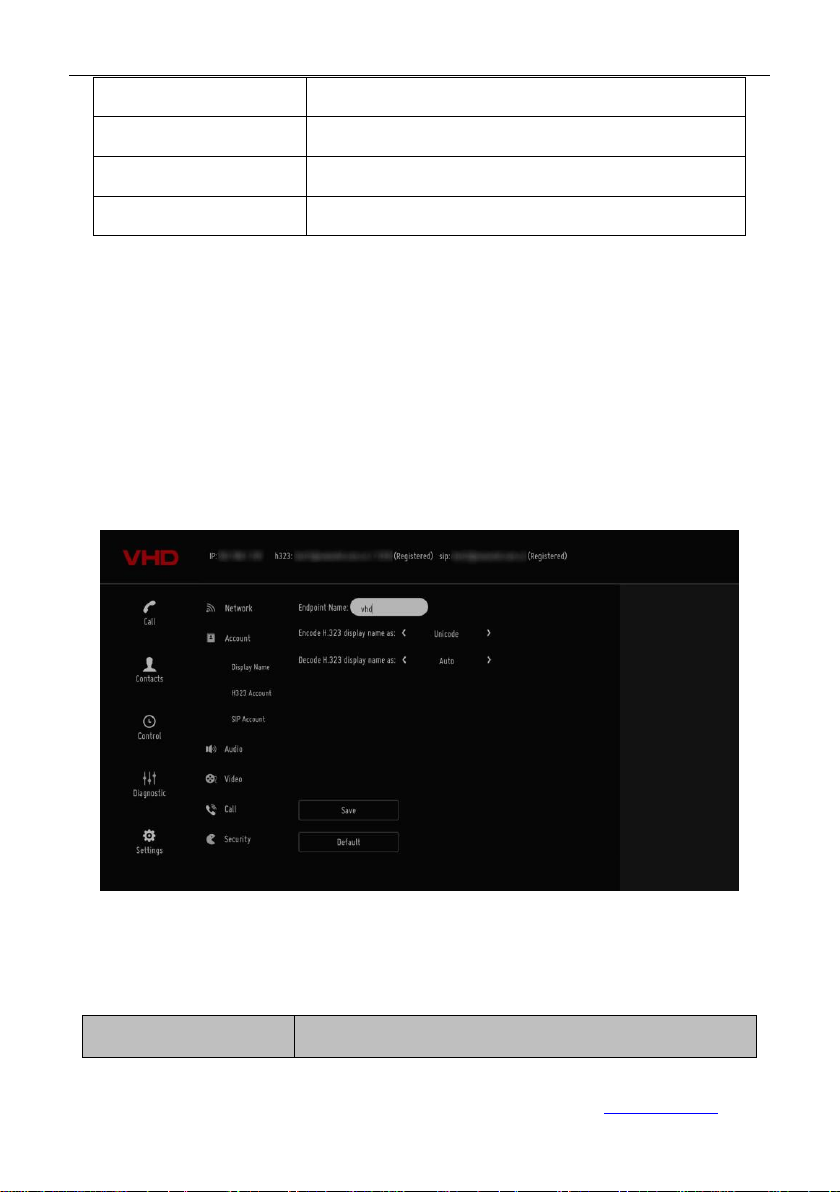

System Account Settings
1. Select “Settings” in the main menu and select “Account”.
Select “Display Name”, enter “System Name” and select “Save”.
H.323 account Settings (optional)
Set up the terminal’s H323ID and number. Specify GK address and get GK registered in order to use a set of
numbers to start conference calls or other communications.
1．Select “Settings” in the main menu and select “Account” for account setup.
2. Select “H.323 account” and confirm for further setup.
Parameters
Descriptions

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Setup Mode
Manual setup, Zijing Cloud
Zijing Cloud
In this mode, enter correct Zijing Cloud account and password to
automatically acquire H.323 info.
Manual
Settings
GK Server
IP address or DNS of GK
Register Name
Set up registered account or name
No.
Other names of the terminal or E.164 number (optional)
Password
GK register password setup
Save
Save settings and return to setting menus.
Only when GK is active, the terminal can be registered; otherwise the terminal will not be
registered or log off from GK.
➢ Note:
1. If GK is activated, the account will be registered in GK after system starts. After the terminal is
successfully registered, users can use it for conference call.
2. If GK is not activated, the terminal will not be registered in GK and can only make conference call
through IP address.
SIP Account Settings (Optional)
Set up SIP parameters and SIP address for remote interactions through registered numbers.
1. Select “Settings” in the main menu and select “Account” for setup.
2. Select “SIP Account” and confirm for further setup.

Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it
Parameters
Descriptions
Setup Mode
Manual setup, Zijing Cloud
Zijing Cloud
In this mode, enter correct Zijing Cloud account and password to
automatically acquire SIP info
Manual
Settings
Protocol
TCP, UDP, optional
SIP Proxy server
IP or DNS of SIP proxy server (optional)
User Name
Set up user name or SIP URI
User Name
Authentication
Set up User Name Authentication (optional)
Password
Authentication
Set up Password Authentication (optional)
Domain
Authentication
Set up Domain Authentication
Save
Save setups and return to setting menu
The terminal can only register SIP server when SIP is active; otherwise the terminal will not be
registered or log off from SIP server.
