eZway EZ1000 Specifications

Form 2-252
Rev. 07/31/18
EZ1000
Battery-Operated Shower Chair
Operator’s Instructions
EZ Way, Inc.
PO Box 89
Clarinda, IA 51632
1-800-627-8940
www.ezlifts.com
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

2
The EZ1000 is a battery-operated shower chair. The resident is typically a person who is unable to take care of
his/her own personal hygiene. The device is not intended to be used with residents that exceed a weight of
440 lbs. Resident must be able to sit up without support.
The device is intended to ease transferring and caring of the resident. Typical situations where the device is used
include: transporting the resident to and from a shower area, showering, washing, shampooing, and toileting the
resident.
The device is not intended to come in contact with injured skin.
The caregiver is a person who is capable of reading and understanding the operating manual and is qualified to
take care of dependent residents.
Before using the device, the user must read and understand this operating manual.
The device is intended to be used indoors in all types of care facilities and private homes in hygiene areas.
Safety Notes
If you have any questions regarding the operation or maintenance of your EZ1000 and cannot find the answer in
this manual, please contact EZ Way at 800-627-8940.
Only qualified staff who understand all operating and safety procedures may operate the equipment.
Always physically check water temperature before and during showering.
The resident must be positioned comfortably in the EZ1000 with armrests SECURELY folded down and safety
belt locked. Never leave the resident unattended.
Make sure that all parts that come in contact with the resident are intact and without sharp edges. Ensure that
the EZ1000 can be moved, raised, tilted, or lowered safely to avoid any pinch injuries to resident.
Caster brakes must be securely locked on the EZ1000 before transferring a resident and while showering. Operate
the EZ1000 carefully when transporting residents through narrow corridors or over irregular and uneven surfaces.
Wipe under the EZ1000 to prevent water dripping on the floor.
The EZ1000 must be cleaned after each use. Always read and follow detergent supplier instructions. Avoid skin
or eye contact with detergent, which can be highly corrosive. If contact is made, rinse immediately with excess
water. If irritation occurs, consult a medical doctor. Always read and follow detergent supplier instructions.
The EZ1000 battery charger is the only one approved for charging the EZ1000 battery packs. Do not use the
battery charger in wet or damp areas due to a potential shock hazard. It is recommended that the EZ1000 battery
pack(s) are charged daily or whenever not in use. Batteries cannot be overcharged.
Check that caster brakes are clean and free from damages. Check that all screws are tightened and free from
damages. The EZ1000 must be inspected visually for signs of wear. Chair should not be used if defects are noted.
Prompt service is required.
Do not use the EZ1000 in any way that varies
from the safety precautions and operating
procedures detailed in this manual.
WARNING:
The equipment must not be operated by
anyone until the user has fully read and
understands the instructions in this manual.
WARNING:

3
Unpacking and Installation
Never use a knife or sharp tools when unpacking. This can cause damage to surfaces and the color coating.
1. Check that there are no shipping damages. Any damages must be solved before using the EZ1000.
2. Report any shipping damages to the shippers and to EZ Way.
3. Check that everything ordered is included in the delivery.
Before operating, make sure that all packaging and attachments are removed and that nothing can be pinched
between sitting frames and surfaces. Maximum body weight to be placed on the chair is 440 lbs. Test each
function on the EZ1000 before use.
Features and Controls

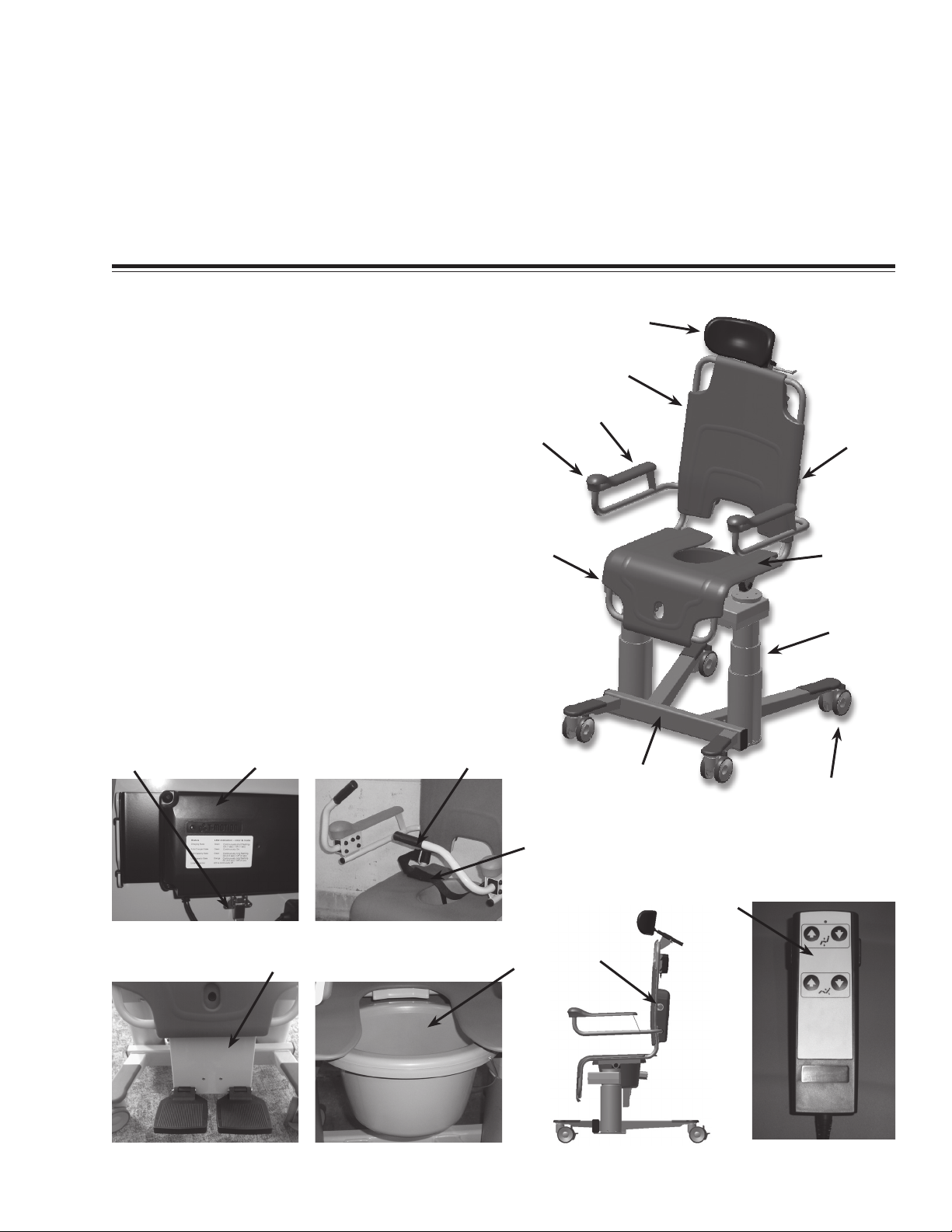

Position Description
1. Raising columns
2. Chair seat
3. Chair backrest
4. Chair headrest
5. Foldable armrest(s)
6. Legrest
7. Bedpan incl. lid
8. Hand control, up/down and tilt
9. Removable battery pack
10. Front-closing armrest
(factory-mounted option)
11. Twin caster(s) with brakes
12. Handgrip
13. Footrest, foldable and height adjustable
14. Emergency stop button
15. Safety belt
16. Chassis base
17. Snap off/on battery pack buckle
EZ1000
Hand ControlIncluded Bedpan
Optional Front-Closing
Armrest
Emergency Stop ButtonIncluded Footrest
Battery Pack
1
2
11
14
14
9
17
13
10
15
7
8
16
6
12
3
4
5

4
Resident Handling Procedures
Resident transfer from Wheelchair to EZ1000
• Lower the EZ1000 to its lowest position using
the hand control.
• Lock the EZ1000 casters.
• Tilt the EZ1000 forward using the hand control.
• Raise one of the foldable armrests fully
(wheelchair approach side).
• Position the wheelchair close to the EZ1000
seat side and laterally transfer the resident onto
the EZ1000 seat. The resident can grasp the
unfolded armrest while the caregiver supports
the resident under the arms to ease transfer.
• Secure the resident with the safety belt and
lower the raised armrest.
• Remove the wheelchair, recline and raise the
EZ1000 to a convenient transfer height for both
resident and caregiver.
• Unlock the casters and transport resident to
shower area.
• To return resident to the wheelchair, simply
reverse above procedures.
WARNING: Never leave resident unattended.
NOTE: Always lock the EZ1000 casters at
all times when performing transfers onto and
from the EZ1000.
Showering Resident
Safety belt must be securely fastened around the
resident at all times.
• Lock the caster brakes.
• Use the hand control to raise the chair to
a convenient height for both resident and
caregiver.
• Tilt/recline the chair to a convenient angle
for both resident and caregiver using the hand
control.
• Shower and wash the resident in this position.
• When the shower procedures are complete, dry
the resident with a towel. Adjust the resident to
a convenient transport height and recline angle.
• Clean and wipe the EZ1000 immediately
after each use according to your detergent
supplier’s recommendations.
Toileting Resident
The EZ1000 can be used over both floor and wall-
mounted toilets.
• Closely place the EZ1000 with resident over the
toilet.
• Raise the EZ1000 to a convenient height for
both resident and caregiver and lock the casters.
The resident can also be toileted by using the
optional EZ1000 bed pan accessory, which should be
attached to the chair before resident is transferred
onto the chair to avoid pinching.

5
Initialization of the Columns and
Tilt Actuator
For functions on the columns and the tilt actuator
to work correctly, an initialization should be carried
out the very first time the EZ1000 is used.
To begin the initialization, first check that the
emergency stop is not activated. Then follow the
below steps:
1. First press the DOWN button on the hand
control to lower the 2 columns to their lowest
position. When both columns are in their
lowest position, a faint “click” sound will be
heard from the control box.
2. Release the DOWN button for a few seconds.
3. Then once again press the DOWN button and
hold the button for three seconds.
4. Press the TILT BACK button on the hand
control to retract the actuator and tilt the
chair backwards to its rear-most position.
5. Visually check that the chair is tilted all
the way back and that the tilt actuator is
completely retracted. When the tilt actuator is
completely retracted and the chair has reached
its rear-most position, a faint “click” sound will
be heard from the control box.
6. Release the TILT BACK button for a few
seconds.
7. Then press the TILT BACK button again and
hold the button for three seconds.
8. The initialization is now complete and you can
start using the EZ1000.
Height Control
Secure the resident with the safety belt at all times.
Raise and lower the EZ1000 with the hand control.
• Raise the EZ1000 to desired height by pressing
the up button on the hand control.
• Lower the EZ1000 by pressing the down button
on the hand control.
Emergency Stop Button
Recline/Tilting the Chair
• Press the tilt arrow button on the hand control
until required reclined position (max 25
degrees) is achieved.
• When leveling, press the opposite arrow
button. The tilt will stop in neutral position.
• The chair can be tilted a few degrees forward to
ease transfer.
NOTE: The forward tilt should always and
only be performed when the chair is in its
lowest position.
Load limit: 440 lbs.
Raise the EZ1000 to a convenient transport height
for both resident and caregiver when transporting
to the shower area and while showering. Recline/tilt
the chair to a convenient position for both resident
and caregiver when required (the caster brakes
should be locked).
Emergency Stop Button
The EZ1000 is equipped with a red emergency
stop button that can be activated if an unexpected
incident should occur. Push to activate and twist
clockwise to reset.
Hand Control
Column/Height
Adjustment
Buttons
Recline/Tilt
Adjustment
Buttons

6
Charging Batteries
NOTE: The charger is intended to be used in dry
areas and is not to be installed in bathrooms, etc.
It is recommended to check battery status every
morning before daily use (see LED indication - color
and mode). Battery pack cable contact should always
be unplugged before battery pack is removed from its
chair bracket.
Approximately 8 hours charging time
from depleted to fully charged. Battery
pack cannot be overcharged. Additional
battery packs should be stored and
charged in a dry area and easy to locate.
Deposit in accordance to local regulations.
The optional battery wall bracket should be
mounted on a suitable wall in a convenient
reachable height and the charger cabling plugged
into the wall outlet.
Cabling to charger:
Art no. 819161 = US - Japan
LED INDICATION
Status LED Indication - Color and Mode
Charging State: Green Continuously short flashing - On (1 sec) / Off (1 sec)
Fully-Charged State: Green Continuously On
High-Capacity State: Green Continuously long flashing - On (.5 sec) / Off (4 sec)
Low-Capacity State: Orange Continuously long flashing - On (.5 sec) / Off (4 sec)
Under Protection: LED is continuously off
Optional Battery Wall Bracket

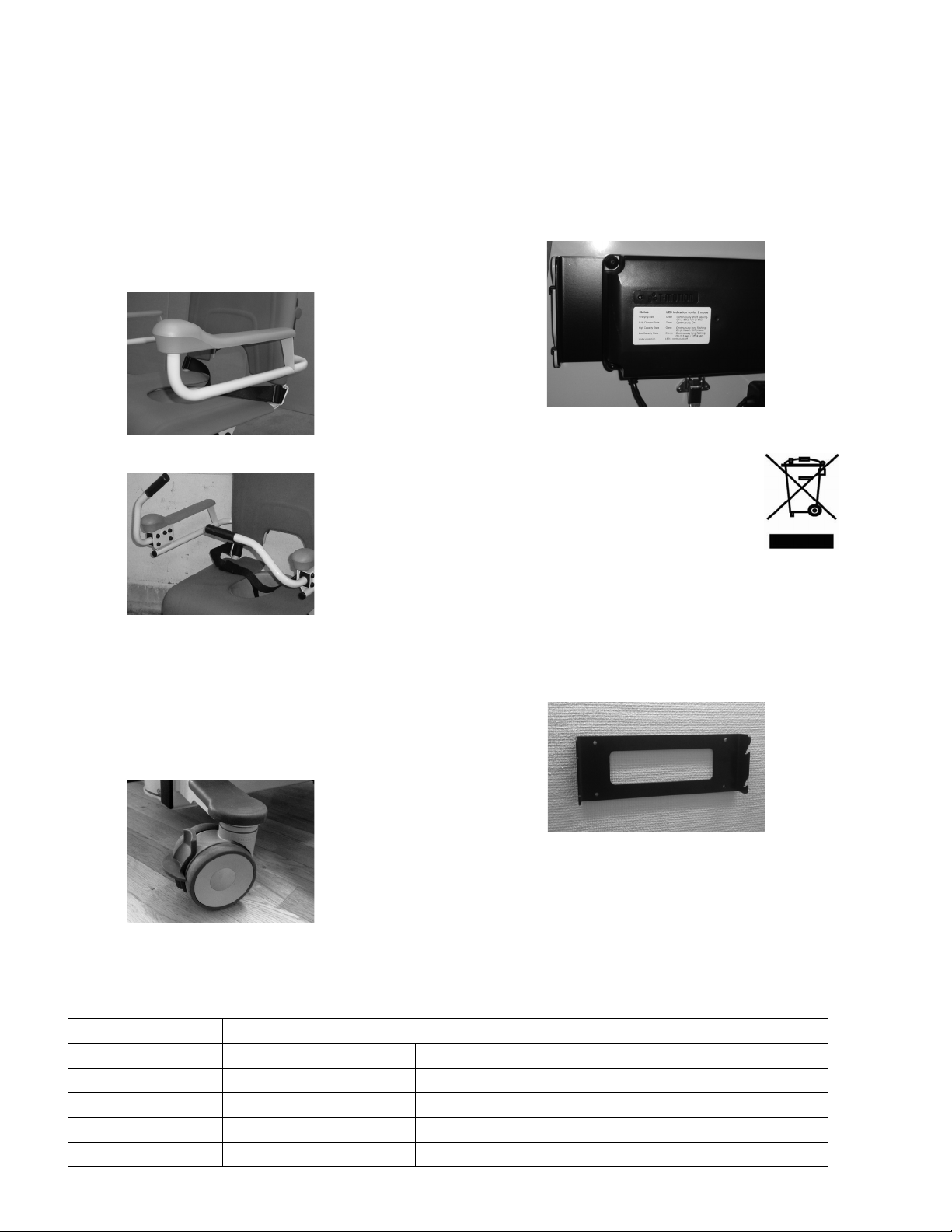

Armrests
The armrests are easily raised when transferring
the resident onto and from the EZ1000. Pull
the armrest(s) straight up to a vertical position.
When your EZ1000 is equipped with front-closing
armrests (factory-mounted option) raise them first
to their vertical position before raising the straight
armrest(s). To lower and secure the straight and
front armrest(s), do it in a reverse way as stated
above (lower and fold).
Caster Brakes
Lock all 4 toe-operated caster brakes before
transferring a resident onto and from chair at all
times. To release, hit the locked part on each caster.
Caster
Optional Front-Closing Armrest
Foldable Armrest
Battery Pack

7
Daily Routine Maintenance
• Clean the EZ1000 after each use with a mixed,
nonabrasive type of detergent according to your
detergent supplier instructions. NOTE: Do not
use solvent-based cleaning liquids, which can
damage or stain the surfaces.
• Use a sponge or cloth and remove any soap or
lime deposits and feces promptly to avoid spots/
stains. Rinse thoroughly with fresh water and
wipe with cloth. NOTE: If feces or other
matter adheres to columns, immediately
clean the columns before raising and
lowering the EZ1000.
• It is recommended that the battery packs are
charged daily or whenever the EZ1000 is not in
use. Batteries cannot be overcharged.
Weekly Maintenance
Visually inspect the EZ1000 interior to make sure
there are no nicks or cracks, which may scratch the
resident.
Monthly Maintenance
• Check that all screws and fastenings are tight.
It’s important that all screws and fastenings are
checked and tightened if needed, including
those not easily visible. Inspection of all
fasteners and screws are also expected during the
monthly maintenance.
• Armrests should be inspected to ensure they are
in good condition and that all fasteners are in
place and functioning properly.
• Casters should be inspected to ensure they are
clean and that the locks and brakes are fully
functioning.
• Tilting mechanism should be examined to
ensure that it is functioning properly.
• Check the raising and tilting system to ensure its
smooth operation throughout entire lift and tilt
range.
Annual Maintenance
It is recommended that a competent maintenance
technician perform a full inspection of the EZ1000
for check up.
Battery Pack
Deposit in accordance to local regulations.
Cleaning the EZ1000
NOTE: The user/operator is responsible for
selecting the detergent and additives. Please
read the detergent supplier’s instruction
manual and find out whether the product is
suitable. Do not use solvent-based cleaning
liquids, which can damage or stain the PUR
and plastic surfaces (see Routine Maintenance
below).
Clean the EZ1000 after each use with a mixed,
nonabrasive type of detergent according to your
detergent supplier instructions. Remove the
optional bedpan and clean separately.
• Use a sponge or cloth and promptly remove any
soap or lime deposits and feces to avoid spots/
stains. Rinse thoroughly with fresh water. Wipe
with cloth.
• Safety belt may be machine washed and dried.
NOTE: Wipe underneath the EZ1000 to
prevent dripping on the floor.
NOTE: If the lifting columns are exposed to
feces or other tough dirt during operation,
immediately clean the columns before raising
and lowering the EZ1000.
Routine Maintenance
The recommended frequency of these routine
maintenance procedures will depend on how
often the equipment is used. It is good practice
to establish these procedures and then adjust
the frequency as your conditions indicate. EZ
Way recommends a schedule is kept on file with
signatures of the individual(s) conducting the
inspections should questions arise at a later date.
The EZ1000 should immediately be taken out
of operation if defects or irregularities are noted.
Prompt service is required.

8
Labels on the EZ1000
Battery pack label.
Maximum working load: 440 lbs.
Mandatory to read and understand
the operating manual before use.
The identification label states the product’s
model and part number, serial number, date of
manufacture, the manufacturing country, and
the name and address of the manufacturer.
REF = Model and part number
CE = CE marking in accordance with the
Medical Devices Directive 93/42/EEC as a
Medical Device Class 1
SN = Serial number
WARRANTY, CE MARK & TECHNICAL SPECIFICATIONS:
EZ1000 Battery-Operated Shower Chair
EZ Way warrants that its products are free from defects in materials and workmanship for a period of one year from the date of delivery.
Seat - Backrest and headrest shall be warranted for a period of six months from the date of delivery. The warranty obligations shall be
limited to delivery of defective returned parts. EZ Way warrants that service or repairs of products no longer in warranty will be perfomed
in a workman like manner and warrants them for a period of 30 days when performed by service personnel authorized by EZ Way. This
warranty is in lieu of any other warranty or representation, expressed or implied. Warranties of MERCHANTABILITY or FITNESS FOR
ANY PARTICULAR USE OR PURPOSE are expressly excluded. EZ Way will not be responsible for any expenses, inconvenience or
incidental or consequential damages occasioned by the use, loss of use, or misuse of the products, or by failure of the products to conform
to the warranty set forth above. This warranty becomes void if the products shows evidence of mishandling, tampering, installation or
use contary to the applicable instruction materials, shipping damage, or repair. Routine cleaning, adjustment, and normal cosmetic and
mechanical wear are not covered by this warranty. EZ Way reserves the right to make design changes and/or improvements without notice.
CE mark: Certificate of registration at the LÄKEMEDELSVERKET Medical products agency in Sweden Dnr.452:2008/83584.
Registered at Medical Products Agency, Sweden, as MD Class 1, MDD 93/42EEC.
TECHNICAL SPECIFICATIONS
Lifting Stroke Range: 16"
Working Load Limit: 440 lbs.
Tilt Backward (Recline): 25°
Tilt Forward: 7°
Structure: Powder coated, zinc plated steel and stainless steel
Casters: Twin 4", four with brakes
Control: Hand control for height adjustment and tilting
Battery Pack: Rechargeable, 24 V
