Faber MatriX 1050/500 I User manual

Installation manual
MatriX 1050/500 I,II,III H
MatriX 1050/650 I,II,III H
ENG
40012085-2223

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
2 < <<<

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
3 < <<<

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
4 < <<<
1.0
1.1
1.3
1.2
1.4

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
5 < <<<
1.5a
1.5b
1.6
1.7
1.8
1.9a
1.9b
1.9c
1.9d

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
6 < <<<
1.9e
1.9f
1.9g
1.9h
2.0
2.1
2.2
2.3

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
7 < <<<
2.4a
2.4b
2.5
2.6
2.7
2.8
3.0
3.1

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
8 < <<<
3.2
3.3
3.4
3.5
3.6
3.7
3.8

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
9 < <<<
3.9
4.0
4.1

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
10 < <<<

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
11 < <<<
1Dear user
Congratulations on your purchase of a Faber fire! A
quality product from which you will experience
warmth and atmosphere for many years. We rec-
ommend that you read this manual carefully be-
fore using the fireplace. If any problem arises de-
spite our strict quality control, you can always con-
tact your dealer.
For any warranty claims, it is essential you first
register your fireplace. During this registration,
you’ll find all information regarding our warranty.
Please note!
The details of your fireplace can be found in
the user manual.
You can register your fire at: www.faberfires.com
Glen Dimplex Benelux B.V.
Address: Saturnus 8
NL-8448 CC
Heerenveen
Tel: [phone]
Email: [email protected]
Info: www.faberfires.com
1.1 Introduction
Installation and maintenance of the appliance must
be carried out by a professional with proven
knowledge and competence. A professional takes
into account all technical aspects such as heat radi-
ation and gas connection as well as flue gas ex-
haust requirements.
Where the installation instructions are not clear,
national/local regulations must be followed.
1.2 Check
Check the fireplace for transport damage and im-
mediately report any damage to your supplier.
1.3 CE Declaration
We hereby declare that Glen Dimplex Benelux B.V.
released Faber gas-atmosphere heating appliance
by its design and construction method complies
with the Regulation (EU): 2016/426 and (EU)
2015/1188.
Product: gas room heater
Model: MatriX 1050/500-I,II,III H
MatriX 1050/650-I,II,III H
This declaration will become null and void as soon
as the unit is in any way modified without written
authorization of Glen Dimplex Benelux B.V.
2Safety instructions
Please note!
It is advisable to always install a screen for the fire-
place if children, elderly or disabled people are
present in the same room as the fireplace. If regu-
larly vulnerable persons can be present in the
room without supervision, sufficient protection
must always be placed around the fireplace.
This appliance must be installed according
with the rules in force and used only in a
sufficiently space.
The appliance must be checked annually
in accordance with this installation man-
ual and the applicable national and local
regulations.
Ensure that the data on the type label
matches the local gas type and pressure.
The appliance is designed for atmosphere
and heating purposes. This means that all
visible surfaces, including the glass, can
become hotter than 100°C. An exception
by free standing models is the underside
of the fireplace and the control buttons.
The settings and the construction of the
fireplace must not be changed!
Do not place extra imitation wood or
other material on the burner or in the
combustion chamber.
Do not place any combustible materials
within 0,5m of the radiation area of the
fire.
Through the natural air circulation of the
fireplace moisture and uncured volatile
components from paint, building materi-
als and carpeted floors, etc. are attracted.
These parts can settle as soot on cold sur-
faces. Therefore do not light the fireplace
shortly after installation.
2.1 Using the fire for the first time
Provide extra ventilation and open all the windows
of the room during the initial start-up of the fire.
Let the fire burn at the highest setting for a few
hours so that the paint gets the chance to harden
and any released vapours are safely removed. Keep
vulnerable people and pets out of this room during
this process.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
12 < <<<
3Installation requirements
3.1 Appliance
This appliance may not be installed in a
chlorine-containing environment. (Pools
etc.).
This appliance must be built into an exist-
ing or new false chimney.
For appliances with flexible gas pipes, the
control unit (fig. 1.3) is mounted at the
bottom of the crate. Detach and mount it
together with the control box and re-
mote access door in as low as possible
position in the false chimney. (See sup-
plied instruction manual 40011721).
(To prevent damage to cables and pipes
during transport, they are bound together
by tie wraps. Remove these to ensure
proper operation of the appliance.)
This appliance comes standard with a 2
meter pipe set (article number 20901589).
3.2 False chimney
The false chimney should be of non-com-
bustible material.
The space above the fire should always be
ventilated using (optional) grids with mini-
mal free passage of 200cm² per grid.
The false chimney construction should not
rest on the built-in frame of the fireplace.
3.3 Discharge and outlet requirements
First, carry out a flue calculation (see chapter 11)
and place the right flue restrictor before installing
the outlet! (Generally a 30mm flue restrictor is in-
stalled, see fig. 1.6-F).
For supply and discharge always use the
prescribed and to be supplied Faber flue
materials. Please contact Glen Dimplex
Benelux B.V.. Only with use of these mate-
rials Faber can guarantee proper perfor-
mance.
The distance to combustible materials
must be min. 50mm, calculated from out-
side of the flue material (EN 1856-1 T600
N1 D Vm –L20040 O(50)).
Outlets (fig. 1.4)
The balanced flue pipe for combined air supply and
discharge can use a wall terminal or a roof termi-
nal. Verify that the desired outlet meets the local
regulations regarding pollution and ventilation
openings.
Please note!
For proper functioning, the outlet must at
least be 0,5m away from:
Corners of the building;
Roof overhangs and balconies;
Roof edges (with the exception of the
ridge edge, see chapter 15).
C11, outlet via facade
Through a wall or façade, use a Faber wall outlet
(130/200mm).
C31, outlet via roof
For a (flat) roof, use a Faber roof outlet with a di-
ameter of 100/150mm.
C91, existing chimney
For an existing chimney, use a Faber chimney out-
let with a diameter of 100/150mm.
In this case the existing chimney acts as air inlet an
inserted flexible stainless steel pipe discharges the
flue gas. The top (Faber chimney cover plate) and
the bottom (Faber chimney connection set) should
be airtight.
Depending on the calculated flue diameter, you
must use a flexible stainless steel pipe of
Ø100mm (article number AJ005503) or Ø130mm
(article number AJ005603) as specified by Faber.
For this, contact Glen Dimplex Benelux B.V.
Please note!
The minimum chimney diameter for a
130mm flexible stainless steel pipe must
be 200x200mm and for a 100mm flexible
stainless steel pipe and 150x150mm.
Don’t connect more than one fire at the
existing chimney.
The chimney must be in good condition:
oNo leakage;
oWell cleaned.
For more information about the connections to ex-
isting chimney ducts, please request the installa-
tion instructions “Chimney Connection Set”.
4Preparation and installation
instructions
4.1 Gas connection
The gas connection must comply with the applica-
ble local standards.
Please note!
Calculate the gas pipe so that no pressure
drop occurs.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
13 < <<<
We advise using a gas connection directly from the
gas meter to the appliance, with a shut-off valve in
the proximity of the appliance, which must always
be freely accessible. Position the gas connection so
that it is easily accessible for service and the
burner unit can be disassembled at any time.
4.2 Electrical connection
Place a double wall socket 230VAC - 50Hz near the
fire for connecting the HPL module and the con-
troller (control box FAB1806).

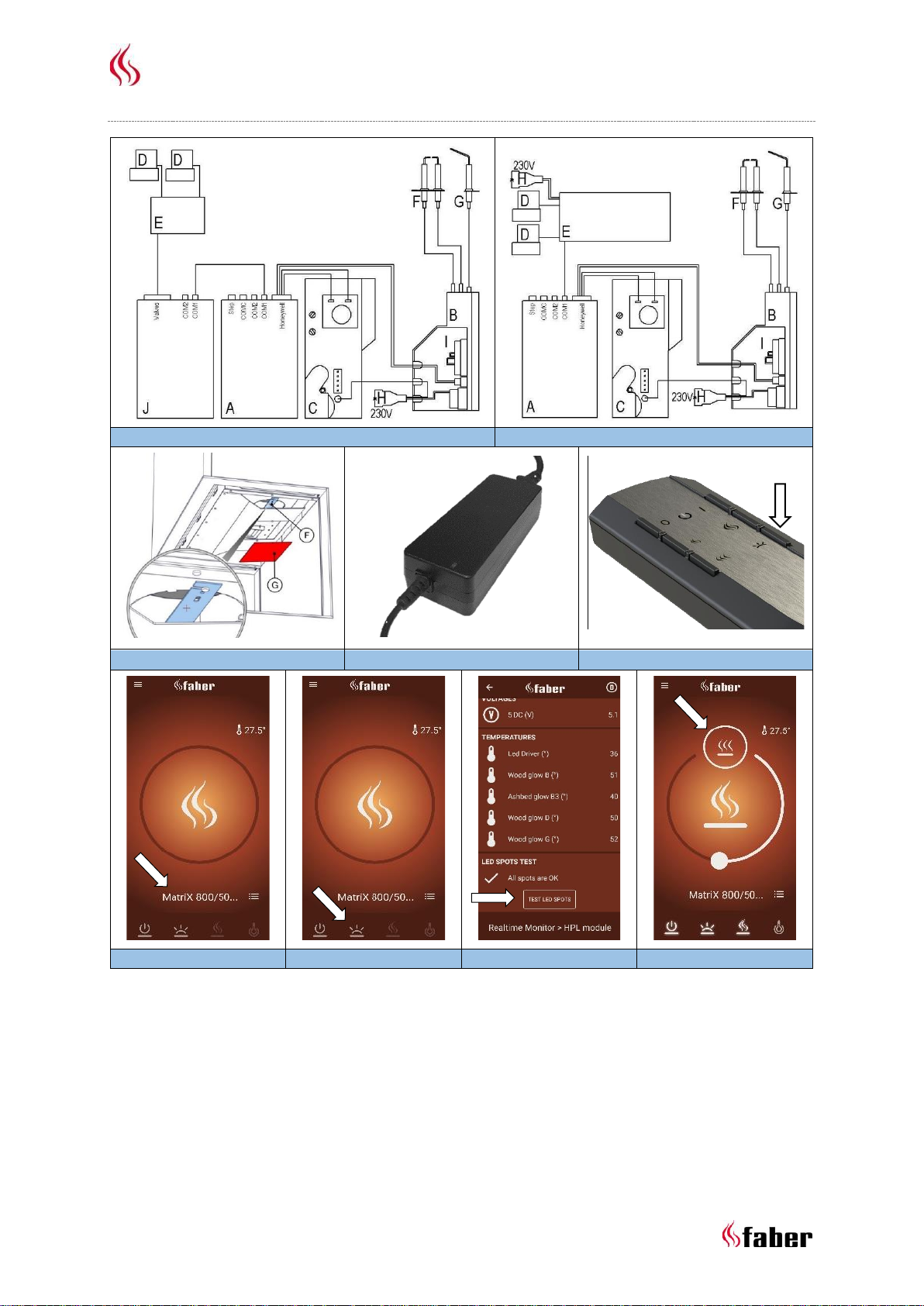

See wiring diagram without HPL (fig. 1.5a) or with
HPL (fig. 1.5b):
A = I.T.C. (Intelligent Technical Controller)
B = electronics
C = gas valve
D = solenoid valve
E = step module or HPL module (optional)
F = ignition pin
G = ionization pin
H = connection cable
I = configuration plug
4.3 Smart Home installation
The controller can be connected to an external
source, such as a Domotica system, by using a Fa-
ber Interface Unit (article number A9323000).
4.4 Preparing the fireplace
Remove the fireplace from its packaging.
Ensure that the gas supply pipes under
the appliance are not damaged.
Prepare the gas connection on the gas
valve. Prepare the gas connection on the
gas valve. Provide a flexible gas connec-
tion with at least 0,5m extra length, so
that the control unit can be removed for
installation and service!
4.5 Positioning the fireplace
Take into account the installation requirements
(see chapter 3). Place the fireplace at the right
place and level it.
Rough height adjustment:
With the adjustable (optional) legs.
Accurate height adjustment:
With the adjustable feet.
Hanging on the wall
The fireplace can also be mounted on the wall by
using the optional wall bracket, see attachment
18.9 (article number A9325996).
Therefore remove the existing brackets and use
the supplied spacer for vertical alignment, see fig.
2.0.
4.6 HPL module (Hybrid Pro Light)
Place the power supply (see fig. 1.7) of the
HPL/step module in a cool place and near to the
controller (control box).
Please note!
Before installing the false chimney, a func-
tional test of the HPL module is recom-
mended.
Physical check HPL module
Switch on the HPL module with the remote control
and check whether the LED spots are on (fig. 1.8).
Electronic check HPL module in the ITC-V2 App
(Only possible in dealer setting).
Make sure the ITC-V2 App is connected to the fire,
see fig. 1.9a.
1. Switch on the glow effect, see fig. 1.9b.
2. Navigate to:
Menu (top left) -> Diagnostics -> Realtime
Monitor -> HPL MODULE.
3. Click on “TEST LED SPOTS”, see fig. 1.9c.
If any LED spots are defective, this will be indicated
in the App. Use the overview in section 16.1 for the
position.
Testing burner sections (step valves)
1. Activate the sectional burner by clicking at
the "step symbol", see fig. 1.9d.
2. Switch the various modes, see fig. 1.9e.
If a step valve is defective, this will be indicated in
the App.
4.7 Installing the flue pipes
Install the flue pipes according to the installation
manual supplied with the appliance (40011968)!
The distance to combustible materials
must be min. 50mm, calculated from the
outside of the flue pipe.
Never start immediately with an adjusta-
ble flue pipe on the appliance.
Horizontal sections should be installed to
allow a slope towards the appliance
(3 degrees).
Built the system from the appliance. If this
is not possible you can make use of an ad-
justable flue pipe.
For fitting of the flue system, the 0,5m
length-adjustable pipe must be used.
Make sure that the inner pipe is always
15mm longer than the outer pipe. Wall-
and roof terminal can also be cut. These
components must be secured with a self-
tapping screw.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
14 < <<<
4.8 Constructing the false chimney
Before positioning the false chimney, we advise to
perform a functional test with the fireplace as de-
fined in chapter 7 “Checking the installation”.
False chimney
Construct the false chimney of non-com-
bustible material in combination with
metal profiles or of masonry/concrete
blocks.
Always use a lintel or reinforcing bars
while bricking the false chimney. They
should not be placed directly on the fire-
place.
Make sure that the fireplace never func-
tions as a load-bearing construction, be-
cause of the expansion of the fireplace
through warmth.
Ventilation
Correct ventilation prevents damaging overheating
of the gas control block and its electronics and also
limits the temperature of the convection air. Use
the (optional) Faber ventilation grids (article num-
ber A9296400) or a similar alternative with a mini-
mum free passage of 200cm² per grid, in the space
above the fire, when building the false chimney.
Within the false chimney, an horizontal screen
plate, made of non-combustible material, must be
installed just above the ventilation openings. (See
“A” in fig. 1.0, 1.1 or 1.2).
Installation and finishing
Please note!
Take into account a minimum distance of
2mm due to expansion of the fireplace.
Take into account the thickness of any fin-
ishing layer!

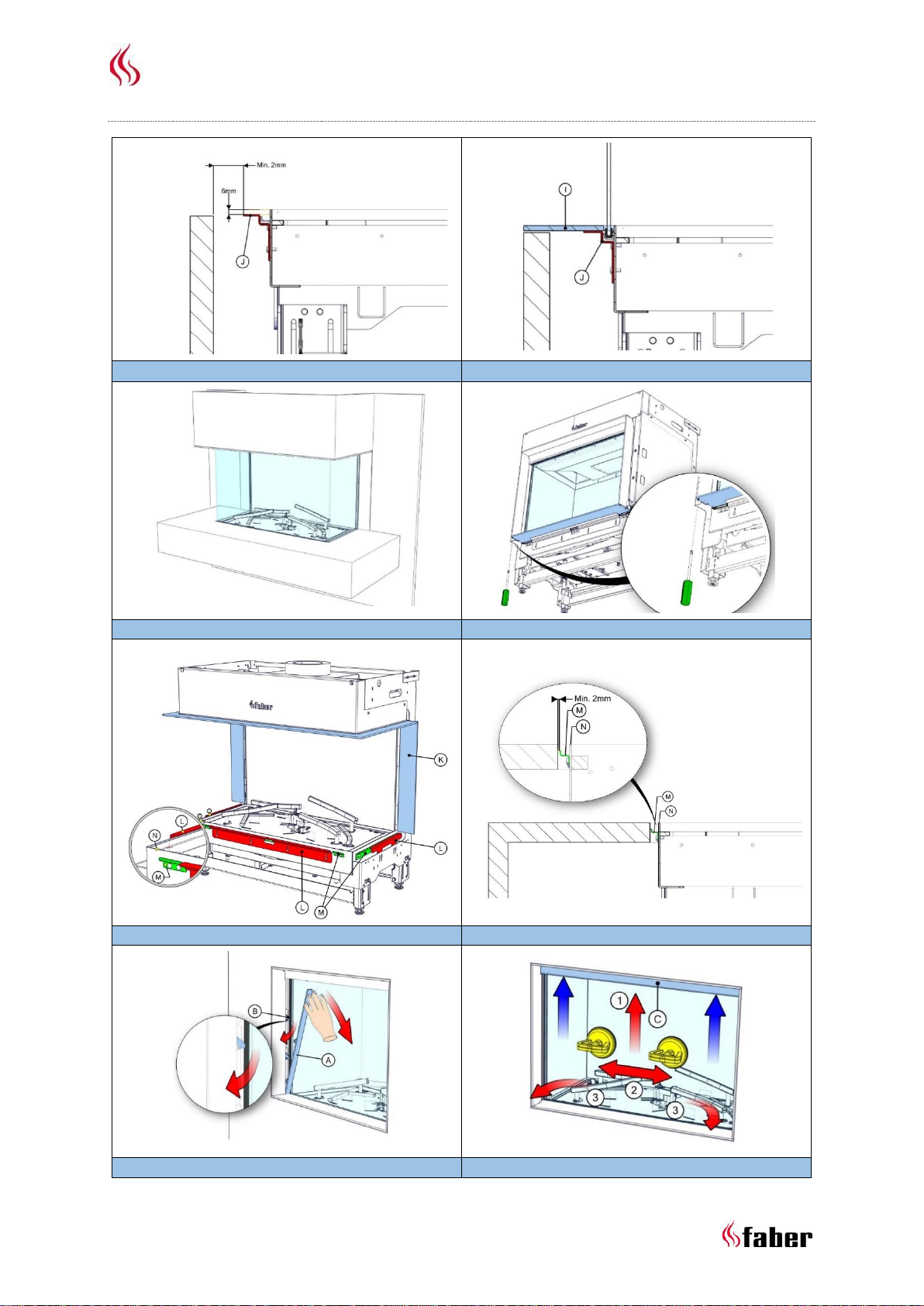

Method I: installation WITH cover strip (fig. 2.2)
For installation and finishing the following points
are of interest (fig. 2.3):
I = built-in frame
J = spacer profile
Build the false chimney against the built-in
frame Iand the spacer profile J(fig. 2.3).
Do not build the false chimney (under-
neath the appliance) higher than the top
of spacer profile J (fig. 2.4a).
Method II: installation WITHOUT cover strip (fig.
2.5)
Please note!
At the MatriX front glass versions only, the
cover strip is fixed by screws, remove those
first! (See fig. 2.6).
For installation and finishing the following points
are of interest, see fig. 2.7:
K = built-in frame
L = spacer profiles
M = glass supports
N = top edge of the combustion chamber
Remove all spacer profiles L.
Please note!
Ensure that the screws of the spacer profiles L
are replaced to ensure the air tightness of the
device.
For the height of the plateau, observe
point N(fig. 2.7 and 2.8).
Due to the expansion of the fireplace,
there should be at least 2mm clearance
between the plateau and the glass sup-
ports M(fig. 2.8).
5Removing glass
5.1 Front glass
MatriX I H:
Disassemble cover strip “A” on both sides
(fig. 3.0).
Rotate clamp “B” clockwise on both sides
(fig. 3.0).
Place the suction cups on the glass, slide
frame “C” upwards and disassemble the
front glass (fig. 3.1).
For replacing the glass repeat the steps in reverse
order. (If necessary, use the tool provided to pull
the "C" frame back down, see fig. 3.9).
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
MatriX II H:
Disassemble cover strip “A” (fig. 3.0).
Rotate clamp “B” (anti) clockwise (fig.
3.0).
Place the suction cups on the glass and
slide frame “C” upwards (fig. 3.2).

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
15 < <<<
Disassemble the front glass (fig. 3.3).
For replacing the glass repeat the steps in reverse
order. (If necessary, use the tool provided to pull
the "C" frame back down, see fig. 3.9).
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
MatriX III H:
Place the suction cups on the glass and
slide frame “C” upwards (fig. 3.4).
Disassemble the front glass (fig. 3.5).
For replacing the glass repeat the steps in reverse
order. (If necessary, use the tool provided to pull
the "C" frame back down, see fig. 3.9).
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
5.2 Side glass
For cleaning only it’s not necessary to remove the
side glass.
MatriX II H and III H:
First, disassemble the front glass (section
5.1).
Disassemble the glass strip at the top
(fig. 3.6 and 3.7).
Place a suction cup and disassemble the
side glass (fig. 3.8).
For replacing the glass repeat the steps in reverse
order.
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
6Placing decoration material
Attention!
It is not allowed to add other or more decora-
tion material in the combustion chamber.
Scan the QR code for a clear video instruction on
decorating the burner:
Keep the included decoration instruction card
close.
Chapter 17 provides an overview of the complete
log setup.
6.1 Switching on HPL module (optional)
To get the right glow effect, the HPL module must
be switched on at 100% intensity.
Make sure the ITC-V2 App is connected to the fire,
see fig 1.9a.
Switch on the glow effect, see fig 1.9b.
Click on the “flame” in the circle, see fig.
1.9f.
Click on the “settings” in the circle, see fig.
1.9g.
Set “Wood glow” and Ash bed glow” to
maximum, see fig. 1.9h.
Tip:
Regularly check the glow effect on the wooden
logs while decorating.

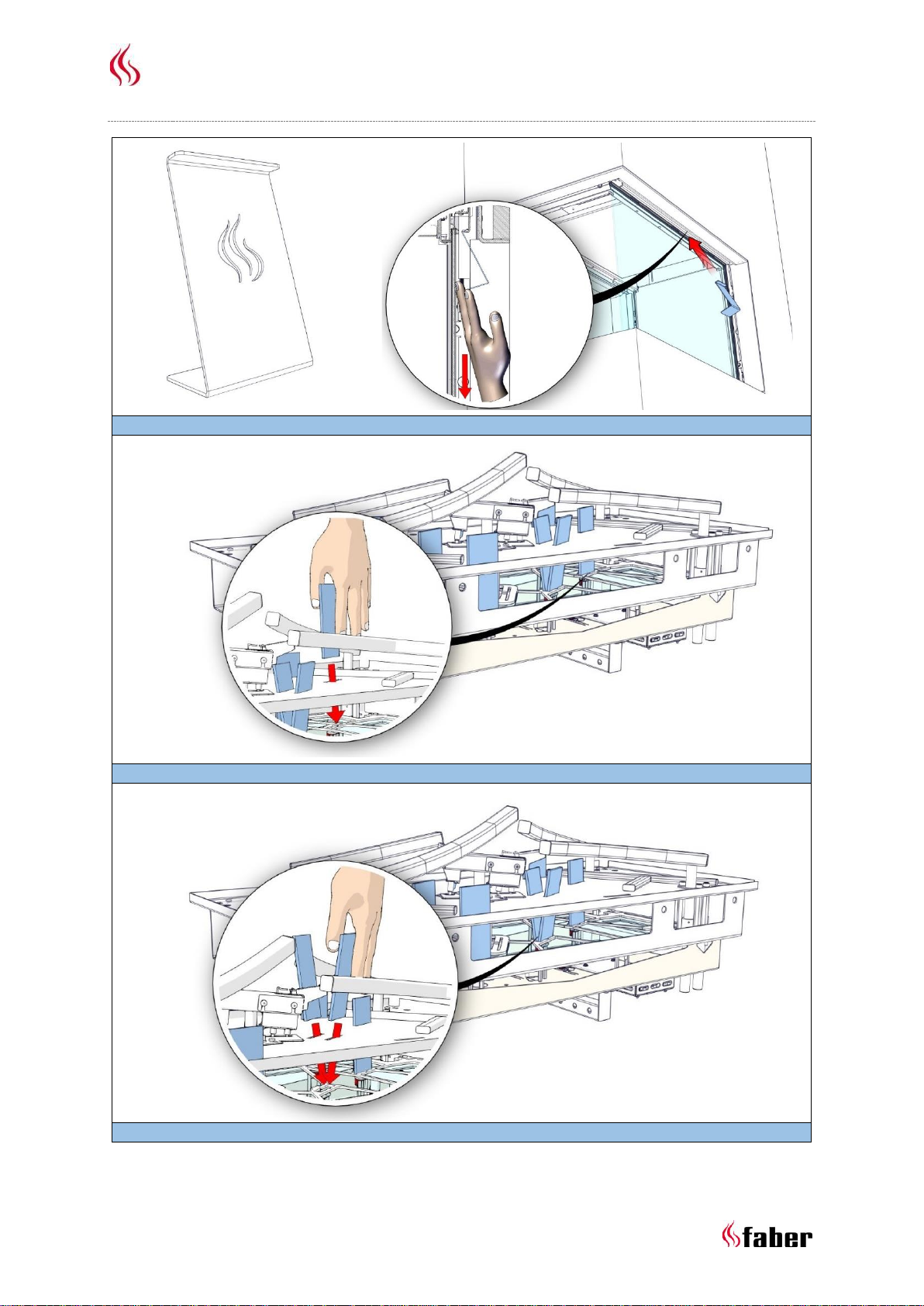

6.2 Installing HPL light guides
Insert the light guides through a slotted opening of
the burner plate into a matching recess in the bot-
tom, see section 16.2 and fig. 4.0.
With LED spot Gtwo light guides must be placed in
one recess, see chapter 16.1, 16.2 and fig. 4.1.
When the light guide is placed correctly, light will
shine from the top side of the glass. If this is not
the case, the light guide must be repositioned.
6.3 Creating ash bed
Spread the glass granules over the entire
bottom plate, with a slightly increasing
thicker layer towards the center burner.
Attention!
Keep some glass granules for correction later
on.
By simultaneously placing (large) chips in
front of the light guides (standing be-
tween the light guide and the glass gran-
ules), this can be largely hidden from
view. Cut or break the chips so that they
do not protrude higher than the light
guide itself, to the detriment of the glow
effect on the logs. (See instruction video!)
Divide the grey mini chips from the center
over the glass granules.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
16 < <<<
6.4 Placing log set
Place wood log 2 over the center burner.
Make sure the ignition and ionization pin
are not obstructed by the wood log. Keep
checking during decorating!
Place wood log 3 in the back, under wood
log 2.
Place the wooden logs 4 through 7 over
the curved burner tubes.
Attention!
The wood logs should be able to slide slightly
over the burner tubes.
Place the remaining wood logs.
Distribute the black mini chips around the
edge of the bottom plate.
Distribute the large chips (grey and black)
over the bottom plate.
6.5 Checkpoints
Check:
1. That the ignition and ionization pin do not
make contact with ash material or a
wooden log.
2. The glow effect on the wooden logs:
oThat all wooden logs have the right
position.
oThat the light guides are not cov-
ered by ash material.
3. That no glow effect is visible at the back
wall.
4. On an even ash bed glow.
Attention!
Start the fire for the first time without the
glass installed!
Start the fire as described in the user man-
ual.
Assess the flame distribution and the glow
effect on the wooden logs. Move or re-
move chips if necessary to create an even
ash bed glow.
Switch off the fire.
Place the glass (see Chapter 5).
7Checking the installation
Checking for gas leaks
Check the gas main connection with a gas leak
finder.
Check inlet pressure
Check if the inlet pressure correspond to the data
on the rating plate.
Measuring the inlet pressure:
Close the shutoff valve. Turn the measur-
ing nipple “E”(fig. 1.3) a few turns to
open and connect a measuring hose to
the gas valve.
Take this measurement when the fire-
place runs at high and low settings.
Do not use the device if the inlet pressure
deviates (+20% and -20%).
Please note!
Close the pressure measuring nipple and check
for gas leakage.
Check ignition and burner
Ignite the fire by using the remote control as de-
scribed in the user manual.
Check:
All section settings of the burner.
Now repeat the above check using the ITC-V2 App.
(App set at Dealer level).
Navigate to: Menu (top left) -> Diagnostics and:
Diagnostic messages;
Realtime Monitor.
Now use a gas leak finder to check all gas pipes
from the gas valve to the burner.
7.1 Checking the flame image
Let the fireplace burn for at least 20 minutes at
highest setting and check the:
flame distribution;
colour of the flames.
When the fire image is acceptable let the fireplace
burn at the maximum setting for at least 4 hours.
See chapter 2.1.
If one or both points are not acceptable then
check:
The position of the wooden logs and/or
the amount of glass granules;
The pipe connections for leaks.
(in case of blue flames);
That the correct flue restrictor is fitted
(see fig. 1.6-F);
The outlet:
oWall terminal has the correct po-
sition and the correct side up;
oRoof terminal has the correct po-
sition.
If the maximum lengths of the flue gas
outlet is not exceeded.
If possible, carry out a flue gas analysis
(see section 7.2).

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
17 < <<<
7.2 Flue gas analysis
It is possible to check the combustion gases and
supply air with a CO/CO2flue gas analyser.
There are two measuring pipes between the built-
in frame and the front glass (fig. 2.1).
X = measuring pipe air supply
Y = measuring pipe flue gas
The ratio CO2 and CO must not be greater than
1:100.
Example:
CO2 is 4% and CO is 400ppm, measured at the
highest point. If the ratio is greater than 1:100 or
flue gases are measured in the air supply, check
the points in section 7.1.
8Instructions for client
Recommend that the fire should be
checked annually by a qualified specialist
to ensure the safe use and to guarantee a
long service life.
Provide instructions on the operation of:
othe appliance;
othe remote control;
oif present, the App and its set-
tings.
Give advice and instructions on care and
cleaning of the glass:
Emphasize the danger of fingerprint burn-
in at the glass.
Handover to customer:
oinstallation manual;
ouser manual;
odecoration instruction card;
osuction cups;
osample Faber glass polish.
9Annual maintenance
Check
Check and clean if necessary:
the combustion chamber;
the burner;
the wooden logs for breakage;
the glass(es);
the outlet.
Replace ash material and/or glass granules if nec-
essary.
Cleaning
Remove the front glass (see chapter 5).
You can clean the glass with Faber glass polish.
This is a specially formulated cleaning agent that
can be ordered at authorized Faber dealers.
Never use aggressive cleaning agents or abrasive
products.
Please note!
Avoid fingerprints on the glass; these are no
longer removable once the fire is used.
Now carry out check-up as described in chapter 7.
For an extensive maintenance instruction "mainte-
nance protocol gas fires" see:
10 Conversion to other gas type
This can only be done by replacing the burner. To
do so, please contact your dealer. Always provide
the type and serial number of the appliance when
ordering.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
18 < <<<
11 Flue calculation
A simple way to calculate whether the exhaust
configuration is possible in combination with your
fireplace, use the “Faber Flue App V2”:
This is available free of charge and can be down-
loaded via:
Internet:
Android and PC (Windows Store, (Windows 10)).
App Store:
iPhone, iPad and Mac.
Google Play:
Android smart phones and Android tablets.
Alternatively, you can use the calculation sheet
(see chapter 13).
The options for flue lengths and any flue restrictors
are defined in a restrictor table, see 11.1 and 11.2.
Start Length (STL), Total Vertical Height (TVH) and
Total Horizontal Length (THL) are used in the table.
Start length (STL):
The first part that is placed on the fire-
place and represents a certain value (fig.
12.1, 12.2 and 12.3 A, N and F). You can
find this value in the upper row of the re-
strictor table.
Total Vertical Height (TVH):
TVH is the height difference measured
from the top of the appliance to the out-
let. This can be measured or determined
in the building plan. For clarification, see
also the TVH indication in the drawings
(fig. 12.1, 12.2 and 12.3).
Total Horizontal Length (THL):
THL is the Total Horizontal Length and
consists of elbows and pipes entirely in
the horizontal plane. See elbows I, K and Q
and the elements H, J, L, M, P and R
(fig. 12.1 and 12.2).
Horizontal length:
The Horizontal Length consists of the ele-
ments H, J, L, M, P and R
(fig. 12.1 and 12.2).
Elbows 90° in the horizontal plane:
Horizontal elbows are elbows entirely in
the horizontal plane
(fig. 12.1, 12.2 and 12.3 I, K and Q).
Elbows 45° or 30° in the horizontal plane.
Horizontal elbows are elbows entirely in
the horizontal plane.
Elbows 90° vertical to horizontal:
These are 90° elbows, which proceed from
horizontal to vertical (fig. 12.2 and 12.3 G,
O and S).
Elbows 45° or 30° vertical to horizontal
plane:
These are 30° or 45° elbows vertically off-
set less than 45° (fig. 12.1 B and D).
Pipes at an angle of inclination:
These are pipes vertically ascending at an
angle of 30° or 45° (fig. 12.1 C). Fill in only
in combination with at least two 30° or
45° elbows in the vertical part.
Restrictor table:
See restrictor table for the correct vertical
(TVH) and horizontal length (THL).
In case of an “X” or if the values are outside the re-
strictor table, the combination is not permitted.
Then adjust TVH or THL.
If a value is indicated, check that the calculated STL
value is not lower than indicated in the restrictor
table. In this case STL must be adjusted.
The value found indicates the width of the flue re-
strictor to be placed (“0” means no flue restrictor).
Generally a 30mm flue restrictor is installed (fig.
1.6-F), first remove hatch “G”.

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
19 < <<<
11.1 Restrictor table (100/150) MatriX 1050/500 I,II,III H and MatriX 1050/650 I,II,III H
Start length (STL) Vertical (TVH) and Horizontal (THL)
1
0 1 2 3 4
0x x x x x
0,5 x x x x x
10,2 x x x x
1,5 0,2 x x x x
230,2 x x x x
330,2 x x x x
440,2 x x x x
540,2 x x x x
640,2 x x x x
750,2 x x x x
850,2 x x x x
950,2 x x x x
10 60,2 x x x x
11 60,2 x x x x
12 60,2 x x x x
13 70,2 x x x x
14 70,2 x x x x
15 70,2 x x x x
16 70,2 x x x x
17 70,2 x x x x
18 80,2 x x x x
19 80,2 x x x x
20 80,2 x x x x
21 80,2 x x x x
22 80,2 x x x x
23 80,2 x x x x
24 80,2 x x x x
25 80,2 x x x x
26 80,2 x x x x
27 80,2 x x x x
28 80,2 x x x x
29 80,2 x x x x
30 80,2 x x x x
STL
THL
TVH

Installation manual MatriX 1050/500 I,II,III H & MatriX 1050/650 I,II,III H
20 < <<<
11.2 Restrictor table (130/200) MatriX 1050/500 I,II,III H and MatriX 1050/650 I,II,III H
Start length (STL) Vertical (TVH) and Horizontal (THL)
