1Introduction
The fire can only be installed by a competent
person in accordance with the Gas Safety
Installation and Use regulations. We urgently
advise you to read this installation manual
properly.
This appliance complies with the guidelines
for European gas appliances (Gas Appliances
Directive) and bears the CE mark.
2Safety instructions.
•The appliance should be placed,
connected and annually checked in
accordance with these installation
instructions and valid national and
local Gas Safety (Installation and Use)
Regulations .
•Check whether the data on the
registration plate are in agreement
with the local type of domestic gas
and pressure.
•It is not permitted to change the
adjustments or the construction of
the appliance!
•Do not place any additional imitation
logs or glowing coals on the burner or
in the combustion chamber.
•The appliance has been designed for
ambience and heating purposes. This
means that all surfaces of the
appliance , including the glass, can
become very hot (hotter than 100
°C). An exception to this are the
bottom of the appliance and the
controls.
•Do not place any combustible
materials within 0.5 m. of the
radiation of the appliance and
ventilation grills.
•Due to natural air circulation of the
appliance, moisture and volatile
components from paint, building
materials, floor coverings etc. that
haven’t yet set, can be drawn through
the convection system and can be
deposited on cold surfaces as soot.
That is why you should not use the
appliance shortly after a renovation.
•The first time the appliance is
switched on, Let the fire run on
maximum setting for several hours so
that the lacquer coating will have an
opportunity to set and possible
vapours released can be safely
removed by ventilation. We advise
you to be outside the room as much
as possible during this process!
•Please note that:
1. all transport packaging should be
removed.
2. children or pets should not be
present in the room.
•No extra ventilation is required, due
to the fact that the input of the
appliance is not exceeding 7,0 kW.
3Installation requirements
3.1 The fire
The fire is tested for installation without a
hearth.

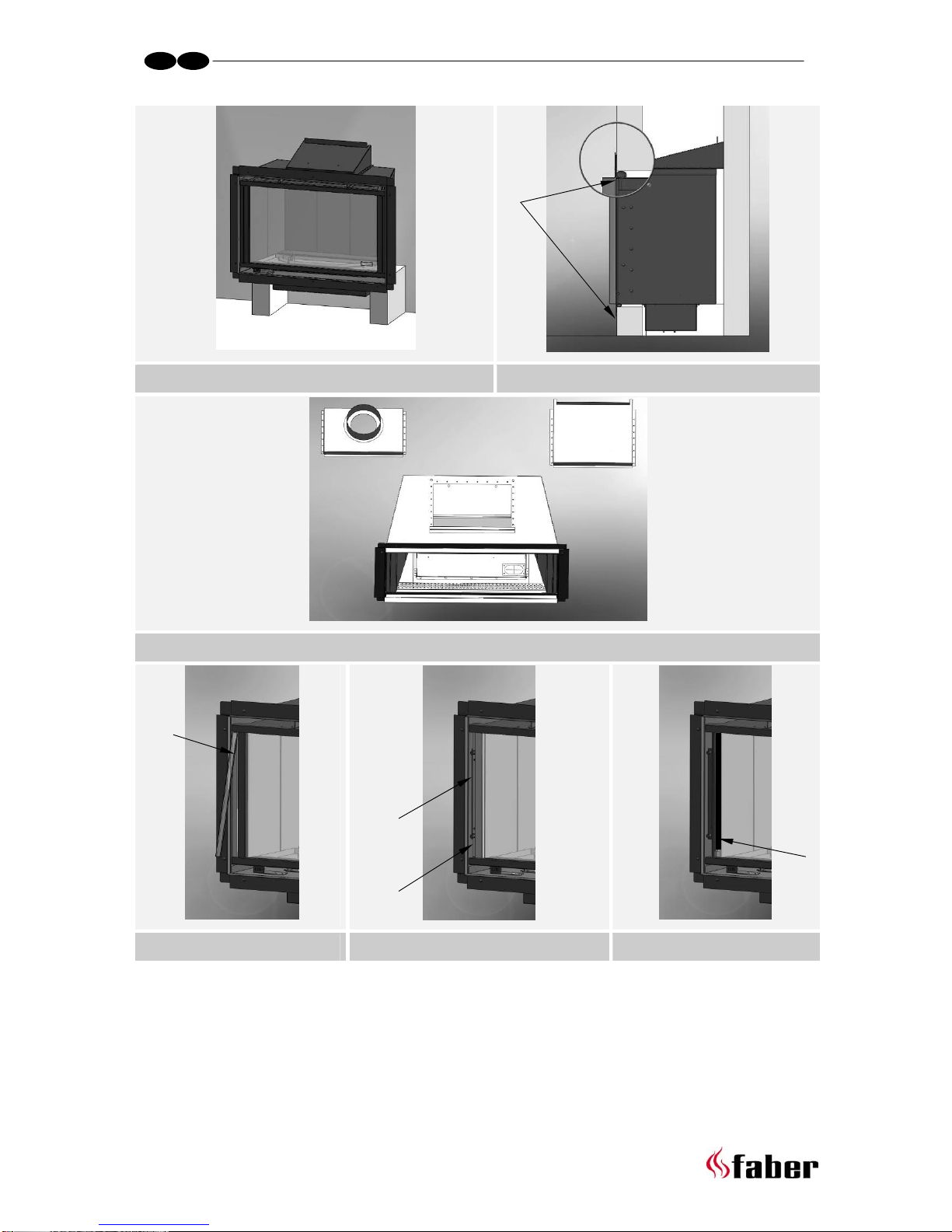

Make 2 non combustible supports on the left
and the right side of the burner unit. (see fig.
1.1)
3.2 Chimney breast
The appliance must be built into a non
combustible existing or a new to be
constructed false chimney breast.

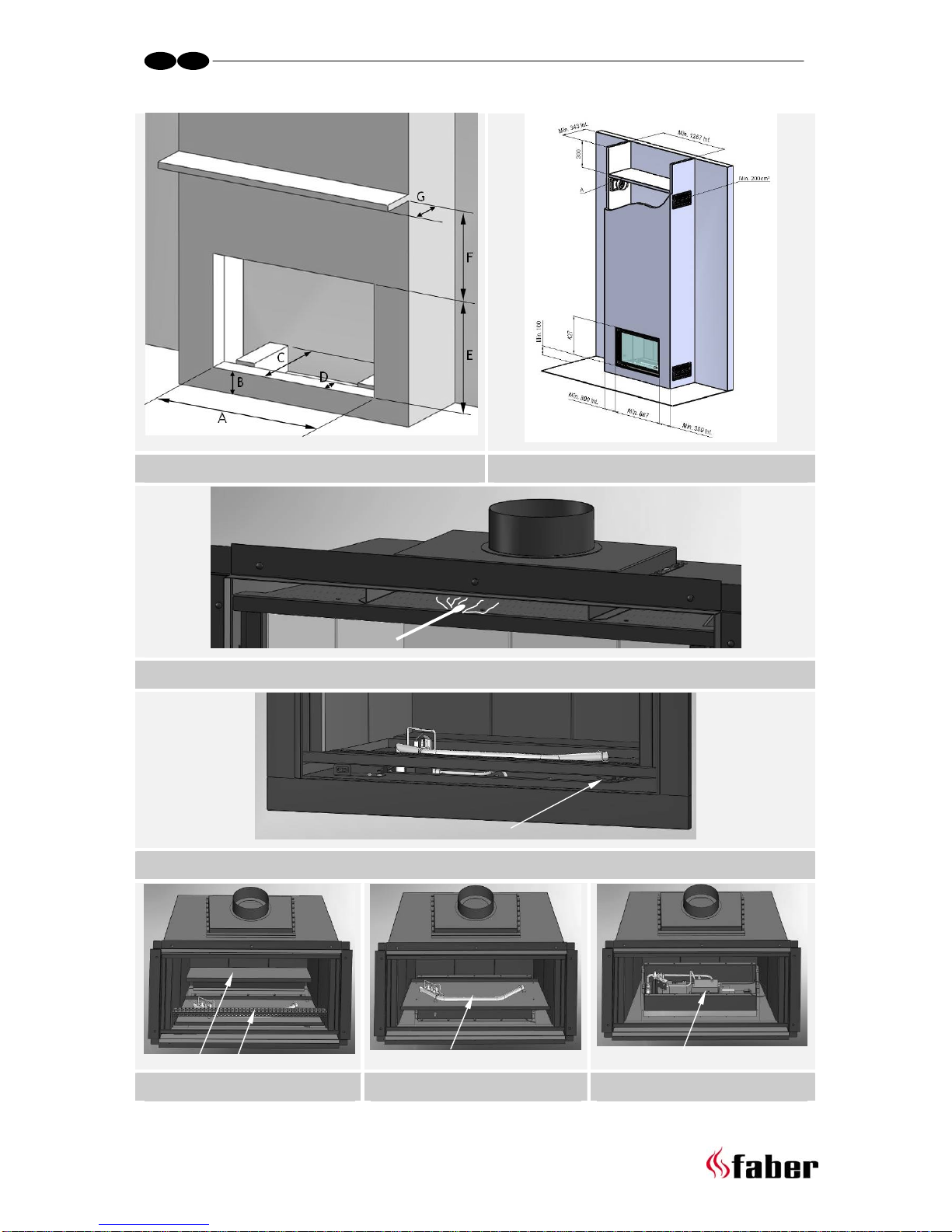

For the dimensions of the builders opening
see fig.1.7.
framed frameless
A = 670mm 670mm
B = Min. 100mm Min. 100mm
C = 337mm 337mm+wall thickness
D = max. 60mm wall thickness
E = 460mm 430mm
Combustible shelf
F = min. 350mm
G = max.150mm
If the shelf depth is greater than 150mm, add
50 mm to shelf clearance height for every 25
mm increase in shelf depth

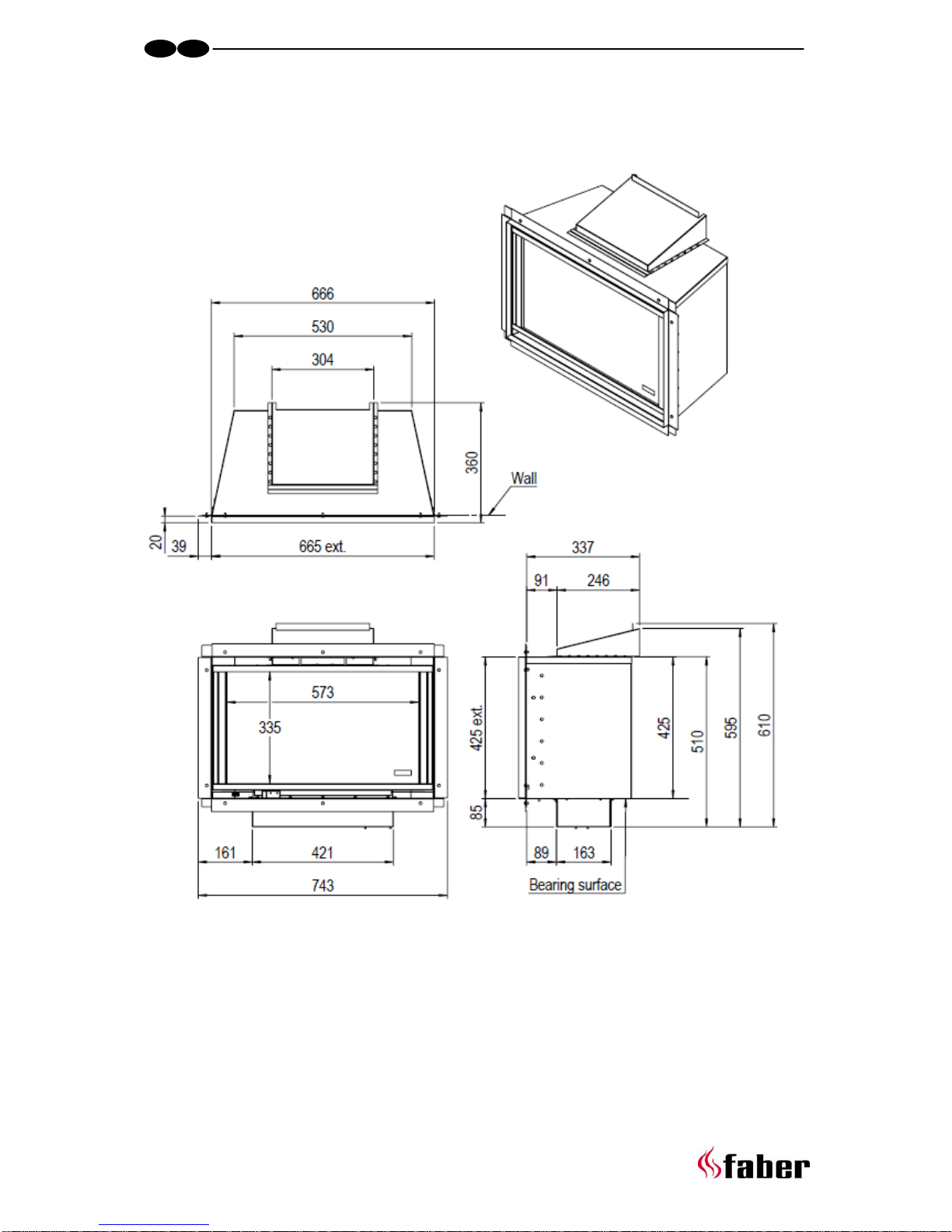

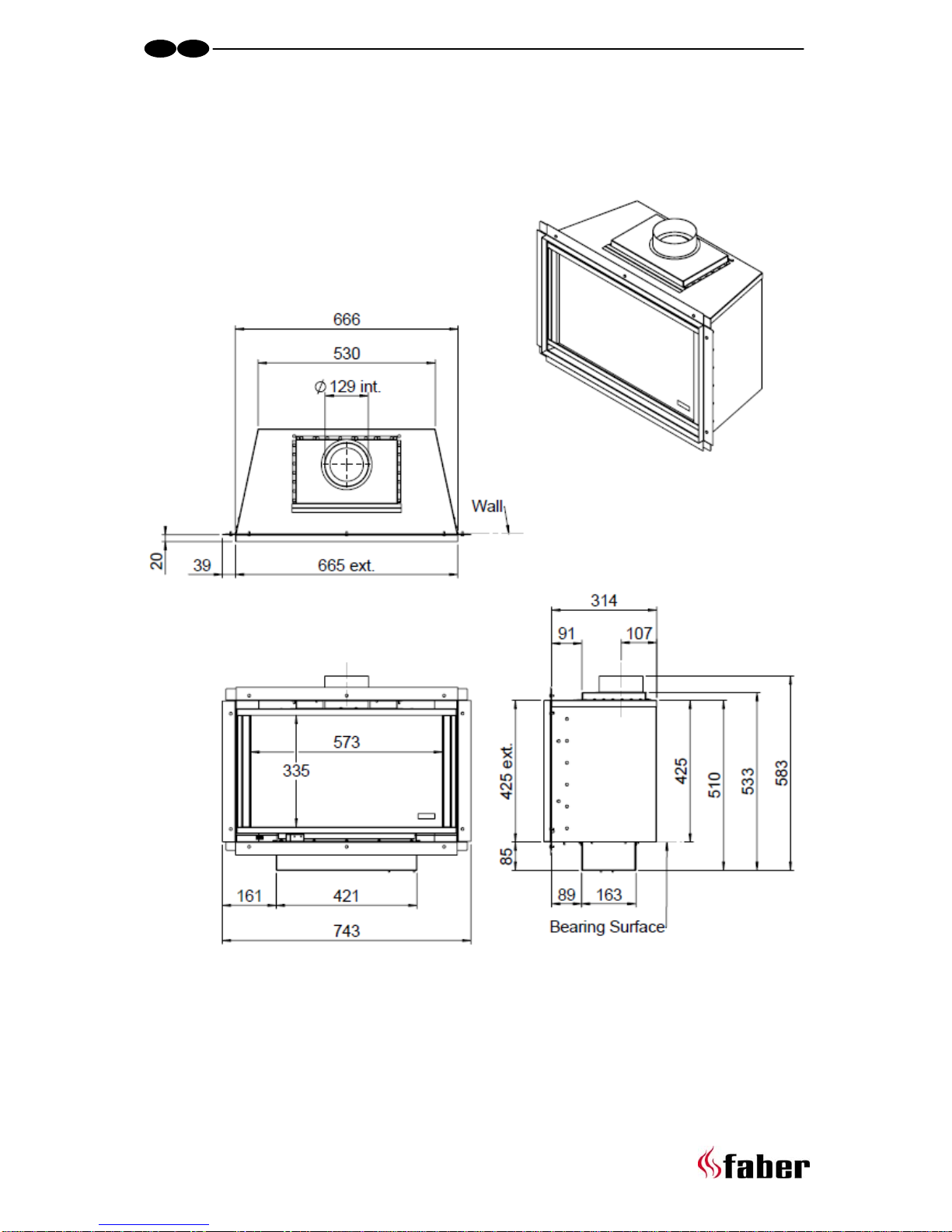

For the dimensions of the fire see chapter 11
till 14.
The false chimney breast must be ventilated
on top and bottom with a minimum opening
of 200cm2.
The false chimney breast and its construction
may not rest on the appliance.
Therefore always use a lintel for a brick build
chimney.
For the minimum dimensions see fig 1.8.
For the finish, use special stucco (min. 100°C
resistant) or glass fibre wallpaper to prevent
discoloration or cracks etc. Recommended
drying time: for plaster is a minimum of 24
hours per mm of coat applied.

6 <<<<
UK IRL
3.3 Requirements flue system and outlets
Top outlet
The flue connector collar is for connection to
a 125 mm (5 inch) internal diameter pipe or
liner according BS EN 1856.
The minimum effective height of the flue
system must be 3 meter.
Rear outlet
In case of an installation in a masonry
chimney convert the outlet to the rear outlet.
Therefore unscrew the top outlet and fit the
rear outlet on the fire. Take care to fill up all
the holes with the screws.(see fig.1.3)
To collect the debris, there must be a
minimum gap of 23 mm behind the appliance
Use the supplied glass fibred-seal to seal the
fire box to the builders opening.(see fig.1.2)
Chimney
The top of the chimney must always be higher
then the top of the roof.
4Preparation and Installation
instructions
4.1 Gas connection
The gas connection must comply with locally
valid standards.
We advise Pipe work from the meter to the
appliance must be of adequate size. An
isolator is factory fitted, no further isolation
device is required. Place the gas connection
in such a way that it is accessible for service
and the burner unit can be disconnected at all
times.
4.2 Preparation of the appliance
•Remove the packaging of the
appliance.
•Clear a safe space to store the glass.
•Remove the glass (see chapter 5) and
take the separately wrapped parts out
of the appliance.
•Prepare the gas connection.
•Prepare the flue connection.
•If necessary convert to rear outlet
(see chapter 3.3).
•If necessary convert to framed
version.
Therefore:
A. Remove the build in frame (see
fig.3.1)
B. Fit the frame support. (see
fig.3.2)
C. The frame now can be hung on
the support. (see fig.3.3)

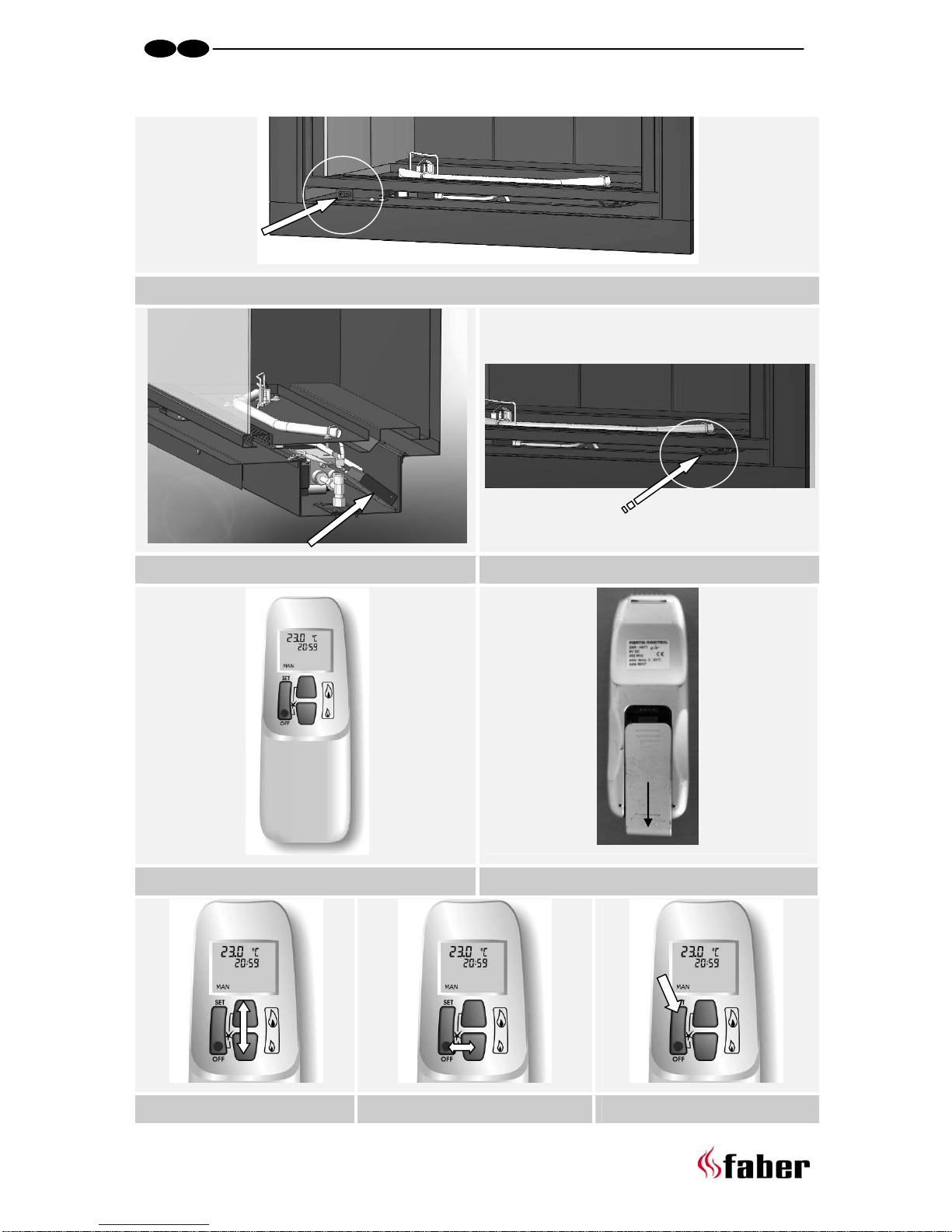

4.3 Batteries.
The battery pack is fixed on a chain inside the
burner unit on the right side. (see fig.2.2)
Pull the chain to remove it.
To avoid overheating take care that the
battery pack always is positioned correctly
in the burner unit.
4.4 Placing the appliance
Take the installation requirements into
account (see chapter 3).
Masonry chimney
Cut out the opening so that the appliance can
be fitted easily.
prepare the 2 non combustible supports on
the left and the right side in the builders
opening (see fig. 1.1)
For a Top outlet connection
Pull a 5 inch liner into the chimney.
Fit the fire in the builders opening and
connect the liner on the top outlet.
For a Rear outlet installation
Fit the fire in the builders opening, use the
supplied glass fibred-seal to seal the fire box
to the builders opening.(see fig.1.3)
Do a gas leakage test on all joints and check
burner and inlet pressure.
See chapter 7 before closing the chimney
Reconstruct the wall of the chimney.
5Removing the glass
•Place the suction discs onto the glass
•Remove the cover strips on the left
and right side by pushing the top (see
fig.1.4)
•Remove the cover strips on the left
and right hand side (see fig.1.5)
•Remove the sealing cord from the
groove (see fig.1.6)
•Lift the glass up and move slowly
forward, now you can take the glass
out.
To replace the glass repeat the process in
reverse order.
Remove all Fingerprints from the glass, these
will be burned into it once the hearth is used.

7 <<<<
UK IRL
6Placing the log set, decoration
material
It is not allowed to add different or more
materials to the combustion chamber.
Always keep the pilot burner free from
decorative material!
Do not toss all the decorative material onto
the burner all at once, as the very fine dust
may block the holes in the burner.
6.1 Imitation logs
•Spread the vermiculate preferably by
hand over the tube burner in the
burner-slot. The surface of the
vermiculate may be very slightly
elevated from the burner plate but it
should be levelled throughout the
entire length.
•Place the imitation logs according to
instructions. (see fig.4.1) or the
instruction card)
•Start the pilot and main burner,
according to the instructions in the
user’s manual. Assess whether the
flame distribution is correct.
•Place the glass and check the flame
picture into the appliance
6.2 Pebbles
•Place the pebbles over the burner in
the burner holder. Do not cover the
grid in the front. Spread the pebbles
evenly to a double layer. The surface
of the pebbles may be very slightly
higher then the burner tube (see
fig.4.2)
•Place the glass and check the flame
picture.
7Checking the installation
7.1 Checking the ignition of the pilot
burner, main burner.
Start the pilot and main burner following
the instructions in the user’s manual.
•Check whether the pilot light is
properly positioned above the main
burner and is not covered by
vermiculite and imitation log or
pebbles.
•Check the ignition of the main burner
at full mark or low mark.
(the ignition should take place quickly
and easily).
7.2 Checking for gas leakage.
Check all connections and joints for possible
gas leaks by means of a gas leak detector or
spray
7.3 Checking the burner pressure and the
inlet pressure
Check whether the burner pressure and the
inlet pressure measured agree with the data
indicated on the registration plate
7.4 Measuring the inlet pressure:
•Turn off the gas control.
•Get access to the burner unit by
removing the glass, log set and
bottom plates as described in chapter
8.4.
•Open the pressure gauge nipple B (see
fig.2.6) a few turns and connect a
pressure gauge hose to the gas control
valve.
•Fit the burner plate with burner (see
fig. 2.4).
•Carry out the measurement when the
appliance is on at full gas mark and
when it is on the pilot light.
•If the inlet pressure is too high you
are not permitted to connect the
appliance.
7.5 Measuring the burner pressure:
Only perform this measurement if the
inlet pressure is correct.
•Follow the steps as described in
chapter 7.4 to get access to the
burner unit.
•Open the pressure gauge nipple A (see
fig.2.6) a few turns and connect a
pressure gauge hose to the gas control
valve.
•The pressure must agree with the
value indicated in the technical data
in chapter 10. In case of deviations,
get in touch with the manufacturer.
*Close the pressure gauge nipples and check
these for gas leaks.
7.6 Spillage test
•Carry out the lighting procedure and
turn the fire to high.
•Allow to warm up for 15 minutes and
then using a smoke match with holder
set 100% inside the middle part on top
of the appliance (see fig.2.1) between
the trim and the glass frame. The
installation is satisfactory if most of
the smoke is drawn into the tube.
•Repeat the test with doors and
windows to the premises open and
closed, and with any extractor fans in

8 <<<<
UK IRL
the same room or adjacent rooms
running on high.
•Check if any other open flue
appliances and flues in the same or
adjacent rooms function correctly
when this appliance is alight.
8Annual maintenance
8.1 Service and cleaning:
Check and clean if necessary after
checking:
•The pilot light
•The combustion chamber
•Spillage (see chapter 7.5)
•The glass (see chapter 8.3)
•For debris (see chapter 8.4)
•The logs for possible fractures
•The outlet
8.2 Replace:
•If necessary the vermiculite.
8.3 Cleaning the glass
Most of the deposits can be removed with a
dry cloth. You can use ceramic hob cleaner to
clean the glass.
Note: prevent fingerprints on the glass. these
will be burned into it once the appliance is
used and cannot be removed anymore!
8.4 Check and cleanup debris
To get access to the debris area, remove the:
1. glass (see chapter 5)
2. log set
3. burner unit.
Therefore:
Remove the bottom plates in the
front and at the back (see fig.
2.3)
Unscrew 4 screws (2 at the left
and 2 at the right) and remove
the burner plate including the
burner. (see fig. 2.4)
Disconnect the gas.
Unscrew 13 screws of the burner
unit and 2 screws of the switch
and remove the burner unit. (see
fig. 2.5)
Now the debris area is accessible.
To replace all the parts repeat the process in
reverse order.
8.5 Final check
Carry-out the check-up according to the
instructions in chapter 7 “checking the
installation.
9Conversion to a different type of
gas (e.g. propane)
This can only be done by installing the proper
burner unit. for this purpose get in touch with
your supplier.
Always mention the type and serial number of
the appliance when ordering.

9 <<<<
UK IRL
10 Technical data
Gas category II2H3+ II2H3+ II2H3+
Type of appliance B11AS B11AS B11AS
Reference gas G20 G30 G31
Input - Nett
- Gross kW 5,2 5.8
5,2
5,6
5,2
5.6
Efficiency class 2
(76%)
2
(76%)
2
(76%)
NOx class 4 4 4
inlet pressure mbar 20 30 37
Gas rate at 15ºC and
1013 mbar l/h 542 150 181
Gas rate at 15ºC and
1013 mbar gr/h 380 340
Burner pressure at full
mark mbar 9,5 20 25,7
Injector main burner mm 2,1 1,3 1,3
Minimum screw mm 1,3 0,85 0,85
Pilot assembly OP9030 OP9222 OP9222
Diameter outlet mm 125mm
(5 inch)
125mm
(5 inch)
125mm
(5 inch)
Gas control valve GV60 GV60 GV60
Gas connection 8mm 8mm 8mm
Batteries receiver V 4x AA
(1,5V)
4x AA
(1,5V)
4x AA
(1,5V)
Batteries sender V 9V 9V 9V

10 <<<<
UK IRL
11 Dimensions Presence Frameless
Top outlet

11 <<<<
UK IRL
12 Dimensions Presence Frameless
Rear outlet

12 <<<<
UK IRL
13 Dimensions Presence Framed
Top outlet

13 <<<<
UK IRL
14 Dimensions Presence Framed
Rear outlet

14 <<<<
UK IRL
Users manual

15 <<<<
UK IRL
1.1
1.2 1.3
1.4 1.5
1.6 1.7 1.8

16 <<<<
UK IRL
1.9 2.0 2.1 2.2
2.3 2.4 2.5

17 <<<<
UK IRL
15 Introduction
Because this appliance is a source of heat, air
circulation will arise. That is why it is
important that you do not use the fire shortly
after a renovation. By natural air circulation
moisture and volatile components from paint,
building materials, floor coverings etc. that
haven’t set yet, are sucked up. These
components can be deposited on cold surfaces
as soot. The first time you should use the fire
depends on various circumstances. Consult
your gas fitter on this matter.
16 Cleaning and Maintenance
•The appliance will have to be cleaned
and serviced and the proper
functioning checked by a gas fitter.
•The outside frame of the fire can be
cleaned with a clean damp cloth.
16.1 Cleaning the glass
•Dismount the glass according to the
description in the installation
instructions.
•Remove the deposit with a clean dry
cloth. If necessary, a special ceramic
cleaning agent can be used.
Note: prevent the making of finger marks on
the glass. These cannot be removed once the
fire has burnt them into the glass!
17 Safety Instructions for the User
•The appliance has been designed for
atmospheric and heating purposes. This
means that all surfaces of the fire,
including the glass, can become very hot
(hotter than 100 °C). An exception to this
is the on-off switch of the fire
•If the fire has been switched off, wait for
at least three minutes before re-igniting
it again.
•If the fire switches off with no known
cause, wait for at least 15 minutes
before re-igniting the fire again. If this
happens repeatedly, get in touch with
your gas fitter.
•The fire should not be used if:
- The glass is damaged or has been
removed.
- The combustion chamber is open.
•Don’t place any inflammable materials
in the combustion chamber.
•Never change the position of the log set
and never add more decorative
materials or carrara pebbles than have
been supplied with the appliance. If the
fire is switched on, the pilot light should
always be visible!
•Don’t place any curtains, clothes,
laundry, furniture or other inflammable
materials in the neighbourhood of the
appliance. The minimum safe distance is
100 cm.
•Don’t allow children to use the remote
control unit without adult supervision.
•Fit a suitable fireguard if there are
children, old people or persons with
limited mobility present in the same
room.
18 First time the fire is operated
Before ignition, remove all stickers,
protective wrappings and, if present, rubber
protective padding from the glass.
Make sure the room is properly ventilated the
first time the fire is switched on. Burn the
appliance at the highest position for some
hours so that the lacquer coating will have an
opportunity to set and possible vapours
released can be safely removed by
ventilation. Keep children and pets outside
the room during this process!
18.1 Remote control unit – general remarks
The appliance has been supplied with a
remote control set; The receiver and the gas
control are located underneath the burner.
Access only allowed by a competent person
•The remote control has been provided
with 3 keys (fig.1.4). All functions of
the fire can be operated with these
keys.
•If the transmission is successful, the
receiver will emit a sound signal.
•With the On/Off switch (fig. 1.1) the
fire can always be switched off.
•Switch in Oposition –, if the fire is
not in use for a longer period.
•When using the thermostat/timer
function, the wall bracket supplied
(fig. 2.3/2.4/2.5) should always be
placed within 4 metres of the
appliance .
18.2 batteries
The battery pack for the receiver is fixed on a
chain and store on the right side underneath
the burner unit. (see fig. 1.3)

18 <<<<
UK IRL
18.3 Placing the batteries
•Pull on the chain to take out the
battery pack (fig 1.3)
•Unscrew and open the battery pack.
Place 4 AA/LR6 Alkaline long life
batteries
•Close the pack and place the battery
pack back in the appliance.
•To avoid overheating the battery pack
must always positioned underneath
the burner unit.(see fig 1.2)
18.4 Placing the batteries in the remote
control unit
•Remove the lid at the back of the
remote control unit. (fig. 1.5)
•Place a 9Volt MN1604/6LR61 Alkaline
long life battery.
•Close the lid.
18.5 Replacing empty batteries
•Handset: if the indication BATT
appears in the top left corner of the
display screen, the batteries of the
remote control unit need to be
replaced.
•After replacing the battery in the
handset, the settings of the
thermostat and timer function have
been reset to the factory settings.
•Receiver:3 short sound signals will be
heard when the engine is on to
indicate that the batteries of the
receiver are nearly run down.
•When the battery supply is very low,
the remote control unit will switch off
the appliance completely. This will
not happen if the supply is
interrupted.
•It is possible that the transmitter
code will have to be set again after
replacing the batteries, see chapter
19.2 for instructions.
19 Setting the controls on the
remote control unit.
19.1 Time setting:
•Press the - and the -key
simultaneously (fig. 1.6)
•The display screen will blink now
•Press the -key to set the hours (fig.
2.1)
•Press the -key to set the minutes
(fig. 2.2)
•Wait or press the OFF- key to
terminate this function (fig. 2.0).
19.2 Setting the transmitter code on the
remote control unit:
Press the reset button of the receiver with a
pointed object, until the second signal is
audible. Now press the -key on the remote
control unit (fig. 2.1), within 20 seconds. If a
sound signal is audible, the transmitter code
has been set.
19.3 Temperature/clock setting (standard
°C/24hours):
The alteration of the temperature
indication on the display screen from
°C/24hours to °F/12hours and the
other way around is done in the
following manner:
•Press the OFF-key and the -key
(small flame) simultaneously until
the indication is modified (fig. 1.7).
20 Basic functions of the Remote
Control Unit
20.1 Switching on the fire
•Press the z- key and the -key
simultaneously, until a sound signal is
audible (fig. 1.9).
•The start-up procedure will be
executed now. During this period the
receiver will emit a repetitive sound
signal.
•The fire will start burning at the
highest position automatically now.
20.2 Adjusting the flame height
•Keep the -key pushed in to increase
the flame height step by step. (fig.
2.1)
•Keep the -key pushed in to lower
the flame height step by step and/or
to switch back to the pilot light. (fig.
2.2)
20.3 Switching off the fire
•Press the OFF-key and the fire will be
switched off completely. (fig. 2.0)
Move the toggle switch (fig. 1.1) to position –
O, if the fire is not in use for a longer period.
21 Thermostat and Timer Function
The following settings are possible in the
thermostat function:
•Day temperature (ÏTEMP)
•Night temperature (dTEMP)
If the thermostat function is used, the remote
control unit should be placed in the wall
bracket (fig. 2.4/2.5/2.6), this should be

19 <<<<
UK IRL
mounted within 4 metres of the appliance in
the same room.
The timer function (TIMER) can make the
thermostat function once or twice on day
temperature and one or twice on night
temperature during a period of 24 hours.
Factory settings thermostat and timer:
Day temperature 23°
Night temperature (appliance doesn’t
switch on)
Timer P1 Ï6:00 (getting up)
P1 d8:00 (departure)
P2 Ï16:00 (homecoming)
P2 d22:00 (night)
Example setting one switch period:
Day temperature 21°
Night temperature (appliance doesn’t
switch on)
Timer P1 Ï8:00 (getting up)
P1 d22:00 (night)
21.1 Additional functions
The display screen on the remote control unit
always shows one of the functions below:
By pressing the the SET-key (fig. 1.8) briefly,
the various functions can be shown
consecutively.
manual operation.
If the indication MAN is shown in the display
screen, the fire can adjusted to a higher or
lower flame position by pressing the -key or
the -key (fig. 2.1 or 2.2), see chapter. 20.2
and 6.3.
NOTE: By pressing the - key or the -key
(fig. 2.1 or 2.2), the manual operation is
switched on and the active thermostat and/or
timer programmes are switched off.
Day temperature
If the indication for day temperature is shown
in the display screen, the thermostat will
make sure the environmental temperature
agrees with the settings for day temperature.
Night temperature
If the indication for night temperature is
shown in the display screen, the thermostat
will make sure the environmental
temperature agrees with the settings for night
temperature.
Timer function
In this “clock thermostat” function the
duration of the periods for day and night
temperatures is set within 24 hours.
21.2 Setting day and night temperatures
•Move the SET-key (fig. 1.8) step by
step to ÏTEMP.
•Now keep the SET-key (fig. 1.8)
pushed in for a long time until the
temperature indication in the display
screen starts to blink.
•In accordance with your wishes,
increase the Day temperature with
the -key (fig. 2.1) or lower it with
the -key (fig. 2.2).
•Press the SET–key (fig. 1.8) again,
now dTEMP appears in the display
screen.
•Now keep the SET-key (fig. 1.8)
pushed in for a long time until the
temperature indication in the display
screen starts to blink.
•In accordance with your wishes,
increase the Night temperature with
the -key (fig. 2.1) or lower it with
the -key (fig. 2.2).
Note! The lowest temperature that
can be set is 5 ºC. If you don’t want
the fire to switch on at night, keep
pressing the -key (fig. 2.2) until the
sign - - appears in the display
screen.
•Save the settings by pressing the
OFF- key (fig. 2.0) or wait for ten
seconds.
21.3 Programming the timer setting
•Move the SET-key (fig. 1.8) step by
step to TIMER.
•Now keep the SET-key (fig. 1.8)
pushed in for a long time until the
time indication in the display screen
starts to blink and P1 Ïis visible.
•Set the starting time P1 (getting up)
of the day temperature with the -
key
(fig. 2.1) for the hours and with the
-key (fig. 2.2) for the minutes.
•Now press the SET-key (fig. 1.8)
again, now P1 d(departure) will
appear in the display screen and the
time indication will start to blink and
now set the starting time.
•For setting the 2nd period, press the
SET–key (fig. 1.8) and P2 Ï
(homecoming) will appear in the
display screen, the time indication
will start to blink and now set the
starting time.
•If a 2nd period setting is not desired,
save the settings by
t
t
t
TIME
R
dTEMP
MAN ÏTEMP
dTEMP
ÏTEMP
TIME
R
MAN
