Faber OCEANA-SH User manual

Installation Instructions
Use and Care Information
Instructions d'installation
Utilisez et d'entretien
Instrucciones de instalación
Información de uso y cuidado
ZOOMIL16SS400
OCEANA-SH
VANILLA-SH

2
READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START
INSTALLING THIS RANGEHOOD
WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a)Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
b)AlwaysturnhoodONwhencookingathighheatorwhenambeingfood(i.e.Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c)Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan
orlter.
d)Useproperpansize. Alwaysusecookwareappropriateforthesizeofthesurfaceelement.
WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
a)SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,thenturnofftheburner.
BECAREFULTOPREVENTBURNS.IftheamesdonotgooutimmediatelyEVACUATE
AND CALL THE FIRE DEPARTMENT.
b)NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will
result.
d)Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. Thereissmallandcontainedintheareawhereitstarted.
3. Theredepartmentisbeingcalled.
4. Youcanghttherewithyourbacktoanexit.
* Based on "Kitchen Firesafety Tips" published by NFPA
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this
fan with any solid-state speed control device.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
2. If you have any questions, contact the manufacturer.
3. Before servicing or cleaning unit, switch power off at service panel and lock the
servicedisconnecting meansto preventpowerfrombeing switchedon accidentally.
4. When the service disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or
Explosive Materials and Vapors.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. InstallationWorkAndElectricalWiringMustBeDoneByQualiedPerson(s)InAccor-
dance With All Applicable Codes And Standards, Including Fire-Rated Construction.
2. Sufcientairisneededforpropercombustionandexhaustingofgasesthrough
theue(chimney)offuelburningequipmenttopreventbackdrafting.Followthe
heating equipment manufacturer's guideline and safety standards such as those
publishedby the NationalFireProtectionAssociation (NFPA), andthe American
SocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE),and
the local code authorities.

3
ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED.
This rangehood requires at least 24" of clearance between the bottom of the rangehood and
the electric cooking surface or countertop and at least 30" of clearance between the bottom
of the rangehood and the gas cooking surface or countertop. This hood has been approved
by UL at this distance from the cooktop. Consult the cooktop or range installation instructions given
by the manufacturer before making any cutouts. MOBILE HOME INSTALLATION The installation of
this rangehood must conform to the Manufactured Home Construction and Safety Standards, Title 24
CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD,
Part 280). See Electrical Requirements.
3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
4. Ducted fans must always be vented to the outdoors.

4
ELECTRICAL REQUIREMENTS
A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay
fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with
the electrical rating of this unit as specied on the serial/rating plate located inside the unit near the eld
wiring compartment.
ELECTRICAL INSTALLATION WITH WIRING BOX
THIS UNIT MUST BE CONNECTED WITH COPPER WIRE ONLY. Wire sizes must conform to the
requirements of the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and
ordinances. Wire size and connections must conform with the rating of the appliance. Copies of the
standard listed above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
This appliance should be connected directly to the fused disconnect (or circuit breaker) through
exible, armored or nonmetallic sheathed copper cable. Allow some slack in the cable so the
appliance can be moved if servicing is ever necessary. A UL Listed, 1/2" conduit connector must
be provided at each end of the power supply cable (at the appliance and at the junction box).
When making the electrical connection, cut a 1 1/4" hole in the ceiling. A hole cut through wood
must be sanded until smooth. A hole through metal must have a grommet.
• Electrical ground is required on this rangehood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO
NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or
grounding circuit could result in electrical shock.
• Check with a qualied electrician if you are in doubt as to whether the rangehood is
properly grounded.
• Failure to follow electrical requirements may result in a re.
WARNING
!
StateofCaliforniaProposition65Warning(USonly)
WARNING
This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
ELECTRICAL REQUIREMENT FOR LIGHTING DIFFUSER
Prepare a separate electrical connection and switch to turn on/off the light diffuser.

5
MAIN PARTS
ZOOMIL16SS400
Components
Ref. Qty. Product Components
1 1 Hood Body, complete with:
Controls, Light, Filters, Motor.
2.1 1 Ceiling Plate
2.2 1 Plate Cover
3 1 Cable bracket
4 1 Cable raceway
12f 6 Lamp holder
14 1 Pawl
15 4 Knobs
30 1 Remote Control
33 6 G9 LED Lights
Ref. Qty. Installation Components
12c 1 Screw 1/8" x 3/8"
12g 1 Screw for pawl
Qty. Documentation
1 Instruction Manual
1
2.2
14
4
3
12g
12c
12f
2.1
1
5
12d
4
2
12g
14
12f
1
2
14
4
3
12g
12c
15
30
33
Activated Charcoal
Filter sku #;
FILTER1
Long Lasting
Activated Charcoal Filter
sku#; FILTER1LL
To reduce the risk of re and
shock use only FILTER1 and
FILTER1LL Accessory.
Available
Accessories

6

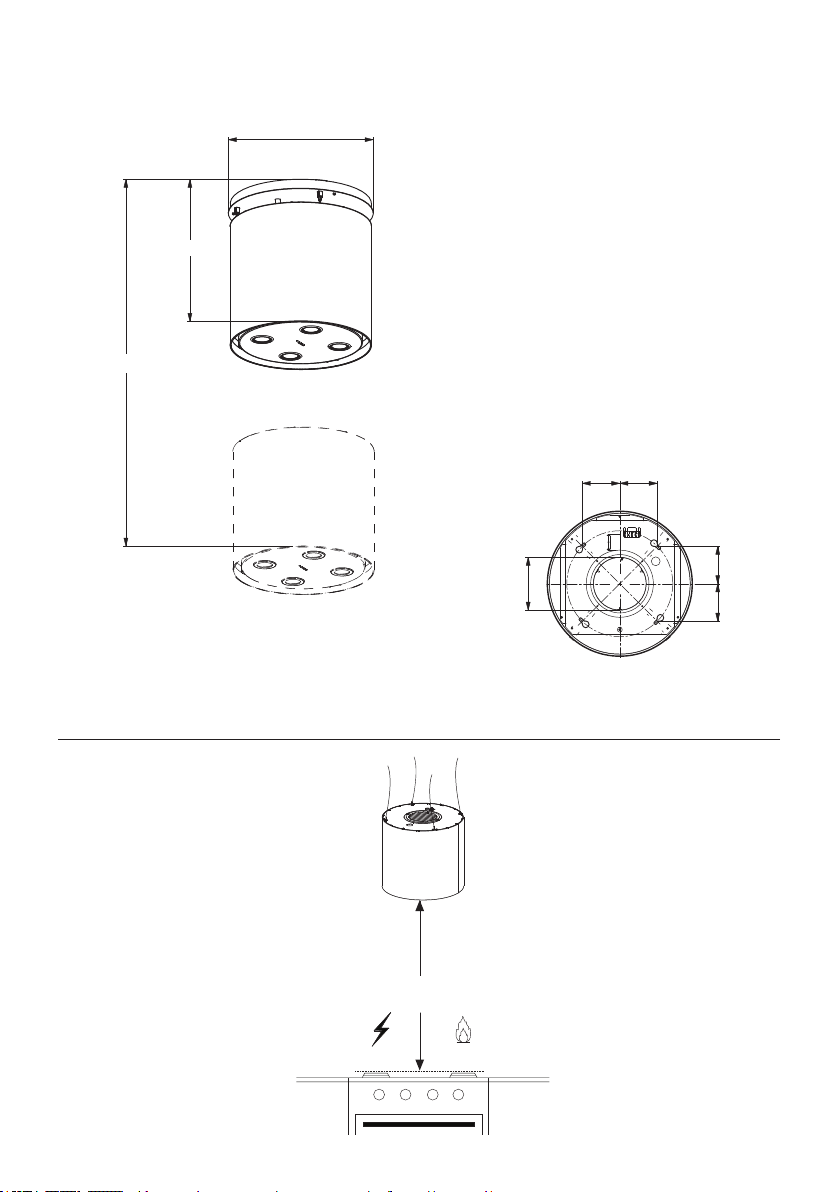

RANGEHOOD DIMENSIONS
ZOOMIL16SS400
16
1/8"
16 15/16"
Max. 51
5/8"
Ø5 7/8"
43/16" 43/16"
43/16"
43/16"
Min. 24" - Min. 30"
16 1/8"
16 15/16"
Max. 51 5/8"
Ø5 7/8"
43/16" 43/16"
43/16
"
43/16
"

7
MAIN PARTS
MAIN PARTS CEILING LIGHTING DIFFUSER OCEANA-SH
Components
Ref. Qty. Product Components
5 1 Stainless plates ceiling lighting diffuser
Ref. Qty. Installation Components
12d 4 Chrome plated ceiling lighting diffuser
   xingPin/Screws
1
5
12d
4
2
12g
14
12f

8

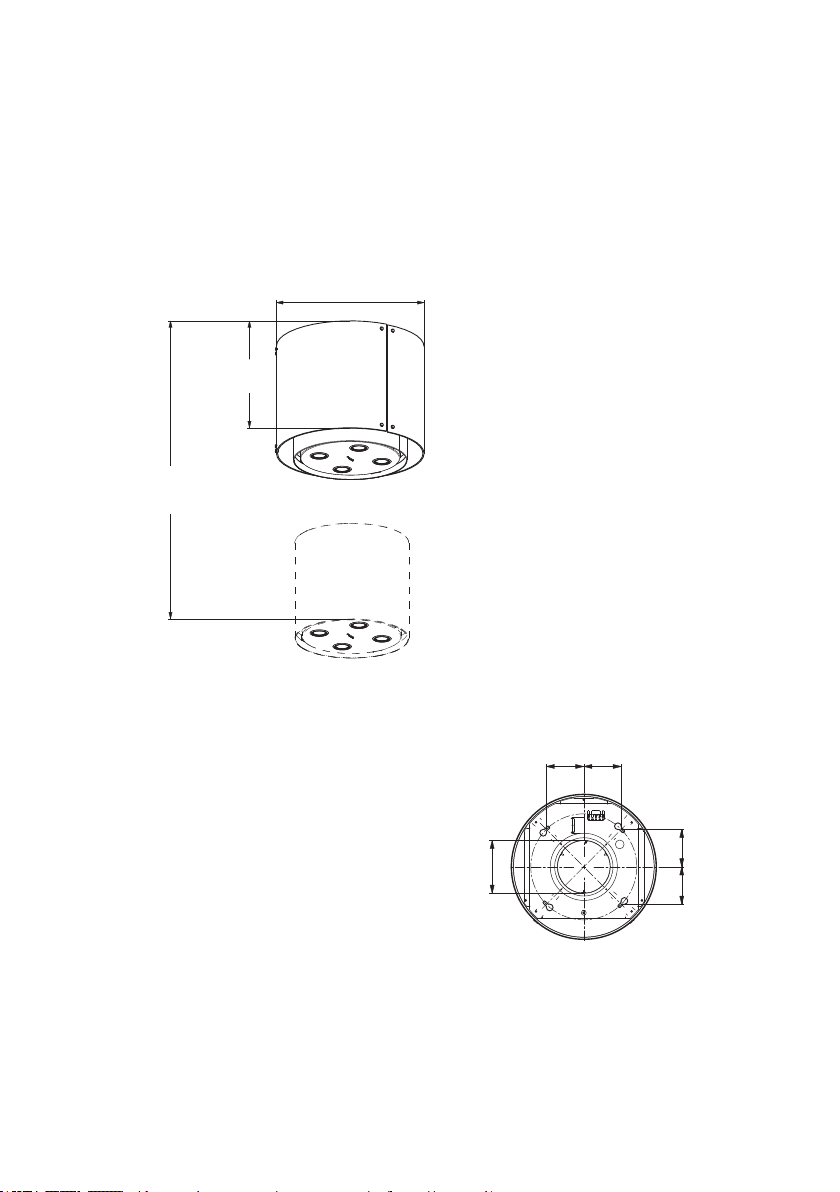

RANGEHOOD DIMENSIONS
MAIN PARTS CEILING LIGHTING DIFFUSER OCEANA-SH
Ø5 7/8"
43/16" 43/16"
43/16"
43/16"
20 1/4"
16 15/16"
Max. 51 5/8"

9

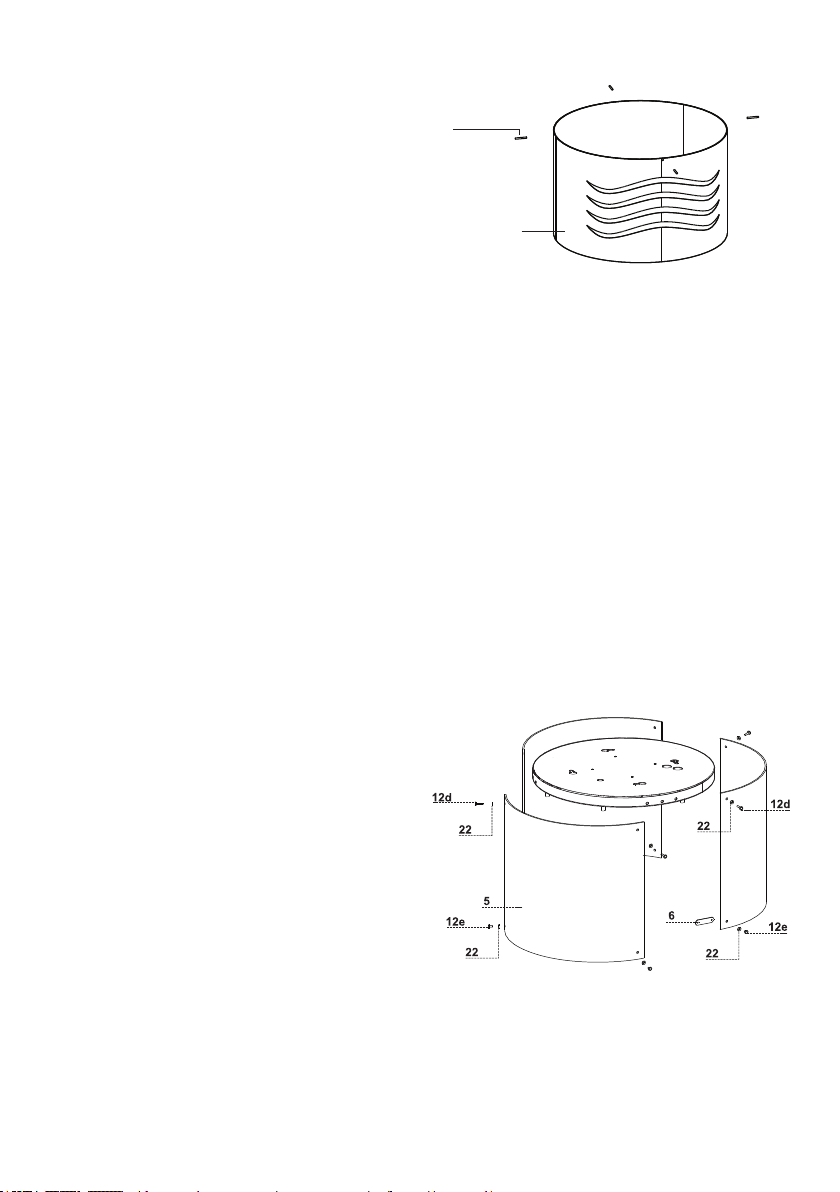

MAIN PARTS
MAIN PARTS CEILING LIGHTING DIFFUSER VANILLA-SH
Components
Ref. Qty. Product Components
5 3 Glass
6 3  Glassxingplates
Ref. Qty. Installation Components
12d 6 Screws
12e 6 Screws
22 12 Rubber washers

10

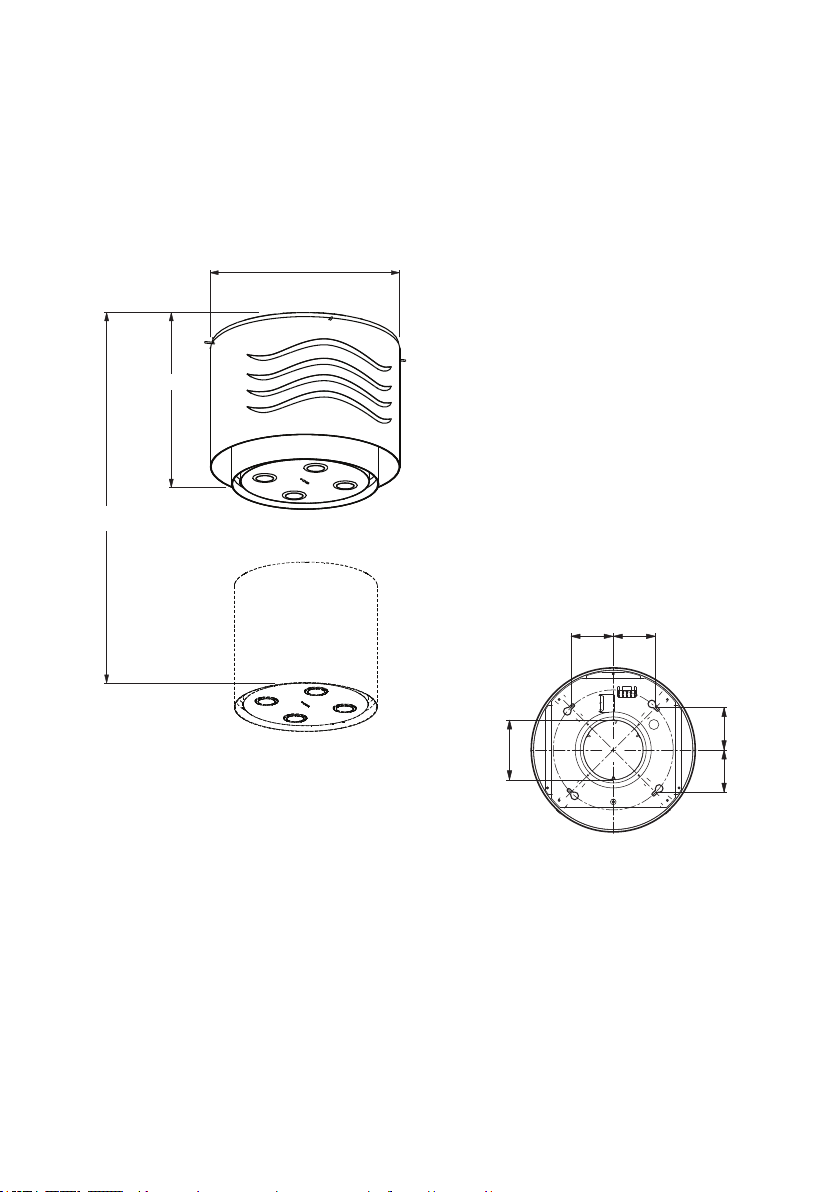

RANGEHOOD DIMENSIONS
MAIN PARTS CEILING LIGHTING DIFFUSER VANILLA-SH
20
3/8"
16 15/16"
Max. 51
9/16"
16 1/8"
16 15/16"
Max. 51 5/8"
Ø5 7/8"
43/16" 43/16"
43/16
"
43/16
"

11
NON-DUCTED INSTALLATION
This hood is designed to be mounted on the ceiling, and in Recirculation mode only.
This hood is to be installed within the limits listed below:
• Range Hood(Up&Down): minimum 24” on electric cooking surface and 30” on gas cooking surface.
• Ceiling Lighting Diffuser: 40” both on electric and gas cooking surface.
Min.
24" - Min. 30
"

12
• Unfasten the 3 screws of 1.3 that join the parts of the Plate (of different shapes and/or sizes) using the
wrench provided.
• Insert the lamp holders (12f) in the position indicated in the gure 1.2, and secure them using the nuts.
• Take the Pawl (14) and secure it to the ceiling plate on the bracket in the position indicated in gure 1.3
using the Screw (12g) provided.
• Tighten the Screw xing the bulb holders to the bracket, in such a way as to hold the latter between the
2 washers.
Sequence of operations - Installation
Preparing for installation:
• Preparation of the ceiling plate
• Drilling the ceiling to x the ceiling plate
• Fixing the ceiling plate
• Connecting hood-plate cables
• Fitting the hood body
• Levelling the hood
• Electrical connections
• Disposal of packaging
Preparation of the ceiling plate
1
1.1 1.2
1.3
12f
14
12g

13

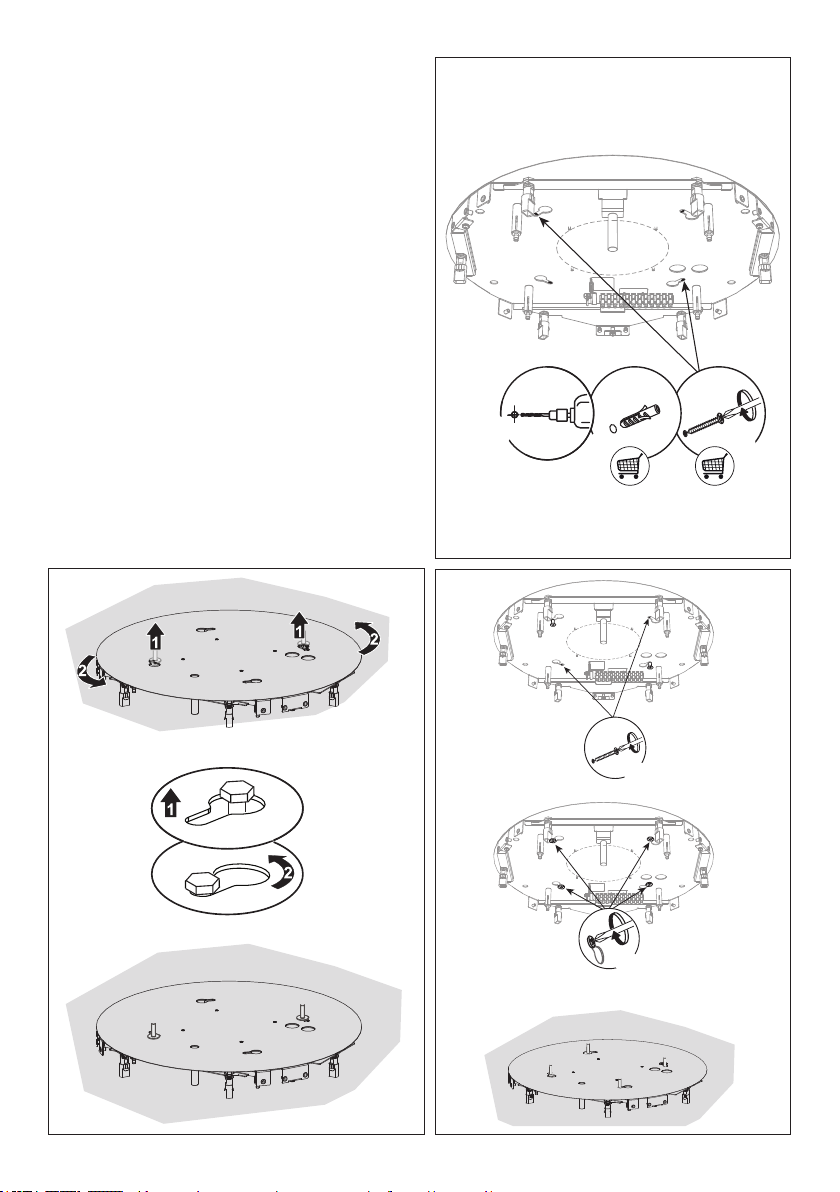

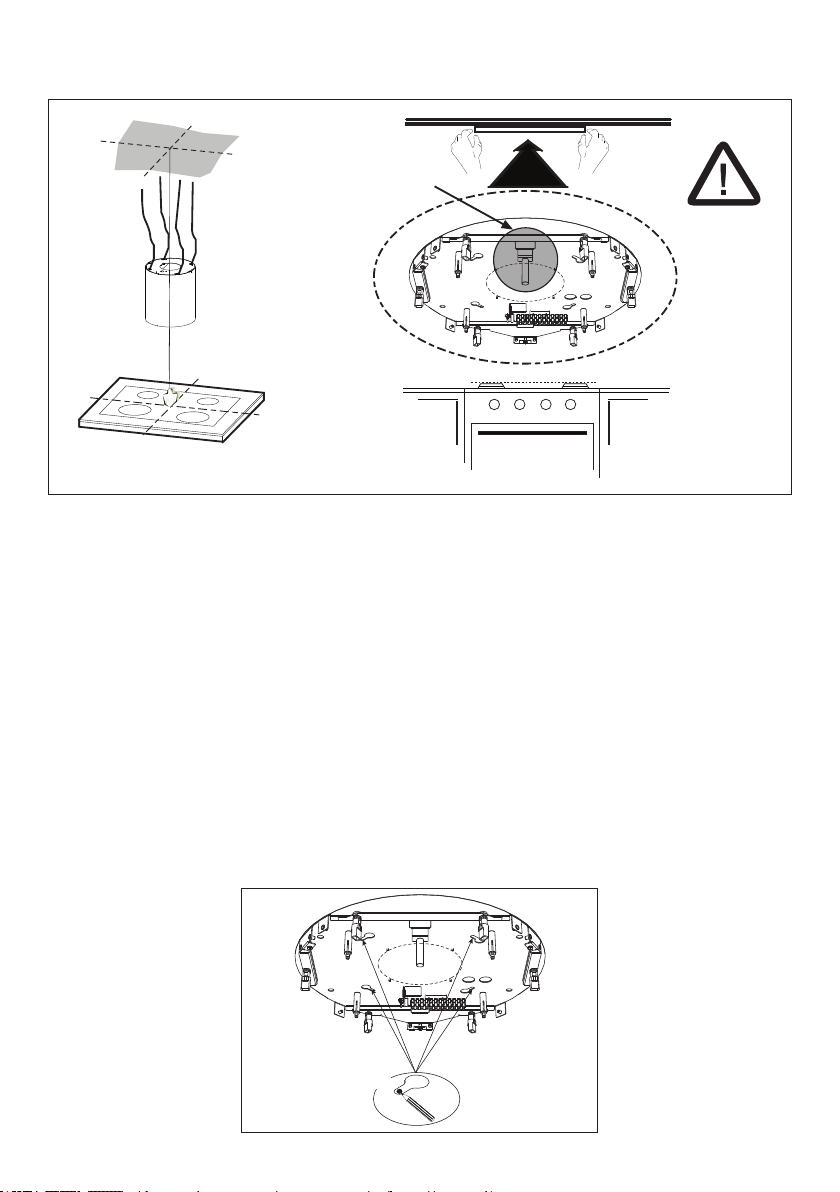

DRILLING THE CEILING TO FIX THE CEILING PLATE
Use a plumb-line and mark the centrer of the cooking surface on the Support Ceiling.
• Rest the ceiling plate against the ceiling, taking care to keep the limit pawl that has just been tted in a
position facing the installer and the cooking surface (the limit pawl must not be confused with the other 4
used to x the steel cables that move the Hood).
• Mark on the ceiling the centerlines of the holes in the ceiling plate.

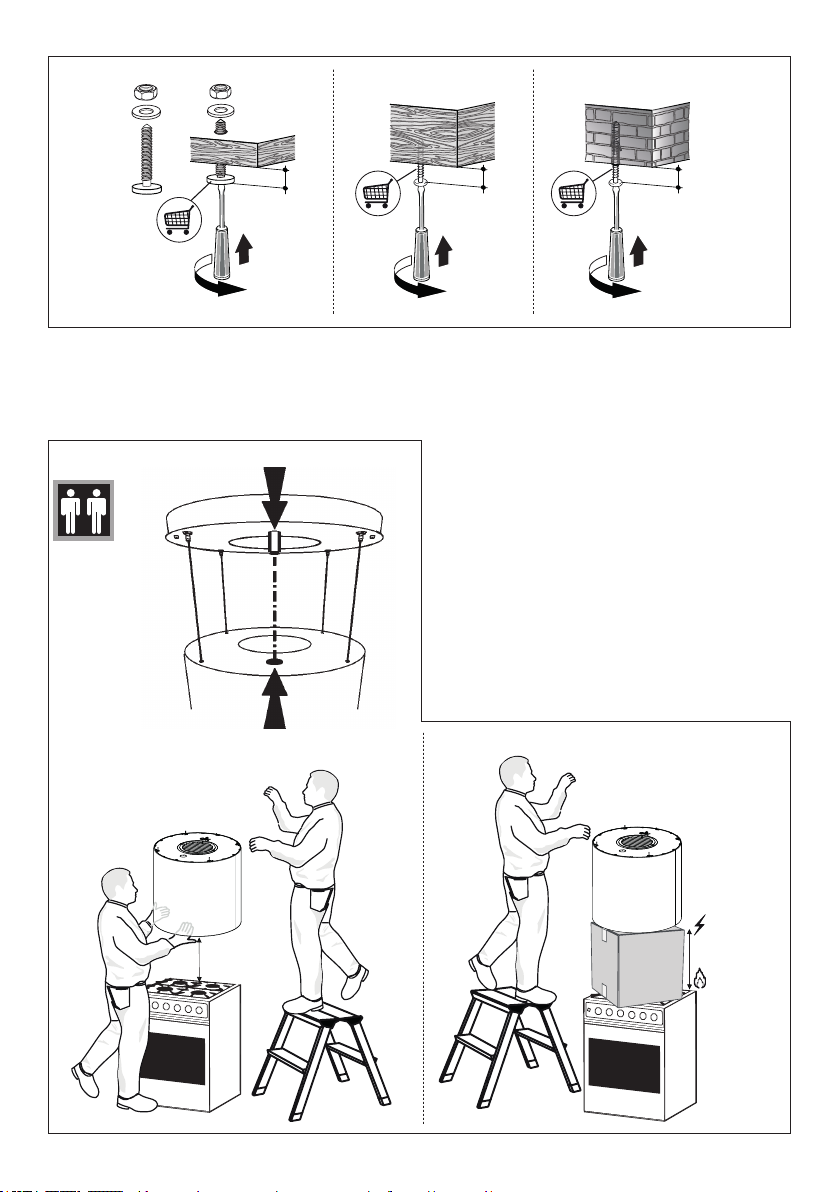

• Drill the following points:
• Ceilings in solid concrete: As per concrete plugs used.
• Ceilings in hollow bricks with 13/16" resistance thickness: Drill a hole ø 3/8" (insert Plugs not supplied).
• Wooden shelf, with a resistant thickness of 9/16": drill a hole ø 1/4".
Insert two screws from opposite corners and leave 3/16" of the screws from the ceiling:
• for solid concrete, concrete plugs, not provided.
• for hollow bricks with approx. 13/16" resistance thickness, screws not provided.
• for wooden beams, wood screws, not provided.
• for wooden shelves, screws with washers and nuts, not provided.
2
4X
3

14
FIXING THE CEILING PLATE
• Lift up the xing plate, taking care to ensure that
the limit pawl is positioned frontally.
• Fit the slots onto the two screws previously in-
serted in the ceiling, and turn until they are at the
centrer of the adjustment slot.
• Tighten the two screws completely and screw in
the other two provided; before locking the screws
completely it is possible to make adjustments by
turning the piece, making sure that the screws do
not come out of the adjustment slot.
• The unit must be securely fastened both due to
the weight of the Hood and the stress caused by
occasional sideways pressure on the Appliance
when in position. Once the unit has been xed,
make sure that the plate is stable.
• In all cases where the Ceiling is not sufciently
strong at the point of suspension, the Installation
technician must strengthen it with suitable plates
and counterplates, anchored to structurally sound
elements.
4
5 6
2X
4X
4X 2X
4X

15
Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or xing device in accordance with these instructions may result in
electrical hazards.
Minimum distances must be kept between the
hood and cooking surface.
7
8
991.0279.611
OK!
3/16"
OK!
3/16"
OK!
3/16"
Min. 24"
Min. 24"
Min. 24"
for electric
----------------
Min. 30"
for gas

16
10
11

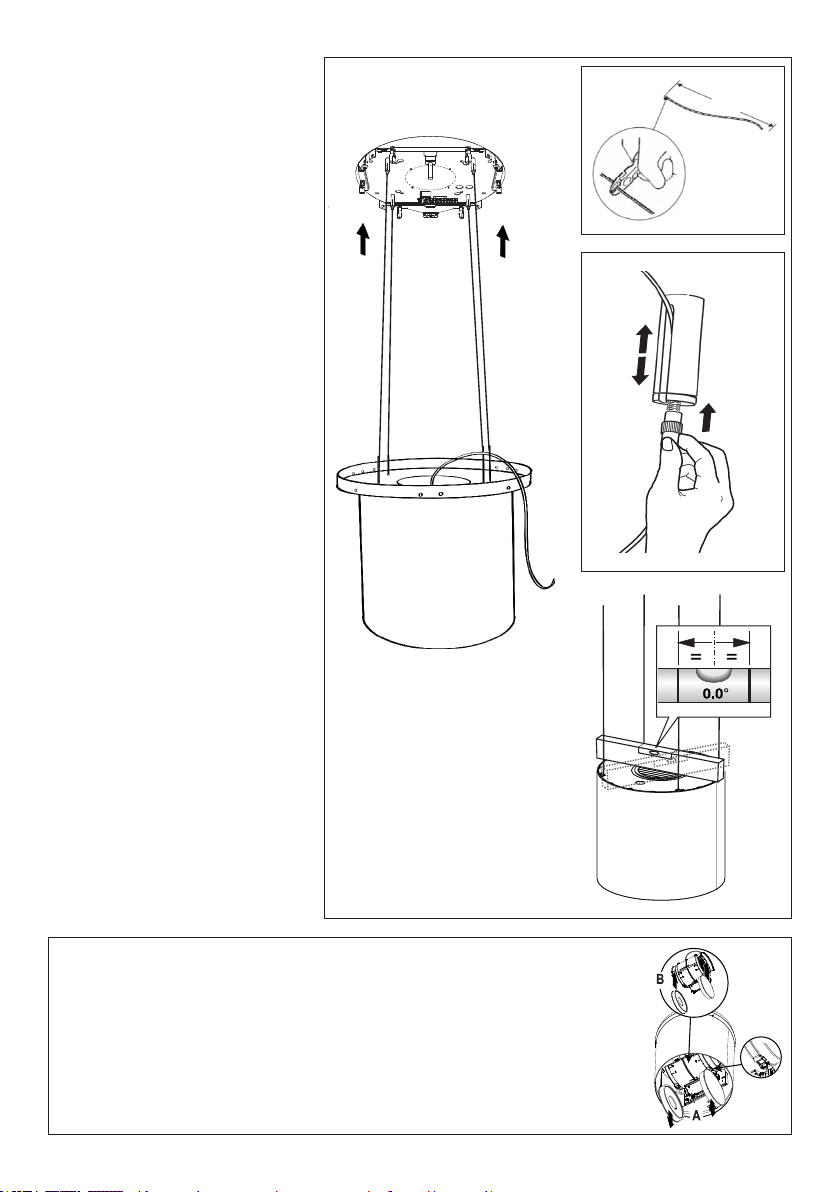

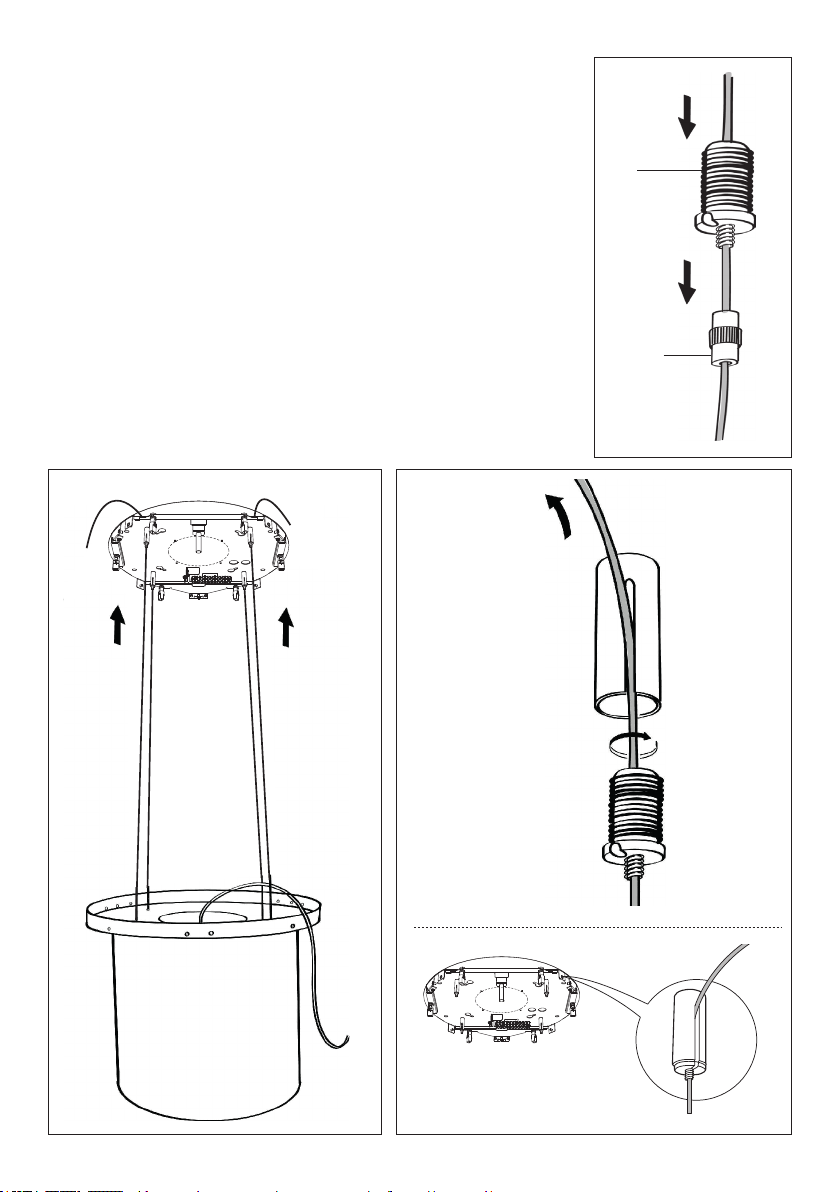

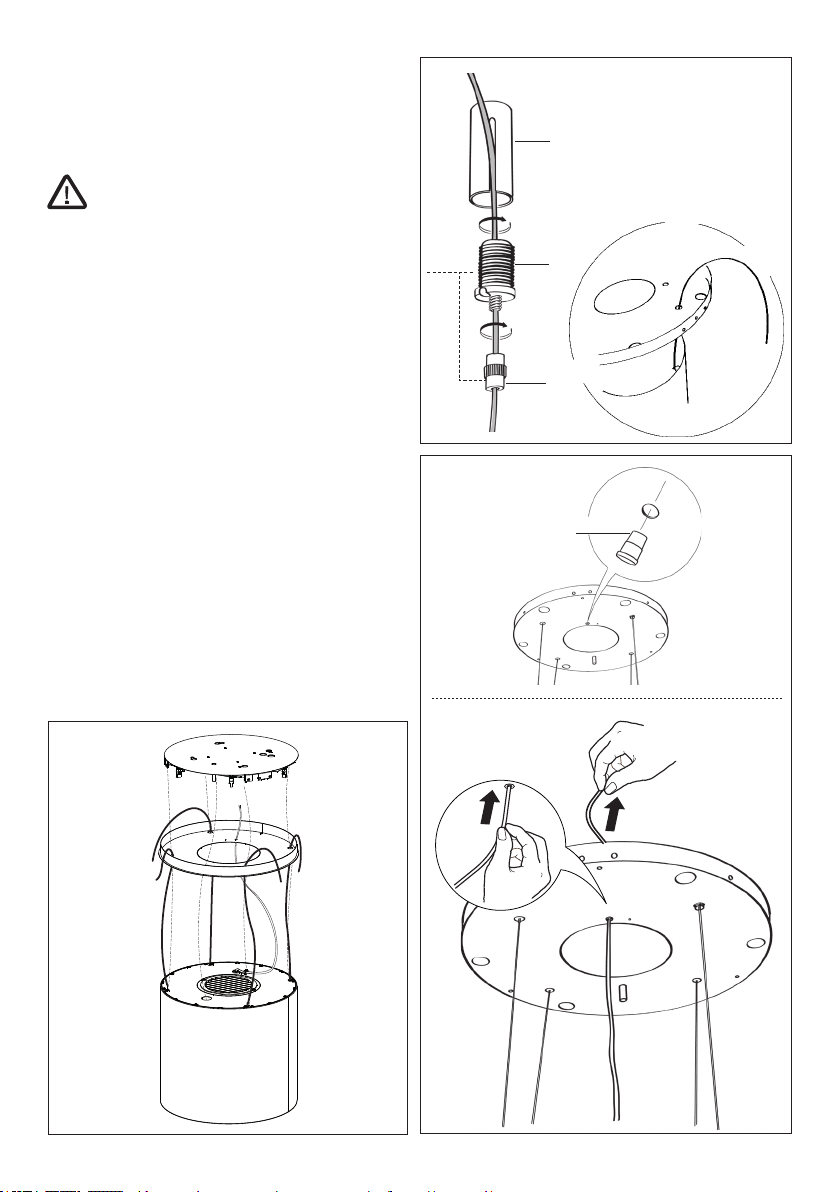

CONNECTING HOOD-PLATE CABLES
N.B. Before continuing with installation it is
necessary to move the hood to a height of at least
24" from the electric cooking surface and 30"from
the gas cooking surface, using a support or the
assistance of another person.
This is essential, as the hood cables must
necessarily be connected to the plate tted
to the ceiling without the weight of the hood
bearing on the structure.
The cable xing system is made up of 3 parts:
• Threaded Pawls (a) already mounted on the ceil-
ing plate.
• Cable clamp screws (b) provided (15).
• Safety knobs (c) provided (15).
• Pass the cables connected to the hood canopy
into the respective holes in the plate cover, after
dismantling (11).
• Insert the cable raceway (14) in the opening on
the plate cover and pass the hood power supply
cable through it.
• Leave Power Supply Cable loose above the plate
cover and see power supply connection later in the
guide.
Warning: Do not break or remove the clamp x-
ing the power cable to the Hood.
• Attention to the direction of the ceiling plate xed
to the ceiling (the limit pawl on the plate fastened
to the ceiling has a corresponding hole on the plate
cover and on the hood canopy).
14
9
A
B
15
C
4
a
b
c

17
FITTING THE HOOD BODY
• Insert the cables into the safety knobs (c) with the thread at the top (Fig.12).
• Insert the cables into the cable clamp screws (b) (Fig.12).
• Pass the cables through the slots in the threaded pawls (a) and screw the
cable locking screws (b) to the pawls themselves (Fig.13).
• When the operation has been completed the result must be as shown in
the gure for all 4 cables (Fig.14).
• At this point we have all 4 cables connected to the plate.
Bring the cables under tension by pushing them upwards so that
they slide inside the cable clamp screw and slide out of the slot in the
threaded pawl.
This is possible because the cable clamp screw has a system that, if
mounted properly, allows the cables to slide inside it in one direction
only, and prevents it from sliding in the other
direction.
Attention, the cables all have the same length to facilitate the opera-
tion of the nal level. The front left cable must not be slacker than the
others.
12
1314
B
C

18
1
2
15
LEVELLING THE HOOD
• The hood mobile unit must be lev-
elled to allow the movement to op-
erate properly.
• The hood is levelled by adjusting
the safety pawls.
• Rest a spirit level on the hood.
• When the safety knobs are
pressed upwards, movement of the
hood is “unlocked”. By inserting or
extracting the cable from the cable
clamp screw it is possible to make
adjustments that allow the mobile
hood body to be levelled.
• Once the hood has been set level,
the safety knobs must be tightened
again.
Warning:
• Please check that all 4 cables
are stretched.
• Please check that all 4 cables
were not damaged during instal-
lation.
• Please cut the excess part of
each cable. The excess part must
be shorter than 13/16".
• It must be remembered that the
minimum distance between the
hood and the cooking hob must
be 24" from the electric cooking
surface and 30" from the gas
cooking surface.
13/16"
Installation of Charcoal Filters
Non-Ducted Recirculation Only
• Open the lighting unit by pulling on the notch provided.
• Remove the grease lters.
• Make sure that the Activated charcoal lters FILTER1 or FILTER1LL
has been tted.
• See also "Maintence" paragraph at pag.23

19
Attention! There is a separate switch needed
for the lights on/off operation. This additional
electric connection must be a separate from
the hood and must operate independently.
CONNECTINGTHE HOOD POWERSUPPLY
CABLE
• Take the power supply cable from hood and
connect the end with exposed wires into the
bracket.
• The mains Power Supply of the hood must
include a bipolar switch with a contact aperture
of at least 1/8".
• Check that the external power supply cable
is connected according to the wiring diagram
(see section "Wiring Diagram").
CONNECTING THE CEILING LIGHTING
SUPPLY CABLE
• Check that the ceiling lighting supply cable
is connected according to the wiring diagram
(see section "Wiring Diagram").
FITTING THE PLATE COVER
• Close the plate cover using the 3 screws
removed previously and the wrench
provided.
• Take the cable clamp 3provided.
• Insert the Power cable in the Cable clamp
3and screw it to the cover plate using one of
the Screws 12c provided.
• Finally, check that the power supply cable
is properly locked, checking that when the
mobile unit rises up towards the ceiling, it
positions itself over the mobile unit and does
not come out from the edge of the hood.
312c
ELECTRICAL CONNECTIONS
FUNCTIONAL CHECK
• Check that the power cable has been prop erly inserted into the blower by removing the grease lters
(see paragraph “Maintenance”) and checking that the socket is properly tted in the blower.
• Operate the hood to check that the body movement is smooth and even.

20
FITTING THE SHADE
OCEANA-SH
• Take the G9 LED Lights and insert them in the
lamp holders.
• They do not have to be screwed in, but simply
inserted all the way.
• Fix the metal shade 5 to the plate using the xing
knobs 12d.
FITTING THE GLASS
VANILLA-SH
• Take the G9 LED Lights and insert them in the
lamp holders.
• They do not have to be screwed in, but simply
inserted all the way.
• Fix the glass 5to the plate using the screws 12d
and washers 22 in the top part.
• Fix the glass elements together at the bottom
using the glass xing plates 6 with screws 12e and
washers 22.
5
12d
