SAFETY INFORMATION
For your safety and correct operation of the appliance, read this manual
carefully before installation and use. Always keep these instructions
with the appliance even if you move or sell it. Users must fully know the
operation and safety features of the appliance.
The wire connection has to be done by specialized technician.
 The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
 The minimum safety distance between the cooker top and the extractor
hood is 650 mm (some models can be installed at a lower height,
please refer to the paragraphs on working dimensions and installation).
 If the instructions for installation of the gas hob specify a greater
distance, this must be respected.
 Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
 Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
 For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
 Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
 Regulations concerning the discharge of air have to be fulfilled.
 Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).

EN 4
4
 If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
When the cooker hood is used in conjunction with appliances supplied
with energy other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back into the room
by the cooker hood.
 The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 If the supply cord is damaged, it must be replaced from the manufac-
turer or its service agent.
 Connect the plug to a socket complying with current regulations, lo-
cated in an accessible place.
 With regards to the technical and safety measures to be adopted for
fume discharging it is important to closely follow the regulations pro-
vided by the local authorities.
WARNING: Before installing the Hood, remove the protective films.
 Use only screws and small parts supplied with the hood.
WARNING: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
 Do not look directly at the light through optical devices (binoculars,
magnifying glasses…).
 Do not flambè under the range hood; risk of fire.
 This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
 Children should be supervised to ensure that they do not play with the
appliance.

EN 5
5
 The appliance is not to be used by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
Accessible parts may become hot when used with cooking appliances.
 Clean and/or replace the Filters after the specified time period (Fire
hazard). See paragraph Care and Cleaning.
 There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room).
 The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed informa-
tion about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you pur-
chased the product.

EN 6
6
CHARACTERISTICS

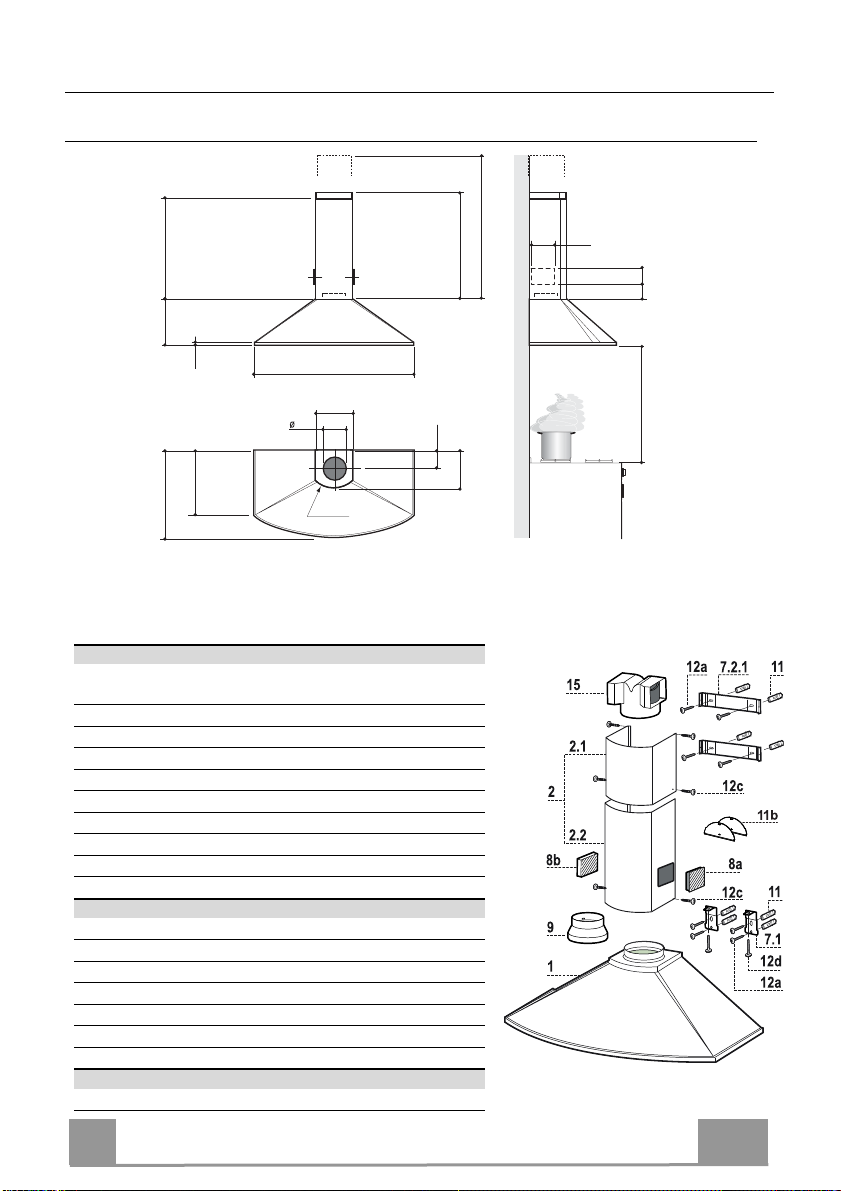

Dimensions
650 min.
469 - 499
598 - 898
240
20
150
100
r. 191
360
min. 560 min. 560
max. 745
228
210
81
132
90
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
8a 1 Right Air Outlet Grill
8b 1 Left Air Outlet Grill
91 Reducer Flange ø 150-120 mm
15 1 Air Outlet Connection
11b 2 Flap
Ref. Q.ty Installation Components
7.1 2 Hood Body Fixing Brackets
7.2.1 2 Upper Chimney Section Fixing Brackets
11 8 Wall Plugs
12a 8 Screws 4.2 x 44,4
12c 6 Screws 2.9 x 9.5
12d 2 Screws M4 x 25
Q.ty Documentation
1 Instruction Manual

EN 7
7
H 180 X1÷2
650 min.
7.2.1
7.1
11 0
11 0
INSTALLATION Wall drilling and bracket fixing

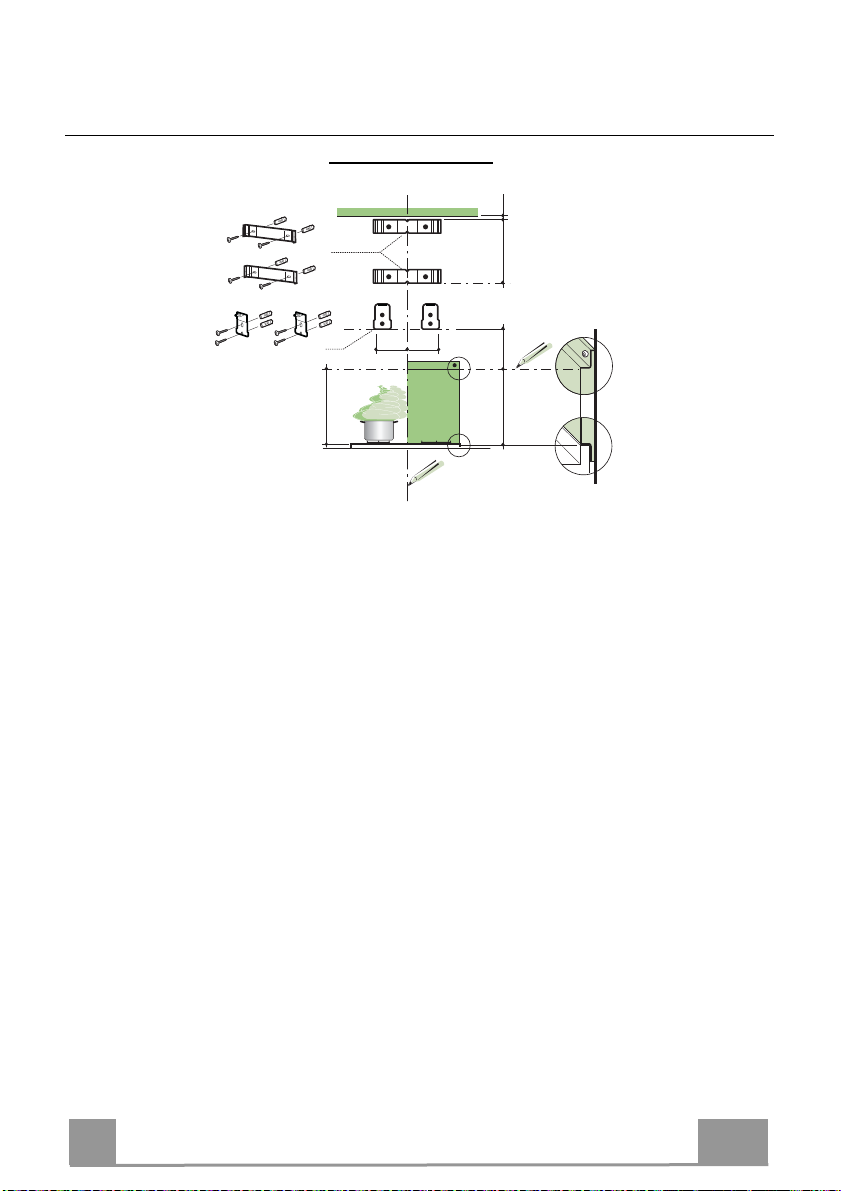

Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the
centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at
height H (height of the visible part of the panel) for installation with the back panel.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit,
aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.1 as shown 110 mm from the vertical reference line and 180 mm above the
horizontal reference line.
• Mark the centres of the holes in the bracket.
• Repeat this operation on the other side.
REAR PANEL (OPTIONAL)
The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top
and bottom, must be fitted at the correct height prior to installing the bases. As this operation is
rather complex, it should be carried out either by the kitchen installer or a qualified person
who knows the final dimensions of the units.
For fixing at the top only, proceed as follows:
• Rest the back panel on the base, inserting the lower plate between the upper surface and the
wall, centring it on the vertical reference line.
• Mark the centres of the two holes in the upper plate.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws supplied.
• Fix the back panel (where present) using the 12a screws supplied.

EN 8
8
Mounting the hood body
• Screw the two screws 12d supplied onto the brackets 7.1.
• Hook the hood body onto the bracket 7.1, centring it around
the vertical line.
• Use the adjusting screws 12d underneath the hood to level the
hood body.
12.d
7.1
Connections

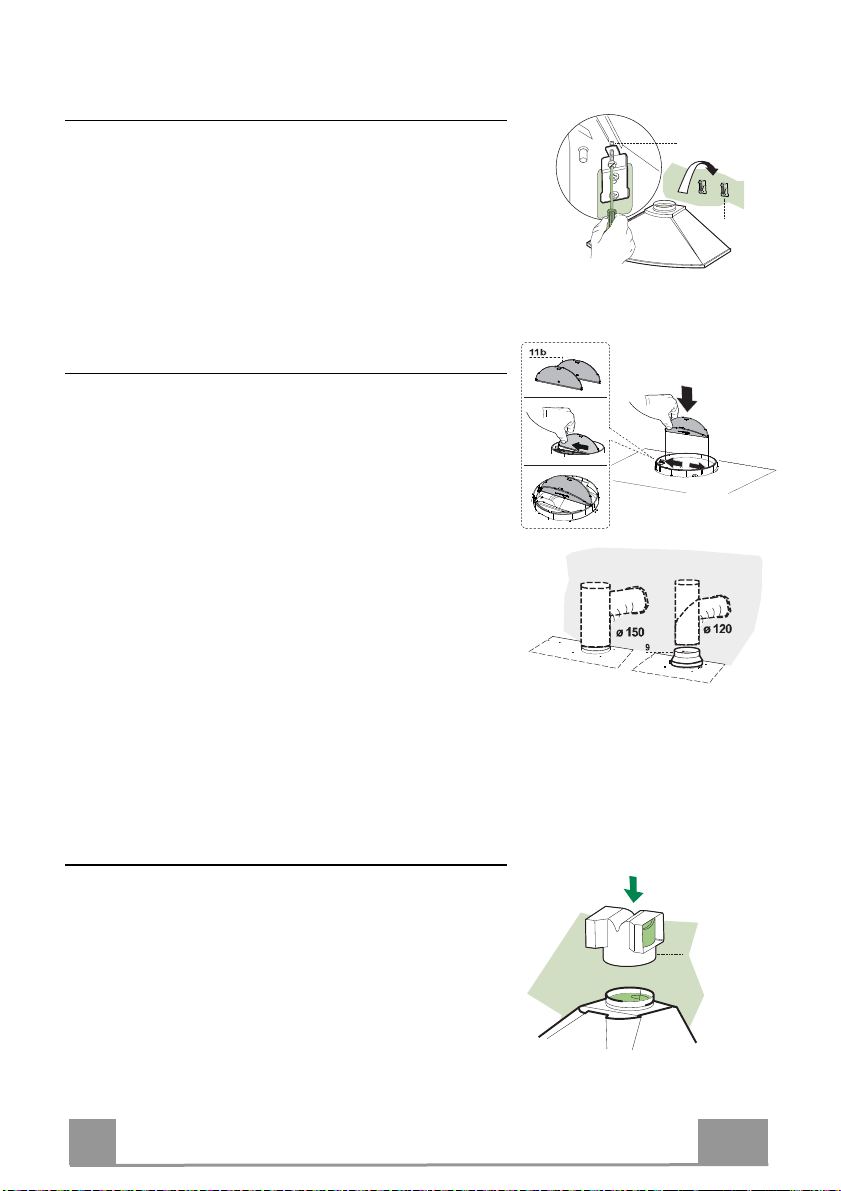

AIR OUTLET DUCTING VERSION
When installing the Ducting version, join the Hood to the outlet
duct using a rigid or flexible pipe ø150 or 120 mm, selection of
which is at the discretion of the installation technician.
• Insert flaps 11b on the Hood Canopy Outlet.
Connecting the ø 150 pipe
• Fasten the pipe using suitable pipe clamps. The materials re-
quired to do so are not provided.
Connecting the ø 120 pipe
• To connect using a ø120 mm pipe, insert the reduction Flange
9onto the Hood Canopy Outlet.
• Fasten the pipe using suitable pipe clamps. The materials re-
quired to do so are not provided.
• In both cases, any Activated Charcoal Filters must be removed.
RECIRCULATION VERSION AIR OUTLET
• Push fit the air outlet fitting 15 onto the air outlet of the hood
body.
• Ensure that the activated charcoal filters have been inserted.
15

EN 9
9
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole
switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Mainte-
nance) being sure that the connector of the feeding
cable is correctly inserted in the socket placed on
the side of the fan.
1
7.2.1
2
2.1
2.2
8b
8a
12e
Chimney assembly
Upper chimney section
• Slightly widen the two sides of the upper chimney
and hook them behind the brackets 7.2.1, making
sure that they are properly housed.
• Secure the sides to the brackets using the 4 screws
12c (2,9 x 9,5) supplied.
Lower chimney section
• Slightly widen the two sides of the section and
hook them between the upper section and the wall,
making sure that they are properly housed.
• Fix the sides of the bottom section to the hood
body using the 2 screws 12c (2,9 x 9,5) supplied.
• When installing the recirculation version, fit the
directional grills 8a – 8b in their housings so that
the directional symbols are at the top and towards
the front of the hood. Ensure that they are inserted
correctly in the outlet connection piece 15.

EN 1
10
USE

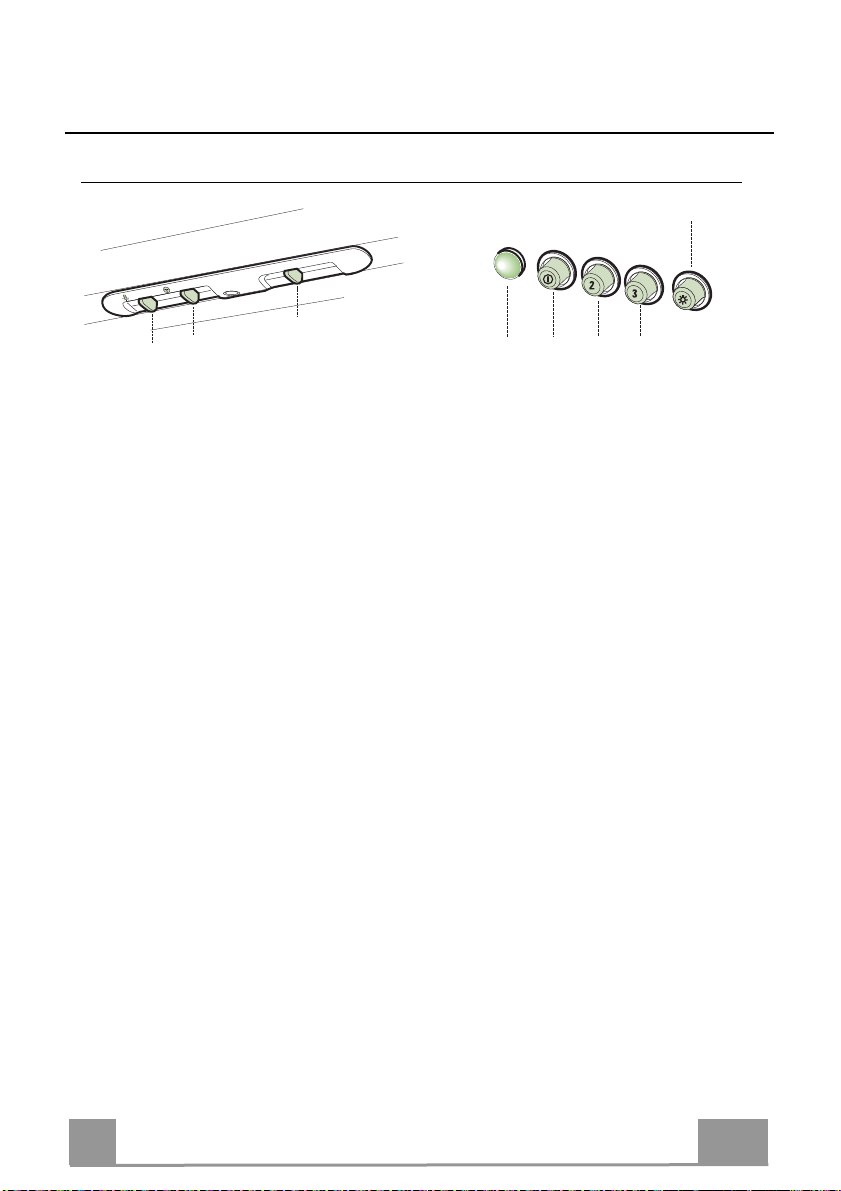

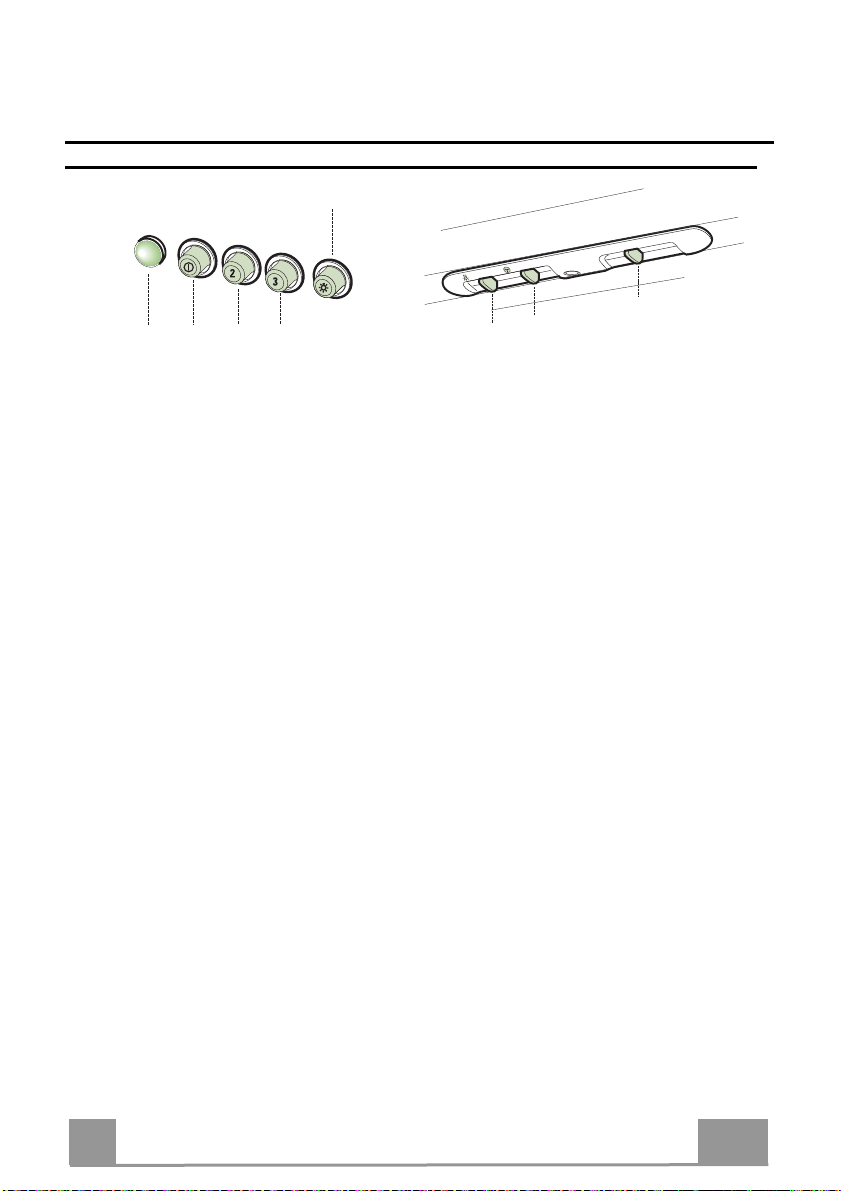

Control panel
1
1
0
1
0
23
LM
V
L
V1 V2 V3
S
LLight Switches the lighting system
on and off.
MMotor Switches the extractor motor
on and off.
VSpeed Sets the operating speed of
the extractor:
1. Low speed, used for a
continuous and silent air
change in the presence of
light cooking vapour.
2. Medium speed, suitable
for most operating condi-
tions given the optimum
treated air flow/noise
level ratio.
3. Maximum speed, used for
eliminating the highest
cooking vapour emission,
including long periods.
LLight Switches the lighting system
on and off.
SLed Motor running led.
V1 Motor Switches the extractor motor
on and off at low speed.
Used to provide a continuous
and silent air change in the
presence of light cooking
vapours.
V2 Speed Medium speed, suitable for
most operating conditions
given the optimum treated
air flow/noise level ratio.
V3 Speed Maximum speed, used for
eliminating the highest cook-
ing vapour emission, includ-
ing long periods.
