Factory cat 290 series Product manual

www.factorycat.com

R.P.S. Corporation Phone: 1-800-634-4060

P.O. Box 368 Fax: 1-866-901-3335

Racine, Wisconsin 53401

ACTORY

290/350 SERIES

Operator and Parts Manual

29O Rider Scrubber

350 Rider Scrubber

chadv

11/23/20059:54:13AM

THESE TOUGH, COMPACT SCRUBBERS COMBINED THE PRODUCTIVITY OF RIDERS WITH THE

MANEUVERABILITY OF WALK-BEHINDS. FACTORY CATS ARE DESIGNED TO CLEAN SCHOOLS, MALLS,

WAREHOUSES, RETAIL OUTLETS, WHILE STANDING UP TO THE RIGORS OF CONTRACT CLEANING.

WITH TWO SPECIALIZED CLEANING SYSTEMS TO CHOOSE FROM, FACTORY CATS OFFER THE

PERFORMANCE AND CAPACITY REQUIRED TO CLEAN YOUR UNIQUE APPLICATION.

THE TWO "DISK" MACHINES, WITH 29", AND 35" SCRUB PATHS, OFFER GIMBALED BRUSHDRIVE AND 35%

MORE SCRUBBING POWER THAN COMPETITIVE BRANDS.

THE "CYLINDRICAL" MACHINES, OFFER ALL THE PERFORMANCE OF DISK SCRUBBERS PLUS THE ABILITY TO

SWEEP. THE CYLINDRICAL PICKS UP WOODCHIPS, NAILS, BROKEN GLASS, GRAVEL, AND METAL CHIPS.

THE DEBRIS IS HELD IN THE SLIDE-OUT HOPPER WHICH PERMITS EASY DISPOSAL.

PRODUCTIVITY IS A FUNCTION OF SCRUB WIDTH, RUN TIME AND TANK CAPACITY. THESE FACTORY CATS

TOP THE CHART, WHILE MAINTAINING UNSURPASSED MANUVERABILITY. WITH 40% LARGER TANKS,

WIDER SCRUB PATHS, HIGHER SCRUBING PRESSURES, MORE VACUUM, AND BIGGER BATTERY PACKS

YOU WILL HAVE LESS STOPPING TO REFILL, FEWER TRIPS DOWN THE AISLE, LESS DOUBLE SCRUBBING,

DRY SAFE CLEAN FLOORS, AND EXTRA RUN TIME.

THE OPERATOR SITS IN A SPRING- SUSPENSIONED, FULLY ADJUSTABLE, MID-BACK CHAIR. THE STEERING

COLUMN HAS FOUR SETTINGS, FURTHER ENHANCING OPERATOR COMFORT. HEADLIGHT, HORN

BACKUP ALARM, NON-MARKING TIRES, AND ARMRESTS ARE STANDARD. OPERATORS ARE ABLE TO

TURN WITHIN A64" AISLE, WHILE MAINTAINING EXCELLENT WATER CONTROL. WE ALSOOFFER, FOR

CLEANING IN REMOTE AREAS, A COMPLETE LINE OF HAND TOOLS, INCLUDING VAC WANDS, SPRAY

HOSES, AND POWERED SCRUB WANDS.

FACTORY CATS EXCLUSIVE "CENTRAL COMMAND II" ENERGY MANAGEMENT SYSTEM OFFERS

AUTOMATIC CONTROLS. WHEN THE OPERATOR STOPS THE MACHINE, BRUSHES, AND SOLUTION FLOW

STOPS, THE SAFETY-SET PARKING BRAKE IS APPLIED, AND VACUUM STOPS AFTER A 22 SECOND DELAY.

ALL "CENTRAL COMMAND" COMPONENTS, INCLUDING THE CURTIS CONTROLLER, AUTO REST CIRCUIT

BREAKERS, AND MARINE DUTY SWITCHES, ARE IN A SEALED MODULE.

FACTORY CATS USE THE MOST POWERFUL MOTORS AVALIABLE, SO THEY ARE TYPICALLY RUN AT ONLY

75% OF THEIR CAPACITY. THIS LEAVES POWER IN RESERVE FOR TIMES WHERE HEAVY STRIPPING IS

REQUIRED, AND GREATLY PROLONGS MOTOR LIFE. THESE FACTORY CATS ARE CONSTUCTED OF

HEAVY GAUGE STEEL, AND SPECIALLY PLATED OR POWDER PAINTED TO PROTECT YOUR INVESTMENT.

THE TANKS HAVE EXTRA THICK WALLS, QUALITY INSERTS, AND "THROUGH TUBES" FOR STRENGTH. STEEL

BUMPERS PROTECT THE SCRUBHEAD AND FRONT END FROM COLLISION DAMAGE. THE CORNER

ROLLERS ARE POLYURETHANE, AND TALL TO DISPERSE THE FORCE OF IMPACT WITHOUT LEAVING

MARKS ON YOUR WALLS. THE WHOLE MACHINE IS PUT TOGETHER WITH STAINLESS STEEL FASTENERS TO

HELP PROLONG THE LIFE AND DURABILATY OF YOUR MACHINE.

290/350 RIDER SCRUBBERS

ACTORY

chadv

11/23/2005 9:54:13 AM

PAGE 23-24

PAGE 25-26

PAGE 27-28

PAGE 29-30

PAGE 31-32

PAGE 33-34

PAGE 35-36

PAGE 37-38

PAGE 39-40

PAGE 41-42

PAGE 43-44

PAGE 45-46

MACHINE INFORMATION

PLEASE FILL THIS AREA OUT AT THE TIME OF INSTALLATION FOR FUTURE REFERENCE.

MODEL NUMBER_____________________________________________________________

SERIAL NUMBER:______________________________________________________________

INSTALLATION DATE:___________________________________________________________

INSTALLING DEALER:__________________________________________________________

DEALER CONTACT: ___________________________________________________________

ADDRESS:____________________________________________________________________

CITY, STATE, ZIP: ______________________________________________________________

PHONE NUMBER:_____________________________________________________________

THIS OPERATOR AND PARTS MANUAL SHOULD BE CONSIDERED A PERMANENT PART OF THE UNIT AND SHOULD

REMAIN WITH THE UNIT AT ALL TIMES. THIS OPERATOR AND PARTS MANUAL COVERS ALL THE TOMCAT 290/350

SERIES SCRUBBERS. YOU MAY FIND DESCRIPTIONS AND FEATURES THAT ARE NOT ON YOUR PARTICULAR MODEL.

THE INFORMATION AND SPECIFICATIONS INCLUDED IN THIS PUBLICATION WERE IN EFFECT AT THE TIME OF PRINTING.

MID-CENTRAL RESERVES THE RIGHT TO MAKE CHANGES WITHOUT NOTICE INCURRING ANY OBLIGATION.

TO REGISTER FOR WARRANTY, FAX YOUR WARRANTY REGISTRATION FORM TODAY!

MACHINE INFORMATION FORM

WARRANTY REGISTRATION FORM

MACHINE SPECIFICATIONS

COMMON WEAR PARTS

SAFETY MESSAGES

!!SAFETY PRECAUTIONS!!

MACHINE FEATURES AND CONTROLS

MACHINE SETUP

OPERATION

CHARGING BATTERIES

MAINTENANCE

STORING MACHINE

PREVENTATIVE MAINTENANCE RECORDS

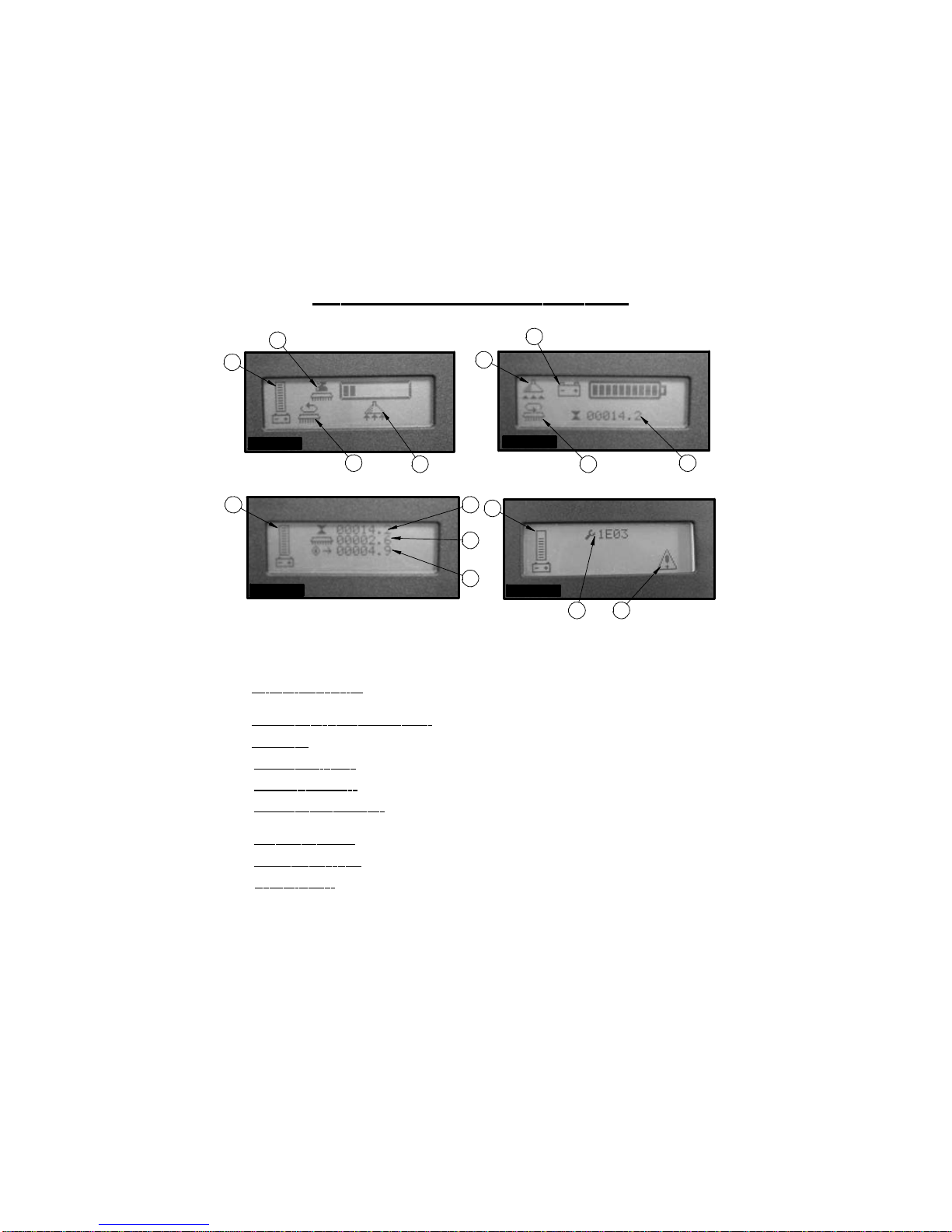

LCD MENU DISPLAY

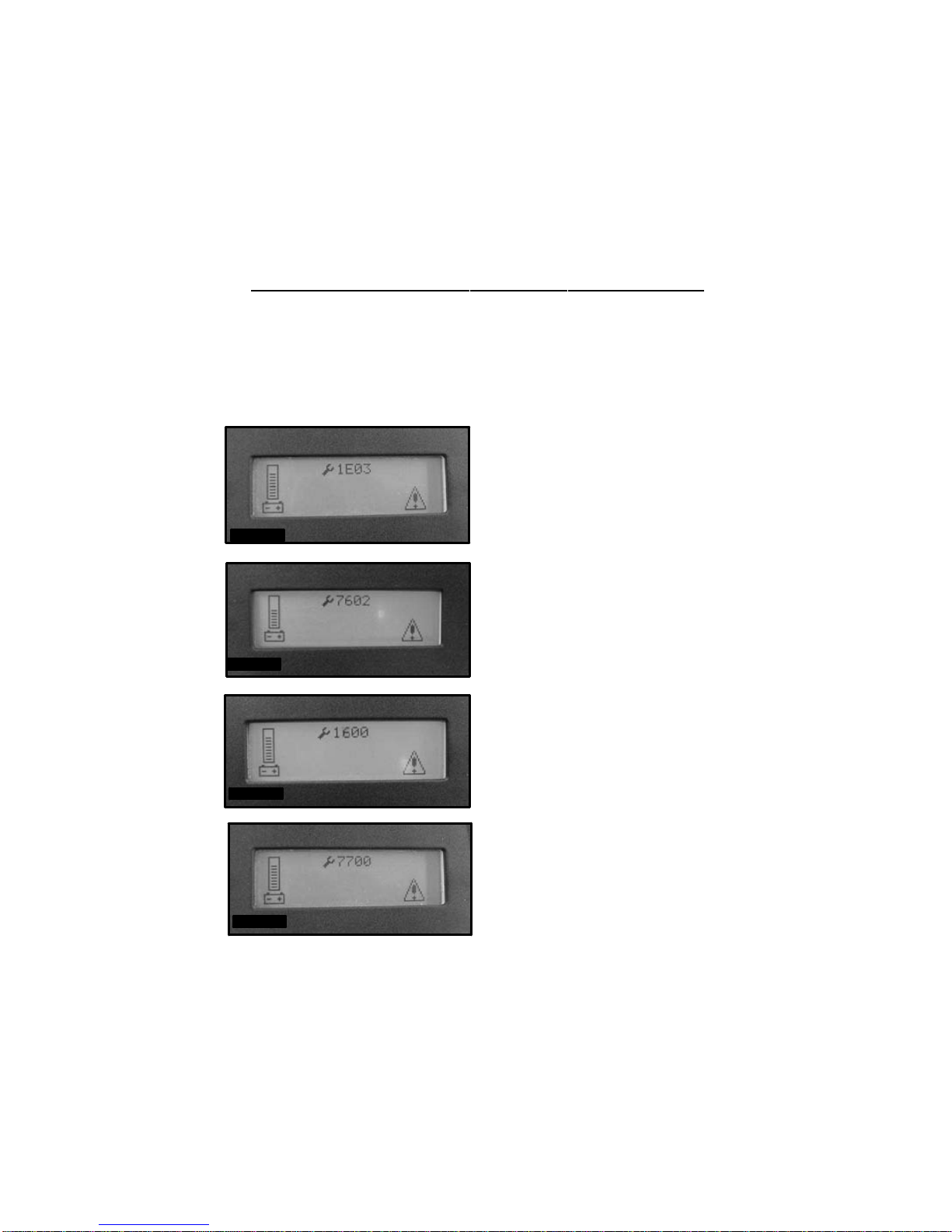

TOUBLESHOOTING CENTRAL COMMAND

TROUBLESHOOTING

MACHINE PARTS

PAGE 1

PAGE 2

PAGE 3

PAGE 4

PAGE 5

PAGE 6

PAGE 7-8

PAGE 9-10

PAGE 11-12

PAGE 13

PAGE 14

PAGE 15-16

PAGE 17

PAGE 18-19

PAGE 20-21

PAGE 22-40

TABLE OF CONTENTS

SOLUTION SYSTEM

RECOVERY SYSTEM

FRAME TOP

FRAME BOTTOM

DOOR WIPER/ROLLER ASSEMBLY

STEERING /TRACTION ASSEMBLY

ACTUATOR SLIDE ASSEMBLY

DISK SCRUBHEAD ASSEMBLY

CYLINDRICAL DECK ASSEMBLY

CYLINDRICAL MECHANICAL

SQUEEGEE ASSEMBLY

CENTRAL COMMAND II COMPONENTS

PARTS BREAKDOWN ILLUSTRATION

chadv

11/23/20059:54:13AM

WARRANTY REGISTRATION FORM

***COMPLETE FORM IMMEDIATELY AND FAX BACK TO (886)-901-3335***

DEALER:________________________________________________________ SERIAL NUMBER:_________________

LOCATION (CITY, STATE):_________________________________________ INSTALL DATE:____________________

CUSTOMER:_____________________________________________________ HOUR METER:____________________

CONTACT:______________________________________________________ INSTALLED BY:___________________

ADDRESS:_______________________________________________________

CITY:_______________________STATE_______ZIP______________________

PHONE:_______________________ FAX:__________________________

FACTORY CAT MODEL NUMBER:_______________________________________

OPTIONS: 1.______________________________________ 4.______________________________________

2.______________________________________ 5.______________________________________

3.______________________________________ 6.______________________________________

PADS:_____________________________________________

BRUSHES:__________________________________________

SQUEEGEE SIZE:____________________________________

BUYER'S REPRESENTAVE HAS:

1. RECEIVED INSTRUCTION IN PROPER OPERATION OF THIS MACHINE.

2. RECEIVED OPERATOR'S MANUAL FOR THIS MACHINE.

3. BEEN MADE AWARE THAT ANY OPERATOR SHOULD READ THE MANUAL

BEFORE OPERATING THIS MACHINE.

DEALER REP. PRINT:___________________________________ SIGN:__________________________________

CUSTOMER PRINT:____________________________________ SIGN:__________________________________

R.P.S. CORPORATION

P.O. BOX 368

RACINE, WI 53401

PHONE: 800-634-4060

FAX 866-901-3335

WWW.FACTORYCAT.COM

PAGE 2

ACTORY

chadv

11/23/2005 9:54:13 AM

350

POLY

3/16" STEEL

12" X 5"

12" X 4"

61" X 35"

35", 38", OR 45"

810 LBS.

1,320 LBS.

(2) 18 INCHES

DIRECT

35 INCHES

(2) 1.0 HP

350 RPM

(2) 28 INCH OR (2) 32 INCH

CHAIN

28 INCHES OR 32 INCHES

2.0 HP

800 RPM

0-250 LB.

(5) AUTOMATIC SETTINGS

38 GAL

0-1.75 GPM

40 GAL

1.0 HP

2.0 HP

2.0 INCHES

5.0 INCHES

70 INCHES

(4) 396 AH

UP TO 6 HRS.

36 AMP, 110 VOLT

2.0 HP, SEALED

0-5 MPH

DYNAMIC BRAKING

35 INCHES

45,000 FT/HR

58,000 FT/HR

3 YEARS

1 YEAR

10 YEARS

PAGE 3

290

POLY

3/16" STEEL

12" X 5"

12" X 4"

61" X 29"

32", 35", OR 38"

750 LBS.

1,260 LBS

(2) 15.5 INCHES

DIRECT

29 INCHES

(2) 1.0 HP

350 RPM

(2) 26 INCHES

CHAIN

26 INCHES

2.0 HP

800 RPM

0-200 LB.

(5) AUTOMATIC SETTINGS

38 GAL

0-1.75 GPM

40 GAL

1.0 HP

2.0 HP

2.0 INCHES

5.0 INCHES

70 INCHES

(4) 396 AH

UP TO 6 HRS.

36 AMP, 110 VOLT

2.0 HP, SEALED

0-5 MPH

DYNAMIC BRAKING

29 INCHES

35,000 FT/HR

47,000 FT/HR

3 YEARS

1 YEAR

10 YEARS

MODEL

BODY CONSTRUCTION/DIMENSIONS

TANK MATERIAL:

CHASSIS CONSTRUCTION:

REAR WHEELS:

FRONT WHEEL:

SIZE (L X W X H):

SQUEEGEE SIZE:

WEIGHT (WITHOUT BATTERIES):

WEIGHT (WITH BATTERIES):

BRUSH/PAD SYSTEM

BRUSH/PAD DIAMETER (DISK):

DRIVE TO BRUSH (DISK):

SCRUBBING PATH (DISK):

BRUSH MOTOR POWER (DISK):

BRUSH MOTOR SPEED(DISK):

BRUSH SPEED (DISK):

BRUSH SIZE(CYLINDRICAL):

DRIVE TO BRUSH (CYLINDRICL):

SCRUBBING PATH (CYLINDRICAL):

BRUSH MOTOR POWER (CYLINDRICAL):

BRUSH MOTOR SPEED (CYLINDRICAL):

BRUSH SPEED (CYLINDRICAL):

BRUSH DOWN PRESSURE:

BRUSH ADJUSTMENT:

SOLUTION SYSTEM

SOL. TANK CAP:

SOLUTION FLOW RATE:

RECOVERY SYSTEM

REC. TANK CAP:

VACUUM POWER (STANDARD):

VACUUM POWER (OPTIONAL):

DRAIN HOSE:

CLEANOUT DOOR (OPTIONAL)

WATERLIFT:

BATTERY SYSTEM

BATTERY AH RATING:

BATTERY RUN TIME:

CHARGER (AUTOMATIC):

DRIVE SYSTEM

TRANSAXLE DESCRIPTION:

SPEED CONTROL:

BRAKING SYSTEM:

PRODUCTIVITY

SCRUBBING WIDTH:

SCRUBBING RATE/HOUR (NORMAL):

SCRUBBING RATE/HOUR (MAXIMUM):

WARRANTY

PARTS:

LABOR:

TANKS:

chadv

11/23/2005 9:54:13 AM

COMMON WEAR PARTS

PAGE 4

ITEM

BRUSH TYPE

BRUSHES

SUPER-GRIT

TOUGH-GRIT

MIDI-GRIT

LIGHT-GRIT

POLY (.028)

NYLON (.016)

TAMPICO

PAD DRIVER

EXTRA PAD DRIVER RETAINING CLIP: 40-433

BRUSH REPAIR KIT: 40-423 REPLACEMENT LOCATING CLIP FOR ALL DISK BRUSHES

PADS

SUPER BLACK

BLACK

BROWN

GREEN

BLUE

RED

WHITE

SQUEEGEE KITS

KIT INCLUDES: (1) REAR BLADE, (1) FRONT BLADE, AND (2) BACKUP WHEELS WITH HARDWARE

NOTE: IT IS STAMPED INTOTHE TOP OF THE SQUEEGEE BLANK, ON 32", 35", 38", AND 45" SQUEEGEES.

MODEL 290: HAS A38" SQUEEGEE UNLESS OTHER SIZE IS SPECIALLY ORDERED AT TIME OF PURCHASE

MODEL 350: HAS A 45" SQUEEGEE UNLESS OTHER SIZE IS SPECIALLY ORDERED AT TIME OF PURCHASE

NOTE: THE 32" AND 35" SQUEEGEES ARE DESIGNED FOR NARROW ISLES AND MAY NOT HAVE THE

SAME WATER CONTROL AROUND TIGHT TURNS AS THE LARGER SQUEEGEES.

SOAP

HEAVY DUTY DEGREASER

CITRUS

FREEZER

TIRE MARK REMOVER

CALL YOUR LOCAL DEALER FOR MORE SOAP INFORMATION

MODEL

350-C

CYLINDRICAL

32-521S

32-521C

32-521PS

32-521P

32-521N

32-521T

LINATEX

22-770L

25-770L

28-770L

290-770L

MODEL

350-D

DISK

18-421SS

18-421S

18-421C

18-421PS

18-421P

18-421N

18-421T

18-421D

18-422BB

18-422B

18-422BR

18-422G

18-422BL

18-422R

18-422W

NEOPRENE

22-770N

25-770N

28-770N

290-770N

MODEL

290-C

CYLINDRICAL

25-521S

25-521C

25-521PS

25-521P

25-521N

25-521T

GUM RUBBER

22-770G

25-770G

28-770G

290-770G

MODEL

290-D

DISK

15-421SS

15-421S

15-421C

15-421PS

15-421P

15-421N

15-421T

15-421D

15-422BB

15-422B

15-422BR

15-422G

15-422BL

15-422R

15-422W

SIZE

32"

35"

38"

45"

chadv

11/23/2005 9:54:13 AM

SAFETY MESSAGES

YOUR SAFETY, AND THE SAFETY OF OTHERS, IS VERY IMPORTANT, AND OPERATING THIS UNIT

SAFELY IS AN IMPORTANT RESPONSIBILITY.

TO HELP YOU MAKE INFORMED DECISIONS ABOUT SAFETY, WE HAVE PROVIDED

OPERATING PROCEDURES AND OTHER SAFETY INFORMATION IN THE MANUAL. THIS

INFORMATION INFORMS YOU OF POTENTIAL HAZARDS THAT COULD HURT YOU OR OTHERS.

IT IS NOT PRACTICAL OR POSSIBLE TO WARN YOU OF ALL THE HAZARDS ASSOCIATED WITH

OPERATING THIS UNIT. YOU MUST USE YOUR OWN GOOD JUDGEMENT.

THIS IS INTENDED FOR COMMERCIAL USE. IT IS DESIGNED TO BE USED ON HARD FLOORS IN

AN INDOOR ENVIRONMENT, WITH THE RECOMMENDED PADS OR BRUSHES.

1. DO NOT OPERATE UNIT:

UNLESS TRAINED AND AUTHORIZED.

UNLESS OPERATOR MANUAL IS READ AND UNDERSTOOD.

IF UNIT IS NOT PROPER CONDITION.

2. WHEN OPERATING UNIT:

REMOVE LOOSE OBJECTS FROM THE FLOOR THAT MAY BE PROJECTED FROM

THE REVOLVING BRUSHES.

KEEP HANDS AND FEET AWAY FROM REVOLVINGBRUSHES.

DO NOT OPERATE MACHINE WHERE FLAMMABLE LIQUIDS ARE PRESENT.

USE EXTREME CAUTION WHEN MANUEVERING.

3. BEFORE LEAVING:

MAKE SURE MACHINE IS TURNED OFF.

STOP ON LEVEL SURFACES.

DISCONNECT BATTERIES.

4. BEFORE SERVICING:

STOP ON LEVEL SURFACE, AND SECURE MACHINE.

DISCONNECT BATTERIES.

PAGE 5

chadv

11/23/2005 9:54:13 AM

!! SAFETY PRECAUTIONS!!

WARNING: HAZARDOUS VOLTAGE. SHOCK, BURNS

OR ELECTROCUTION CAN RESULT. ALWAYS DISCON-

NECT THE BATTERIES BEFORE SERVICING MACHINE.

WARNING: BATTERIES EMIT HYDROGEN GASES,

EXPLOSION OR FIRE CAN RESULT. KEEP SPARKS AND

OPEN FLAMES AWAY.

WARNING: CHARGE UNIT IN A WELL VENTILATED AREA,

AND KEEP BATTERY COMPARTMENT OPEN WHEN

CHARGING. EXPLOSION OR FIRE COULD RESULT.

WARNING: BATTERY ACID CAN CAUSE BURNS.

WEAR PROTECTIVE EYE WEAR ANDGLOVES WHEN

SERVICING BATTERIES.

WARNING: DO NOT STORE OUTDOORS OR PRESSURE

WASH. PREVENT FROM GETTING ELECTRONIC

COMPONENTS WET.

WARNING: THE USE OF PARTS AND SOLUTIONS OTHER

THAN RECOMMENDED BY THE MANUFACTURER MAY

CAUSE DAMAGE OR ENDANGER PEOPLE.

WARNING: DRESS SAFELY. DO NOT WEAR RINGS

OR METAL WRIST WATCHES WHILE WORKING ON THIS

MACHINE. THEY CAN CAUSE AN ELECTRICAL SHORT,

WHICH, CAN CAUSE SERIOUS BURNS. DO NOT WORK

ON THIS MACHINE WHILE WEARING A TIE, SCARF OR

OTHER LOOSE, DANGLING NECKWARE OR CLOTHING.

THESE LOOSE ITEMS CAN TANGLE IN THE ROTATING

PARTS AND CAUSE SERIOUS INJURY OR EVEN DEATH.

WARNING: DO NOT USE THE MACHINE AS A STEP

LADDER OR CHAIR.

WARNING: ONLY OPERATE THIS MACHINE FROM

THE OPERATORS SEAT. IT WAS NOT DESIGNED TO

CARRY PASSENGERS.

WARNING: DO NOT OPERATE THIS MACHINE ON RAMPS

OR UNEVEN SURFACES. WHEN CLIMBING A RAMP,

ALWAYS DRIVE THE MACHINE IN FORWARD STRAIGHT

UP OR DOWN THE RAMP. NEVER DRIVE ACROSS THE

INCLINE. DO NOT BACK DOWN OR TURN ON RAMPS!

WARNING: ALWAYS USE THE CHARGER PROVIDED

BY THE MANUFACTURER TO CHARGE THE MACHINE.

IT IS AN AUTOMATIC CHARGER, SPECIFICALLY

DESIGNED TO CHARGE AT THE APPROPRIATE RATE.

IF YOU MUST USE A DIFFERENT CHARGER,

DISCONNECT THE BATTERIES BEFORE CHARGING.

THIS WILL PREVENT DAMAGE TO THE ELECTRONIC

SPEED CONTROLLER.

WARNING: UNDERSTAND THE DYNAMIC BRAKING

SYSTEM BEFORE YOU OPERATE THE MACHINE ON

RAMPS. MACHINE DOES NOT COAST. RELEASING

THE FOOTPEDAL WILL AUTOMATICALLY APPLY

BRAKING FORCE, AND STOP THE MACHINE.

WARNING: DO NOT PARK THE MACHINE ON

RAMPS ORSLOPES. THE MACHINE HAS APARKING

BRAKE, BUT IT IS RECOMMENDED THAT IT IS ALWAYS

PARKED ON LEVEL GROUND.

WARNING: DO NOT OPERATE THE MACHINE IF

ANY PARTSHAVE BEEN REMOVED OR DAMAGED.

WARNING: DO NOT REMOVE, PAINT OVER, OR

DESTROY WARNING DECALS. IF WARNING DECALS

BECOME DAMAGED, THEY MUST BE REPLACED.

WARNING: DO NOT OPERATE MACHINE IN

UNSAFE CONDITION. IF THE MACHINE IS IN NEED OF

REPAIR OR IS IN ANY WAY UNSAFE TO OPERATE,

THE MATTER SHOULD BE REPORTED IMMEDIATELY

TO THE SHIFT SUPERVISOR. DO NOT OPERATE THE

MACHINE UNTIL IT IS RETURNED TO PROPER

OPERATING CONDITION.

WARNING: THIS MACHINE MUST ONLY BE

OPERATED BY TRAINED OPERATOR. AS PART OF HIS

OR HER TRAINING, THEY MUST READ THIS MANUAL

THOROUGHLY. IF EXTRA COPIES ARE NEEDED,

CONTACT YOUR LOCAL DEALER.

WARNING: ALWAYS TURN OFF THE MACHINE,

BEFORE LEAVING IT UNATTENDED.

WARNING: DO NOT OPERATE OVER ELECTRICAL

FLOOR OUTLETS. MAY RESULTS IN SERIOUS INJURY.

PAGE 6

chadv

11/23/2005 9:54:13 AM

MACHINECONTROLS AND FEATURES

PAGE 7

26 28 29

1918

23 25

13 14 15 16

11 12

FIGURE 2.

FIGURE 3. FIGURE 4.

FIGURE 5 FIGURE 6A.

FIGURE 1.

FIGURE 6B.

37 36

chadv

11/23/2005 9:54:13 AM

PAGE 8

CONTROLS AND FUNCTIONS

SEE FIGURES (1-6B) ON PAGE 7

SEE FIGURE 1

1. STEERING WHEEL: STEERS THE MACHINE.

2. ADJUSTABLE SEAT WITH ARM RESTS: YOUR MACHINE IS EQUIPPED WITH AN ADJUSTABLE SEAT WITH ARM RESTS FOR COMFORT

3. RECOVERY TANK: HOLDS UP TO 40 GALLONS OF DIRTY WATER RECOVERED BY THE MACHINE.

4. SOLUTION TANK: HOLDS UP TO 38 GALLONS OF CLEAN WATER AND SOLUTION DETERGENT.

5. HEAD LIGHT: HELPS YOU SEE IN LOW LIGHT AREAS AND TO WARN ONCOMING TRAFFIC.

6. FRONT DRIVE WHEEL: DRIVES AND STEERS MACHINE.

7. BUMPER ROLLERS: HELPS PREVENT DAMAGE TO MACHINE AND OBJECTS THAT YOU MAY DRIVE CLOSE TO WHILE CLEANING.

8. DOOR WIPER: GOES UP AND DOWN WITH SCRUB DECK TO KEEP WATER FROM SPLASHING OUT OF MACHINE.

SEE FIGURE2.

9. SEAT ADJUSTMENT: PERMITS THE SEAT TO BE ADJUSTED FORWARD AND BACKWARDS FOR OPERATORS COMFORT.

10. HORN BUTTON: SOUNDS THE HORN FOR WARNING ONCOMING TRAFFIC.

11. SOLUTION LEVEL INDICATOR: SHOWS OPERATOR THE PRECISE LEVEL OF CLEANING DETERGENT IN THE TANK.

12. SOLUTION FLOW CONTROL: USED TO MODULATE THE SOLUTION FLOW (GPM).

13. NON SLIPFLOOR PLATE: HELPS PREVENT SLIPPING WHILE GETTING ON AND OFF OF MACHINE.

14. FOOT PEDAL : CONTROLS THE ACCELERATION AND DECELERATION OF THE MACHINE.

15. CHARGER PORT: RED 50 USED TO RECEIVE CHARGER INPUT. NOTE: ONLY USE CHARGER PROVIDED.

16. ADJUSTABLE STEERING: FOUR SETTINGS FOR OPERATOR COMFORT AND EASE OF ENTRY.

17. CIRCUITBREAKER: 50 AMP RESETABLE CIRCUIT BREAKER.

SEE FIGURE 3

18. RECOVERY DRAIN HOSE: ALLOWS FOR CONTROLLED DRAINING OF THE RECOVERY TANK.

19. VACUUMHOSE: VACUUMIZES SQUEEGEE . NOTE: KEEP FREE AND CLEAR OF BLOCKAGE.

20. VACUUMHOSE: MAIN VACUUM HOSE FROM VACUUM TO RECOVERY TANK.

21. SQUEEGEE BLADE: SQUEEGEES WATER TO BE RECOVERED BY THE VACUUM HOSE.

SEE FIGURE 4

22. SIDE DOOR: PROVIDES EASY ACCESS TO SCRUB DECK.

23. SCRUB DECK: MAIN COMPONENTS THAT SCRUB AND CLEAN FLOORS.

24. REAR WHEELS: NON MARKING REAR TIRES

25. SQUEEGEE BLADE PROTECTION WHEELS: HELP PROTECT THE SQUEEGEE WHEN CLEANING CLOSE TO OBJECTS.

SEE FIGURE 5

26. RECOVERY ACCESS DOOR: USED FOR FLUSHING OUT RECOVERY TANK WITH FRESH WATER.

27. BATTERIES: YOUR MACHINEIS EQUIPPED WITHFOUR (6 VOLT DEEP CYCLE 396 AMP HOUR BATTERIES)

28. FOAM PROTECTION SCREEN: USED TOPROTECT VACUUM MOTOR FROM DEBRIS.

29. BATTERY ACCESS LID: USED TO VENT BATTERIES DURING CHARGING, OR TO ACCESS BATTERIES FOR SERVICE.

SEE FIGURES 6A AND 6B

30. HIGH WATER RECOVERY LIGHT: INDICATES WHEN THE RECOVERY TANK IS NEARLY FULL.

31. LCD SCREEN: LISTS FUNCTIONS AND SETTING OF THE MACHINE. (SEE PAGES 17-19)

32. SQUEEGEE SWITCH: RAISES AND LOWERS THE SQUEEGEE.

33. ONE TOUCH BUTTON: ACTIVATES BRUSHES, SQUEEGEE, VACUUM SYSTEM, AND SOLUTION FLOW SIMUTANEOUSLY.

34. LOW WATER SOLUTION LIGHT: INDICATES WHEN THE SOLUTION TANK IS DOWN TO 5 GALLONS.

35. MENU CONTROL: SCROLLS THROUGH DIFFERENTOPTIONS ON THE LCD DISPLAY.

36. KEY SWITCH: TURNS THE MAIN POWER ON AND OFF.

37. OPTIONAL RECYLING SWITCH: TURNS ON THE RECYCLING PUMP. (GREEN)

38. SCRUB DECK DOWN PRESSURE SWITCH: CONTROLS THE PRESSURE PUT ON THE SCRUB DECK.

39. VACUUM WAND SWITCH: TURNS ON THE VACUUM MOTOR. (WHITE)

40. OPTIONAL SPRAY JET: TURNS ON THE SPRAY JET PUMP. (BLUE)

41. SCRUB DECK SWITCH: RAISES AND LOWERS THE SCRUB DECK.

42. SOLUTION SWITCH: OPENS AND CLOSES THE SOLUTION VALVE. GLOWS BLUE WHEN OPEN.

43. FORWARD/REVERSE SWITCH: CONTROLS THE DIRECTION OF THE TRACTION MOTOR. (RED)

chadv

11/23/2005 9:54:13 AM

MACHINE SETUP

UNCRATING MACHINE

CAREFULLY CHECK THE CRATE FOR ANY SIGNS OF

DAMAGE. BATTERIES ARE IN THE UNIT.

TO UNCRATE THE MACHINE, REMOVE BANDING FROM

AROUND THE CRATE. TAKE OFF THE TOP AND SIDES

AND DISPOSE OF PROPERLY. REMOVE BANDING

FROM MACHINE. REMOVE THE CHOCKS AROUND

THE DRIVE WHEELS. FOLD DOWN RAMP, AND DRIVE

MACHINE OFF OF THE BASE. NOTIFY THE CARRIER

IMMEDIATELY IF CONCEALED DAMAGE IS DISCOVERED.

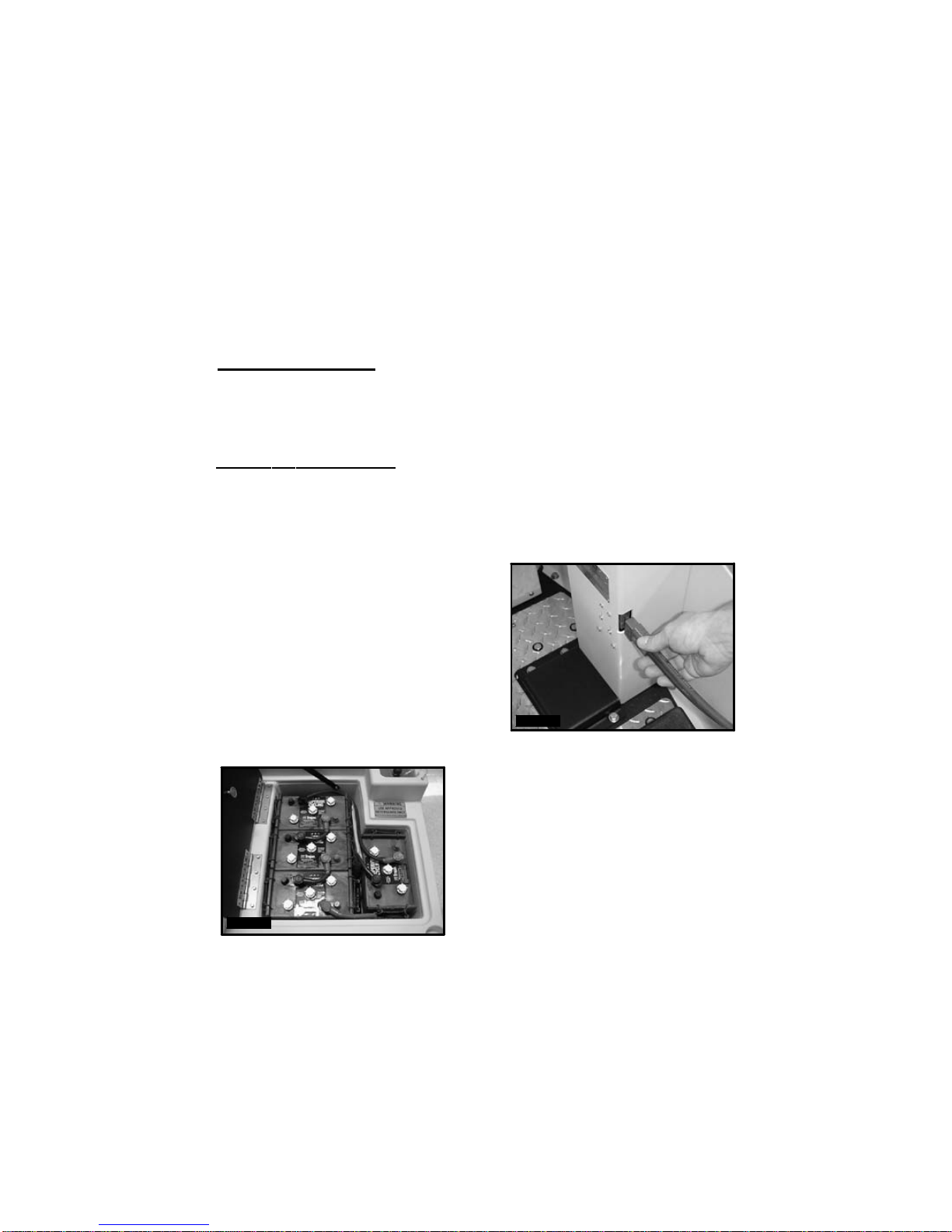

CONNECTING BATTERIES

YOUR MACHINE IS EQUIPPED WITH (FOUR) 6 VOLT,

DEEP CYCLE, 396 AMP HOURS BATTERIES, WHICH

FORM A 24 VOLT SYSTEM. MAXIMUM BATTERY

DIMENSIONS ARE 7"W X 15"L X 15"H.

1. TURN ALL SWITCHES TO THE OFF POSITIONAND

REMOVE KEY.

2. HINGE OPEN THE BATTERY ACCESS LID TO

ACCESS THE BATTERY COMPARTMENT.

3. ALL OF THE FOUR BATTERY CABLES ARE

CONNECTED TO THE BATTERIES. LOCATE ANY

LOOSE ONES AND CONNECT TO THE OPEN

TERMINAL. TIGHTEN WITH9/16" WRENCH.

(SEE FIGURE 7.)

4. TURN ON MAIN POWER SWITCH AND CHECK

THE BATTERY CONDITION METER TO ENSURE

CORRECT INSTALLATION. CHARGE BATTERIES IF

NEEDED. (SEE: BATTERY CHARGING)

2. LOOSEN THE TWO WING NUTS ON THE SQUEEGEE

ANDSLIDE THEM INTO THE SLOTS IN THE SQUEEGEE

MOUNTING PLATE. THE SQUEEGEE TRAIL WHEELS

SHOULD FACE OUTWARD. (SEE FIGURE 9.)

3. TIGHTEN THE TWO WINGNUTS, AND CONNECT

VACUUM HOSE FROM THE MACHINE TO THE

SQUEEGEE. (SEE FIGURE 9.)

4. YOU MAY HAVE TO ADJUST THE SQUEEGEE PITCH,

BY USING THE PITCH ADJUSTMENT. (SEE FIGURE 9.)

PAGE 9

ATTACHING SQUEEGEE

1. LOWER THE SQUEEGEE MOUNTING PLATE BY

DEPRESSING THE SQUEEGEE SWITCH TO THE DOWN

POSITION. (SEE FIGURE 8.)

FIGURE 7

FIGURE 8.

FIGURE 9.

chadv

11/23/2005 9:54:13 AM

PAGE 10

6. WHEN BOTH BRUSHES ARE ENGAGED REPLACE

THE BRUSH ACCESS DOOR AND TIGHTEN IT BACK

DOWN WITH THE WINGNUTS. (SEE FIGURE 15.)

***FOR CORRECT PAD APPLICATION , CALL YOUR LOCAL DEALER***

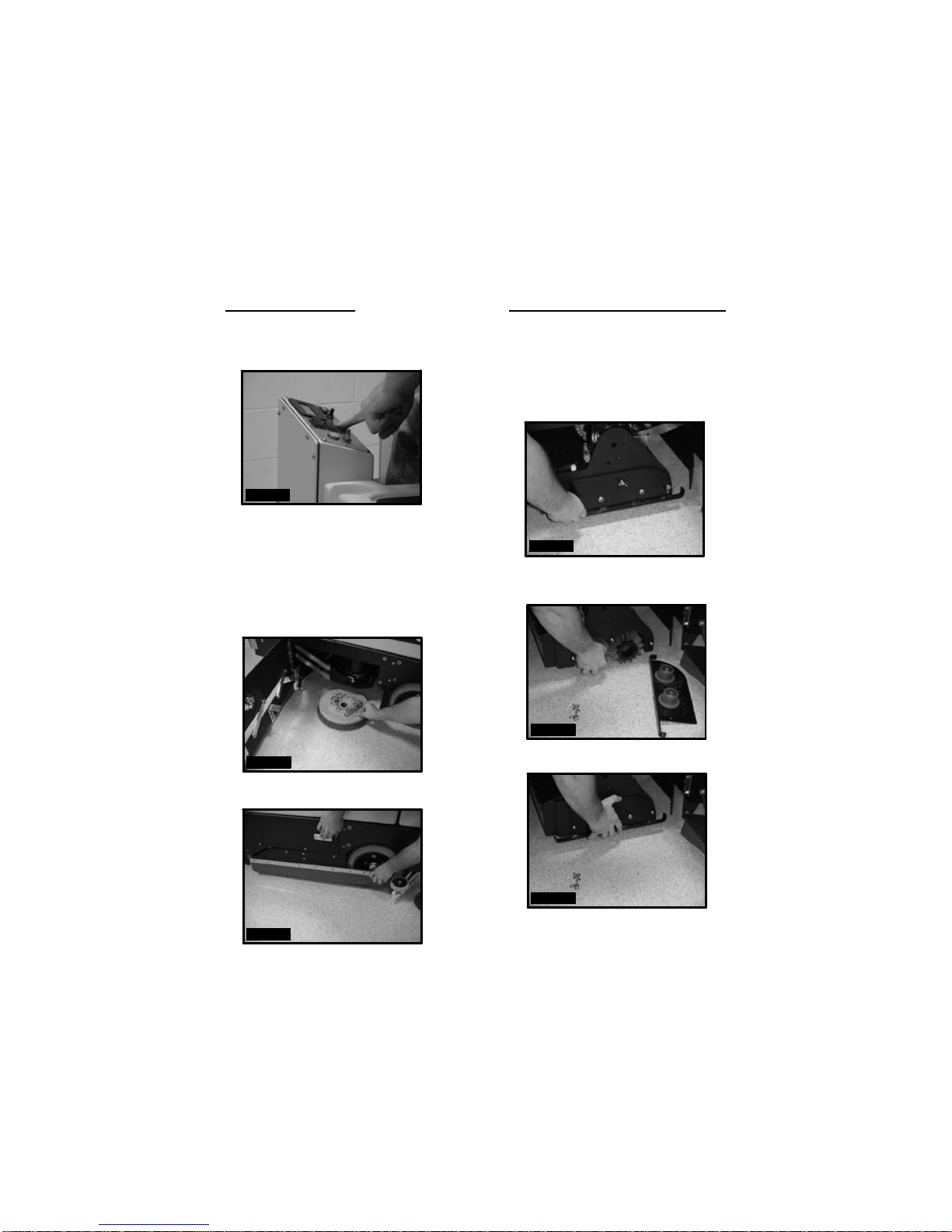

ATTACHING

CYLINDRICAL BRUSHES

1. TURN ON MACHINE POWER

2. RAISE THE SCRUB DECK BY DEPRESSING THE

BRUSH SWITCH TO THE UP AND OFF POSITION

AND TURN MACHINE POWER BACK OFF.

(SEE FIGURE 10.)

3. OPEN THE SIDE DOORTO ACCESS CYLINDRICAL

SCRUB DECK

4. UNSCREW THE THREE WINGNUTS ON THE BRUSH

ACCESS DOOR AND REMOVE THE DOOR.

(SEE FIGURE 13.)

ATTACHING

DISK BRUSHES

1. TURN ON MACHINE POWER

2. RAISE THE SCRUB DECK BY DEPRESSINGTHE

BRUSH SWITCH TO THE UP AND OFF POSITION

AND TURN MACHINE POWER BACK OFF.

(SEE FIGURE 10.)

7. LIFT UP ON THE WIPERS FIRST TO CLOSE SIDE

DOOR AND DEPRESS THE LATCH UNTIL THE DOOR

IS SECURED. (SEE FIGURE 12.)

3. OPEN SIDE DOOR TO ACCESS SCRUB DECK

4. SELECT THE CORRECT PADS OR BRUSHES THAT

BEST MEET YOUR CLEANING APPLICATION.

CONSULT YOUR LOCAL DEALER FOR ASSISTANCE.

5. PAD INSTALLATION ATTACH PADS TO PAD

DRIVERS BEFORE CONNECTING DRIVERS TO

MOTOR HUB.

6. ATTACH BRUSHES OR PADS TO MOTOR HUBS.

SQUEEZE THE SCISSOR LOCKING DEVICE AND LIFT

BRUSH UP ON TO THE MOTOR DRIVE HUB. MAKE

SURE THE SCISSORS CLOSE AND LOCK ONCE THE

BRUSHES ARE ON. (SEE FIGURE 11.)

5. SLIDE THE BRUSHES INONE AT ATIME. WHEN YOU

GET THE BRUSH ON THE DRIVER SPIN IT WITH YOUR

HAND UNTIL YOU FEEL IT ENGAGE AND DROP IN.

(SEE FIGURE 14.)

7. LIFT UP ON THE WIPERS FIRST TO CLOSE SIDE

DOOR AND DEPRESS THE LATCH UNTIL THE DOOR

IS SECURED. (SEE FIGURE 12.)

FIGURE 10.

FIGURE 11.

FIGURE 12.

FIGURE 13.

FIGURE 14.

FIGURE 15.

chadv

11/23/2005 9:54:13 AM

PAGE 11

ONE PASS SCRUBBING

STEPS: (SEE FIGURE 17.)

1. TURN MACHINE ON WITH THE KEY SWITCH.

2. LOWER SQUEEGEE BY PRESSING THE SWITCH.

3. LOWER SCRUB HEAD TO THE FLOOR, USE THE

TOP HALF (+) OF THE BRUSH SWITCH.

4. TURN ON THE SOLUTION SWITCH AND ADJUST

THE SOLUTION LEVER TO THE DESIRED SETTING.

5. BEGIN SCRUBBING BY DEPRESSING THE

FOOT PEDAL SLOWLY AND THEN TO THE

SPEED REQUIRED, THE HEADLIGHT

SHOULD ILLUMINATE.

6. ONCE THE MACHINE BEGINS TO MOVE,

CHECK THE DOWN PRESSURE GAUGE. START

SCRUBBING AT THE#1 OR # 2 MARKS, DO NOT

USE THE #4 OR #5 MARKS WITHOUT

MANAGEMENTS APPROVAL.

7. TO OPERATE MACHINE IN REVERSE,

SIMPLY SWITCH THE REVERSE SWITCH TO

THE REVERSE POSITION, BACK UP ALARM

MAY SOUND AND YOUR REV SPEED IS SET

TO ROUGHLY 50% OFFORWARD.

8. TO STOP THE MACHINE, LET OFF OF THE

FOOT PEDAL, AND THE MACHINE WILL

STOP AUTOMATICALLY.

OPERATION

PRE-CLEANING CHECK LIST

READ AND UNDERSTAND THE SAFETY SECTION ON

PAGE 5 AND 6 BEFORE OPERATING MACHINE.

1. CHECK BATTERY CONDITION GAUGE ON

THE CENTRAL COMMAND II LCD SCREEN.

TO CHECK GAUGE PUSH MENU CONTROL

BUTTON UNTIL BATTERY GUAGE APPEARS.

MAKE SURE BATTERIESARE FULLY CHARGED

BEFORE USING.

2. CHECK THE CONDITION OF PADS OR BRUSHES.

3. CHECK THE CONDITION OF THE SQUEEGEE BLADES.

4. TRANSPORT THE MACHINE TO THE FILLING

STATION. RAISE THE SCRUBHEAD AND

SQUEEGEE WHEN TRANSPORTING.

5. TURN MACHINE OFF.

6. OPEN SOLUTION FILL DOOR AT THE SIDE OF

THE MACHINE AND FILL THE TANK WITH UP

TO 38 GALLONS OF CLEAN WATER. THE

CLEAR TUBE AT THE FRONT OF THE MACHINE INDICATES

THE AMOUNT OF WATER IN THE TANK.

7. ADD CLEANING CHEMICAL. USE THE PROPER

DILUTION RATIO INDICATED ON THE BOTTLE.

NOTE: USE ONLY NONFLAMMABLE COMMERCIAL

CLEANING CHEMICALS. YOUR AUTHORIZED

DISTRIBUTOR CAN ASSIST YOU IN SELECTING A

PROPER CHEMICAL. 1

FIGURE 16. FIGURE 17.

chadv

11/23/2005 9:54:13 AM

PAGE 12

OPERATING HINTS

1. OBSERVE THE AMOUNT OF SOLUTION THE MACHINE IS

DISPENSING ON THE FLOOR AND ADJUST TO THE DESIRED

FLOW. TO INCREASE THE SOLUTION FLOW RATE, MOVE

THE SOLUTION LEVER TO THE OPERATORS RIGHT. TO SHUT

THE SOLUTION OFF COMPLETELY, USE THE SWITCH, OR

JUST RELEASE THE FOOT PEDAL.

2. KEEP AN EYE ON THE REC FULL LIGHT TO MAKE SURE

THERE IS NOT FOAMY BUILDUP IN THE RECOVERY TANK. IF

EXCESS FOAM BEGINS TO DEVELOP, POUR A

RECOMMENDED FOAM CONTROL SOLUTION INTO THE

RECOVERY TANK. FOAM IS USUALLY AN INDICATION OF

EXCESSIVE SOAP.

3. ALWAYS OPERATE AT LOWER SPEEDS WHEN SCRUBBING

AROUND WALLS AND OBJECTS. YOU SHOULD REDUCE THE

SPEED, TO MAINTAIN CONTROL WHEN TURNING.

4. IF SQUEEGEE STARTS TO STREAK, RAISE AND WIPE THE

BLADES WITH A CLEAN CLOTH. IF THE PROBLEM

CONTINUES, CHECK THE BLADES FOR WEAR OR DAMAGE,

AND ROTATE IF NEEDED. YOU NEED TO PRESWEEP BEFORE

SCRUBBING.

5. CHANGE OR TURN OVER PADS WHEN DIRTY. ROTATE

THE SCRUB BRUSHES EVERY WEEK.

6. STAY CLEAR OF OBJECTS PROTRUDING FROM THE

FLOOR, SUCH AS SOCKETS, GRATES, DIES, FOR THEY WILL

DAMAGE THE PADS AND SQUEEGEE BLADES.

7. DURING BRIEF STOPS YOU DO NOT HAVE TO TURN

ANYTHING OFF, THE BRUSHES AND SOLUTION WILL

AUTOMATICALLY STOP WHEN THE FOOT PEDAL IS

RELEASED.

8. ALWAYS KEEP AN EYE ON YOUR GAUGES. THEY LET

YOU KNOW THE STATUS OF A PARTICULAR SYSTEM AT A

GLANCE. IF YOUR BATTERY GAUGE IS READING LOW,

YOU MUST STOP IMMEDIATELY, AND RECHARGE.

RUNNING THE BATTERIES DEAD, WILL RESULT IN DAMAGE

TO THE BATTERIES. EXCESSIVE SCRUBBING PRESSURE WILL

BLOW A BREAKER.

9. WHEN YOU RUN OUT OF SOLUTION, RAISE THE BRUSHES,

AND CONTINUE TO VACUUM THE REMAINING WATER UNTIL

IT IS CONSUMED. THESOLUTION SIGHT HOSE IS USED TO

INDICATE THE LEVEL OF DETERGENT REMAINING IN THE

TANK.

10. WHEN YOU ARE READY TO STOP, PICK UP THE

BRUSHES, TURN OFF THE SOLUTION SWITCH, PICK UP THE

SQUEEGEE, AND DRIVE THE MACHINE BACK TO THE

CHARGING AREA. BE SURE TO DRAIN BOTH TANKS BEFORE

STORING MACHINE.

DRAINING RECOVERYTANK

ALWAYS EMPTY RECOVERY TANK WHEN REFILLINGTHE

SOLUTIONTANK. TO DRAIN THE RECOVERY TANK, PERFORM THE

FOLLWING STEPS.

1. REMOVE DRAIN HOSE FROM THE EXPANSION PLUG HOLDER

BY TUNING THE T-HANDLE COUNTER CLOCKWISE. OPEN THE TOP

"RECOVERY ACCESS LID" AND FLUSH OUT WITH WATERTO KEEP

TANK CLEAN. (SEE FIGURE 18.)

2. RINSE THE RECOVERY TANK AFTER EVERY USE. THIS WILL

PREVENT HEAVY BUILDUP ON THE BOTTOM OF THE TANK,

FOUL ODORS, AND CLOGGING OF THE DRAIN HOSE.

3. ONCE TANK IS EMPTY, PUT DRAIN HOSE BACK ON THE

PLUG AND TIGHTEN BY TURNING THE T-HANDLE CLOCK WISE.

DRAINING SOLUTION TANK

TO DRAIN LEFT OVER CLEANING SOLUTION FROM THE

SOLUTION TANK, PERFORM THE FOLLOWING STEPS.

(SEE FIGURE 19.)

1. ROTATE THE BLUE SOLUTIONTANK DRAIN VALVE OUTWARDS.

FIGURE 18.

FIGURE 19.

chadv

11/23/2005 9:54:13 AM

PAGE 13

BATTERY

CHARGING

CAUTION: THE FOLLOWING INSTRUCTIONS ARE

INTENDED FOR THE 24V CHARGER SUPPLIED WITH

THE MACHINE. DO NOT USE ANY OTHER

CHARGER WITH THIS MACHINE.

CHARGER

SPECIFICATIONS

OUTPUT VOLTAGE OF 24 VOLTS.

OUTPUT CURRENT OF 36 AMPS MAX.

INPUT VOLTAGE OF 110 VOLTS/60 HZ.

AUTOMATIC SHUT OFF CIRCUIT.

MADE FOR DEEP CYCLE BATTERIES.

DANGER: ALWAYS CHARGE BATTERIES IN A WELL

VENTILATED AREA. BATTERIES EMIT HYDROGEN

GAS. EXPLOSION OR FIRE CAN RESULT. KEEP

SPARKS AND FLAME AWAY. SHIELD EYES WHEN

SERVICING BATTERIES AND AVOID CONTACTWITH

BATTERY ACID. LEAVE ACCESS PANEL OPEN WHEN CHARGING!

1. TRANSPORT MACHINE TO A WELL VENTILATED

AREAFOR CHARGING.

2. TURN THE MACHINE OFF.

3. HINGE OPEN THE BATTERY ACCESS PANEL TO

EXPOSE THE BATTERIES. (SEE FIGURE 20.)

(CAUTION ALWAYS WEAR EYE PROTECTION WHEN

BATTERIES ARE EXPOSED)

4. CHECK THE WATER LEVEL IN EACHBATTERY.

DO NOT CHARGE THE MACHINE UNLESS THE

WATER IS SLIGHTLY HIGHER THAN THE PLATES. IF

NEEDED, ADD ENOUGH DISTILLED WATER TO JUST

SLIGHTLY COVER THE PLATES. DO NOT OVER FILL.

BATTERIES CANOVERFLOW DURING CHARGING.

REPLACE CAPS BEFORE CHARGING.

5. WITH THE RED CHARGER PLUG DISCONNECTED

FROM THE MACHINE, PLUG THE CHARGER

POWER CORD INTO A GROUNDED 110 VOLT

STANDARD WALL OUTLET.

(SEE FIGURE 21.)

6. CONNECT THE RED CHARGER PLUG INTOTHE

BATTERY CHARGING PORT LOCATED ON THE

LOWER PORTION OF THE STEERING TOWER.

7. THE CHARGER WILL AUTOMATICALLY BEGIN

CHARGING, AND AUTOMATICALLY SHUT OFF

WHEN FULLY CHARGED (CHECK GAUGE)

8. AFTER THE CHARGER HAS TURNED OFF, UNPLUG

THE RED CHARGER PLUGFROM THE MACHINE

AND DISCONNECT THE CHARGER FROM THE

WALL OUTLET.

9. RECHECK THE CELL LEVEL AFTER CHARGING. IF

NEEDED, ADD DISTILLED WATER UP TO THE

CORRECT LEVEL. BE CERTAIN TO REPLACE THE

CAPS SECURELY AND TO WIPE OFF THE TOP OF

THE BATTERIES WITH A CLEAN CLOTH.

FIGURE 20.

FIGURE 21.

chadv

11/23/2005 9:54:13 AM

PAGE 14

MONTHLY

MAINTENANCE

1. CHECK SCRUB HEAD AND SQUEEGEE LIFTING CABLES FOR

WEAR AND SPRING TENSION.

2. CHECK MACHINE FOR WATER LEAKS AND LOOSE NUTS AND

BOLTS.

3. CHECK TO SEE IF BATTERY CABLES ARE TIGHTENED

(TIGHTEN IF NEEDED)

4. CHECK PARKING BRAKE

5. CHECK CONDITION OF SCRUB DECK LIFTING CABLE.

YEARLY

MAINTENANCE

1. CALL YOUR LOCAL DEALER FOR YEARLY MAINTENANCE

STORING MACHINE

1. BE SURE TO FLUSH THE TANKS OUT COMPLETELY, AND TO

DRAIN ALL WATER FROM THE MACHINE.

2. REMOVE THE RECOVERY TANK LID TO PROMOTE AIR

CIRCULATION.

3. RAISE BRUSHES AND SQUEEGEE.

MAINTENANCE

DAILY MAINTENANCE

1. REMOVE AND CLEAN PADS OR BRUSHES. NEVER

USE SOILED PADS WHEN CLEANING. REPLACE

PADS WHEN THEY BECOME PACKED WITH RESIDUE.

2. REMOVE AND CLEAN DEBRIS FROM THE FLOAT

SHUT-OFF SCREEN LOCATED INSIDE THE RECOVERY

TANK.

3. DRAIN AND RINSE TANKS THOROUGHLYINSPECT

VACUUMHOSE FOR ANY OBJECTS OBSTRUCTING

THE AIR FLOW.

4. RAISE SQUEEGEE AND WIPE BLADES WITH A CLEAN

CLOTH. STORE SQUEEGEE IN THE RAISED POSITION

TO PREVENT DAMAGE OR SETTING OF THE BLADES.

5. WIPE DOWN MACHINE IF NEEDED. USE A

NONABRASIVE, NON SOLVENT CLEANER, OR A

CLEAN DAMP CLOTH.

6. RECHARGE THE BATTERIES IF NEEDED.

WEEKLY

MAINTENANCE

1. CHECK BATTERY WATER LEVEL IN EACH CELL OF THE

BATTERIES, AND FILL AS NEEDED. ALWAYS USE

DISTILLED WATER TO REFILL BATTERIES. BATTERIES

SHOULDBEFILLED APPROXIMATELY 3/4" TO 1" ABOVE

THE PLATES. OVERFILLING WILL CAUSE THE BATTERIES

TO LEAK DURING CHARGING. THE CHARGING

PROCESS CREATES GAS BUBBLES INSIDE THE BATTERY,

WHICH EFFECTIVELY INCREASES THE VOLUME OF THE

ELECTROLITE.

2. CLEAN BATTERY TOPS TO PREVENT CORROSION.

3. ROTATE BRUSHES. ROTATE THE LEFT TO THE RIGHT

AND RIGHT TO LEFT. ON CYLINDRICAL MODELS

FROM FRONT TO BACK, OR END TO END IF USING

DIFFERENT MATERIALS.

chadv

11/23/2005 9:54:13 AM

PAGE 15

PREVENTATIVE MAINTENANCE RECORDS

USE THIS FORM TO MAKE COPIES FOR YOUR INTERNAL RECORDS

PREVENTATIVE MAINTENANCE CHECKEDNOTE

ROTATE BRUSHES _____________ ____________________________________

ROTATE SIDE BROOMS _____________ ____________________________________

DRAIN SOLUTION TANK _____________ ____________________________________

FLUSH SOLUTION SYSTEM _____________ ____________________________________

CLEAN SOLUTION SCREEN _____________ ____________________________________

DRAIN RECOVERY TANK _____________ ____________________________________

FLUSH RECOVERY TANK _____________ ____________________________________

CLEAN VACUUM SCREEN _____________ ____________________________________

ROTATE REAR SQUEEGEE BLADE _____________ ____________________________________

CHECK BATTERY WATER LEVEL _____________ ____________________________________

CHECK BATTERY VOLTAGE _____________ ____________________________________

CHECK CHARGER CONDITION _____________ ____________________________________

CHECK BATTERY CONNECTIONS _____________ ____________________________________

CHECK CHEMICAL LEVEL _____________ ____________________________________

CHECK MACHINE PERFORMANCE _____________ ____________________________________

SCRUBBING POWER _____________ ____________________________________

VACUUM POWER _____________ ____________________________________

CONTROLS WATER ON TURNS _____________ ____________________________________

GAUGES AND CONTROLS _____________ ____________________________________

CHECK WHEEL TRACTION _____________ ____________________________________

OTHER:__________________________ _____________ ___________________________________

PAST HOUR METER READING: ___________________________________

CURRENT HOUR METER READING: ___________________________________

AVERAGE WEEKLY USAGE: ___________________________________

TECHNICIAN PRINT:_____________________________________________

TECHNICIAN SIGNATURE:________________________________________ DATE:_________________

MANAGER SIGNATURE:_________________________________________ DATE:_________________
