FAIP PowerWasher RN2200 User manual
Rev.1 1/08
IMPORTANT
Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before operating.
IMPORTANT
Assurez-vous que toute personne qui utilisera cet équipement lise
attentivement ces instructions avant de l’utiliser.
Table of Contents
Safety Guidelines/Definitions..................2
Important Safety Instructions..............2-7
Specifications..........................................7
Carton Contents......................................8
Assembly Instructions..........................8-9
Operating Instructions ...................... 9-14
Maintenance.................................... 14-15
Storage ............................................ 15-16
Trouble Shooting Guide.................. 16-18
Accessories...........................................18
Repairs...................................................18
Warranty.................................................19
Français ........................................... 20-40
Operation Manual
Guide d’utilisation
60112
Pressure Washer
Laveuse à pression
RN2200
Record All Information and attach sales
receipt here for future reference:
Purchase Date:__________________________
Serial #: ________________________________
www.ronapw.ca
Inscrivez tous les renseignements
et agrafez le reçu de caisse ici pour
références futures :
Date d’achat :_______________________
N° de série : ________________________
N003453
2- ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an immi-
nently hazardous situ-
ation which, if not avoided, will result
in death or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in
minor or moderate injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
Used without the
safety alert symbol
indicates a potentially hazardous situ-
ation which, if not avoided, may result
in property damage.
CONSUMER SAFETY INFORMATION
This product may not be equipped with a spark arrest-
ing muffler. If the product is not equipped and will be used
around flammable materials, or on land covered with materials such as
agricultural crops, forest, brush, grass, or other similar items, then an
approved spark arrester must be installed and is legally required in the state
of California. It is a violation of California statutes section 130050 and/or
sections 4442 and 4443 of the California Public Resources Code, unless the
engine is equipped with a spark arrester, as defined in section 4442, and
maintained in effective working order. Spark arresters are also required on
some U.S. Forest Service land and may also be legally required under other
statutes and ordinances.
This product contains chemicals, known to the State of
California to cause cancer, and birth defects or other repro-
ductive harm. Wash hands after handling.
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this unit until you have read and understand
this Operators Manual and the Engine Owners Manual for
Safety, Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it's vapors
can become ignited from ciga-
rette sparks, electrical arcing,
exhaust gases and hot engine
components such as the muf-
fler.
• Shut off engine and allow it to cool
before adding fuel to the tank.
• Use care in filling tank to avoid spilling
fuel. Move pressure washer away from
fueling area before starting engine.
3- ENG
s (EATWILLEXPANDFUELINTHE
tank which could result in spill-
age and possible fire explosion.
s &ILLTANKTOMMBELOWBOTTOM
of filler neck to provide space for fuel
expansion.
s /PERATINGTHEPRESSUREWASHER
in an explosive environment
could result in a fire.
s /PERATEANDFUELEQUIPMENTINWELL
ventilated areas free from obstructions.
Equip areas with fire extinguisher suit-
able for gasoline fires.
s -ATERIALSPLACEDAGAINSTOR
near the pressure washer can
interfere with its proper ventila-
tion features causing overheat-
ing and possible ignition of the
materials.
s .EVEROPERATEPRESSUREWASHERINAN
area containing dry brush or weeds.
s -UFFLEREXHAUSTHEATCANDAM-
age painted surfaces, melt any
MATERIALSENSITIVETOHEATSUCH
as siding, plastic, rubber, vinyl
ORTHEPRESSUREHOSEITSELF
and damage live plants.
s !LWAYSKEEPPRESSUREWASHERAMINI
MUMOFgMAWAYFROMSURFACES
SUCHASHOUSESAUTOMOBILESORLIVE
PLANTSTHATCOULDBEDAMAGEDFROM
muffler exhaust heat.
s )MPROPErly stored fuel could
lead to accidental ignition. Fuel
improperly secured could get
into the hands of children or
other unqualified persons.
s 3TOREFUELINAN/3(!APPROVED
container, in a secure location away
from work area.
s 5SEOFACIDSTOXICORCORROSIVE
chemicals, poisons, insecti-
cides, or any kind of flammable
solvent with this product could
result in serious injury or death.
s $ONOTSPRAYFLAMMABLELIQUIDS
RISK TO BREATHING (Asphyxiation)
WHAT CAN HAPPEN HOW TO PREVENT IT
s "REATHINGEXHAUSTFUMESWILL
cause serious injury or death!
Engine exhaust contains car-
bon monoxide, an odorless and
deadly gas.
s /PERATEPRESSUREWASHERINAWELL
ventilated area. Avoid enclosed areas
such as garages, basements, etc.
s .EVEROPERATEUNITINALOCATIONOCCU-
pied by humans or animals.
s 3OMECLEANINGFLUIDSCONTAIN
substances which could cause
injury to skin, eyes or lungs.
s 5SEONLYCLEANINGFLUIDSSPECIFICALLY
recommended for high-pressure wash-
ers. Follow manufacturers
recommendations. Do not use chlorine
bleach or any other corrosive com-
pound.
4- ENG
RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
s 9OURPRESSUREWASHEROPERATES
at fluid pressures and veloci-
ties high enough to penetrate
human and animal flesh, which
could result in amputation or
other serious injury. Leaks
caused by loose fittings or
worn or damaged hoses can
result in injection injuries. DO
NOT TREAT FLUID INJECTION
AS A SIMPLE CUT! See a phy-
sician immediately!
s )NSPECTTHEHIGHPRESSUREHOSEREGULAR-
ly. Replace the hose immediately if it is
damaged, worn, has melted from con-
tacting the engine, or shows any signs
of cracks, bubbles, pinholes, or other
leakage. Never grasp a high-pressure
hose that is leaking or damaged.
s .EVERTOUCHGRASPORATTEMPTTOCOVER
a pinhole or similar water leak on the
high-pressure hose. The stream of
water IS under high pressure and WILL
penetrate skin.
s .EVERPLACEHANDSINFRONTOF
nozzle.
s $IRECTSPRAYAWAYFROMSELFANDOTHERS
s -AKESUREHOSEANDFITTINGSARETIGHT-
ened and in good condition. Never
hold onto the hose or fittings during
operation.
s $ONOTALLOWHOSETOCONTACT
muffler.
s .EVERATTACHORREMOVEWANDORHOSE
fittings while system is pressurized.
s )NJURIESCANRESULTIFSYSTEM
pressure is not reduced before
attempting maintenance or dis-
assembly.
s 4ORELIEVESYSTEMPRESSURESHUTOFF
engine, turn off water supply and pull
gun trigger until water stops flowing.
s 5SEONLYHOSESANDACCESSORIESRATED
for pressure higher than your pressure
WASHERgSPSI
RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
s (IGHVELOCITYFLUIDSPRAYCAN
cause objects to break, propel-
ling particles at high speed.
s ,IGHTORUNSECUREDOBJECTSCAN
become hazardous projectiles.
s !LWAYSWEAR!.3)APPROVED:
safety glasses. Wear protective clothing
to protect against accidental spraying.
s .EVERPOINTWANDATORSPRAYPEOPLEOR
animals.
s !LWAYSSECURETRIGGERLOCKWHENWAND
is not in service to prevent accidental
operation.
s .EVERPERMANENTLYSECURETRIGGERIN
PULLBACKOPENPOSITION
5- ENG
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
s 5NSAFEOPERATIONOFYOURPRES-
sure washer could lead to seri-
ous injury or death to you or
others.
s $ONOTUSECHLORINEBLEACHORANYOTHER
corrosive compound.
s "ECOMEFAMILIARWITHTHEOPERATIONAND
controls of the pressure washer.
s +EEPOPERATINGAREACLEAROFALLPER-
sons, pets and obstacles.
s $ONOTOPERATETHEPRODUCTWHEN
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
s .EVERDEFEATTHESAFETYFEATURESOFTHIS
product.
s $ONOTOPERATEMACHINEWITHMISSING
broken or unauthorized parts.
s .EVERLEAVEWANDUNATTENDEDWHILE
unit is running.
s )FPROPERSTARTINGPROCEDUREIS
not followed, engine can kick-
back causing serious hand and
arm injury.
s )FENGINEDOESNOTSTARTAFTERTWOPULLS
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arm injury.
s 4HESPRAYGUNWANDISAPOWER-
ful cleaning tool that could look
like a toy to a child.
s +EEPCHILDRENAWAYFROMTHEPRESSURE
washer at all times.
s 2EACTIVEFORCEOFSPRAYWILL
cause gun/wand to kickback,
and could cause the operator
to slip or fall or misdirect the
spray. Improper control of gun/
wand can result in injuries to
self and others.
s $ONOTOVERREACHORSTANDONANUNSTA-
ble support.
s $ONOTUSEPRESSUREWASHERWHILE
standing on a ladder.
s 'RIPGUNWANDFIRMLYWITHBOTHHANDS
Expect the gun to kickback when trig-
gered.
6- ENG
RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
s &UELOROILCANLEAKORSPILLAND
could result in fire or breathing
hazard. Serious injury or death
can result. Fuel or oil leaks will
damage carpet, paint or other
surfaces in vehicles or trailers.
s )FPRESSUREWASHERISEQUIPPEDWITH
a fuel shut-off valve, turn the valve to
the OFF position before transporting
to avoid fuel leaks. If pressure wash-
er is not equipped with a fuel shut-off
valve, drain the fuel from tank before
transporting. Only transport fuel in an
/3(!APPROVEDCONTAINER!LWAYS
place pressure washer on a protec-
tive mat when transporting to protect
against damage to vehicle from leaks.
Remove pressure washer from vehicle
immediately upon arrival at your desti-
nation.
RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
s /VERINFLATIONOFTIRESCOULD
result in serious injury and
property damage.
s 5SEATIREPRESSUREGAUGETOCHECKTHE
tires pressure before each use and while
inflating tires; see the tire sidewall for the
correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires similar to these very
rapidly. Adjust pressure regulator on air
supply to no more than the rating of the
tire pressure. Add air in small increments
and frequently use the tire gauge to
prevent over inflation.
s (IGHVELOCITYFLUIDSPRAYDIRECT-
ed at pneumatic tire sidewalls
SUCHASFOUNDONAUTOMOBILES
TRAILERSANDTHELIKEcould dam-
age the sidewall resulting in
serious injury.
s /NPRESSUREWASHERSRATEDABOVE
PSI"ARUSETHEWIDESTFANSPRAY
NOZZLEANDKEEPTHESPRAYAMINI-
MUMOFCMFROMTHEPNEUMATIC
tire sidewall. Do not aim spray directly
at the joint between the tire and rim.
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
s #ONTACTWITHHOTSURFACES
such as engines exhaust com-
ponents, could result in serious
burn.
s $URINGOPERATIONTOUCHONLYTHECON-
trol surfaces of the pressure washer.
+EEPCHILDRENAWAYFROMTHEPRESSURE
washer at all times. They may not be
able to recognize the hazards of this
product.
7- ENG
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
• Use of acids, toxic or corrosive
chemicals, poisons, insecti-
cides, or any kind of flammable
solvent with this product could
result in serious injury or death.
• Do not use acids, gasoline, kerosene,
or any other flammable materials in this
product. Use only household deter-
gents, cleaners and degreasers recom-
mended for use in pressure washers.
• Wear protective clothing to protect
eyes and skin from contact with
sprayed materials.
RISK OF LACIRTCELESHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical out-
lets or switches, or objects con-
nected to an electrical circuit,
could result in a fatal electrical
shock.
• Unplug any electrically operated prod-
uct before attempting to clean it. Direct
spray away from electric outlets and
switches.
RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result from
attempting to lift too heavy an
object.
• The pressure washer is too heavy to be
lifted by one person. Obtain assistance
from others before lifting.
READ AND SAVE THESE INSTRUCTIONS
SPECIFICATIONS
Model 60112 - RN2200
Max Pressure* 2200 PSI
Max Flow* 2.1 GPM
* Water flow and maximum pressure ratings determined in accordance with
PWMA standard PW101.
NOTE: Photographs and line drawings used in this manual are for reference only
and do not represent a specific model.
8- ENG

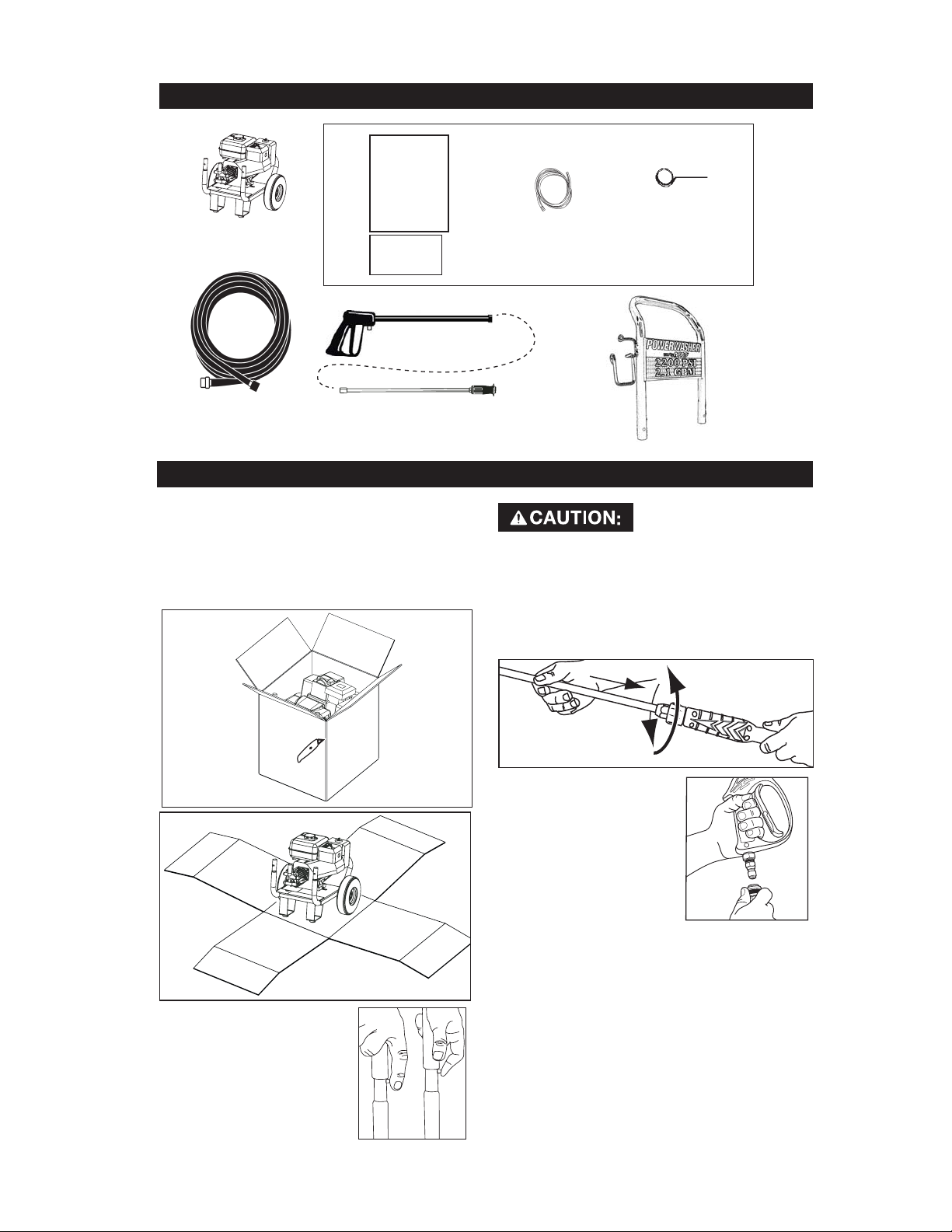

1. Locate and remove all loose
parts from the carton.
2. Cut four corners of the carton
from top to bottom and lay the
panels flat.
3. Place handle onto
frame, depress the
snap buttons, and
slide the handle
assembly onto the
frame until snap
buttons snap into
place.
Risk of personal
injury. Avoid plac-
ing hands between handle and
frame when assembling to prevent
pinching.
4. Connect wand to gun. Tighten
securely.
5. Attach high
pressure hose to
gun. Tighten
securely.
Engine Frame
and Wheel
Assembly
High Pressure
Hose
Spray Gun
Handle
Chemical
Hose
Bagged Parts
Nozzle
Cleaning
Tool
Engine
Manual
CARTON CONTENTS
ASSEMBLY INSTRUCTIONS
Operation
Manual
Multi-Adjustable
Spray Wand
9- ENG
NOTE: The pump on this unit is
maintenance free and requires no oil,
If there is a problem with the pump
contact an Authorized Service Center.
Risk of bursting.
Use a tire pressure
gauge to check the tires pressure
before each use and while inflating
tires; see the tire sidewall for the
correct tire pressure.
NOTE: Air tanks, compressors and simi-
lar equipment used to inflate tires can fill
small tires similar to these very rapidly.
Adjust pressure regulator on air supply to
no more than the rating of the tire pres-
sure. Add air in small increments and
frequently use the tire gauge to prevent
over inflation.
OPERATING INSTRUCTIONS
Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
High
Pressure
Hose
Spray
Gun
High Pressure Pump
Engine
Multi-Adjustable
Spray Wand

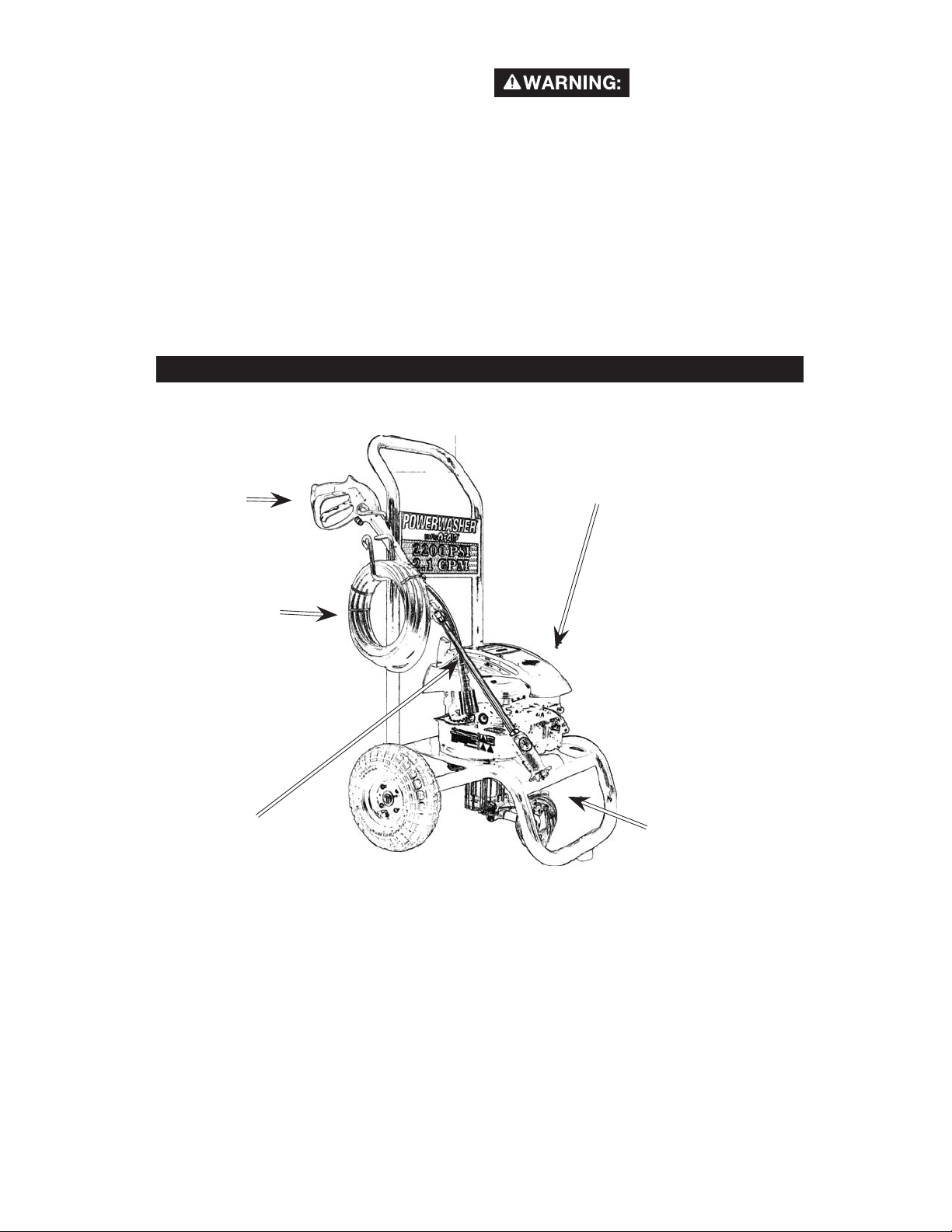

BASIC ELEMENTS OF A
PRESSURE WASHER
High Pressure Pump: Increases the
pressure of the water supply.
Engine: Drives the high pressure
pump. Refer to the engine manual
for location and operation of engine
controls.
High Pressure Hose: Carries the pres-
surized water from the pump to the
gun and spray wand.
Spray Gun: Connects with spray wand
to control water flow rate, direction,
and pressure.
Multi-Adjustable Spray Wand: Allows
the user to use high or low pressure and
adjusts from a pencil stream (0°) to a wide
angle fan spray (40°). See How To Use Wand
instructions in this section.
Chemical Hose (not shown): Feeds
cleaning agents into the pump to mix
with the water. See
How To Apply
Chemicals/Cleaning Solvents
instruc-
tions in this section.
10- ENG
PRESSURE WASHER OPERATING
FEATURES
Pressure Adjustments
The pressure setting is preset at the fac-
tory to achieve optimum pressure and
cleaning. If you need to lower the pres-
sure, it can be accomplished by these
methods.
1. Back away from the surface to
be cleaned. The further away you
are, the less the pressure will be on
the surface to be cleaned.
2. Rotate the nozzle at the end of
the multi-adjustable spray wand
to widen the fan spray.
The wider fan spray will minimize
the pressure on the surface to
be cleaned.
BASIC ELEMENTS OF AN
ENGINE
Refer to the engine manual for location
and operation of engine controls.
Choke Control: Opens and closes car-
buretor choke valve.
Starter Grip: Pulling starter grip oper-
ates recoil starter to crank engine.
Engine Switch: Enables and disables
ignition system.
PRESSURE WASHER
TERMINOLOGY
psi: Pounds per Square Inch. The unit
of measure for water pressure. Also
used for air pressure, hydraulic pres-
sure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied
by psi. GPM x psi = CU
Bypass Mode: Allows water to
re-circulate within pump when the gun
trigger is not pulled.
Allowing the unit to
run for more than
two minutes without the gun trigger
pulled could cause overheating and
damage to the pump.
Thermal Relief Valve (not shown)
When the temperature inside the
pump rises too high the valve will
open and release a gush of water in
an effort to lower the temperature
inside the pump. The valve will then
close.
Chemical Injection System: Mixes
cleaners or cleaning solvents with
the water to improve cleaning
effectiveness.
Water Supply: All pressure washers
must have a source of water. The min-
imum requirements for a water supply
are 20 psi and 5 gallons per minute.
11- ENG
Risk of fluid
injection. Do not
direct discharge stream toward
persons, unprotected skin, eyes or
any pets or animals. Serious injury
will occur.

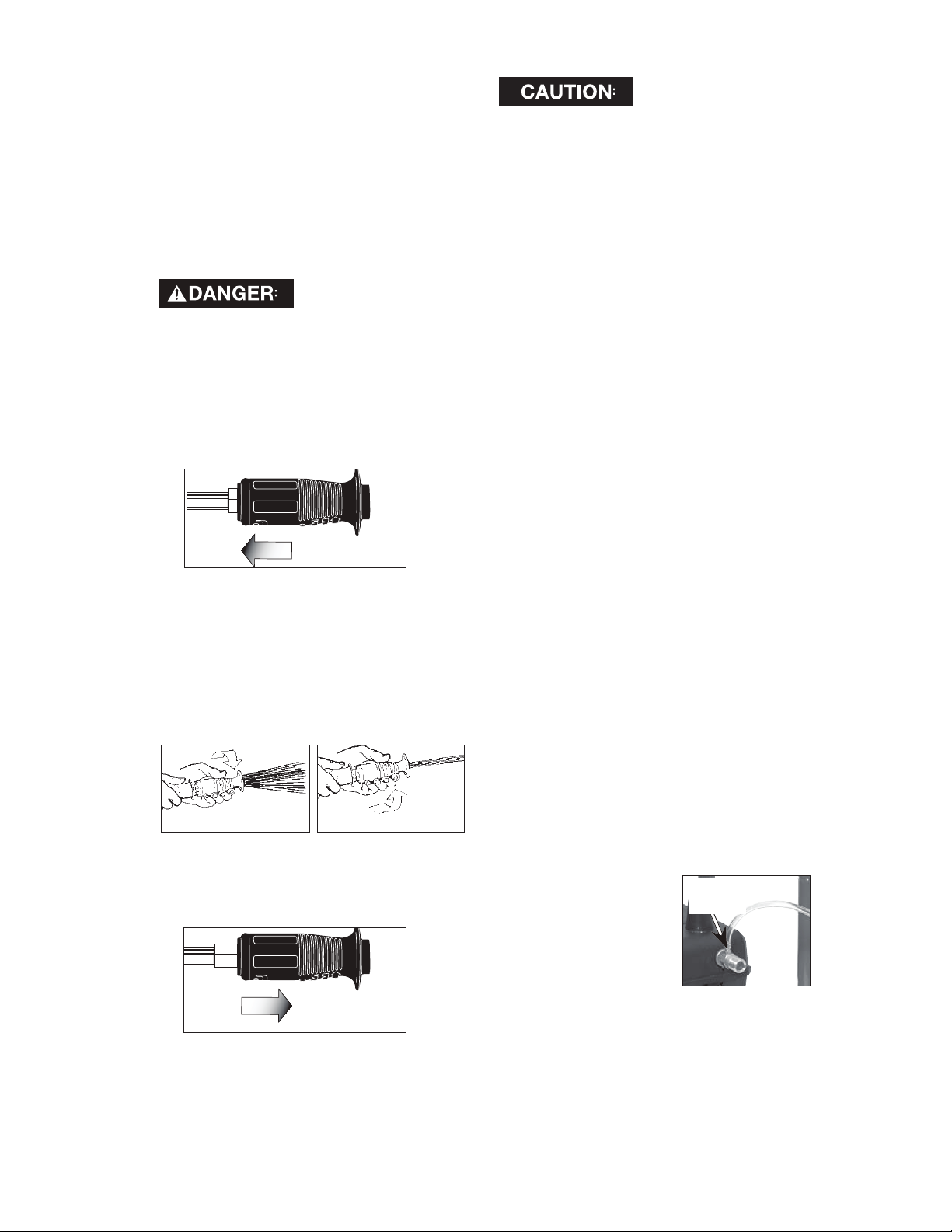

For high pressure operation, pull back
the nozzle of the multi-adjustable
spray wand as shown.
The nozzle at the end of the multi-
adjustable spray wand can be rotated
to change the high pressure spray
pattern from a 0º pencil stream to a
40º fan spray, as shown. Markings
have been placed on the nozzle to
help you select the spray pattern.
For low pressure operation, extend
the nozzle of the multi-adjustable
spray wand as shown.
The powerful
spray from your
pressure washer is capable of
causing damage to surfaces such
as wood, glass, automobile paint,
auto striping and trim, and delicate
objects such as flowers and shrubs.
Before spraying, check the item to
be cleaned to assure yourself that it
is strong enough to resist damage
from the force of the spray.
HOW TO USE SPRAY WAND
Your pressure washer is equipped
with a multi-adjustable spray wand
with both high and low pressure
settings. The high pressure setting
is for cleaning and rinsing, the low
pressure setting is for applying
chemicals or cleaning solutions to
surfaces.
How to Apply Chemicals/Cleaning
Solvents
Applying chemicals or cleaning sol-
vents is a low pressure operation.
NOTE: Use only soaps and chemicals
designed for pressure washer use. Do
not use bleach.
To Apply chemicals:
1. Press chemical Barbed
Fitting
hose onto
barbed fitting
located near high
pressure hose
connection of
pump as shown.
2. Place other end of chemical hose
with filter on it into container hold-
ing chemical/cleaning solution.
NOTE: For every 7 gallons of
water pumped 1 gallon of chemi-
cal/cleaning solution will be used.
12- ENG
3. Set multi-adjustable nozzle to
low pressure setting. See How
To Use Wand paragraph in this
section.
4. After use of chemicals, place
chemical hose into container of
clean water and draw clean water
through chemical injection
system to rinse system
thoroughly. If chemicals remain
in the pump it could be
damaged. Pumps damaged
due to chemicals will not be
covered under warranty.
NOTE: Chemicals and soaps will not
siphon when spray wand is used with
the red, yellow, or white nozzle. Only
use the black nozzle for chemicals
and soap application.
To reduce the risk of injury, read the pressure washer
instruction manual and the engine instruction manual
before starting pressure washer.
Risk of fluid injection and laceration. When using the
high-pressure setting, DO NOT allow the high-pressure
spray to come in contact with unprotected skin, eyes, or with any pets or
animals. Serious injury will occur.
• Your washer operates at fluid pressures and velocities high enough to penetrate
human and animal flesh, which could result in amputation or other serious injury.
Leaks caused by loose fittings or worn or damaged hoses can result in injection
injuries. DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a physician
immediately!
Risk of Fire, Asphyxiation and Burn. NEVER fill fuel tank when
engine is running or hot. Do not smoke when filling fuel tank.
• NEVERR fill fuel tank completely. Fill tank to 1/2" below bottom of filler neck to pro-
vide space for fuel expansion. Wipe any fuel spillage from engine and equipment
before starting engine.
• NEVERR run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust
contains carbon monoxide, an odorless and deadly gas.
• DO NOT let hoses come in contact with very hot engine muffler during or imme-
diately after use of your pressure washer. Damage to hoses from contact with hot
engine surfaces will NOT be covered by warranty.
Risk of property damage. Never pull water supply hose to
move pressure washer. This could damage hose and/or
pump inlet.
• DO NOT use hot water, use cold water only.
• NEVER turn water supply off while pressure washer engine is running or damage to
pump will result.
• DO NOT stop spraying water for more than two minutes at a time. Pump operates
in bypass mode when spray gun trigger is not pressed. If pump is left in bypass
mode for more than two minutes internal components of the pump can be dam-
aged.
If you do not understand these precautions, go to www.ronapw.ca to speak to a
service representative for further instructions.
13- ENG
STARTING
Prior to starting, refer to your engine
manual for proper starting procedure.
1. In a well ventilated outdoor
area add fresh, high quality,
unleaded gasoline with a pump
octane rating of 86 or higher. Do
not overfill. Wipe up spilled fuel
before starting the engine. Refer
to Engine Owners Manual for cor-
rect procedure.
2. Check engine oil level. See
Engine Owners Manual for correct
procedure.
3. Connect the water hose to the
water source.
Turn the water
source on to remove all air from
the hose. When a steady stream
of water is present, turn the water
source off.
4. Verify the Filter Screen
filter screen
is in water
inlet of pump.
5. Connect water source to pump
inlet. NOTE: Water source must
provide a minimum of 5 gallons
(18.9 liters) per minute at 20 PSI
(137.9 kPa).
To reduce the pos-
sibility of contami-
nation always protect against back-
flow when connected to a potable
water system.
6. Connect high pressure hose to
pump outlet.
High Pressure
hose hook-up
Water
Source
7. If applying a chemical or clean-
ing solution, see How To Apply
Chemicals/Cleaning Solvents
instructions in this section.
8. Turn water source on.
Risk of property
damage. Failure to
do so could cause damage to the
pump.
9. Remove all air from the pump
and high pressure hose by
depressing trigger until a steady
stream of water is present.
10. Start engine. See Engine Owners
Manual for correct procedure.
Risk of unsafe
operation. If engine
does not start after two pulls,
squeeze trigger of gun to relieve
pump pressure. Pull starter cord
slowly until resistance is felt. Then
pull cord rapidly to avoid kickback
and prevent hand or arm injury.
11. Depress trigger on gun to start
water flow.
Risk of unsafe
operation. Stand on
a stable surface and grip gun/spray
wand firmly with both hands. Expect
the gun to kick when triggered.
12. Release trigger to stop water
flow.
Risk of injury from
spray. Always
engage the trigger lock when gun
is not in use. Failure to do so could
cause accidental spraying.
Trigger Lock Engaged
13. Adjust nozzle spray for the task
being performed. See How To Use
Wand instructions in this section.
14- ENG
2. Turn engine off. See Engine
Owner's Manual.
Risk of property
damage. NEVER
turn the water off with the engine
running.
3. Turn water source off.
4. Pull trigger on spray gun to
relieve any water pressure in hose
or spray gun.
5. See Storage section in this man-
ual for proper storage procedures.
SHUTTING DOWN
1. After each use, if you have
applied chemicals, place chemical
hose into container of clean water
and draw clean water through
chemical injection system to rinse
system thoroughly.
Risk of property
damage. Failure to
do so could cause damage to the
pump.
Risk of burn haz-
ard. When per-
forming maintenance, you may be
exposed to hot surfaces, water
pressure or moving parts that can
cause serious injury or death.
Risk of fire hazard.
Always discon-
nect, spark plug wire, let the engine
cool and release all water pressure
before performing any maintenance
or repair. The engine contains flam-
mable fuel. Do not smoke or work
near open flames while performing
maintenance.
To ensure efficient operation and lon-
ger life of your pressure washer, a rou-
tine maintenance schedule should be
prepared and followed. If the pressure
washer is used in unusual conditions,
such as high-temperatures or dusty
conditions, more frequent maintenance
checks will be required.
ENGINE
Consult the Engine Owners Manual for
the manufacturer's recommendations
for any and all maintenance. NOTE:
The engine drain plug is located at the
rear of the unit.
PUMP
The pump on this unit is maintenance
free and requires no oil, if there is a
problem with the pump contact an
Authorized Service Center.

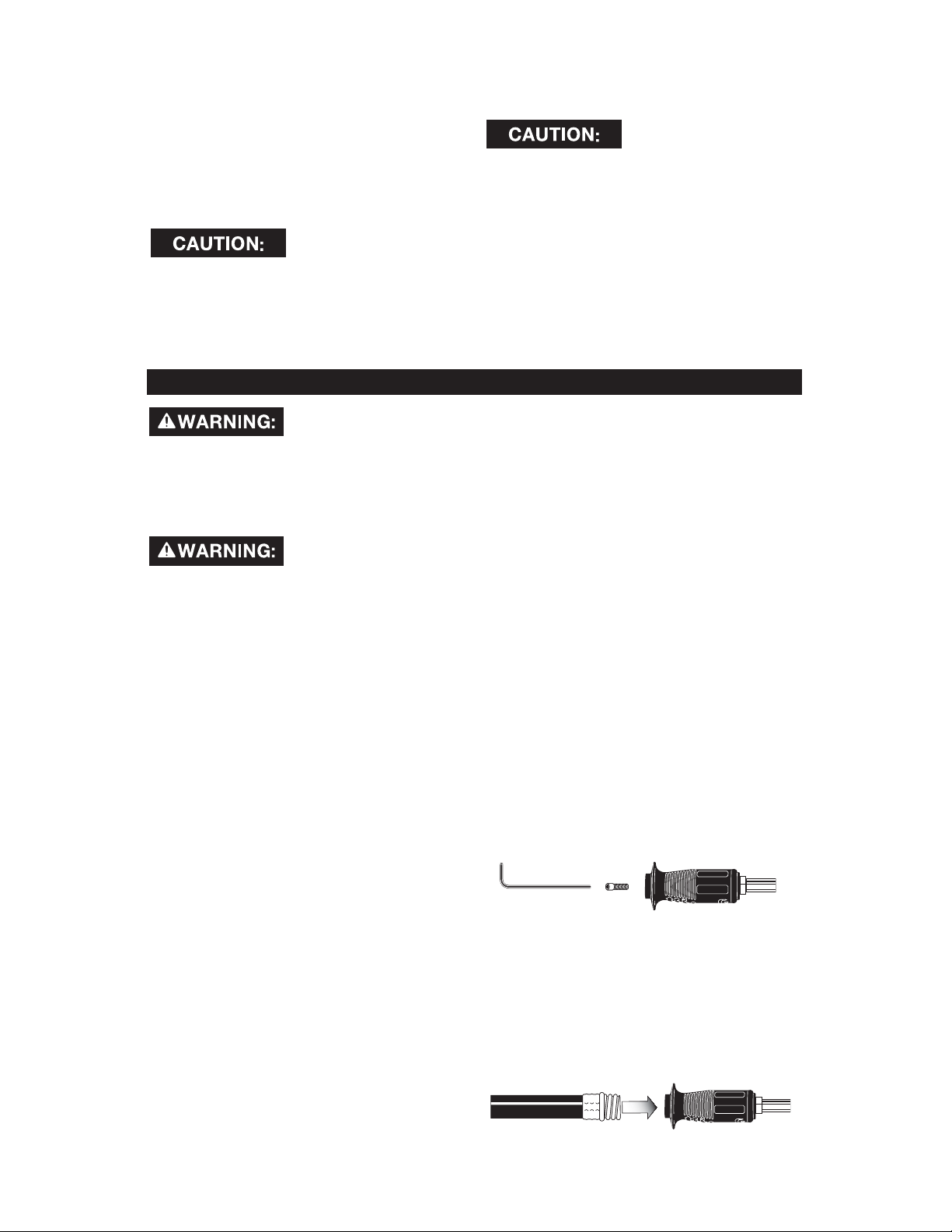

NOZZLE CLEANING
If the nozzle becomes clogged with
foreign materials, such as dirt, exces-
sive pressure may develop. If the
nozzle becomes partially clogged or
restricted, the pump pressure will pul-
sate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Disconnect spark plug wire to
ensure the unit will not start while
performing maintenance.
3. Pull trigger on gun handle to
relieve any water pressure.
4. Disconnect the wand from the
gun.
5. Remove the nozzle from the end
of the wand with a 2mm allen
wrench as shown.
6. Clean the nozzle using the nozzle
cleaner provided or a straightened
paper clip. Insert into the nozzle
end and work back and forth until
obstruction is removed.
7. Direct water supply into nozzle
end to backflush loosened
particles for 30 seconds.
8. Reconnect spark plug wire.
MAINTENANCE
15- ENG
ENGINE
Consult the Engine Owners Manual for
the manufacturer's recommendations
for storage.
PUMP
The manufacturer recommends using
a pump protector/winterizer when
storing the unit for more than 30 days
and/or when freezing temperatures
are expected. Pump protector/winter-
izer is available at the store where the
pressure washer was purchased. If a
pump protector/winterizer is not avail-
able, RV antifreeze needs to be run
through the pump as outlined in the
steps below.
NOTE: Using a pump protector/
winterizer or RV antifreeze is to pro-
vide proper lubrication to the internal
seals of the pump regardless of tem-
perature or environment.
1. Obtain a funnel, 6 oz. (170 mL)
of RV antifreeze and 16–36"
(40–91cm) of garden hose with a
male hose connector attached to
one end.
Risk of property
damage. Use only
RV antifreeze. Any other antifreeze
is corrosive and can damage pump.
2. Disconnect spark plug wire.
3. Connect length of garden hose to
water inlet of pump.
4. Add RV antifreeze to hose as
shown.
5. Pull engine starter rope slowly
several times until antifreeze
comes out of high-pressure hose
connection of pump.
6. Remove garden hose from water
inlet of pump.
7. Reconnect spark plug wire.
STORAGE
HOW TO CLEAN THE WATER
INLET FILTER
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove filter
by grasping
end and
removing it
from water
inlet of pump
as shown.
2. Clean filter by flushing it with
water on both sides.
3. Re-insert filter into water inlet of
pump.
NOTE: Do not operate pressure wash-
er without filter properly installed.
Filter Screen
16- ENG
AWSC = Authorized Warranty Service Center
PRESSURE WASHER
1. Drain all water from high pres-
sure hose, coil it, and store it
in cradle of the pressure washer
handle.
2. Drain all water from spray gun
and wand by holding spray gun in
a vertical position with nozzle end
pointing down and squeezing trig-
ger. Store in gun holder.
3. Store chemical hose so it is pro-
tected from damage.
TROUBLE SHOOTING GUIDE
PROBLEM CAUSE CORRECTION
Engine will
not start (see
Engine Manual
for further
engine
troubleshoot-
ing)
No fuel. Add Fuel.
Pressure builds up after two
pulls on the recoil starter or
after initial use.
Squeeze gun trigger to relieve
pressure.
Choke lever in the "No Choke"
position. Move choke to the "Choke"
position.
Spark plug wire not attached. Attach spark plug wire.
Engine switch in OFF
position. Place engine switch in on posi-
tion.
Choke lever in the "Choke"
position on a "hot" engine
or an engine that has been
exposed to thermal heat for a
long period of time.
Move choke to the "No Choke"
position.
No or low
pressure
(initial use)
Spray wand not in high pres-
sure. See How to Use Spray Wand
instructions in the Operation
Section.
Low water supply. Water supply must be at least
5 GPM @ 20 psi.
Leak at high pressure hose
fitting. Repair leak. Apply sealant tape
if necessary.
Nozzle obstructed. See Nozzle Cleaning instruc-
tions in the Maintenance sec-
tion.
Water filter screen clogged. Remove and clean filter.
17- ENG
PROBLEM CAUSE CORRECTION
No or low
pressure
INITIALUSE
Air in hose. Turn off the engine, then the
water source. Disconnect the
water source from the pump
inlet and turn the water source
on to remove all air from the
hose. When there is a steady
stream of water present, turn
water source off. Re-connect
water source to pump inlet and
turn on water source. Squeeze
trigger to remove remaining air
Choke in the “Choke” position. Move choke to the “No Choke”
position.
(IGHPRESSUREHOSEISTOO
long. Use high pressure hose under
FEETM
Will not draw
chemicals Spray wand not in low pres-
sure. 3EE(OWTOUse Spray Wand
paragraph in the Operation
Section.
Chemical filter clogged. Clean filter.
Chemical screen not in clean-
ing solution. Make sure end of chemical
hose is fully submerged into
cleaning solution.
Chemical too thick. Dilute chemical. Chemical
should be the same consistency
as water.
Pressure hose is too long Lengthen water supply hose
instead of high pressure hose.
Chemical build up in chemical
injector. (AVEPARTSCLEANEDORREPLACED
by AWSC.
No or low
pressure
AFTERPERIODOF
NORMALUSE
Worn seal or packing (AVEPARTSCLEANEDORREPLACED
by AWSC.
Worn or obstructed valves. (AVEPARTSCLEANEDORREPLACED
by AWSC.
Worn unloader piston. (AVEPARTSCLEANEDORREPLACED
by AWSC.
Water leaking
at gun/spray
wand connec-
tion
Worn or broken o-ring. Check and replace.
Loose hose connection. Tighten.
Water leaking
at pump Loose connections. Tighten.
Piston packings worn. (AVEPARTSCLEANEDORREPLACED
by AWSC.
Worn or broken o-rings. (AVEPARTSCLEANEDORREPLACED
by AWSC.
Pump head or tubes damaged
from freezing. (AVEPARTSCLEANEDORREPLACED
by AWSC.
Pump Pulsates Nozzle obstructed. See Nozzle Cleaning para-
graph in the Maintenance sec-
tion for the correct procedure.
AWSC = Authorized Warranty Service Center
18- ENG
REPAIRS
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjust-
ment should be performed by an Authorized Warranty Service Center. Always use
identical replacement parts. For the location of the nearest Authorized Warranty
Service Center go to www.ronapw.ca
ACCESSORIES
Recommended accessories for use with your pressure washer are available for
purchase from your local retailer or authorized service center. If you need assis-
tance in locating any accessory for your tool, please go to www.ronapw.ca
Risk of fluid injection. When using replacement lances or
guns with this pressure washer, DO NOT use a lance and/or lance/gun com-
bination that is shorter in length than what was provided with this pressure
washer as measured from the nozzle end of the lance to the gun trigger.
The use of any other accessory not recommended for use with
this tool could be hazardous. Use only accessories rated equal
to or greater than the rating of the pressure washer.
19- ENG
LIMITED WARRANTY
POWERWASHER
®
BY FAIP
®
WARRANTY TERMS AND CONDITIONS
90 DAY LIMITED WARRANTY ON PRODUCT COMPONENTS EXCLUDING PUMP
FAIP North America, Inc. warrants to the original purchaser that the wheels, gun, hose, wand,
spray nozzle(s) and other components of the Powerwasher
®
pressure washer covered under this
warranty are free from defects in material and workmanship for 90 days from the date of
purchase.
ONE YEAR LIMITED WARRANTY ON PUMP AND FRAME
FAIP North America, Inc. warrants to the original purchaser that the pump of the Powerwasher
®
pressure washer covered under this warranty is free from manufacturer’s defects in material and
workmanship for one year from the date of purchase. The one year limited warranty applies to the
pump and frame only.
FAIP North America, Inc. will repair or replace, at FAIP's option, products or components which
have failed within the above warranty periods. Service will be scheduled according to the normal
work flow and business hours at the service center location, and the availability of replacement
parts. All decisions of FAIP North America, Inc. with regard to this limited warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
ENGINE WARRANTY
The engine warranty is covered under the terms and conditions as outlined by the engine
manufacture’s warranty contained here in and is sole responsibility of the engine manufacturer.
RESPONSIBILITY OF ORIGINAL PURCHASER (Initial User):
• To process a warranty claim on your Powerwasher
®
pressure washer, report the concern to
www.ronapw.ca
for authorization and direction to the nearest authorized service centre in
your area.
• Retain original cash register sales receipt as proof of purchase for warranty work.
• Use reasonable care in the operation and maintenance of the product as described in the
Owners Manual(s).
THIS WARRANTY DOES NOT COVER:
• Merchandise sold as reconditioned, used as rental equipment, or floor or display
models.
• Merchandise that has become damaged or inoperative because of ordinary wear, misuse,
cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals, negligence,
accident, failure to operate the product in accordance with the instructions provided in the
Owners Manual(s) supplied with the product, improper maintenance, the use of accessories
or attachments not recommended by FAIP North America, Inc., or unauthorized repair or
alterations.
• Repair and transportation costs of merchandise determined not to be defective.
• Costs associated with assembly, required oil, adjustments or other installation and start-up
costs.
• Expendable parts or accessories supplied with the product which are expected to become
inoperative or unusable after a reasonable period of use, including but not limited to springs,
nozzles,o-rings,washers,andsimilaraccessories.
• Merchandise sold by FAIP North America, Inc. which has been manufactured by and
identified as the product of another company, such as gasoline engines. The product
manufacturer’s warranty, if any, will apply.
•ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE
THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE
PRODUCT IS NOT COVERED BY THIS WARRANTY. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
xIMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF
ORIGINAL PURCHASE. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitations may not apply to you.
20- FR
MESURES DE SÉCURITÉ - DÉFINITIONS
Ce guide contient des renseignements importants que vous deviez bien saisir.
Cette information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE
PROBLÈMES D'ÉQUIPEMENT. Afin de vous aider à identifier cette information,
nous avons utilisé les symboles ci-dessous. Veuillez lire attentivement ce guide en
portant une attention particulière à ces symboles.
Indique une situation
dangereuse imminente
qui, si elle n’est pas évitée, causera la
mort ou des blessures graves.
Indique une situ-
ation potentielle-
ment dangereuse qui, si elle n’est pas
évitée, peut causer des blessures
mineures ou modérées.
Indique une
situation
potentiellement dangereuse qui, si elle
n’est pas évitée, pourrait causer la
mort ou des blessures graves.
Utilisé sans le sym-
bole d’alerte de
sécurité, indique une situation poten-
tiellement dangereuse qui, si elle n’est
pas évitée, peut se solder par des
dommages à la propriété.
RENSEIGNEMENTS SUR LA SÉCURITÉ DU CONSOMMATEUR
Il se peut que ce produit ne soit pas équipé d'un
silencieux à pare-étincelles. Si le produit n'en est pas
équipé, et s'il est utilisé près de matériaux inflammables ou sur de la terre
couverte de produits agricoles, forêts, broussailles, gazon ou autres articles
semblables, un pare-étincelles approuvé doit être posé, et est exigé par la
loi en Californie. Selon la section 130050 de la loi de la Californie, et les sec-
tions 4442 et 4443 du Code sur les ressources publiques de la Californie, ce
produit ne peut pas être utilisé en Californie, à moins que le moteur ne soit
équipé d'un pare-étincelles, tel que décrit dans la section 4442, et à moins
que l'appareil ne soit maintenu en bon état de fonctionnement. Des pare-
étincelles sont également requis sur certaines terres forestières des États-
Unis et peuvent être exigés légalement sous certains autres lois et arrêtés.
Ce produit contient des produits chimiques, reconnus
par l'État de la Californie comme étant cancérigènes
et pouvant entraîner des anomalies congénitales et d'autres dangers relatifs
à la reproduction. Se laver les mains après la manipulation de l'appareil.
MESURES DE SÉCURITÉ IMPORTANTES
N'utilisez pas cet appareil avant d'avoir lu et com-
pris les instructions sur la sécurité, l'utilisation et
l'entretien de ce Guide de l'utilisateur et du Guide du propriétaire du moteur.
This manual suits for next models
1
Table of contents
Languages:
Other FAIP Pressure Washer manuals
Popular Pressure Washer manuals by other brands
SNOWJOE
SNOWJOE SUNJOE SPX2598P-MAX Operator's manual
Generac Portable Products
Generac Portable Products 1295-0 owner's manual
Clear Force
Clear Force CF1400HD operating manual
Kärcher
Kärcher G 2600 VH Operator's manual
BE
BE HW204EMD Operation manual
Kärcher
Kärcher K 5 Premium Full Control Plus instruction manual
Parkside
Parkside IDROPULITRICE PHD 150 A1 translation of original operation manual
PowerWasher
PowerWasher PW1350 Operator's manual
Craftsman
Craftsman 021022 Quick start-up
Mi-T-M
Mi-T-M CD-1502-3MUH1 Operator's manual
Kärcher
Kärcher K 270 M user guide
Westfalia
Westfalia Garten Meister ADHL18 instruction manual
