FAIRLINE FHR 216 User manual

中文 3
English 8
59636950-03-10

2

中文 3
在您第一次使用您的设备前，请
先阅读并遵守本操作说明书原
件，为日后使用或其他所有者使用方便请
妥善保管本说明书。
本高压清洁器只限私人居家日用：
–使用高压喷水清洁机器、汽车、建筑
物、工具、墙面、露台、园林工具等
（需要时加清洁剂）。
包装材料可以回收利用。请不要把包
装材料与普通垃圾放在一起处理，而
应妥善安排回收。
旧的设备中含有宝贵的可再利用的材
料，应加以回收利用。请通过适当的
收集系统处理您的旧设备。
本机适用法律规定的质保。
一旦发现故障即行申报投诉。
如系购机人或他人造成，则取消质保要求。
如系处理或操作不当、错误放置或保存、
连接或安装不当以及因较强外力或其它外
部影响所产生的损坏，一概不在质保范围
之内。建议细心阅读操作说明书，因为其
中包含了各项重要提示。
购机人在提出质保要求时应提供购机发票。
提示：
Î一旦机器不能正常工作，首先请检查是
否由其它原因造成，如断电或使用不当。
Î注意一旦机器发生故障，则无论如何请
附上或准备好下列资料：
–购机发票
–机器名称 / 型号 / 品牌
–在描述所产生的故障时尽最大可能准确
说明故障。
如要提出质保要求或一旦产生故障，请本
人联系购机商店。
不恰当的使用高压软管可能导
致危险。喷射时请勿喷向人
员、动物、运作时的电机产品
或本产品。
 危险
即刻引发威胁的危险，致使身体严重伤害
或死亡。
몇 警告
潜藏的危险情况，可能致使身体严重伤害
或死亡。
注意
潜藏的危险情况，可能致使身体轻微伤害
或损伤。
 危险
 请勿用湿手接触插头和插座。
 请勿使用损伤的电源线和重要部件
（例：高压软管、喷射装置、安全装置
等）。
 每次运行前都要确认插头和电源线是否
有损坏。若存在损坏的电源线应立即让
已授权的客户服务处 / 电气专业人员进
行更换。
 使用前确认高压软管是否损伤。损伤的
高压软管应立即更换。
 禁止在存在爆炸危险的空间内运行本设
备。
 在危险区域 （如：加油站）使用设备时
应遵守相关的安全规定。
目录
设备图 2
一般事项 3
安全操作说明 3
运行 5
运输 6
保管 6
维修与维护 6
故障帮助 7
产品规格 / 参数 7
一般事项
按规定使用
环境保护
质保
设备上的符号
说明书中的符号
安全操作说明

4 中文

高压喷枪使用不当，会带来危险。 不能
对准人、动物、电器设备或者设备自身
喷射。
 清洗服装或鞋子时请勿喷向其他人或自
身。
 请勿喷向可能影响健康的危险物质
（例：石棉）或物体。
 车轮或轮胎气门被高压喷射时可能会因
损伤而破裂。相关此类事项首次发生的
状态为轮胎褪色。损伤的轮胎 / 轮胎气
门是致命的。清洗时请保持最小 30 厘
米的喷射距离！
 爆炸危险！
不得喷射可燃液体。
任何溶解性液体或没稀释的酸性物质和
溶解剂不允许吸取！这些物质包括汽
油、涂料稀释剂或燃料。这些物质的喷
雾存在可燃性、爆炸性和毒性特质。请
勿使用与丙酮没有稀释的酸性物质及溶
解剂，因为可能造成本设备的损伤。
몇 警告
 电源延长线的插头和结合装置应当防
水，勿浸入水中。
 不适合的电源延长线可能产生危险。仅
使用与本设备使用目的相符的带有电源
线规格标识的室外用电源延长线。1 -
10 m: 1,5 mm
2
; 10 - 30 m:2,5 mm
2
 始终充分松弛电缆卷筒的延长线。
 高压水管及其接头等附件对清洗机安全
很重要。仅使用由制造公司推荐的高压
水管及其接头等配件。
 必须确定设备不能由身体能力有限、感
官能力弱或理解能力差的人员操作。
儿童或未经指导的人员都不准操作本设
备。
应照看好儿童，以确保他们不用设备玩
耍。
 让儿童远离包装薄膜，否则会有窒息危
险！
 本设备应使用制造公司供给或推荐的洗
涤剂。使用其他的洗涤剂或化学产品可
能影响到本设备的安全性。
 操作人员应按照规定适当地使用本设
备。同时要重视地区情况并在设备工作
时严密注意周边人员。
 在其他人员可能达到的距离内请勿使用
本设备，除非配着防护服。
 逆喷射以前为了防水或灰尘应配着适当
的防护服和防护镜。
注意
 若工间休息比较长，关闭设备总开关 /
设备开关或拔下电源插头。
 该设备在 0 °C 以下不可驱动。
 为了清洗已涂装表面的喷射时，保持最
小 30 厘米的喷射距离且不会在涂装表
面上造成损伤。
 设备运行中绝对不允许疏忽大意。
 需要注意的是，不得碾压、压挤、拖拽
或通过诸如此类的行为而损坏电源连接
线或延长线缆。避免热源、油或者锋锐
的刀刃从而保护电源线。
 在设备运行中产生电流的所有部分应严
防喷水。
 本设备只能根据 IEC 60364 规定，由电
工连接到电气接口。
 本设备仅用于交流电源。使用电压应与
本设备类型标识相一致。
 本着安全的原则，我们公司推荐本设备
应通过故障电流安全开关 （最大电流为
30 毫安）而使用。
 产生含有油成分废水的清洗作业 （发动
机 / 车体底部清洗作业等）应只使用配
备油分离器的清洗设备。
注意
安全装置就是为了保护使用者，因此不允
许随意改造或重组。
设备开关是防止设备偶然的运作。
水枪板手安全栓于锁紧状态防止设备偶然
的开始运作。
溢流阀阻碍压力超过允许的工作压力。
当松开手持喷枪的控制杆，压力开关关闭
泵，高压喷射停止。拉上该杆，泵又被开
启。
注意
用设备或在设备上进行任何作业前要先确
保设备的稳定性 , 以避免事故或故障发生 .
–当设备置放在平坦地面上，其稳定性得
以保障。
安全装置
设备开关
水枪板手安全栓
带压力开关的溢流阀
稳定性的必要条件

中文 5
在打开产品包装的同时，请确认设备附件
没有缺失，箱内物品没有损坏。如果您发
现运输途中造成损坏，请联系经销商。

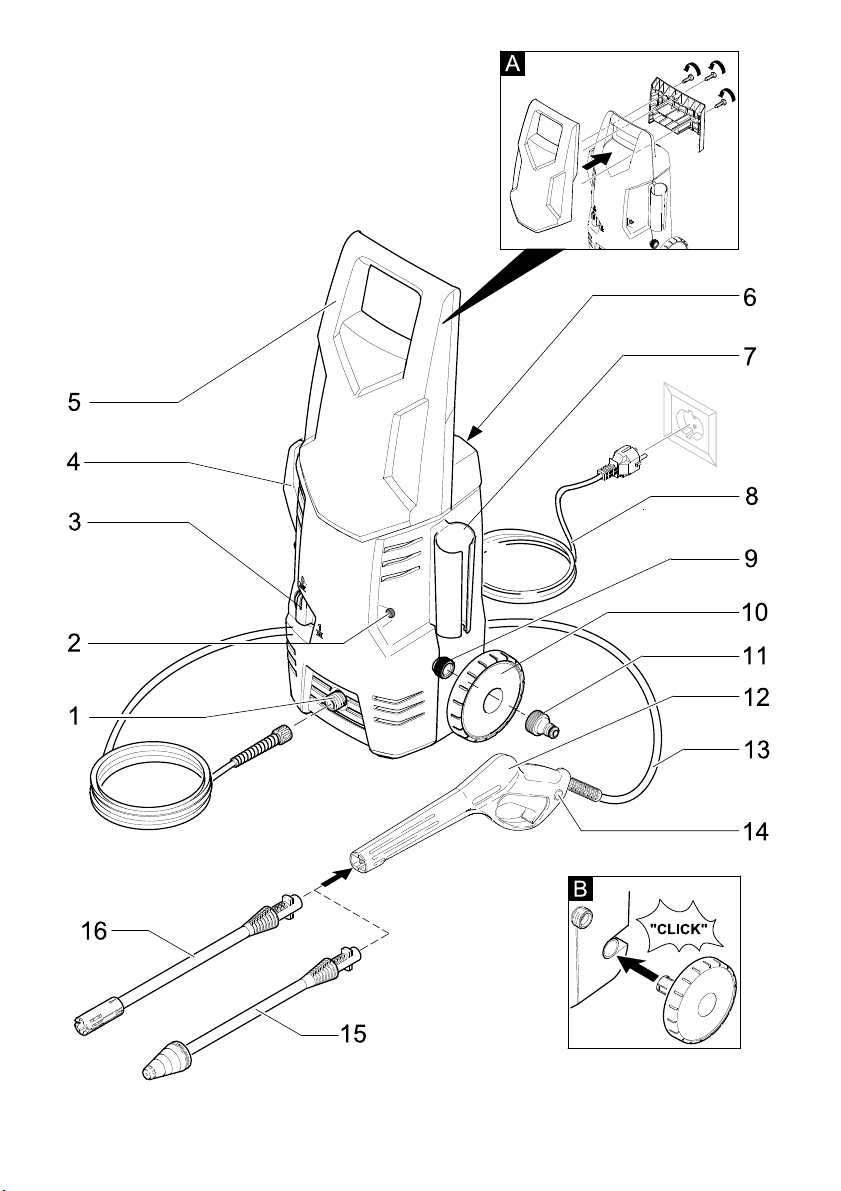

图片参见第 2 页
1 高压接口
2 洗涤剂吸取软管 （过滤器）
3 产品开关 “0/OFF” / “I/ON”
4 电源线存储架
5 便携式手柄
6 喷头存储架
7 喷枪存储架
8 连接线 / 插头
9 带滤网的水接口
10 轮子
11 管接头
12 手持喷枪
13 高压软管
14 喷枪扳手安全栓
15 除却杂质喷头
16 2 分支喷头
运作前将松弛的部件结合到设备。
图片参见第 2 页
图
Î插入便携式手柄并紧固。
图
Î插入运输轮并锁紧。
根据有效的使用说明规定，该设备
在没有系统分离器的情况下不能在
饮用水网上使用。应根据 EN 12729
规定，使用合适的 BA 型系统分离器。流经
系统分离器的水视为非饮用水。
注意
系统分离器只连接在供水管上，从不要直
接连接在机器上！
重视水供给的注意事项。
连接参数详见类型规格标识 / 产品参数。
Î使用具备标准结合装置的强化型水软管
（不配备）。（直径最小 1/2 英寸或最小
13 毫米；长度最短为 7.5 米）
Î将结合装置 （配备）连接至供水位置。
Î将供水软管固定至结合装置后连接供水
系统。
注意
进水中如有污物，则务必使用 3/4'' 细的
水过滤器。
注意
干运转 （不加润滑油）2 分钟以上会导致
高压泵损坏。设备 2 分钟内没有压力形成，
关闭设备并按照 “故障帮助”一章内的提
示进行操作。
Î将高压软管连接至设备高压软管部位。
Î将喷头置入喷枪后成 90°旋转固定。
Î完全打开水龙头。
Î插上电源插头。
Î将设备设定为 “I/ON”。
몇 危险
自高压喷头喷水会带给喷枪逆冲击。为安
全起见，请握紧喷枪和喷头。
Î松开水枪扳手安全栓。
Î拉水枪扳手启动设备。
注意：松开水枪扳手停止设备。 高压残留
于系统内。
低压平喷嘴
低压或使用洗涤剂进行清洁
高压平喷嘴
用于大面积的污染
Î松开手持喷枪的手柄，以便选择水束类
型，将喷头转到与喷水管上标记相一致
的符号上。工作中该标记必须朝上。
适用于含难处理杂质的清洗作业。
不适合于用洗涤剂的清洗作业。
运行
设备说明
设备运作前
水供给
来自水管的水供给
调试设备
设备运作
带双喷嘴的喷射管
除却杂质喷头

6 中文
Î自机壳内拉出所需长度的洗涤剂吸取软
管。
Î在洗涤溶液筒中悬挂吸取软管。
Î在干燥的表面上少量喷射洗涤剂，（在
不干透的情况下）发生反应。
Î利用高压喷射方式刷洗被溶解的杂质。
Î松开水枪扳手。
Î锁住水枪扳手。
Î如，长时间 （5 分钟以上）运作中断
时，将设备开关设定为 “0/OFF”。
Î使用洗涤剂清洗作业后，在干净水的桶
中悬挂吸取软管，约 1 分钟刷洗拔除喷
头后运作状态下的装置。
Î松开水枪扳手。
Î将设备设定为关闭 “0/OFF”。
Î关闭水龙头。
Î自供水处分离设备。
Î按压水枪扳手以除去在设备系统中残留
的压力。
Î锁住水枪扳手。
Î取下插头。
Î妥善保管电源线、高压软管及设备附属
品等。
注意
为了避免事故和伤害，搬运时要注意设备
的重量 （参见技术参数）。
Î握住运输手柄拖动设备。
Î确保设备不会滑倒和倾覆。
注意
为了避免事故和伤害，选择存放地点时要
考虑到设备的重量 （参见技术参数）。
长期存放之前，如在冬季特别要注意维护
一章的提示。
Î设备置放在平坦地面上。
Î在喷枪指示插入喷枪。
Î妥善保管电源线、高压软管及设备附属
品等。
注意
设备和附属品的防霜。
在水没有完全排空的情况下，设备和附属
品或许会因含霜而破损。防止损伤：
Î完全排空设备内的水：打开不带高压软
管和供水连接装置的设备 （最大 1 分
钟），等待直至无水从高压连接部位出
来时。关闭设备。
Î完全配备附属品的设备应在防霜的室内
保管。
 危险
在对设备进行维修与维护之前，必须关闭
设备并拔下电源插头。
冬季等长时间保管前：
Î从洗涤剂吸取软管分离过滤器后用水清
洗。
Î用扁嘴钳分离微细过滤器后用水清洗。
免费提供设备维修
请只使用原配备件。本操作说明书后面附
有一份备件目录。
使用洗涤剂的清洗作业
推荐的清洗方法
设备运作中断
设备结束操作
运输
手动搬运
车辆运输
保管
设备保管
防霜
维修与维护
维护
维护
备件

中文 7
参考下记的帮助事项可处理很多故障。
存在疑问时请联系本公司认可的客户服务
部。
 危险
在对设备进行维修与维护之前，必须关闭
设备并拔下电源插头。
维修作业和相关电机附件的作业仅应在本
公司认可的客户维修部。
Î拉动手持喷枪的控制杆，设备接通。
Î检查电源电压必须跟型号标识上给出的
电压一致。
Î检查电源线是否损伤。
Î设备放气：不连接高压软管接通设备并
等待 （最多 2 分钟），直至流出高压接
口的水没有气泡产生。关闭设备并重新
连接上高压软管。
Î检查供水连接系统。
Î用扁嘴钳分离微细过滤器后用水清洗。
Î高压清洗：用针除去喷头孔处的杂物，
在前面用水清洗。
Î检查供水连接系统。
Î在技术方面可能存在高压泵少许漏水的
情况。漏水量较大时请联系本公司认可
的客户服务部。
Î检查喷头的设定状态。
Î清洗洗涤剂吸取软管的过滤网。
Î检查洗涤剂吸取软管是否扭曲。
技术参数可能会有变化！
故障帮助
设备不运作
设备压力不足
强大的压力变化
设备漏水
洗涤剂不被吸取
产品规格 / 参数
电气接口
电压 220-240
1~50/60
V
Hz
消耗电流 6 A
保护程度 IP X5
保护等级 II
保险丝 （缓熔型） 10 A
水接口
流入温度 （最大） 40 °C
流入量 （最小） 8 升 / 分
流入压力 0,2-1,2 MPa
功率参数
工作压力 8 MPa
最大允许压力 10 MPa
注水比例 5,25 升/分
注入洗涤剂比例 0,4 升 / 分
喷枪逆喷射能力 10 N
音力水准 LWA (2000/14/EG) 92 A 级分贝
尺寸和重量
长度 229 毫米
宽度 314 毫米
高度 747 毫米
重量 5,5 千克

8 English
Please read and comply with
these original instructions prior
to the initial operation of your appliance and
store them for later use or subsequent own-
ers.
This high-pressure cleaner is designed for
domestic use only:
– to clean machines, vehicles, buildings,
tools, facades, terraces, garden equip-
ment etc. using a high-pressure water
jet (and detergents if required).
The packaging material can be recy-
cled. Please do not place the packag-
ing into the ordinary refuse for disposal, but
arrange for the proper recycling.
Old appliances contain valuable ma-
terials that can be recycled. Please
arrange for the proper recycling of old
appliances. Please dispose your old appli-
ances using appropriate collection sys-
tems.
The statutory guarantee applies to this ap-
pliance.
Defects must be reported as soon as they
are located.
The guarantee is void if the buyer or a third
party has tampered with the appliance.
Damage caused by improper use, incorrect
positioning or storage, by improper connec-
tion or installation or by a force majeure or
other external influences is not covered by
the guarantee. We recommend that you
read the instructions for use carefully as
these contain important information.
The validity of the buyer’s guarantee must
be demonstrated by production of the proof
of purchase.
Notes:
ÎIf your appliance should cease to oper-
ate correctly, first check whether this is
due to other causes such as an inter-
ruption to the power supply or incorrect
operation.
ÎPlease ensure that you enclose the fol-
lowing documents with your defective
appliance, or keep them to hand:
– Proof of purchase
– Appliance name/ type / brand
– Description of the defect that has oc-
curred, detailing the error as precisely
as possible.
In guarantee cases or faults, please con-
tact your retailer.
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
Contents
Illustration of appliance 2
General information 8
Safety instructions 9
Operation 11
Transport 12
Storage 13
Maintenance and care 13
Troubleshooting 14
Technical specifications 14
General information
Proper use
Environmental protection
Guarantee
Symbols in the operating
instructions

English 9
Danger
Never touch the mains plug and the
socket with wet hands.
The appliance must not be used if the
power cord or important parts of the ap-
pliance, e.g. high-pressure hoses, trig-
ger gun or safety devices are damaged.
Check the power cord and mains plug
for damage before every use. If the
power cord is damaged, please arrange
for it to be replaced immediately by an
authorised repair agent or a skilled
electrician
Check the high-pressure hose for dam-
age before every use. Please arrange
for the immediate replacement of a
damaged high-pressure hose.
The appliance may not be used in areas
where a risk of explosion is present.
If the appliance is used in hazardous ar-
eas (e.g. filling stations) the corre-
sponding safety provisions must be
observed.
High-pressure jets can be dangerous if
improperly used. The jet must not be di-
rected at persons, animals, live electri-
cal equipment or at the appliance itself.
The high-pressure jet must not be di-
rected at other persons or directed by
the user at him/herself to clean clothing
or footwear.
Never use the appliance to clean ob-
jects containing hazardous substances
(e.g. asbestos).
Vehicle tyres or tyre valves are suscep-
tible to damage from the high-pressure
jet and may burst. The first indication of
this is a discolouration of the tyre. Dam-
aged vehicle tyres/tyre valves are high-
ly dangerous. Ensure that a distance of
at least 30 cm is observed when clean-
ing with the jet!
Risk of explosion!
Do not spray flammable liquids.
Never draw in fluids containing solvents
or undiluted acids and solvents! This in-
cludes petrol, paint thinner and heating
oil. The spray mist thus generated is
highly inflammable, explosive and poi-
sonous. Do not use acetone, undiluted
acids and solvents as they are damag-
ing to the materials from which the ap-
pliance is made.
몇Warning
The mains plug and the coupling of an
extension cable must be watertight and
must never lay in the water.
Unsuitable extension cables can be
hazardous. Only use extension cables
outdoors which have been approved for
this purpose and labelled with a suffi-
cient cable cross-section:
1 - 10 m: 1.5 mm2; 10 - 30 m: 2.5 mm2
Always fully unroll electrical cables from
the cable drum.
High-pressure hoses, fixtures and cou-
plings are important for the safety of the
appliance. Only use high-pressure hos-
es, fixtures and couplings recommend-
ed by the manufacturer.
This appliance is not intended for use
by persons with reduced physical, sen-
sory or mental capabilities.
The appliance must not be operated by
children or persons who have not been
instructed accordingly.
Children should be supervised to pre-
vent them from playing with the appli-
ance.
Keep packaging film away from children
- risk of suffocation!
This appliance was designed to be
used with detergents which are sup-
plied or recommended by the manufac-
turer. The use of other detergents or
chemicals may compromise the safety
of the appliance.
The operator must use the appliance
correctly. When working with the appli-
ance, he must consider the local condi-
tions and pay due care and attention to
other persons, in particular children,
who are nearby.
Do not use the appliance when there
are other persons around unless they
are also wearing safety equipment.
Safety instructions

10 English
Wear protective clothing and safety
goggles to protect against splash back
containing water or dirt.
Caution
In case of extended downtimes, switch
the appliance off at the main switch / ap-
pliance switch or remove the mains
plug.
Do not operate the appliance at temper-
atures below 0 °C.
Observe a distance of at least 30 cm
when using the jet to clean painted sur-
faces to avoid damaging paintwork.
Never leave the appliance unattended
when it is in operation.
Make sure that the power cable or ex-
tension cables are not damaged by run-
ning over, pinching, dragging or similar.
Protect the power cable from heat, oil,
and sharp edges.
All current-conducting parts in the work-
ing area must be protected against jet
water.
The appliance may only be connected
to an electrical supply which has been
installed in accordance with IEC 60364.
The appliance may only be connected
to alternating current. The voltage must
correspond with the type plate on the
appliance.
For safety reasons, we recommend that
you operate the appliance only via a
earth-leakage circuit breaker (max.
30 mA).
Cleaning operations which produce oily
waste water, e.g. engine washes, un-
derbody washes, may only be carried
out using washing stations equipped
with an oil separator.
High-pressure jets can be dan-
gerous if improperly used. The
jet must not be directed at per-
sons, animals, live electrical
equipment or at the appliance
itself.
Caution
Safety devices protect the user and must
not be modified or bypassed.
The appliance switch prevents unintention-
al operation of the appliance.
This lock locks the lever of the trigger gun
and prevents the inadvertent start of the ap-
pliance.
The overflow valve prevents the permissi-
ble working pressure from being exceeded.
If the lever on the trigger gun is released
the pressure switch turns off the pump, the
high-pressure jet is stopped. If the lever is
pulled the pump is turned on again.
Caution
Create stability for the appliance prior to all
work on or with the appliance to prevent ac-
cidents or damage.
– The stability of the appliance is warrant-
ed when it is placed onto an even sur-
face.
Symbols on the machine
Safety Devices
Power switch
Lock trigger gun
Overflow valve with pressure switch
Prerequisites for the appliance's
stability

English 11
When unpacking the product, make sure
that no accessories are missing and that
none of the package contents have been
damaged. If you detect any transport dam-
ages please contact your dealer.
Illustrations on Page 2
1 High pressure connection
2 Detergent suction hose (with filter)
3 Appliance switch "0/OFF“/ „I/ON“
4 Storage for mains connection cable
5 Transport handle
6 Storage for spray lance
7 Storage for trigger gun
8 Mains cable with mains plug
9 Connection for water supply with filter
10 Bearing wheel
11 Coupling element for water connection
12 Trigger gun
13 High pressure hose
14 Lock trigger gun
15 Spray lance with Dirtblaster
16 Spray lance with 2-way nozzle
Mount loose parts delivered with appliance
prior to start-up.
Illustrations on Page 2
Illustration
ÎInsert the transport handle and screw
in.
Illustration
ÎInsert the transport wheels and lock
them.
According to the applicable regula-
tions, the appliance must never be
used on the drinking water net with-
out a system separator. Use a suitable sys-
tem separator as per EN 12729 type BA.
Water flowing through a system separator
is considered non-drinkable.
Caution
Always connect the system separator to
the water supply, never directly to the appli-
ance!
Observe regulations of water supplier.
For connection values, see type plate/tech-
nical data.
ÎUse a fibre-reinforced water hose (not
included) with a standard coupling.
(Minimum diameter 1/2 inch (13 mm),
minimum length 7.5 m).
ÎScrew the coupling element (supplied)
to the water connection on the appli-
ance.
ÎPush the water supply hose onto the
coupling unit, then connect it to the wa-
ter supply.
Caution
In case of impurities in the supply water, a
3/4" fine water filter must be used.
Caution
Dry runs lasting longer than two minutes
lead to damages to the high pressure
pump. If the appliance does not build up
pressure within two minutes, switch it off
and proceed as instructed in the Chapter
"Troubleshooting".
ÎConnect the high pressure hose to the
high pressure connection of the appli-
ance.
ÎPush the spray lance into the trigger
gun and fasten it by turning it through
90°.
ÎCompletely open the water tap.
ÎInsert the mains plug into the socket.
ÎTurn on the appliance “I/ON”.
Operation
Description of the Appliance
Before Startup
Water supply
Water supply from mains
Start up

12 English
몇Danger
The trigger gun is subjected to a recoil force
when the water jet is discharged. Make
sure that you have a firm footing and are
also holding the trigger gun and spray lance
firmly.
ÎUnlock the lever on the trigger gun.
ÎPull on the lever of the trigger gun; the
device will switch on.
Note: Release the lever of the trigger gun;
the device will switch off again. High pres-
sure remains in the system.
Low-pressure flat jet
for low-pressure cleaning or for opera-
tion with detergents
High-pressure flat jet
for large areas of dirt
ÎSelect spray type: Release the lever on
the trigger gun and rotate the nozzle
head until the symbol corresponds with
the marking on the spray lance. During
operation, this marking must be facing
upwards.
For particularly dirty items or areas.
Not suitable for use with detergents.
ÎPull detergent suction hose as far as is
required out of the housing.
ÎSuspend end of detergent suction hose
in a container filled with detergent.
ÎSpray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
ÎSpray off loosened dirt with the high-
pressure jet.
ÎRelease the lever on the trigger gun.
ÎLock the lever on the trigger gun.
ÎDuring longer breaks (more than 5 min-
utes), also turn the appliance off using
the "0/OFF" switch.
ÎAfter working with detergent, suspend
detergent suction hose in a container
filled with clear water, switch the appli-
ance on for around 1 minute once the
spray lance has been removed and
rinse until water runs clear.
ÎRelease the lever on the trigger gun.
ÎTurn off the appliance "0/OFF".
ÎTurn off tap.
ÎDetach the appliance from the water
supply.
ÎPress the lever on the trigger gun to re-
lease any remaining pressure in the
system.
ÎLock the lever on the trigger gun.
ÎPull out the mains plug.
ÎStow away the mains cable, the high-
pressure hose and accessory at the ap-
pliance.
Caution
In order to prevent accidents or injuries,
keep in mind the weight of the appliance
during transport (see Specifications).
ÎPull the appliance by its transport han-
dle.
ÎSecure the appliance against shifting
and tipping over.
Operation
Spray lance with 2-way nozzle
Spray lance with Dirtblaster
Working with detergent
Recommended cleaning method
Interrupting operation
Finish operation
Transport
When transporting by hand
When transporting in vehicles

English 13
Caution
In order to prevent accidents or injuries,
keep in mind the weight of the appliance
when selecting a storage location for it (see
Specifications).
Prior to extended storage periods, as dur-
ing the winter, also observe the instructions
in the Care section.
ÎPark the machine on an even surface.
ÎInsert the trigger gun in its holder.
ÎStow away the mains cable, the high-
pressure hose and accessory at the ap-
pliance.
Caution
Protect the appliance and its accessories
against frost.
The appliance and its accessories can get
destroyed through frost if there are any wa-
ter residues in them. To avoid damage to
them:
ÎCompletely drain all water from the ap-
pliance: Switch the appliance on with
detached high-pressure hose and de-
tached water supply (max. 1 minute)
and wait, until no more water exits at the
high-pressure connection. Turn off the
appliance.
ÎStore the appliance and the entire ac-
cessories in a frost-safe room.
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
Prior to longer periods of storage, e.g. in
the winter:
ÎRemove filter from suction hose for de-
tergent and clean under running water.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
The appliance is maintenance-free.
Use only original spare parts. You will find
a list of spare parts at the end of these op-
erating instructions.
Storage
Storing the Appliance
Frost protection
Maintenance and care
Care
Maintenance
Spare parts

14 English
You can rectify minor faults yourself with
the help of the following overview.
If in doubt, please consult the authorized
customer service.
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
Repair works may only be performed by the
authorized customer service.
ÎPull on the lever of the trigger gun; the
device will switch on.
ÎCheck whether the voltage indicated on
the type plate corresponds to the volt-
age of the mains supply.
ÎCheck the mains connection cable for
damages.
ÎAppliance ventilation: Switch the appli-
ance on with the high-pressure hose
detached and operate (max. 2 minutes)
until the water exits the high-pressure
connection without bubbles. Switch off
appliance and reconnect high-pressure
hose.
ÎCheck the water supply.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
ÎClean high-pressure nozzle: Remove
dirt and debris from the nozzle bore, us-
ing a needle and rinse through with wa-
ter from the front.
ÎCheck water flow quantity.
ÎSlight leakage from the appliance pump
is normal. If the leakage increases con-
tact the authorized customer service.
ÎCheck setting at the spray lance.
ÎClean the detergent suction hose filter.
ÎCheck the detergent suction hose for
kinks.
Subject to technical modifications!
Troubleshooting
Appliance is not running
Pressure does not build up in the
appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed
Technical specifications
Electrical connection
Voltage 220-240
1~50/60
V
Hz
Power consumption 6 A
Protection class IP X5
Protective class II
Mains fuse (slow-blow) 10 A
Water connection
Max. feed temperature 40 °C
Min. feed volume 8 I/min
Feed pressure 0,2-1,2 MPa
Performance data
Working pressure 8MPa
Max. permissible pressure 10 MPa
Water flow rate 5,25 I/min
Detergent flow rate 0,4 I/min
Recoil force of trigger gun 10 N
Sound power level
LWA (2000/14/EG)
92 dB(A)
Dimensions and weights
Length 229 mm
Width 314 mm
Height 747 mm
Weight 5,5 kg
