Fakir 9800 S Oko Power User manual

9800 S
Öko Power
Instructions for use
Wash cleaner
GB

2
TABLE OF CONTENTS
GB
General
Information about the operating instructions.........................3
Liability..................................................................................3
Notices in the operating instructions.....................................3
Safety
CE Declaration of Conformity ...............................................4
Intended use ........................................................................4
Unauthorized use..................................................................4
Electric current......................................................................6
In case of danger ..................................................................6
Dispatch................................................................................6
In case of defects..................................................................7
Overview
Product description and scope of delivery ...........................8
Dry vacuum cleaning ............................................................8
Wet vacuum cleaning............................................................8
Wash vacuum cleaning.........................................................8
Optional accessories ............................................................9
Technical data.......................................................................9
Assembly
Unpacking...........................................................................10
Accessories
Floor suction nozzle ...........................................................11
Crevice nozzle ...................................................................11
Upholstery nozzle................................................................11
Furniture brush....................................................................11
Operating
Dry vacuum cleaning ..........................................................12
Wet vacuum cleaning..........................................................12
Wash vacuum cleaning.......................................................14
After use
Cleaning .............................................................................18
Changing the filter ..............................................................20
Troubleshooting................................................................21
Disposal.............................................................................23
Warranty – only valid for the German market ................24
Notes..................................................................................25

3
GENERAL
Thank you,
for choosing a Fakir vacuum wash cleaner of high energy
efficiency and therefore with low energy consumption and
without loss of suction performance.
The vacuum cleaner was developed and manufactured to
guarantee a trouble-free operation for many years.
These operating instructions are intended to enable the safe
and proper handling and operation of the appliance.
Read these operating instructions carefully before using the
appliance for the first time.
Keep the operating instructions in a safe place. Include these
operating instructions when passing the appliance on to anot-
her user.
We will accept no liability for damages resulting from failure to
comply with the operating instructions.
We cannot assume any liability in case the appliance is used
for other purposes than its intended use or handled, repaired
or serviced improperly.
GB
Notices in the operating
instructions WARNING!
Indicates notices which, if ignored, can result in risk of in-
jury or death.
ATTENTION!
Indicates notices of risks that can result in damage to the ap-
pliance.
Emphasizes tips and other useful information in the opera-
ting instructions.
NOTICE!

Liability
Information about the
operating instructions

4
SAFETY
This appliance fulfils the requirements of the Appliance and
Product Safety Law (GPSG) and the EU Directives
2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC
“Low-Voltage Directive.” The appliance bears the CE mark on
the rating plate.
The appliance may only be used in households.
It may be used only for dry cleaning hard floors and textile co-
verings, carpets, upholstery furniture, mattresses, furniture,
radiators and curtains.
It is not suitable for commercial use.
Check if all filters have been inserted properly before using
the appliance. The appliance must not be used without filters.
Use only original Fakir filters and accessories.
Any other use is considered unauthorized and is prohibited.
The examples of unauthorized use listed here can result in
malfunctions, damage to the appliance or personal injury:
● These devices can be of children aged 8 and over, and
persons with reduced physical, sensory or mental abili-
ties or lack of experience or knowledge can be used if
they are supervised, or concerning the safe use of the de-
vice have been instructed and the resulting risks have un-
derstood.
●Children should not play with the device.
●Cleaning and user maintenance must not come through
children are carried out without supervision.
● Keep packaging films away from children - danger of suf-
focation!
Intended use
CE Declaration of Conformity
GB
Unauthorized use

5
SAFETY GB
WARNING!
Danger of injury from vacuuming:
● Never vacuum articles of clothing, hair, eyes, fingers or
other parts of the body.
● Nozzles and tube ends must never be brought close to
the eyes or ears.
● Never use the appliance to vacuum human beings or ani-
mals. The manufacturer is not responsible for any dama-
ges caused by unauthorized use or improper operation.
●Danger of injury! Never reach into the rotating brush rol-
ler when working with the turbo / electrical suction brush.
Health hazard!
● Never vacuum hazardous materials, such as toner used
in laser printers or copiers.
Danger of fire and explosion!
● Never vacuum hot ashes or burning objects, such as ci-
garettes or matches.
● Never use the appliance in the vicinity of explosive or
flammable materials.
● Never vacuum any solvents, explosive gases or liquids.
●Risk of short circuits! You never to suck water and other
liquids, such as eg have wet carpet cleaning solutions wit-
hout the chosen function wet sucking!
●Destruction of filters! Never vacuum sharp or pointed
objects, such as glass splinters, nails, etc. Materials that
harden when dry, such as plaster or cement, can also de-
stroy the filter.
●Damage to appliance from rain and dir!: Never use or
store the appliance outdoors.
●Danger from overheating! Always keep the openings in
the appliance free.
ATTENTION!

6
SAFETY
GB
● Incorrect voltage can destroy the appliance. Operate the
appliance only if the voltage specified on the rating plate
corresponds to the voltage in your household.
● The socket must be protected with a 16 A automatic cir-
cuit breaker.
● Use only extension cords designed for the power input of
the appliance.
ATTENTION!
Electric current
WARNING: Danger of electric shock!
● Never touch the plug with wet hands.
● When unplugging the appliance, always pull directly on
the plug and never on the power cord.
● Do not kink, pinch or run over the power cord and do not
expose it to heat sources.
● If the power cord of this appliance is damaged, it must be
replaced by the manufacturer or the manufacturer’s cus-
tomer service department or a person with similar quali-
fications to prevent any hazards.
● Do not put the appliance in operation if you detect any vi-
sible damage on the housing, if the power cord is de-
fective or if you suspect a defect (e.g. after a fall).
● Do not use any damaged extension cords.
In case of danger or accident, unplug the appliance imme-
diately.
Send the appliance in the original package or a similar, well-
padded package to prevent damage to the appliance.
In case of danger
Dispatch

7
SAFETY
Before contacting our service department, check to see if
you can eliminate the problem yourself.
> see Chapter “Troubleshooting”.
Notice
If you were not able to eliminate a problem yourself, please
contact an authorized Fakir / nilco service center or a trained
technician in your country.
Service Hotline (within Germany)
01805 325474
14 cents / minute
from the wire-line network of the Deutsche Telekom.
Before calling, have the article no. and appliance / model
name at hand. This information can be found on the rating
plate of the appliance.
WARNING!
Never operate a defective appliance or an appliance with a
defective power cord. There is a danger of electric shock.
In case of defects
GB
WARNING!
Repairs and maintenance may be carried out only by trained
specialists (e.g. an authorized Fakir service center).
Only Fakir original replacement parts may be used for re-
pairs and maintenance. For further information, see: Trou-
bleshooting. Unauthorized repairs and maintenance pose a
danger for the user.

8
OVERVIEW
GB
Dry vacuum cleaning Wet vacuum cleaning
Wash vacuum cleaning
1 Carrying Handle
2 Hood
3 Filter Retaining Clip
4 Handle
5 Suction Power Control
6 Integrated Suction Hose
7 Canister Clamps
9 Castors
10 ON/OFF Switch (Motor)
11 Paper Filter
12 Motor Protection Filter
13 Cartridge Filter
16 Upholstery Nozzle
17 Brush for Sensitive
Surfaces
18 Crevice Nozzle
19 Intake Socket with
Hose Release Button
20 Integrated Suction Tube
21 Swiveling Floor Nozzle
22 Float Switch
23 Foam Plastic Filter
24 Carpet Spray-
Exctraction Nozzle
25 Carpet Spray-
Exctraction Nozzle for
tiled floor
26 Hose Connection Socket
27 Pressure Hose
28 Metering Button
29 Connection Hose
30 Cleaning Liquid Tank Cap
31 Cleaning Liquid Tank
32 Pressure Hose
33 Concentrated Cleaning

9
OVERVIEW GB
Fakir Model 9800 S Öko Power
Wash cleaner Reference 44 19 003
---------------------------------------------------------------------------------------------------------------------------
Optional accessory
Textile fine dust filter ref. 22 08 842
Carpet cleaner 1 l ref. 90 32 747
Window washing accessory ref. 44 12 870
Package dust bags = ref. 26 01 805
--------------------------------------------------------------------------------------------------------------------------
-
Technical data
Mains voltage 230 V
Nominal frequency 50 Hz
Power IEC. 1600 W
Pump pressure 5 bar
Container volume 22 l
Fresh water tank 4,3 l
Useable volume solids 13 l
Useable volume liquid 11 l
Depression max. 25 kPa
Air flow max. 38 l/s
Sound Level 75 dB(A)
Weight approx. 10 kg
Dimensions (H) approx. 55 cm
(W) approx. 40 cm
(D) approx. 42 cm
Colour (housing) black

10
ASSEMBLY
GB
Unpack the appliance and check the contents for complete-
ness (see "scope of delivery").
Sort the packaging material and recycle accordingly.
If you notice any transportation damage, please contact
your dealer immediately.
WARNING!
Prior to assembly, make sure that the mains plug is unplug-
ged. If the mains plug is plugged in, the appliance could ac-
cidentally be switched on, resulting in injuries.
WARNING!
Never use a defective appliance.
Cartridge Filter - As supplied the appliance is fitted with
a cartridge filter which cleaned when it becomes
contaminated. This cartridge filter can be used for all dry
vacuum cleaners tasks.
Paper Filter - This filter should be used to remove fine
dry dust (ashes, remnants of cement powder etc.) or in
case where special hygiene standards must be met. The
paper filter is used in addition to the filter cartridge.
Textile Filter - The textile filter is a long-life filter which
like the paper filter serves as an additional filter for the
removal of fine dry dust or similar.
Foam Plastic Filter - The foam plastic filter should be
installed when the appliance is used for extraction cleaning
or a mixture of liquid and dirt or waste matter is to be
picked up.

11

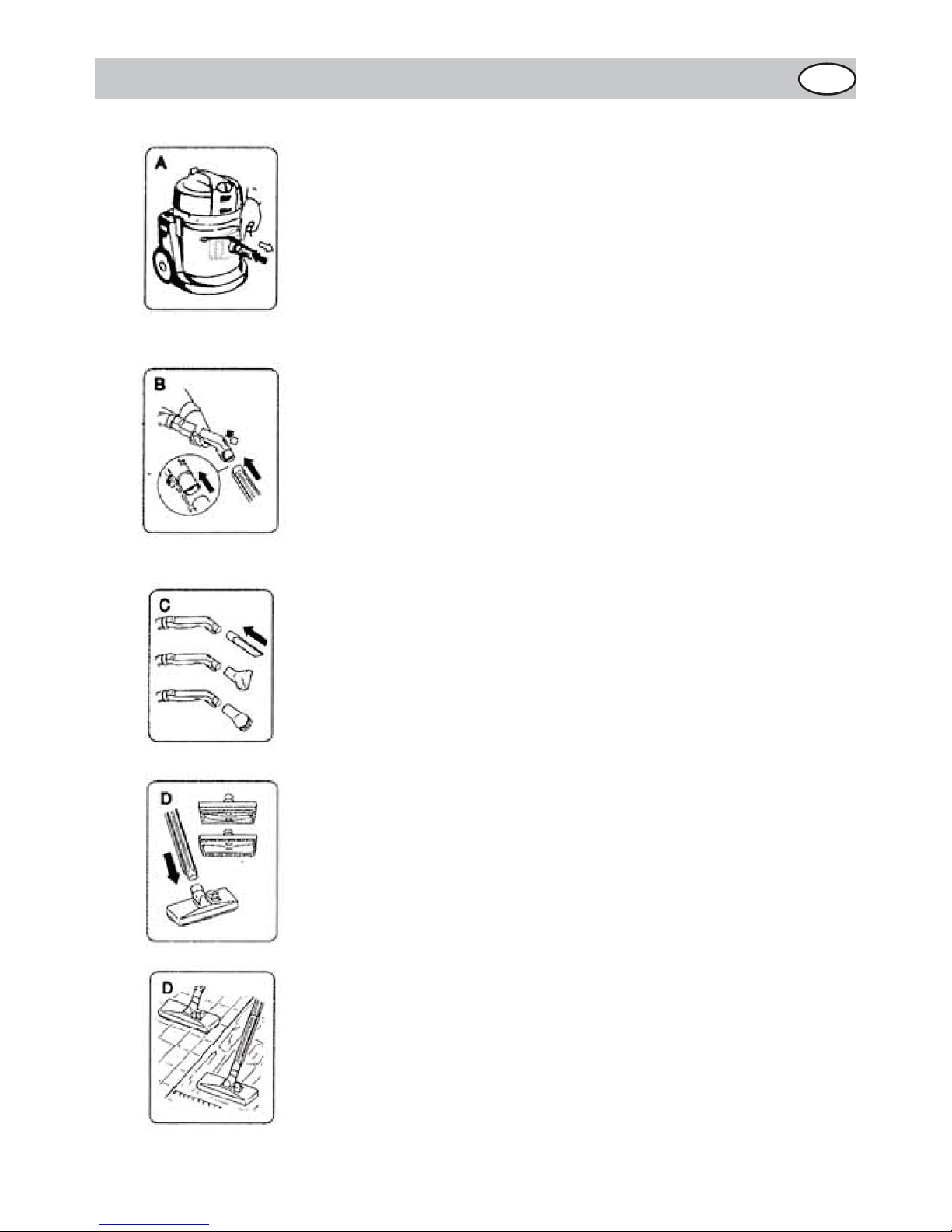

ACCESSORIES GB
A- Suction Hose - Fuse the rotary sleeve
of the suction hose into the intake socket
in the canister until it locks home. Pull the
release button on the intake socket and
pull out the suction hose.
B- Suction Tubes - Insert the pin in the
housing of extension tubes to connect
them. After having connected the two
parts of the tubes turn the lever of the
pin on the position "closed". Carry out the
same operation to connect the extension
tubes to the handle and to the integrated
connection piece.
C- Nozzles - All the accessories can be
connected to the handle and to the
extension tubes.
C- Crevice Nozzle - The crevice nozzle
permits the efficient cleaning of cracks
folds, recesses and other awkward places.
C- Upholstery Nozzle - The use of the
upholstery nozzle is recommended for the
cleaning of upholstery, mattresses, car
seats etc. It is also suitable for the removal
of small spills of water.
C- Furniture Brush - The furniture brush
is provided for the cleaning of furniture,
pictures etc.
D- Swiveling Floor Nozzle - The
swiveling floor nozzle provides for the
vacuum cleaning of carpeted floors of
all kinds also smooth floors with no
change of nozzle. Adjustment to the
respective type of floor is effected by
operating the foot switch on the nozzle:
Carpeted floors bristles retracted.
Smooth floor bristles extended.

12
OPERATING
GB
Having selected and installed the desired accessory, check
to ensure that the interior of the appliance (A) and all the ac-
cessory compenents are dry. • Unwind the mains lead and
install the plug into the power socket.
• Switch on the appliance by lightly
pressing the ON/OFF switch.
B- Suction Power Control - An air intake control is located
in the handle of the suction hose with which you can reduce
the suction power if e.g. the carpet or mat lifts from the floor
under excessive suction power. For Max. Suction Power
- Push control slide forward (aperture in handle closed).
For Min. Suction Power - Push the control slide to the rear
(aperture in handle open).

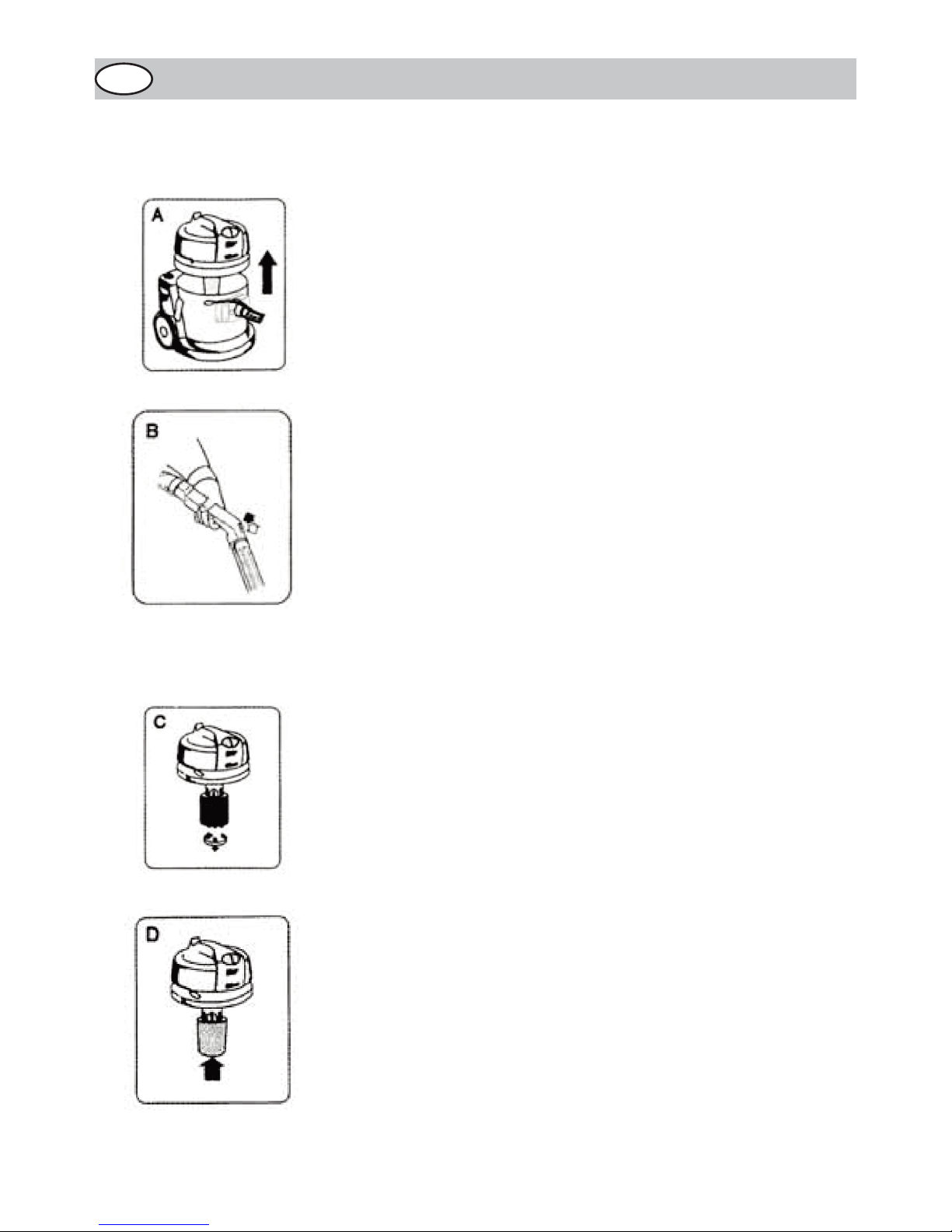

C- Release the canister clamps, remove hood, filter car-
tridge and paper filter if fitted. To remove the filter, turn the
filter retaining clip anticlockwise and pull off the filter car-
tridge togeher with the base plate.
D- Foam Plastic Filter - Install the foam plastic filter if it is
intended to remove a mixture of liquid and dirt or waste
matter. To do this, push the filter on to the float valve
retainer as far as it will go. Slightly contaminated water can
be removed without installing the foam plastic filter. Place
the hood an the canister, fasten the canister clamp and in-
stall the desired cleaning accessory.
• Unwind the mains lead and install the plug into the
power socket.
• Switch on the appliance by light pressure on the On/OFF
switch.
Dry vacuum cleaning
Wet vacuum cleaning

13
OPERATING GB

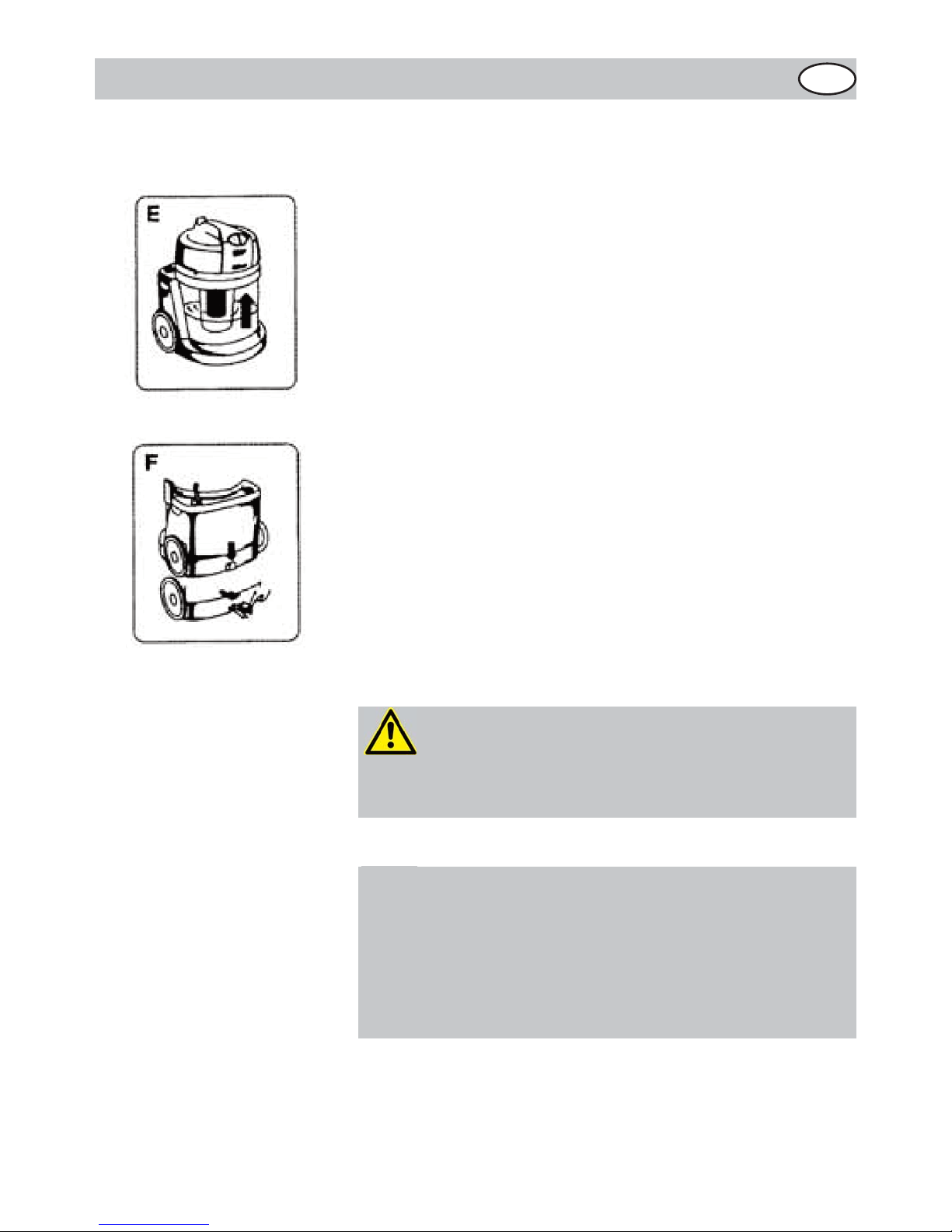

E- Float Valve - When the maximum liquid level in the cani-
ster is reached, the float valve will automatically close the in-
take aperture in the hood, interrupting the intake process.
Switch off the appliance immediately and withdraw the
mains plug. Carry or pull the complete appliance to the dis-
posal point and empty the canister.
F- Water Discharge - To empty the liquid from the tank, turn
off the motor switch and open the water discharge. Before
switching it on again verify the water discharge is closed.
ATTENTION!
When the machine is working never open the water
discharge (F).
If foam or liquid escapes from the ventilation apertures du-
ring cleaning operations, switch the appliance off immedia-
tely and withdraw the mains plug. Empty the canister and if
necessary add some anti-foaming agent. Carry out a
function check on the float valve before switching on the
appliance again.
NOTICE!


14
OPERATING
GB
Preparation for spray
extraction ( Wash vacuum
cleaning)
Before extraction cleaning of carpeted floors or upholstery
check the color-fastness of the material. To do this apply
some of the concentrated cleaning agent to an in conspicu-
ous area with a cloth allow it to dry, then carry out a color
comparison. The floor covering or upholstery should only be
cleaned if no change of color is evident.
A- Tank - Release the canister clamps, remove the hood,
cartridge filter and paper filter if fitted. To remove the filter
turn the filter retaining clip anti clockwise and pull off the fil-
ter cartridge including the base plate.
B- Foam Plastic Filter - Install the foam plastic filter by pus-
hing the filter completely onto the float valve retainer as far
as it will go. Now reinstall the hood on the canister, fasten
the canister clamps and install the extraction cleaning
accessories.
C- Pressure Hose
D- Insert the pressure hose in to the corresponding aperture
of the adapter supplied and secure to the suction hose
or suction tube at regular intervals. Insert the quick release
coupling at the end of the hose into the mating socket in to
the hood and push it home so that it locks. The pressure
hose connection can be straightforwardly released. To do
this push the corrugated sleeve of the quick release coup-
ling back so that the coupling is automatically forced out
under spring pressure.
E- Spray Extraction Liquid Tank Connection Hose - Push
the plug connector on the connection hose in to the corre-
sponding aperture in the hood as far as it will go. Take care
to ensure that the hose is not kinked and that the end of the
hose with the strainer is positioned at the bottom of the tank.
Spray extraction liquid. Remove the screw plug from the
tank and pour in the mixture of water and concentrated
cleaning agent with the aid of the funnel. The capacity of the
tank is 4.5 liters.
CAUTION!!! Use only non-polluting, environmentfriendly
cleaning agents. Please observe the mixture ratio specified
by the manufacturer.
F- Accessories - Insert the floor nozzle (or the sofa nozzle)
on the extension tubes. Connect the sprayer tube to the pin
of the extension tubes (push and turn anti-clockwise).

15
E- Spray Extraction Liquid Tank Connection Hose - Push
the plug connector on the connection hose in to the corre-
sponding aperture in the hood as far as it will go. Take care
to ensure that the hose is not kinked and that the end of the
hose with the strainer is positioned at the bottom of the tank.
Spray extraction liquid. Remove the screw plug from the
tank and pour in the mixture of water and concentrated
cleaning agent with the aid of the funnel. The capacity of the
tank is 4.5 liters.
F- Accessories - Insert the floor nozzle (or the sofa nozzle)
on the extension tubes. Connect the sprayer tube to the pin
of the extension tubes (push and turn anti-clockwise).

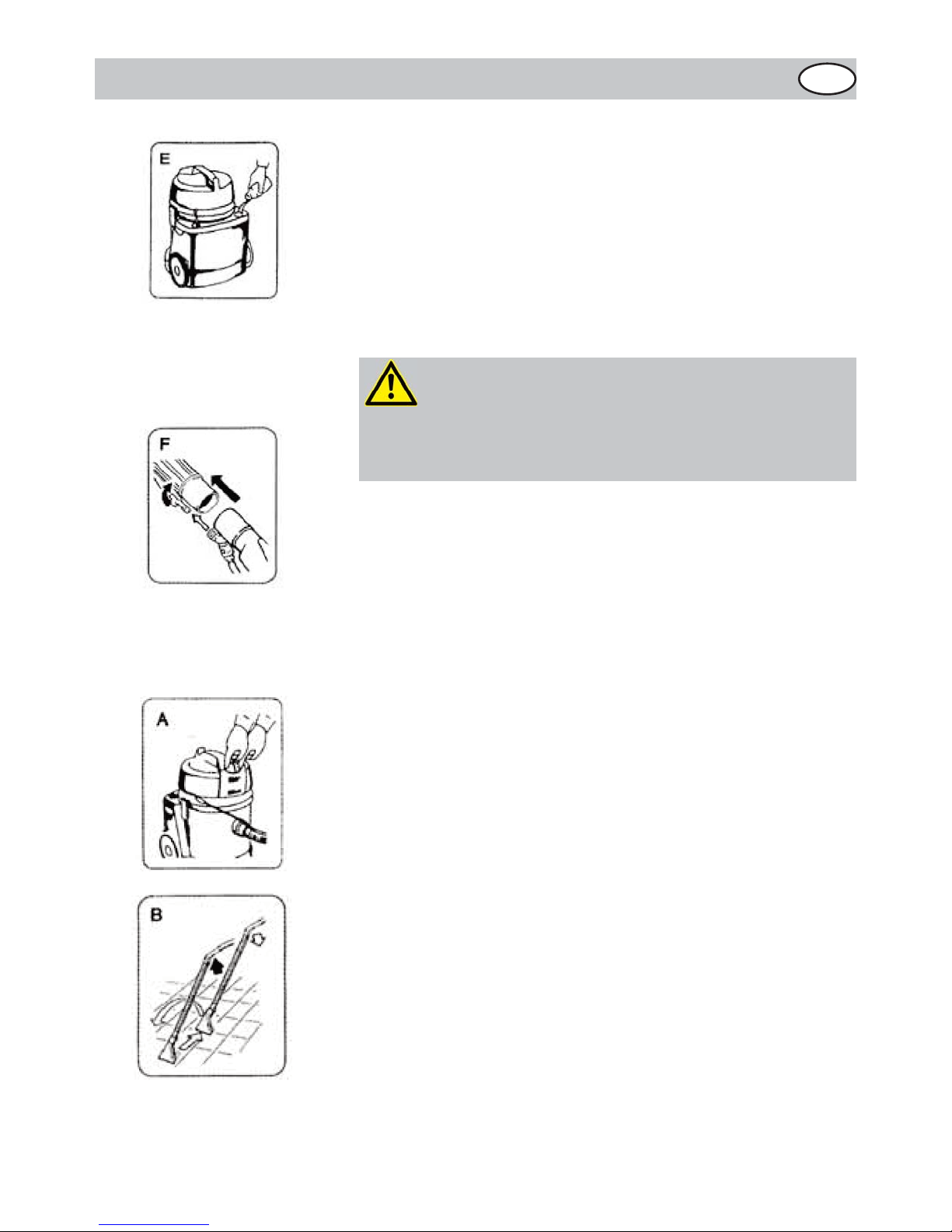

A- After desired accessory has been selected
and installed, proceed as follows:
• Unwind the mains lead and insert the
plug into the power point.
• Set the control switch to maximum
suction power.
• Switch on the appliance by lightly
pressing the ON/OFF switch.
• Start the pump by the applying light
pressure to the switch.
B- Method of Operation
Spray Extraction of
Carpeted Floors
WARNING!
Use only non-polluting, environmentfriendly cleaning
agents. Please observe the mixture ratio specified by
the manufacturer.
OPERATING GB

16
OPERATING
GB

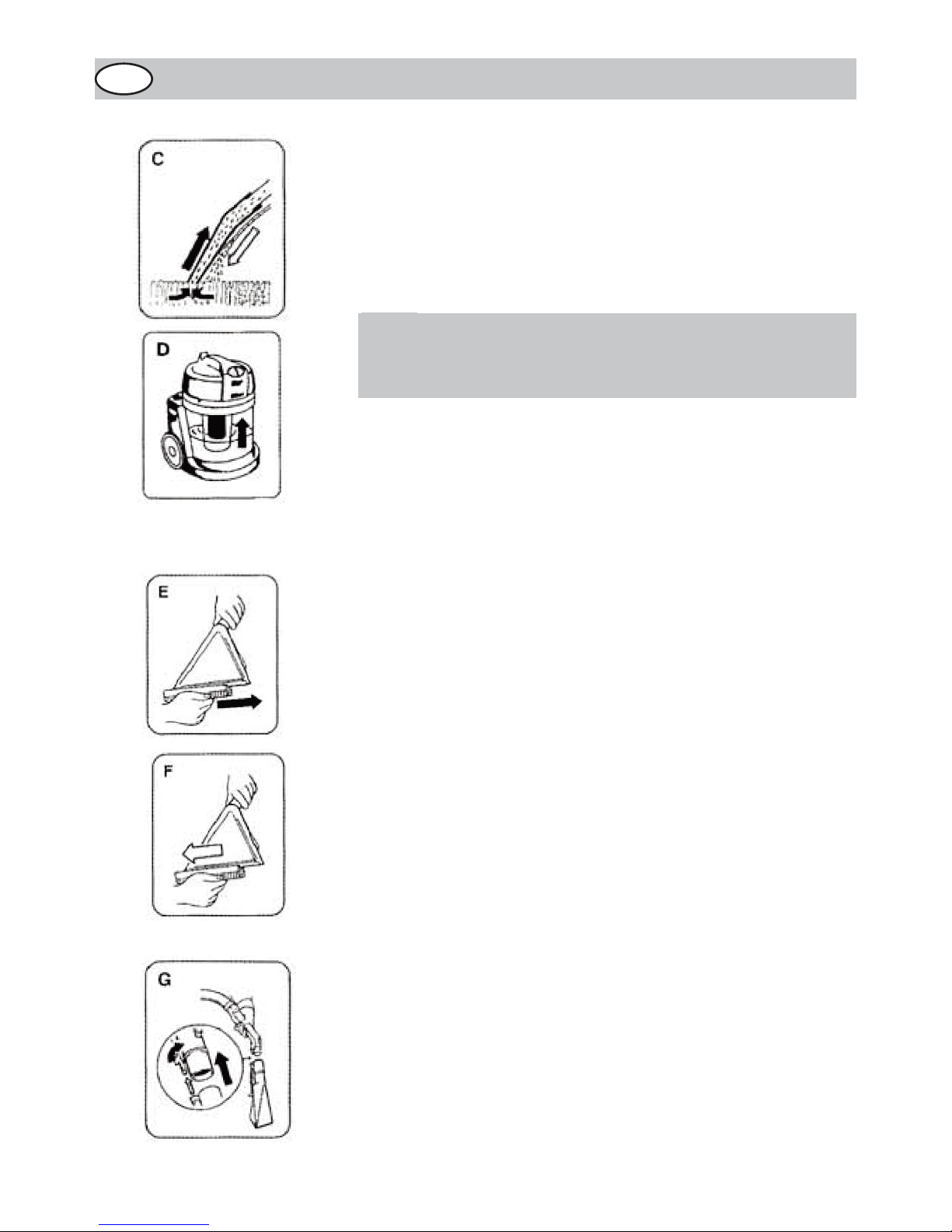

C- Place the carpet spray extraction nozzle on the floor, pull
the lever of the metering valve and move the nozzle blowly
to the rear across the carpet at the same time. In this way
the cleaning solution is sprayed under pressure onto the
dirty area and is immediately sucked up again together with
the dirt. To move the nozzle in a forward direction, release
the valve lever and lift the nozzle clear of the carpet. The
entire area is covered by cleaning adjacent strips.
D- Float Valve - When the liquid in the tank reaches the ma-
ximum level, the float valve will automatically close the in-
take aperture in the hood, interrupting the intake process.
Switch the appliance off immediately and withdraw the
mains plug. Now carry or pull the complete appliance to the
disposal point, remove the connection hose from the
spray extraction liquid tank and the pressure hose from
the hood, then empty the canister.
E- Tiled floor cleaning attachement for
carpet spray extraction nozzle. Push the
attachement onto the carpet spray
extraction nozzle, then proceed as
described under “spray extraction of
carpeted floors” above.
F- The tiled floor cleaning attachement
can simply be pulled off when no longer
required.
G- The upholstery cleaning nozzle is
supplied for the purpose of cleaning
upholstery, car seats etc. To seperate the
connection, turn the bayonet fitting in
the opposite direction and pull off.
Cleaning Tiled Floors
If, temporarily no spray extraction liquid is
needed; switch off the pump.
NOTICE!

Cleaning Upholstery

17
OPERATING GB

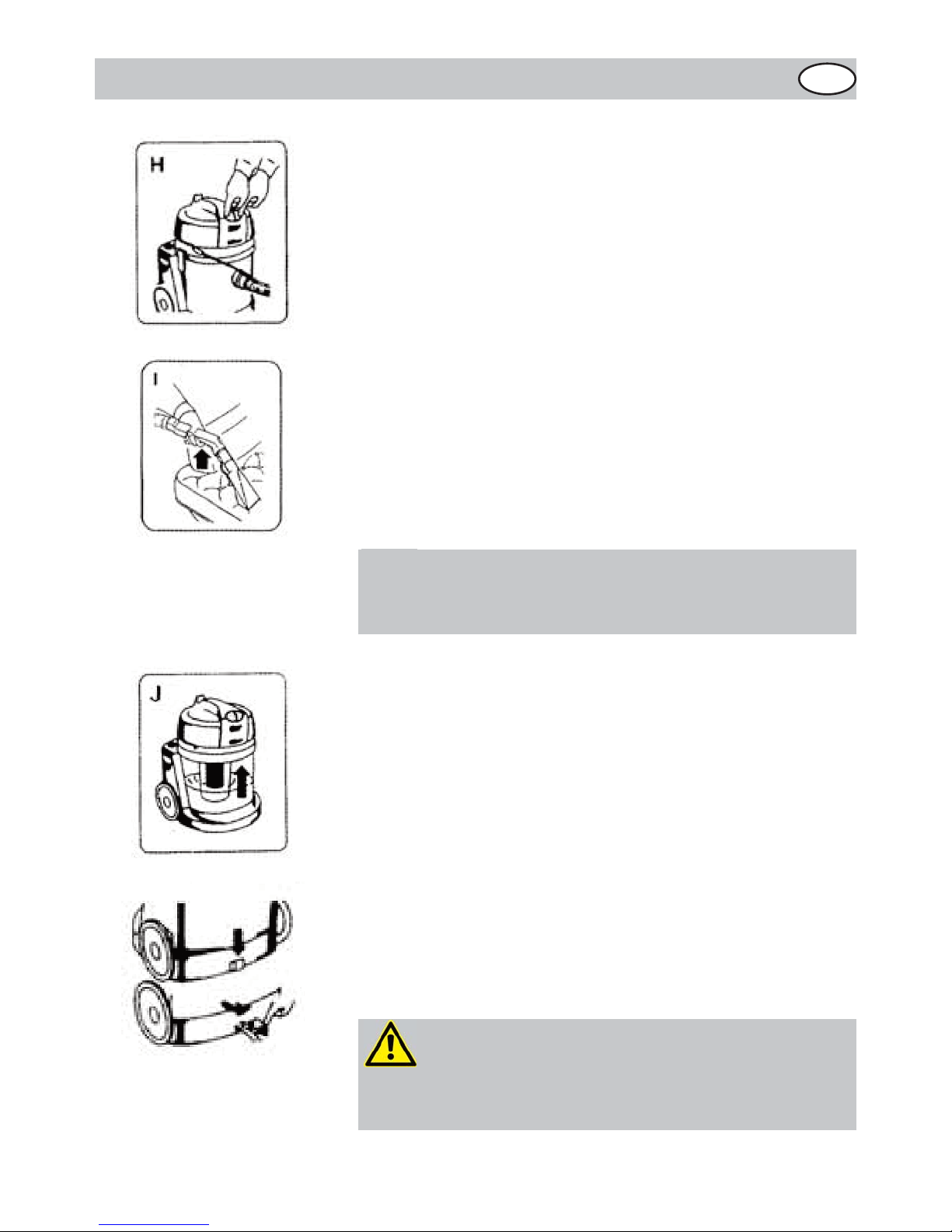

H- Now proceed as following:
• Set the control switch to maximum
suction power.
• Switch t on the appliance by light
pressure on the ON/OFF switch.
• Start the pump by applying light
pressure to the switch.
I- Place the upholstery cleaning nozzle
lightly on the upholstery, pull the button
of handle, moving the nozzle slowly
backwards at the same time. In this way
the cleaning solution is sprayed under
pressure onto the dirty area and is
immediately sucked up again together with the dirt. The
entire area is covered by cleaning adjacent strips.
J- Float Valve - When the liquid in the
tank reaches the maximum level, the float
valve will automatically close the intake
aperture in the hood, interrupting the
intake process. Switch the appliance off
immediately and withdraw the mains
plug. Now carry or pull the complete
appliance to the disposal point, remove
the connection hose from the spray
extraction liquid tank and the pressure
hose from the hood, then empty the
canister. To empty the liquid from the tank, turn off the
motor switch and open the water discharge. Before
switching it on again verify the water discharge is closed.
If, temporarily no spray extraction liquid is
needed; switch off the pump.
NOTICE!

ATTENTION!
When the machine is working, never
open the water discharge.

18
AFTER USE
GB

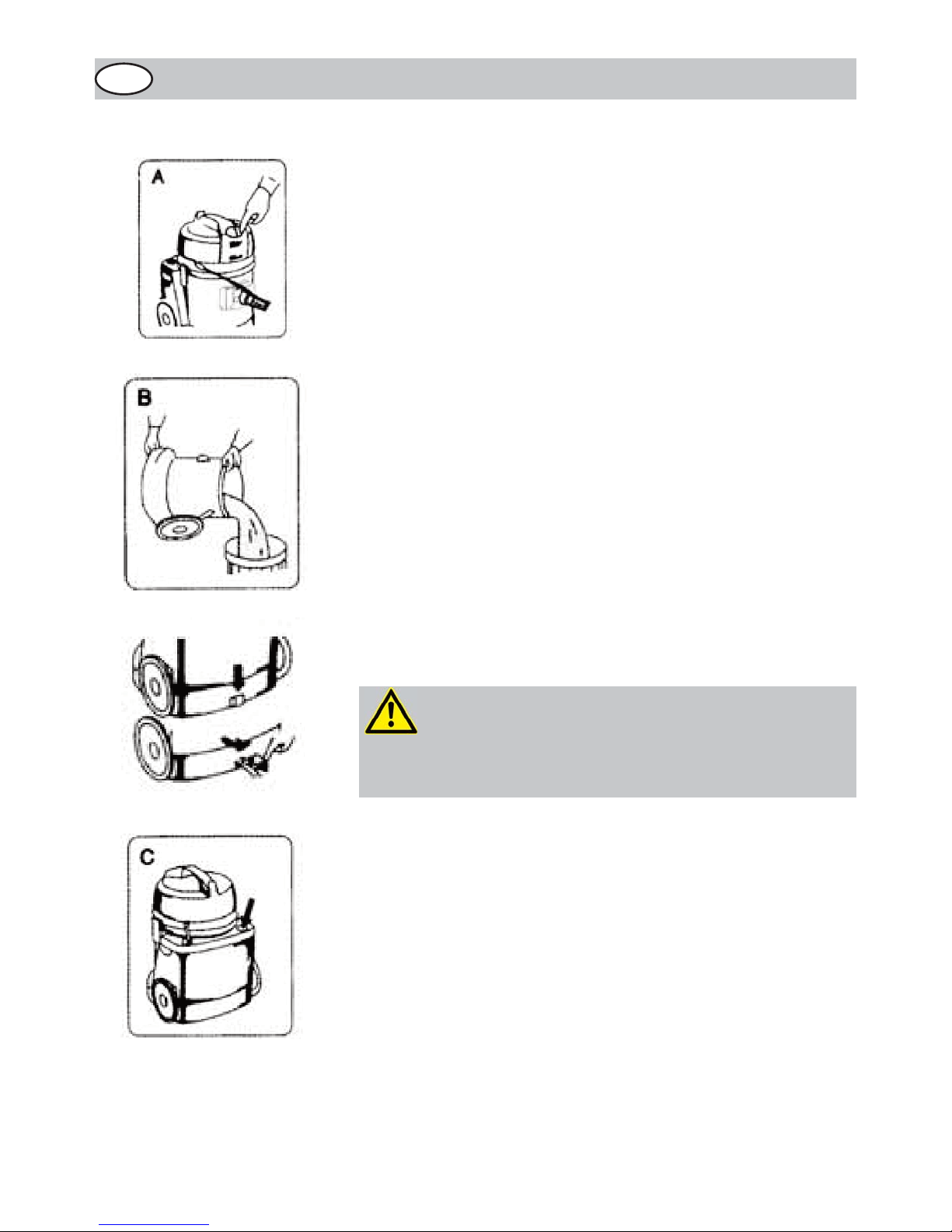

A- Switch off the appliance, withdraw
the mains plug.
B- Remove the hood and empty the
canister and cleaning liquid tank. To
empty the liquid from the tank, turn off
the motor switch and open the water
discharge. Before switching it on again
verify the water discharge is closed.
C- Partially fill the cleaning liquid tank clean
water.
ATTENTION!
When the machine is working never
open water discharge.

19
AFTER USE GB
D- And flush out the entire spraying system
(hose, pump, nozzles) thoroughly. After
flushing switch off the appliance and
pump, withdraw the mains plug and wind
the mains lead around the recess on the
hood provided for this purpose.
E- Remove the hood, together with the
all accessories and empty the canister and
cleaning liquid tank. Thoroughly flush out
the interior of the appliance and any
accessories and dry them thoroughly.
F- For this purpose, it is advisable to remove
the cleaning liquid tank.
Maintenance and Care
The appliance requires no extensive
maintenance or care. The appliance,
accessories and dirty water tank should
however be cleaned with a moist cloth
when required. When doing this take care to ensure that
no electrical components come into contact with water.
The motor protection filter should be cleaned occasionally
or if the cartridge filter has become defective. To do this
remove the foam plastic disc and clean with water and a
little washing-up liquid. When the filter is dry, reinstall it
in its original position.
Faults
If the appliance is found not to be working satisfactorily
(reduction in suction power, unusual voices or complete
stoppage) first check to ensure that the suction channels
are not obstructed. Any repairs which may be required
should e carried out only by the FAKIR after-sales service
organization.

20
AFTER USE
GB
Filters must be cleaned or replaced at certain interval in
order to obtain the most cleaning efficiency from the appli-
ance. Withdraw the mains plug from the power socket be-
fore carrying out any change of filter.
A- Long-life Cartridge Filter - When the suction power di-
minishes to a noticeable extent, the cartridge filter must be
cleaned or replaced. To do this, rlease the canister
clamps and remove the hood from the canister. Turn the fil-
ter retaining clip anticlockwise and carefully pull off the filter
cartridge with base plate. Shake or lightly tap the cartridge
to remove clinging dust. For even better results, remove the
dust with your ordinary vacuum cleaner, using the crevice
nozzle. In doing so, take care to ensure thet the paper part
of the filter cartridge is not damaged. Now reinstall the car-
tridge filter in the reverse order.
B- Paper Filter - Release the canister clamps, remove the
hood from the canister and set on one side. Carefully push
tha contaminated paper filter sufficiently far back to expose
the socket located inside. Now pull the filter upwards out of
the canister and dispose of in the waste bin. Unfold the new
paper filter, peel back the rims at the side of the cardboard
disc and carefully push the filter onto the socked in the
canister as far as it will go. Place the ends of the filter
afainst the inner wall of the canister, then install and secure
the hood. In doing this, take care to ensure that the paper
filter in not damaged by the filter cartridge.
C- Foam Plastic Filter - Remove the longlife cartridge filter
and push the fam plastic filter onto the float valve retain as
far as it will go. Now reinstall the hood on the canister, fa-
sten the canister clamps and install the desired vacuum
cleaning accessory. After wett wet vacuum cleaning operati-
ons, remove the contaminated foam plastic filter and clean
with a little washing-up liquid.
To ensure that your appliance retains its
functional efficiency, use only genuine FAKIR filters.
NOTICE!

Change the motor protection filter (Pos.12 Page 8) after the
consumption of approx. 5 dust bags.
NOTICE!

Changing the motor
protection filter
