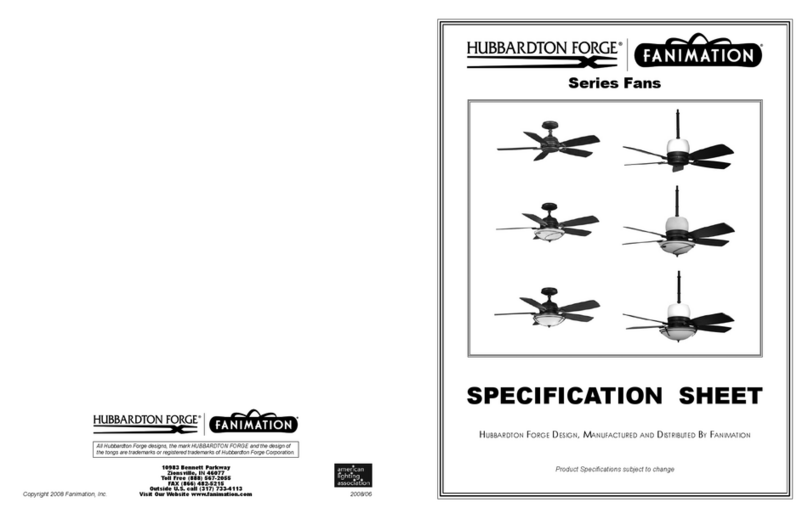

The Huxley™
FP5620 Series
SPECIFICATION SHEET
Product Specifications Subject To Change

Copyright 2008 Fanimation, Inc. 2008/06
The Huxley™Fan Assembly – FP5620**
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free [phone]
FAX [phone]
Outside U.S. call [phone]
Visit Our Website www.fanimation.com
Available Finishes
OB Oil-Rubbed Bronze
PW Pewter
Fan Assembly - FP5620¾¾
Distance from Ceiling to Blade Edge
(with 6˝DR) 16˝
Blade Sweep / Pitch 54˝/ 14°
Canopy Diameter 6˝
Net Hanging Weight 25 lbs
Distance from Ceiling to
Bottom of Fan
Fan w/6˝downrod 19¼˝
Fan w/12˝downrod 25¼˝
Fan w/18˝downrod 31¼˝
Fan w/24˝downrod 37¼˝
Fan w/36˝downrod 49¼˝
Fan w/48˝downrod 61¼˝
Fan w/60˝downrod 73¼˝
Fan w/72˝downrod 85¼˝
Dimensions shown in inches
INSTALLATION REQUIREMENTS:
Fan requires a minimum ceiling height of 9 feet. Ceiling fan attaches to electrical junction box securely anchored and
capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
MOTOR SPECS:
188 x 20 motor is designed for optimal performance with this fan.
FAN SPEEDS:
Pull-chain, 3-speeds, reversing switch (located on switch cup housing); High – 150 rpm; Med – 105 rpm; Low – 60 rpm
CONTROL OPTIONS:
Optional controls are: C1 or C2 wall controls; C4 hand-held remote with receiver.
LIGHTING OPTIONS:
Optional single bowl fixture (LK5620) with a maximum of 180 watts is available and sold separately (3-60 watt candelabra
bulbs - not included).
DOWNROD OPTIONS:
The Huxley™fan comes with a 1˝Dia. x 6˝(DR1-6) downrod. Optional downrods are available in 12”, 18”, 24”, 36”, 48”,
60”, and 72”. For installations requiring a longer downrod, a downrod coupler is available. The Huxley™fan can be
mounted on a sloped ceiling up to 30°. Most sloped ceiling installations require a downrod longer than the standard 6˝
downrod. Optional sloped ceiling ball kits (SCB1-52) are available for up to 52°. Call tech support for more information.
BLADE SETS:
A set of 5 reversible (cherry/walnut) wood blades are included. Not recommended for Damp Location.
DAMP LOCATION:
Fan not rated for Damp Location usage.
Optional Opal Frosted Light Kit
LK5620
