Fanmaster Premium IFF300A User manual

FA NM A ST E R
cooling heating ventilation extraction
INSTRUCTION MANUAL
MODEL: IFF300A, IFF400U, IFF450U, IFF500U
INDUSTRIAL FANS
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS
3 year warranty

FOR YOUR INFORMATION
Thank you for purchasing a Fanmaster Premium Industrial Floor Fan. Please read this
instruction manual carefully before using this appliance.
Disclaimer:
Fanmaster reserves the right to make alterations to specications, quantities,
dimensions, for production or other reasons, subsequent to publication.
While we believe the information is accurate and complete, we make no warranty
or representation for any particular purposes. The information is offered in good faith
and with the understanding that any use of the units or accessories in breach of the
directions and warnings in this document is at the sole discretion and risk of the user
Disposal Guidelines:
Do not dispose of this product with general household waste. This product must be
disposed according to the laws governing Waste Electrical and Electronic Equipment.
If required, contact your local authorities for information regarding the available
disposal facilities.

1. GENERAL SAFETY RULES & WARNINGS
• PLEASE READ INSTRUCTIONS CAREFULLY.
• PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW
ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST OR OPERATE THIS
APPLIANCE.
• IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR LOSS OF LIFE.
• FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS
APPLIANCE, CAN RESULT IN DEATH, SERIOUS INJURY AND PROPERTY LOSS OR DAMAGE FROM
HAZARDS OF FIRE, EXPLOSION, BURN, AND/OR ELECTRICAL SHOCK.
• ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS APPLIANCE. IF YOU NEED ASSISTANCE OR REQUIRE INFORMATION SUCH AS AN
INSTRUCTION MANUAL, LABELS, ETC. CONTACT FANMASTER.
• DO NOT STORE OR USE GASOLINE, PETROL OR ANY OTHER FLAMMABLE OR COMBUSTIBLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS APPLIANCE.
• FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH
AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE
APPLIANCE. NEVER USE THE APPLIANCE IN SPACES WHICH DO OR MAY CONTAIN VOLATILE
OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER,
DUST PARTICLES OR UNKNOWN CHEMICALS.
• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE IS CONNECTED MUST COMPLY WITH
LOCAL REGULATIONS. A RESIDUAL-CURRENT DEVICE (RCD) MUST BE INSTALLED.
• UNPLUG THE APPLIANCE BEFORE PERFORMING ANY MAINTENANCE OPERATIONS.
• ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT,
TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED.
• IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A
SERVICE AGENT OR A QUALIFIED PERSONS.
• DO NOT COVER THE FAN GUARD OR MOTOR.
• DO NOT LEAVE THE APPLIANCE UNATTENDED WHEN IN USE.
• NEVER USE THE APPLIANCE WHEN EITHER THE APPLIANCE OR THE POWER CABLE IS WET.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
• THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LOCK OF EXPERIENCE &
KNOWLEDGE.
• DO NOT PUT OBJECTS INTO THE FAN GUARD & BLADE.
• DO NOT CLIMB OR STACK THINGS ON THE APPLIANCE.
FOR YOUR INFORMATION

2. PRODUCT DESCRIPTION & SPECIFICATIONS
PRODUCT DESCRIPTION
The Fanmaster Premium Floor Fans are available in sizes from 300mm to 500mm.
They move large volumes of air ensuring good circulation and a cool environment.
Suited to industrial applications of air circulation and cooling large factories and
warehouses.
SPECIFICATIONS

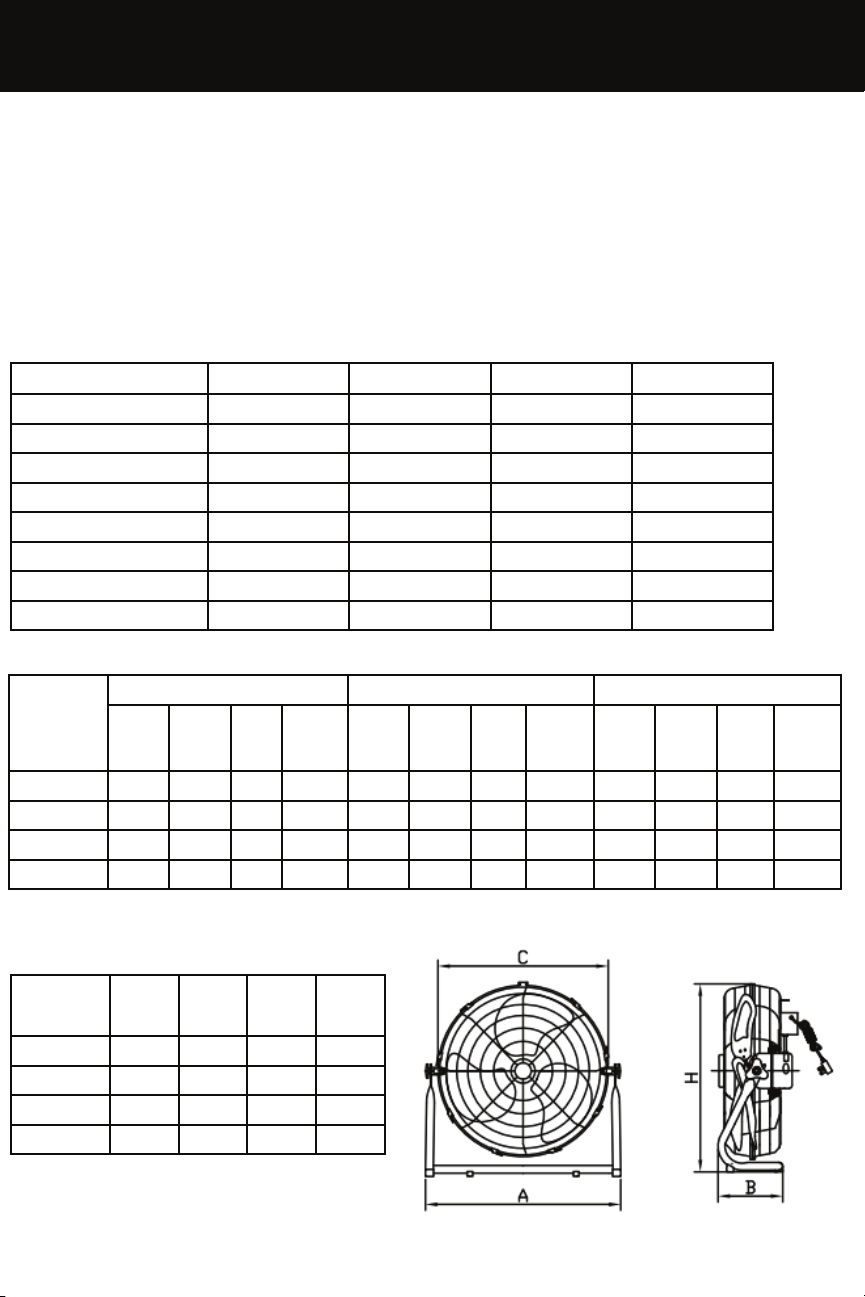

MODEL IFF300A IFF400U IFF450U IFF500U
Air Flow (L/s) 638 1200 1400 1600
dBa <60 <62 <69 <70
Motor (K/W) 0.05 0.10 0.11 0.15
Voltage/Hz 240/50 240/50 240/50 240/50
Plug Connection 3 Pin 10a 3 Pin 10a 3 Pin 10a 3 Pin 10a
Fan Speed 3 3 3 3
Vertical Adjustment Yes Yes Yes Yes
Net Weight (kg) 3 7 8 10
MODEL
Stage 1 Stage 2 Stage 3
RPM
Air
Flow
L/s
dBa Power
WRPM
Air
Flow
L/s
dBa Power
WRPM
Air
Flow
L/s
dBa Power
W
IFF300A 950 450 55 31 1150 550 58 35 1400 638 60 50
IFF400U 950 800 58 67 1150 966 60 80 1400 1200 62 100
IFF450U 950 950 63 70 1150 1150 66 90 1400 1400 69 110
IFF500U 950 1083 65 90 1150 1300 68 115 1400 1600 71 150
MODEL A
mm
B
mm
C
mm
H
mm
IFF300A 390 200 360 405
IFF400U 520 205 460 490
IFF450U 530 195 495 530
IFF500U 620 215 560 565
DIMENSIONS

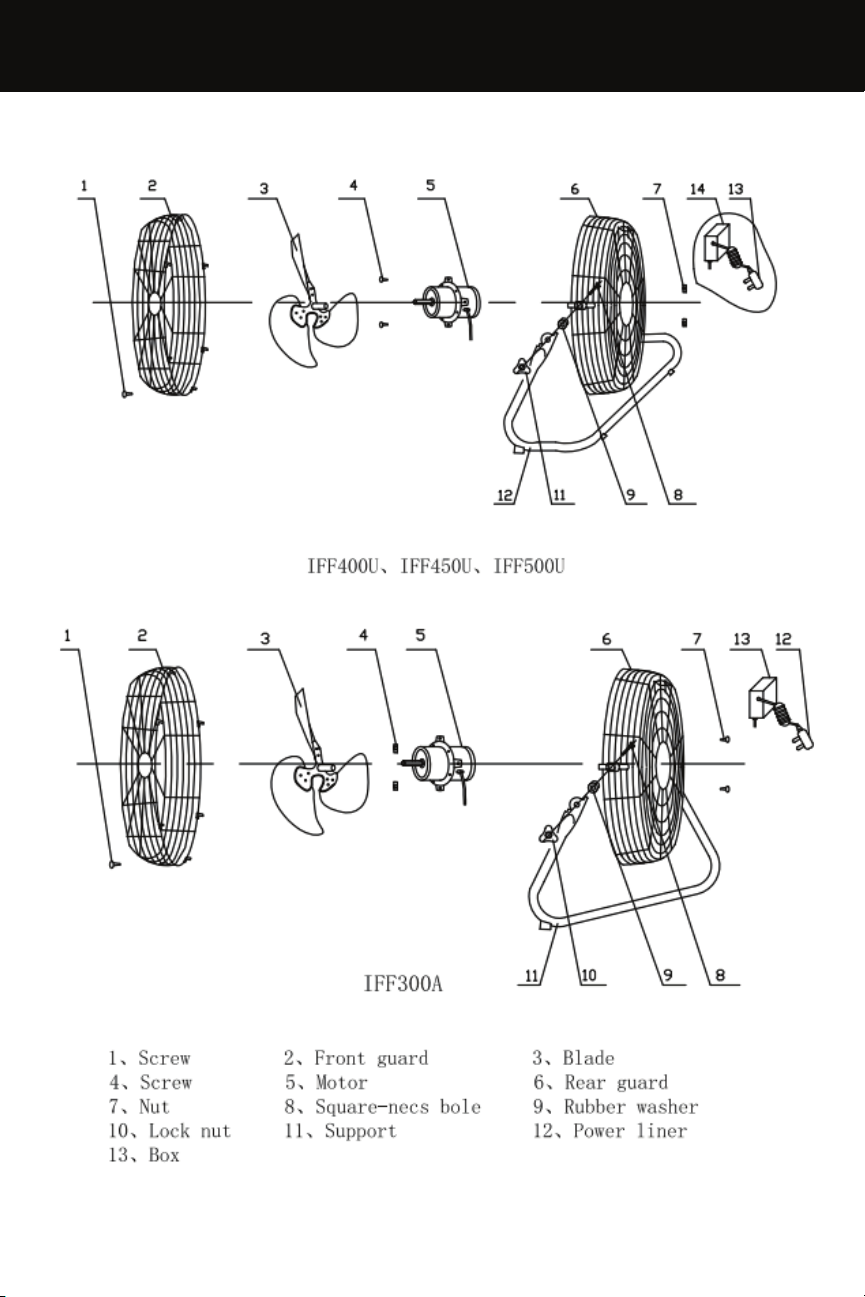

3. ASSEMBLING & OPERATING INSTRUCTIONS2. PRODUCT DESCRIPTION & SPECIFICATIONS

3. ASSEMBLING & OPERATING INSTRUCTIONS
• Before starting any maintenance task, shut down and unplug the fan.
• Do not attempt any electrical repair yourself. If the fan needs service or repair,
contact a qualied persons.
• When cleaning, make sure that water does not enter the unit.
• Do not open the enclosure to clean the inner parts. Do not spray water into the
heater.
• Never use solvents, gasoline, toluene and similar aggressive chemicals to clean
the heater.
Regularly wipe the enclosure & guards using a soft sponge or cloth. For very dirty
parts, use a sponge wet with lukewarm water and a mild detergent, then dry using a
clean cloth. Regularly inspect the power cable: if worn, cracked or damaged have
it replaced by a qualied persons only. Before storing the fan, make sure it is perfectly
cool and dry. Cover the fan with a blanket or tarp and store it in a dry, ventilated
place.
1. Place the fan on an even surface.
2. Connect the plug to the relevant power source.
3. The fan is not suitable in environments that is too moist or corrosive.
4. The fan has 3 speeds which can be changed by rotating the speed control
switch. The numbers 0, 1, 2 and 3. 0 = OFF, 1 = Slow, 2 = Medium, 3 = Fast speeds.
5. Angle adjustment can be adjusted by loosening the adjusting knobs on the side
of the fan, the fan can go up or down.
6. The fan is designed to operate in ambient temperatures up to 40 degrees celsius.
If the temperature rises above 40 degrees celsius, turn the fan OFF to avoid
damage.
Operating Instructions
Remove the appliance from the carton. If the appliance is damaged, please
contact Fanmaster or where you purchased the appliance from.
4. CLEANING, MAINTENANCE & STORAGE

3. ASSEMBLING & OPERATING INSTRUCTIONS 5. WIRING DIAGRAM

6. WARRANTY
Any claim under this warranty must be made within 36 months of the date of
purchase of the product. To make a claim under the warranty, take the product
(with proof of purchase) to the store where you purchased the product or go to
https://www.fanmaster.com.au/support.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 1300 900 345
E: [email protected]
This warranty is provided in addition to other rights and remedies you have under law:
Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and
to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Exclusions: This warranty does not cover:
• Any defects caused by an accident, misuse, abuse, improper installation or
operation, lack of reasonable care, unauthorized modication, loss of parts,
tampering or attempted repair by a person not authorized by the distributor.
• Any product that has not been installed, operated or maintained to a
satisfactory level.
• Any damage caused by improper power input or improper cable connection.
7. WARRANTY VALIDATION

6. WARRANTY
Register Your Product
REGISTER
www.fanmaster.com.au/warranty-registration
7. WARRANTY VALIDATION
> Warranty Management
Validate your warranty, and receive notication 14 days prior to expiration.
> Warranty Extension Available
Add extended warranty to give you peace of mind.
> Product Updates
Latest news and updates on Fanmaster products.

N11664
MADE IN CHINA
Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232
1300 900 345 | [email protected] | www.fanmaster.com.au
