Fantech MINITUBE Series Installation and operating instructions

MINITUBE, MINIVENT &
RING PLATE
INSTALLATION & MAINTENANCE
INSTRUCTIONS
RP.qxd 6/09/2012 1:18 PM Page 1

1. Check fan for possibility of transit damage.
2. Ensure that the duct is clear of any debris that
could be drawn into the fan impeller.
3. Check the fan is free to rotate.
4. Wiring diagrams are provided on all fans.
5. Fans 202 to 356 have automatic self resetting
thermal cut-out switches incorporated in the motor
as standard. Except for the Minitube range which
are fitted with a manual reset thermal overload
device.
6. All fans are provided with sealed-for-life bearings
and are virtually maintenance free.
7. Connections, cables and cords must be installed in
accordance with local regulations. This product
must be installed by a licensed Electrician.
8. The Licensed Electrical installer must ensure that
an approved means of disconnection be
incorporated into the fixed wiring.
9. This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised to ensure that they can use
it safely. Young children should be supervised to
ensure that they do not play with the appliance.
10. For duct or partition mount, precautions must be
taken to avoid the back-flow of gases into the room
from the open flue of gas or other open-fire
appliances.
11. The Minitube range of duct fans must be fitted with
a minimum of 1m of duct to both inlet and outlet
spigots.
12. After starting check:-
For excessive vibration
Full load Amps and ensure they do not exceed the
nameplate Amps.
INSTALLATION & MAINTENANCE
INSTRUCTIONS
Fan Model ABFan Model AB
MV112 210 25 MV204Ex 350 30
MV132 210 25 MV252/4 350 30
MV182Ex 350 30 MV302/4/6 350 30
MV202/4 350 30 MV354/6 400 50
All Minivent axial roof units can be mounted directly onto
roofs pitched up to 30°.
On the MV200, MV250 and MV300 series fans the top cap
must be removed to access the electrical junction box.
ABB
MINIVENT ROOF UNITS - MODELS MV112 - MV356
RP.qxd 6/09/2012 1:18 PM Page 2

INSTALLATION & MAINTENANCE
INSTRUCTIONS
RING PLATE WALL MOUNTED FANS - MODELS RP202 - RP356
Fan Model A
RP202/4 215
RP252/4 267
RP302/4/6 318
RP354/6 375
Wall Tube
Type ‘WT’
A
Opening
Louvre Type ‘ALD’ or
Backdraft Shutter
Type ‘AS’

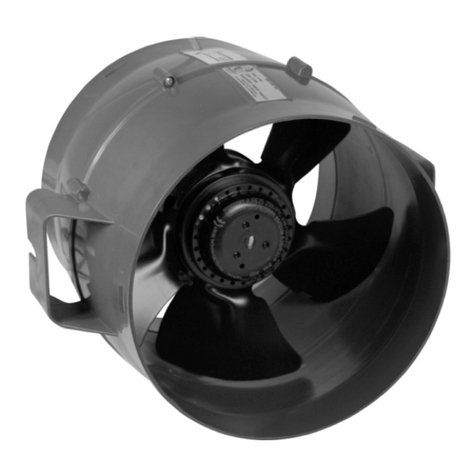

INSTALLATION ARRANGEMENTS - MINITUBE
Fan Model
MT132 -
MT202/4 210
MT252/4 260
MT302/4/6 310
MT354/6 360
HORIZONTAL
1 off RH1 Blue
HORIZONTAL
1 off NR1 Blue
HORIZONTAL
1 off NR1 Blue
VERTICAL
2 off NR1 White
Wall bracket
model WB2
Wall bracket
model WB2 Wall bracket
model WB2
Wall bracket
model WB2
A
MINITUBE - VIBRATION ISOLATORS (SUITABLE FOR MT202 TO MT356)
RP.qxd 6/09/2012 1:18 PM Page 3

M
1~
LEN
M
1~
LEN
C
13
VA2.0 - VARIABLE SPEED SSC - 2 SPEED SWITCH
M
1~
LNE
Brown
Black
Blue
MT, MV & RP 202 - 356
INSTALLATION & MAINTENANCE
WIRING DIAGRAMS
SPEED CONTROLLERS (SUPPLIED AS OPTIONAL)
12
3
LNE
LNE
M
1~
12
3
LNE
MT132 & MV132
MV182Ex MV204Ex
Part No. : INST-MV-MT-RP 08/12
RP.qxd 6/09/2012 1:18 PM Page 4

Part No. : INST-MV-MT-RP 08/12
GOODS AND WARRANTY
