Fantom FM744H User manual

REPLACEMENT PARTS
IMPORTANT SAFETY INSTRUCTIONS
NAME OF EACH PART
PREPARATION BEFORE USE
USING THE VACUUM CLEANER
USING THE ATTACHMENTS
EMPTYING THE DUST COMPARTMENT

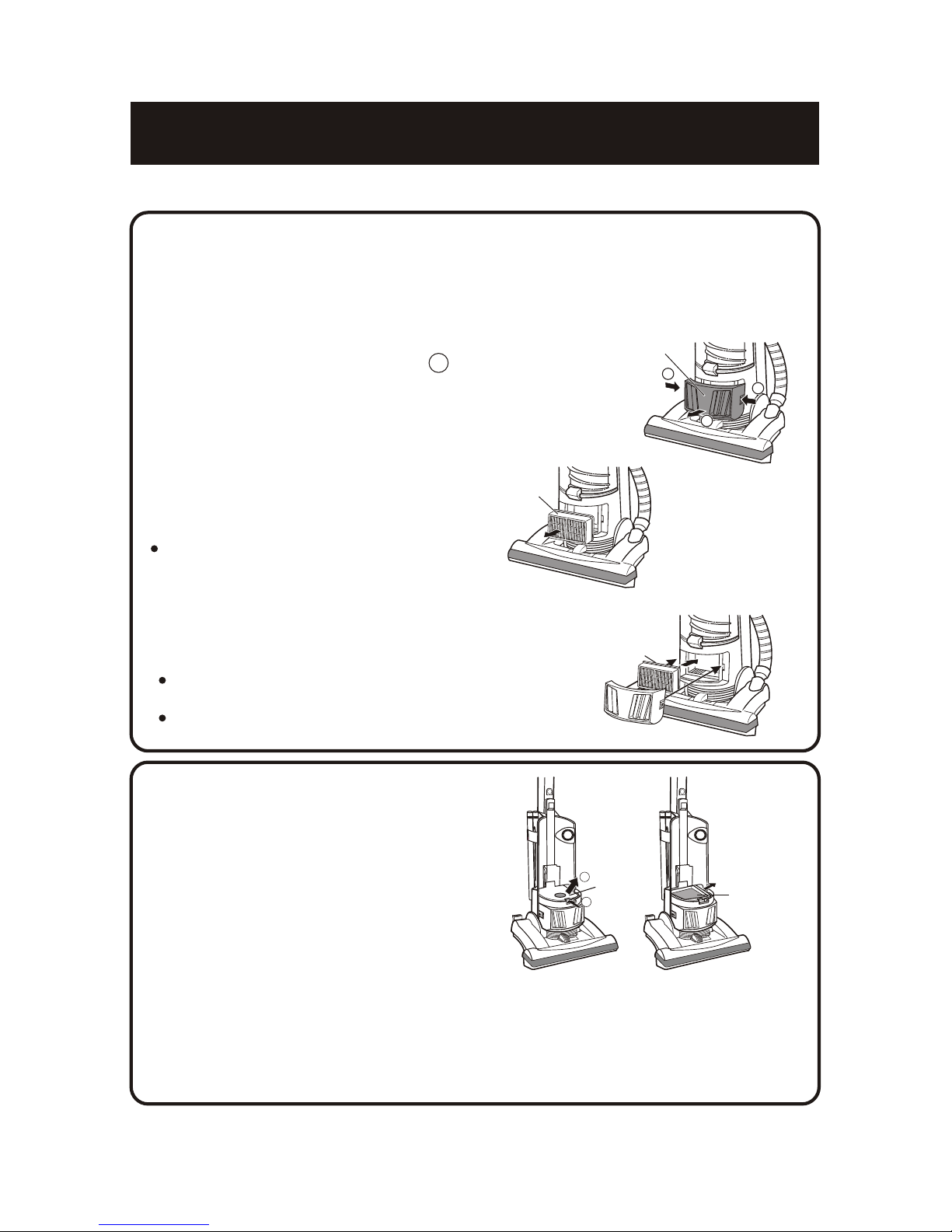

CLEANING THE FILTERS

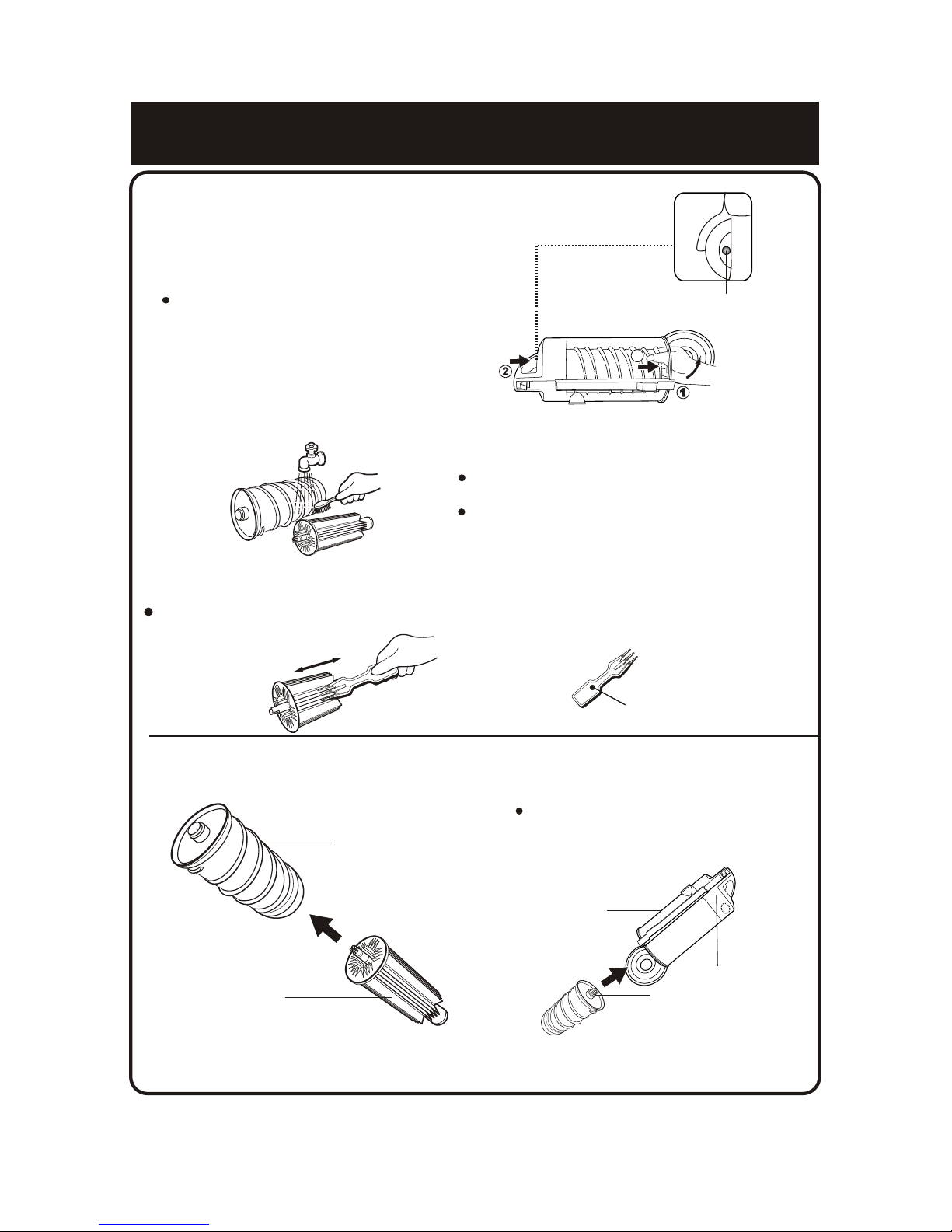

CLEARING BLOCKAGES IN THE
SUCTION HOSE AND CLEANING THE
AGITATOR ASSEMBLY
REPLACEMENT INSTRUCTIONS
TROUBLESHOOTING
LIMITED WARRANTY
Contents
1
3
4
6
8
11
12
13
14
18
18
19
FM744H
INSTRUCTION MANUAL
VACUUM CLEANER
HOUSEHOLD AND COMMERCIAL USE
AIR DRIVEN TURBO BRUSH
10

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following.
READ ALL INSTRUCTIONS
BEFORE USING THIS VACUUM CLEANER
WARNING -To reduce the risk of fire, electric shock or injury:
1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet
when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow vacuum cleaner to be used as a toy. Close attention is necessary
when used by or near children or infirmed persons.
4. Use only as described in this manual. Use only the manufacturer's
recommended attachments.
6. Do not pull or carry by the cord, use the cord as a handle, close a door on the
cord, or pull the cord around sharp edges or corners. Do not run the vacuum
cleaner over the cord. Keep the cord away from heated surfaces.
7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
8. Do not handle the plug or the vacuum cleaner with wet hands.
9. Do not put any objects into the openings. Do not use with any opening
blocked: keep free of dust, lint, hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers and all the parts of your body away from
openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes,
matches or hot ashes.
12. Do not use without dust compartment and filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline, or
use in areas where they may be present.
111Rev.08/04C
5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working
as it should, or if it has been dropped, damaged, left outdoors or dropped into
water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh, NY 12901.

16. Do not touch the agitator while it is spinning.
17. Do not place any heavy items on top of the vacuum cleaner.
18. Do not step on the hose or pull it too strongly.
19. Do not pick up items such as pieces of waste paper or cloth which looks as though
they may cause the hose to become blocked.
20. Do not clean or store the vacuum cleaner in places where there are high
temperatures.
21. Store the vacuum cleaner away from excessive humidity.
22. When carrying the vacuum cleaner, hold it by the carrying handle.
23. Before servicing the vacuum cleaner, allow all internal metal parts to cool first.
24. Always place foot on handle release when adjusting the handle position of the
vacuum cleaner.
25. If the supply cord of this appliance is damaged, it must only be replaced by
FANTOM, because special purpose tools are required.
26. Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
This vacuum is intended for household or commercial use.
Note to user concerning attachment plug:
2
This appliance must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment-grounding confuctor and
grounding plug. The plug must be isnerted into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as
to whether the outlet is properly grounded. Do not modify the plug provided with the
applince - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

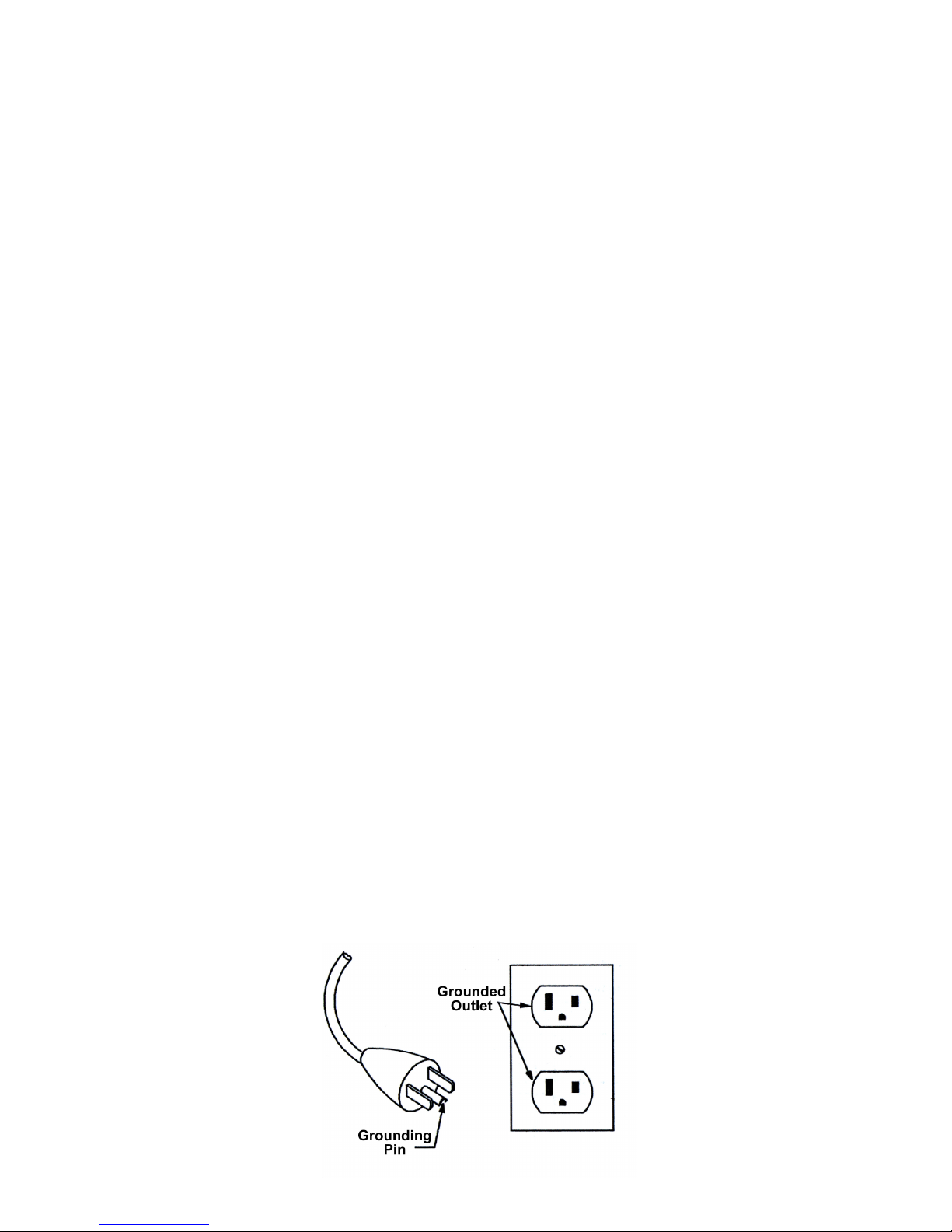

This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug
that looks like the plug illustrated below. Make sure that the appliance is connected to an
outlet having the same configuration as the plug.
Grounding Instructions

Set the ON/OFF switch
to " ON " to light the
headlight.
3
NAMES OF EACH PART
WARNING:
Operate vacuum cleaner only at the voltage specified on name plate.
FRONT REAR
Cleaning Utensil
Headlight
Handle
Suction
Hose A
Dust
Compartment
Carrying Handle
Duster Knob ON/OFF Switch
Release
Button A
Release
Button B
Release
Button C
Suction
Hose B
Filter
Cover
Wand
Handle Release
Lever
Power Cord
Upholstery Tool &
Dusting Brush
Power Cord
Plug
Crevice Tool
Hose
Holder
Rug/Floor (Tools)
SELECTOR
Holder
Mount
Cord Storage
Hooks
Plug shown in figure
may differ from actual
plug attached to unit
for your area.
Height Adjustment
Lever
H
Pet Hair
Attachment Adapter
Pet Hair Attachment
Extra Hose

Caution: Do not connect the power cord plug to the wall outlet until assembly
is completed.

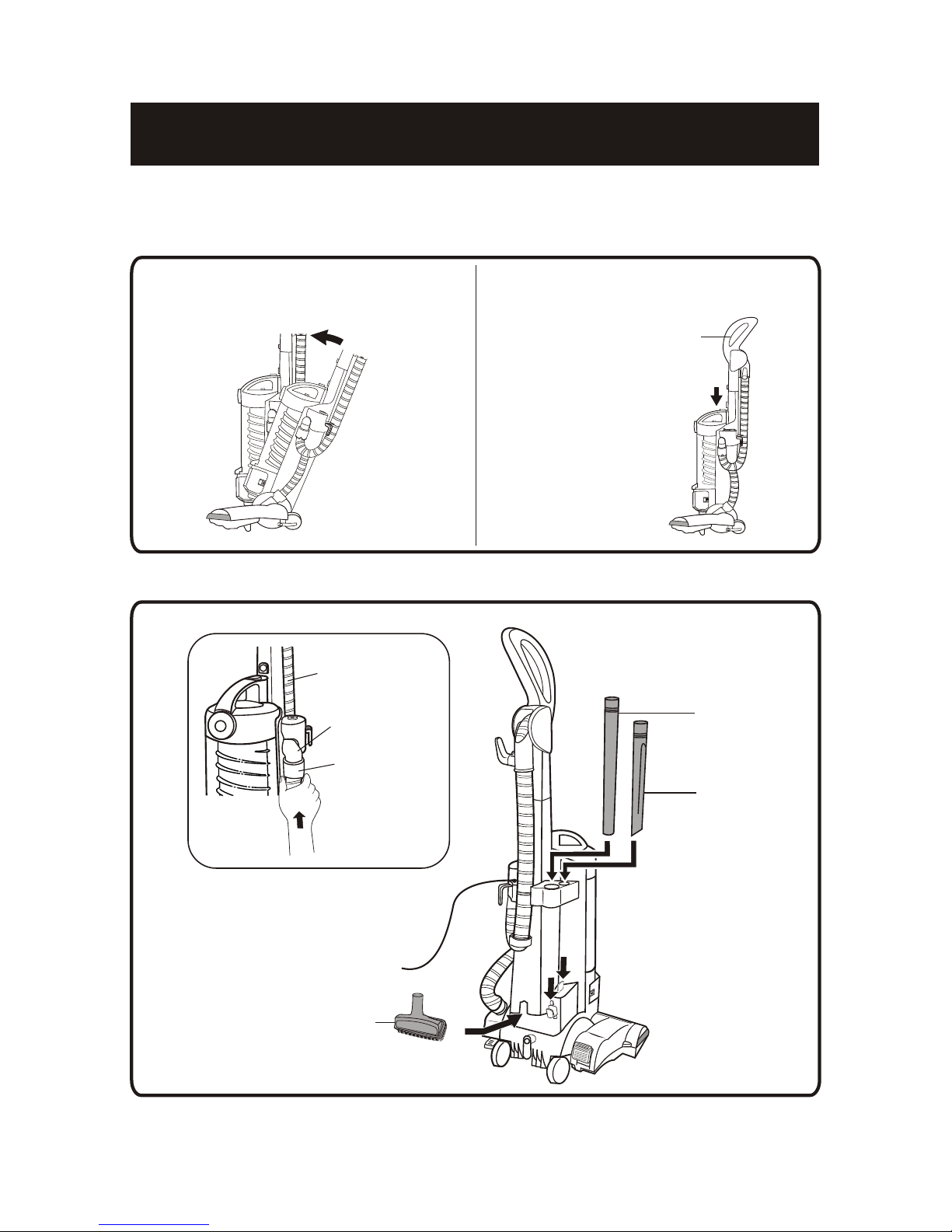

Attaching the handle
PREPARATIONS BEFORE USE
Attaching the suction hose A & attachments
4
12
Set the vacuum cleaner
to the upright position.
lnsert the handle
as shown in the illustration.
Handle
Wand
Crevice Tool
Upholstery Tool
& Dusting Brush
Hose Cuff
Suction Inlet
Suction Hose A

5
PREP ARA TIONS BEFORE USE
W IN DI NG T HE P OW ER C OR D
1
Wind the power cord around
the cord storage hooks.
Secure the power
cord plug on the
power cord.
Cord Storage
Hooks
T H E R MA L S A F E T Y D E V IC E I N M A IN B O D Y
To protect your vacuum cleaner motor from overheating, a thermal safety device has been
built in. If your vacuum cleaner hose or air intake clogs up with dust or dirt, or if your dust
bag becomes full and you continue to run the machine, the vacuum will shut off
automatically to prevent the motor from overheating. If this happens, turn off slide switch
and disconnect your vacuum from power outlet, remove the material clogging the machine
and let your vacuum cool down for approximately 45 minutes. You can then restart your
vacuum cleaner and use it again.
R E L E A S IN G T H E P O W E R C O R D
12
Rotate the upper cord
storage hook
downward.
Return the hook to the
upright position before
attempting to rewind
the power cord.
Upper Cord
Storage Hook
WARNING: This appliance is equipped with a
grounded-type 3-wire cord (3-prong plug). This plug
will only fit into an electrical outlet made for a 3-prong
plug. This is a safety feature. If the plug should fail to
fit the outlet, contact an electrician to replace the outlet.
Do not attempt to defeat the safety purpose of the
grounding pin, part of the 3-prong plug.
INSERTING THE POWER CORD PLUG

Parallel position
This position is used for cleaning under
furniture.
Handle Release Lever
Handle Release Lever
ON/OFF Switch
6
USING THE VACUUM CLEANER
ON/OFF SWITCH
Start or stop vacuum cleaner by pushing
on the switch.
ADJUSTING THE HANDLE
Upright position
The handle is normally locked in this
The handle of this vacuum cleaner can be set to one of
three positions -Upright, Normal, Parallel. Place your foot
on handle release lever as shown and pull back on the handle
until it releases from its upright position.
position for storage or when using the
attachments.
Push the handle forward
until it locks.
Normal position
This position is used for normal cleaning.
OFF ON

USING THE VACUUM CLEANER
EDGE CLEANING
This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges
near baseboards and stationary furniture.
7
1
2
RUG/FLOOR (TOOLS)SELECTOR
The RUG/FLOOR(TOOLS)selector should only be
adjusted while the vacuum cleaner is turned on
and in the upright position.
When cleaning a rug or carpet,first
turn the ON/OFF switch to the ON
position,and then set the RUG/
FLOOR(TOOLS)selector to the
RUG position.
When cleaning a bare floor or when using
one of the attachments,set the RUG/FLOOR
(TOOLS)selector to the FLOOR position.
Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum
cleaner is turned off.
Rug/Floor (Tools)
SELECTOR
RUG
FLOOR
(TOOLS)
RUG
Nozzle Head
Height AdjustmentLever
HEIGHT ADJUSTMENT LEVER
The nozzle head can be
adjusted to four different
height settings.
Set the height adjustment to the
appropriate carpet length.
rd
Use the 3 ( )height
setting.
TURN OFF BRUSH ROLL
WHEN USING TOOLS.
Before using the height adj-
ustment lever,please make
sure the nozzle head is tilted
backward from the floor.
Caution:

Caution: When using one of the attachments during cleaning,set the vacuum
cleaner to the upright position.
1
2
3
USING THE ATTACHMENTS
Press the release button C to
disconnect the handle from the
vacuum cleaner.
Remove the attachments from the
vacuum cleaner.
Caution:
When removing the attachments, pull
them in the directions shown in the
illustration.Pulling them in the wrong
direction or pulling them forcefully may
cause damage to the attachment clamp.
Attach the attachments as shown below.
8
Hook the hose holder onto the holder mount.
Caution:
Before using the attachments, please make sure
the hose is hooked on the holder mount.
Holder
Mount
Hose
Holder
When you have finished using the attachments,replace them
in their original positions as shown on page 4.
Tabs
Groove
Upholstery tool & Dusting brush
To detach the dusting brush from the upholstery tool: Press the
tabs on the brush downward to remove it.
To reattach the dusting brush to the upholstery tool: Insert
the front of the upholstery tool under the hook on the front of the
dusting brush. Press down on the back of the upholstery tool to
snap it into place under the dusting brush tabs.
Suction Hose A
Wand Crevice Tool
Upholstery
Tool
Dusting
Brush
Suction Hose B
Attach the attachments on the handle or
the suction hose B.
Handle
Caution: Before using the suction hose B,
please make sure the handle is
reattached on the body.
Attachment Clamp
Wand
Crevice Tool
Release
Button C

Pet Hair Attachment
USING THE ATTACHMENTS

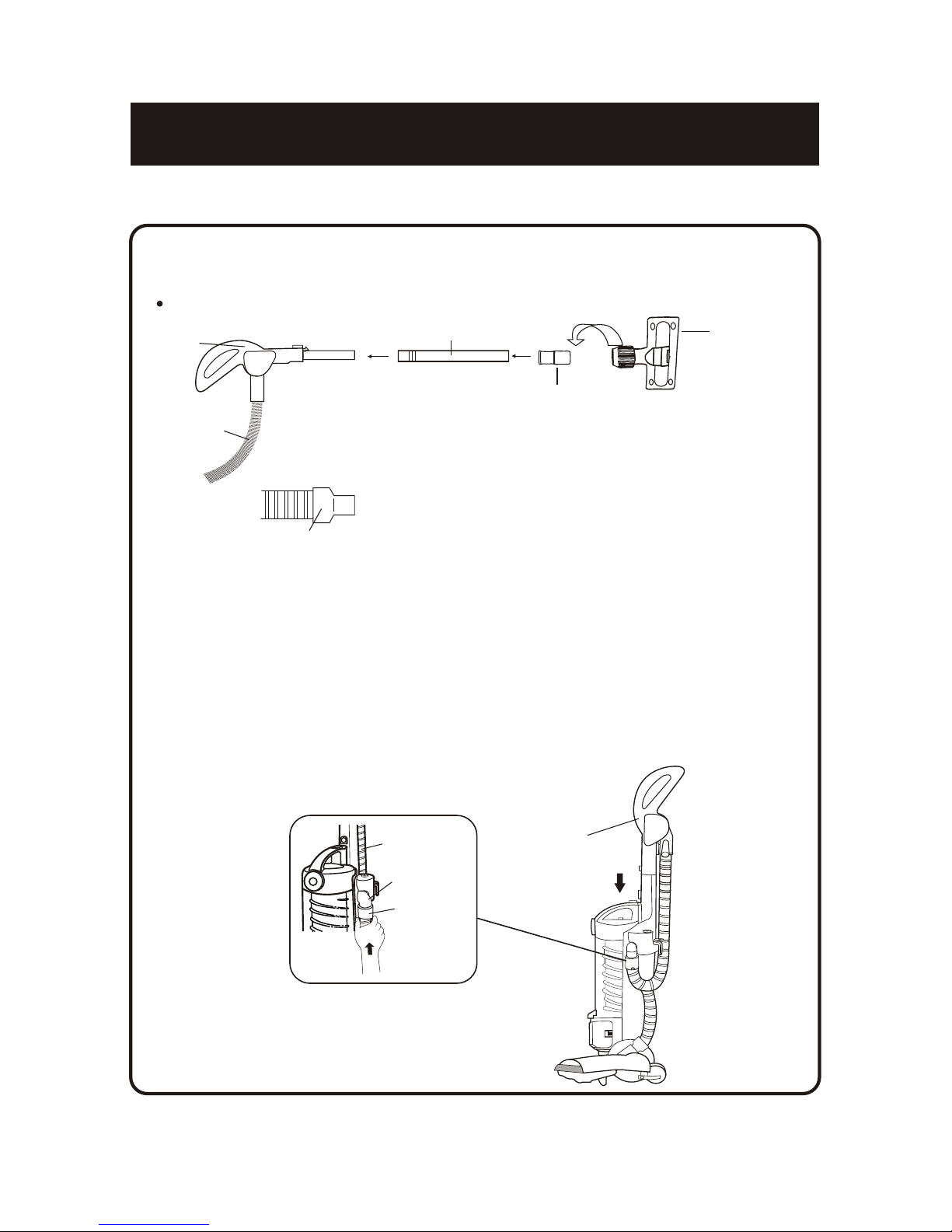

Assemble the attachments on the suction hose A or B.
Assemble the accessories as shown below
9
Caution: When using one of the attachments during cleaning,set the vacuum
cleaner to the upright position.
Suction Hose A
Wand
Suction Hose B
Handle
Caution: Before using the suction hose B,
please make sure the handle is
reattached on the body.
Adapter
Pet Hair
Attachment
Twist pet hair attachment cuff until it locks
1Press the release button C to disconnect the handle from the vacuum cleaner.
To attach the Pet Hair Attachment, twist the cuff on end of attachment onto the adapter
until it locks, then slide adapter into wand or into Suction Hose B.
To remove the Pet Hair Attachment, twist the cuff on end of attachment and pull to
release.
2
3
WARNING:Do NOT use Pet Hair Attachment on animals, this attachement
is intended for household cleaning only.
Hose Attachment
Hose Cuff
Suction Inlet
Suction HoseA Handle
Line up notches
push hose in till it
clicks.

AIR DRIVEN TURBO BRUSH
10
Using the Unit With Air Driven Turbo Brush
The efficiency of your Air Driven turbo brush depends on the bristle brush rotating at high speed.
Strong air suction is needed to accomplish this. In order to ensure that maximum air suction is
maintained, please read the following instructions:
1. Always empty the dust cup container frequently during use. Follow instructions on dust
container.
2. Ensur that the rotating brush is kept free of hair and string which may accumulate and
decrease brush performance.
3. Keep Air Driven Turbo Brush turbine free of dirt and foreign matter. (see illustration below
for cleaning instructions.)
IMPORTANT TURBO BRUSH INSTRUCTIONS
The efficiency of your Air Driven Turbo Brush depends on the bristle brush rotating at high
speed. Strong air suction is needed to accomplish this.
In order to ensure that maximum air suction is maintained, please read the following
instructions:
1) Empty the Dust Container frequently during use. Follow instructions for dust container.
2) Ensure that the rotating brush is kept clear of hair and string.
3) Inspect the turbine regularly to ensure that the air passage is free of dirt and debris.
From time to time, the turbine of your Turbo Brush will require cleaning. To do this:
1. Remove the turbo brush from the hose or extension tube.
2. Slide locking latch forward then tilt the top housing of the brush upwards. The top housing is
hinged and will tilt up approximately 45 only.
3. There may be some dust, lint, hair, etc on the turbine wheel. Remove as much of this as possible.
4. You may also use the unit's hose with crevice tool attached and use the vacuum to remove
any additional debris from the turbine.
5. Ensure that the turbine wheel moves freely by rotating it with your finger. If the turbine does
not rotate, call FANTOM Customer Service for help.
6. Once clean, close the top cover of the Turbo Brush and slide the locking latch toward the rear
of the brush to lock.
Cleaning Air Driven Turbo Brush
Your Air Driven turbo Brush may be used with either the extension tubes or the flexible hose.
Using The Unit With Air Driven Turbo Brush
Turbine
Locking Latch Tilt
Upwards

Projection
Groove
1
3
2
4
12
1
3
2
4
12
Trapdoor
Release Lever
Duster Handle
Turn the duster handle several times in the
direction shown to empty the dust
compartment.
EMPTYING THE DUST COMPARTMENT
Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the
power cord from the wall outlet before cleaning.
Empty the dust compartment when
contents reach the MAX mark.
Press the release button A meanwhile
press the release button B to remove
the dust compartment.
Press the release lever to open the
trapdoor.
Reattaching the Dust Compartment
Close the trapdoor and insert the projection on the
dust compartment into the groove on the main body.
Push the dust compartment into
the main body as shown to
reattach.
11
MAX mark
Release Button A
Release Button B
3

Remove the dust compartment.(refer to page 11)
Clean the filter fins free of dirt with the forked end of cleaning utensil as shown.
Prefilter
Dust Compartment
Ribs
Main Filter
1
1
CLEANING THE FILTERS
2Set the dust compartment to the parallel
position.Open the trapdoor,then push the
release button E and pull out the main
filter.
3Clean the main filter and prefilter with a soft-bristled brush (not included) and
rinse with cold water. Allow both items to dry completely for 24 hours.
Caution:
Do not use a hard-bristled brush to clean filters.
This may result in damage to the filters.
Do not attempt to dry with a hair dryer or by
placing in a clothes dryer.Hot air may cause the
filters to warp.
Reattaching the filters
Insert the main filter into the
prefilter as shown.
12
The main filter and prefilter will be
removed at the same time.
2Hold onto the main filter and insert into
the dust compartment.
Align the ribs of the main filter to match
the shape of the opening in the dust
compartment and press firmly to insert.
Hole
3Close the trapdoor.
Cleaning Utensil
Caution: Do not push the release
button E at the upright position.
As this may drop or damage the
main filter and prefilter.
To maintain optimum suction power, the dust filter fins should be kept clean of dirt.
Cleaning Utensil
Release Button E
3
NOTE: We recommend replacing the main filter every three (3) to six (6) months, depending
on the amount of use

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect
Cleaning the agitator assembly
1
2
3
CLEARING BLOCKAGES AND CLEANING
THE AGITATOR ASSEMBLY
the power cord from the wall outlet before clearing any blockages in the
suction hose and cleaning the agitator assembly.
Cleaning blockages
Remove the bottom plate(refer to page 16)
Remove any blockages from the nozzle head.
Reattach the bottom plate to the nozzle head, and then operate the vacuum cleaner
to check that the blockage has been properly cleared. If the nozzle head is still blocked,
the suction force will be weak.
Cleaning blockages in the nozzle head
When threads get caught in the agitator assembly, clean the assembly.
Remove threads caught in the assembly by cutting them
with scissors.
13
Remove the bottom plate(refter to page 16)
Set the vacuum cleaner to the upright position.
Remove the hose cuff from the suction inlet and
then remove any blockages from the hose.
Reattach the hose cuff to the suction inlet,and
then operate the vacuum cleaner to check that
the blockage has been properly cleared.If the hose
is still blocked,the suction force will be weak.
1
2
3
Hose Cuff
Suction Inlet
Suction Hose A
Cleaning blockages in the suction hose A, B
When the suction hose A, B or Nozzle head is
blocked, the bypass valve will be opened
automatically to protect the motor, resulting
in the suction force being reduced. The bypass
valve will be at its original position automatically
after the blockage is removed.
Caution: Bypass Valve
(Inside)
Threads
Scissors
Nozzle Pipe
Nozzle Head

REPLACING THE HEADLIGHT LAMP
REPLACEMENT INSTRUCTIONS
Caution: Be sure to turn the ON/OFF switch to the"OFF" position and disconnect the
power cord from the wall outlet before replacing any of the parts below.
1Set the vacuum cleaner to the parallel position.
2
Loosen the screws to remove the lens.
3
When removing the headlight lamp, be careful
not to pull on the headlight lamp wiring.
4
Remove the lamp by pushing it gently in
the direction of the arrow and then turning
it counterclockwise.
5
Push a new lamp gently into the socket and
turn it clockwise to tighten it .
Use a standard bayonet base appliance lamp
rated at 120V and 15W (LAMP MAX.15W).
Caution: Be careful not to clamp the
headlight lamp wiring.
6
Reattach the lensand fasten the screws.
14
Socket
Screw
Lens
Headlight Lamp
2
1
Socket
2
1

Place a new flat belt onto the motor shaft and pulley.
1
2
3
4
5
REPLACEMENT INSTRUCTIONS
Caution: Be sure to turn the ON/OFF switch to the"OFF" position and disconnect the
power cord from the wall outlet before replacing any of the parts below.
REPLACING THE FLAT BELT
Remove the bottom plate.
(refer to page 16)
Lift out the agitator assembly, and then remove the flat belt from the motor shaft and
the agitator pulley.
Place the agitator assembly into the grooves in the nozzle head, making sure that the new
flat belt slides securely into the guide.
Caution:
Install the flat belt so that it has no
twists in it, and so that all components
turn smoothly.
Reattach the bottom plate
(refer to page 16)
Motor Shaft
Flat Belt
Motor Shaft
Flat Belt
Flat Belt
Pulley
Bearing Holder
Groove
Nozzle Head
15

16
1
1
REPLACEMENT INSTRUCTIONS
REMOVING THE BOTTOM PLATE
Set the vacuum cleaner to the
parallel position and turn it over.
REATTACHING THE BOTTOM PLATE
Insert the projection on the bottom plate
into the groove on the nozzle housing
and set the bottom plate in place.
3Turn the vacuum over and place in the upright position.
Bottom Plate
Projection
Groove
2
2
Loosen
Screw
Using a Philips screwdriver, loosen
the screw on the bottom plate.
Lift the bottom plate off.
Re-tighten the screw using a Philips
screwdriver.
3
Tighten
Screw

Filter Cover
Seal
Caution:
Be sure that seal on the HEPAfilter is inserted
towards the inside of the vacuum cleaner.
The filter cover should be correctly oriented
when it is reattached. Do not reattach it upside down.
3
Insert a new HEPAfilter with the seal
to the inside of the vacuum cleaner.
Reattach the filter cover.
Caution:
Always replace the old filter with a new one.
2
Remove the HEPAfilter.
Under normal usage, the HEPAFilter will require replacement once every
three (3) months, however, vacuuming large amounts of extremely fine dust,
powder or similar material over a long period of time may decrease airflow
performance through the filter. If this occurs, it may become necessary to
replace the HEPAFilter more often. Only use genuine FANTOM
replacement filters.
17
REPLACEMENT INSTRUCTIONS
REPLACING THE FILTER
Caution: Do not wash the sub-filter in a washing machine, and do not use any other equipment
such as a hair dryer to dry it. Always allow 24 hours for drying. Do not operate
the vacuum without the sub-filter. Be sure the sub-filter is dry and properly installed.
Failure to do so could result in electrical shock, personal injury, or motor failure.
CLEANING THE SUB-FILTER
Clean the sub-filter when it becomes dirty.
Remove the dust compartment
(refer to page 11).
Remove the air inlet cover.
Remove the sub-filter from the vacuum cleaner.
Gently clean the sub-filter with water.
Make sure that it is completely dry and
then re-install it into the vacuum cleaner.
Replace the air inlet cover and the dust compartment.
1
2
3
4
1
and pull the filter cover away from the
vacuum cleaner.
1
Press in the locking tabs at points
Do not attempt to wash the HEPAfilter.
Note: We recommend replacing the sub-filter every three (3) to six (6) months, depending on usage.
11
11
22
HEPA Filter
22
11Sub-Filter
Air Inlet
Cover

If there is a problem with the vacuum cleaner, carry out the following checks
to find the cause. If the problem still persists after the checks have been made,
do not use the vacuum cleaner to prevent the possibility of an accident occurring.
Turn the ON/OFF switch to the "OFF" position, disconnect the power cord from the
wall outlet, and contact FANTOM Customer Service at 1-800-275-9251.
Or visit our website at www.fantom.com
9BF-D-P111-00728 0408-
TROUBLESHOOTING
Problem Cause Remedy
The motor does not operate
when the ON/OFF switch is
set to the "ON" position.
Suction force is weak.
The agitator does not
operate.
The power cord plug is not
securely inserted into the
wall outlet.
Insert the power cord plug
securely into the wall
outlet.(refer to page 5 )
18
The dust compartment is full.
The suction hose is blocked.
The filters are dirty.
The nozzle head is blocked.
Empty the dust compartment.
(refer to page )
11
Remove the blockage.
(refer to page 13)
Clean the filters.
(refer to page 12)
Remove the blockage.
(refer to page 13)
The nozzle air inlet pipe is
blocked. Remove the blockage.
(refer to page 13)
TO ORDER REPLACEMENT FILTERS CALL 1-800-275-9251
E
The bypass vavle is opened.
The flat belt is worn or
broken.
Replace the flat belt.
(refer to page 15)
Remove the blockage.
(refer to page 13)
(refer to page 17)
